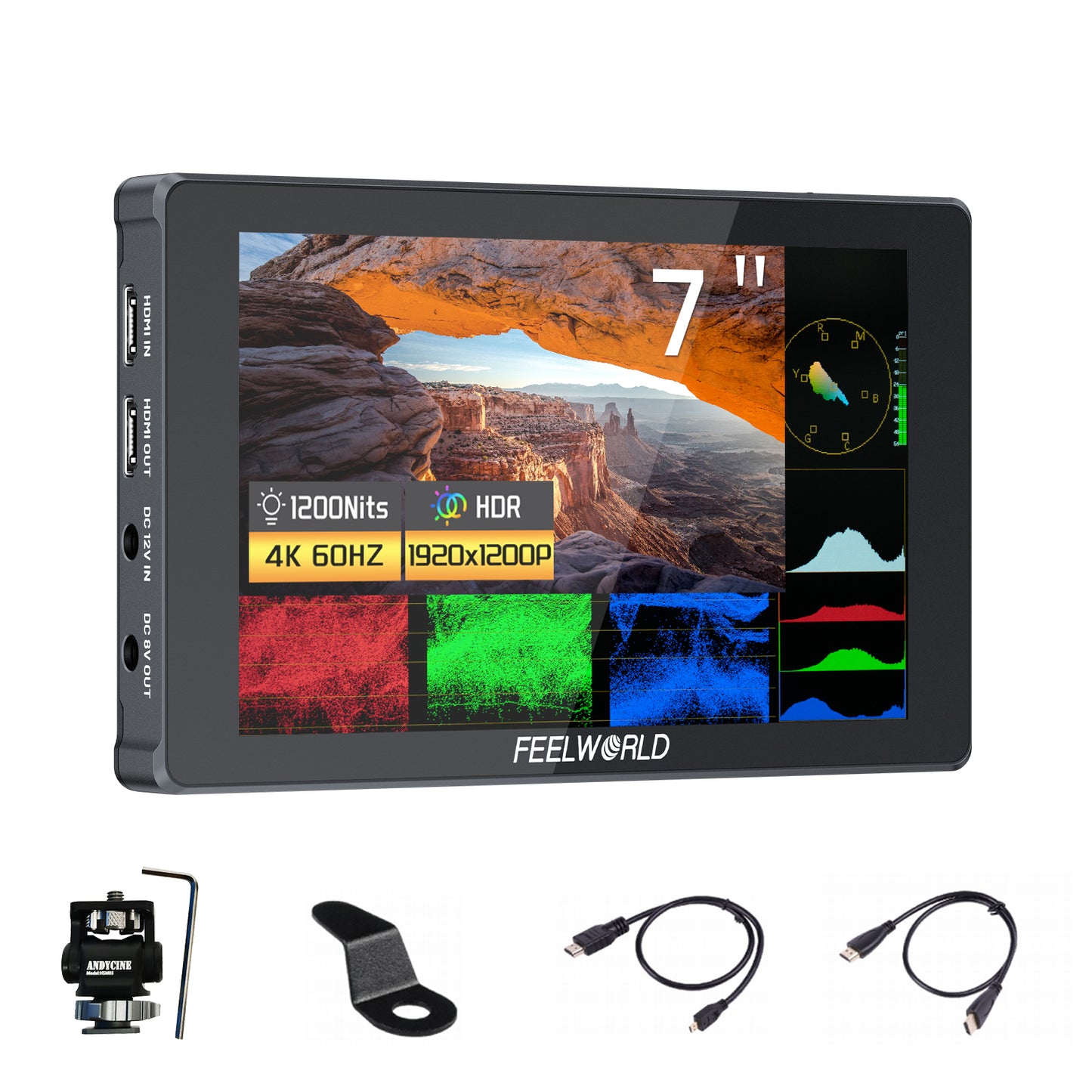

FEELWORLD F7 PLUS 7-Inch DSLR Camera Field Monitor Touchscreen 4K HDMI High Brightness 1200nit NP-F External Install and Power Kit



Overview

Monitor up to UHD 4K video with the F7 Plus 7" Touchscreen HDMI Field Monitor. Compact in design, this 7" display fits on top of your camera or handheld rig to provide crisp video monitoring with a 1920 x 1200 resolution. It features HDMI input and output that supports up to DCI/UHD 4K resolutions.

The monitor features an L-series battery plate on the back, and it can also be powered via USB-C or DC barrel inputs. There is also a DC barrel output to power your camera or accessories, and a mounting block on the back makes it easy to connect a wireless receiver to the back. There are numerous built-in image tools to ensure accuracy, such as vectorscope, histogram, and RGB parade.

Key Features

• 7" 1920 x 1200 Touchscreen Monitor
• HDMI Input and Output
• Accepts SD, HD, and DCI/UHD 4K Video
• High 1200 cd/m² Brightness
• 1200:1 Contrast Ratio
• L-Series Battery Plate and DC Output

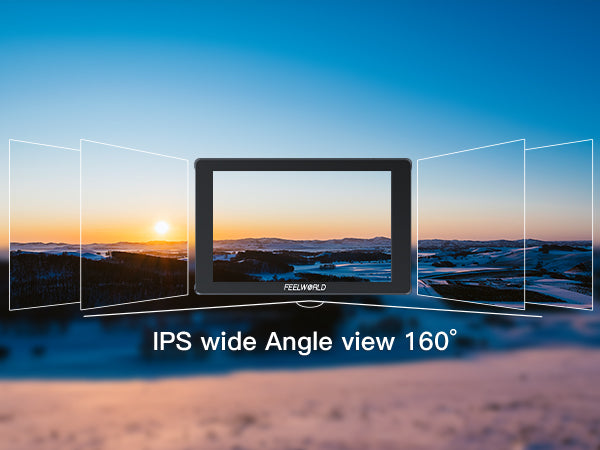

• 160° Viewing Angle
• Multiple Built-In Imaging Tools

4K HDMI On-Site Monitor

FEELWORLD F7 PLUS is a 7-inch high-brightness touchscreen camera monitor. HDMI supports up to 4K60Hz, allowing you to experience the smoothness of high-speed transmission. There is an NP-F external install and power kit on the rear of the F7 PLUS, which can accommodate wireless transmission, LED lights, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, which is perfect for director monitoring, 1st AC to focus pulling in the film crew.

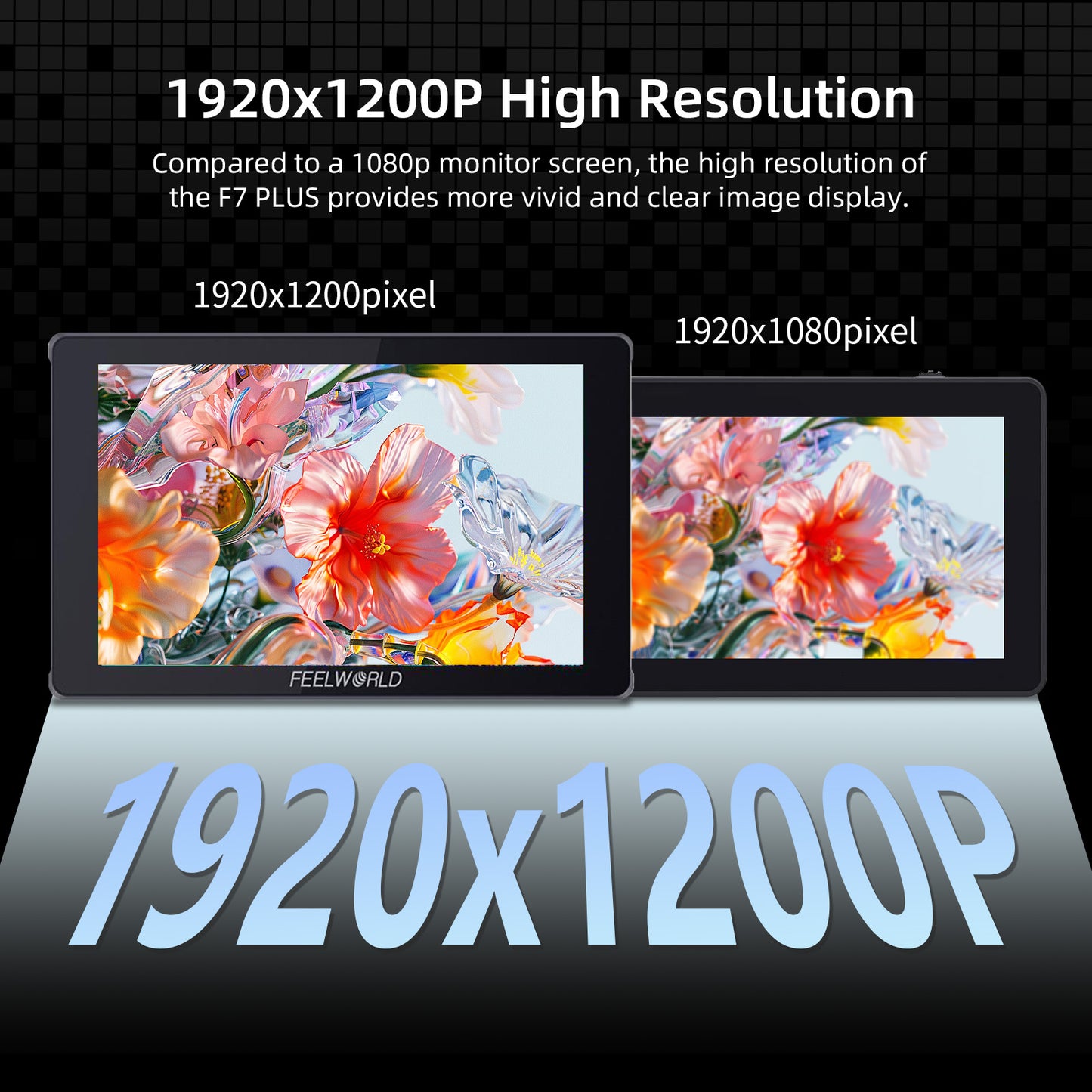

7-inch Full HD Screen

Clearly checking and capturing every nuance

With an extremely high-resolution 7-inch IPS panel, it provides excellent details and accurately reflects the original colors. Wide viewing presents a more detailed image.

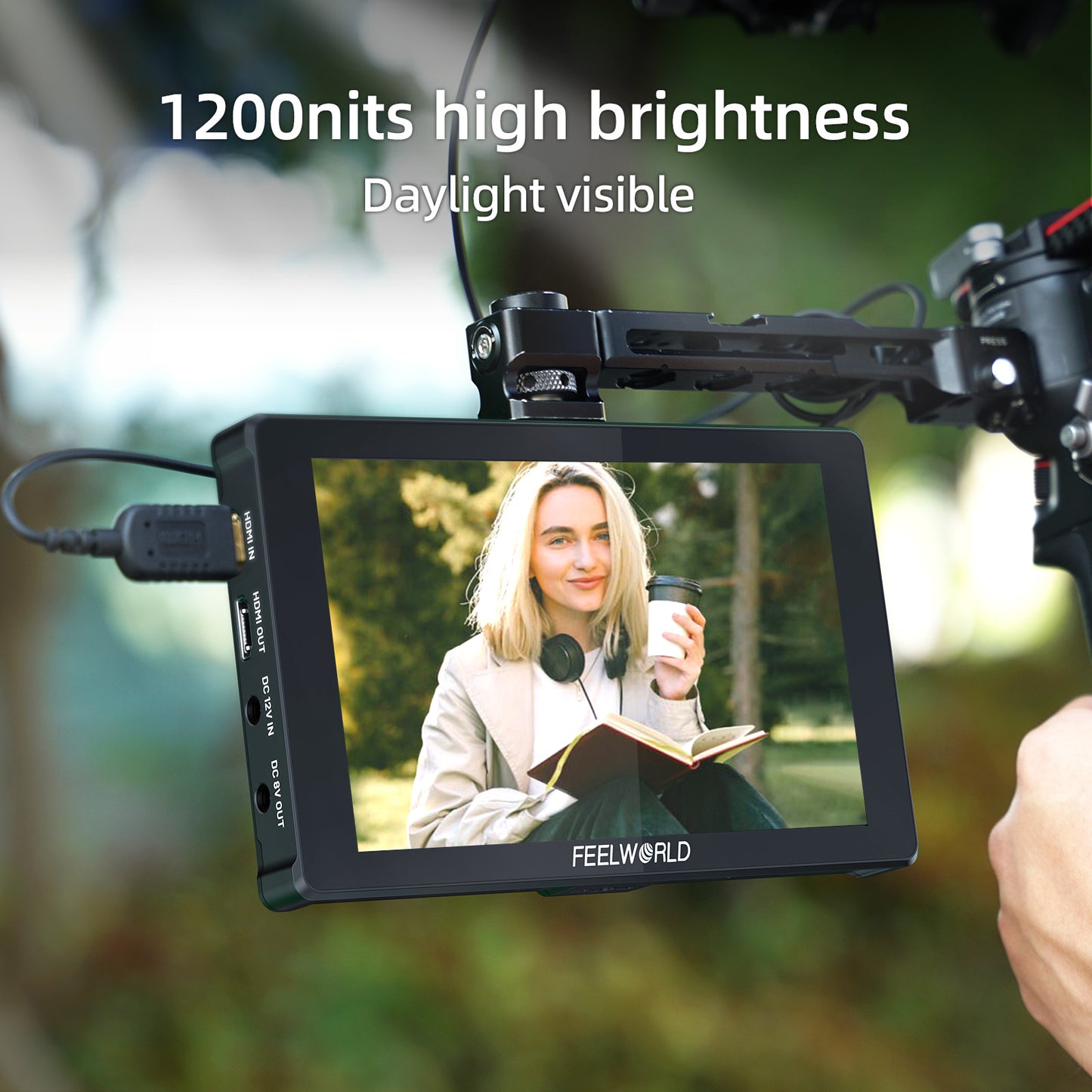

1200nit, Daylight Viewable

High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

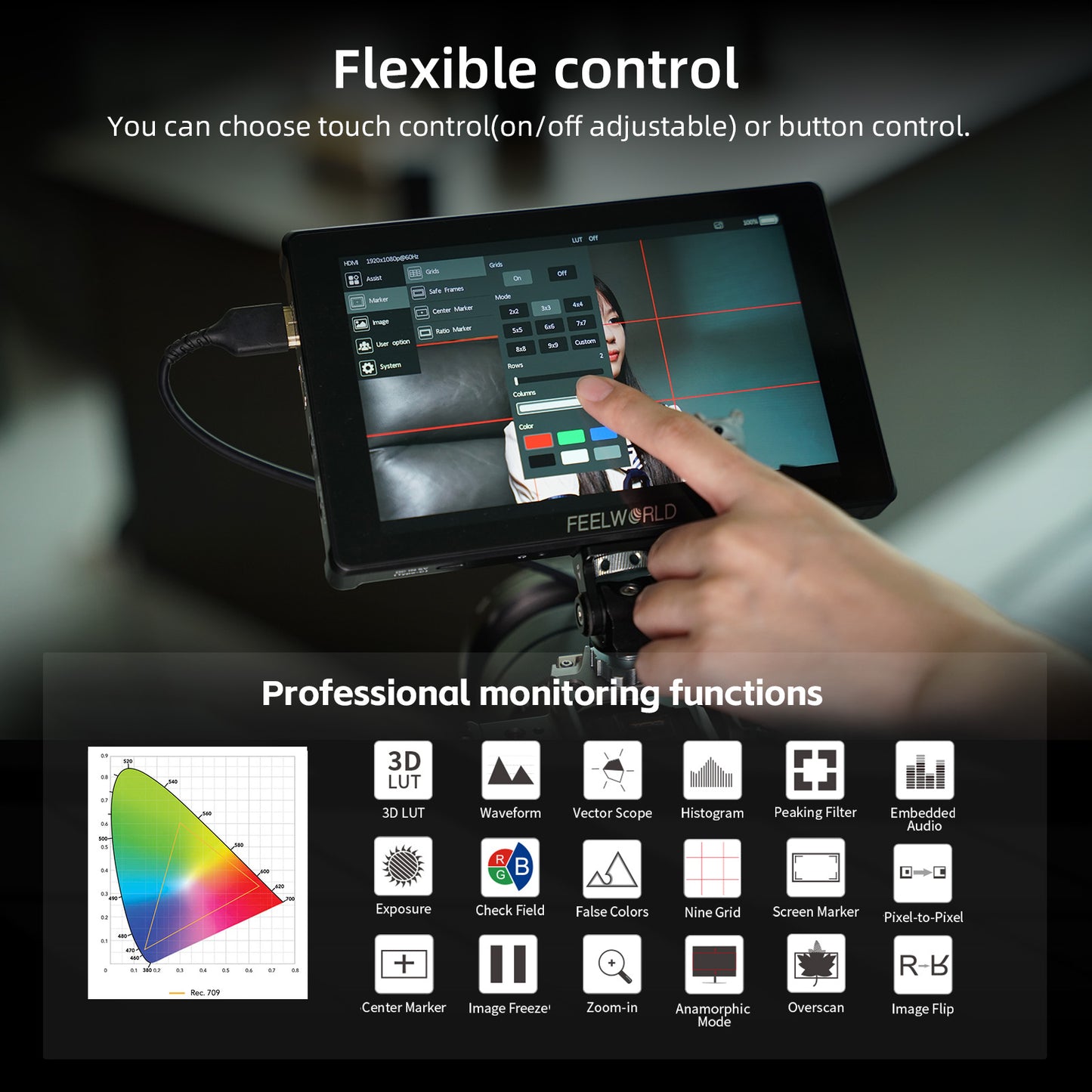

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Menu User Switch

F7 PLUS provides 4 group menu settings saving. You can select 1~4 groups after setting the menu, it will save automatically, and can be called directly or switch next time.

Full Range of Auxiliary Functions

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Supports uploading 32 custom LUTs

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via SD card (up to 32). Insert the SD card slot of the monitor.

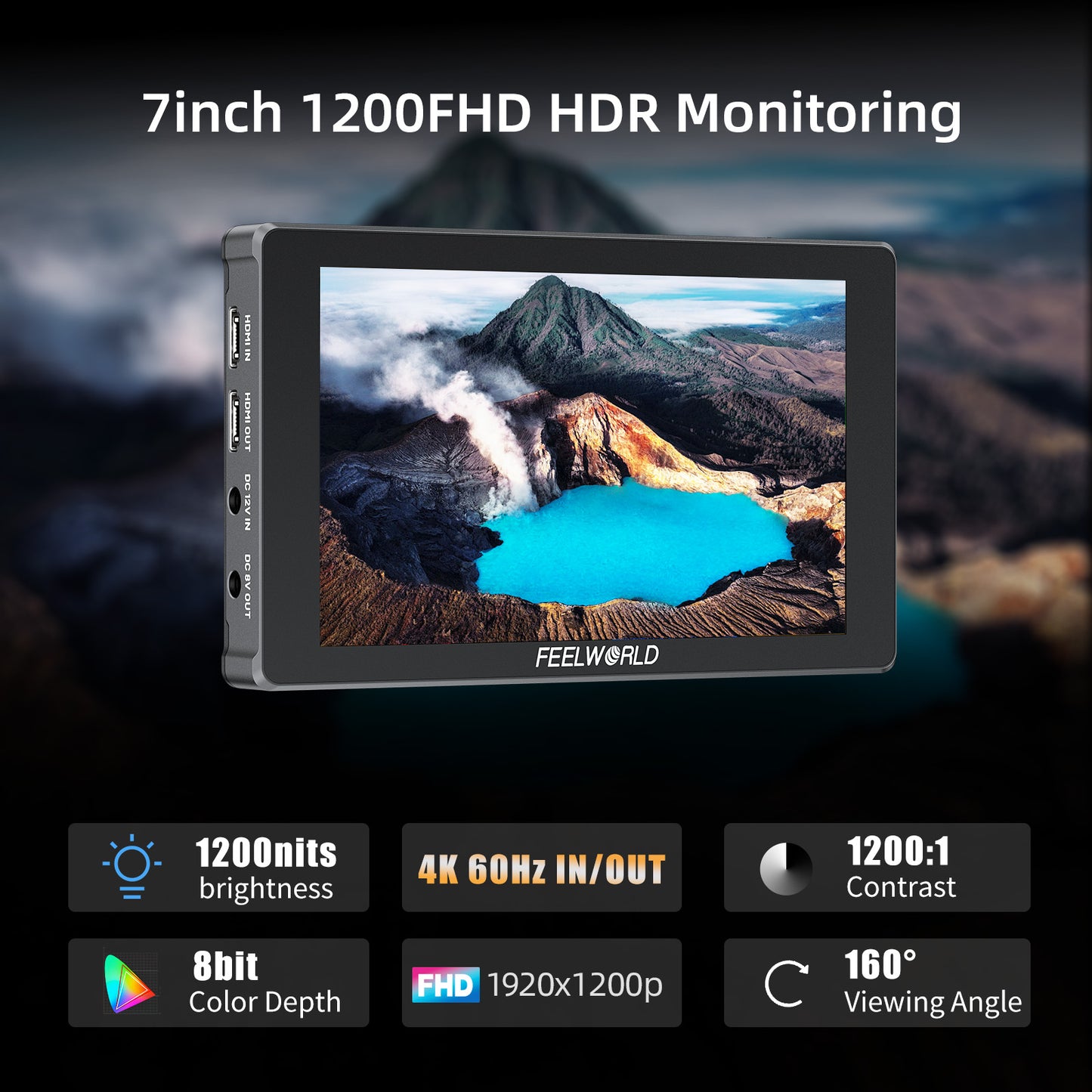

HDR Monitoring

What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly, and it better reflects the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

Accurate waveform monitoring

Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. F7 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

4K HDMI Input and Output, High Speed Transmission

Equipped with 4K HDMI input and output, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

NP-F External Install and Power Design, Simplify Your Filming Equipment

A Sony NP-F external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter, and others that can be powered by a Sony NP-F battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light, and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming equipment.

DC 8V OUT, Power Your DSLR or Mirrorless Camera

F7 PLUS provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power cable plug), allowing shooters to power their cameras. With a battery adapter cable (optional), the F7 PLUS extends camera run-time while providing a more usable display.

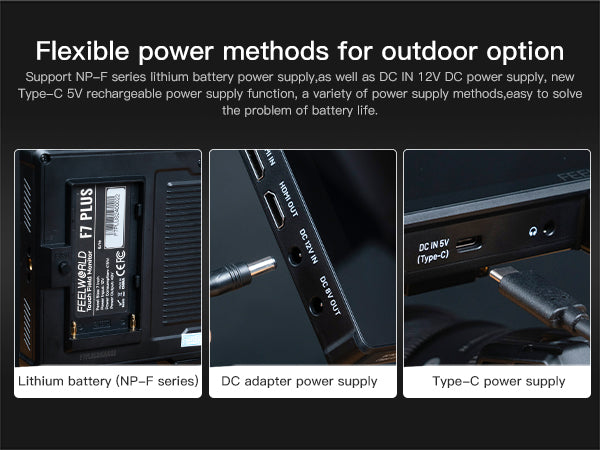

Multiple Power Supply, Long-lasting Power for Shooting

You can connect to the DC power input to get continuous power （suitable for use 1.5A or 2A power adapter, DC 5.5*2.1mm power cable plug) or use the standard NP-F battery plate to install an NP-F series battery for mobile applications. Install one F750 battery (4400mAh) lasts for about 2 hours. The monitor also provides a 5V Type-C input, which can be powered by a mobile phone charger or a power bank. (At least 5V/2A).
Note: the battery is excluded; please purchase separately.

11 Languages Supporting

F7 PLUS is built in up to 11 languages, which means F7 PLUS is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

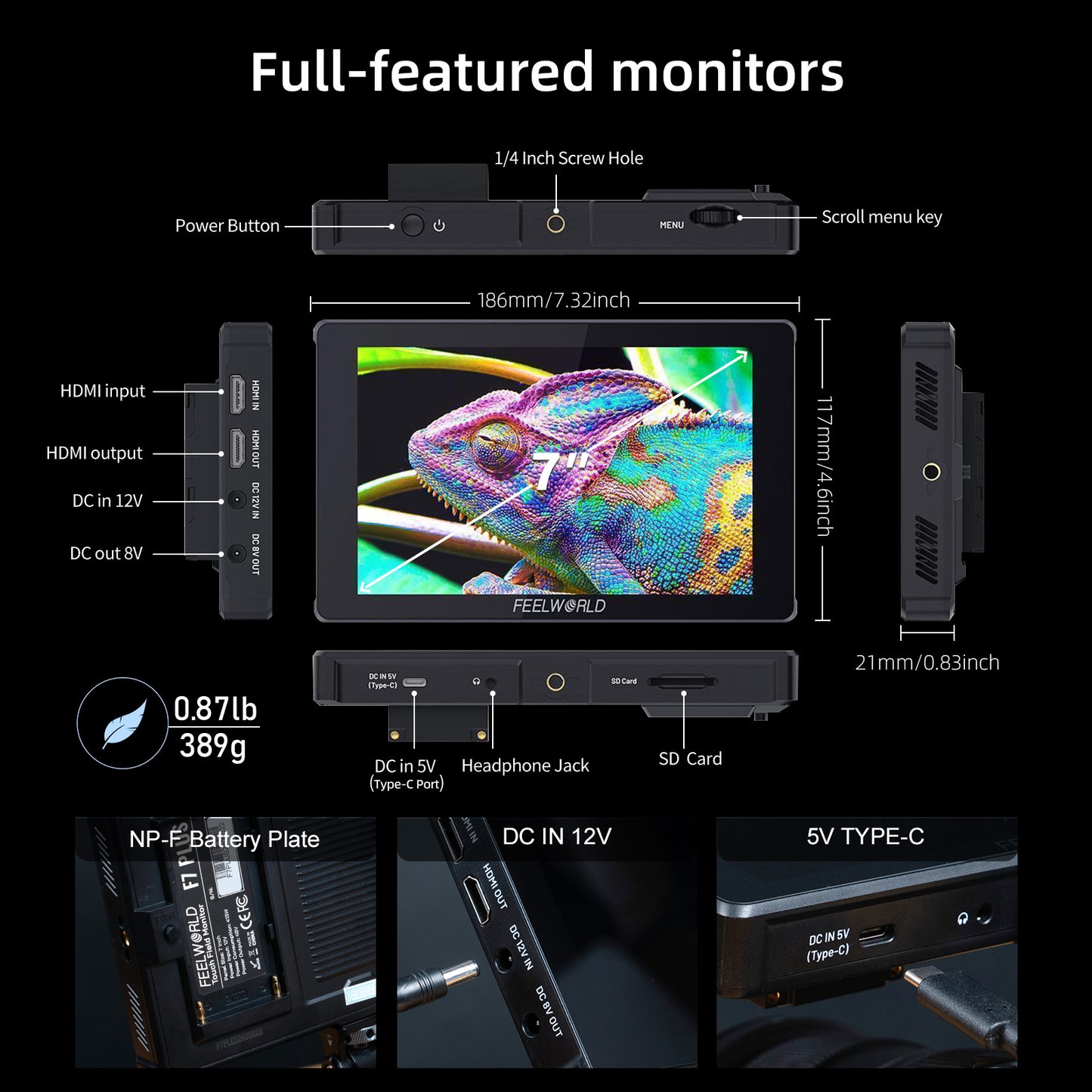

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor is equipped with 3 standard 1/4” mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for a photographer or director.

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

Portable Sun-hood

The standard portable sun-hood can easily resist the strong light, and is easy to install.

HDMI Cable type reference for matching different camera models

Specifications

Model	F7 PLUS
Screen Size	7" IPS
Resolution	1920x1200 pixels
Pixel Pitch	0.07875 (H) × 0.07875 (W) (mm)
Aspect Ratio	16:10
Brightness	1200cd/m²
Contrast Ratio	1200:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input

1 X HDMI	HDMI 2.0
1 X DC	DC IN 12V (suitbale for Barrel DC5.5*21mm power plug)
1 X USB	5V Type-C (please use 5V/2A or more than 2A Type-C power supply)
1 X SD	SD Card Slot (Firmware update/LUT file upload)

Output

1 X HDMI	HDMI 2.0
1 X DC	DC OUT 8V (suitbale for Barrel DC5.5*21mm power plug)

Audio

Audio

3.5mm Stereo Headphone

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840x2160p (60/50/30/29.97/25/24/23.98)

4096×2160p (60/50/30/29.97/25/24/23.98)

General

Input Voltage	DC7～24V
Power Consumption	≤15W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	1/4"-20 Thread Socket (right, top, bottom)
Unit Size	186x117x21(mm)
Unit Weight	389g
Color Box Size	222*158*76(mm)
Outer Carton Qty	10
Outer Carton Size	450*234*385 (mm)
Gross Weight	9.5kg

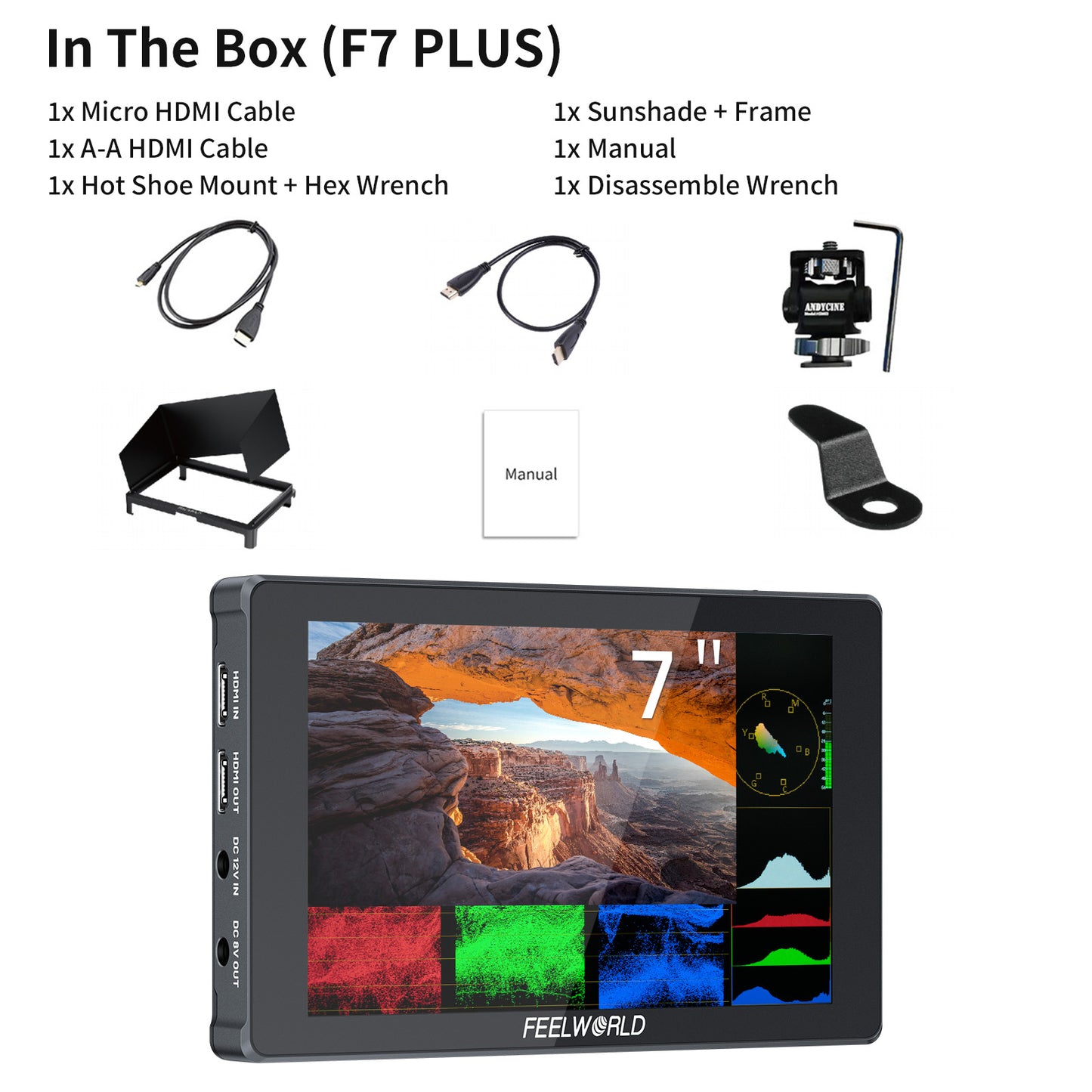

In The Box

Standard package

1× Monitor
1× A-A HDMI Cable
1× Micro HDMI Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× Disassemble Wrench
1× Sunshade
1× Manual

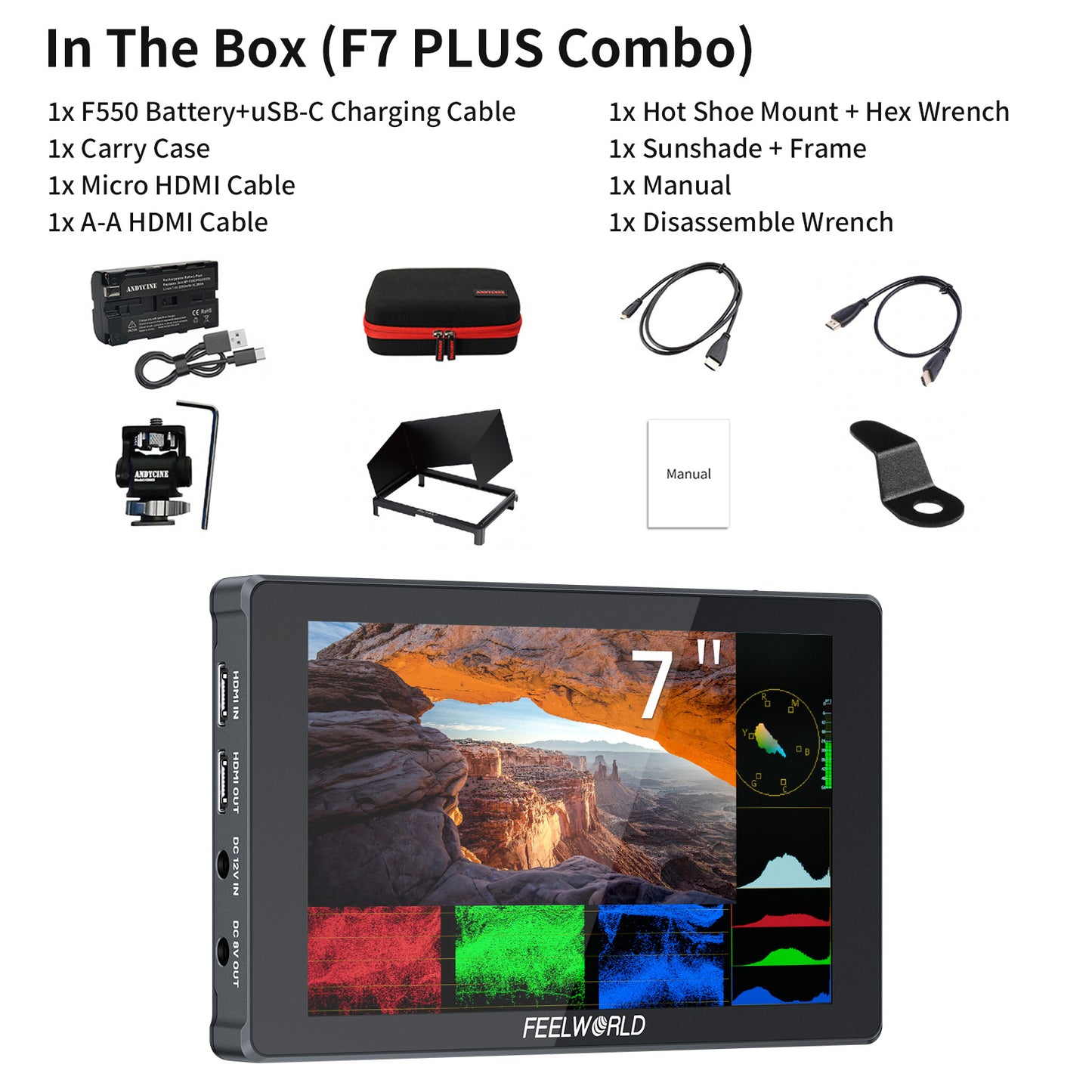

Combo package

1× Monitor
1× A-A HDMI Cable
1× Micro HDMI Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× Disassemble Wrench
1× Sunshade
1× F750 Battery
1× Case
1× Manual
