FEELWORLD D101 PLUS / D101 PLUS-H Dual 10.1"4RU Rack Mount Monitor 4K HDMI CVBS 1920x1200IPS

Overview

The FEELWORLD D101 PLUS features two 10.1" 1920 x 1200 resolution displays in a slim, 4 RU rackmount unit. The rear panel has HDMI, 3G-SDI, and composite BNC input and output ports, as well as two sets of RCA audio inputs, for each display. HDMI input signals up to 4K24 and 3G-SDI signals up to 1080p60 are supported. A single tally port connects to the 3-color tally light kit to show which stream is live on the front panel.

A headphone output makes for easy audio monitoring. For power, the D101 PLUS has both a DC barrel input with an included power adapter and a 4-pin XLR input. Upload custom 3D LUTs or utilize the comprehensive library of video assist functions to ensure your footage achieves your desired look. A redesigned menu interface with onboard buttons makes for intuitive control. A LAN port offers the option for remote control.

Key Features

• Two 10.1" 1920 x 1200 Displays
• HDMI and Composite BNC I/O
• 3G-SDI (D101 PLUS)
• Up to 4K24 HDMI Input
• LAN Connection for Remote Control
• RCA Audio Inputs, Headphone Output
• 80/80° Viewing Angle
• Tally Port, 3-Color Tally Lights
• DC Barrel / 4-Pin XLR Power Ports
• 500 cd/m² Brightness, 1500:1 Contrast
• Comprehensive Video Assist Functions

D101 PLUS-H: Perfect Video Monitoring Solution

FEELWORLD D101 PLUS-H is ideal for broadcast monitoring; it features CVBS,4K HDMI, and more video interfaces, and has 2 independent 10.1-inch displays that can monitor two different cameras simultaneously. All D101 PLUS-H include Ethernet, so you can connect them to your network and centrally control all your monitors from a single computer. It is easy to install in a video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on-set monitoring, flyaway kits, broadcast trucks, and more.

D101 PLUS: Perfect Video Monitoring Solution

FEELWORLD D101 PLUS is ideal for high-end broadcast monitoring. It features 3G SDI,4K HDMI, and more video interfaces and has 2 independent 10.1-inch displays that can monitor two different cameras simultaneously. All D101 PLUS include Ethernet so you can connect them to your network and centrally control all your monitors from a single computer. It is easy to install in a video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on-set monitoring, flyaway kits, broadcast trucks, and more.

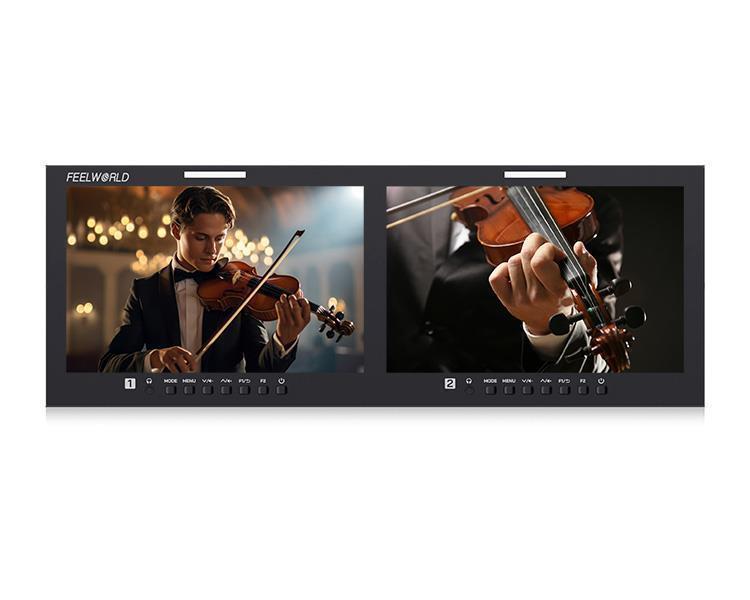

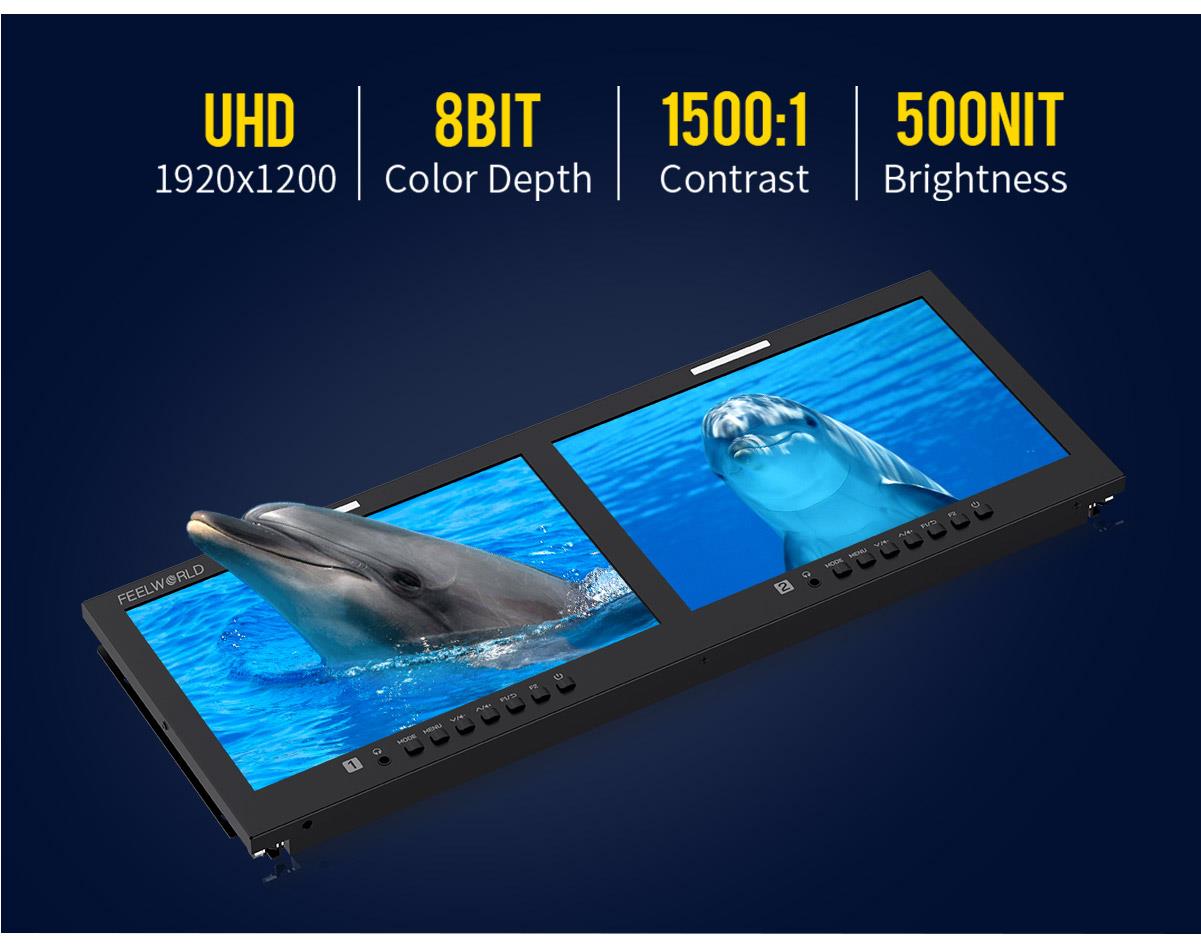

Dual 10.1-inch Full HD Screen

Clearly checking and capturing every nuance
D101 PLUS and D101 PLUS-H are equipped with dual independently 10.1-inch high-resolution IPS panels, 160° wide field of view, and clearly present a more detailed image. 8-bit color depth with 16.7M colors display.

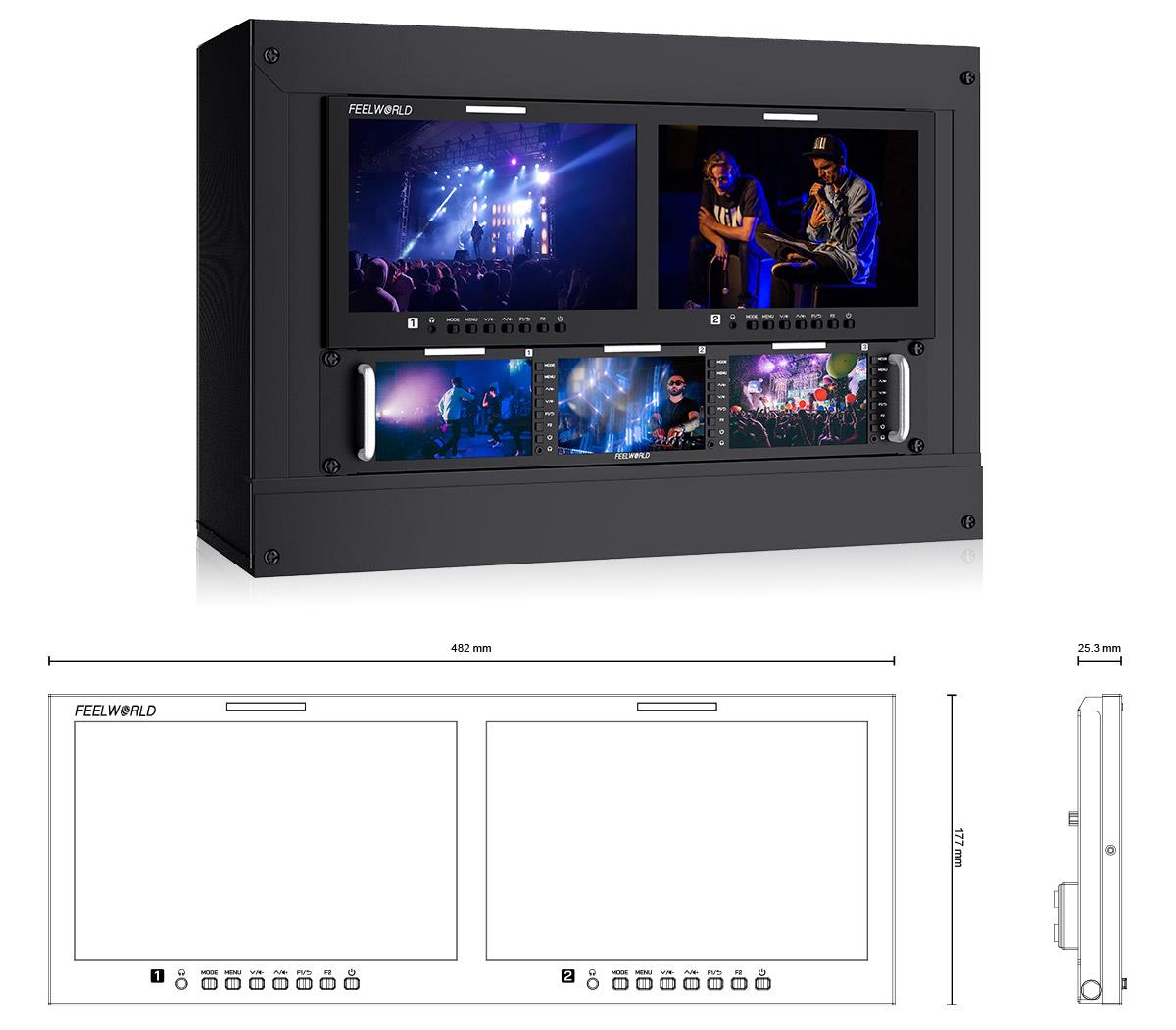

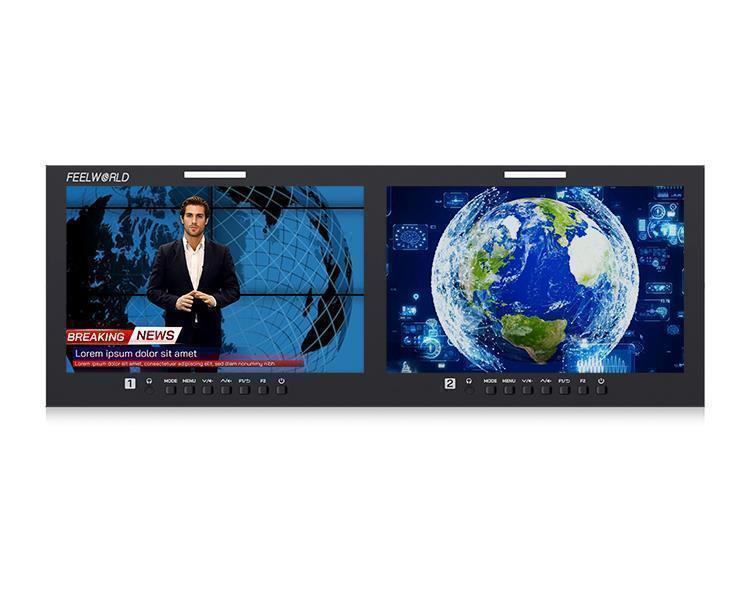

4RU Rack Mount Design

Suitable for 19-inch width cabinet installation with 4RU mounting height and slim metal design, occupying only a small part of the volume, ideal for installation in equipment racks and monitor walls.

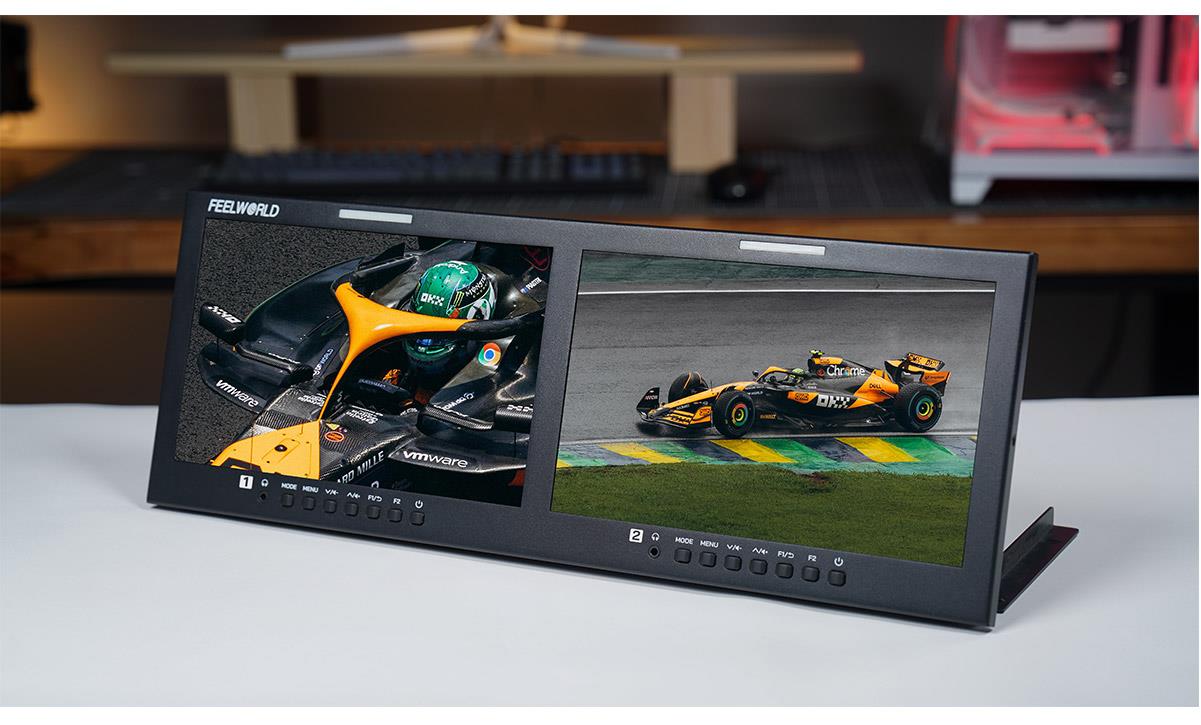

Use for Desktop

The innovative design of D101 PLUS/D101 PLUS-H makes it usable for desktop application, just put down the two metal stripes on the rear of the monitor.

Full Range of Auxiliary Functions

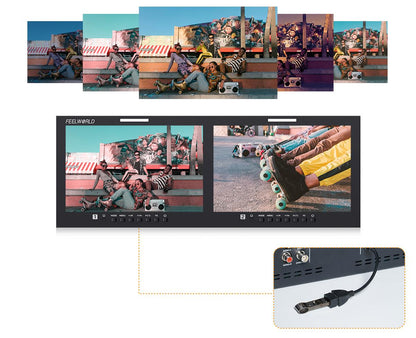

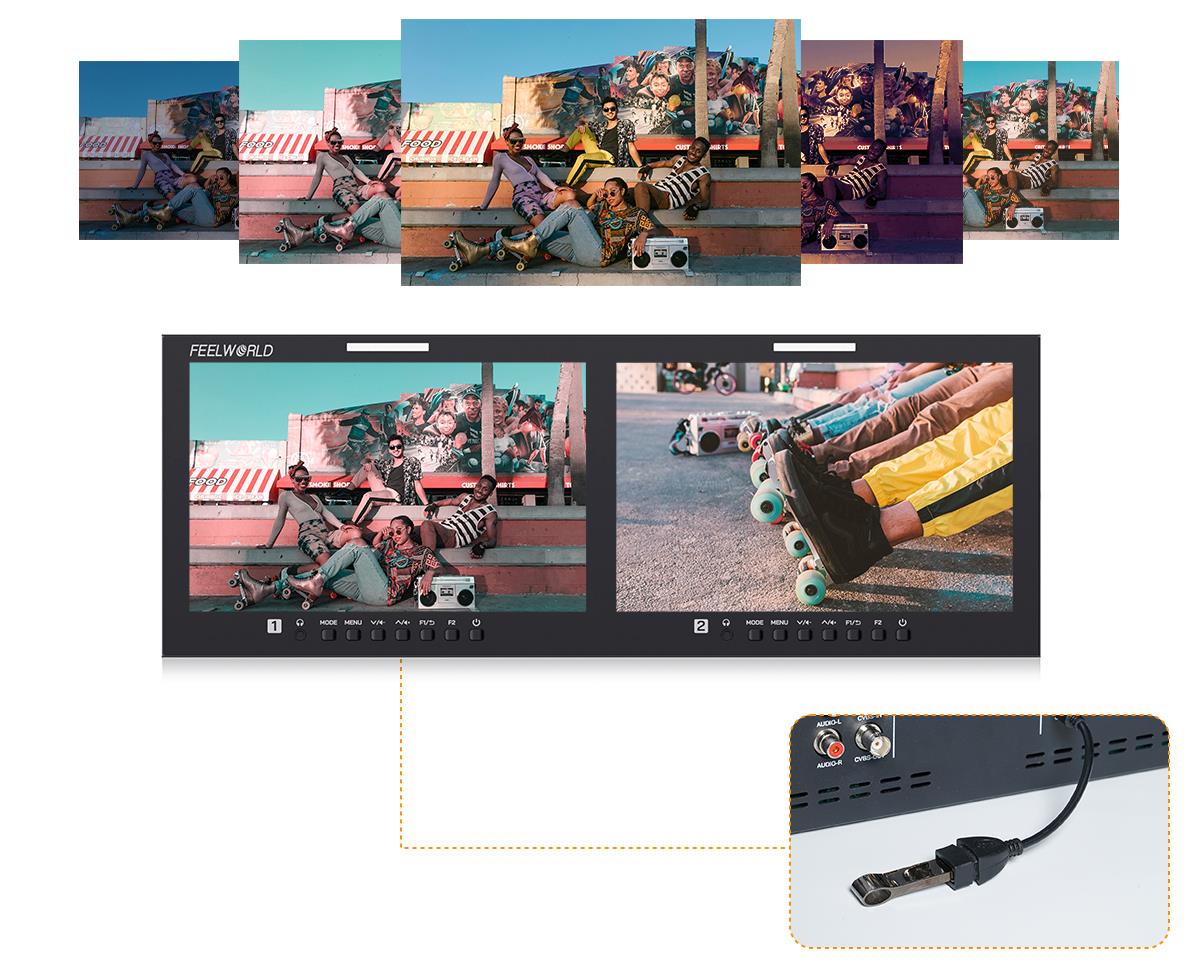

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Supports loading 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow, and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the mini USB to the USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

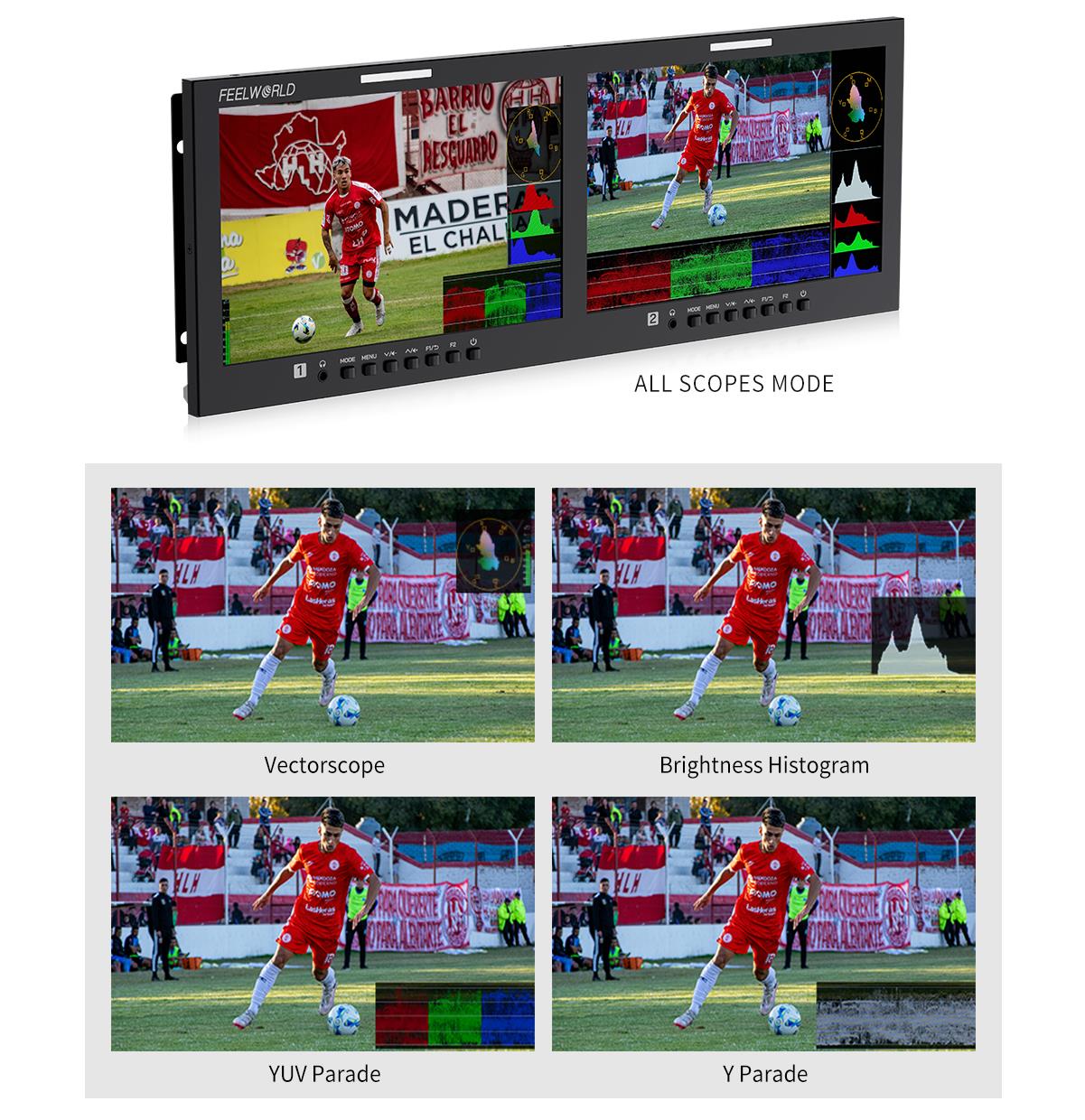

Accurate Waveform Monitoring

Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. D101 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

Easy Remote Control

All displays can be perfectly adjusted by a connected computer under the control of software, so you can focus on other operations on the workbench at the same time.
Note: the software is suitable for the Windows system at present.

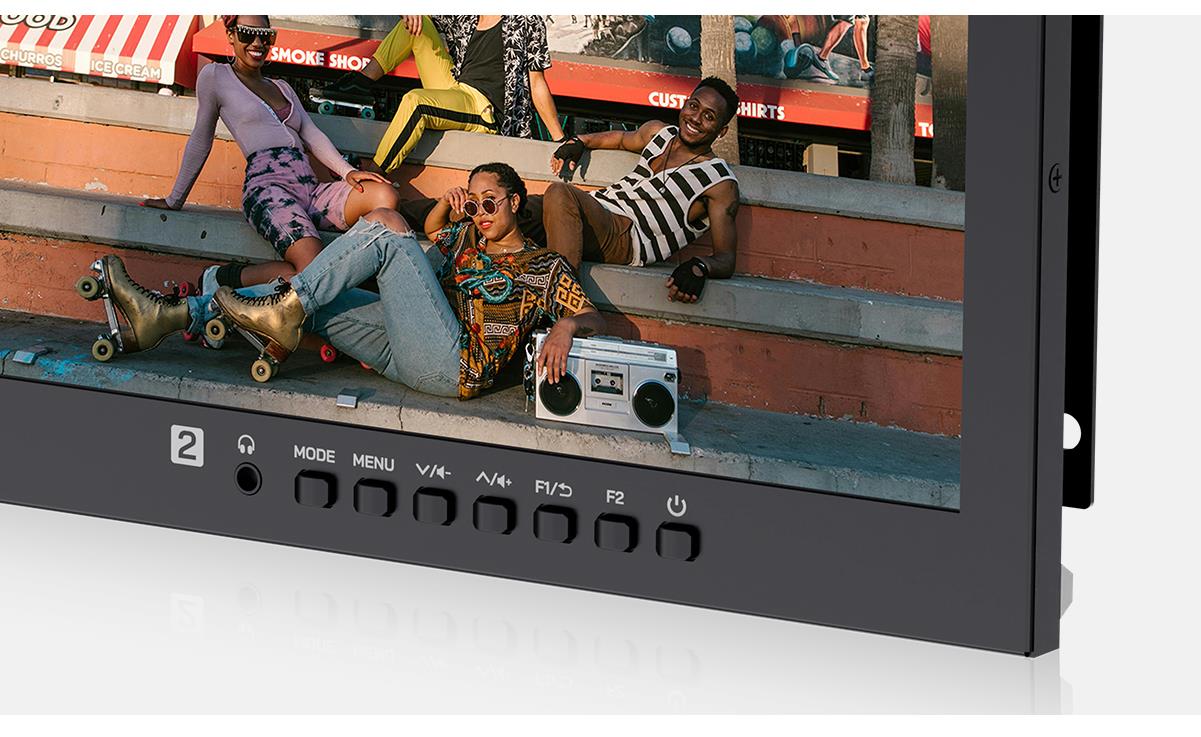

Intuitive Button Operation

Each panel is equipped with intuitive buttons to control the screen independently, and the 2 custom function keys can be set to the common function as a shortcut key. All buttons are clear at a glance, easy to set up.

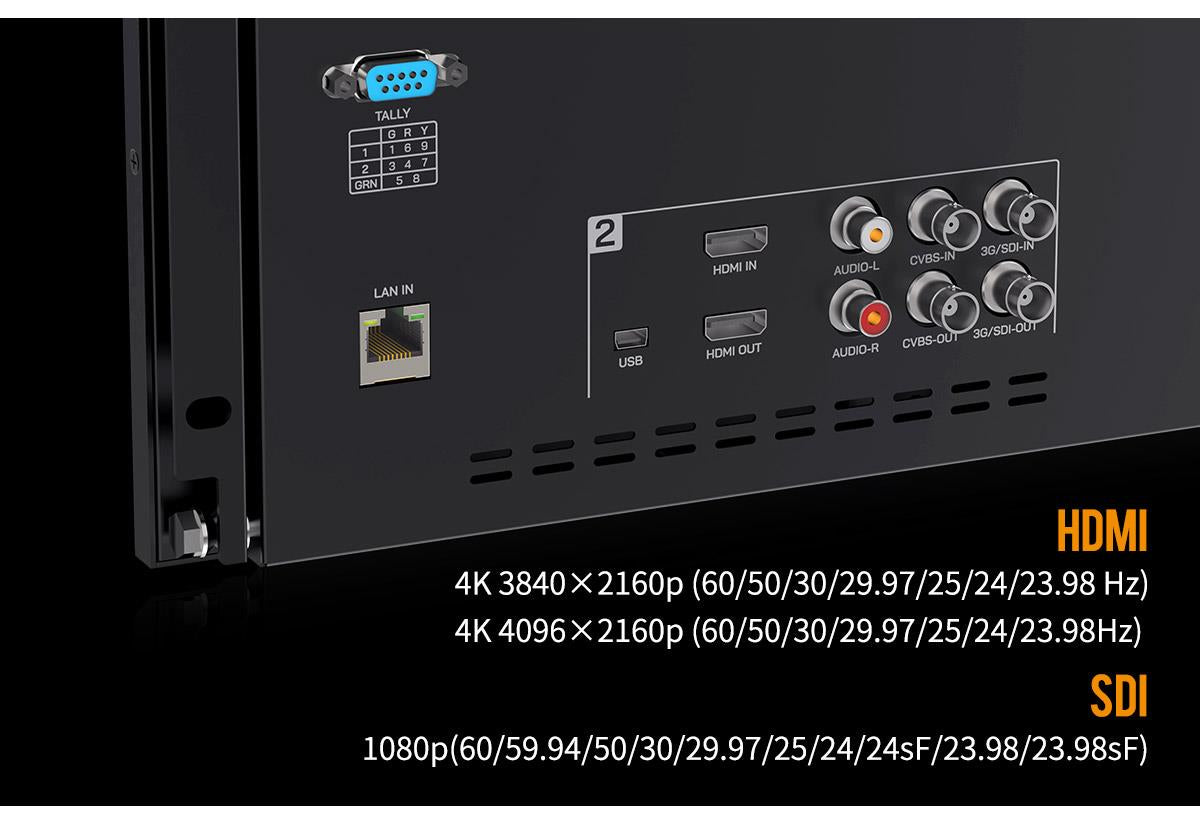

Rich Video Interfaces

D101 PLUS-H is designed for broadcast work and post-production, each panel with 4K HDMI and CVBS signal inputs and outputs. Plus, it also has L/R audio.

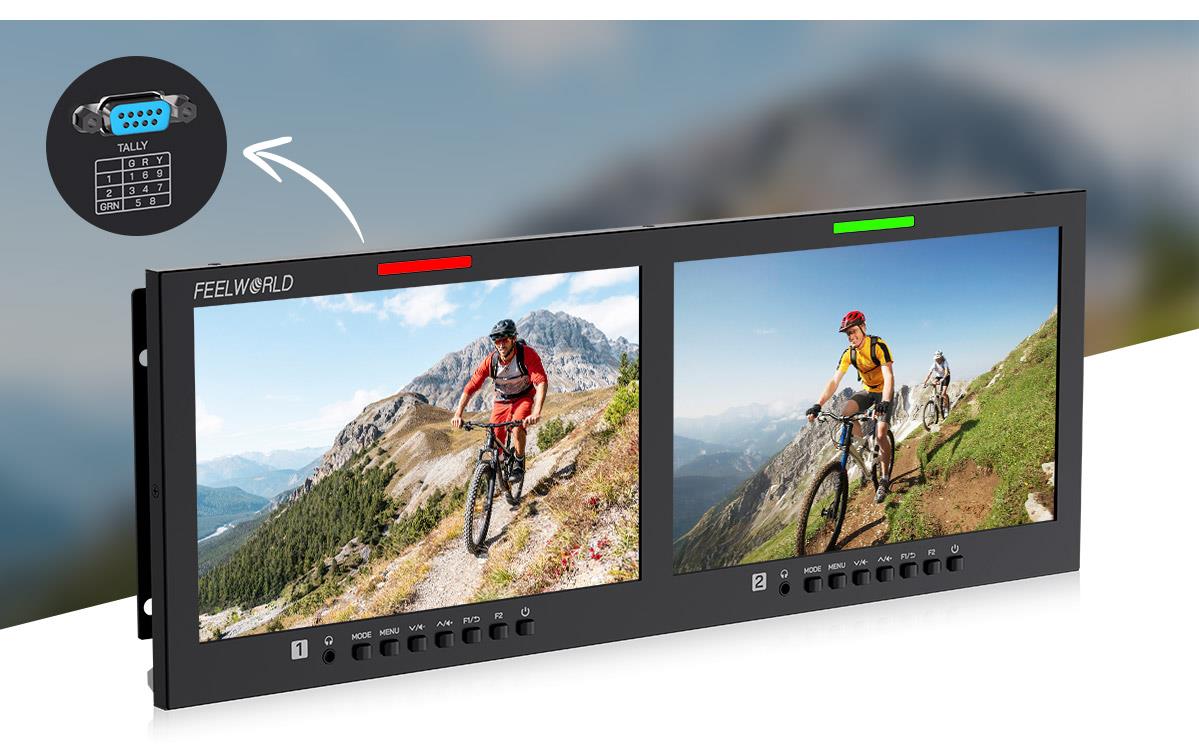

3-color TALLY Light, Enhance Team Cooperation

D101 PLUS-H with Tally function, perfect for live broadcasts. The front of each screen, including the tally light, displayed in red, green, or yellow to signify on-air, preview, or recording. This means during live production, you will always know when you are recording or on-air. Tally is connected via an industry-standard parallel pin connector on the rear panel.

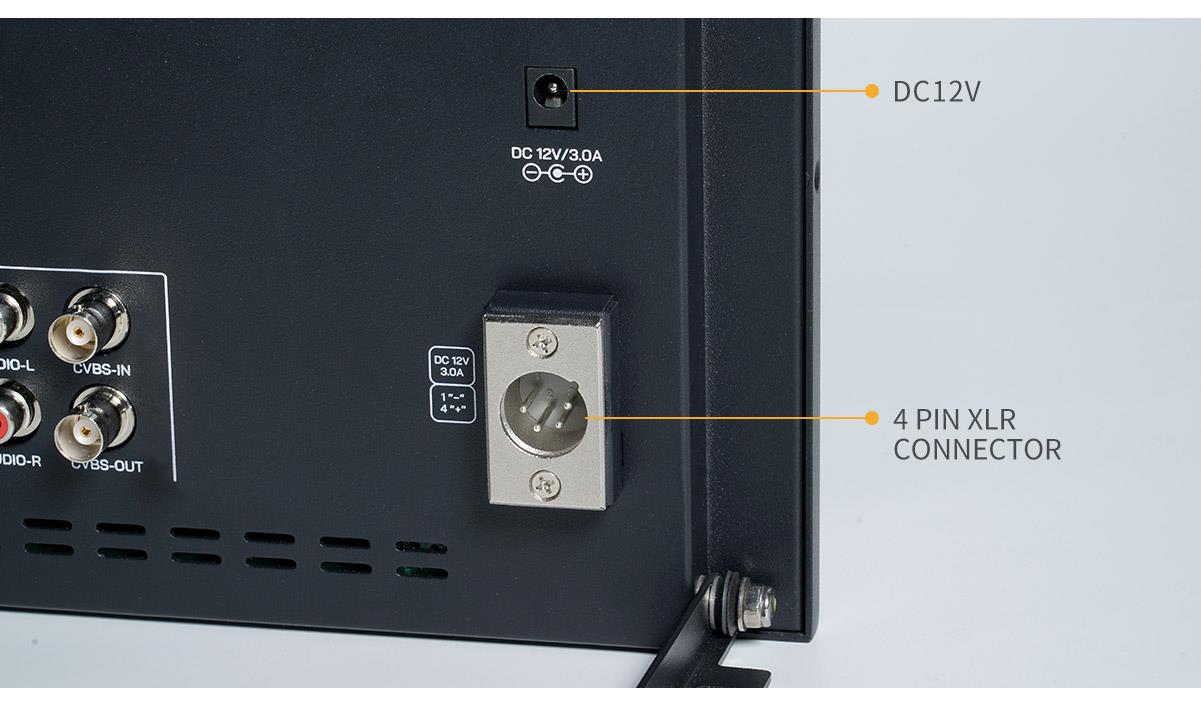

Flexible Power Supply

The monitor comes with DC 12V socket（suitable for 5.5*2.1mm power plug) and 4-pin XLR connector, providing strong power for the screens.

11 Languages Supporting

Built-in up to 11 languages, that means D101 PLUS-H is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Specifications

Input (Each LCD)

Output (Each LCD)

Audio (Each LCD)

HDMI Support Format

CVBS (Video) Support Format

General

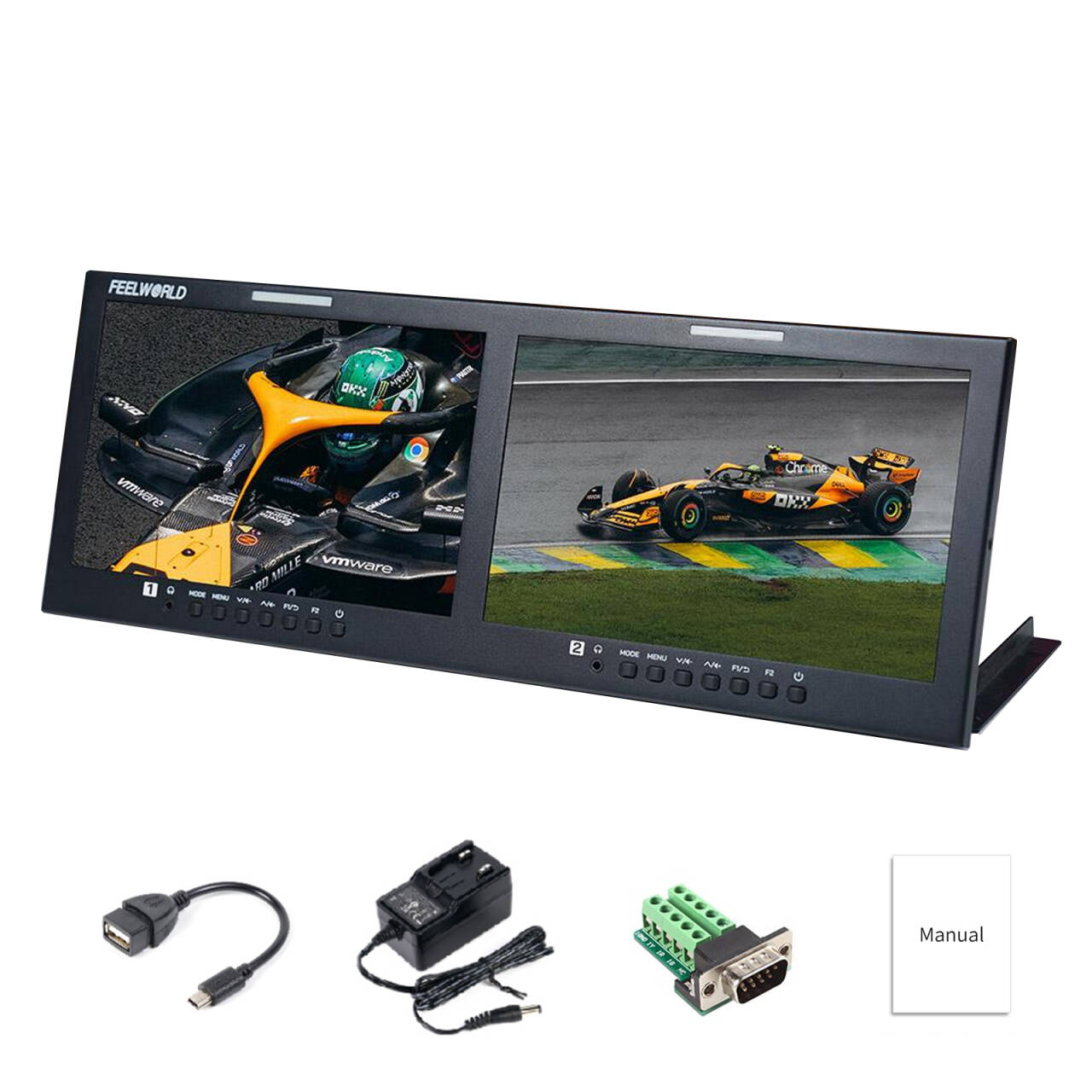

In The Box

D101 PLUS

D101 PLUS-H
