FEELWORLD F5 PROX 5.5 Inch 1600nit High Bright DSLR Camera Field Monitor F970 Install and Power Kit

Overview

Add a high-resolution monitor to your 4K camera with the FeelWorld F5 Pro X 5.5" High-Brightness HDMI Touchscreen Monitor. It features an improved 1600 cd/m² brightness, 1080p resolution at 60Hz, and a 1000:1 contrast ratio. It includes 3D LUT support with four built-in LUT profiles, and up to 32 custom 3D LUTs can be loaded by the operator via an SD card.

Key Features

• 1080p60 Resolution
• 1600 cd/m² Brightness
• HDMI Input & Loop Output
• Support for up to DCI 4K Video, 3D LUTs
• Histogram, Vectorscope & More
• DC & USB-C Power Inputs | DC Output
• L-Series Battery Plate
• Rear Bracket for Attaching Transmitters

5.5" 4K HDMI Field Monitor

Compact, portable, high brightness, 4K HDMI, easy to focus, accurate exposure, and flexible power are the advantages of F5 PROX. Level up creation for photographer, 1st AC, and content creator.

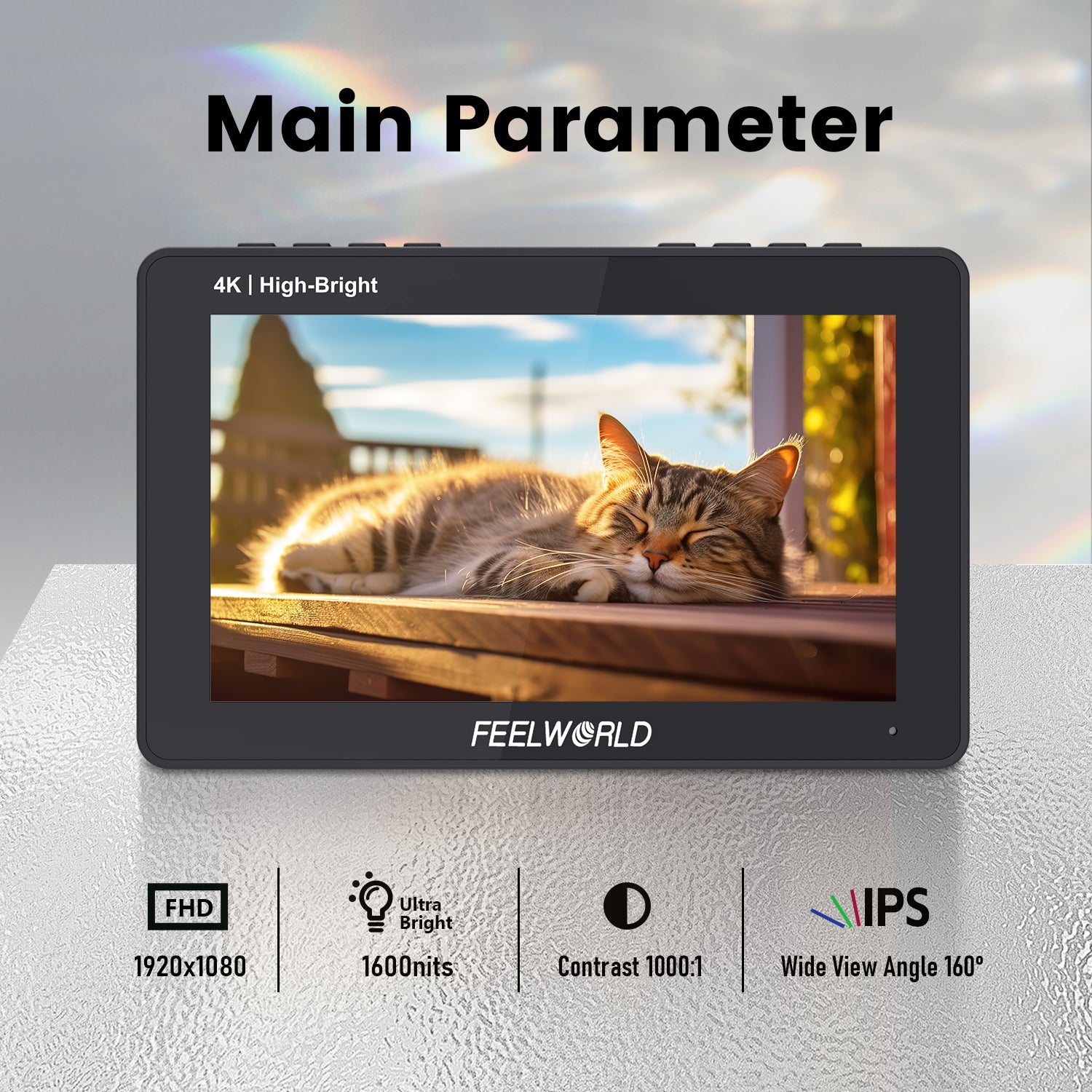

Full HD IPS Panel

Viewing clearly and capturing every detail with confidence
With extremely high resolution IPS panel, 16.7M(8bit) color gamut, it provides excellent details, accurately reflects the original colors.

1600nits, Daylight Viewable

Backed by 1600nits of brightness, F5 PROX isn't afraid to get a little sun. The screen is clearly visible even in outdoor shooting, no need to use a sun hood.

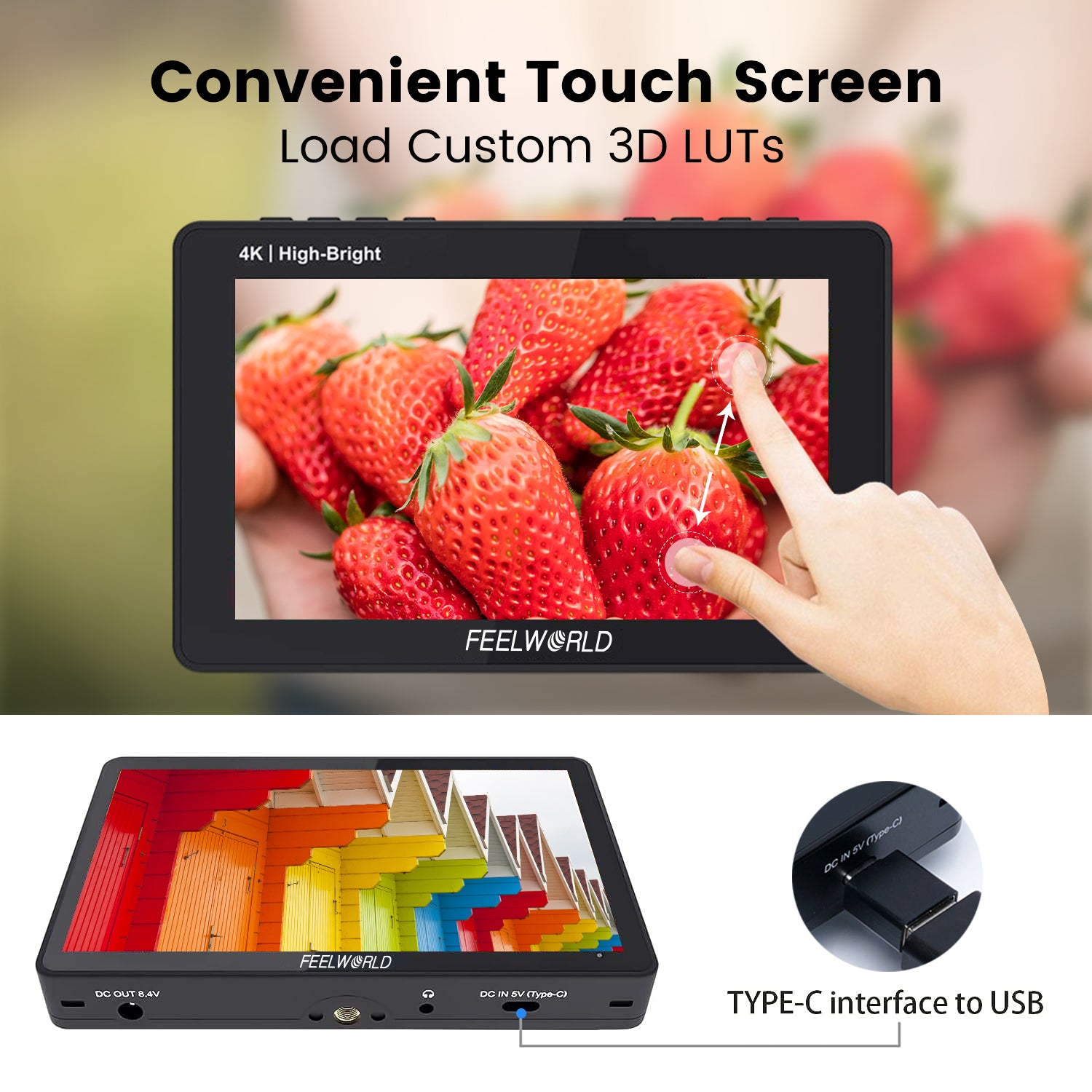

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Buttons Setup, More Option

Besides touch control, you can also choose to use physical buttons for operation. In addition, there are three custom shortcut function keys (F1-F3) , which can be set as commonly used function keys, and the desired functions can be achieved with just a press, improving shooting efficiency.

Menu User Switch

F5 PROX provides 4 groups menu setting saving. You can select 1~4 group after setting the menu, it will save automatically, and can be called directly next time.

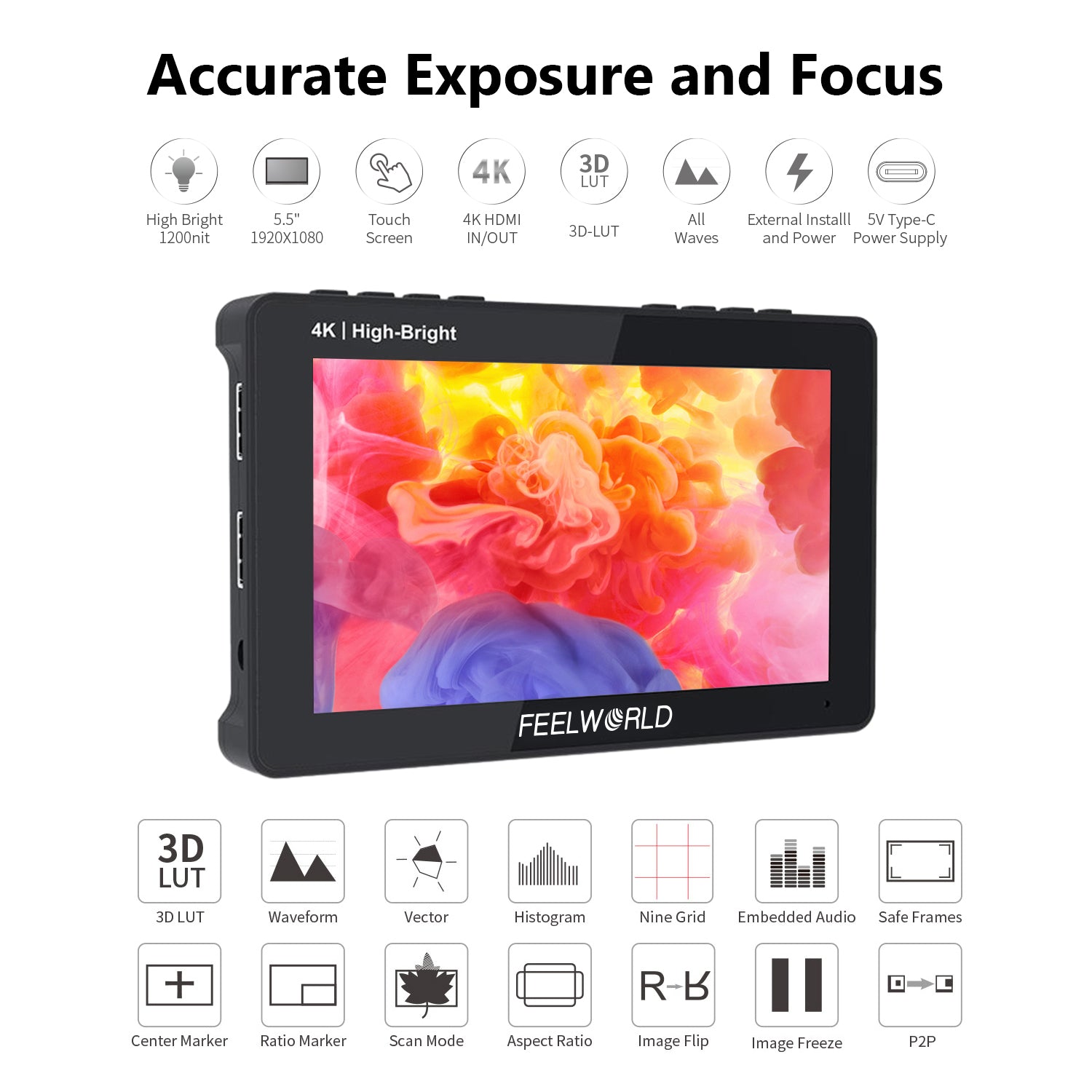

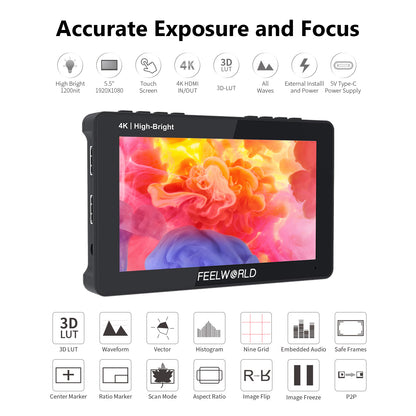

Professional Auxiliary Tools, Help You Focus and Exposure Accurately

9:16 Vertical Screen Marker

F5 PROX added a 9:16 safe frame and ratio marker. Perfect for a vertical screen platform such as TikTok and Instagram.

Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Supports uploading 32 custom LUTs

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via USB flash driver (up to 32). Insert the USB flash drive into the standard accessory Type-C to USB adapter, then connect with the Type-C interface of F5 PROX.

HDR in the field
What you see is what you get

Compare the normal image, HDR provides stunning dynamic range and image details. Built-in HLG mode.

Accurate waveform monitoring
Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When turned on separately, the horizontal or vertical position of its function can be set in the menu. F5 PROX becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

4K HDMI Input and Output

HDMI supports up to 4K 60HZ for signal input and output, transmitted without loss, and the screen is clearer

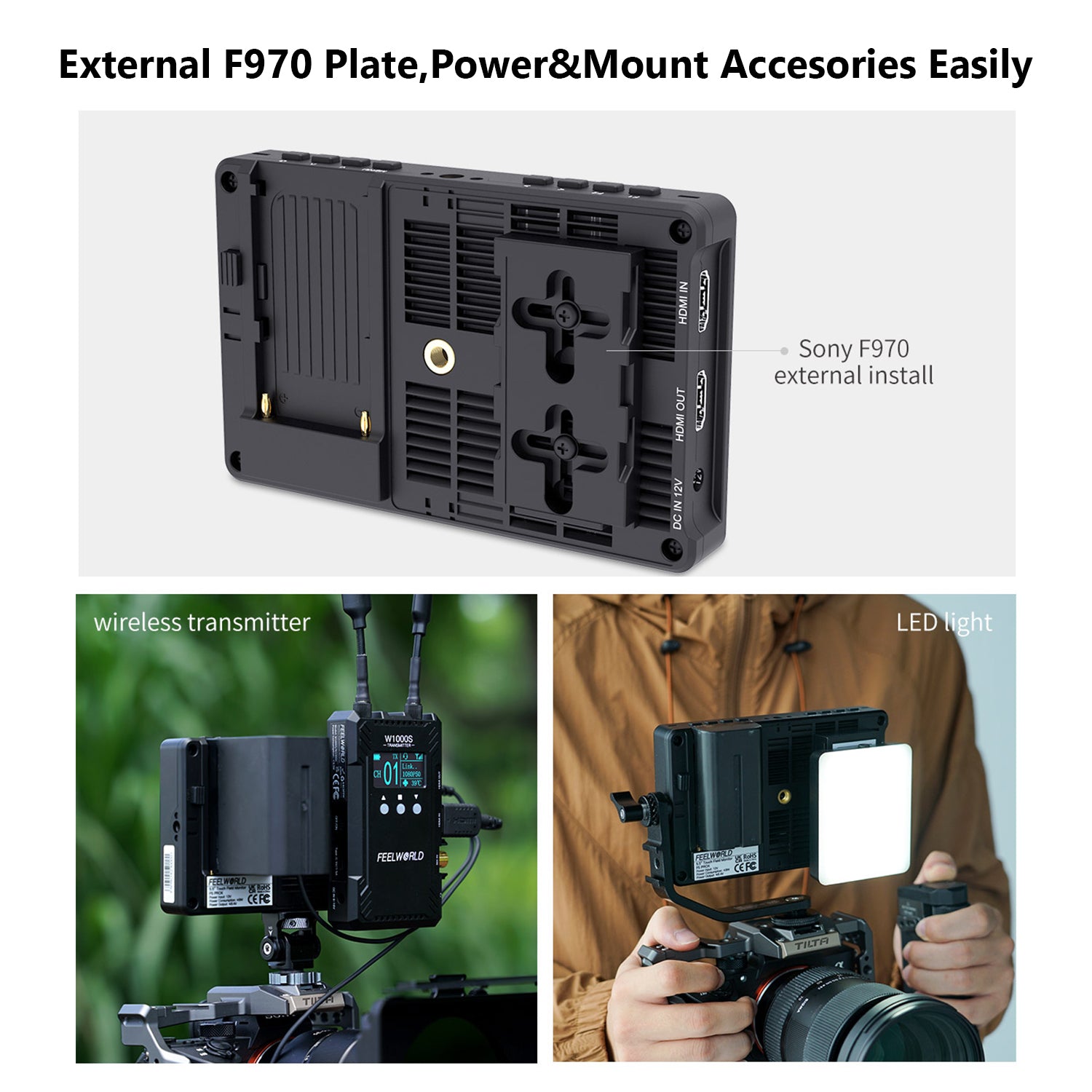

F970 External Install and Power Kit
Simplify your Filming Equipment

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter, and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming equipment.

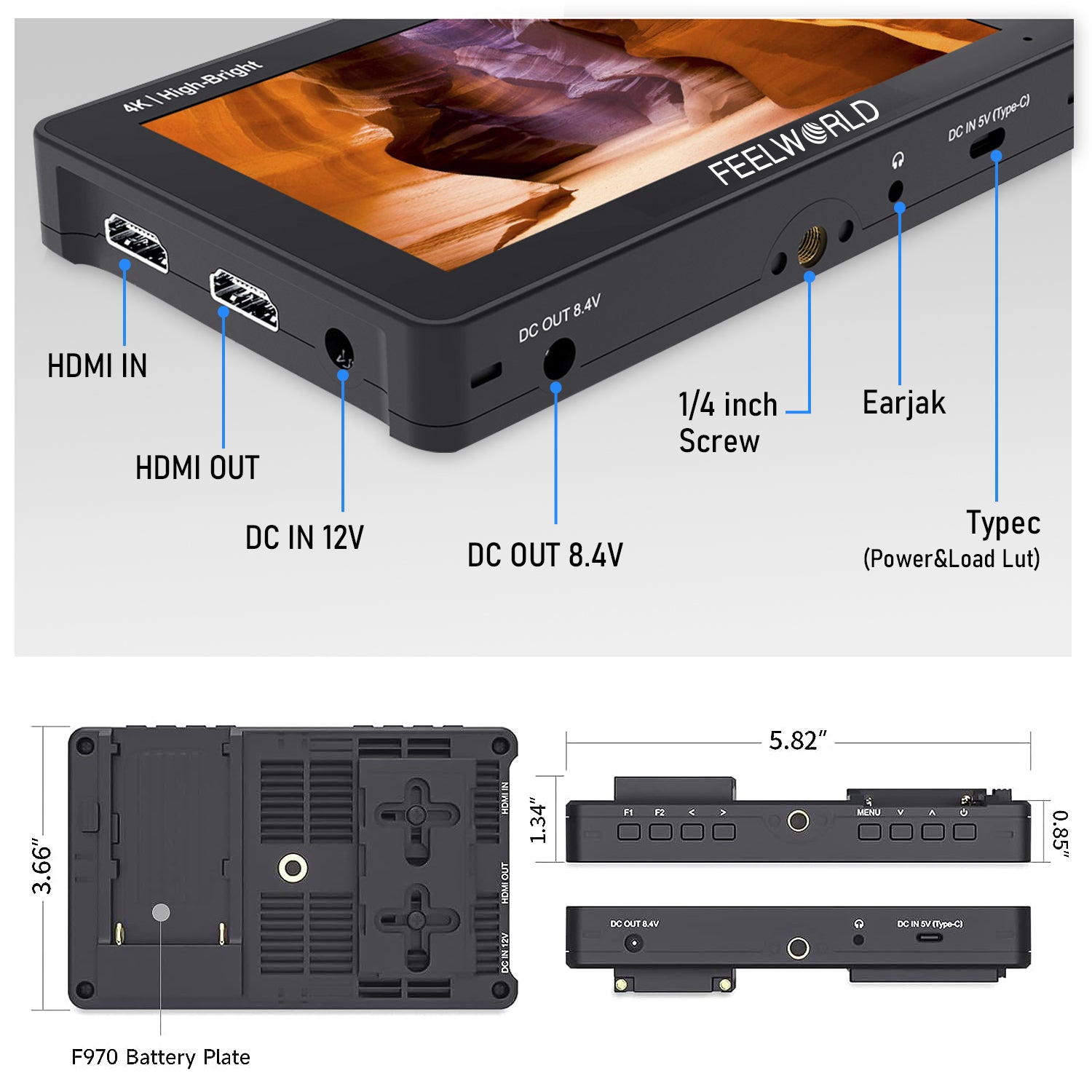

DC OUT, Power Your DSLR or Mirrorless Camera

F5 PROX provides auxiliary power out (the power cable plug should be 5.5mm outer,2.1mm inner), allowing shooters to power their cameras. With a battery adapter cable (Optional), the F5 PROX extends camera run-time while providing a more usable display.

Multiple Power Supply Ways

In addition to the power supply through the F970 battery plate and 12V DC power input (can be used with 12V/1.5A adapter, with 5.5mm outer,2.1mm inner power plug), it also supports 5V Type-C input, which can be powered ba y mobile phone charger or a power bank. (At least 5V/2A).
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series

Multi-Language Support

F5 PROX is built in up to 11 languages, meeting the different needs.

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor features 4 standard 1/4” mounting threads (top, bottom, right side, middle back), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

Convenient Mounting - Tilt Arm

The monitor will ship with a cold shoe-mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows F5 PROX to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
• There are two small dots on the tilt arm, which are aligned with the monitor for installation. The connection is more stable, just grab the monitor to rotate without loosening the screws.

Portable Sunshade, Easy Install

You can also use the sun-hood resist strong light when outdoor shooting. It is easy to install and portable.

Specifications

Input

Output

Audio

HDMI Input/ Output Support Format

General

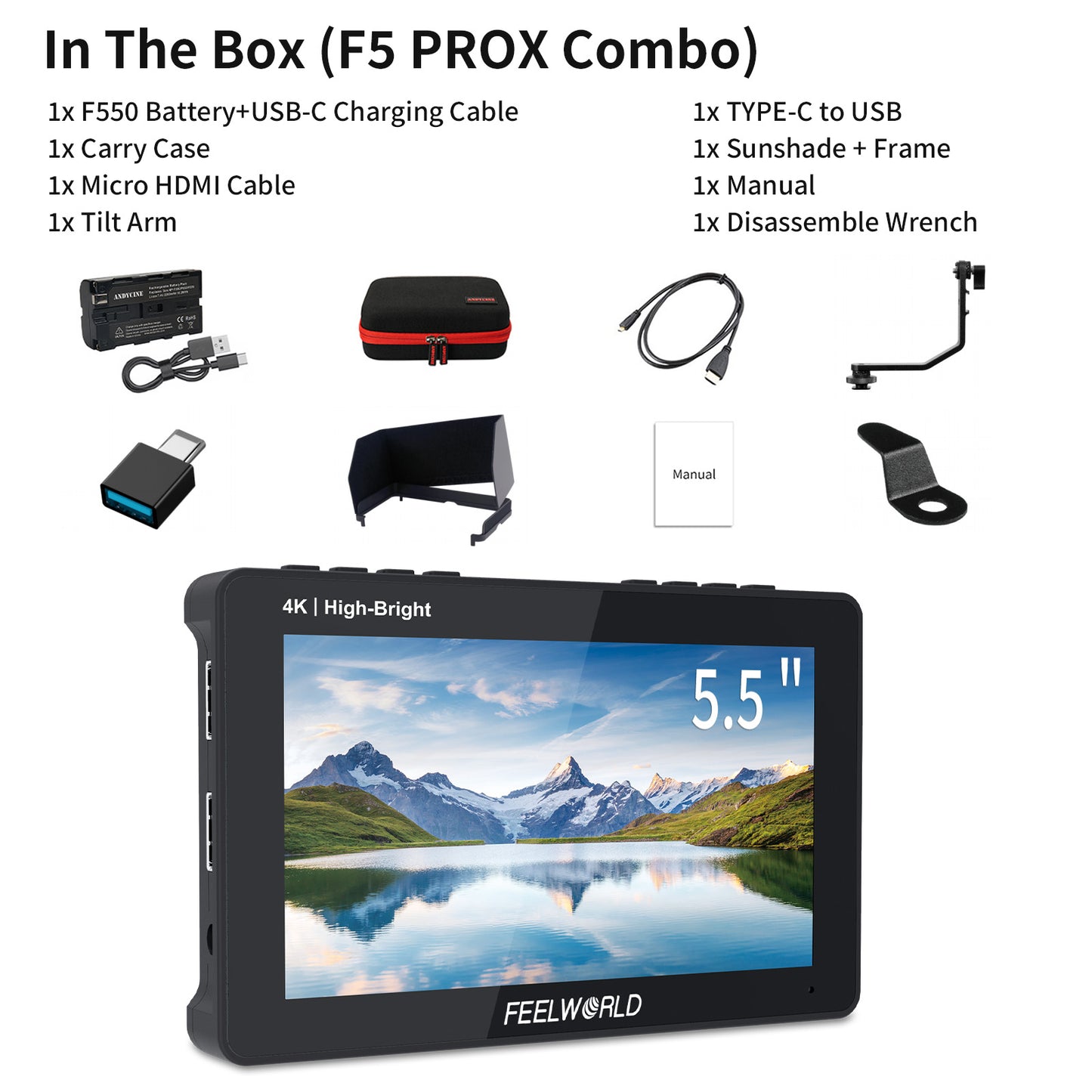

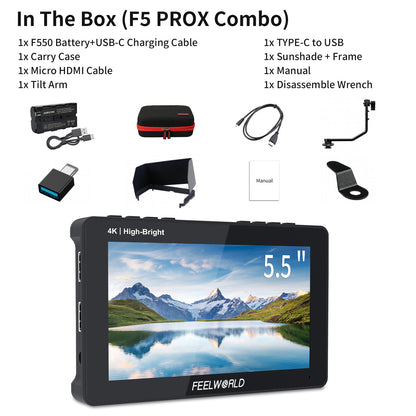

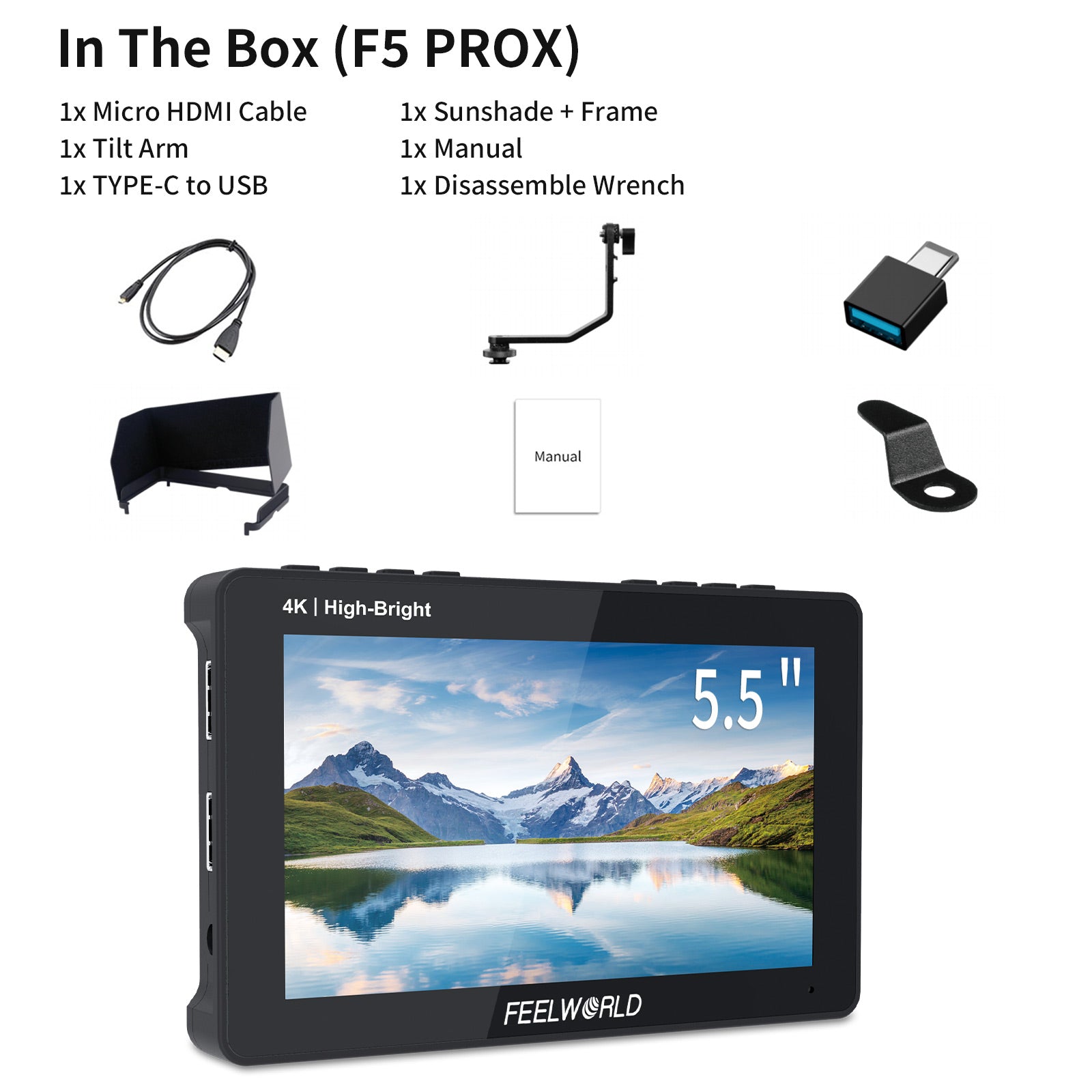

In The Box

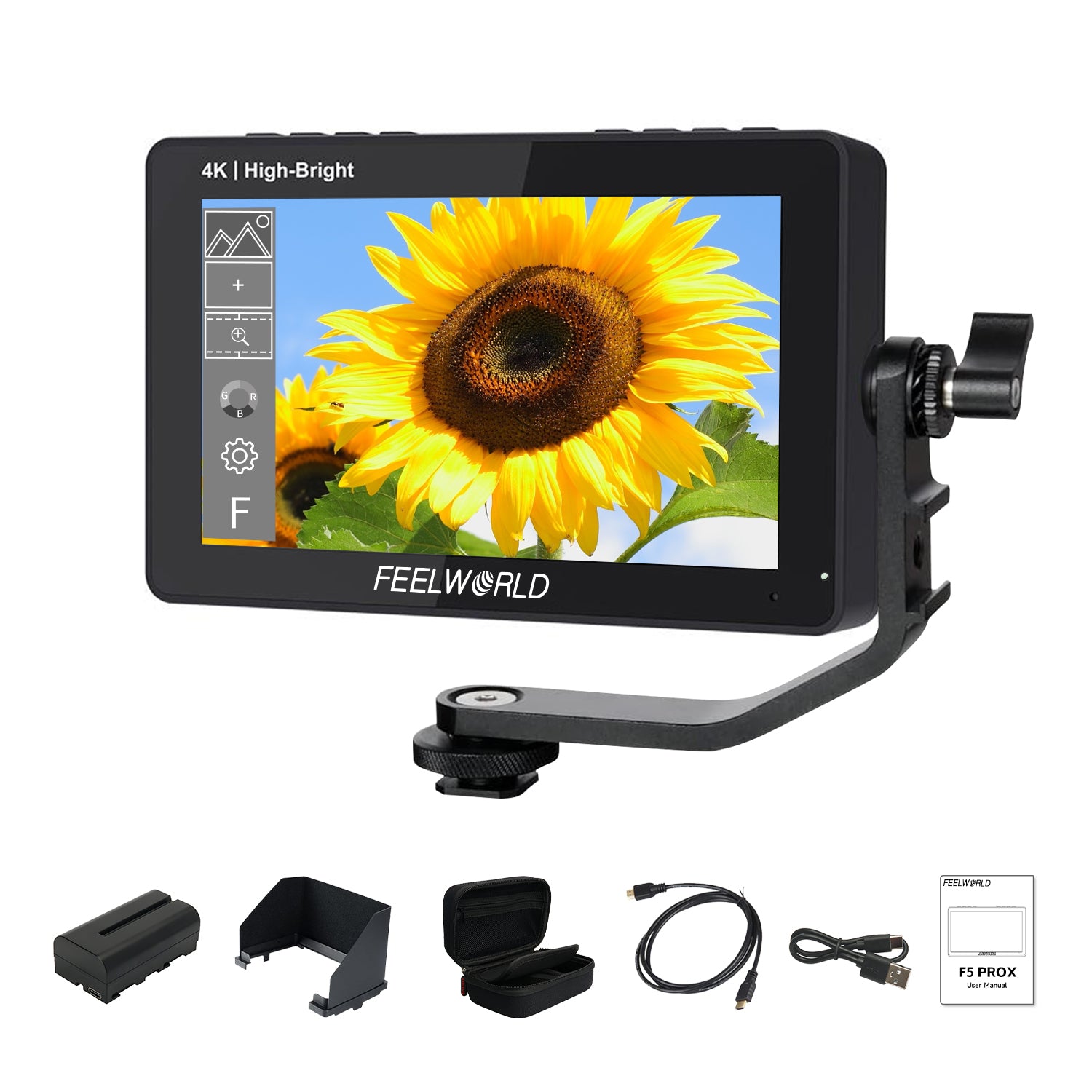

Standard package
