FEELWORLD FVM215-1000 21.5-inch Professional Production Broadcast Monitor High Brightness 1000nit Full HD IPS 4K60Hz HDMI 3G-SDI

Overview

The FVM215-1000 21.5" High-Bright Broadcast Monitor is a professional display for 4K productions and is designed with a desktop mount as well as a VESA mount on the back for optional arm and wall mounting. It features 11 built-in languages for worldwide productions and can be powered using a battery or mains power.

Key Features

• 21.5" 1920 x 1080 IPS LCD
• Up to DCI/UHD 4K60 Input
• High 1000 cd/m² Brightness
• HDMI & 3G-SDI Inputs/Outputs
• V-Mount Battery Plate
• 178/178° Viewing Angle, USB 3D LUT Input
• VESA Mount on Back
• Headphone Out, Speaker
• Built-In Image Analysis Functions

High Quality Monitoring Solution

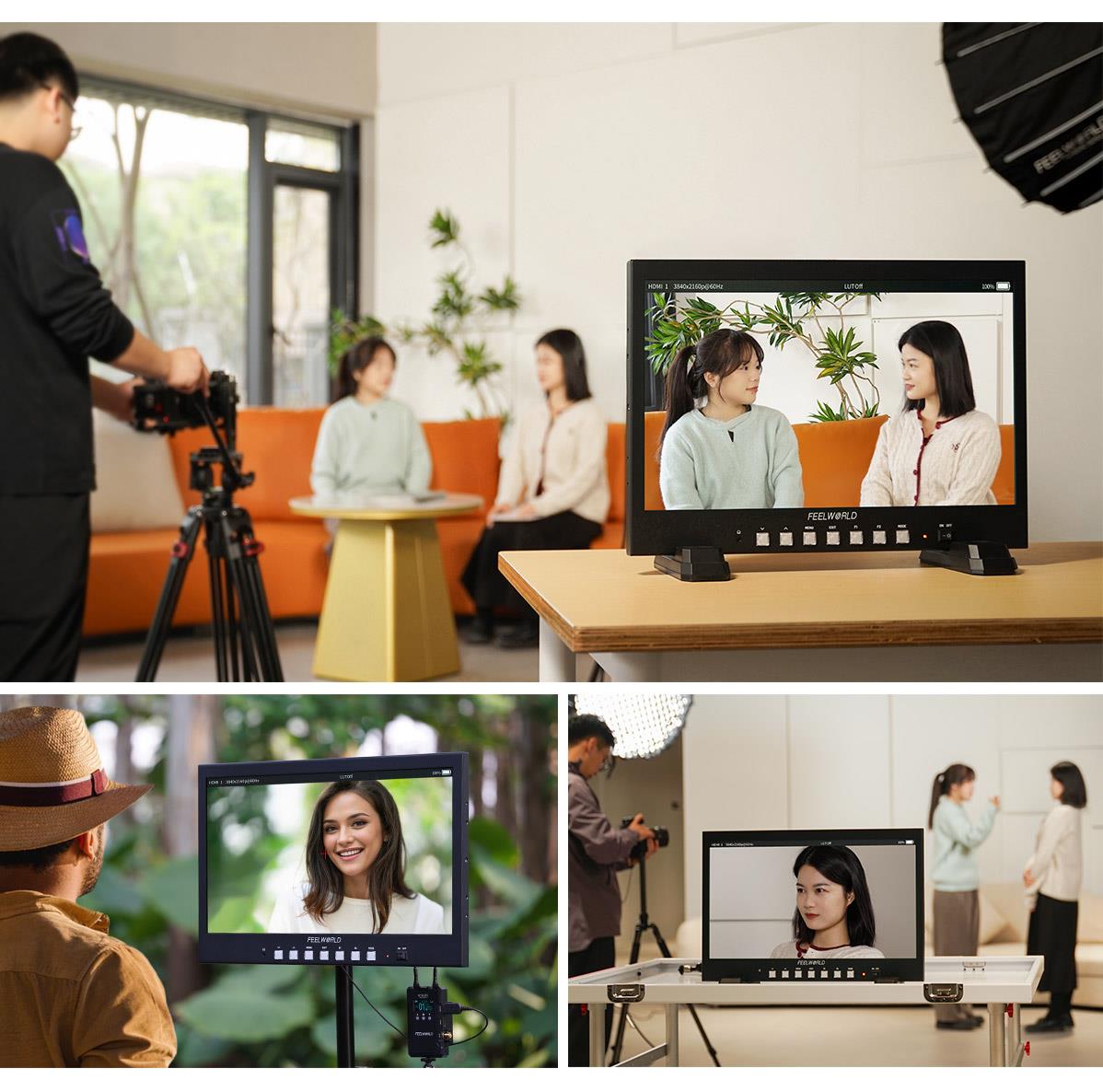

FEELWORLD FVM215-1000 is equipped with a high-brightness full HD large screen, which presents crisp and clear images in any daylight situation or indoors. On-site monitoring just gets easier for you and your customers. It works with all SD/HD/3D-SDI and up to 4K HDMI@60Hz video formats and including XLR, DC IN power input, and V-mount battery plate, so you can use it with a battery or plug it into DC power. A series of camera auxiliary functions can help a photographer to compose on-site and save post-production time. This monitor can be mounted on a wall through a VESA mount point in addition to a desktop stand. FVM215-1000 is perfect for live production, on-site shooting, and broadcast studio.

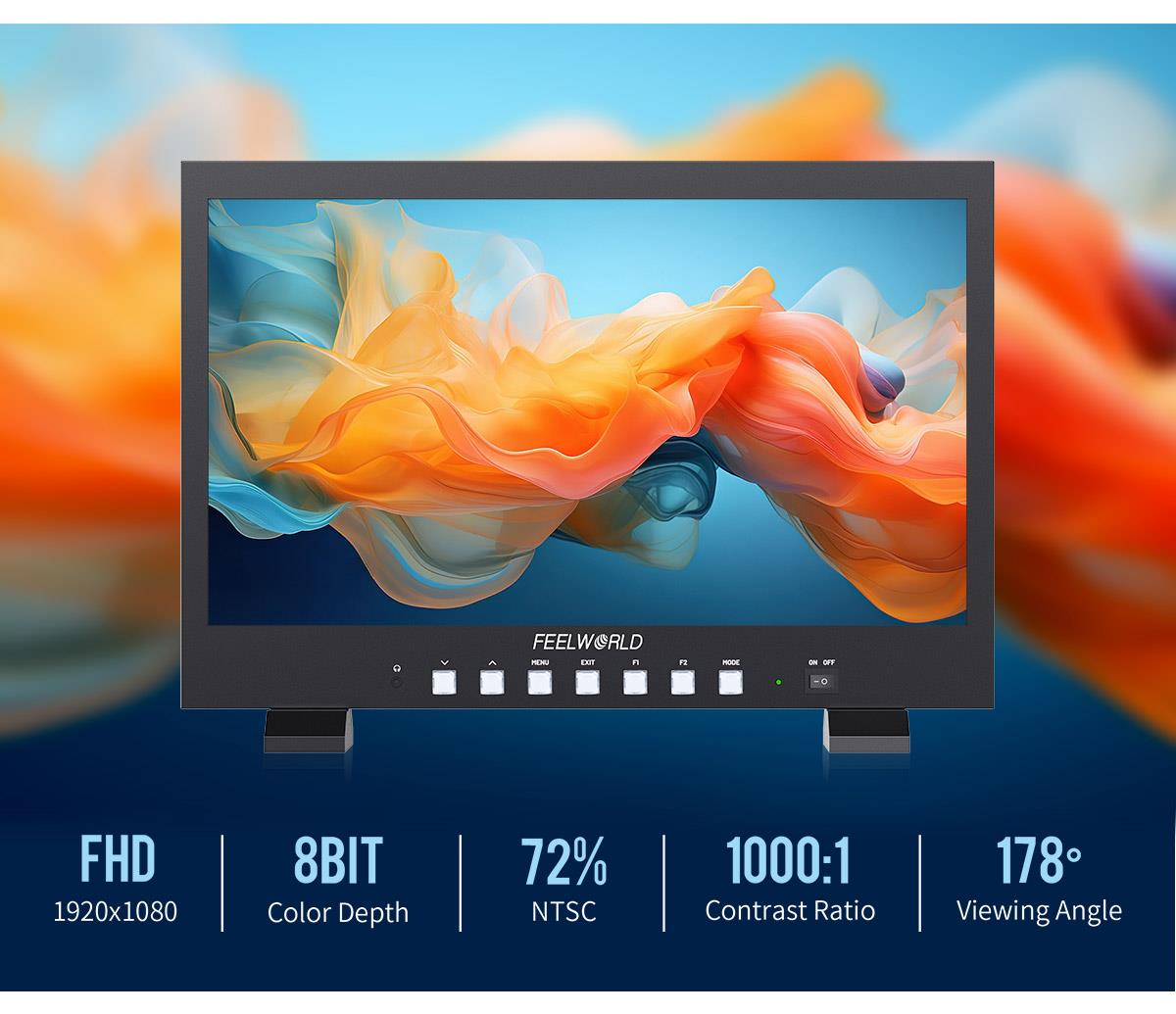

21.5" Full HD Large Screen

Clearly checking and capturing every nuance
Equipped with a 21.5-inch full HD large screen, rich colors present high quality image 178°(H/V) wide viewing angle large screen with professional color gamut, and almost no color difference at any angle.

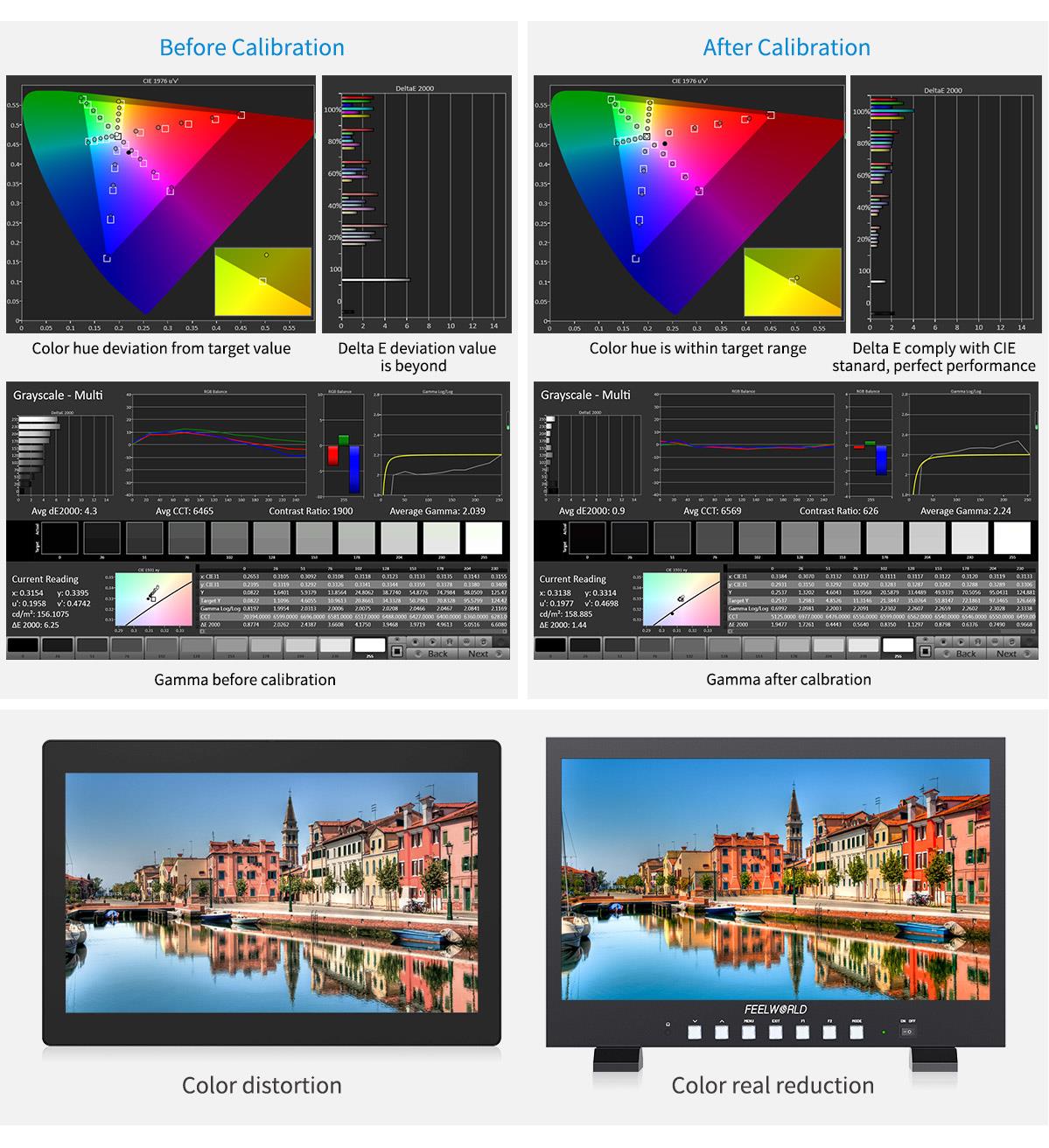

Professional CalMan Software Calibration

Each monitor undergoes color calibration via CALMAN professional software before leaving the factory, ensuring color accuracy and good reproduction.

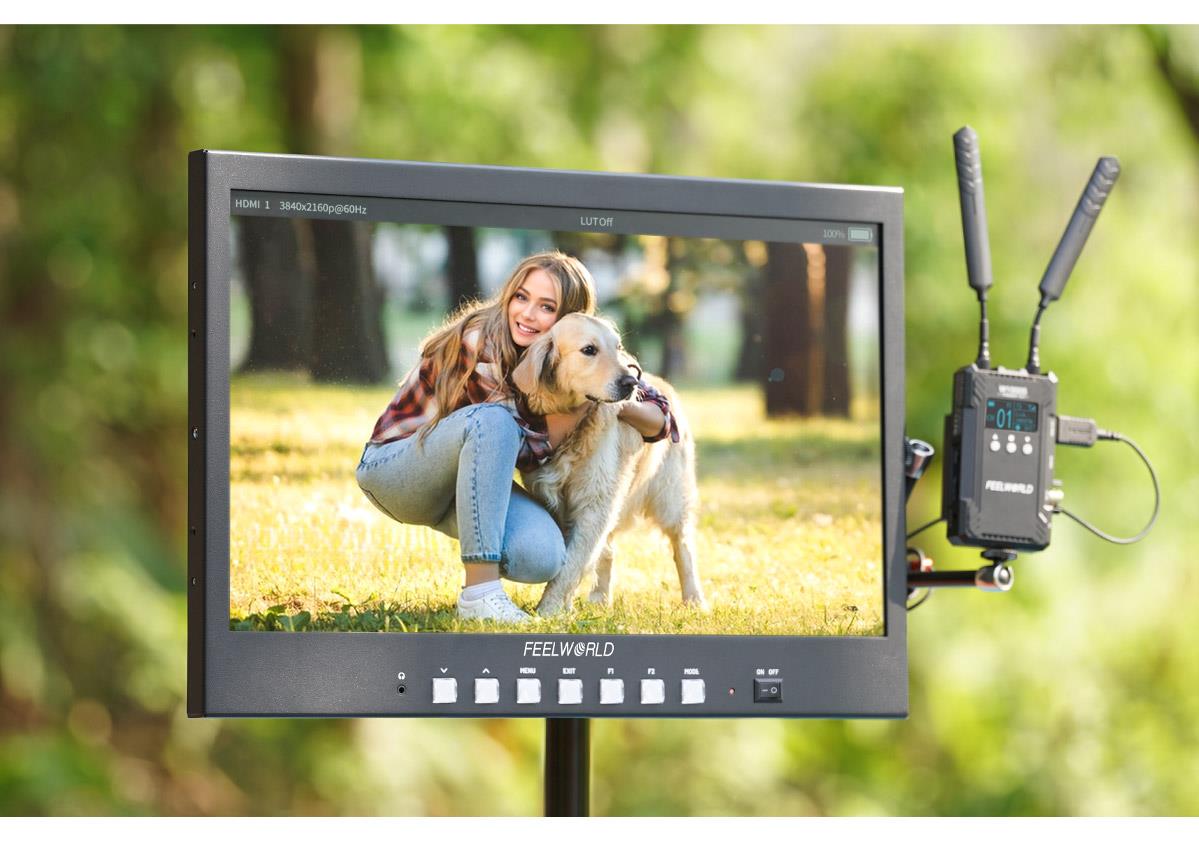

1000NIT, Fearless of Sunlight

High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

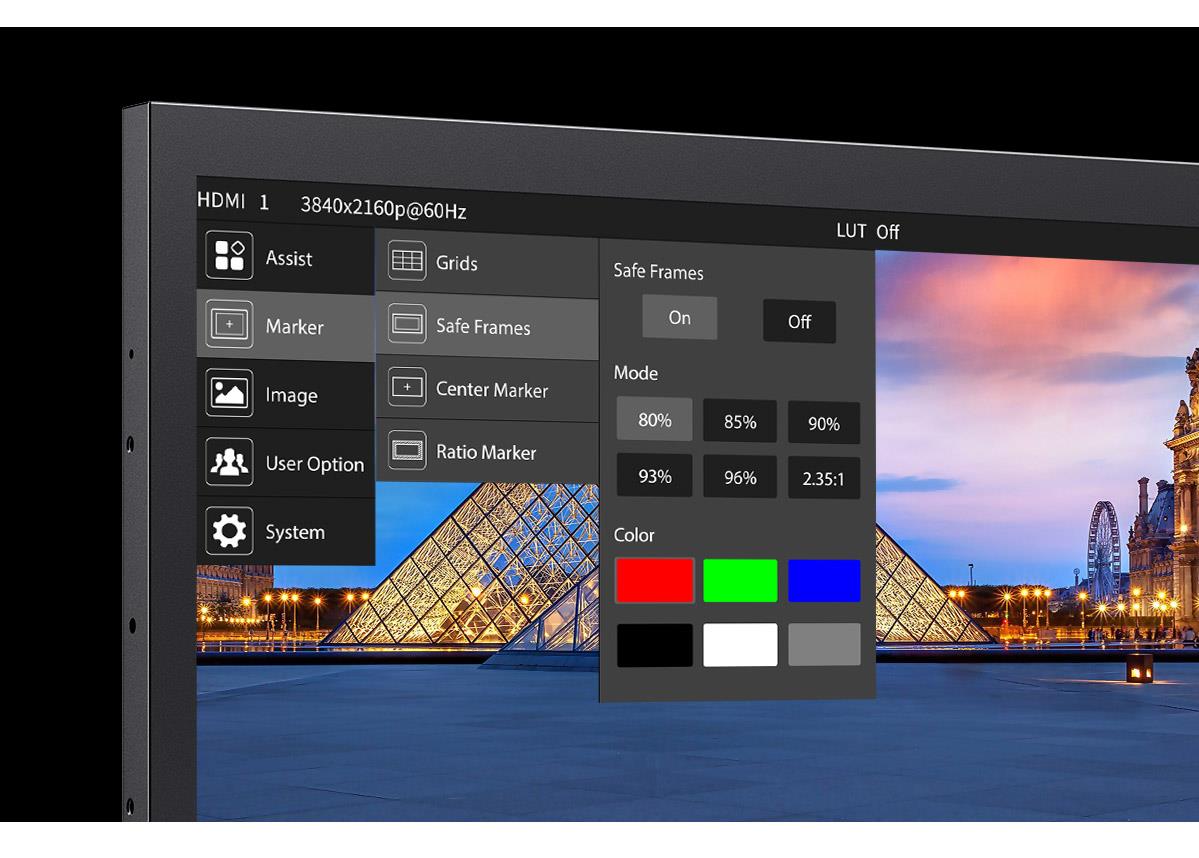

New MENU Interface, More Intuitive

FVM215-1000 adopts a new UI menu, takes the software functions are iconized, it more convenient and quicker to operate the functions, greatly improves your working efficiency.

Full Range of Auxiliary Functions

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow, and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files, define your own creative cinematic style, whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and inserts to the USB interface of the device (up to 32 custom files can be imported).

Accurate waveform monitoring

Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. FVM215-1000 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

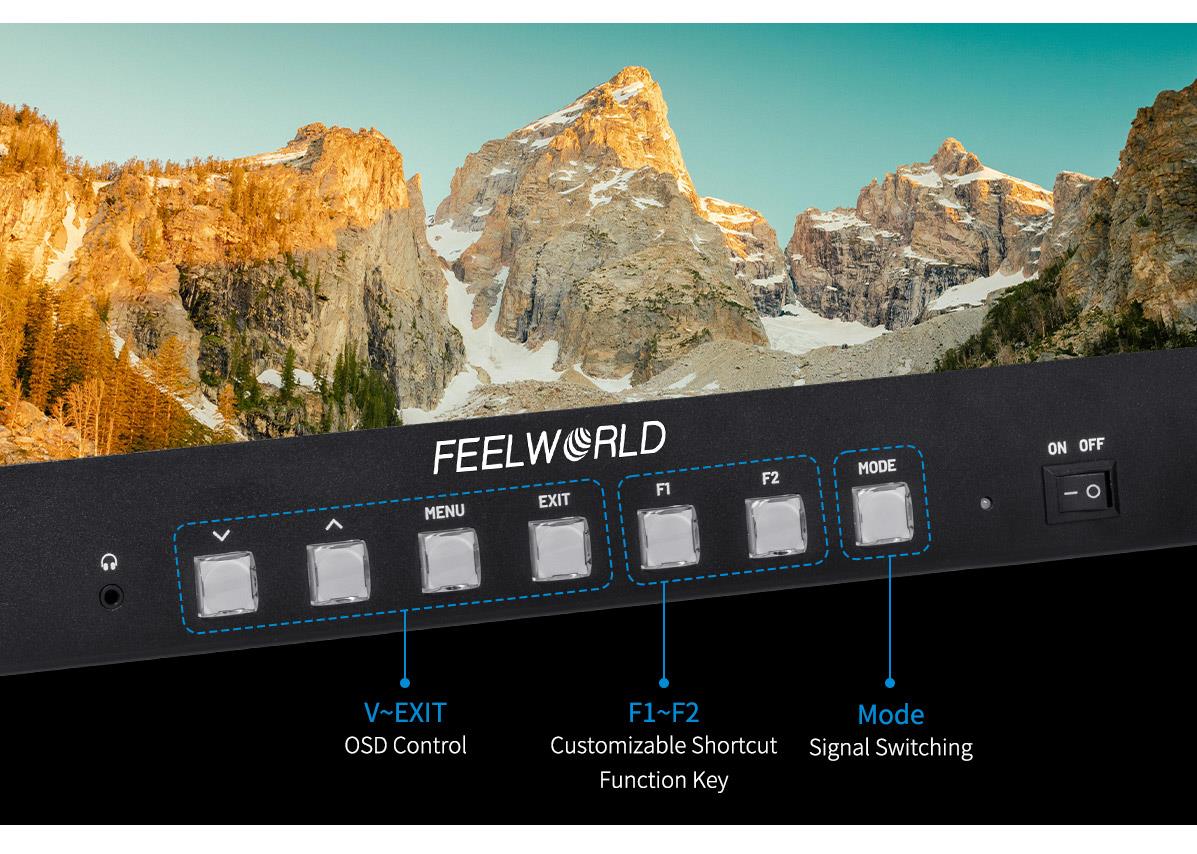

Intuitive Button Operation

The intuitive button design, clear at a glance and easy to set up. The 2 custom function keys can be set to the common function as a shortcut key, improving working efficiency.

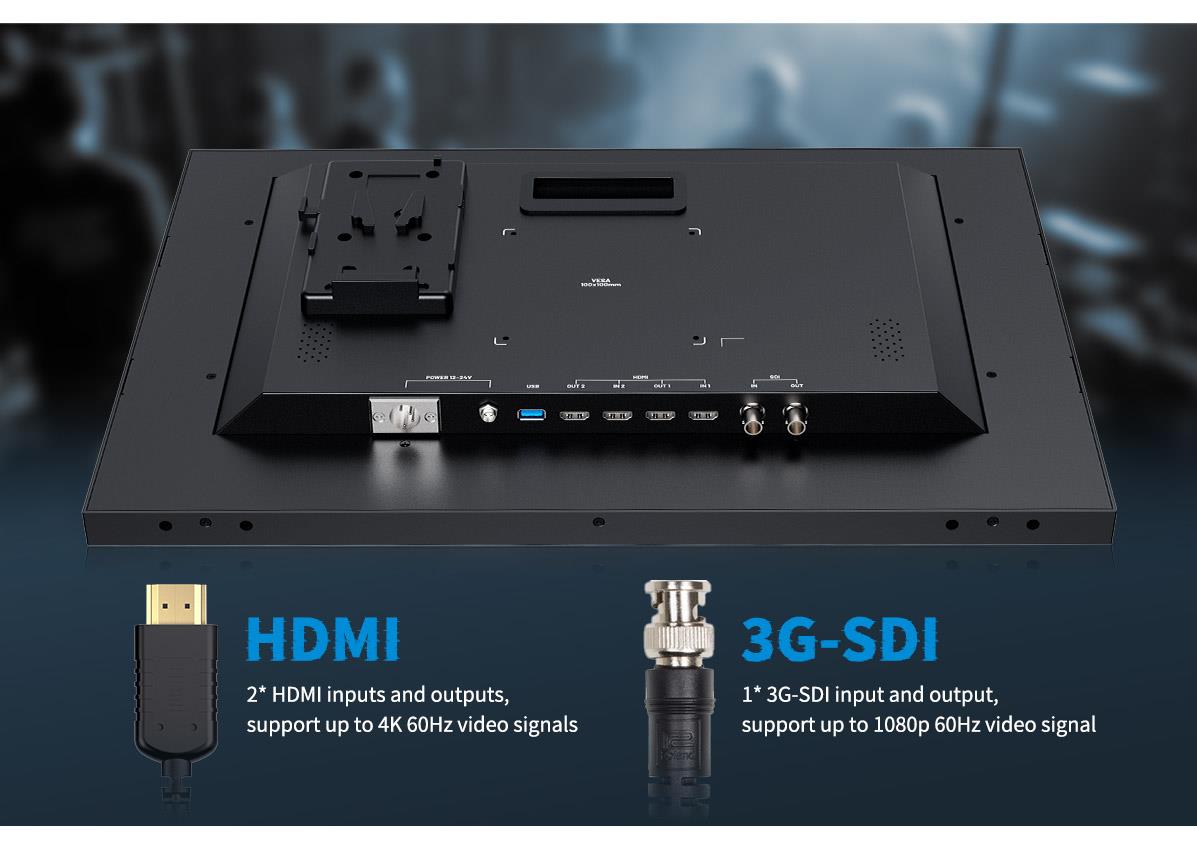

Compatible with Camcorder and DSLR

FVM215-1000 is equipped with a 3G-SDI input and output, and two HDMI 2.0 inputs and outputs support up to 4K 60Hz, compatible with professional camcorders and various cameras. Plus, it also has a stereo headphone jack and a speaker.

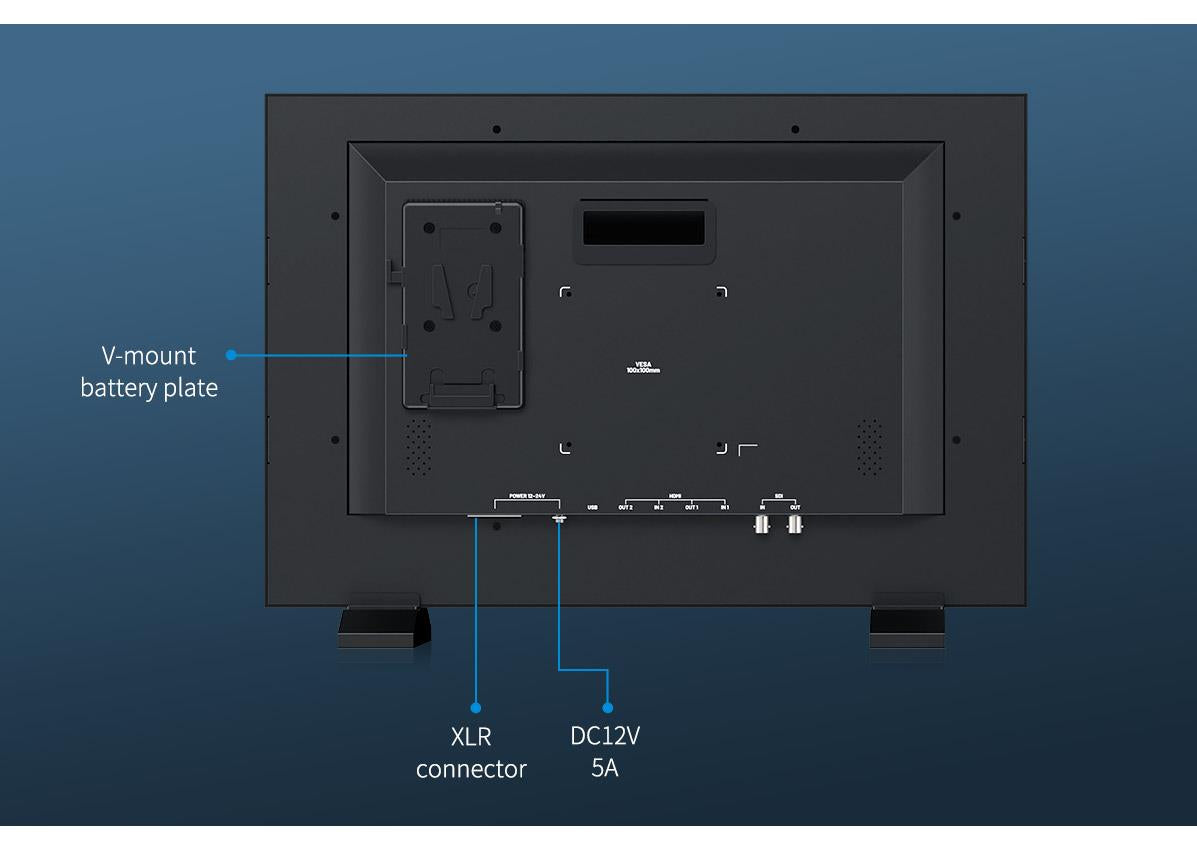

Multiple Power Supply Modes

Via V-mount battery plate support to install a Sony V-mount battery; via XLR or DC IN interface,support DC 12/5A power adapter to adapt to the shooting needs of different scenes.

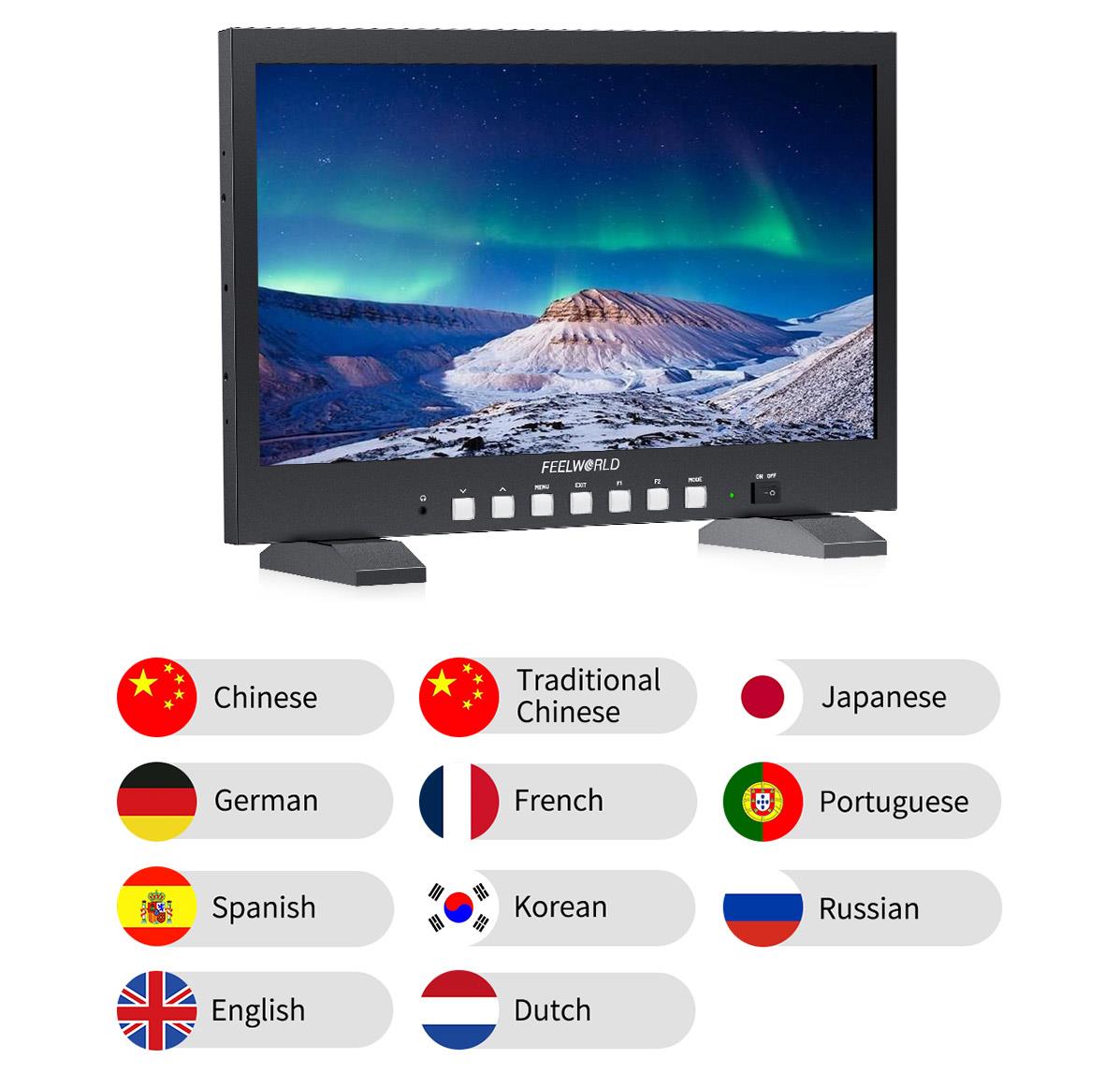

11 Languages Supporting

Built-in up to 11 languages, that means FVM215-1000 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

VESA Mount Position, More Monitoring Possibility

The rear of the monitor comes with a 100x100mm VESA mount position, you can mount the monitor on the VESA bracket or on the wall.

Specifications

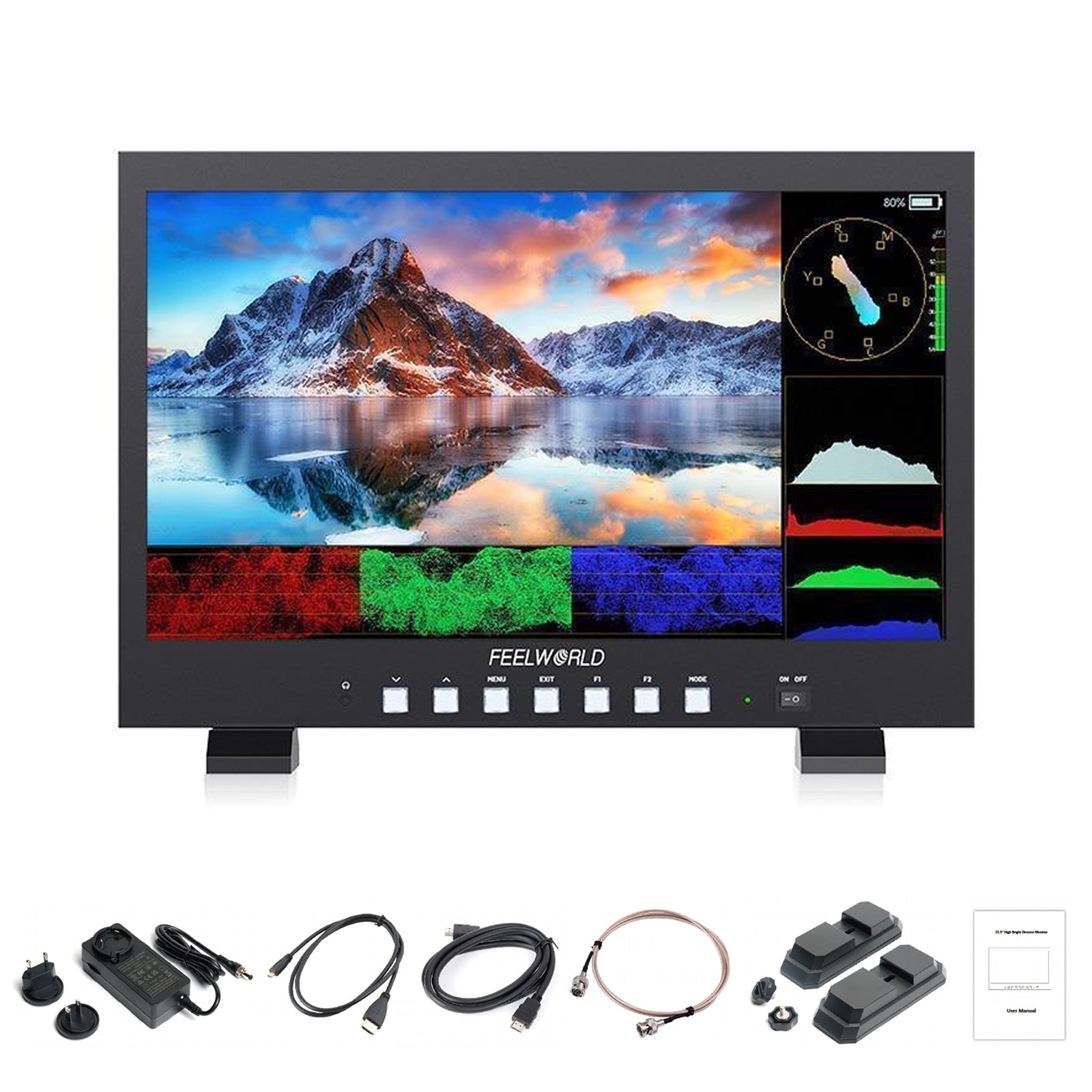

In The Box
