FEELWORLD FW568 PRO 6-inch 1200nit High Bright Camera DSLR Monitor 4K HDMI 60Hz

• Touchscreen 1920 x 1080 Display
• Up to DCI 4K HDMI Input; HDMI Output
• Custom 3D LUT Import via SD Card Slot
• High 1200 cd/m² Brightness
• USB-C L-Series/LP-E6 Power Input
• 8.4 VDC 2.1mm Barrel Power Output
• Waveform, Vectorscope, Histogram & More

Lightweight | Bright | Useful

FEELWORLD FW568 PRO has a moderate size, ultra-light weight, high-brightness screen, up to 4K@60Hz HDMI transmission rate, and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere.

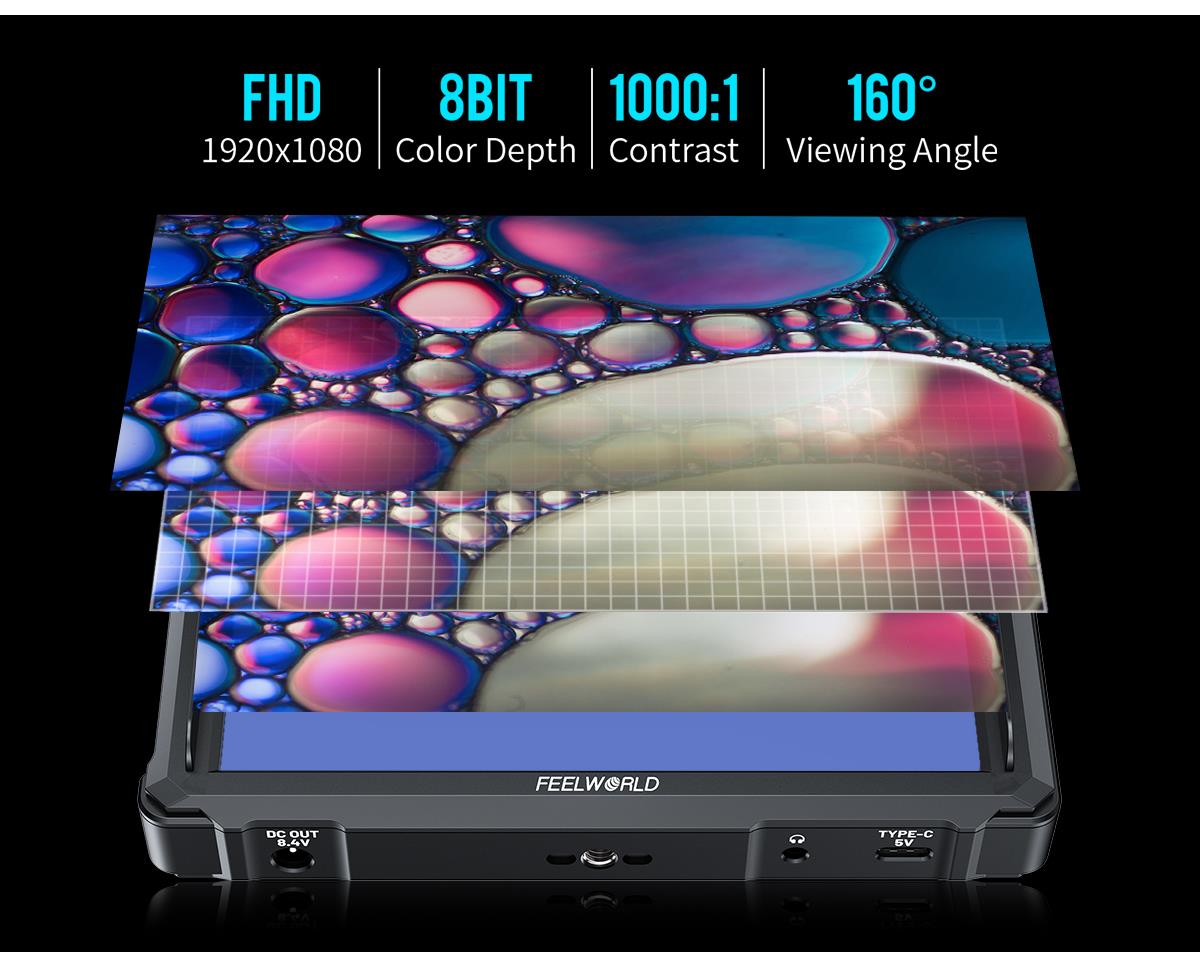

6-inch Full HD Screen
Checking and capturing every nuance

With an extremely high resolution 6-inch IPS panel, it provides excellent details and accurately reflects the original colors. Wide viewing presents a more detailed image.

1200Nit, Daylight Viewable

High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

Lightweight Design, Ideal Partner for Gimbal

The weight of the FW568 PRO is only 204g. This lightweight design makes it ideal for work with a gimbal for moving shooting.

Intuitive Button Operation

FW568 PRO provides multiple intuitive buttons, you can control the menu easily. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

9:16 Vertical Screen Marker

FW568 PRO has many kinds of ratio markers, especially the vertical screen marker 9:16. Perfect for vertical screen platforms such as TikTok, Instagram.

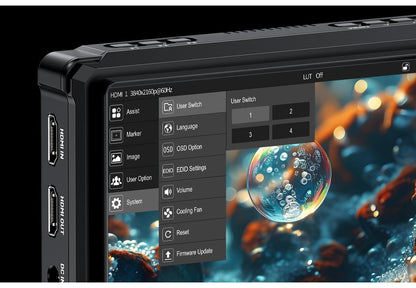

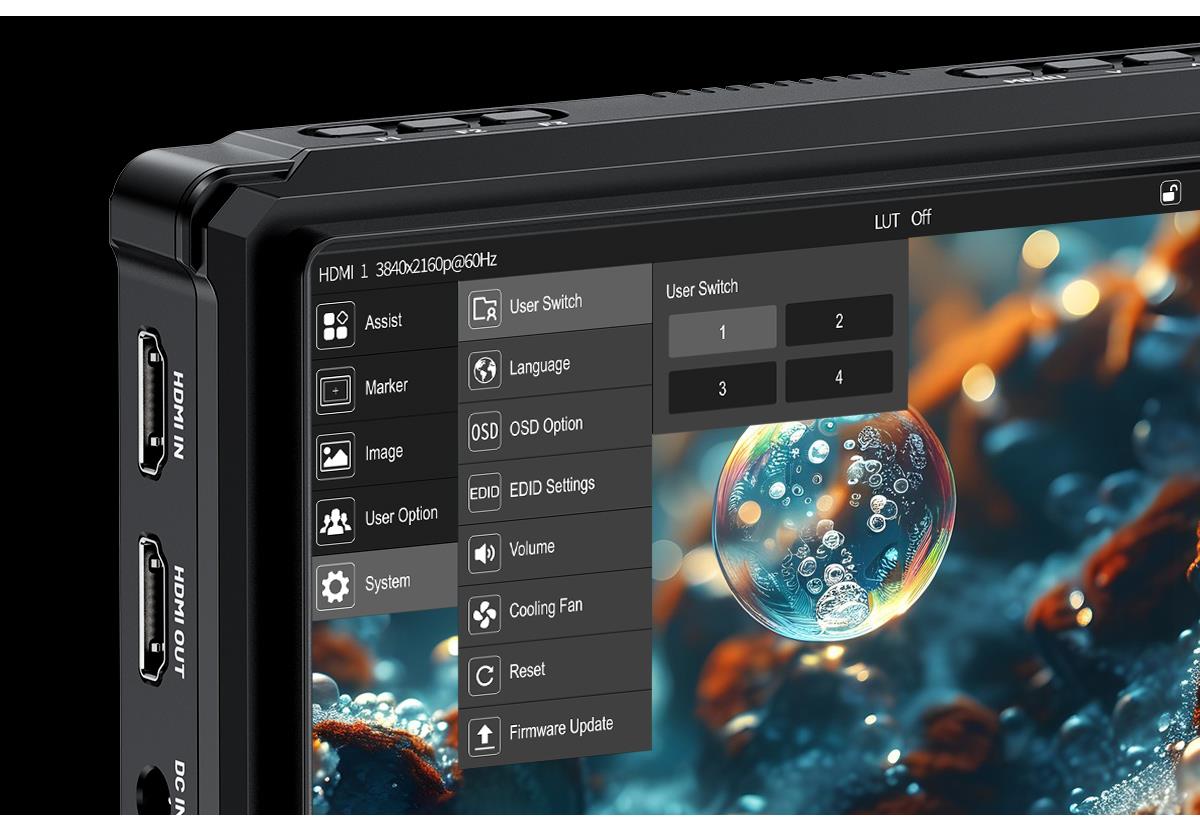

Menu User Switch

FW568 PRO provides 4 groups menu setting saving. You can select 1~4 groups after setting the menu, it will save automatically, and can be called directly or switch next time.

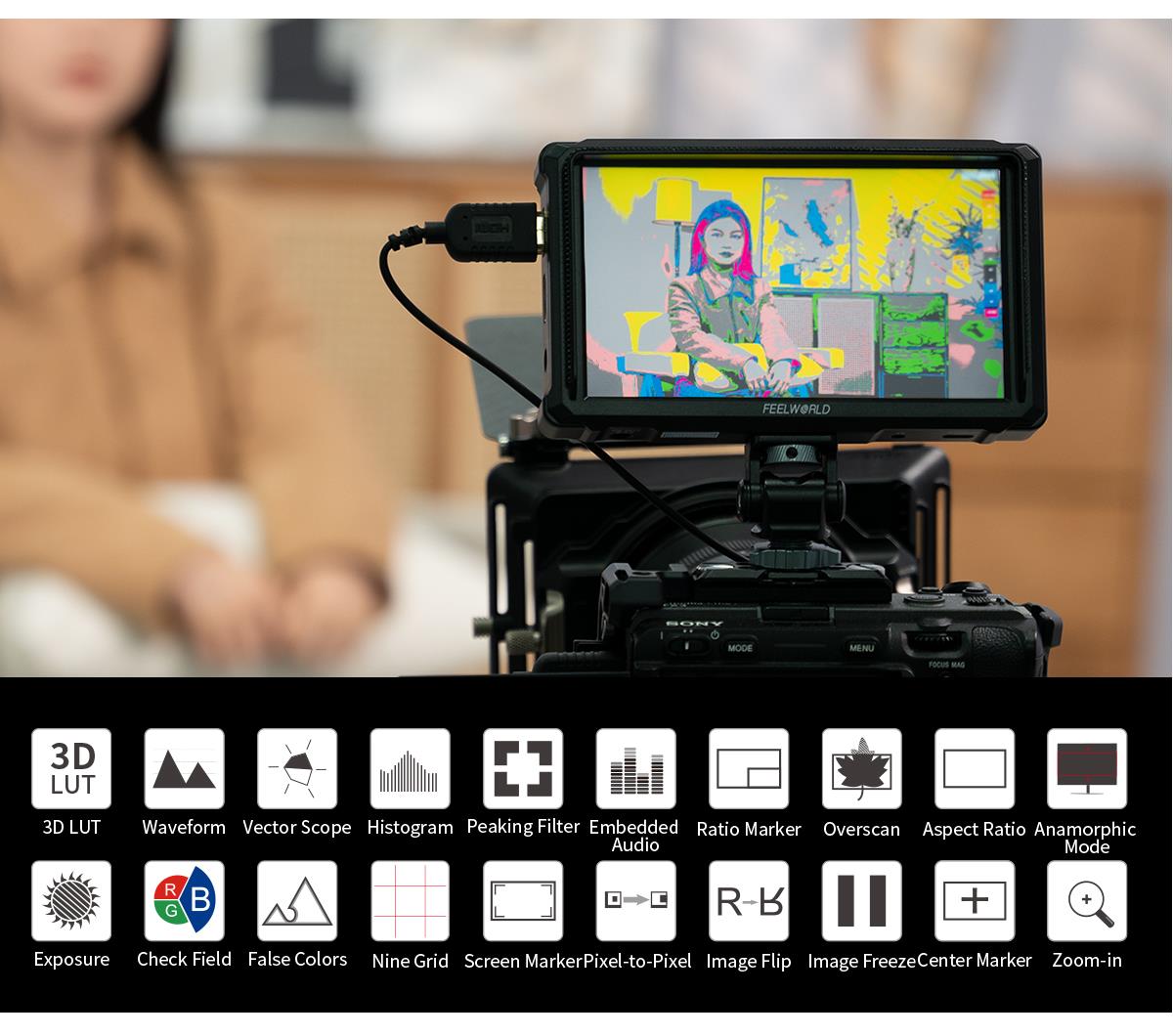

Full Range of Auxiliary Functions

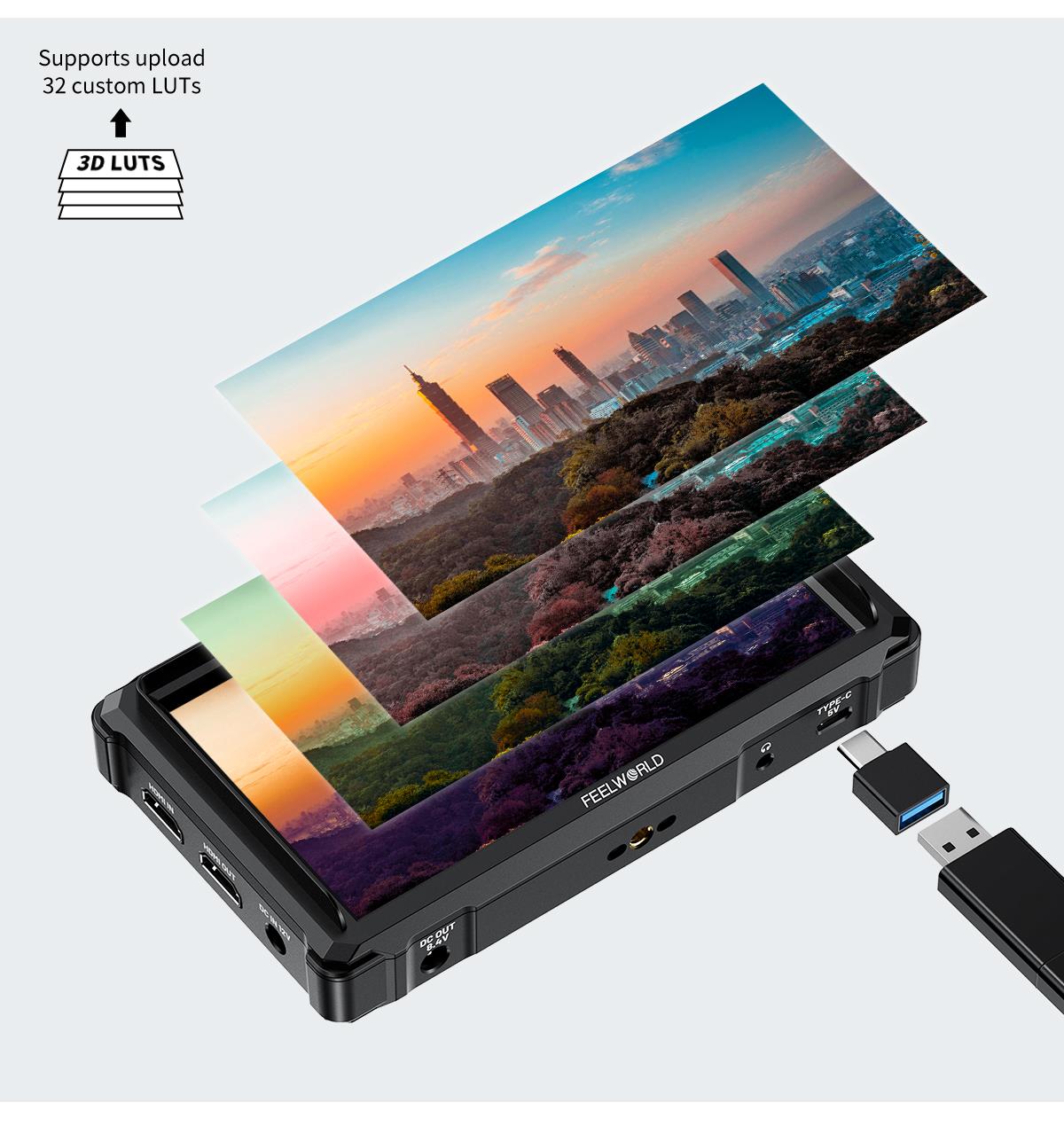

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via USB flash drive (up to 32). Insert the USB flash drive into the standard Type-C to USB adapter, then connect with the Type-C interface of FW568 PRO.

HDR Monitoring
What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly, and it better reflects the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

Accurate waveform monitoring
Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. FW568 PRO becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

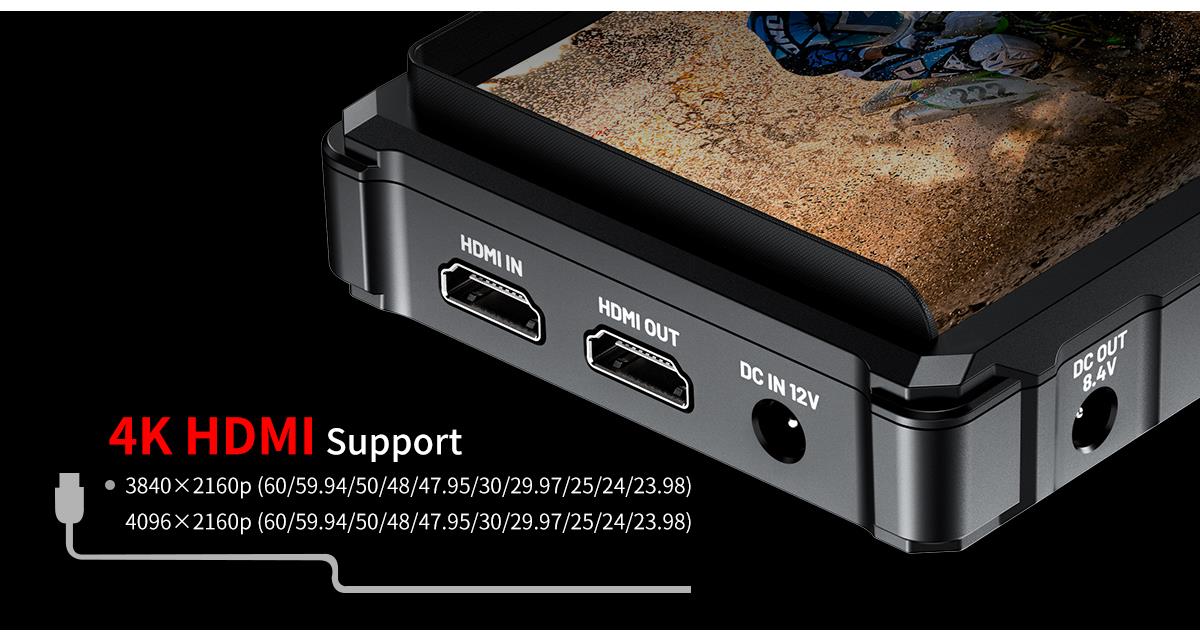

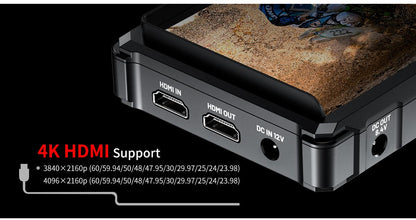

4K HDMI Input and Output, High Speed Transmission

Equipped with 4K HDMI input and output, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

DC 8.4V OUT, Power Your DSLR or Mirrorless Camera

FW568 PRO provides auxiliary DC 8.4V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the FW568 PRO extends camera run-time while providing a more usable display.

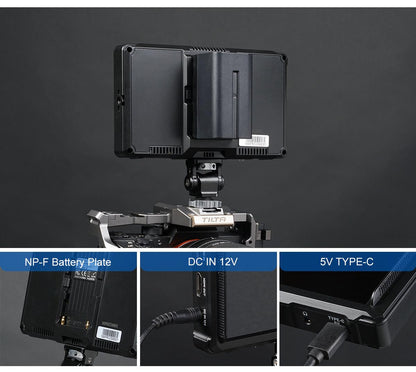

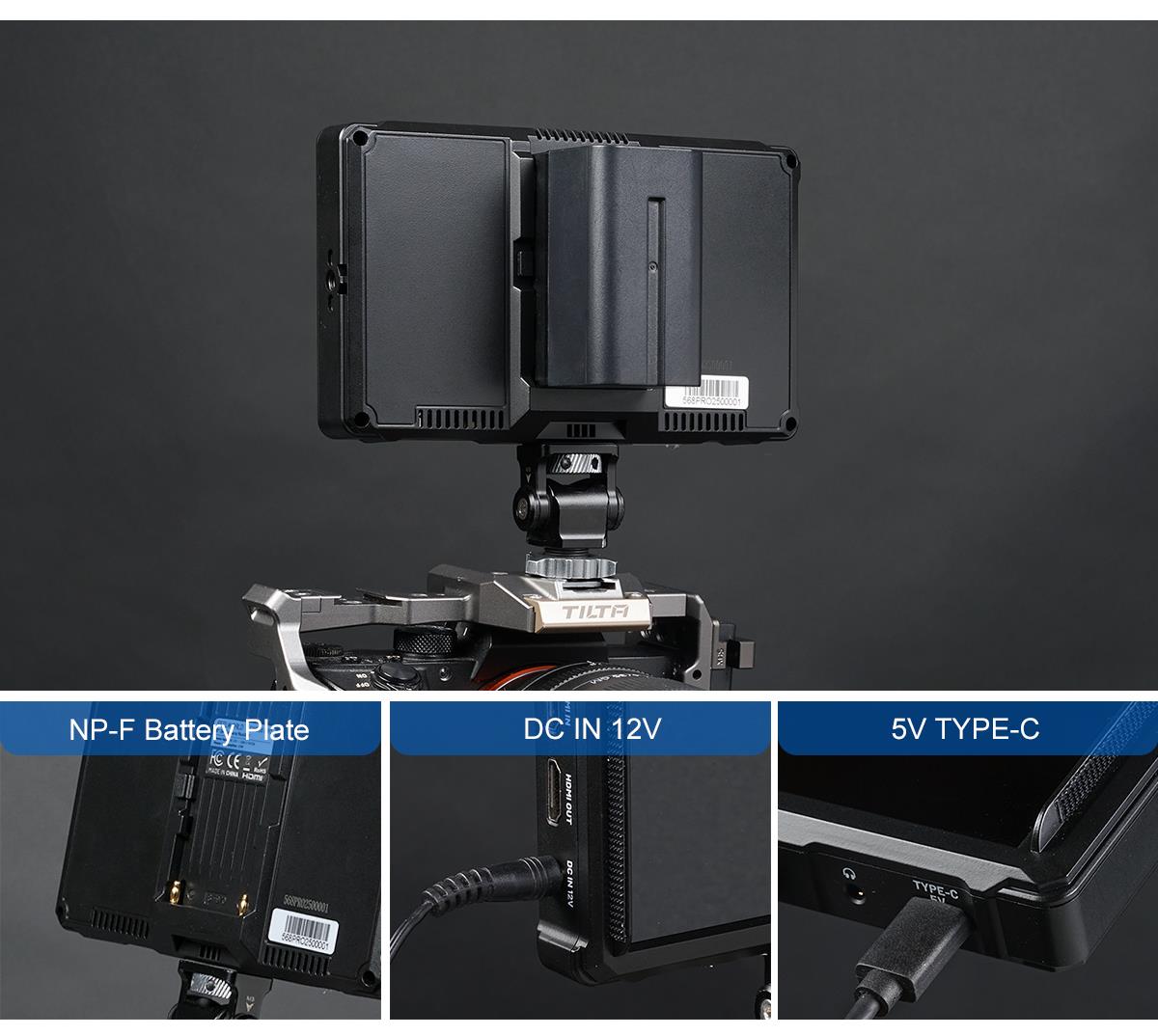

Multiple Power Supply, Long-lasting Power for Shooting

You can connect to the DC power input to get continuous power （suitable for use 1.5A power adapter, DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install an NP-F series battery for mobile applications. Install one F750 battery (4400mAh) lasts for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or a power bank (suggest 5V/3A).
Note: the battery is excluded; please purchase separately.

NP-F Battery Optional Recommendation

The power consumption of FW568 PRO is 11W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

12 Languages Supporting

FW568 PRO is built-in up to 12 languages, that means FW568 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor is equipped with 2 standard 1/4” mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

Portable Sun-hood

The standard portable sun-hood can easily resist the strong light, and is easy to install.

Specifications

Model	FW568 PRO
Screen Size	6" IPS
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) × 0.069 (V) mm
Aspect Ratio	16:9
Brightness	1200cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input

1 X HDMI	HDMI 2.0
1 X Type-C	1. 5V Type-C (Note: please use more than 5V/2A Type-C power supply); 2. Firmware update/LUT file import

Output

1 X HDMI	HDMI 2.0
1 X DC Output	DC Output

Audio

Audio

Stereo Headphone

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840×2160p (60/50/30/29.97/25/24/23.98)

4096×2160p (60/50/30/29.97/25/24/23.98)

General

Input Voltage	DC7～24V
Power Consumption	≤11W
Power Connector	DC (suitable for 5.5x2.1mm power plug cable)
Working Temperature	-0°C~50°C
Storage Temperature	-10°C~60°C
Install Way	¼-20 thread points (bottom, right side)
Unit Size	161x96x33.3 (mm)
Unit Weight	204g
Color Box Size	186L*124W*80H(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)
Gross Weight	6.65kgs

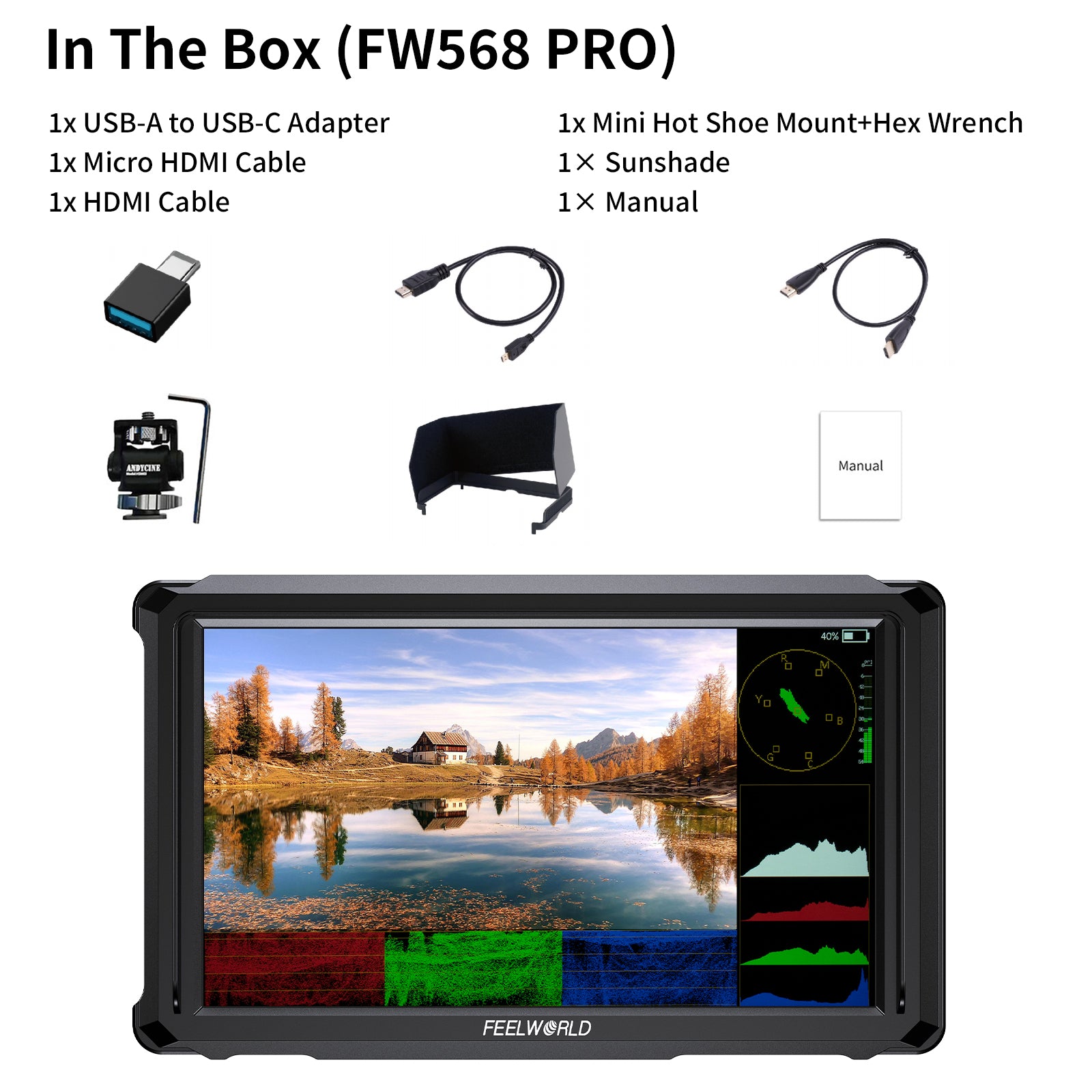

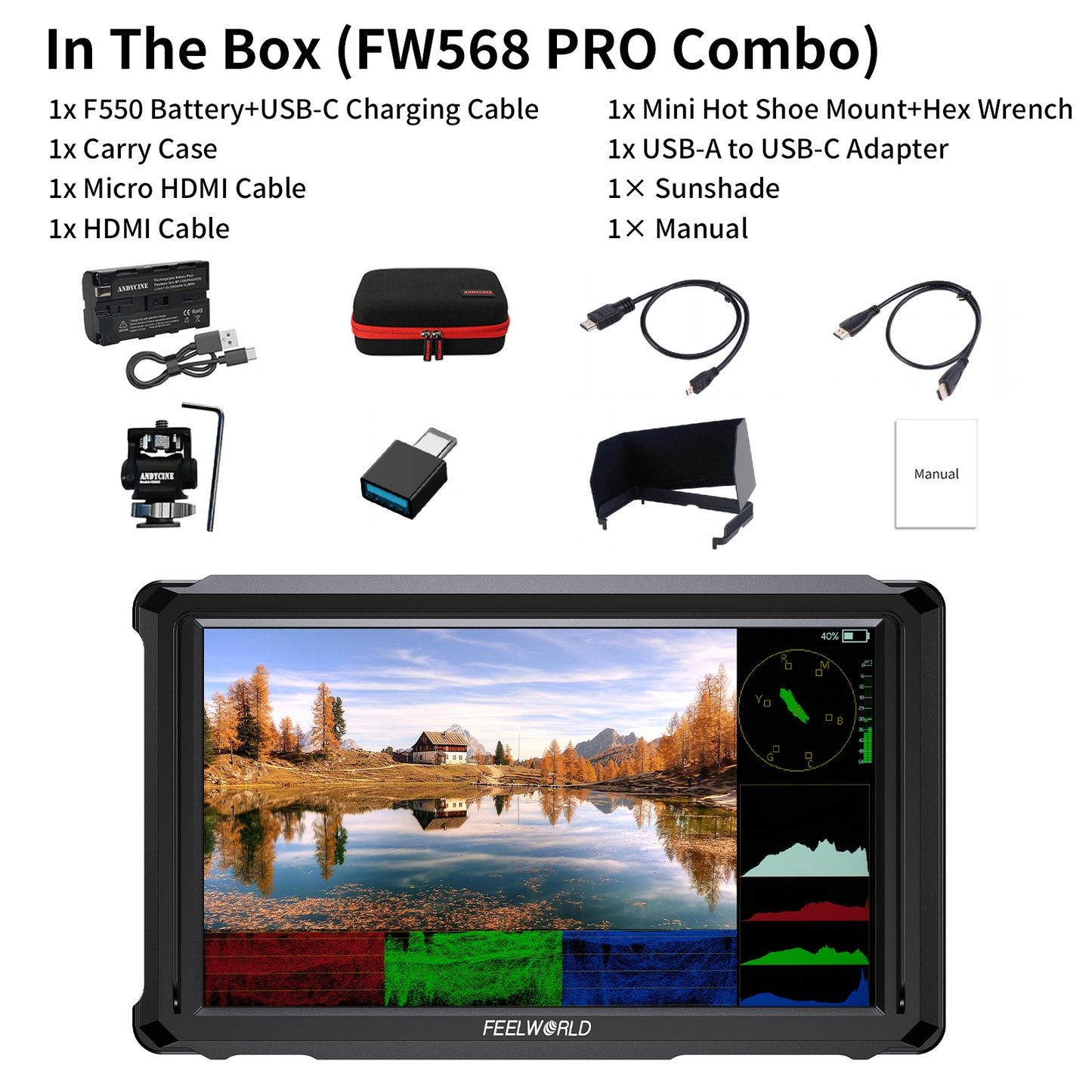

In The Box

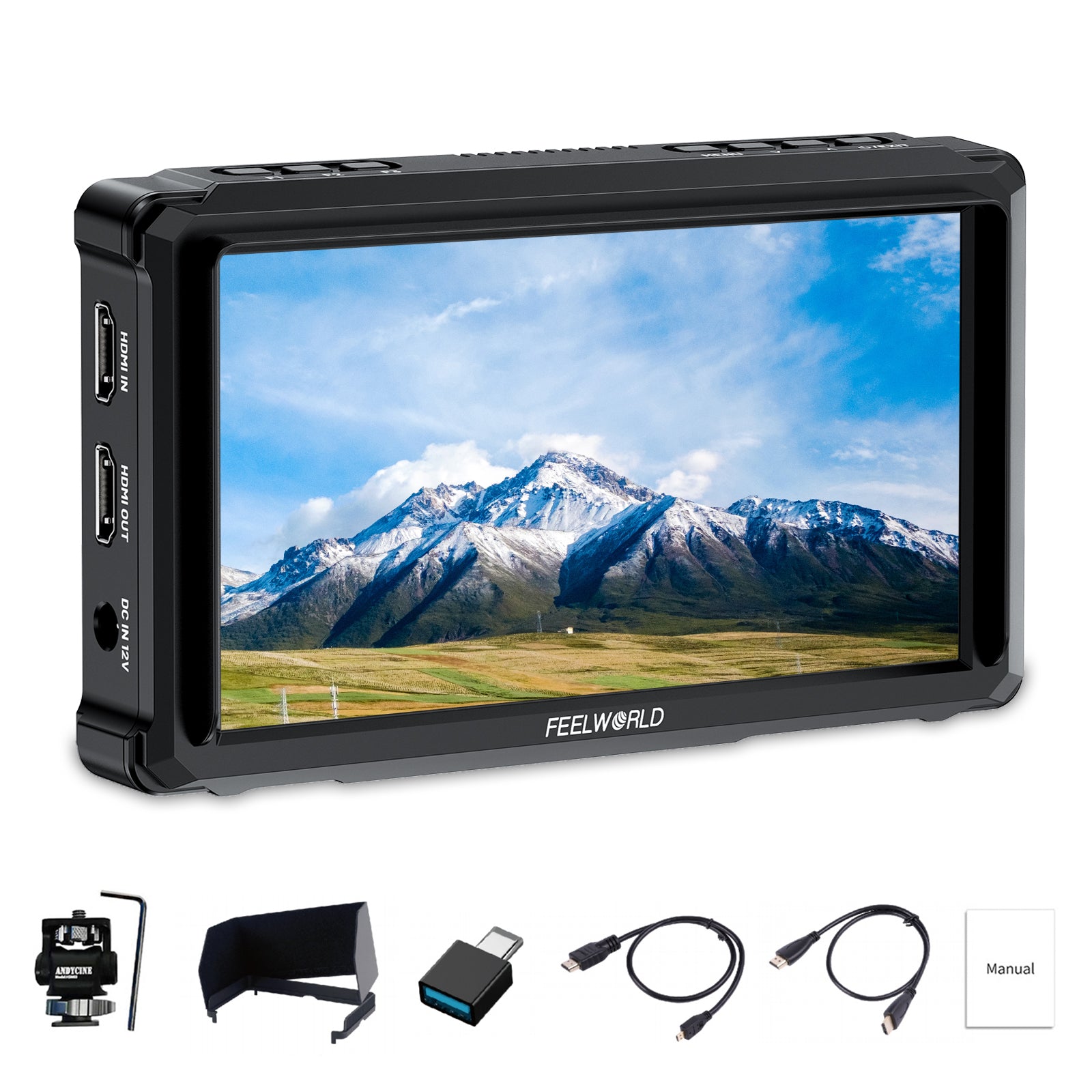

Standard Package

Combo Package
