FEELWORLD FW568 V3 6 Inch 3D LUT DSLR Camera Field Monitor IPS Full HD 1920x1080 Support HDMI Input Output Tilt Arm Power Output

Overview

Key Features

• Updated 6" 1920 x 1080 IPS Display
• Up to 32 Custom 3D LUTs
• 4K HDMI In and Out
• Wide 160° Viewing Angle
• 1000:1 Contrast, 450 cd/m² Brightness
• 1/4"-20 Mounting Threads
• Tilt Arm with Cold Shoe Mount
• L-Series Battery Plate
• 8.4 VDC Output for Powering Camera
• Sunshade and Micro-HDMI Cable Included

Small Size, Big Advantage

The FW568 V3 is small, lightweight and has great image quality. The small size is extremely useful when filming in tight spaces and where weight is important such as with gimbals. The FW568 V3 is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators, or shooters that are always on the go.

Intuitive Controls and Menus

The menu controls are intuitive and easy to use. At the top of the monitor, there are three custom function buttons that you can set as common functions; press “<” directly to decrease the volume; press “>” directly to increase the volume. The monitor will automatically save the parameters you have previously set and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

6” LCD, 1920x1080 Resolution

High resolution, brighter, full of colors
The FW568 V3 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1080 high resolution and 16:9 display, 450cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image, full-screen display uniform, no difference, no trailing. Its size, weight and resolution make it an attractive option for DSLR shooters looking to attach it straight to the camera.

Large Viewing Angles for All-round Visibility

IPS monitor gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And he wide viewing angle makes it easy for multiple crew members to watch at the same time.

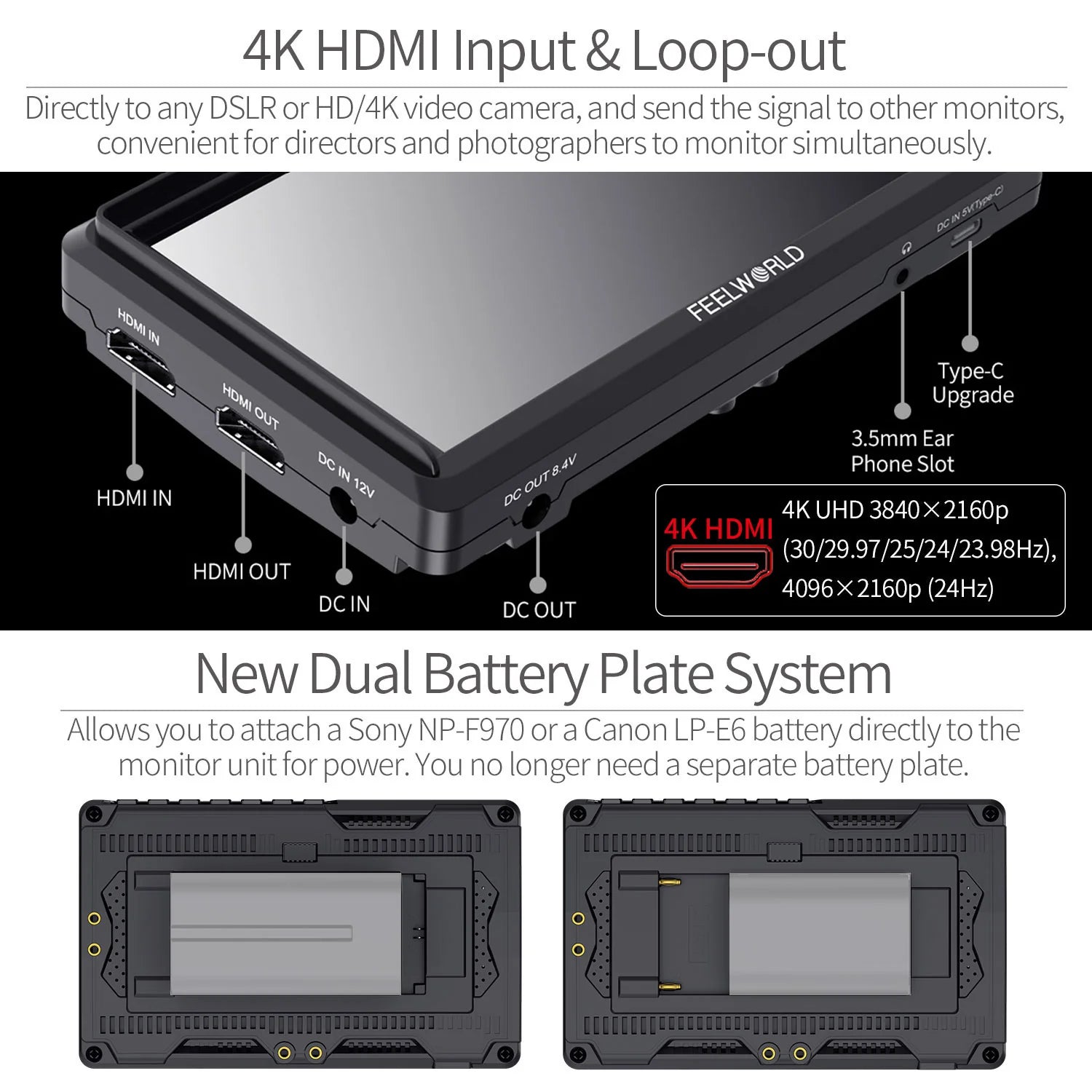

4K HDMI Input & Loop Output

The FW568 V3 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display a live picture on multiple displays at once while still maintaining the original video quality.

HDMI Output Application

Connect to Wireless Transmitter
Transmission to the film crew director is monitored at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.

Connect to Director Monitor

Display live picture on multiple displays simultaneously.

Connect to Projector

At the concert, live broadcast, or conference, you can connect to the project to display real-time images.

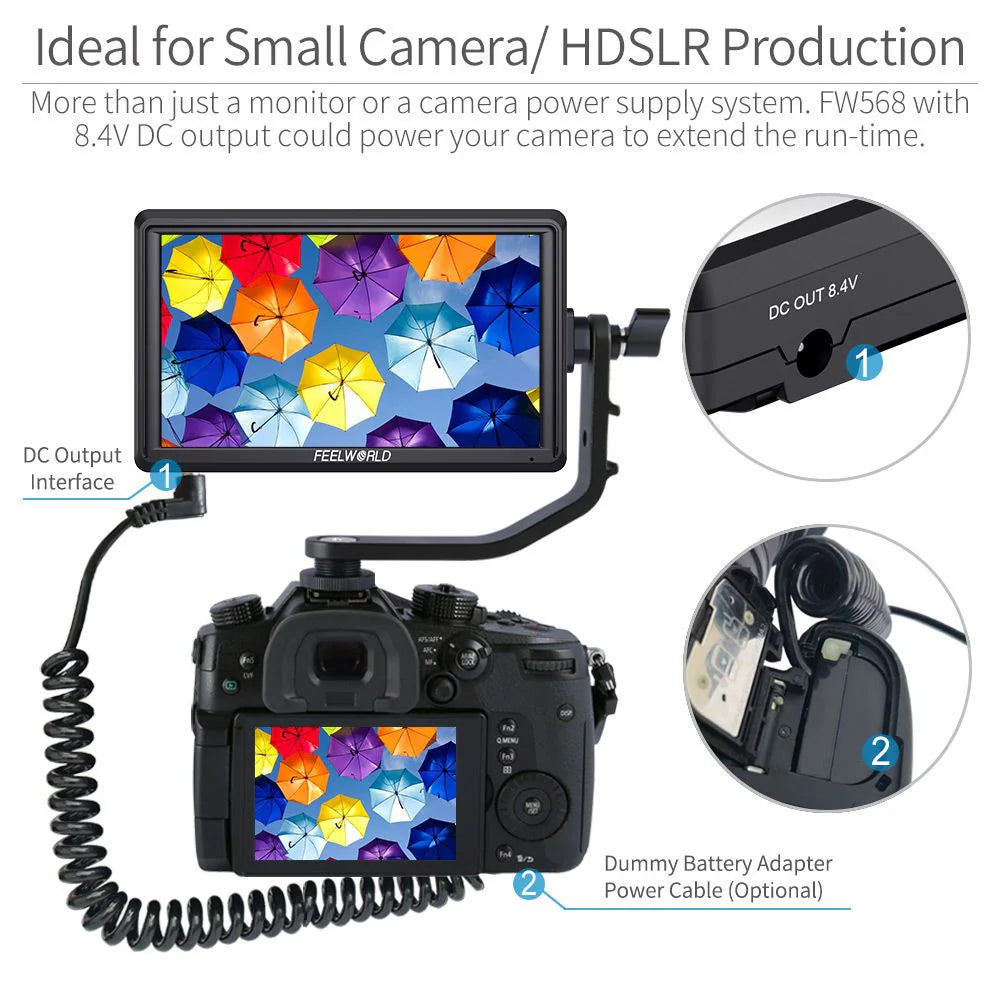

Auxiliary Power

Real-time power charge for cameras
A DC output port enables you to power your camera directly from an NP-F L-series or LP-E6 battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras. In addition, you can monitor audio using the 3.5mm stereo headphone jack.

Multiple Power Supply Modes

In addition to the DC 12V power input (can be used with a 12V/1.5A adapter), FW568 V3 also has a compatible F970/LP-E6 dual-purpose battery plate, and supports 5V Type-C input, which can be powered by mobile phone chargers or power banks (at least 5V/2A) .

True Color · Professional Color Calibration

Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction

FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

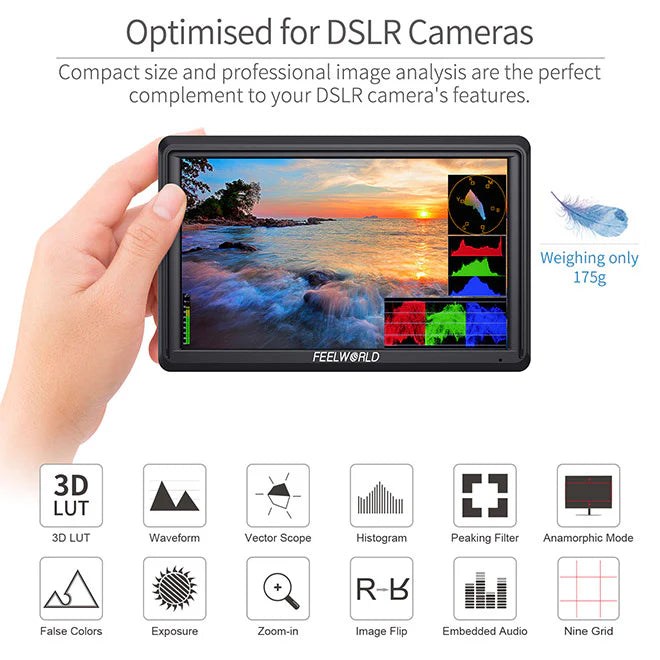

Optimised for DSLR Cameras

The FW568 V3 is sure to add instant production value for mirrorless and DSLR shooters. Its bright display, professional software tools, and convenient mounting are invaluable for shooters looking to do more with less gear. The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc.

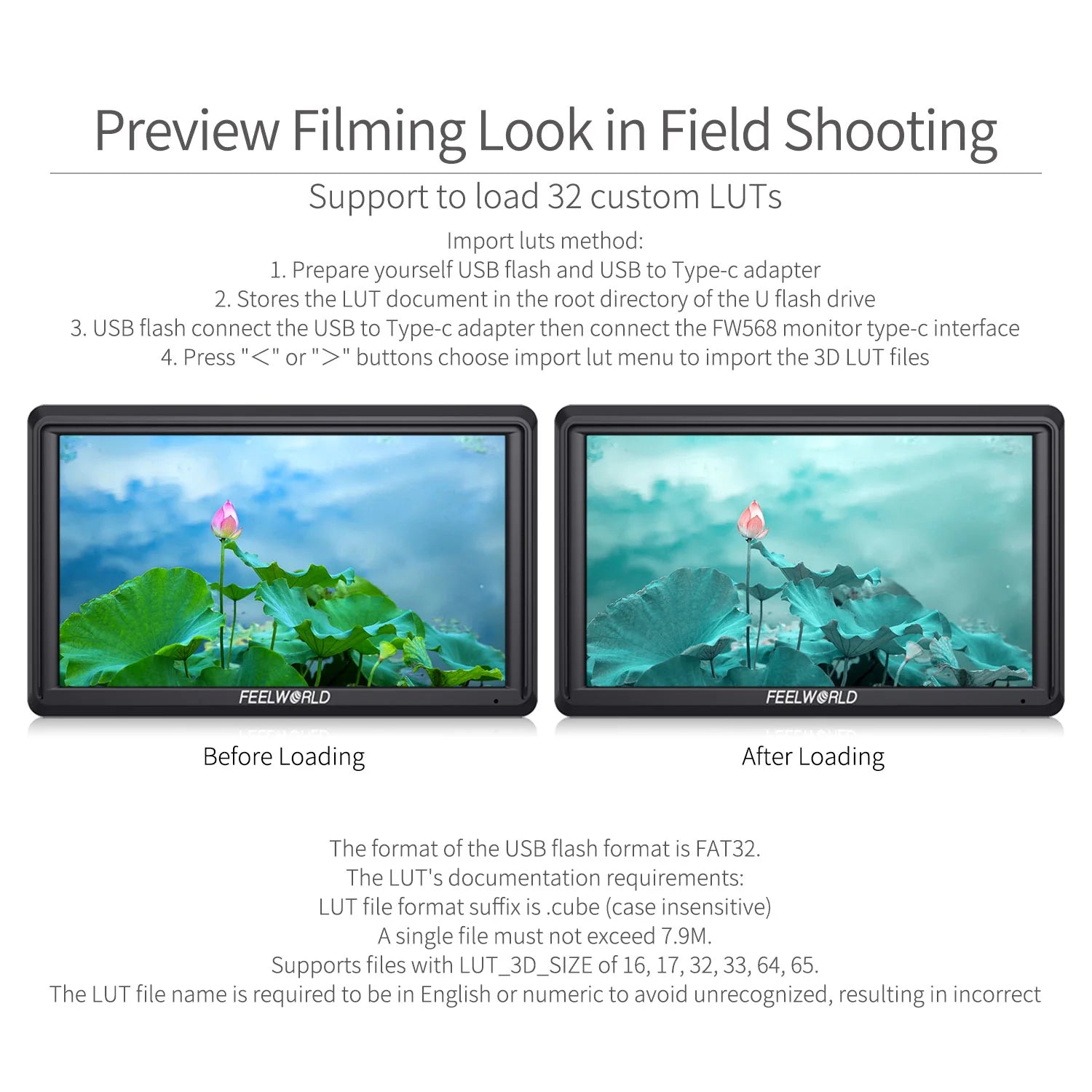

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). FW568 V3 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C to USB connector. Slot and instantly select between them, maintaining creative intent, always.

Accurate waveform monitoring

Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use FW568 V3's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FW568 V3 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

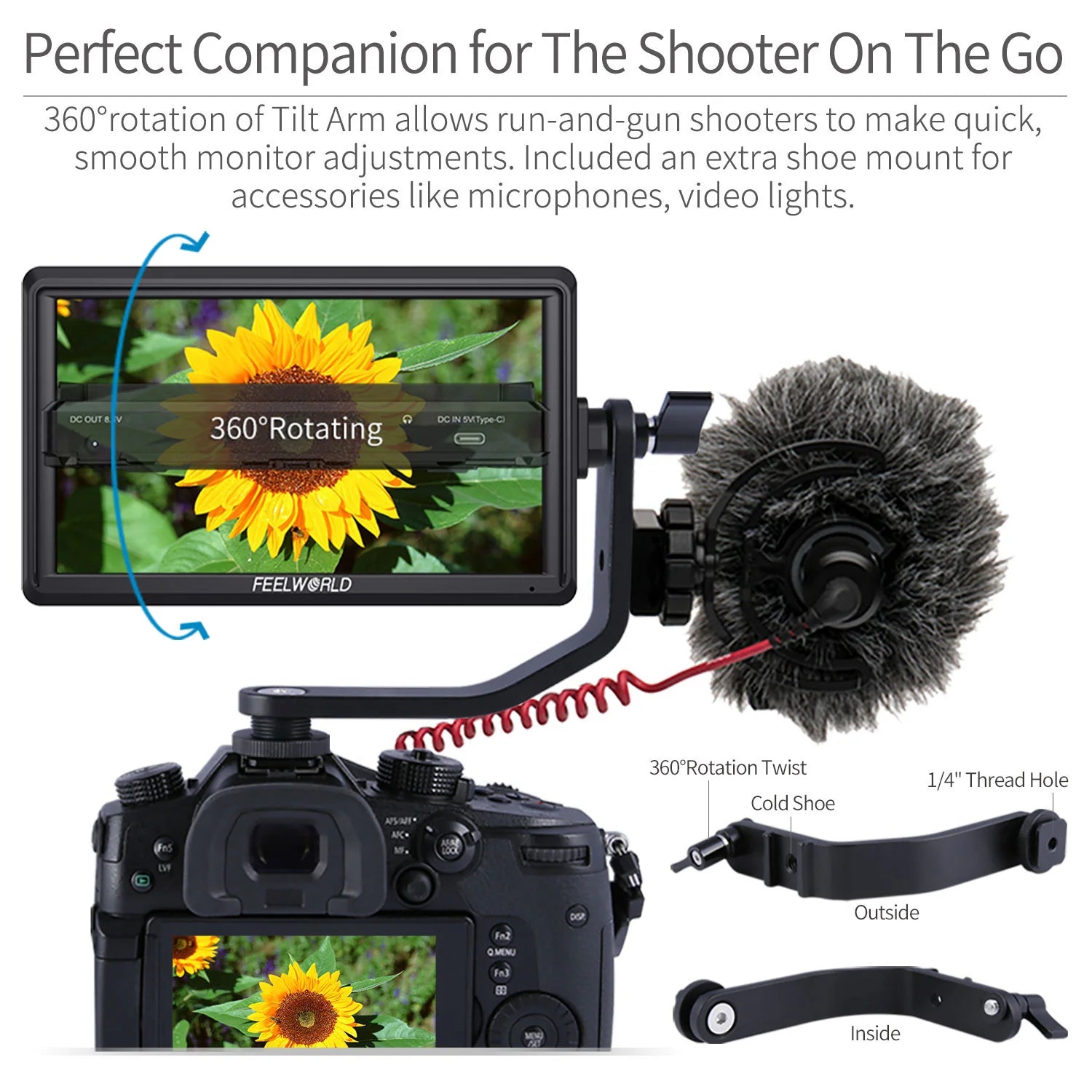

Convenient Mounting - Tilt Arm

Every FW568 V3 monitor will ship with a cold shoe-mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the FW568 V3 monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

Multiple Installation Ways

To convenient monitor the various angles of monitoring
FEELWORLD FW568 V3 features standard 1/4" mount points (bottom, right) for attaching it to cameras and rigs. The external 1/4 screw design is used to make the monitor lighter and thinner.

The 1/4 screw can be removed from the bottom or right side.

Flexible Install Both on Camera and Gimbal

Not only can you install it on a handheld stabilizer, but you can also mount it securely and attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen! FW568 V3 is equipped with one 1/4 screw. If you also want to fast install at the gimbal, you can buy one more 1/4 screw.

Newest Sunshade Design, Easy Install

• All-in-one install sunshade frame           • Save time by installing and disassembling

Specifications

Input

Output

Audio

HDMI Input/ Output Support Format

General

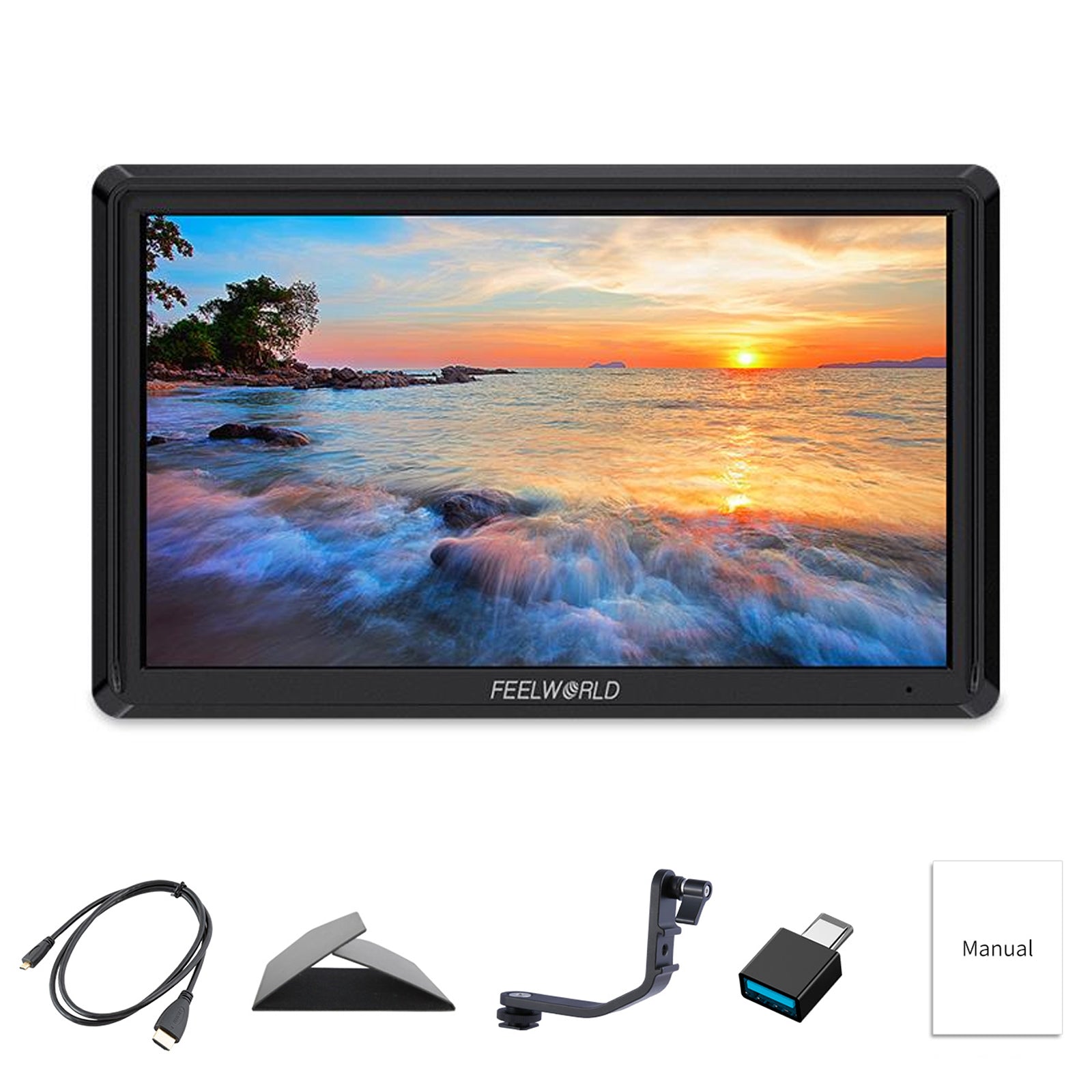

In The Box

Standard Package
