FEELWORLD FW759 PRO 7 Inch Touch Screen Camera Field Video Monitor 4K HDMI 1280x800 IPS
FEELWORLD FW759 PRO 7 Inch Touch Screen Camera Field Video Monitor 4K HDMI 1280x800 IPS
200 in stock
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Overview
The FEELWORLD FW759 PRO Touchscreen HDMI/SD 4K On-Camera Monitor features a 1280 x 800 resolution display with a maximum brightness of 400 cd/m². It supports HDMI input signals with resolutions up to DCI 4K24 and UHD 4K30 and is powered using a Sony L-series type battery.
Key Features
- Touchscreen 1280 x 800 Display
- Up to DCI 4K24 and UHD 4K30 HDMI Input
- 400 cd/m² Brightness, 800:1 Contrast
- USB-C 5V, L-Series/NP-F Power Input
- Focus Peaking Assist
- HD 1:1 Pixel Zoom, Markers, Check Field
- Image Freeze and Rotation
- Tilting 1/4"-20 to Shoe Mount Adapter
- Mini-HDMI Cable and Cable Clamp
- Includes Sunshade

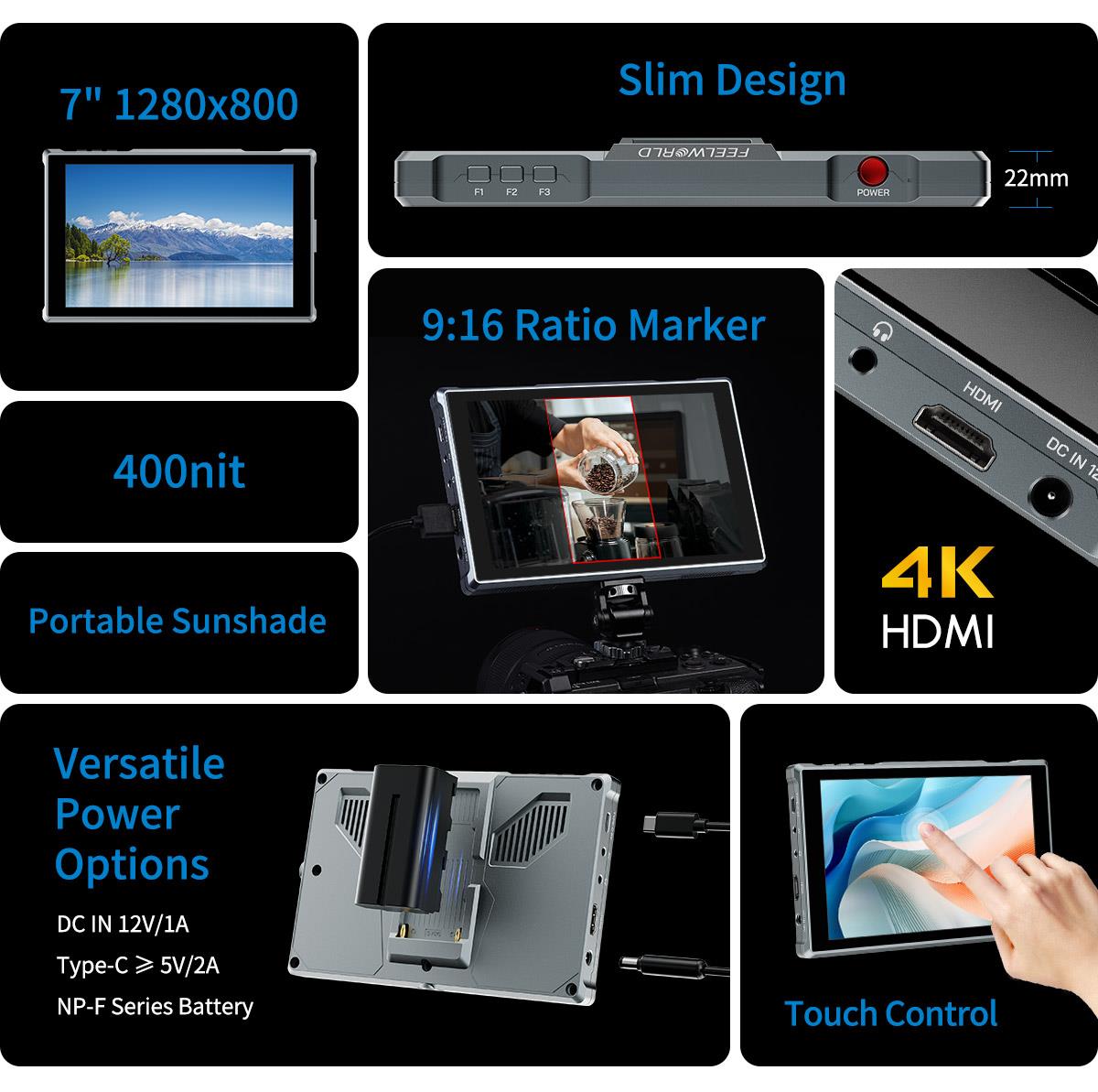

Effortless Setup, Precise Focus, Inspire Creation
FEELWORLD FW759 PRO is equipped with a 7-inch HD IPS panel, a full touch screen, accompanied by an iconified menu, making the shooting more efficient. Slim design, easy to carry, versatile professional camera assistance, perfect for video creation, photography, and on-set monitoring.
Rich Colors and High Quality Display
Equipped with a 7-inch 1280x800 HD IPS, the monitor ensures more precise color restoration, exquisite picture quality, and richer colors.
178°Wide Viewing Angle
The IPS panel has a 178°wide viewing angle, allowing you to enjoy the delicate image details whatever monitoring from whichever angle.

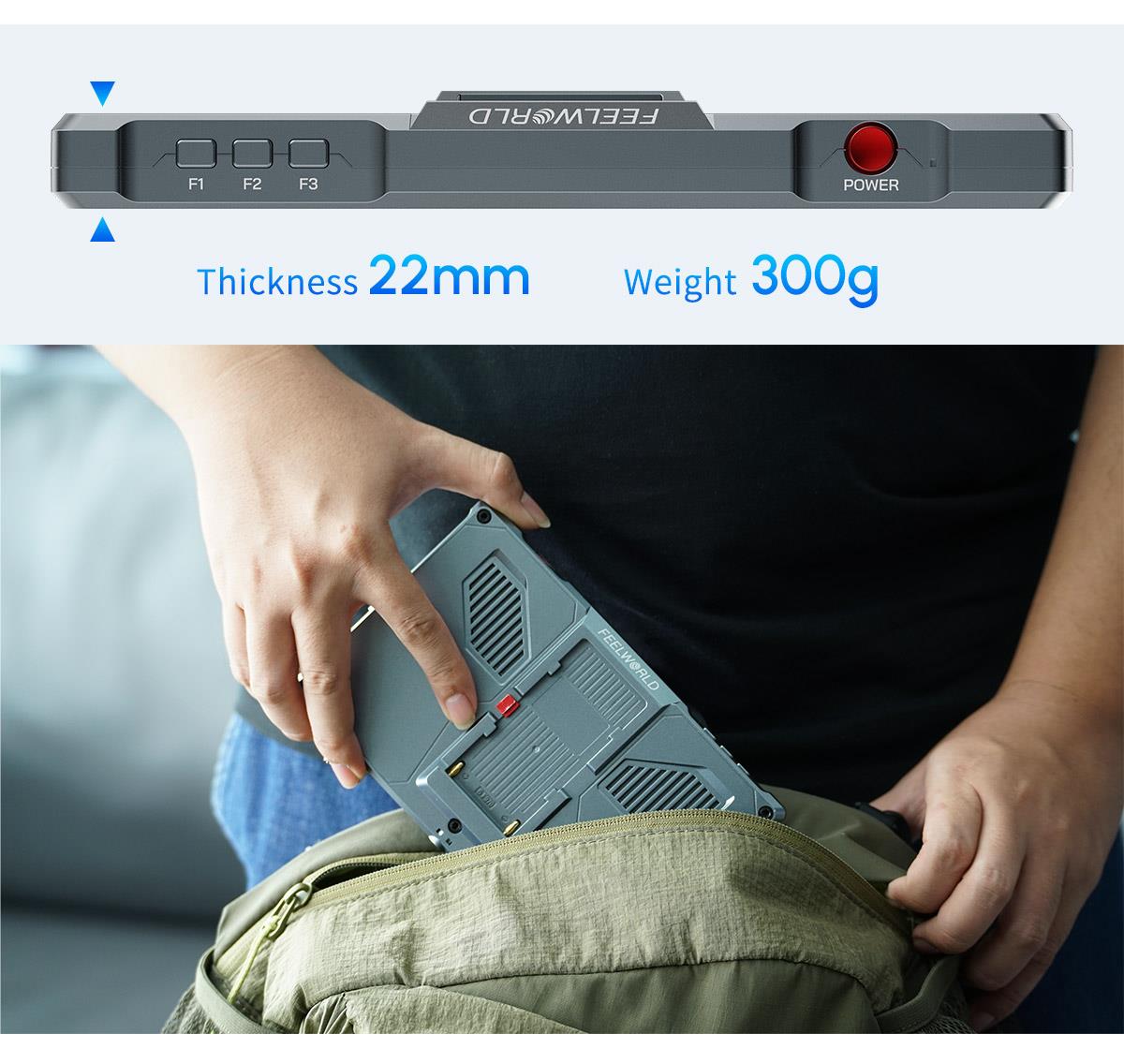

Slim and Lightweight Design
Slim and lightweight design, the FW759 PRO is your perfect travel companion for mobile shooting.

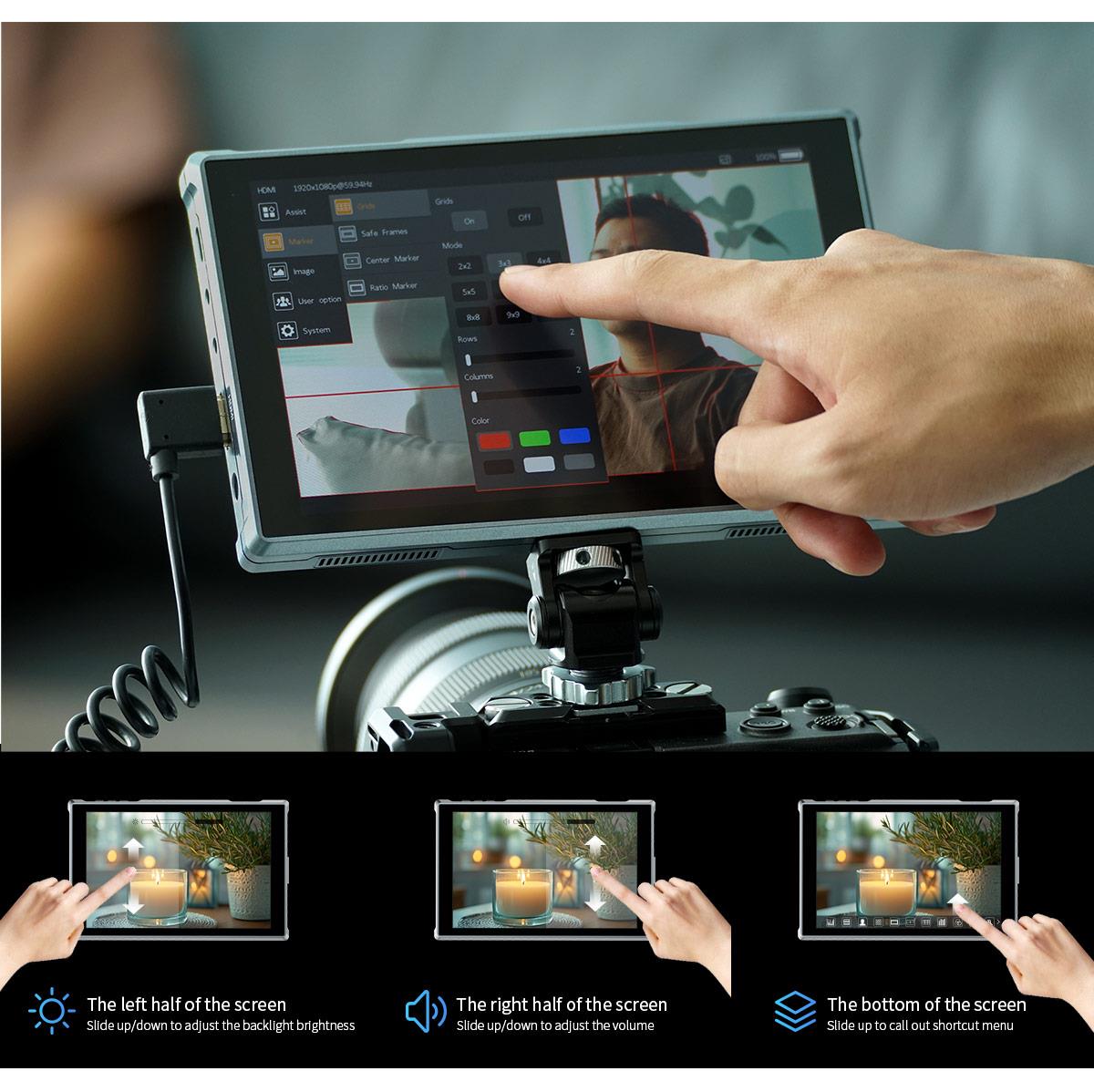

Intelligent Full Touch Control
The innovative touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

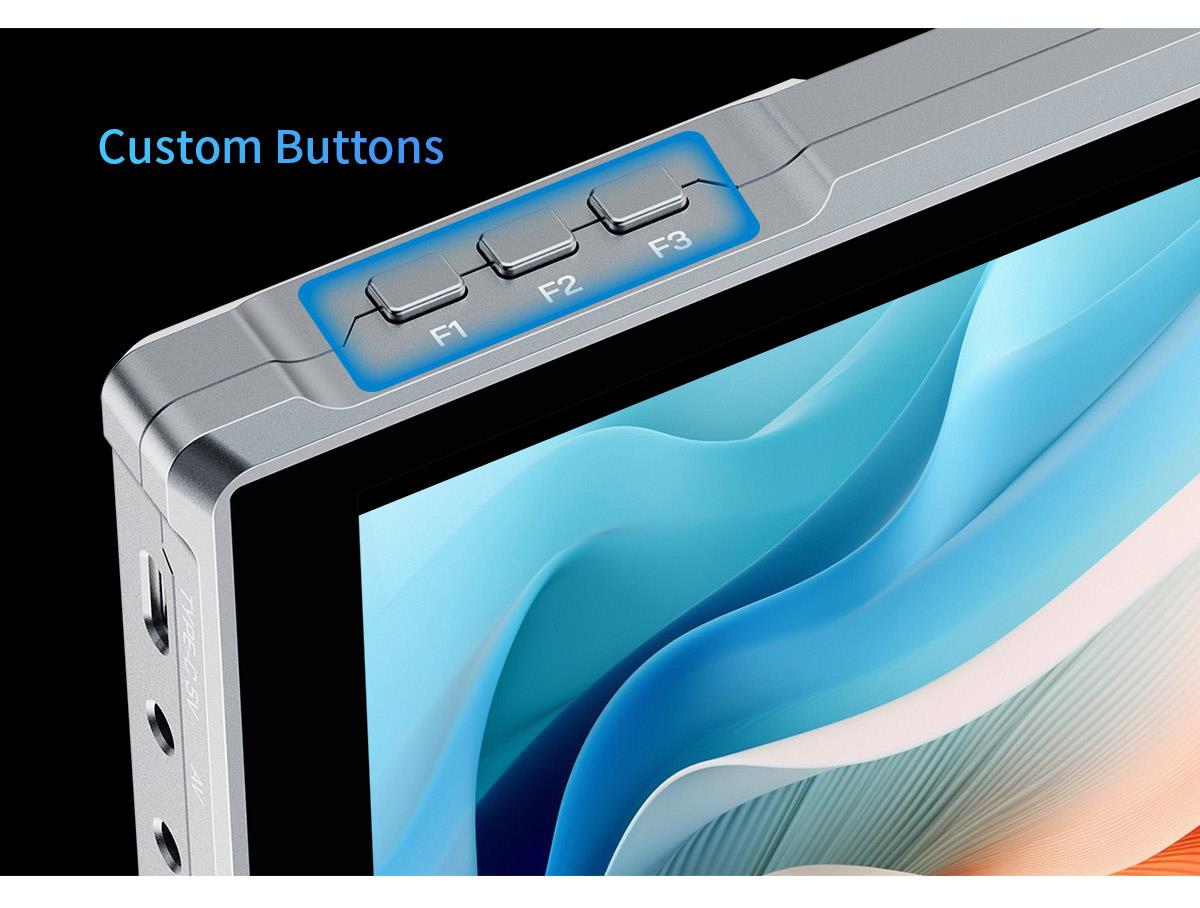

Quick Access with Custom Buttons
FW759 PRO provides three customizable shortcut keys that allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
9:16 Vertical Screen Marker
FW759 PRO has many kinds of ratio markers, especially the vertical screen marker 9:16. Perfect for vertical screen platforms such as TikTok, Instagram.

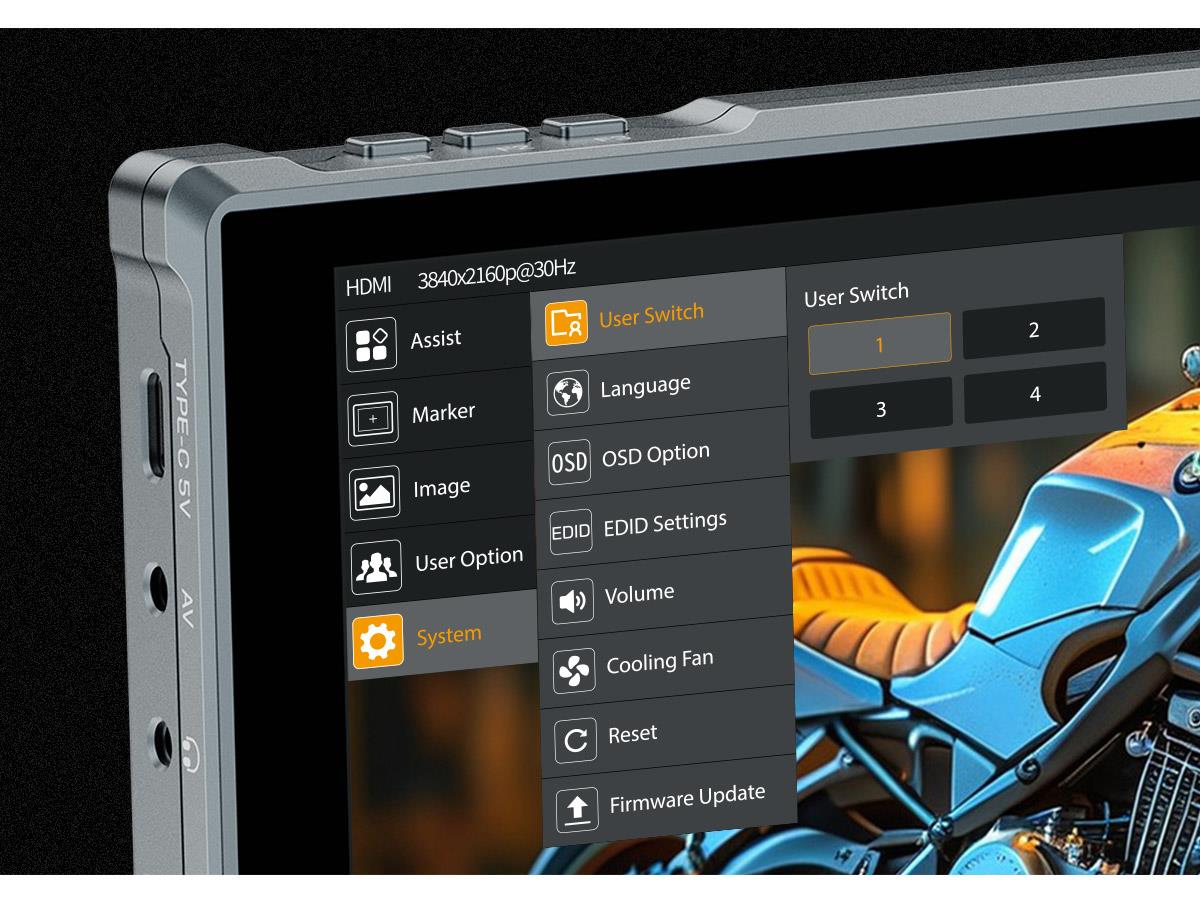

4 Menu User for Quick Switch
The monitor provides a 4-group menu setting for saving. You can select 1~4 groups after setting the menu; it will save automatically, can be easily recalled, or switched based on different shooting needs.

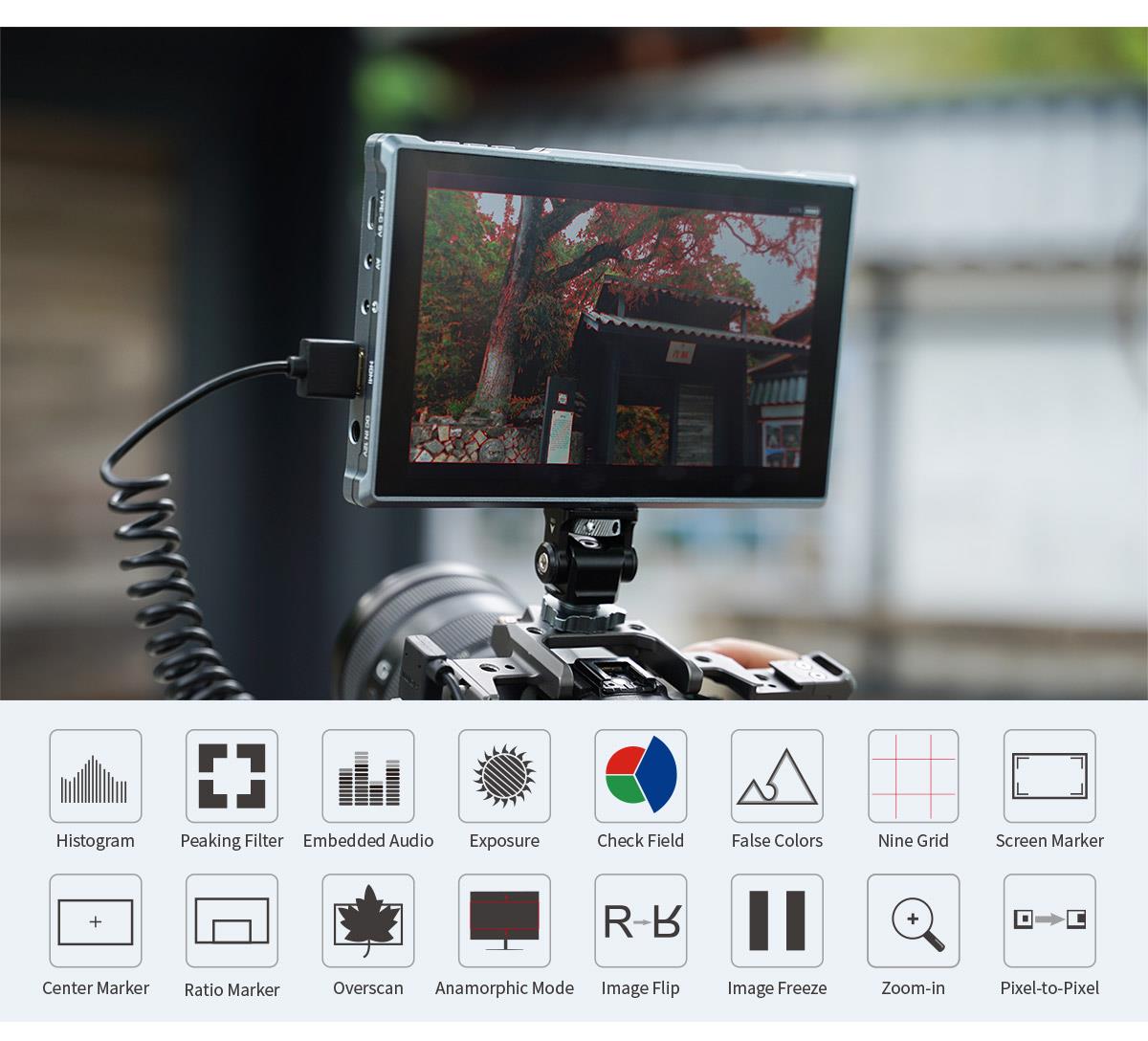

Rich Auxiliary Functions

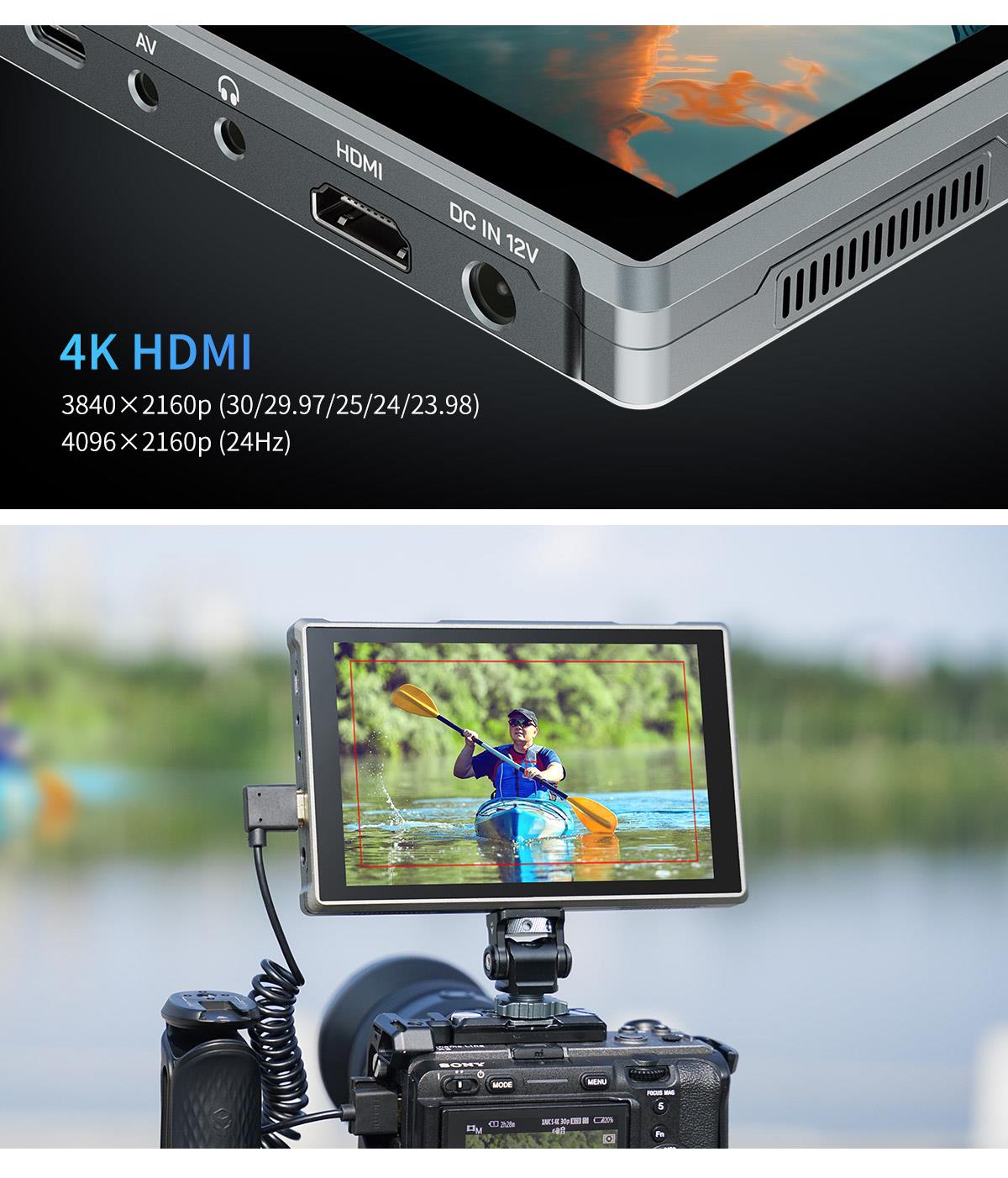

4K HDMI & AV Input
Support 4K 30Hz signal input for clear and smooth monitoring.Compatible with the latest DSLR cameras on the market. And also provides an AV interface and a 3.5mm headphone jack to monitor audio.

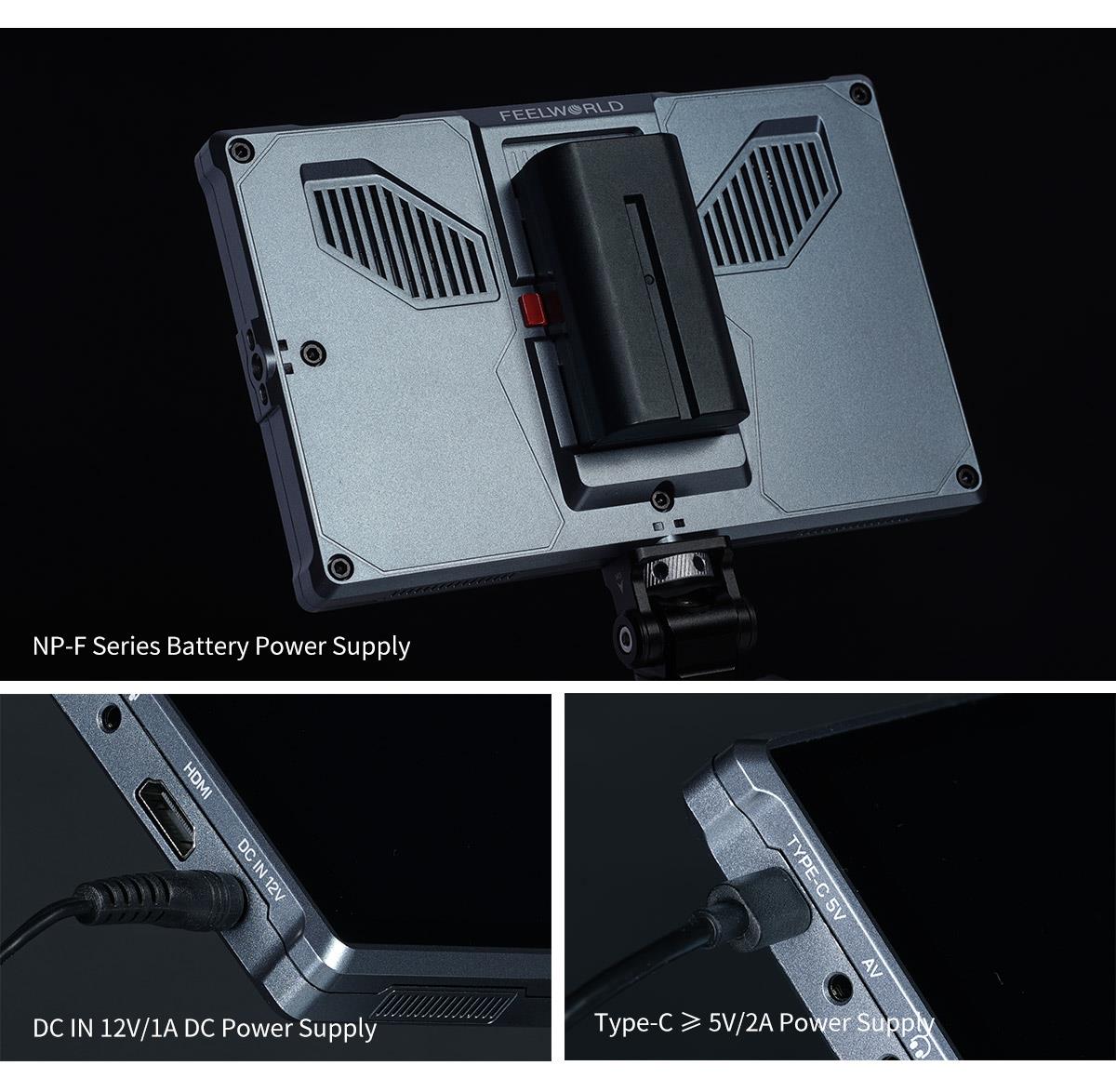

Versatile Power Options
NP-F Battery Optional Recommendation
The power consumption of FW759 PRO is 9W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.
12 Languages Supporting
FW759 PRO built-in up to 12 languages, which means FW759 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

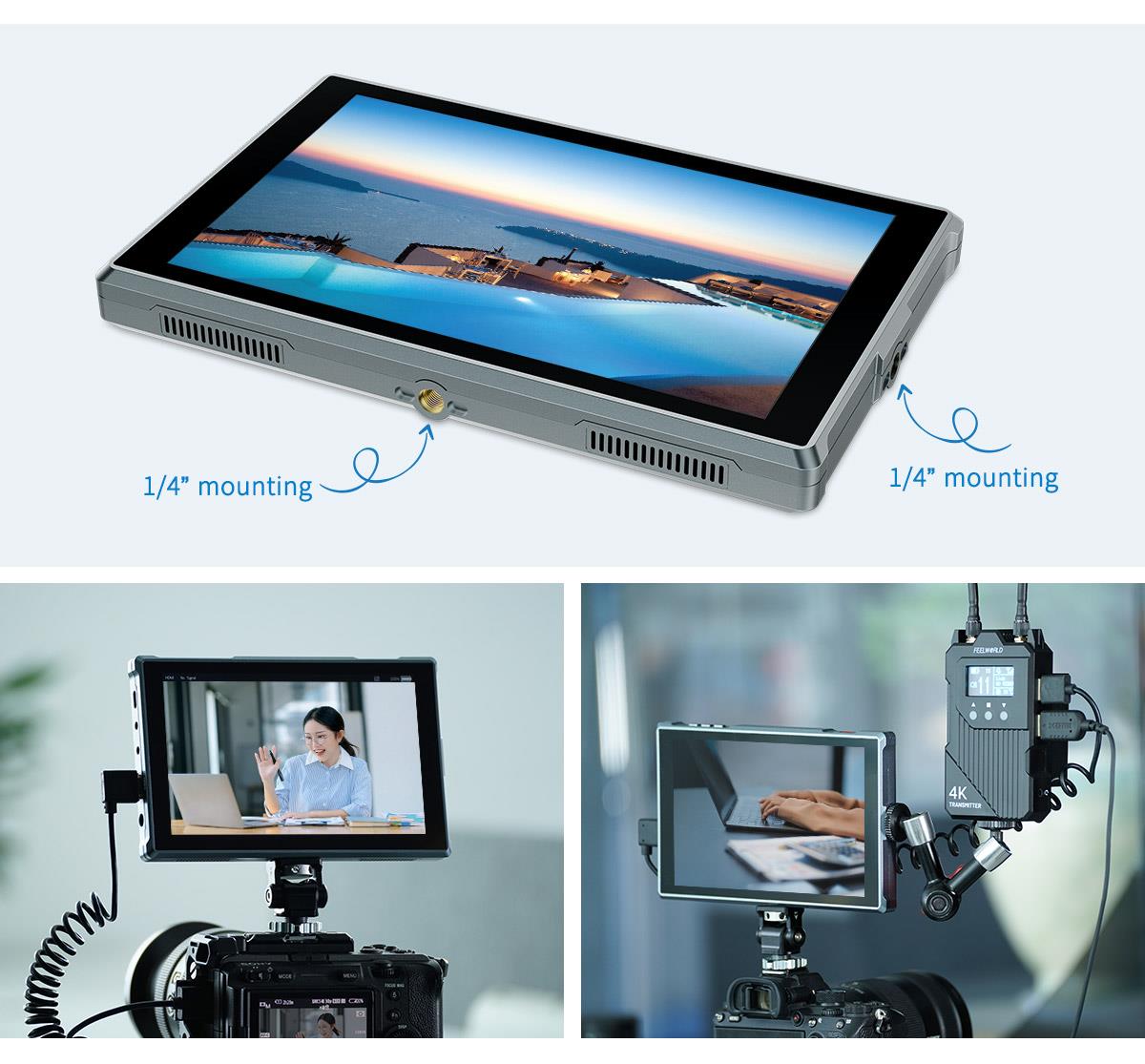

Multiple Mounting Points, Meet Different Needs of Monitoring
The monitor is equipped with 2 standard 1/4” mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographers or directors.
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with a 180° viewing angle and base with 360° rotation.
Removable Sun-hood
The standard removable sun-hood can easily resist the strong light, and is easy to install.
HDMI Cable type reference for matching different camera models
Specifications
| Model | FW759 PRO |
| Screen Size | 7"IPS |
| Resolution | 1280x800 pixels |
| Pixel Pitch | 39.25(H) x RGB x 117.75(V) mm |
| Color Depth | 8bit |
| Aspect Ratio | 16:10 |
| Brightness | 400cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Signal Input
| 1 X HDMI | HDMI 1.4 |
| 1 X AV | AV |
Audio
| Audio | 3.5mm Stereo Headphone |
HDMI Input and Output Support Format
| 480i /480p /576i /576p |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (24Hz) |
General
| Power Input | DC IN 12V, Barrel (5.5mm outer, 2.1mm inner);Type-C 5V(please use 5V/2A or more than 2A Type-C power supply) |
| Power Consumption | ≤9W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Point (right side, bottom) |
| Unit Size | 182Lx115Hx22D (mm) |
| Unit Weight | 300g |
| Color Box Size | 222L*158W*76H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 450*234*385 (mm) |

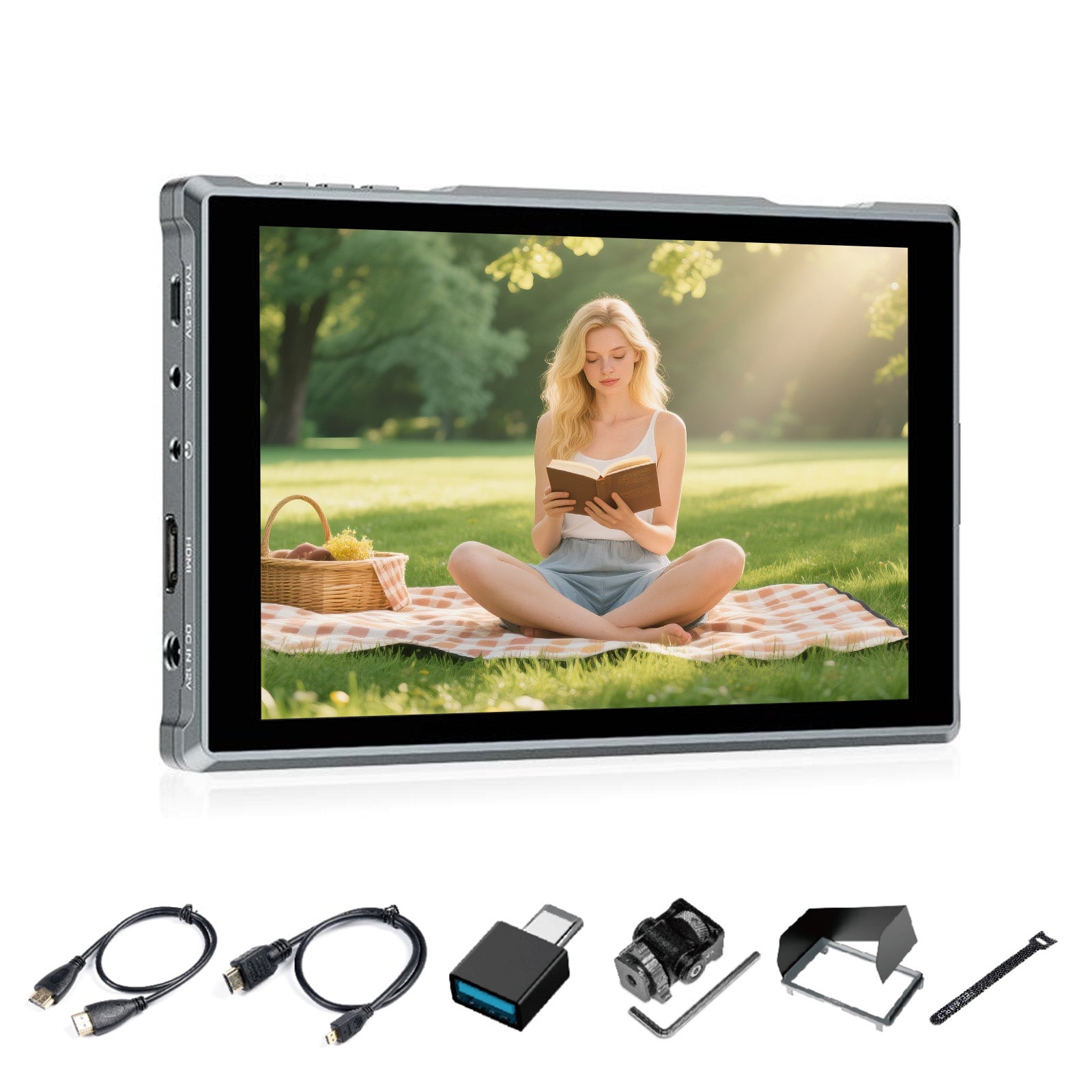

In The Box
