FEELWORLD & SEETEC
FeelWorld HDMI to SDI Converter HTS
FeelWorld HDMI to SDI Converter HTS
100 in stock
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Overview

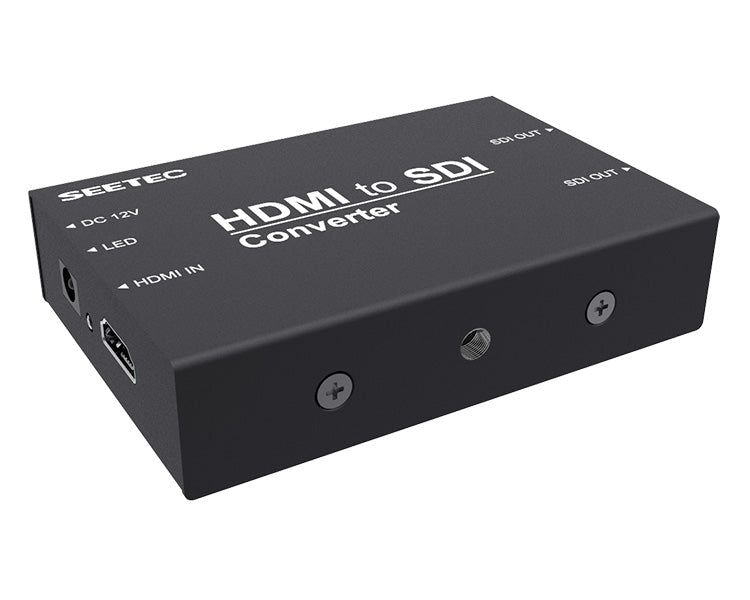

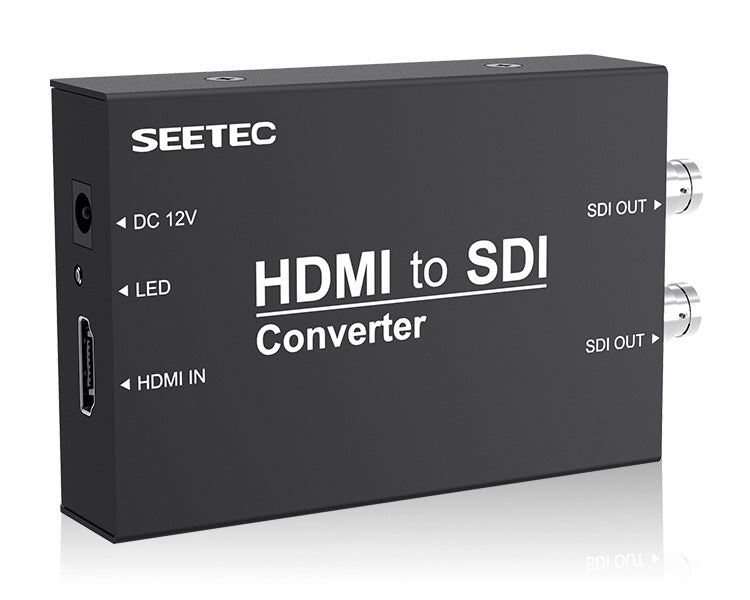

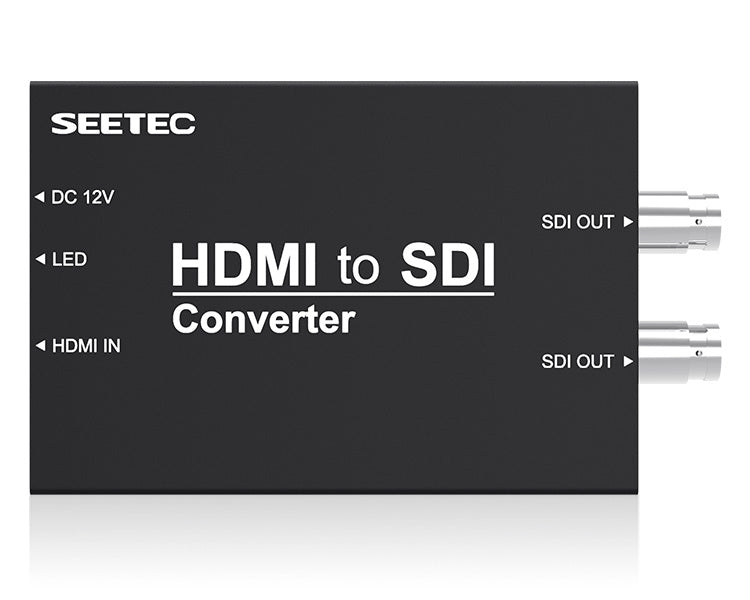

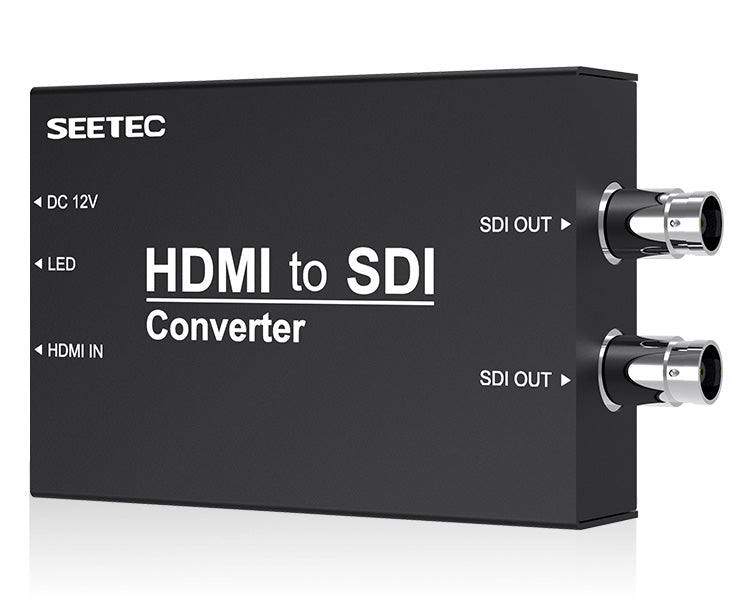

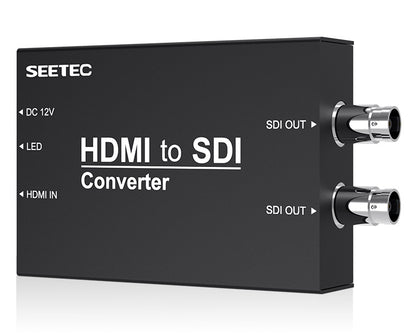

The FeelWorld HDMI to SDI Converter, in a black housing, features an HDMI input and two 3G/HD/SD-SDI outputs in a compact, all-metal housing. It's designed to deliver a signal to two devices simultaneously in stable quality, without the common artifacts, while allowing for durable use in just about any application. It supports up to 1080p60 input/output and the internal processing technology allows up to 328' SDI cable transmission.
The converter offers two power options. It includes a 12V power adapter for continuous power and also comes with a removable L-series battery plate. A 1/4"-20 mounting thread is provided on the bottom so you can easily incorporate the converter into your workflow. An LED indicator is provided on the side to confirm power status.
Key Features
- HDMI input
- Simultaneous dual 3G/HD/SD-SDI outputs
- Up to 1080p60 input/output
- Up to 328' SDI cable transmission
- L-series battery plate
- Power adapter included
- Heavy-duty all-metal housing
- 1/4"-20 mounting thread
- LED power indicator
SEETEC New Release Mini Converters
The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ⇌ HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.
Standard “1/4-20”screw threads for flexible installing. You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.
HDMI to SDI Converters
1X HDMI input
2X SDI output
Use Anywhere
Mini size broadcast quality converters!
SEETEC Mini Converters are so small you can use them anywhere! Whether you're carrying one in your laptop bag or in your outside broadcast van and road cases. They're perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!
Enjoy Perfect Visual Experience
High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.

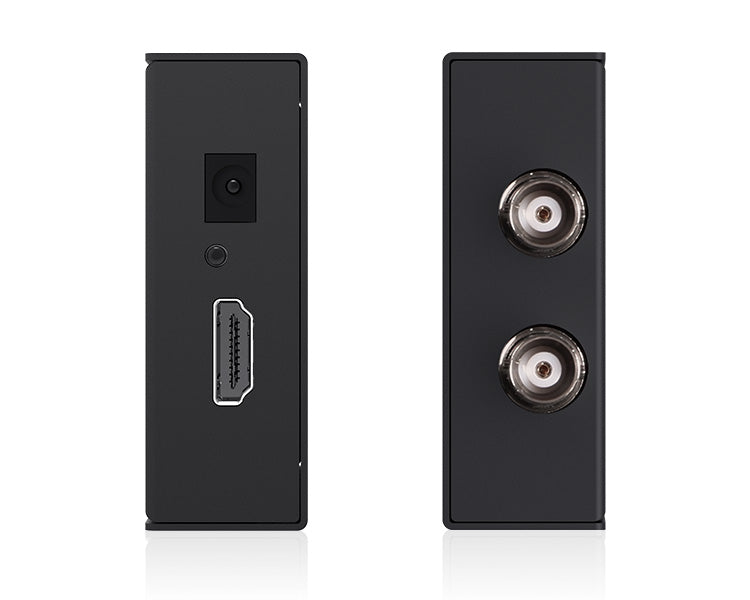

Full Size Connections
Works with the cables you already have!
SEETEC Mini Converter feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, compatible with SD and HD-SDI equipment. Mini Converter HDMI to SDI features One HDMI input, two 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more!
Flexible Double Power Supply System

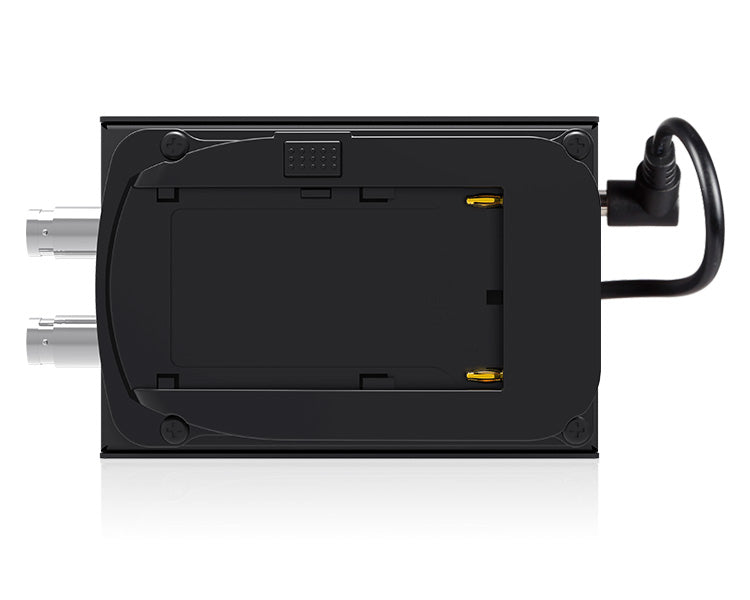

The Mini Converter can be powered in two ways: with an DC adapter or lithium batteries. With F970 battery plate, lithium batteries are commonly used and are easy to find and replace, it's the best choice for outdoor operation.
Simple, Compact and Rugged
Built for any environment!
SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
Flexible Installing
Standard “1/4-20”screw threads for flexible installing.
Application Show
Specifications
Key Specs
| Video I/O | Input |
| 1x HDMI | |
| Output | |
| 2x BNC (3G-SDI) | |
| Video Resolution | HDMI Input |
| 1920 x 1080p at 24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| SDI Output | |
| 1920 x 1080p at 24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| Broadcast System Compatibility | NTSC |
| Wireless | No |
Inputs/Outputs
| Video I/O | Input |
| 1x HDMI | |
| Output | |
| 2x BNC (3G-SDI) | |
| Expansion Slots | No |
| Latency | No |
Format Support
| Video Resolution | HDMI Input |
| 1920 x 1080p at 24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| SDI Output | |
| 1920 x 1080p at 24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| Embedded Audio | No |
Standards
| Video Standard Compliance | SMPTE: 259M/292M/424M-B |
| Broadcast System Compatibility | NTSC |
Hardware
| Wireless | No |
Power
| Power I/O | 1x Barrel (12 VDC ) Input |
| Power Consumption | Device: 3 W |
General
| Operating Conditions | -4 to 140°F / -20 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 3.9 x 2.6 x 0.9" / 9.9 x 6.7 x 2.3 cm |
| Weight | 0.5 lb / 210 g |
Packaging Info
| Package Weight | 0.885 lb |
| Box Dimensions (LxWxH) | 7.9 x 4.1 x 2.1" |

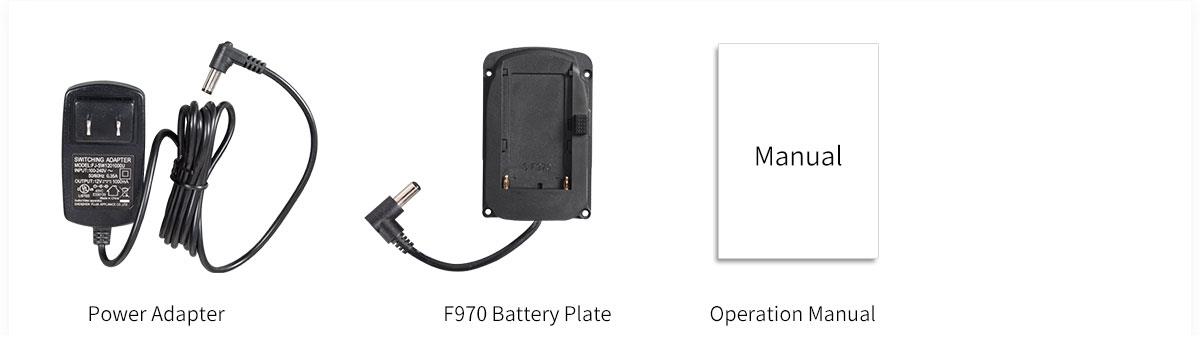

In The Box
Standard Accessories:
1× Power Adapter
1× F970 Battery Plate
1× Operation Manual
