FEELWORLD KBC10 PTZ Camera Controller with Joystick and Keyboard Control PoE Supported

Key Features

• Supports multiple control and network protocols, compatible with any PTZ cameras
• LCD screen real-time display working status, improve efficiency
• Reasonable button layout, easily handles any live video production
• 4D Joystick precise speed control
• Custom button setting, more flexible for controlling
• Multiple control connectors, up to 255 cameras
• Supports POE (Power over Ethernet)

PTZ Camera Keyboard Controller

Simple Multi-camera Control at Your Fingertips

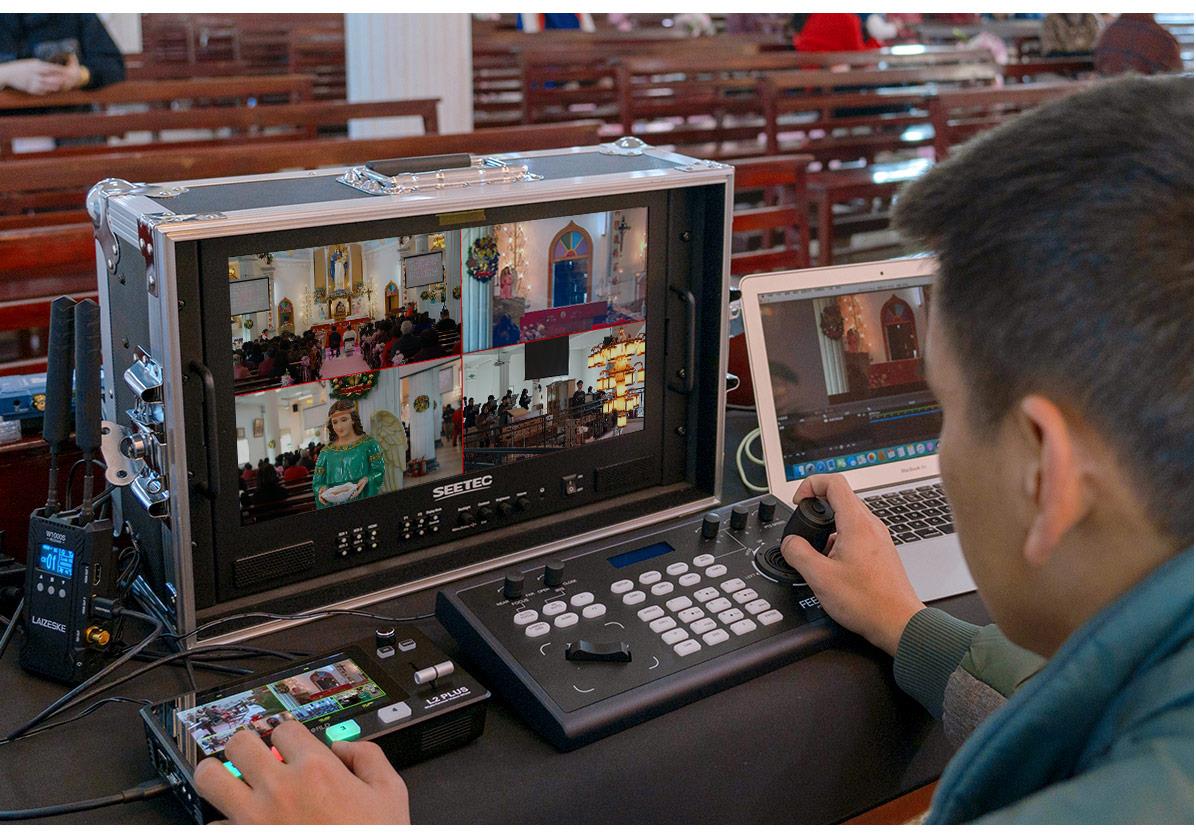

The FEELWORLD PTZ camera controller is made for Broadcast, professional video conferencing and live streaming. It can control up to 255 PTZ cameras via LAN or serial interface. Multi-function joystick and intuitive buttons to fast and precise real-time adjustment. It enables you to remotely control the speed of pan, tilt, zoom, and lock moves and incorporates an LCD screen display with real-time status. Supports 12V DC power supply and Power-over-Ethernet (PoE).

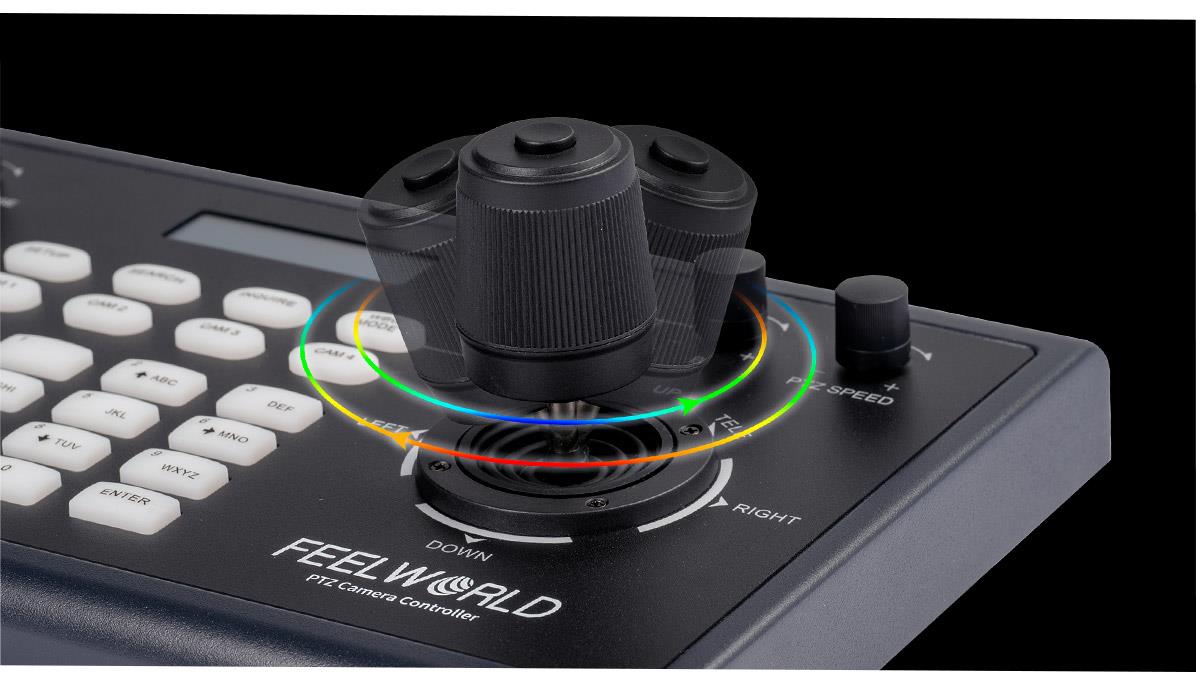

4D Joystick Precise Control

This compact PTZ camera controller is equipped with an ergonomic joystick, allowing for precise adjustment of PTZ camera movement and settings, and quickly setting various parameters.

Reasonable Button Layout

Streamlined production at your fingertips
On the panel of KBC10, layout various intuitive operation buttons reasonably, so you can quickly perform various operations and settings. Precise control over variable PTZ speed, red & blue gain, focus, iris, on-screen display, white balance, fast camera switching, quick‐set camera parameters & presets, and many other features. Two custom function buttons (F1 & F2) are customizable in IP VISCA & VISCA protocols and quickly call up the corresponding function. Optimize settings for different shooting scenes. Using a combination with a joystick, the KBC10 makes it easy to set up and control up to 255 PTZ cameras, easily handle any live video production.

Custom Function Button

Two custom function buttons (F1 & F2) of the front panel are customizable in IP VISCA & VISCA protocols. Just key in the custom name, and press the ENTER button to confirm, then key in the VISCA command.

LCD Screen, Real-time Display Working Status

KBC10 comes with an LCD screen display with real-time status, allowing you know all cameras controlling better, improve efficiency.

Multiple Control and Network Protocols

Completely compatible with any PTZ cameras
KBC10 supports multiple protocols such as IP VISCA, ONVIF, VISCA, PELCO via Ethernet interface and serial interface RS232, RS422 to give you greater freedom in control and settings. At the same time, only one operator can control multiple PTZ cameras, which reduces production costs while making remote production smoother.

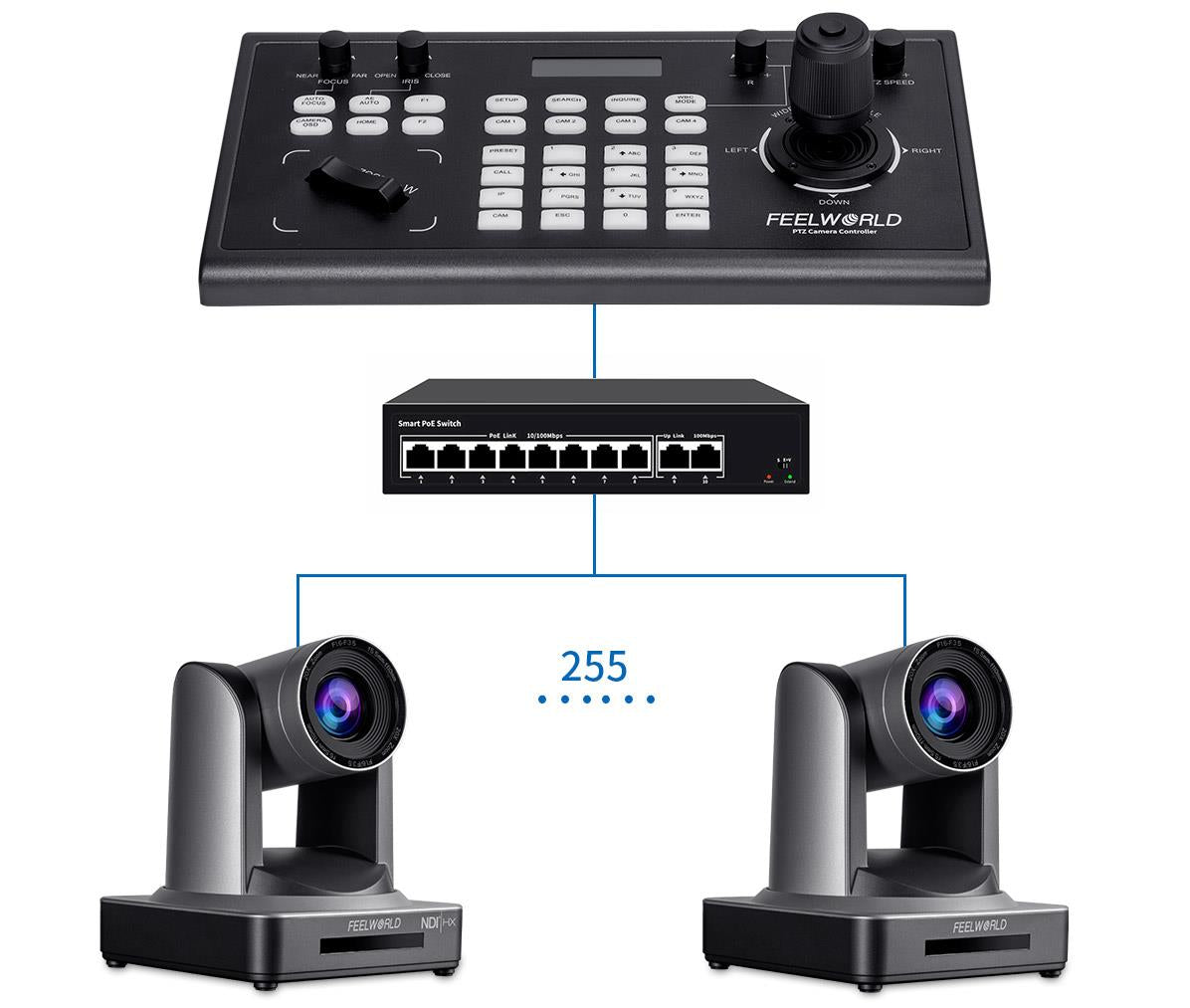

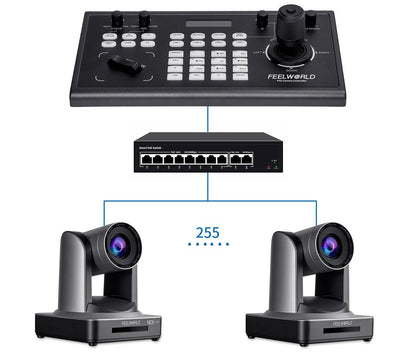

Up to Connect 255 PTZ Cameras

Supports IP VISCA and ONVIF network protocols over Ethernet interface and up to connect 255 PTZ cameras; Supports VISCA and Pelco-D/P control protocols over serial RS232, RS422 interfaces and up to connect 7 PTZ cameras. When you connect more than 4 cameras, you need to cooperate with the CAM key + number key to add.
Note: The controller and PTZ camera must be connected to the same LAN, and IP addresses must at the same segment.

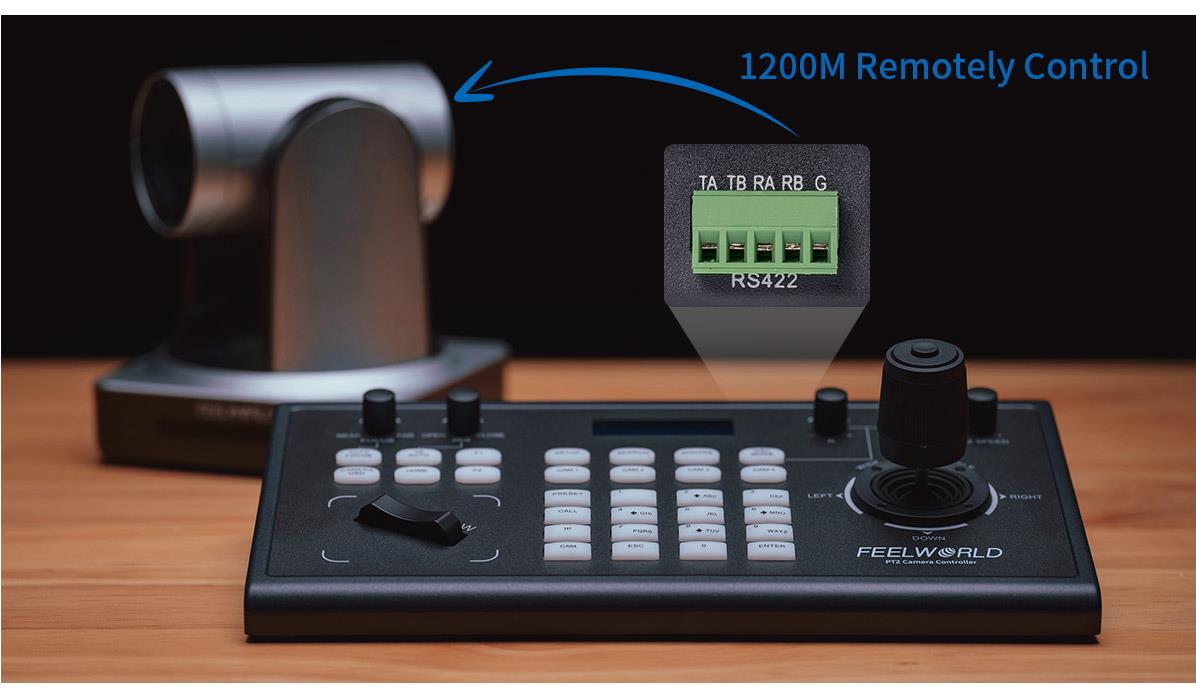

1200M Remotely Control

When you would like to remotely control for camera, KBC10 can do it. The maximum communication distance is 1200 meters using RS422/RS485 with twisted pair cable, making the remote control easily.

Up to 255 Preset Positions

KBC10 can set up to 255 preset positions, and quickly call up and switch the camera. Short-press the PRESET button to set preset position, long-press to delete preset position, both need to work with the number keys and ENTER button. In addition, you can call any preset position via the CALL button, which also needs to work with the number keys and ENTER button.

Specifications

Connector

Model	KBC10
RS232	1×DB15
RS422 (RS485)	1×5 Pin Terminal
Ethernet	1×RJ45

Performance

Control Protocol	VISCA | Pelco-D | Pelco-P
Network Protocol	ONVIF | VISCA
Baud Rate(dps)	2400 | 4800 | 9600 | 19200 | 38400 | 115200
Display	LCD Screen
Key Tone	ON/OFF
Joystick	Four dimensions (control: up, down, left, right, zoom, rotation)
Upgrade	WEB upgrade

Other Parameters

Input Voltage	DC 12V
Power Consumption	Maximum: 0.6W
Temperature	0℃～50℃
Humidity	0%～90%
Unit Weight	1.69kg
Unit Size	320×180mm×100mm
Outer Carton Qty	6pcs
Outer Carton Size	46*37*44 cm
Gross Weight	14.35kgs

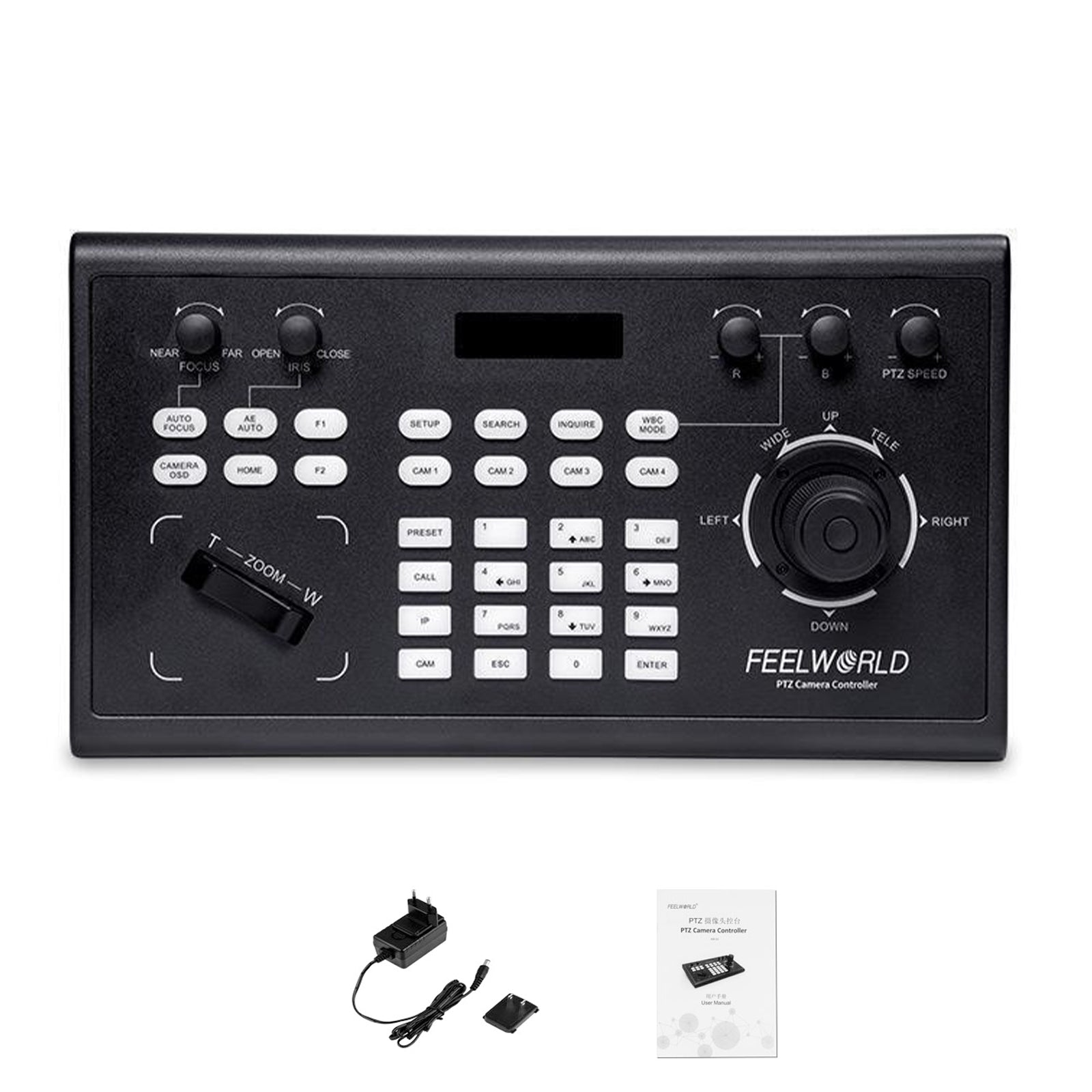

In The Box
