Overview
The FEELWORLD LIVE PRO L1 V1 is a multi-format live streaming mini switcher designed as an affordable solution for direct or remote single-user operation. It supports up to four 1080p60 HDMI sources, including cameras and gaming systems, as well as compatible laptops and desktops where you can pull up PowerPoint slides, video clips, and web pages. You can switch between the four signals with push buttons and a T-bar while outputting PGM over a USB 3.0 connection to popular platforms and applications such as YouTube, vMix, and OBS. Cameras can be set up at different angles, and you can switch between close-up and wide shots. The LIVE PRO L1 V1 can be used for all types of online productions, training projects, and live events. The L1 V1 version is an upgrade over the predecessor L1, designed to be more lightweight with improved heat dissipation and a new look.
Key Features
- 7.5" Wide Mini Switcher with 1/4"-20
- 4 x HDMI 1080p60 Inputs / PGM Output
- USB 3.0 Live Streaming Output
- LAN Port & Software for Remote Control
- Android Remote Control App
- 3.5mm Audio Input & Output
- 2" TFT LCD 4-Channel and Menu Display
- 14 x Transitions with Adjustable Timing
- 6-Channel Preview with Audio Meter & PiP
- Heat Dissipation Fan
Low Cost, Multi Camera Live Production with Advanced Broadcast Features
LIVEPRO L1 V1 with 4 CH HDMI inputs and 1 HDMI output, all of which support 1080p. For live streaming, there is a USB 3.0 interface. Additionally, the LAN port allows for controlling and upgrading. For audio, it features two interfaces: one for input and the other for output. All of these make it easy to create professional multi-camera productions. It can stream any one from the 4 HDMI inputs to any live broadcasting platform via third-party live streaming software such as OBS. Simply connect LIVEPRO L1 and you can switch live between 4 high-quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles.

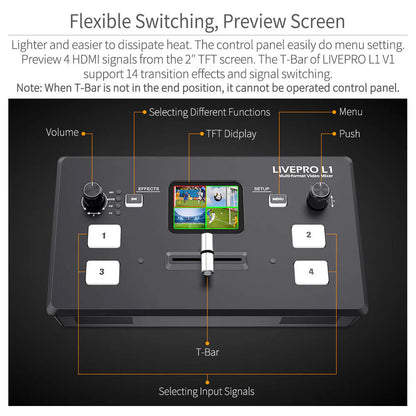

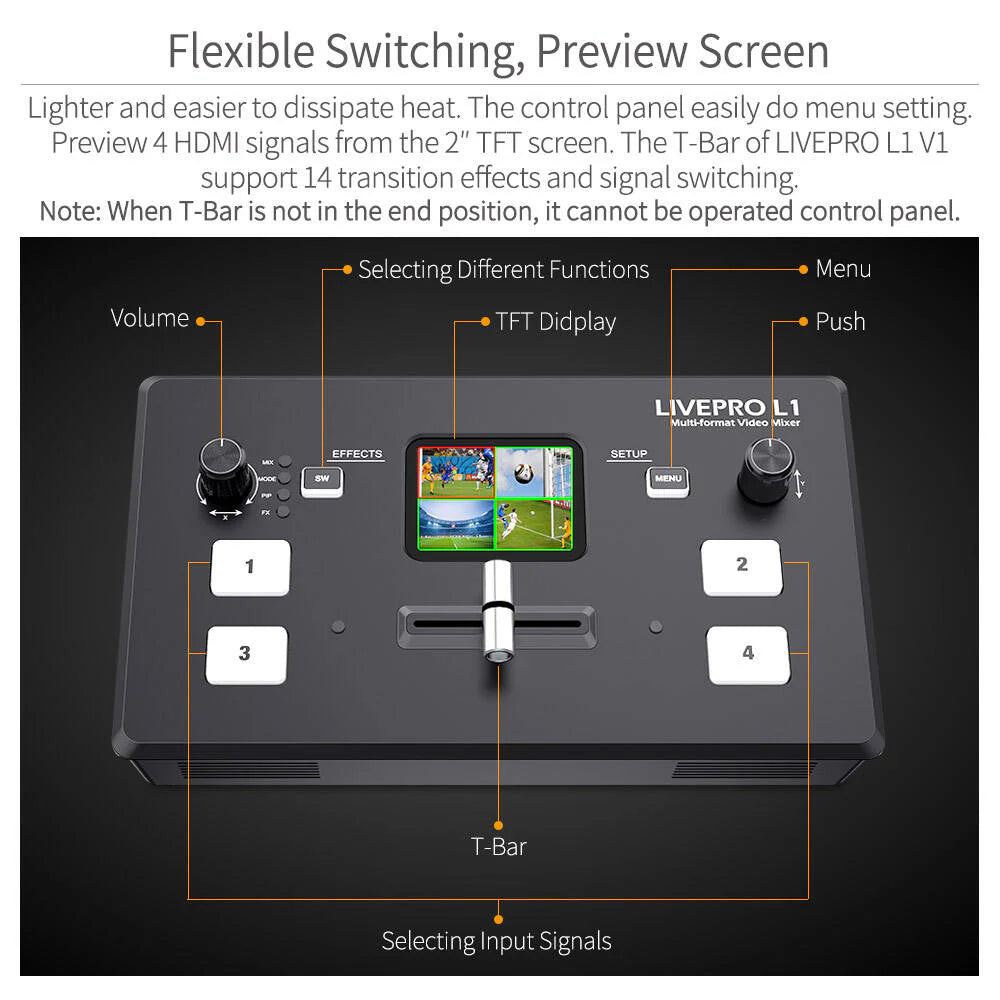

Exquisite and Flexible Control Panel
The LIVEPRO L1 V1 has an exquisite and compact control panel. The 4 buttons are for selecting input signals. Green flashing means the signal has been selected, then switch the T-Bar, the selected signal will be displayed on the screen seamlessly, and the green button changes to red after switching. The MENU button is for menu settings, the SW button is for selecting different functions such as mixing, PIP, transition time setting, and other functions. The left knob is for voice volume control, and the right knob is for menu setting as well. From the TFT screen, we can preview 4 HDMI signals and easily do menu settings.
• When you choose T-Bar to switch signal sources or transition effects, T-Bar must be pushed to left end or right end. When using the menu operation, T-BAR should also be at the left end or the right end; otherwise, it cannot be operated.
• When you would like to connect or embed audio, you must select the external or embedded audio source in the "AUDIO" menu first.
• When you choose T-Bar to switch signal sources or transition effects, T-Bar must be pushed to left end or right end. When using the menu operation, T-BAR should also be at the left end or the right end; otherwise, it cannot be operated.
• When you would like to connect or embed audio, you must select the external or embedded audio source in the "AUDIO" menu first.
Compact and lightweight Weight Design
The LIVEPRO L1 V1 is a mini switcher that is small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows, the LIVEPRO L1 V1 has a screw tap for standard video mounts and conveniently attaches onto a tripod to stay out of the way. Its lightweight design makes it ideal for mobile video applications, too.
Built-in Cooler
LIVEPRO L1 V1 built-in cooler, just turn on the switch on the right side. Boost the long-term live streaming.

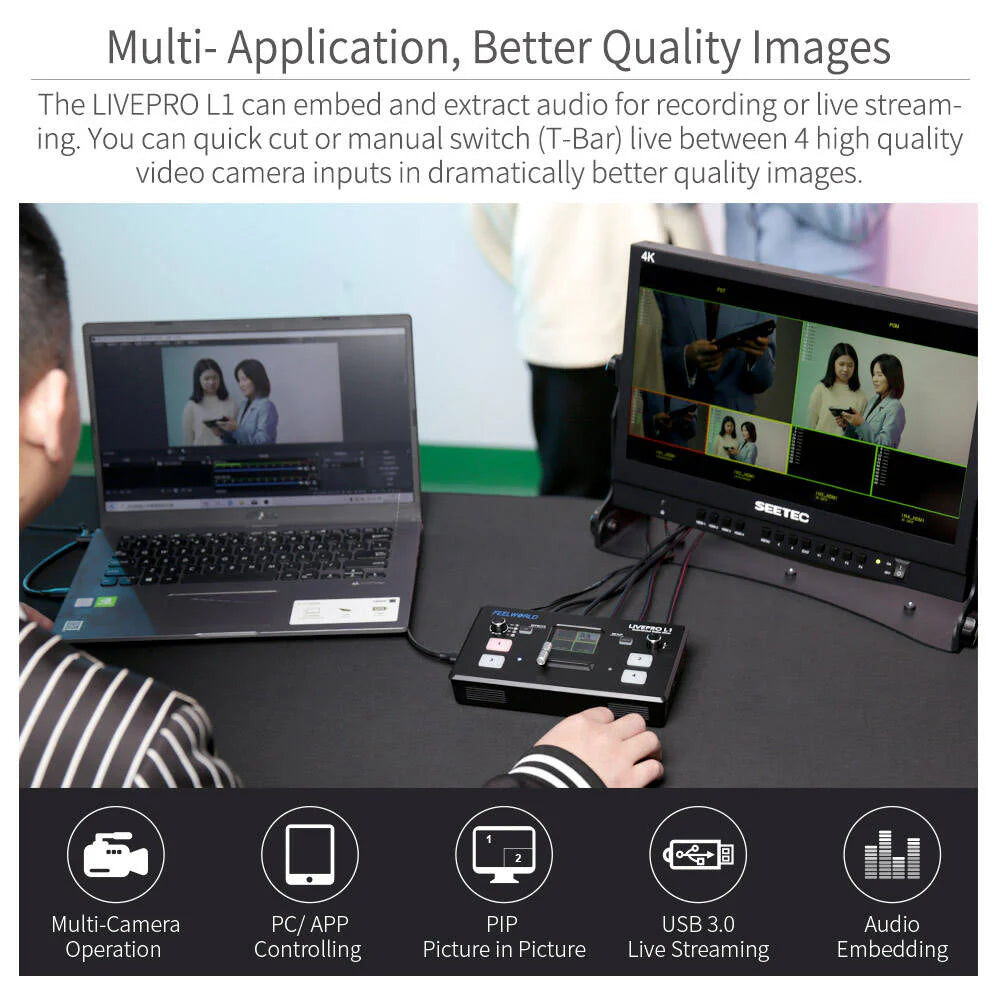

Multi-Application, One Solution
For normal people, they need smaller and simpler products to deal with the live applications. The LIVEPRO L1 V1 can be done this way, which is with a simple and compact design, rich special effects switching function, and the screw hole can be used to fix the switcher on the tripod. With these, live streaming and multi-signal control will be simpler and easier to do by a single person.
For normal people, they need smaller and simpler products to deal with the live applications. The LIVEPRO L1 V1 can be done this way, which is with a simple and compact design, rich special effects switching function, and the screw hole can be used to fix the switcher on the tripod. With these, live streaming and multi-signal control will be simpler and easier to do by a single person.

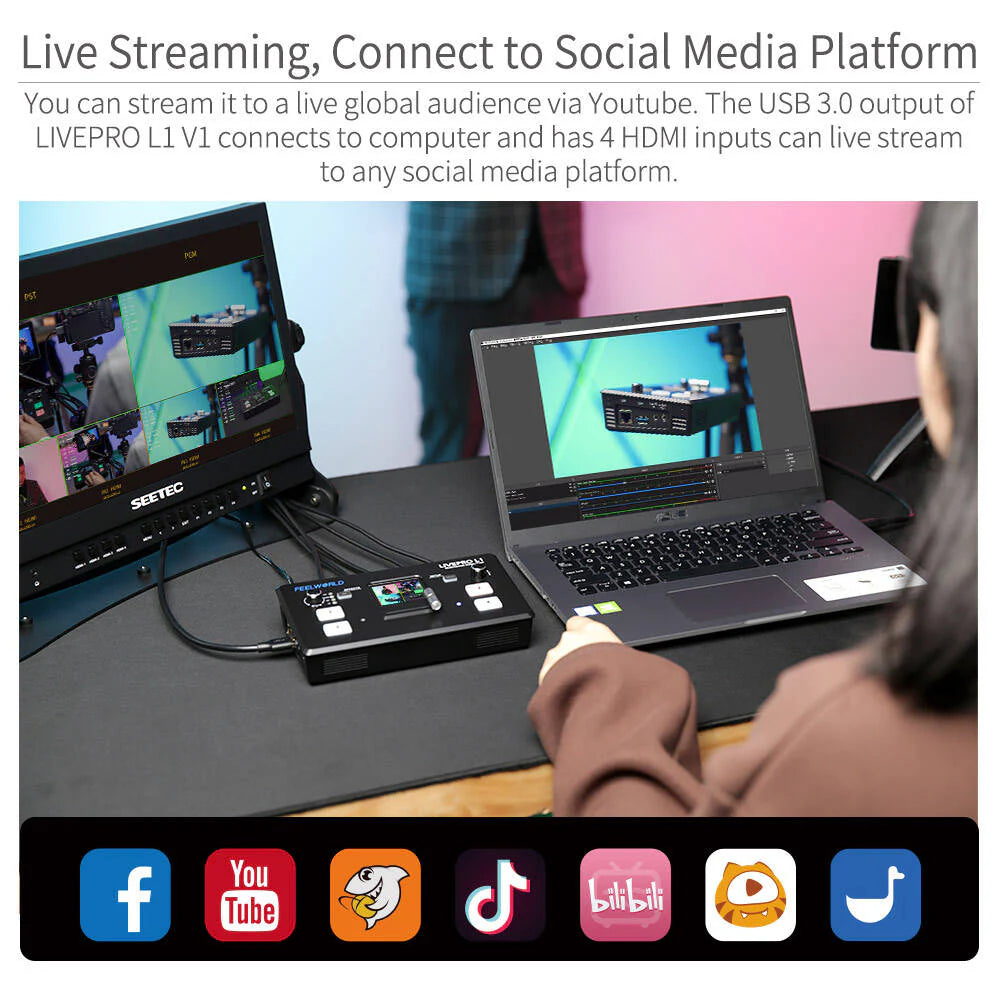

Faster Video Production, Plus Live Streaming
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB 3.0 output of LIVEPRO L1 V1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms works! With up to 4 HDMI inputs, you can set up multiple camera angles, such as wide shots, along with independent close-ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites, or gaming consoles. All switching is in real time, so you can live stream to any social media platform such as YouTube, Facebook, TikTok, Douyu TV, and many more!
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB 3.0 output of LIVEPRO L1 V1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms works! With up to 4 HDMI inputs, you can set up multiple camera angles, such as wide shots, along with independent close-ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites, or gaming consoles. All switching is in real time, so you can live stream to any social media platform such as YouTube, Facebook, TikTok, Douyu TV, and many more!
Flexible T-Bar Switching
The T-Bar of LIVEPRO L1 V1 supports 14 transition effects and signal switching. Under T-Bar mode, pushing the green button will flash and push the T-Bar to the end (left or right), the source will be switched with the selected transition effect. After switching, green turns to red. It is very suitable for video special effects switching of small outdoor scenes to meet the needs of video switching, such as radio and television, outdoor sports events, school courseware production, etc.
Note: When T-Bar is not in the end position, no source can be selected.
The T-Bar of LIVEPRO L1 V1 supports 14 transition effects and signal switching. Under T-Bar mode, pushing the green button will flash and push the T-Bar to the end (left or right), the source will be switched with the selected transition effect. After switching, green turns to red. It is very suitable for video special effects switching of small outdoor scenes to meet the needs of video switching, such as radio and television, outdoor sports events, school courseware production, etc.
Note: When T-Bar is not in the end position, no source can be selected.
AUDIO IN and AUDIO OUT
LIVEPRO L1 V1 with AUDIO IN and OUT. The output interface can be connected to speakers, headsets, etc. The AUDIO IN interface is a linear input interface, which is connected to a digital signal. The microphone collects analog signals, so when the microphone is connected to the LIVEPRO L1 V1 audio input interface directly, there is no way to receive audio.
LIVEPRO L1 V1 with AUDIO IN and OUT. The output interface can be connected to speakers, headsets, etc. The AUDIO IN interface is a linear input interface, which is connected to a digital signal. The microphone collects analog signals, so when the microphone is connected to the LIVEPRO L1 V1 audio input interface directly, there is no way to receive audio.
Solutions for live broadcasting audio problems:
• If there is a microphone and an audio interface, please connect the microphone to the audio interface and connect the output interface of the audio interface to the AUDIO IN interface of LIVEPRO L1 V1.
• If there is a microphone but without an audio interface, please connect the microphone to the MIC interface of the computer.
• If there is a wireless microphone and it has with earphone interface, please connect this interface to the AUDIO IN of LIVEPRO L1 V1.
• If there is a device of MIC to Line output, please connect to the AUDIO IN of LIVEPRO L1 V1.

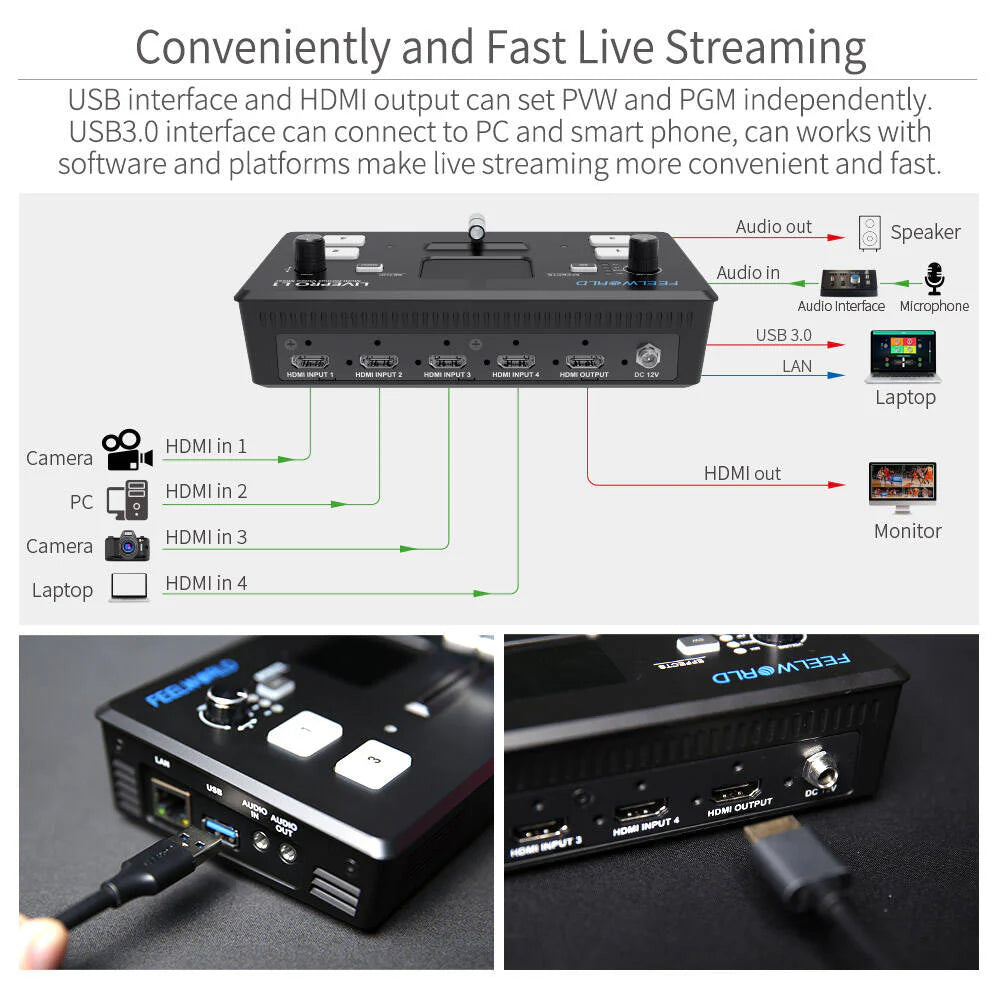

USB interface and HDMI output can set PVW and PGM independently
Allowing you to choose freely
The USB interface of LIVEPRO L1 V1 can also be used as a signal output, except HDMI output. They can connect a computer or a monitor to set PGM and PVW independently. You can choose to set any of them as preview or PGM as you like.
Allowing you to choose freely
The USB interface of LIVEPRO L1 V1 can also be used as a signal output, except HDMI output. They can connect a computer or a monitor to set PGM and PVW independently. You can choose to set any of them as preview or PGM as you like.
6 Picture PVW, PIP
When the switcher is connected with an external expansion screen, it can preview real-time monitoring on 6 pictures, including PGM, PST, and 4-channel HDMI input signals, and the audio column is displayed. Plus, you can set 9 layouts for PIP (Picture in Picture) mode. This is very useful for large-scale multi stand field production.
When the switcher is connected with an external expansion screen, it can preview real-time monitoring on 6 pictures, including PGM, PST, and 4-channel HDMI input signals, and the audio column is displayed. Plus, you can set 9 layouts for PIP (Picture in Picture) mode. This is very useful for large-scale multi stand field production.
USB 3.0 Live Streaming
Make Live Broadcasting More Convenient and Fast
To ensure maximum compatibility, LIVEPRO L1 V1 features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get to work with any video software. The software is tricked into thinking the LIVEPRO L1 V1 is a common webcam, but it is a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as OBS software for live streaming, or conference software (Tencent conference and Yealink ) for business presentations. LIVEPRO L1 works with software and platforms such as OBS, acquisition software（AMCap, ECap, Potplayer), conference software (Tencent conference and Yealink), YouTube, Facebook, Zoom, TikTok and more!
To ensure maximum compatibility, LIVEPRO L1 V1 features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get to work with any video software. The software is tricked into thinking the LIVEPRO L1 V1 is a common webcam, but it is a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as OBS software for live streaming, or conference software (Tencent conference and Yealink ) for business presentations. LIVEPRO L1 works with software and platforms such as OBS, acquisition software（AMCap, ECap, Potplayer), conference software (Tencent conference and Yealink), YouTube, Facebook, Zoom, TikTok and more!
Note: OBS Streaming is available to download on https:/obsproject.com/download
Multiple Application Scenarios Suitable
LIVEPRO L1 V1 is widely used in sports events, e-sports competitions, business presentations, weddings, character interviews, education and training, etc.
Add Exciting Video EffectsLIVEPRO L1 V1 is widely used in sports events, e-sports competitions, business presentations, weddings, character interviews, education and training, etc.
One of the benefits of LIVEPRO L1 V1 is the professional production values that are possible using the range of built-in video effects. Push the button SW to open up the transition effect menu, use the knob to select the desired transition effect icon, and push the knob to confirm. The "cut" in the menu ensures an instant cut when switching sources. You can also select the type of effect you want, including mix, which does a smooth transition between sources, and dip, which fades via a color during the transition. The in MODE menu allows 0.5S ~ 5.0S settings. Plus, you can select PIP mode.
PC Controlling, Remote Operation
After connecting the LAN port to the computer, no extra software needs to be installed; the software XPOSE is installed on the computer, and the operation is the same as the switcher. So as to realize remote controlling, imagine using the switcher from a control room and building a professional broadcasting studio where the control room can be separated from the performance or interviews. In addition, it allows you to add as many panels as you like, all at the same time.
PS: Please download the XPOSE software from the "DOWNLOAD" module of this page. Please do not put it in the system disk (C disk) after downloading.
After connecting the LAN port to the computer, no extra software needs to be installed; the software XPOSE is installed on the computer, and the operation is the same as the switcher. So as to realize remote controlling, imagine using the switcher from a control room and building a professional broadcasting studio where the control room can be separated from the performance or interviews. In addition, it allows you to add as many panels as you like, all at the same time.
PS: Please download the XPOSE software from the "DOWNLOAD" module of this page. Please do not put it in the system disk (C disk) after downloading.
Specifications
| Model | LIVEPRO L1 V1 |
| Screen Size | 2.0" TFT Display |
| Backlight | LED |
Input
| 4 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
| 1×USB Type A | USB 3.0 |
Communication
| 1xRJ45 | LAN (suitable for CAT6 cable) |
Audio
| Audio In | 1×3.5mm Stereo Jack |
| Audio Out | 1×3.5mm Stereo Jack |
Input Solution
| HDMI |
| SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60 |
| VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60 | 1680X1050@60 | 1920X1080@60 | 1920X1200@60 |
Output Solution
| HDMI |
| SMPTE 720p@50/60|1080p@24/25/30/50/60 |
| VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60 |
| USB Streaming |
| 1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60 |
| Note: Please refer to the connected computer for applicable resolution support |
General
| Input Voltage | DC 12V / 1.5A |
| Max Power | 18W |
| Working Temperature | -30℃～50℃ |
| Humidity | 10%~85% |
| Unit Size | 190(L) x 110(W) x 43(H)mm |
| Unit Weight | 500g |
| Color Box Size | 260(L)*130(W)*82(H)mm |
| Outer Carton Qty | 15 |
| Outer Carton Size | 470*275*480mm |
| Gross Weight | 14.5kgs |

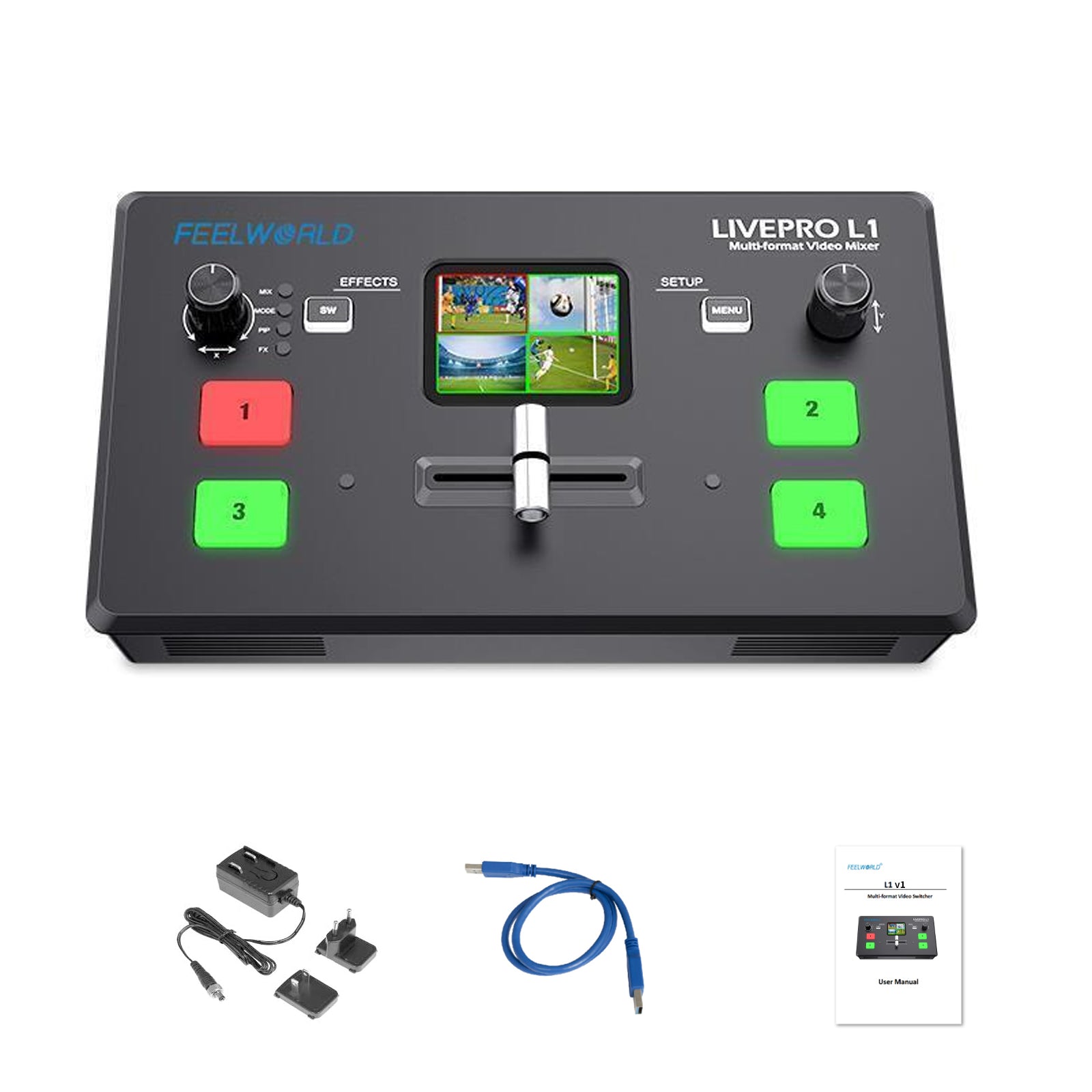

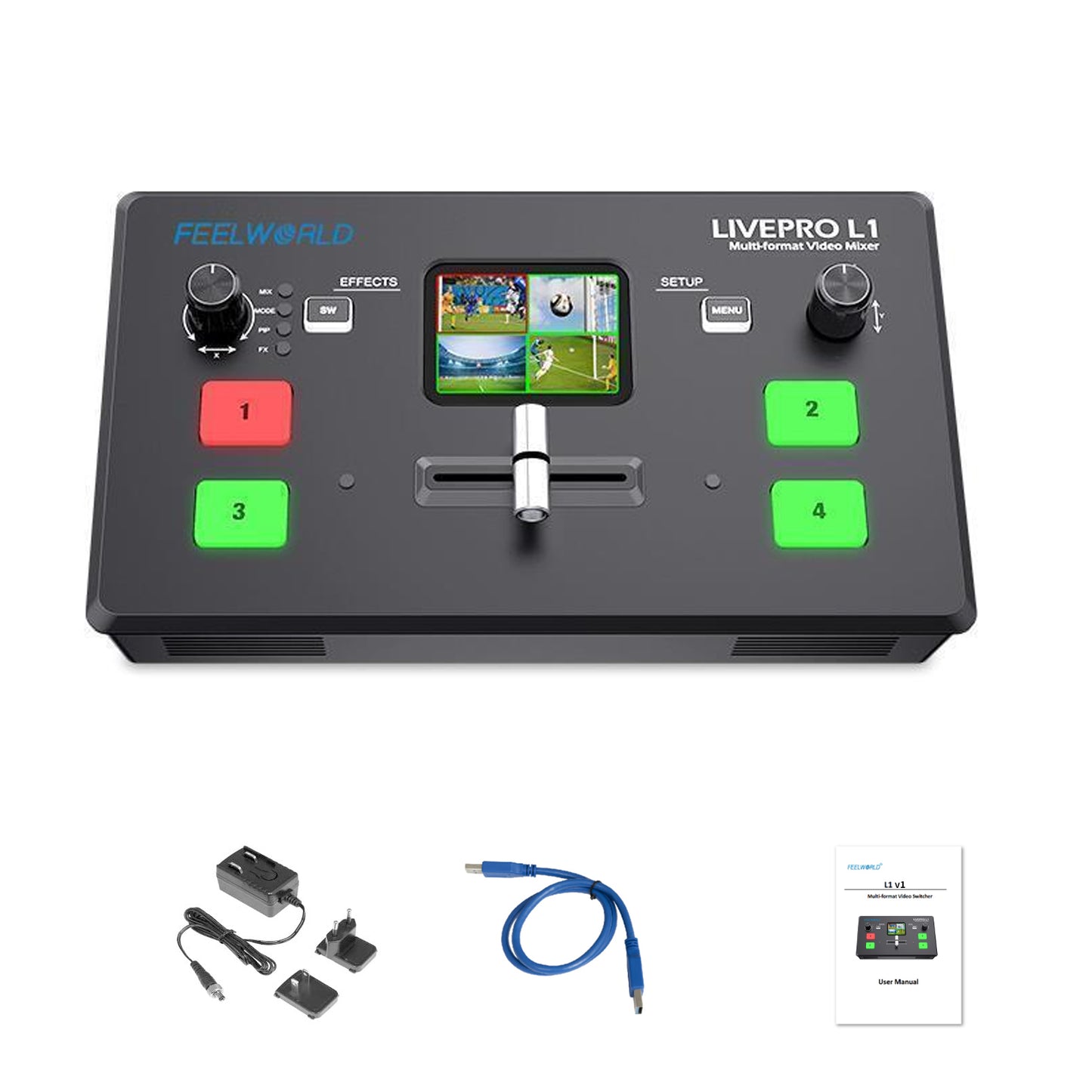

In The Box
