FEELWORLD LUT11S 10.1 Inch Ultra Bright 2000nit DSLR Camera Field Monitor Touch Screen 3G-SDI 4K HDMI F970 External Power and Install Kit
FEELWORLD LUT11S 10.1 Inch Ultra Bright 2000nit DSLR Camera Field Monitor Touch Screen 3G-SDI 4K HDMI F970 External Power and Install Kit
Regular price
$349.99 USD
Regular price
Sale price
$349.99 USD
Quantity
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Overview
Compatible with a variety of video and mirrorless cameras, the FEELWORLD LUT11S 10.1" 4K Ultra-Bright Touchscreen Monitor is an IPS LCD panel with both HDMI and 3G-SDI inputs and loop-through outputs. The touchscreen panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 800:1 contrast ratio, and a 2000 cd/m² measured brightness for easy viewing outdoors and inside. This IPS LCD supports up to DCI 4K60 HDMI and 2K60 SGI video input and provides 170° viewing, allowing you to see the image without being directly in front of the monitor.
There are control buttons along the top edge of the monitor and three 1/4"-20 mounting threads around the sides. The back of the monitor features a dual L-series battery plate, as well as a removable accessory mounting plate to accommodate wireless gear or other mounts. A variety of image-evaluating tools are built into the monitor, including histogram, false color, and zebra for checking exposure, peaking and magnification for focus, and markers for ensuring correct framing.
Key Features
- 10.1" 1920 x 1200 IPS Touchscreen LCD
- HDMI & 3G-SDI I Inputs & Loop Outputs
- Up to UHD 4K60 HDMI & 2K60 SDI Input
- 2000 cd/m² Brightness
- 800:1 Contrast Ratio
- 170° Viewing Angle
- Programmable Control Buttons
- Includes Dual L-Series Plate
- DC Power Output to Camera/Accessory
- Image Monitoring Tools
10.1-inch Professional SDI/HDMI Camera Monitor
FEELWORLD LUT11S is a 10.1-inch with a full touch screen, ultra-brightness 2000nit professional camera monitor. Supports 3G-SDI and up to 4K@60Hz HDMI signal input and output. Provides a series of monitoring and framing tools with a new menu layout, and various numerical parameters are clear at a glance, making the operation easier. There is an F970 external install and power kit on the rear of LUT11S, which can be such for wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The dual battery plate design can install two F970 batteries at the same time for a long-time power supply, even outdoors. Ideal for crew field shooting, monitoring, and post-production.

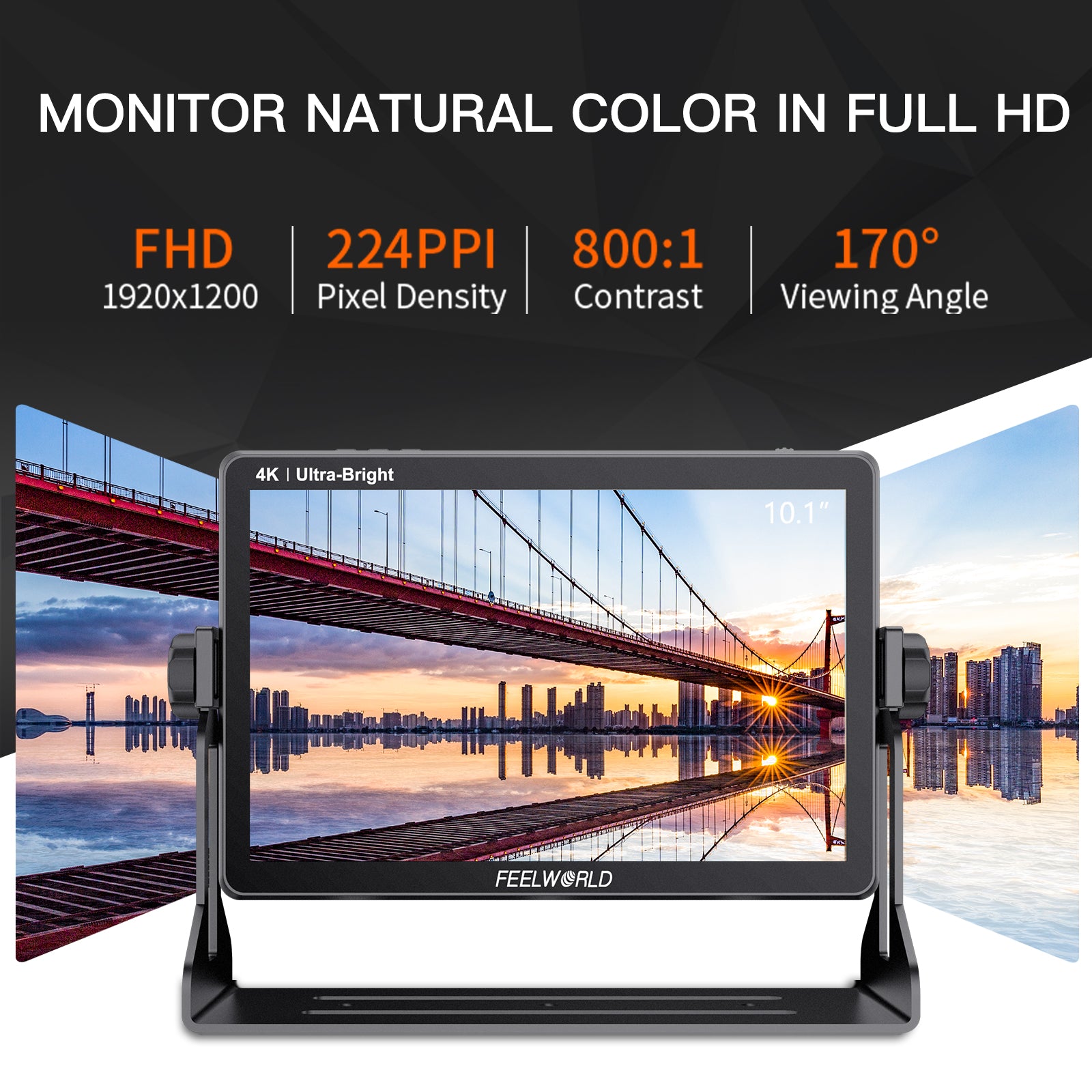

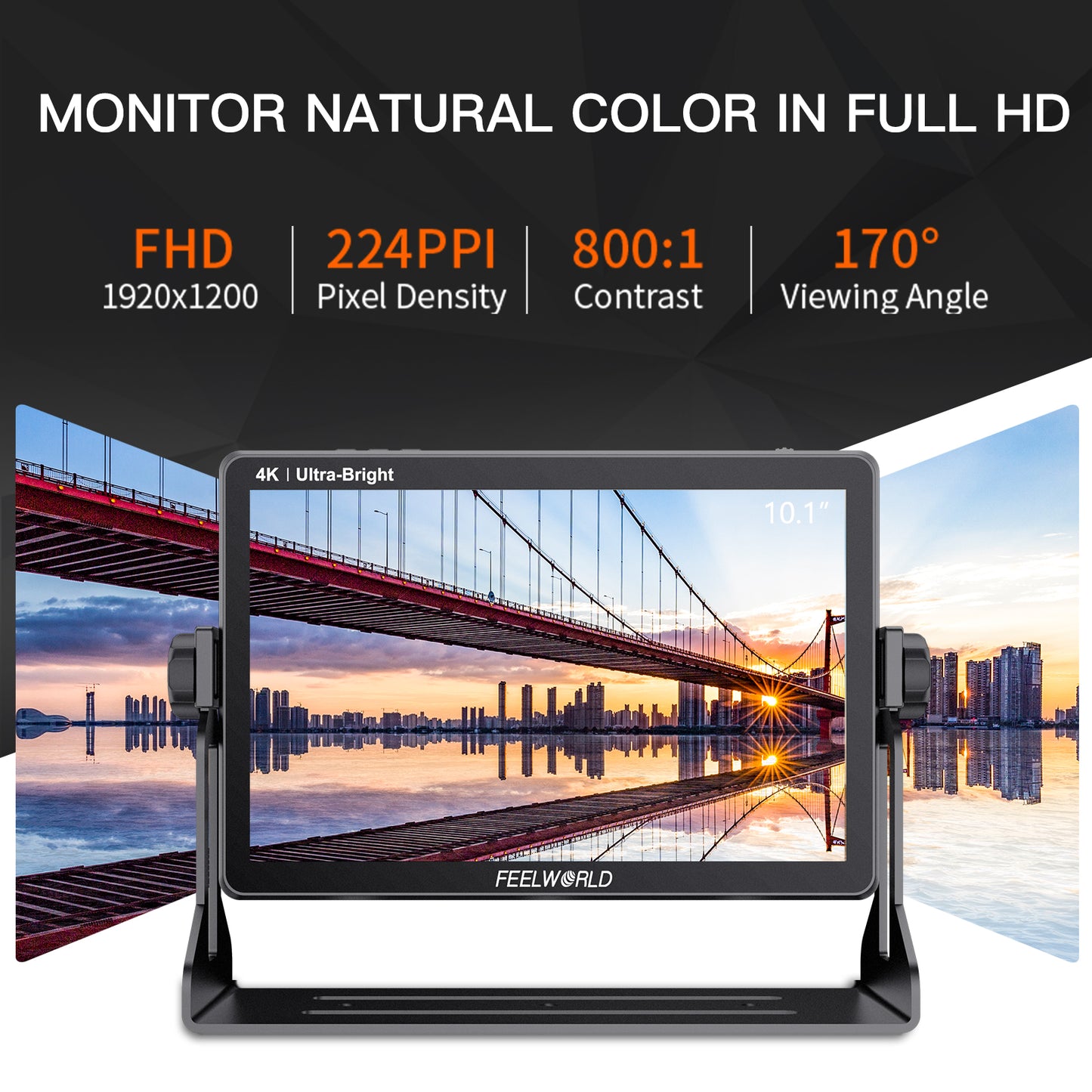

10.1” LCD Full HD Resolution
Viewing clearly and capturing every detail with confidence

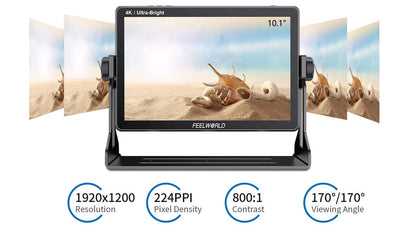

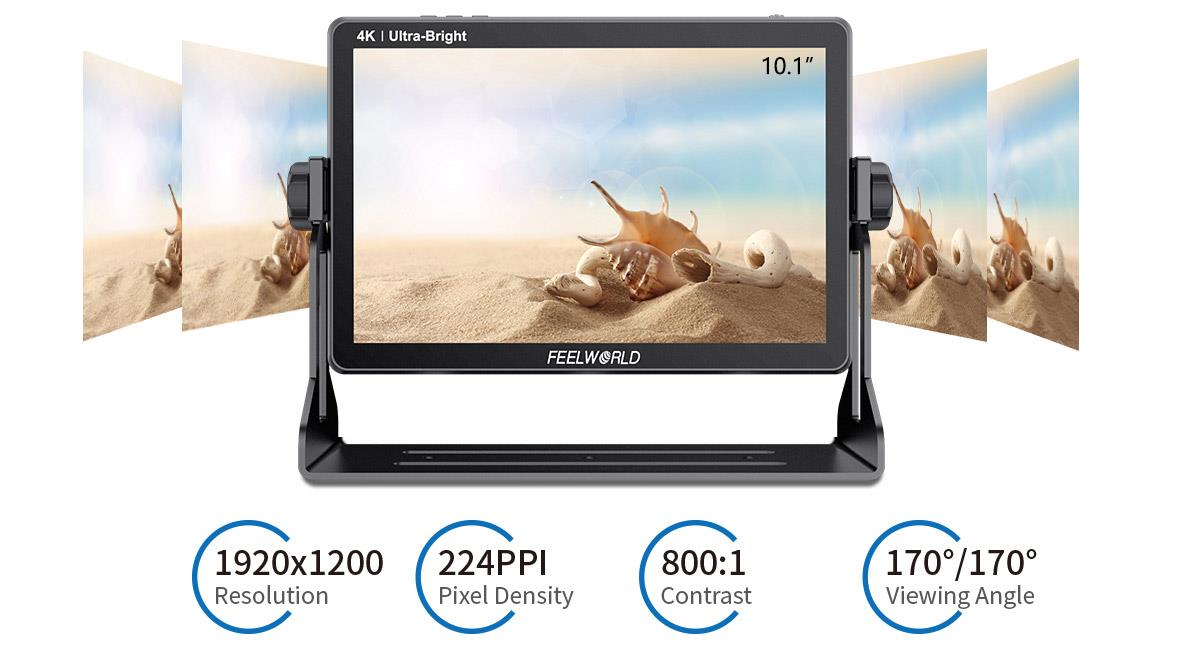

The LUT11S comes with a 10.1-inch 1920x1200 full HD panel, has excellent color reproduction. The wide 170º viewing angle makes it easy for multiple members of the crew to watch it at the same time.
The LUT11S comes with a 10.1-inch 1920x1200 full HD panel, has excellent color reproduction. The wide 170º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

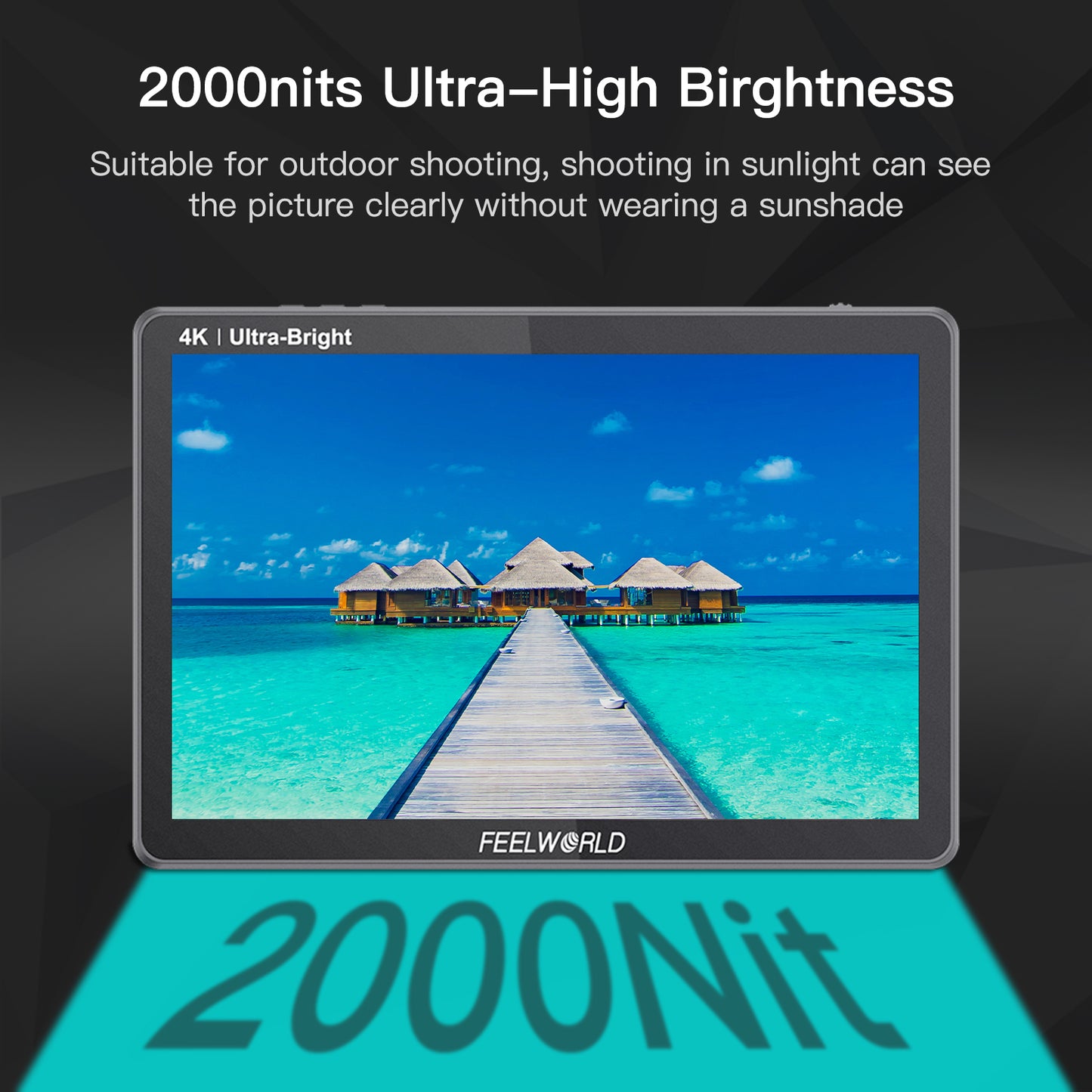

2000nit Daylight Viewable
Ideal for outdoor shooting
With the support of 2000 nits of ultra-high brightness, LUT11S is not afraid of strong light. And the outdoor shooting screen display is clearly visible, so you can shoot without a sunshade.

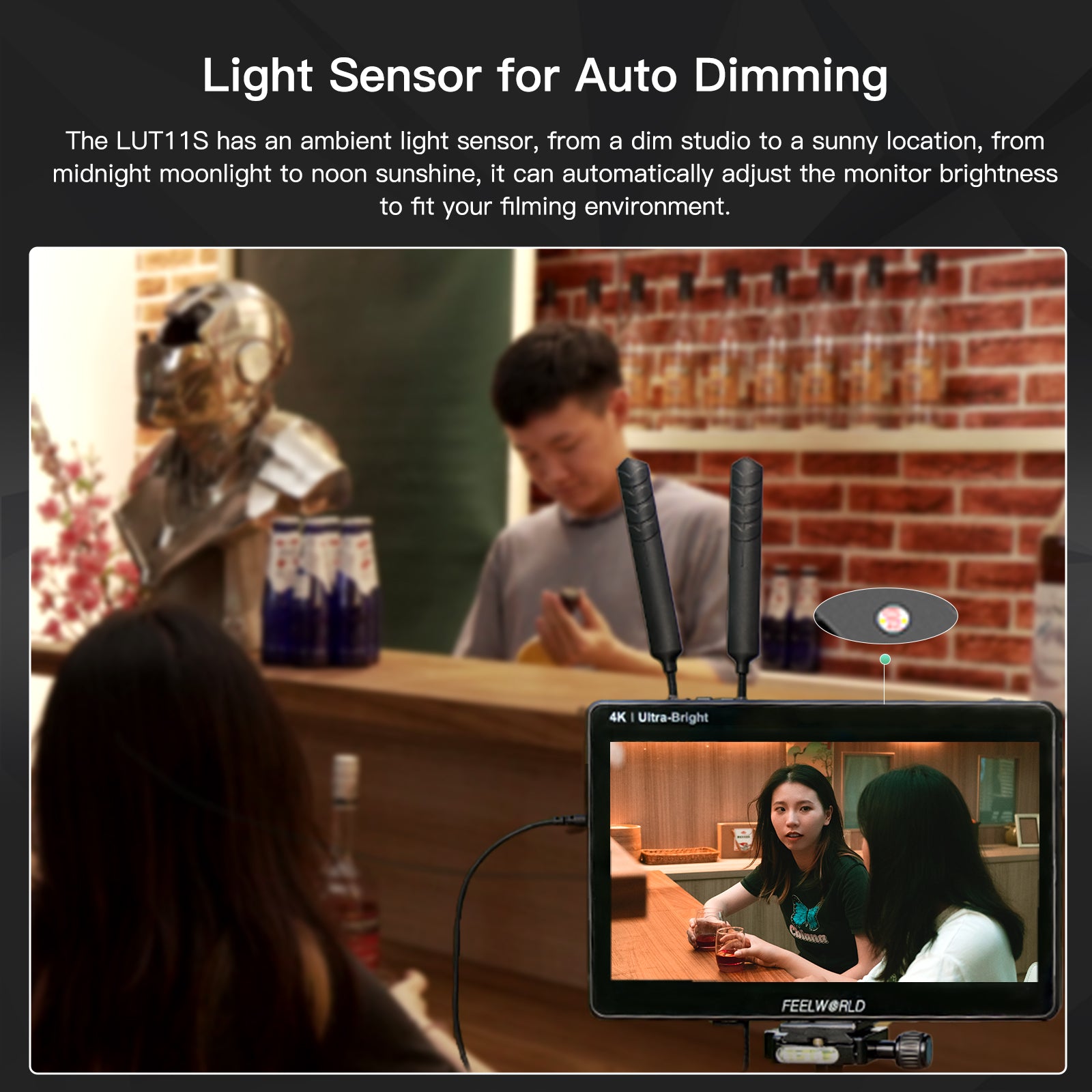

Light Sensor for Auto Dimming
The LUT11S has an ambient light sensor. From a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
New UI Menu, More Intuitive and Intelligent
LUT11S adopts a new UI menu, taking the software functions are iconizes, making it more convenient and quicker to operate the functions.

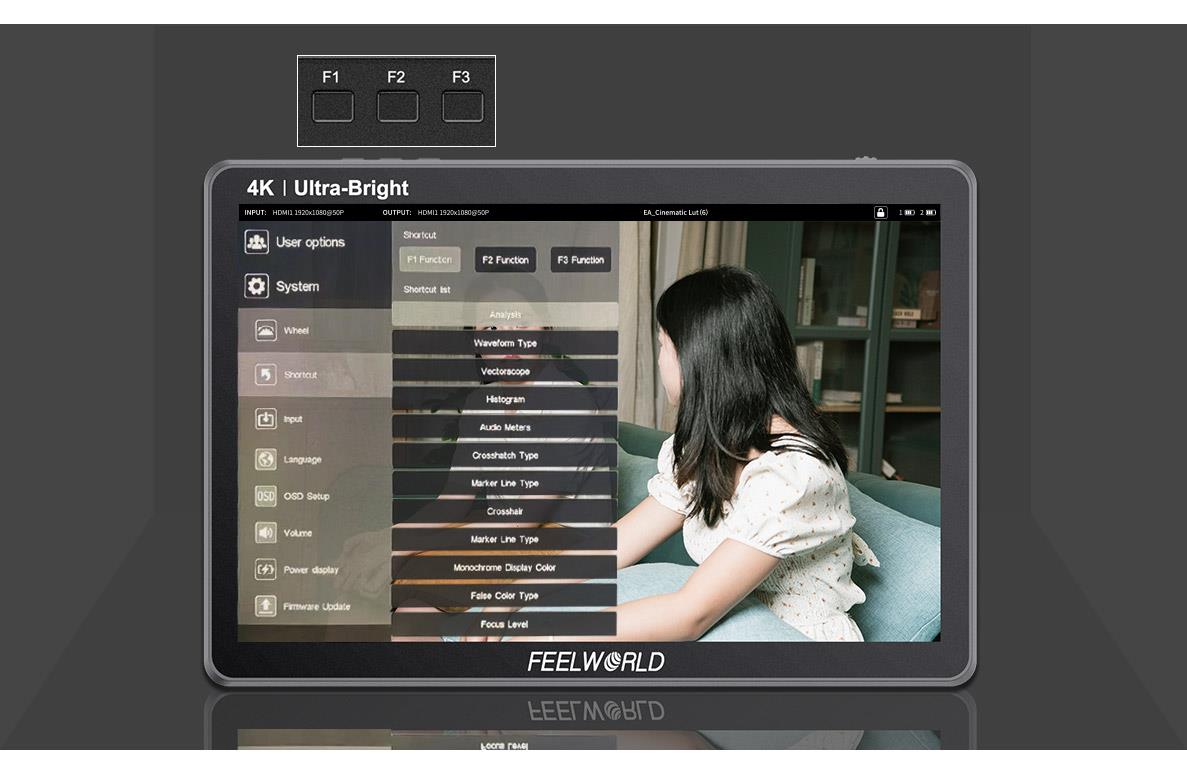

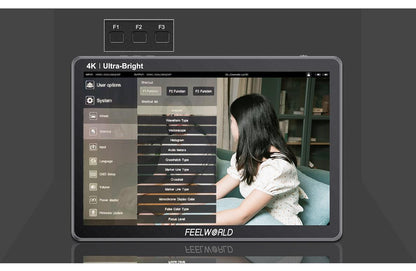

Custom Shortcut Keys
On top of LUT11S comes with three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

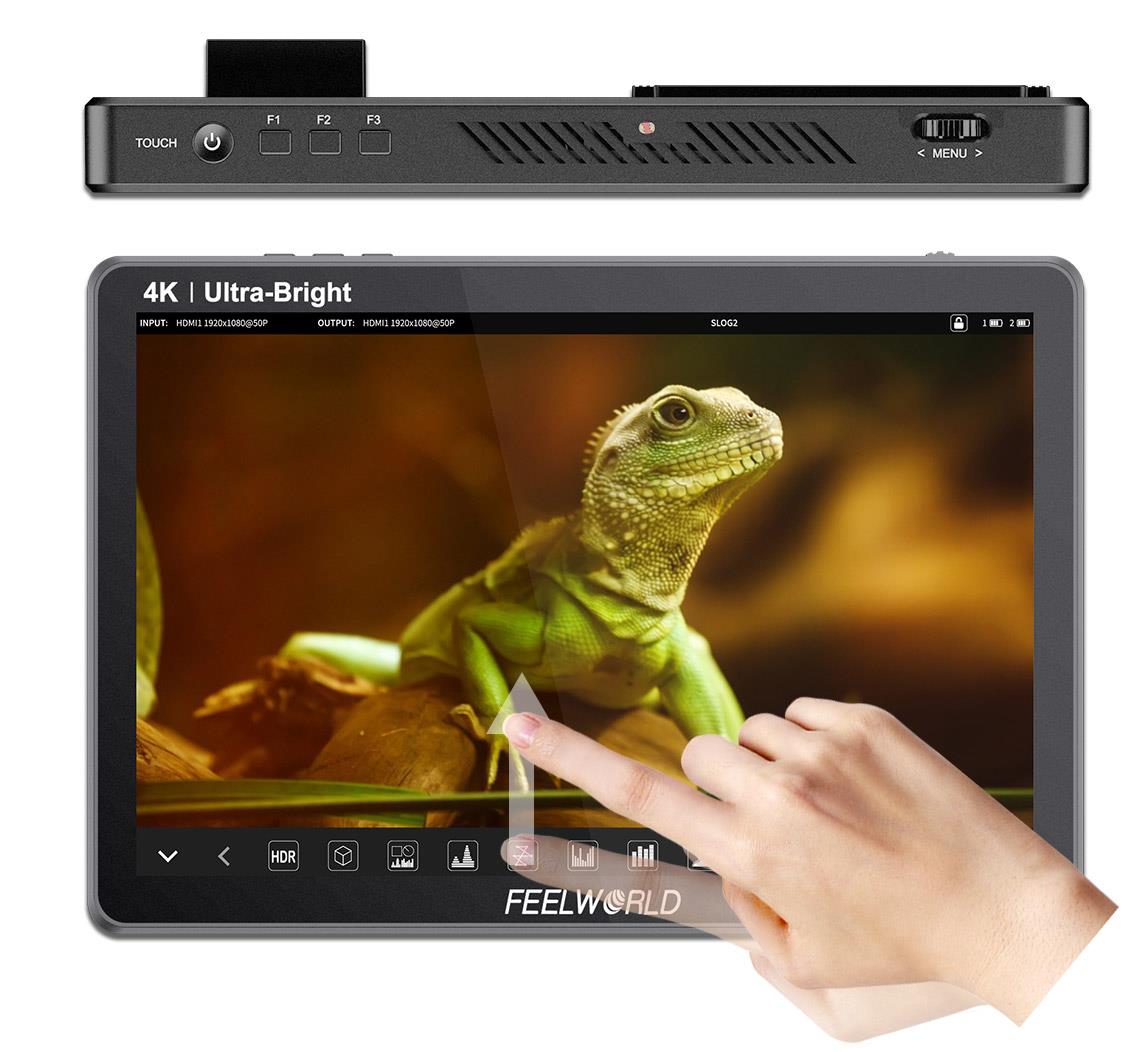

Full Touch Screen Design
Easy and sensitive operation, making your filming more efficient
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via the scroll wheel key.
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via the scroll wheel key.
Touch Screen Operating Instruction
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside the menu to exit.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside the menu to exit.

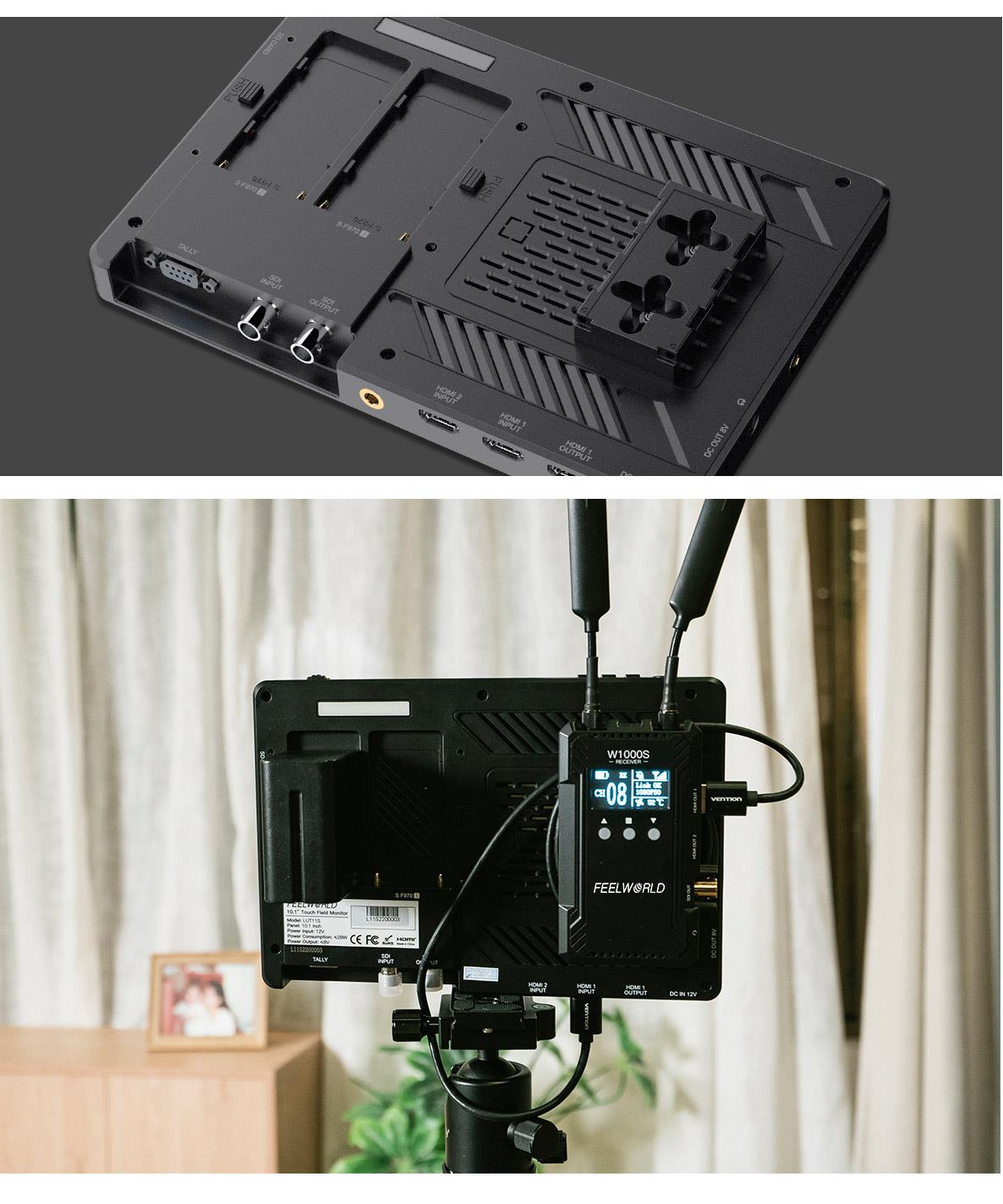

Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter, and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need for power for external wireless transmission, LED light, and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
The kit has two cross slots; you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can loosen the screws to remove the kit.
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter, and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need for power for external wireless transmission, LED light, and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
The kit has two cross slots; you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can loosen the screws to remove the kit.
SDI+Dual HDMI, More Interface Selection
Compatible with movie cameras, DSLR cameras
SDI is perfect for the movie cameras, dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz, which is transmitted without loss, and the screen is smoother and clearer. And provides a 3.5mm headphone jack to monitor audio.
SDI is perfect for the movie cameras, dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz, which is transmitted without loss, and the screen is smoother and clearer. And provides a 3.5mm headphone jack to monitor audio.
Note: HDMI1 input default to loop-out from HDMI1 output, HDMI2 can’t loop-out

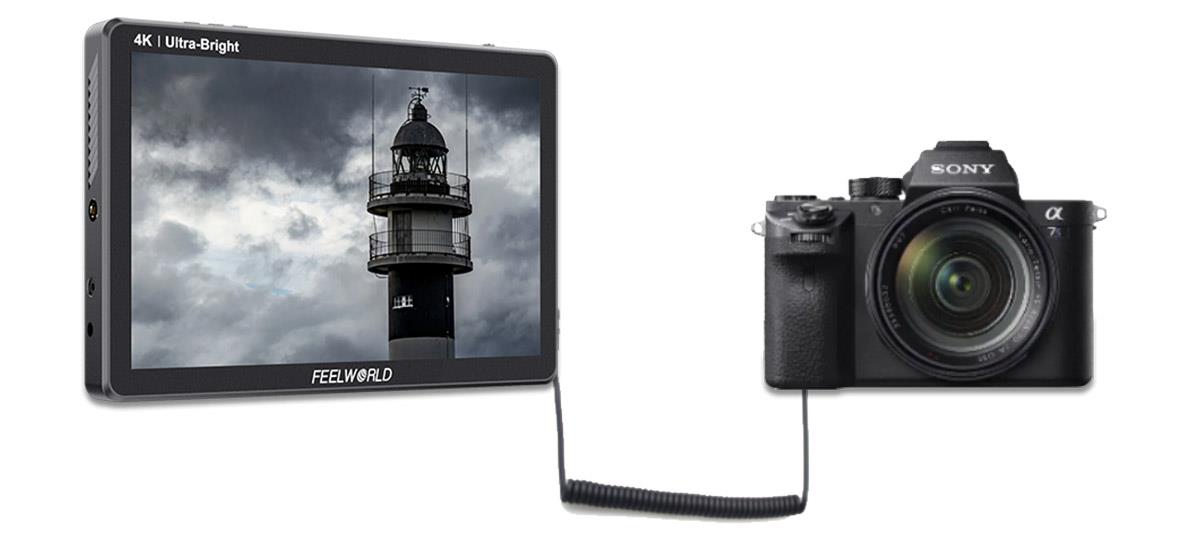

DC Power Supply
Power your DSLR or mirrorless camera
The LUT11S is not only equipped with DC IN 12V (suitable for use 12/3A adapter), but also provides auxiliary power out (DC OUT 8V), allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT11S extends camera run-time while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon, & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon, & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
Dual Battery Plates
Long-lasting power for outdoor shooting
The rear of the monitor of LUT11S has dual battery plates, which can install two standard NP-F batteries, long-lasting power for your screen. In addition, you can switch the battery quickly, just double-tap the battery icon on the upper right corner of the monitor for about 3 seconds to finish the switching, and don’t worry about interrupting monitoring. One F970 battery (6600mAh) lasts for about 2 hours, and two F970 batteries last for about 3.5-4 hours. You can choose to install 1 or 2 batteries based on your needs.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery is not included; please purchase separately. Higher capability (working time) will be longer)
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery is not included; please purchase separately. Higher capability (working time) will be longer)
Smarter Tools for Absolute Precision
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.
Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Support to load 50 custom LUTs
The LUT loading function makes color calibration easier and more intuitive, optimizing the workflow and improving work efficiency in the early stages of shooting. You could use built-in LOG or upload .cube files. LUT11S allows you to load up to 50 custom LUTs, looks, or profiles internally at any time via the SD Card Slot and instantly select between them, maintaining your creative intent at all times.

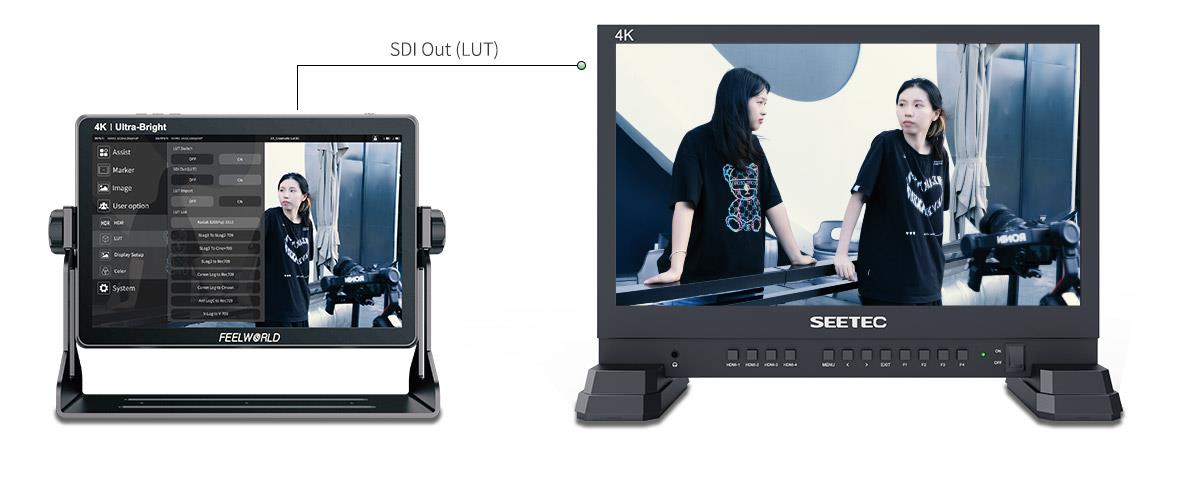

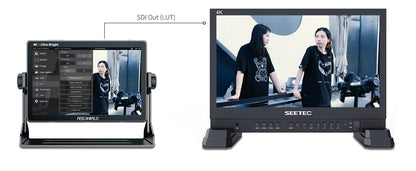

3G-SDI Supports 3D-LUT Loopout
The LUT11S supports a 3G-SDI signal LUT loop-out function, which can output a custom LUT image to other displays, so the director and photographer can see the images with LUT at the same time. When the signal is SDI, and you need to use this function, just turn on "LUT Switch" and "SDI Out (LUT)" in the menu.
HDR Monitoring
What you see is what you get
LUT11S supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, and ARRI.
Accurate waveform monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture, then use LUT11S's built-in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT11S becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!
Application as Jib Monitor
For the large-scale event, live performance, and TV program, jib crane shooting is often used to capture footage from all angles. LUT11S is equipped with a 10.1-inch ultra-high brightness screen, a wide viewing angle, and rich signal interfaces; it is an ideal choice for jib crane shooting, whatever indoor or outdoor.
Multiple Installation Methods
Meet your diverse needs of monitoring
The monitor is equipped with 3 standard 1/4” mounting threads (bottom, right, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
Specifications
| Model | LUT11S |
| Screen Size | 10.1" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.113(W) x 0.113(H) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 2000cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |

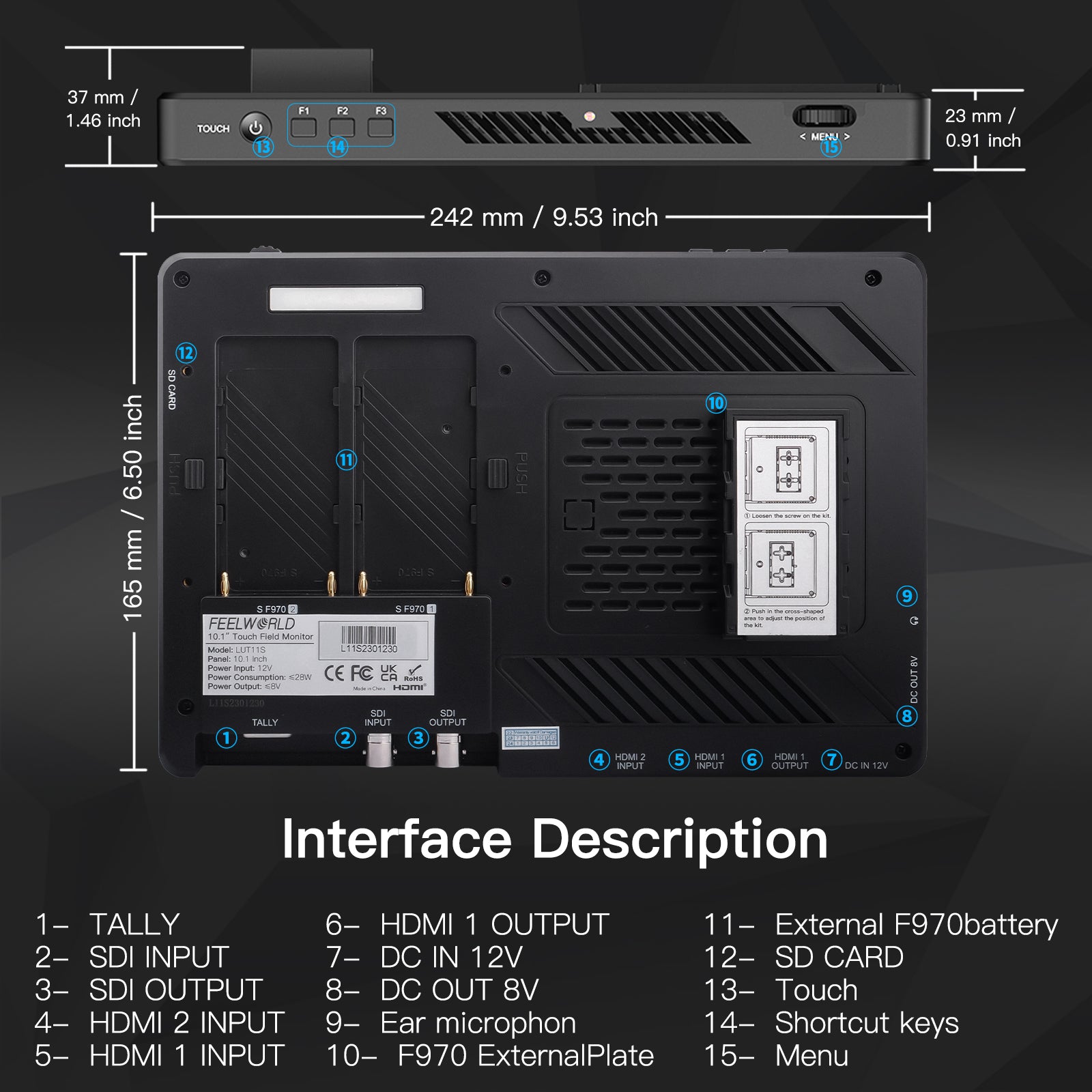

Input
| 2 X HDMI | HDMI |
| 1 X SDI | 3G-SDI |
| 1 X Tally | 9 Pin Connect |
Output
| 1 X HDMI | HDMI |
| 1 X SDI | 3G-SDI |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera-specific adaptor. |
Audio
| Audio | 3.5mm Stereo Headphone |

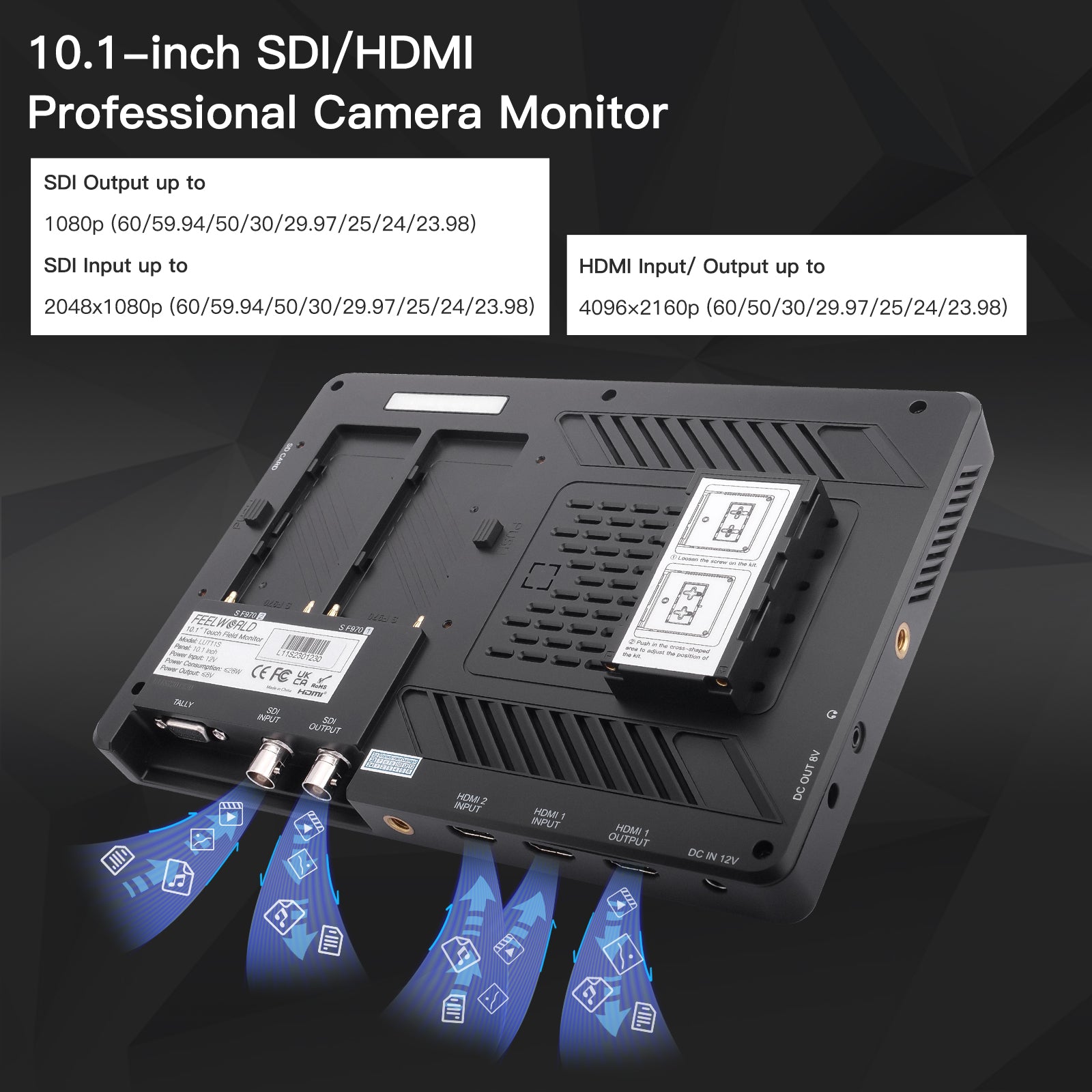

SDI Input Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 2048x1080i (60/59.94/50) |
| 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) |
SDI Output Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840x2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/50/30/29.97/25/24/23.98) |
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤28W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Install Way | 1/4"-20 Thread Socket ( Left, Right, Bottom) |
| Unit Size | 242Lx156Hx23D(mm) |
| Unit Weight | 810g |
| Color Box Size | 265L*110W*212H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 590*270*480 (mm) |
| Gross Weight | 17.43kgs |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

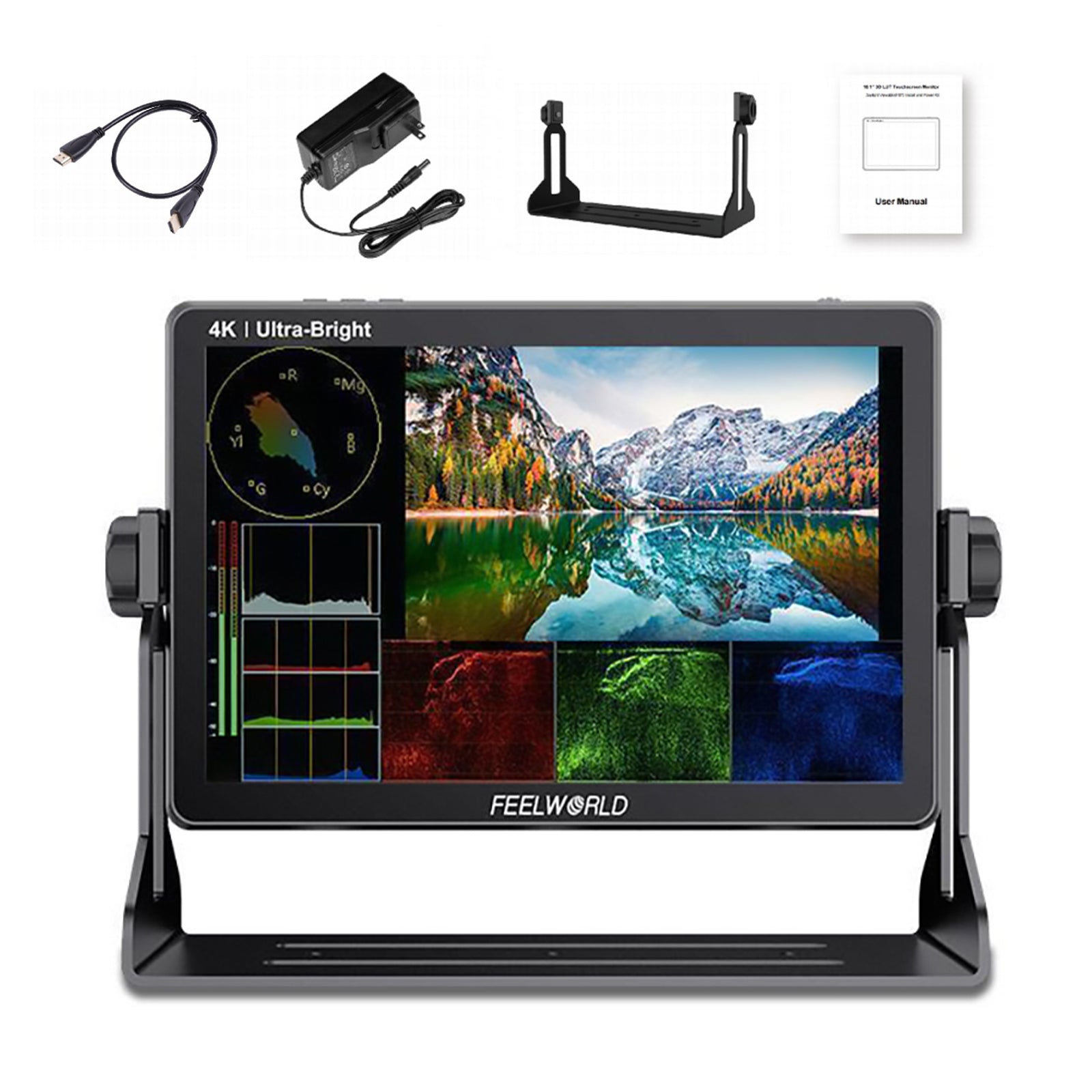

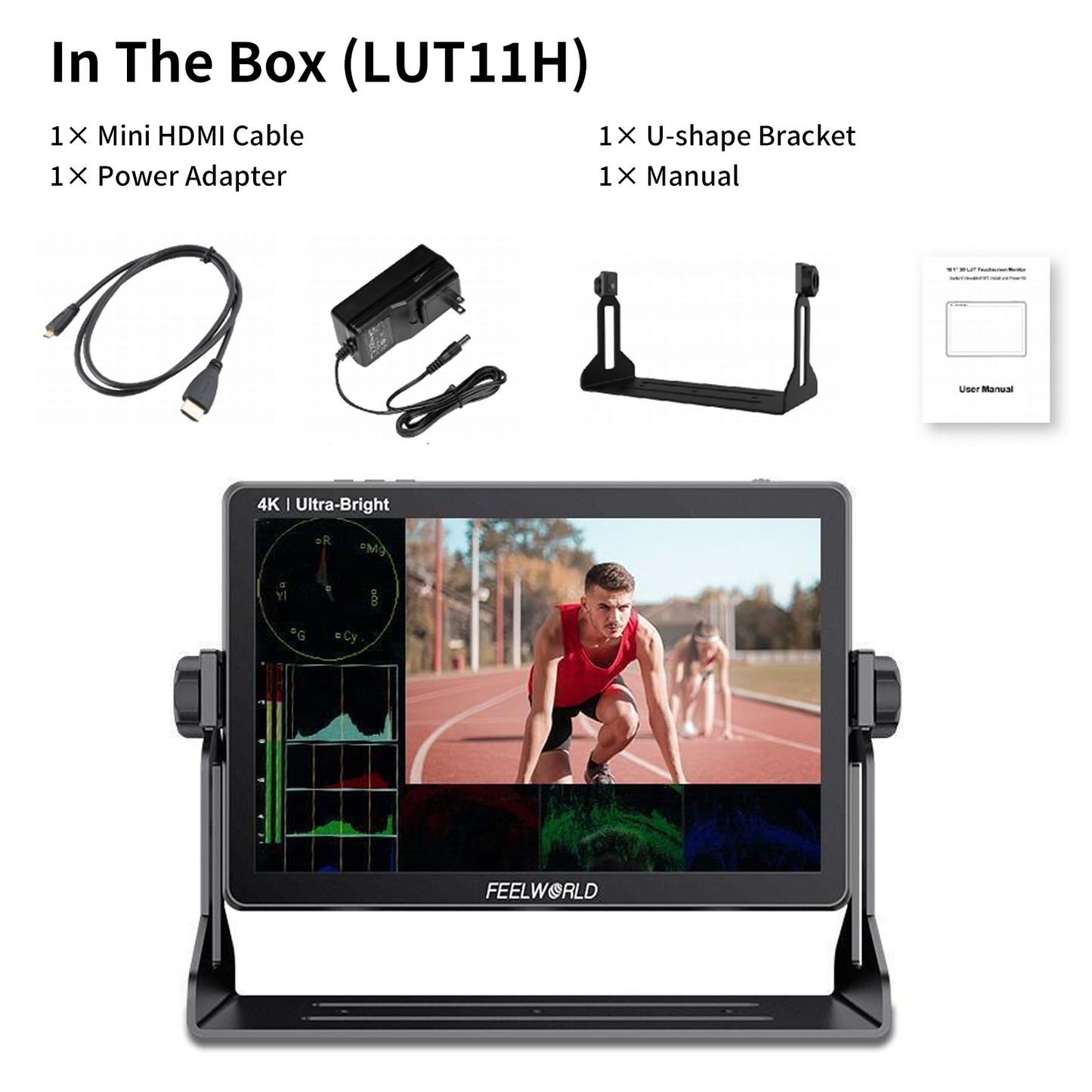

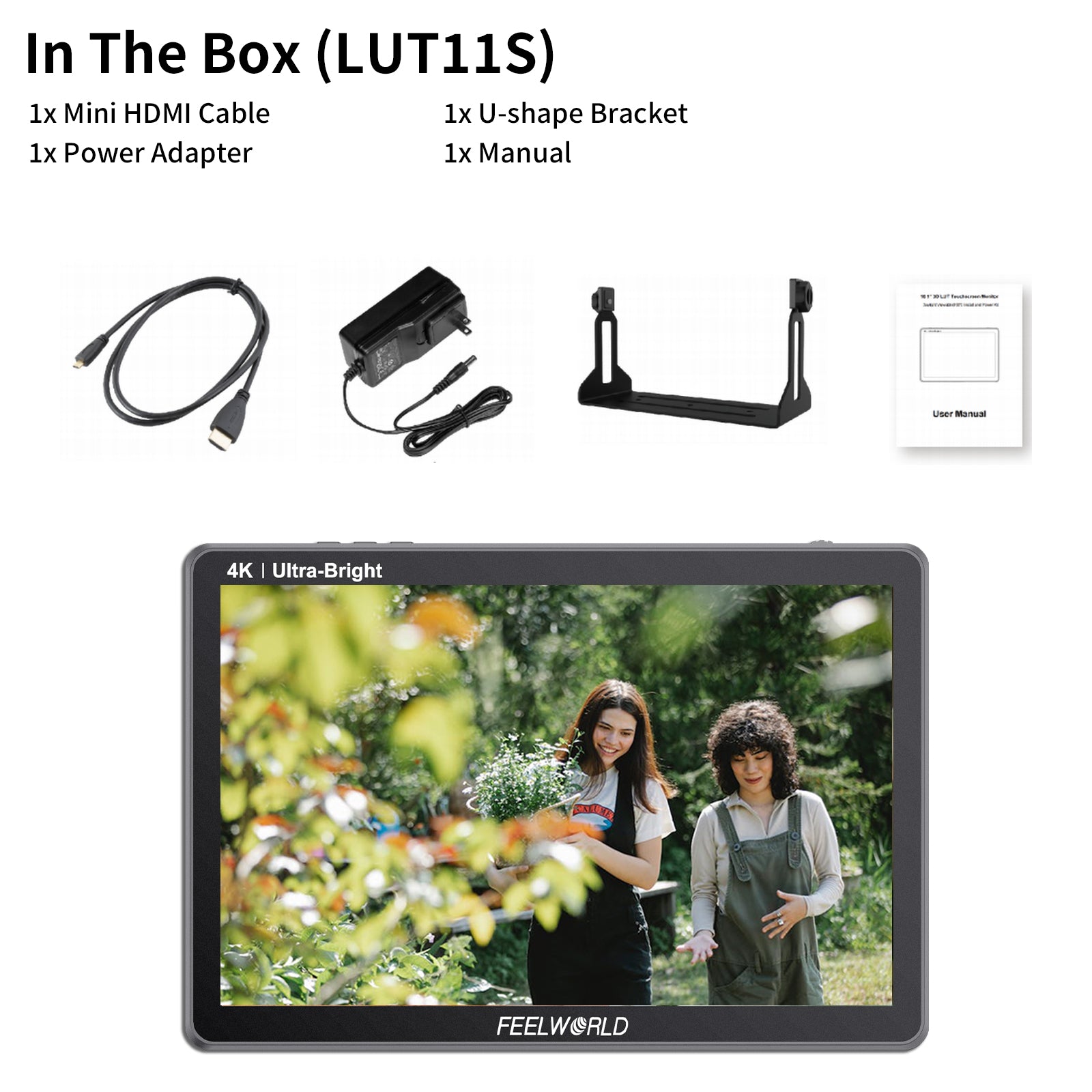

In The Box
