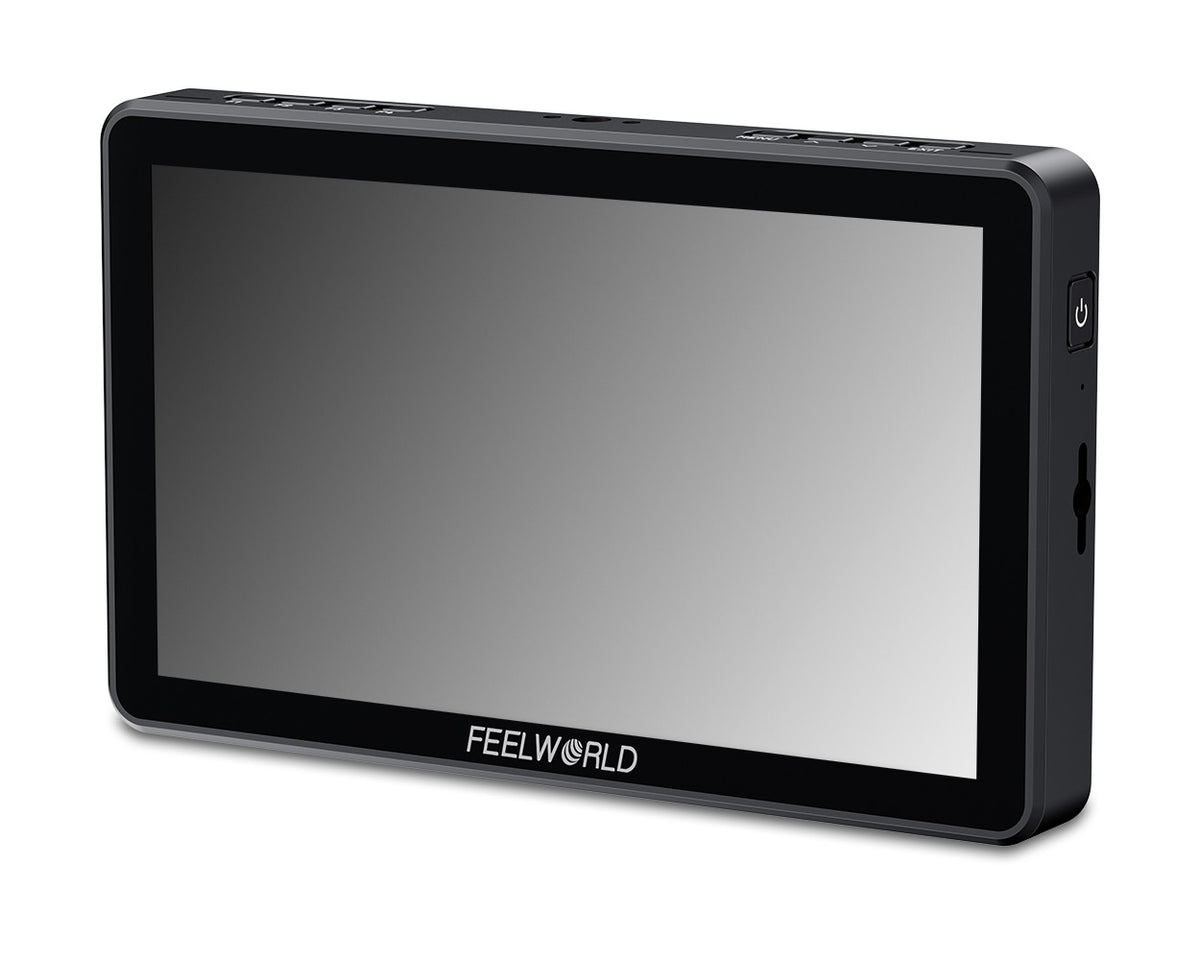

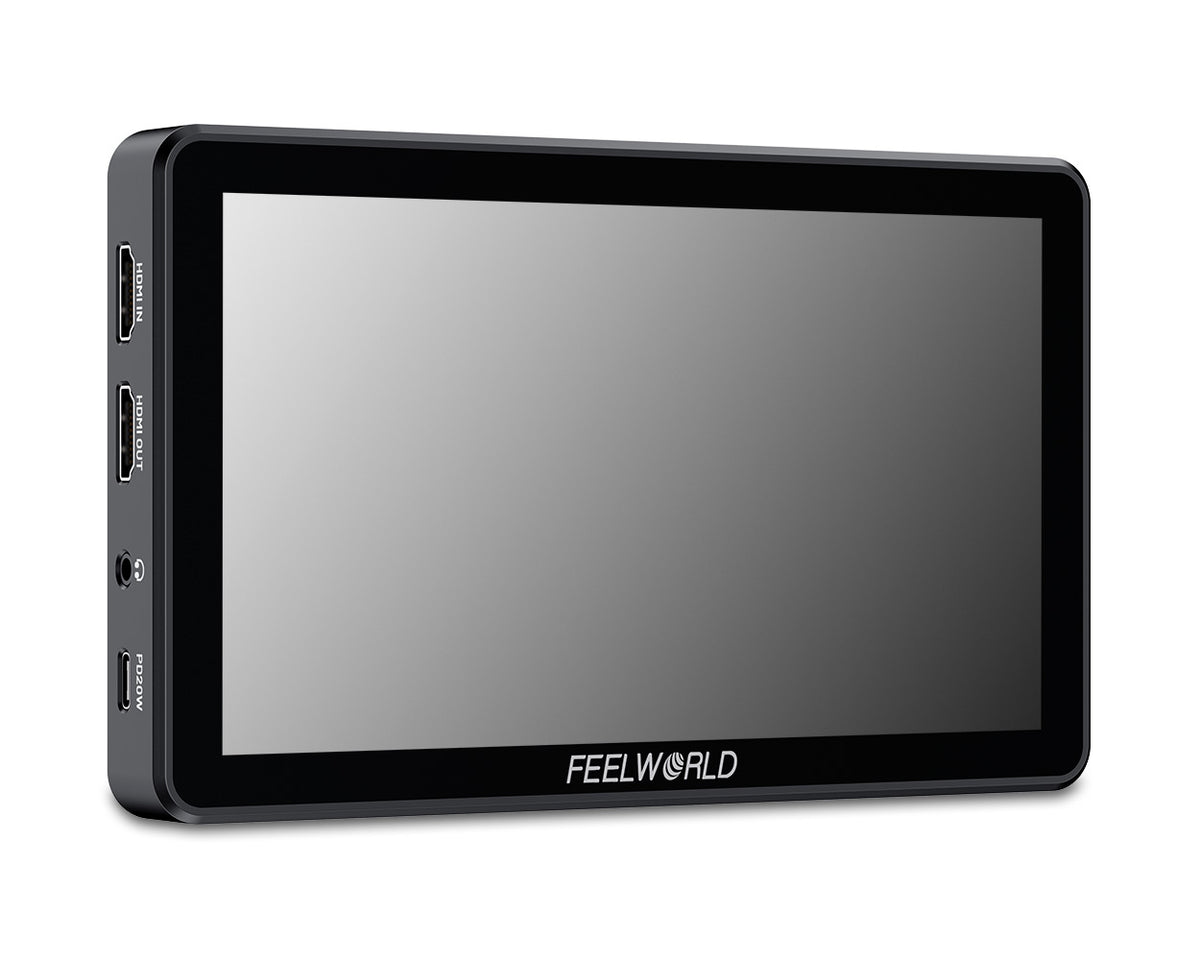

FEELWORLD LUT7ST 7" 10-bit 3G-SDI/HDMI 2.0 Field Monitor, 2000nits AG+AF Touchscreen for Camera

Overview

See More. Shoot Better. Create Freely

The FEELWORLD LUT7ST features a native 10-bit display for smooth, accurate color gradation and exceptional image detail. Its 2000-nit high brightness, combined with AG+AF coatings, minimizes glare, reflections, and fingerprint interference, ensuring clear visibility even under bright outdoor conditions. With 3G-SDI,HDMI 2.0 interface and support up to 4K60Hz, the LUT7ST delivers reliable, high-bandwidth signal transmission, while its slim,lightweight design makes it easy to mount and carry on set. A comprehensive suite of professional monitoring tools —including HDR, 3D LUTs, waveform, vectorscope, histogram, and focus assist—gives you precise control over exposure, color, focus, and composition. From setup to final capture, the LUT7ST helps you monitor more efficiently, make more confident decisions, and bring every shot closer to your creative vision.

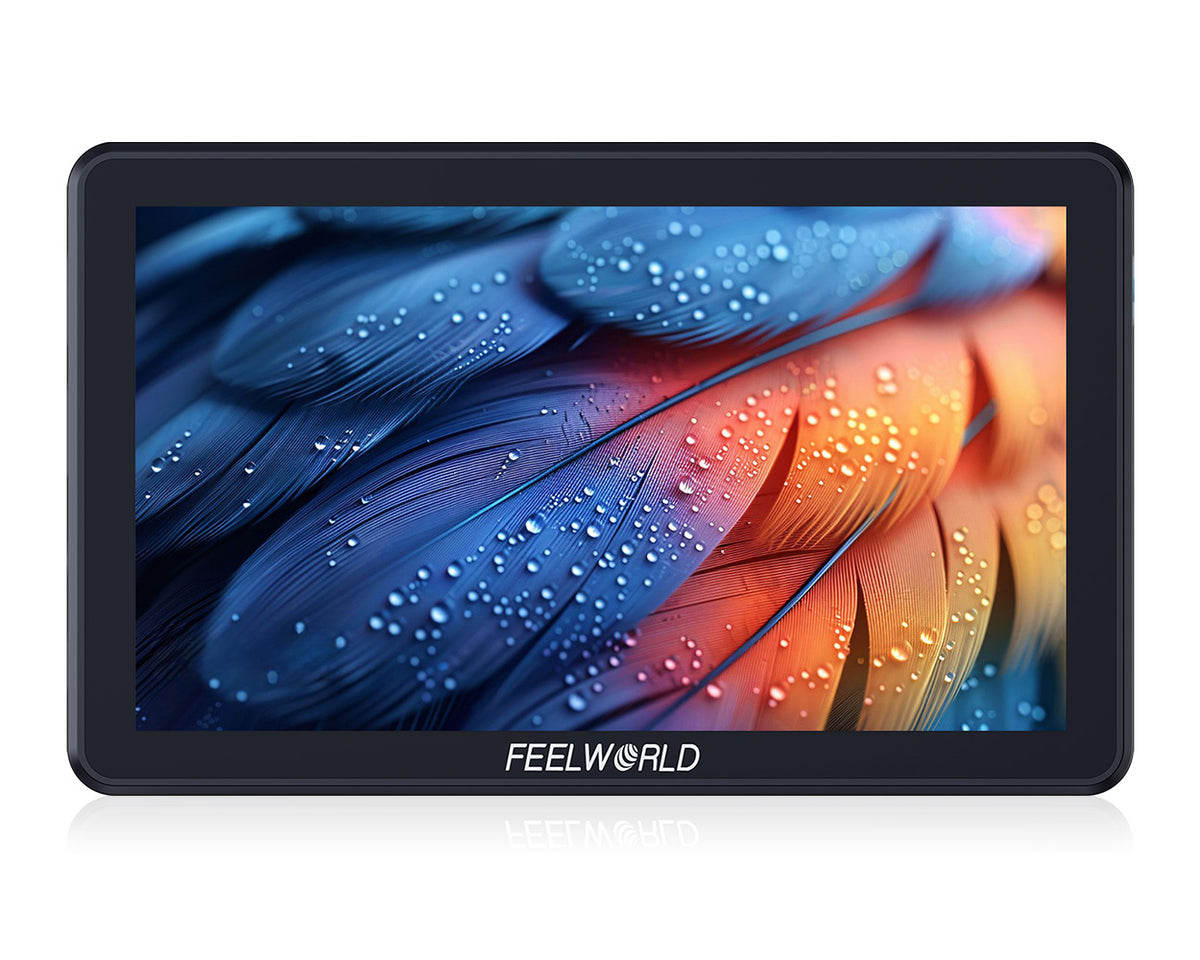

7" Native 10-bit Panel
Richer Color, Smoother Gradients, Accurate Monitoring

Equipped with 7-inch full HD native 10-bit panel, see smoother gradients, richer colors and finer details for more accurate on-set monitoring.

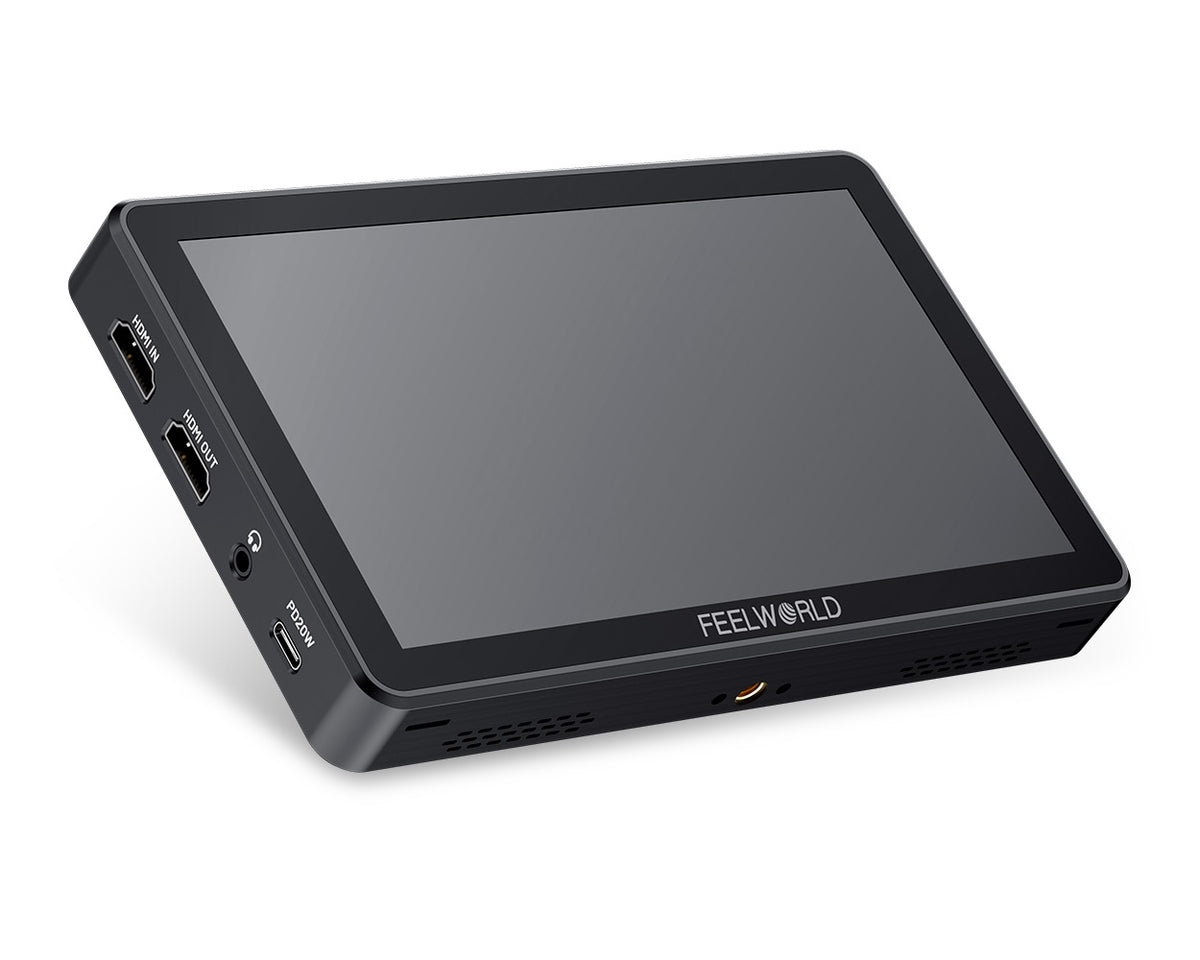

Anti-Glare & Anti-Fingerprint Coating

Reduces reflections and fingerprints, ensuring clear visuals inbright environments while keeping the screen clean and pristine. delivering a stable and comfortable monitoring experience.

2000Nits Ultra Brightness，Viewable in Sunlight

2000nits Ultra-High Peak Brightness offsets AG coating light loss, nsuring clear visibility even under direct sunlight and harsh outdoor lighting. Perfect for outdoor live streaming and monitoring.

Responsive Touch Control

An innovative LCD touchscreen interface gives you comprehensive, precise control. Simply tap or swipe to access and adjust settings effortlessly.

Professional Monitoring, Powerful Tools

Achieve accurate focus and exposure with comprehensive monitoring tools, from on-set production to post-production.

Load 3D LUTs, Preview Cinematic Looks

LUT support simplifies on-set color management and streamlines your workflow. It includes 4 built-in LUTs — S-Log2, S-Log3, LogC, and V-Log — and supports uploading 32 custom .cube files for creating and previewing your own cinematic looks.

Dynamic HDR Monitoring
What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

Comprehensive Waveform Monitoring, Precise Signal Control

Supports waveform, vector scope, histogram, and audio level displays for comprehensive monitoring of video and audio signals.

SDI Time Code

Supports LTC、VITC time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.

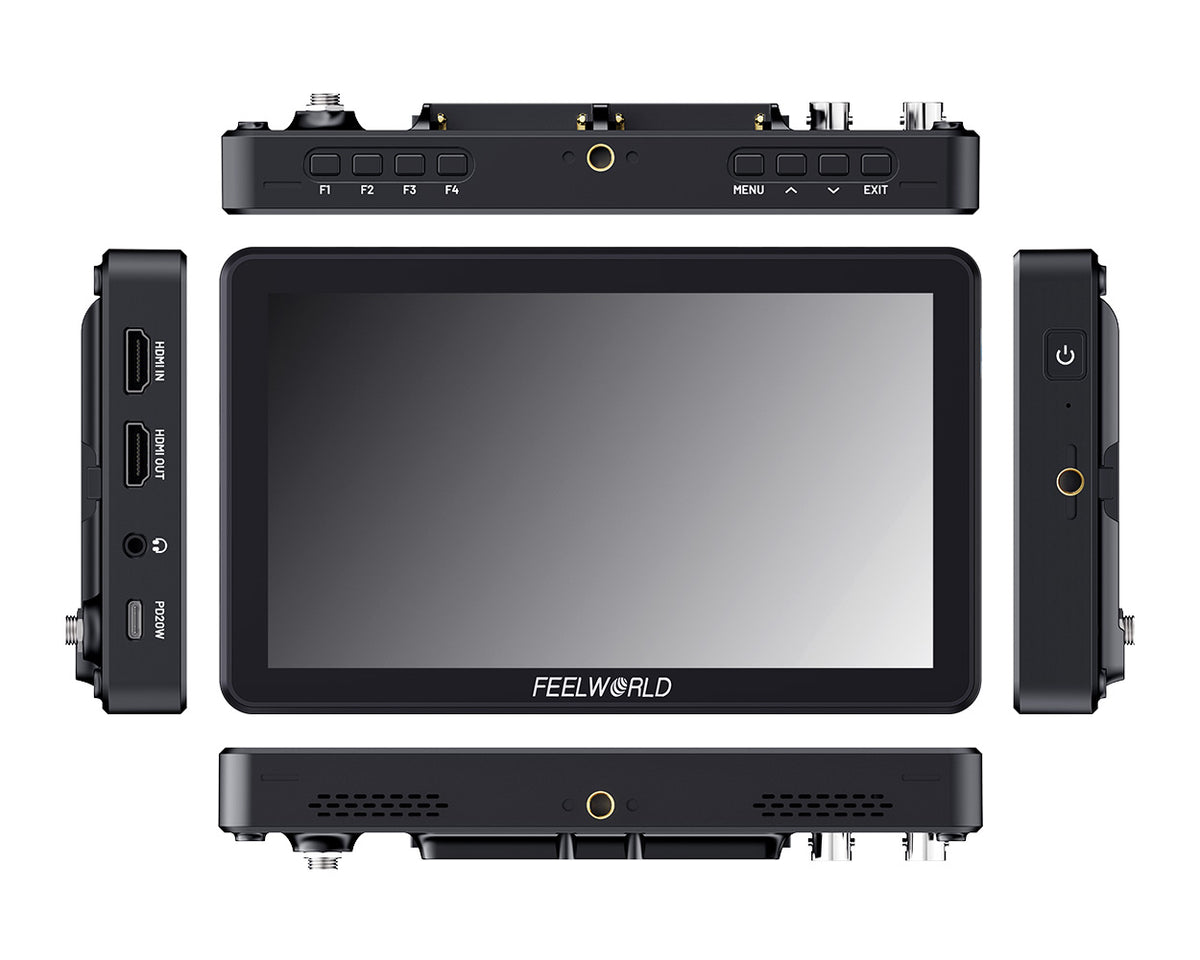

Slimmer Form. Enhanced Portability

Traditional 7-inch monitors can feel bulky and front- heavy when mounted on a camera. At just 19.9mm thin, LUT7ST keeps your setup slim, lightweight, and more comfortable to handle.

Physical Button Control
Simple. Intuitive. Always at Your Fingertips

LUT7ST combines intuitive physical controls with four customizable shortcut buttons, giving you instant access to your most-used functions and keeping your shooting workflow fast and efficient.

3G-SDI HDMI 2.0 Input & Output, High-Speed Transmission

Equipped with 3G-SDI and HDMI 2.0 interfaces, support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

Versatile Power Options

NP-F Battery Optional Recommendation

The power consumption of LUT7ST is 18W, you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

Flexible mounting to meet diverse monitoring requirements.

Up to 12 Languages

Built-in up to 12 languages, that means LUT7ST is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Upgraded Hot Shoe Mount Adapter
Secure Connection. Quick Adjustment.

Upgraded hot shoe mount adapter with dual positioning points for a more secure connection, a side thumb screw for quick adjustment, and 180° tilt + 360° rotation for flexible viewing angles.

Portable Sun-hood

The standard portable sun-hood can easy to resist the strong light, and easy to install.

LUT7ST Feature Upgrade Comparison

Specifications

Model	LUT7ST
Screen Size	7"IPS
Resolution	1920X1080 pixels
Dot Pitch	0.027(H) x 0.081(V) mm
AG+AF Coating	Haze: 10%±4%; Glossiness: ≥70; Light transmittance: ≥83%
Color Display	1.07B
Color Depth	10-bit
Color Gamut	97% DCI-P3
Aspect Ratio	16:9
Brightness	2000cd/m²
Contrast Ratio	1500:1
Backlight	LED
Response Time	Ton+Toff=25ms
Viewing Angle	88°/88°(L/R) 88°/88°(U/D)

Signal Input

1 X HDMI	HDMI 2.0
1 X SDI	3G-SDI

Signal Output

1 X HDMI	HDMI2.0
1 X SDI	3G-SDI

Audio

Audio

3.5mm Stereo Headphone

HDMI Input and Output Support Format

480i/576i/480p/576p

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i (60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K 3840×2160p (60/50/30/29.97/25/24/23.98)

4K 4096×2160p(60/50/30/29.97/25/24/23.98)

SDI Input and Output Support Format

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

General

Power Input	DC IN 12V, Barrel (5.5mm outer, 2.1mm inner);Type-C (PD) 20W

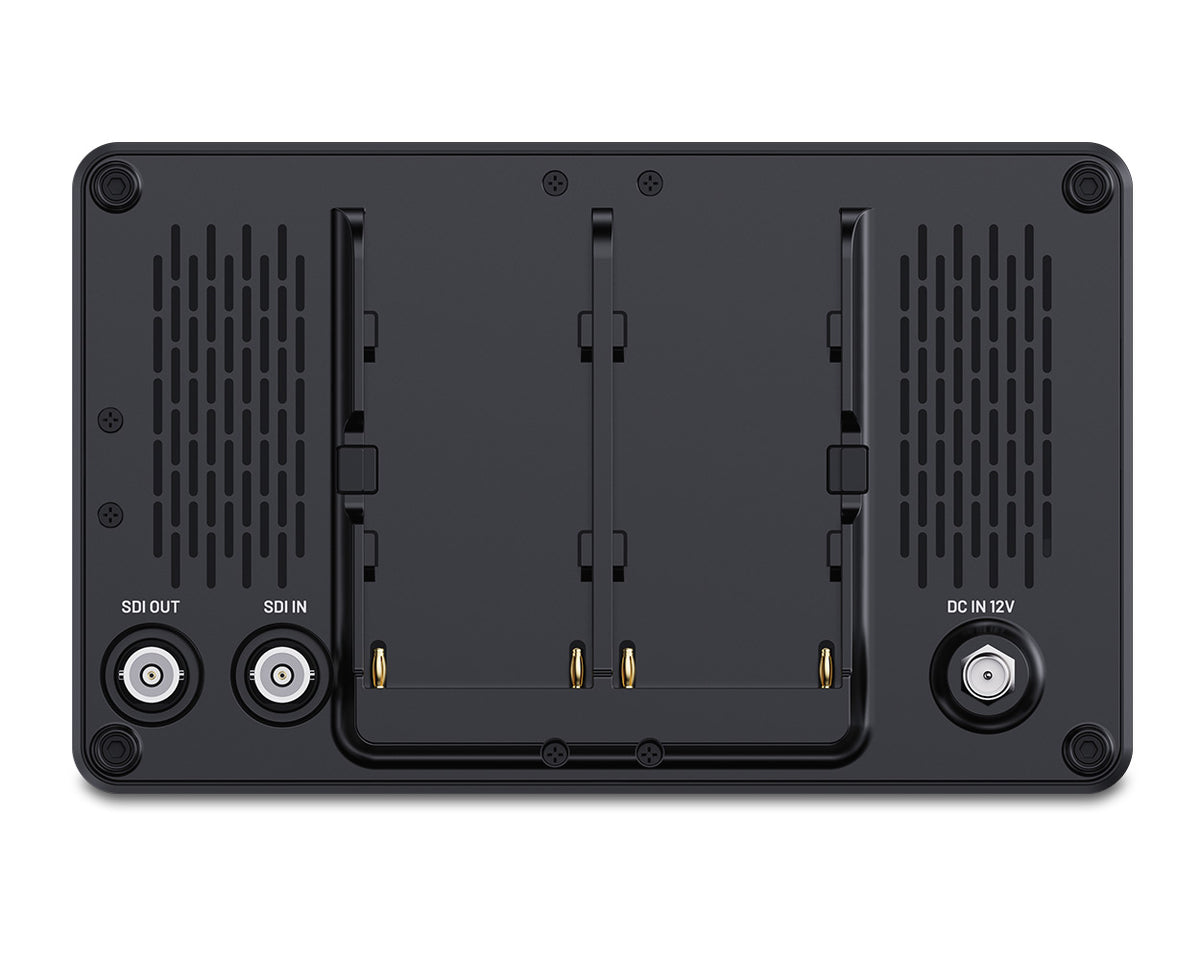

Battery Slot	Dual NP-F Battery Slots
Power Consumption	18W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	1/4"-20 Thread Point (right side, top, bottom)
Unit Size	179Lx110Hx19.9D (mm)
Unit Weight	379g
Color Box Size	222L*158W*78H(mm)
Outer Carton Qty	10
Outer Carton Size	535*230*405 (mm)
Gross Weight	kg

Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.



In The Box

1× Monitor
1× Micro HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Cable Management Tie
1× Sun Shade
1× Quick Start Guide
