FEELWORLD M101S 10.1" 1200NIT Multiple Screen Monitor 1920x1200 IPS 3G-SDI HDMI 2.0 LUT HDR

Overview

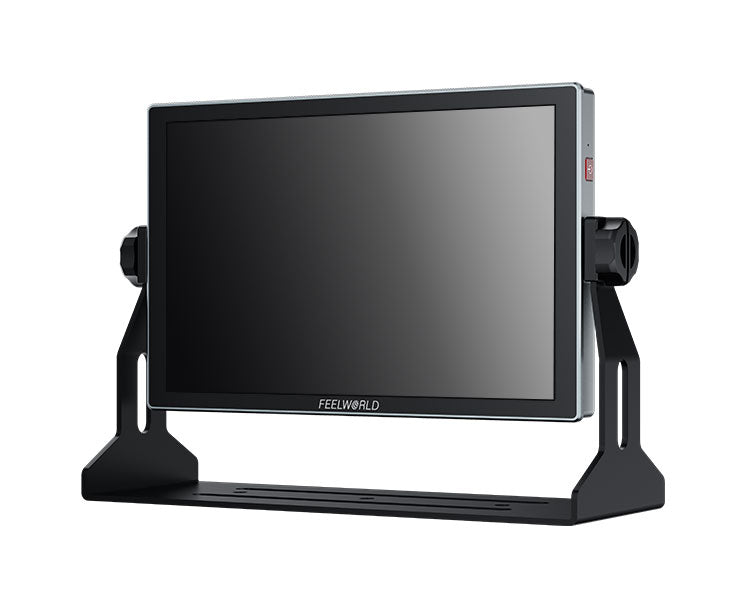

The M101S 10.1" High-Brightness Multiview Field Monitor from FeelWorld equips you with an intuitive touchscreen monitor with 1200 cd/m² brightness for daylight viewing in field production applications. The rear panel features two sets of 3G-SDI and HDMI inputs and outputs that support a wide variety of video sources, a tally port, and an SD card for LUT upload. Toggle between six different multiview modes to display each source in your video village. For power, the M101S has a DC barrel input and two NP-F battery slots. Monitoring features include waveform, histogram, and vectorscope.

Key Features

• 10.1" 1900 x1200 Touchscreen Monitor
• 1200 cd/m² Brightness, 1500:1 Contrast
• Two 3G-SDI and HDMI I/O Ports
• Tally Port, SD Card Slot
• Six Multiview Modes, HDR Monitoring
• Waveform, Vectorscope, Histogram

Multi-Camera Horizontal & Vertical Broadcast Monitor

FEELWORLD M101S is a 10.1-inch Full HD high-brightness multi-view monitor. It is equipped with dual 3G-SDI and dual HDMI 2.0 ports, supporting signal transmission up to 4K60p.
The M101S built for short drama production, multi-camera workflows,and outdoor shooting, the monitor accepts up to 4 video input channels and offers a variety of multi-view monitoring layouts, including landscape and portrait modes.
A full set of professional assist tools such as waveform, 3D LUT, HDR, and audio monitoring is integrated to support efficient on-site production.

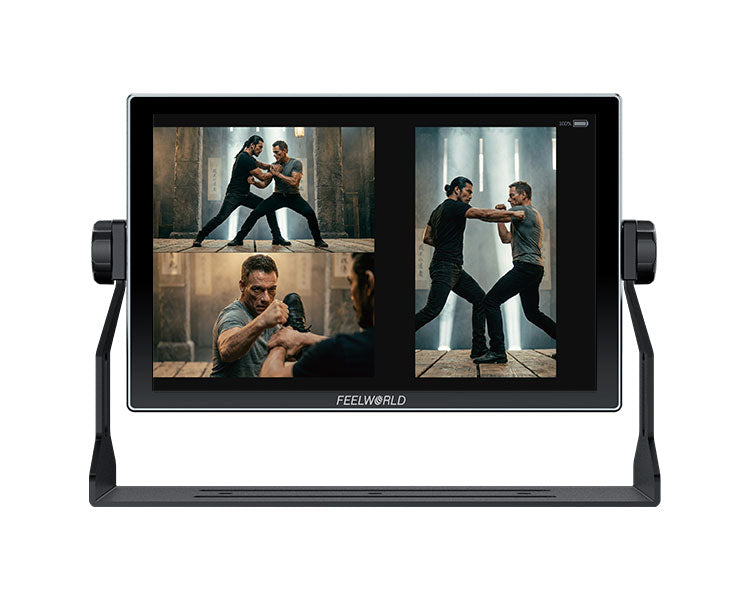

Multi-view Monitoring Mode

The screen can be set to dual, triple,and quad view through menu settings, supporting picture-in-picture mode, it perfectly fits diverse complex monitoring needs and delivers flexible, efficient use.

Horizontal Shooting & Vertical Cropping

The M101S comes with cropping function. It enables seamless connection from horizontal shooting and vertical output, perfectly suited for short drama filming and mobile content creation.

Independent Mirror Flip for Each Window, Easier Monitoring

In multi-screen mode, the independent image flip function for a single window is supported. Without adjusting the camera angle or wiring installation, any single screen can be freely mirror flipped, making camera installation more flexible and efficient, and improving monitoring efficiency.

Camera Status Display

The top of the monitor screen can display the signal input status of each camera in real time, facilitating the crew's overall management of shooting and effectively improving shooting efficiency.

10.1" Full HD IPS
Clearly checking and capture every nuance

With extremely high resolution 10.1-inch 10bit（8bit+2FRC) IPS panel provides rich colors,a wider field of view and clearly present more detailed image. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.

Professional CalMAN Software Calibration

Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction, and the delta E value ≤1.5.

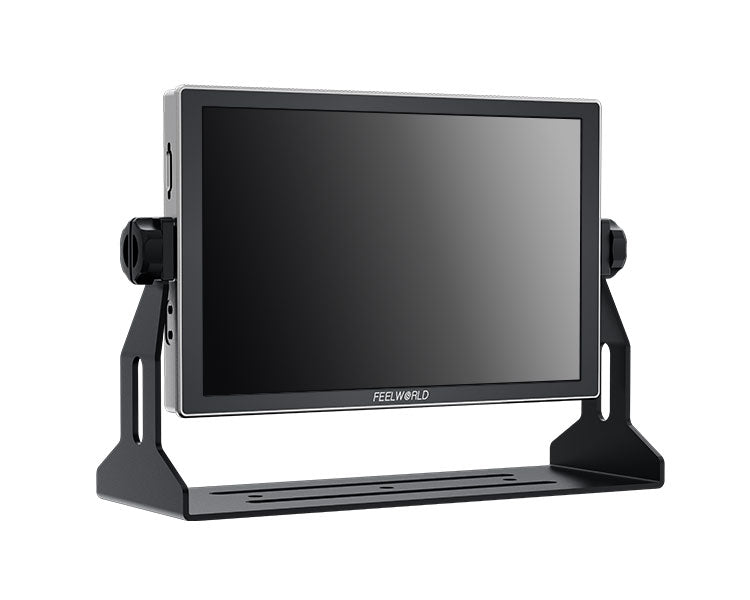

1200nits, Visible in Sunlight

High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

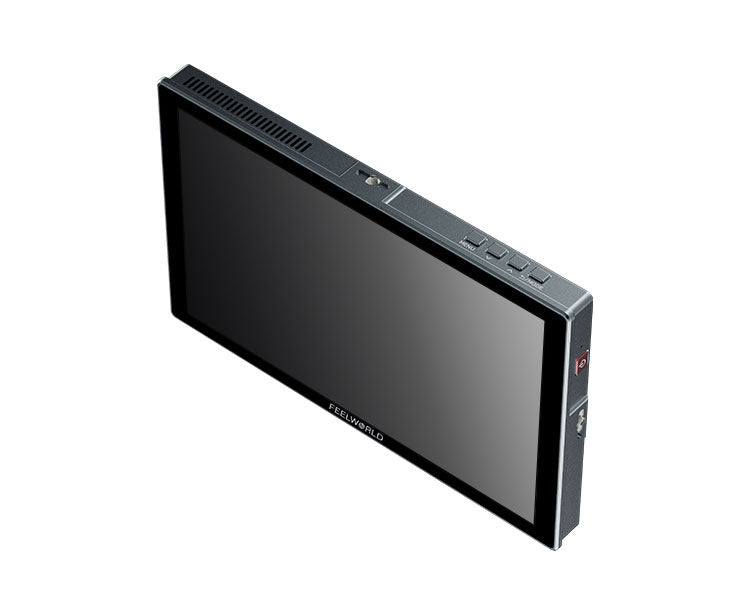

Rugged Aluminum Housing

Adopts CNC aluminum alloy housing, durable and portable, suitable for various shooting environment.

Full Range of Auxiliary Functions

Load Custom 3D LUTs，Preview Filming Look in Field Shooting

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the SD card, and insert it to the SD card slot of the monitor (up to 32 custom files can be imported).

Dynamic HDR Monitoring
What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

Accurate waveform monitoring
Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. M101S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

SDI Time Code

M101S supports LTC、VITC time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.

Up to 16-channle Audio Meter Level

M101S can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels, 8 channels, 16 channels audio meters display . You also can move it horizontal or vertical position , and don' worry cover the image.

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Physical Buttons Control

The M101S also features physical button controls to cater to diverse operation needs. With a straightforward layout and intuitive operation logic, it can be easily mastered even by new users.

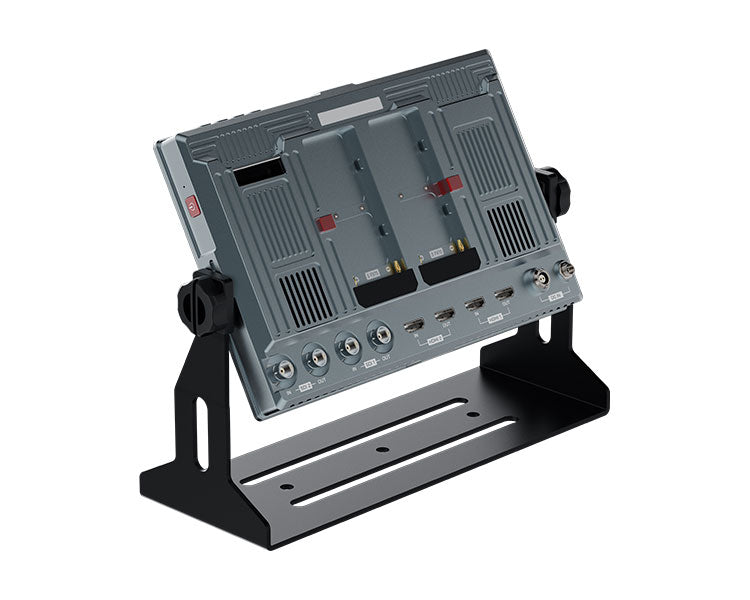

3G-SDI & 4K HDMI Input and Output

The monitor is equipped with two 3G-SDI and two HDMI2.0 inputs and loop outs, support up to 4K 60Hz video signal.

3-Color Tally Indicator, Enhance Team Cooperation

M101S features green, red and yellow Tally indicator — intuitively showing Preview, On Air and Record status at a glance. Designed for seamless live broadcast workflows, it’s your perfect partner for professional on-site broadcasting.
Tally signal is easily connectable via the 3.5mm Tally interface on the left of the monitor, ensuring stable and reliable performance for every live production.

Built-in Cooler

Built-in cooler,and with 5 modes adjustable,default to on 3 mode don't worry the monitor work for long time.

Triple Power Supply Options

The monitor is equipped with a DC 5.5×2.1mm power port and a LEMO 2pin selflocking power port, compatible with 12V/3A adapters. It also features dual NPF battery slots that support NPF series batteries, delivering reliable and longlasting power for the screen.
The monitor install one NP-F970 battery (6600mah) last for about 2 hours. The upper right corner of monitor will display battery level after the battery installed two batteries are installed at the same time, when one is running low, you can quickly switch to the other one without worrying about losing power midway.
Note: The battery and power adapter not included.

NP-F Battery Optional Recommendation

The power consumption of M101S is 24W, we recommend to choose the higher capacity of FEELWORLD NP-F970 to power.

11 Languages Supporting

M101S built-in up to 11 languages, that means M101S is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

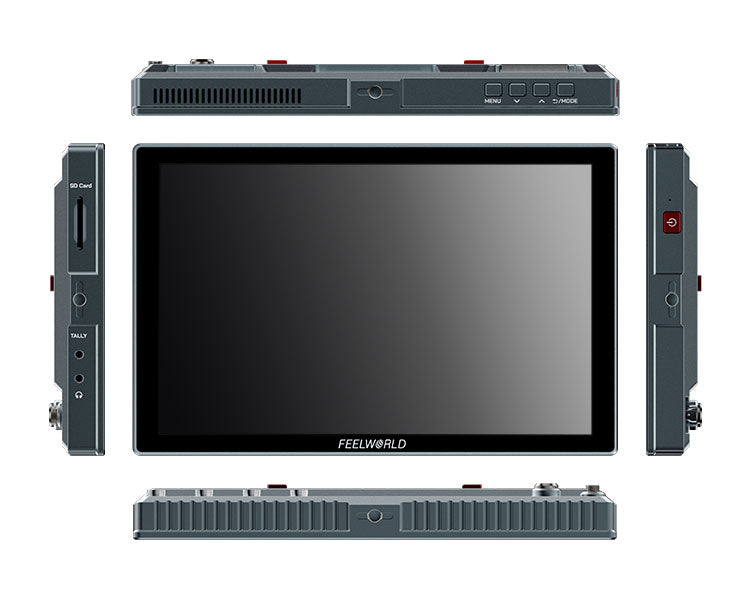

Multiple Mounting Points, Meet Different Need of Monitoring

The monitor is equipped with 4 standard 1/4”mounting threads (top, bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

Specifications

Display Size	10.1" / 25.7 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	Yes
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
Wireless	No
Video Format	HDMI
	DCI 4K: 60/50/30/29.97/25/24/23.98
	UHD 4K: 60/50/30/29.97/25/24/23.98
	1080p: 60/50/30/29.97/25/24/23.98
	720p: 60/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	576p
	576i
	480p
	480i
	SDI
	1080p: 60/50/30/29.97/25/24/23.98
	720p: 60/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	Show Less
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	18 W

Display

Panel Type	IPS-Type LCD
Display Size	10.1" / 25.7 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	80°
Touchscreen	Yes
Maximum Brightness	1200 nits / cd/m2
Contrast Ratio	1500:1
Color Support	1.07 Billion Colors
HDR Support	Yes
Color Gamut	95% DCI-P3
LUT Support	Yes
Image Controls	Histogram, Vectorscope, Waveform

Inputs/Outputs

Video I/O	2x BNC (3G-SDI) Input
	2x BNC (3G-SDI) Output
	2x HDMI Output
	2x HDMI Input
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Power I/O	1x Barrel (12 VDC) Input
Other I/O	1x DE-9/DB-9 (Tally)
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]

Wireless

Wireless	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format	HDMI
	DCI 4K: 60/50/30/29.97/25/24/23.98
	UHD 4K: 60/50/30/29.97/25/24/23.98
	1080p: 60/50/30/29.97/25/24/23.98
	720p: 60/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	576p
	576i
	480p
	480i
	SDI
	1080p: 60/50/30/29.97/25/24/23.98
	720p: 60/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50

Power

Input Power	7 to 24 VDC
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	18 W

Mounting

Tripod/Accessory Mounting

4x 1/4"-20 Female

General

Operating Conditions	14 to 140°F / -10 to 60°C
Storage Conditions	-22 to 158°F / -30 to 70°C
Material of Construction	Aluminum
Dimensions	8.8 x 6.2 x 1" / 224 x 157 x 25.9 mm
Weight	29.9 oz / 849.00 g

In The Box

1× Monitor
1× HDMI Cable
1× Micro HDMI Cable
1× SDI Cable
1× Tally Connector
1× U-shape Bracket
1× Quick Start Guide
