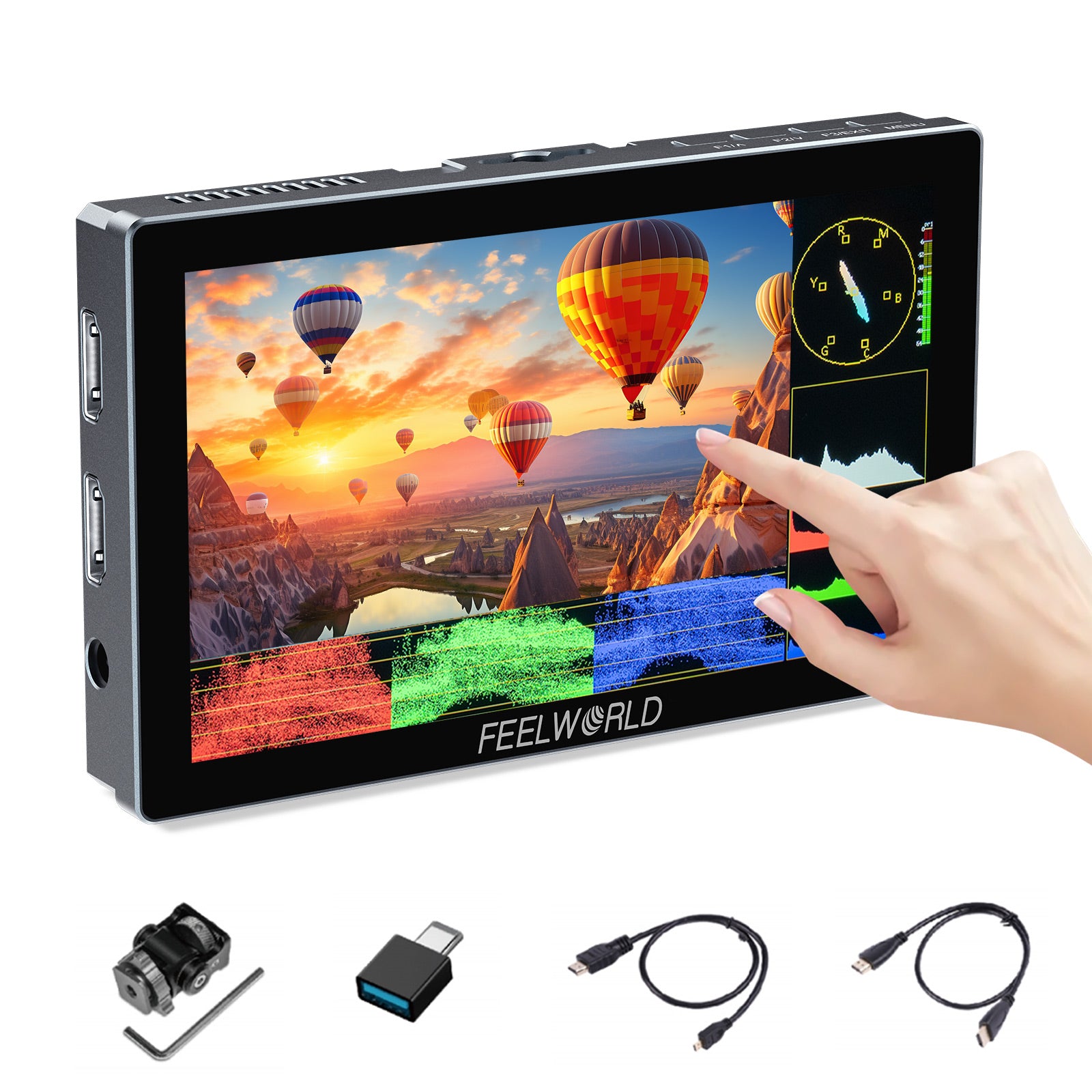

FEELWORLD P6X 5.5 Inch Touchscreen High Bright 1200nit Aluminium Housing DSLR Camera Field Monitor 4K 60Hz

Overview

The P6X 5.5" 4K HDMI Touchscreen Monitor provides an on-camera monitoring solution while shooting in the field. The monitor features a 1920 x 1080 native resolution with 1200 cd/m² maximum brightness and a 160° viewing angle capable of being viewed in direct sunlight. HDMI input and output ports support up to 4K video from cameras and transmitter units. Upload up to 32 custom 3D LUTs to customize the look of your footage.

A multitude of video assist functions are embedded in the monitor's UI and easily accessed using the touchscreen and onboard buttons. Power the monitor via an NP-F battery or the USB input port. An 8 VDC output port can power your DSLR or mirrorless camera. Three 1/4"-20 threads on the monitor allow you to secure the included cold shoe adapter or attach additional accessories.

Key Features

• 5.5" 1920 x 1080 Resolution Display
• 1200 cd/m² Brightness
• 4K HDMI Input and Output
• 160° Viewing Angle
• Rugged Aluminum Alloy Housing
• Up to 32 Custom 3D LUTs
• NP-F Series Battery Plate
• 8 VDC Output for Powering Camera
• Three 1/4"-20 Threads, Cold Shoe Adapter

Exquisite. Lightweight. Almighty.

FEELWORLD P6X has up to 4K@60Hz HDMI transmission rate, allows you to experience the smoothness of high-speed transmission; a 5.5-inch high-brightness touch screen, making shooting more efficient; an all-metal body, sturdy and durable; A series of camera assistance functions help photographers to compose on-site and save post-production time. P6X is perfect for video creators.

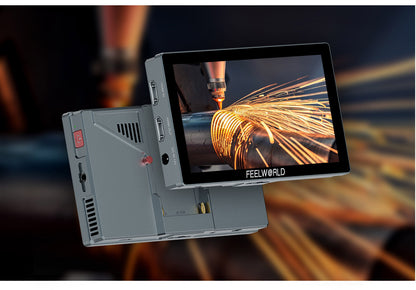

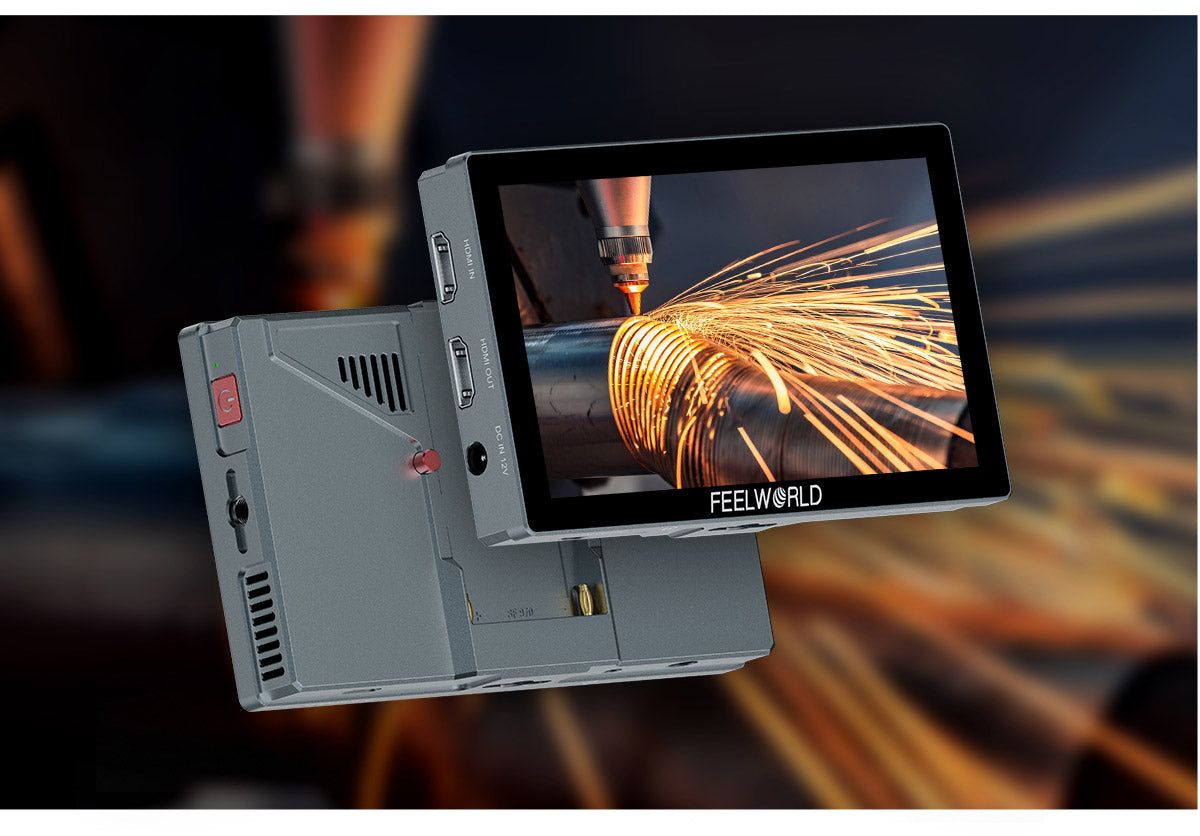

Rugged Aluminum Alloy Housing

CNC-machined from aircraft-grade aluminum, the unit weighs just 249g. This ultra-light yet durable construction ensures reliable performance in demanding shooting environments.

5.5-inch Full HD Screen

Clearly checking and capturing every nuance
With an extremely high resolution 5.5-inch IPS panel, it provides excellent details, accurately reflects the original colors. Wide viewing presents a more detailed image.

1000Nit, Daylight Viewable

High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

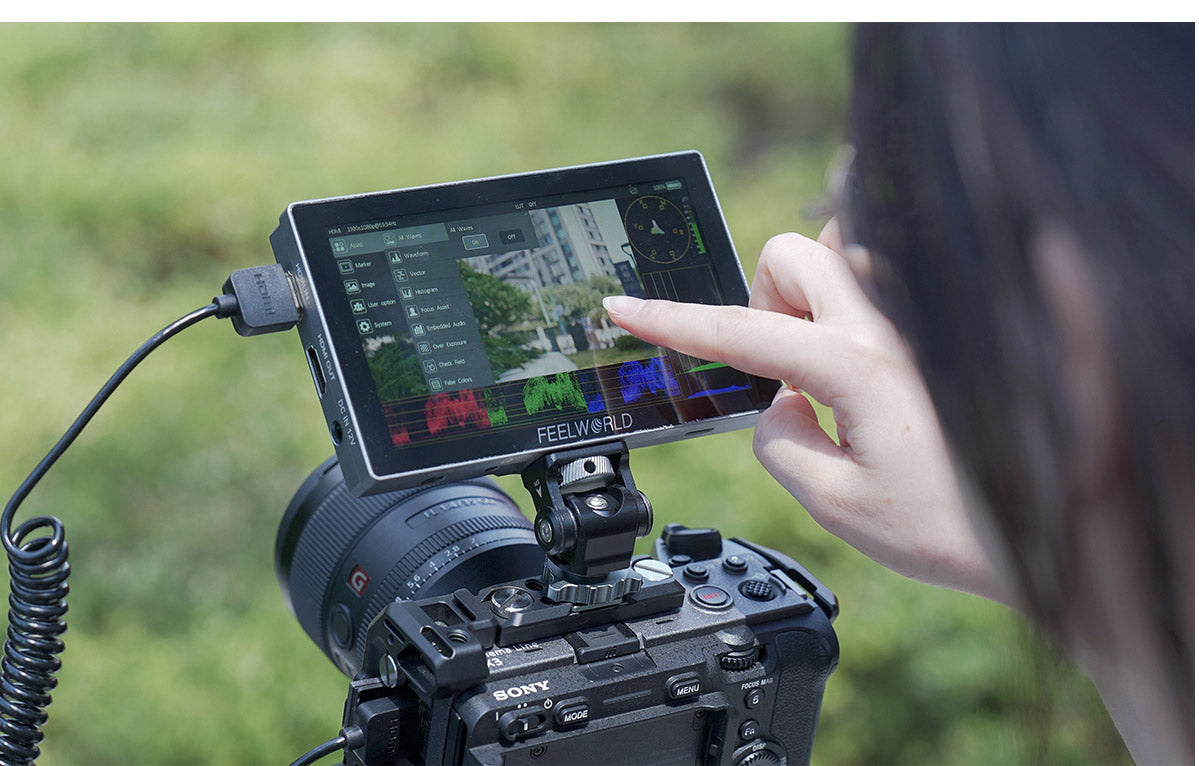

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Button Operation, More Selection

Besides touch control, P6X also provides button operation. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

9:16 Vertical Screen Marker

P6X has many kinds of ratio markers, especially the vertical screen marker 9:16. Perfect for vertical screen platforms such as TikTok and Instagram.

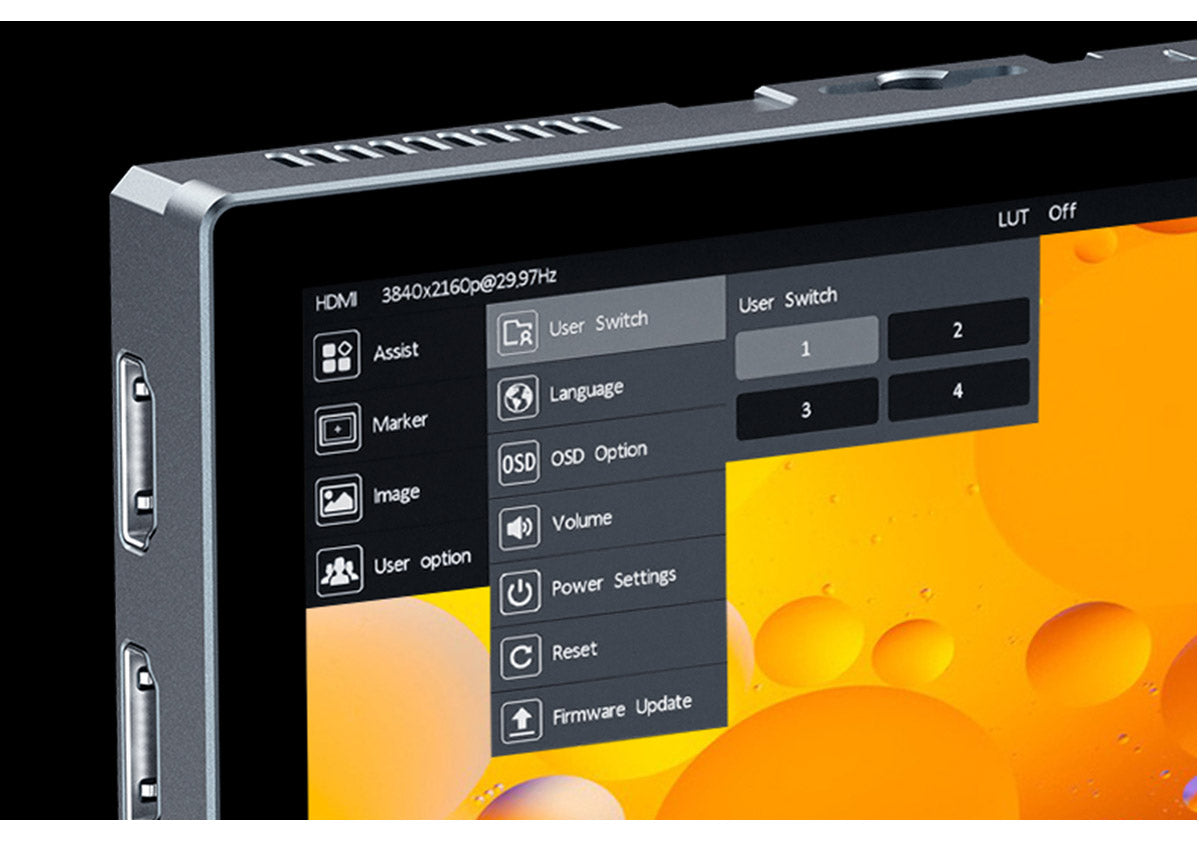

Menu User Switch

P6X provides 4 groups menu setting saving. You can select 1~4 group after setting the menu, it will save automatically, and can be called directly or switched next time.

Full Range of Auxiliary Functions

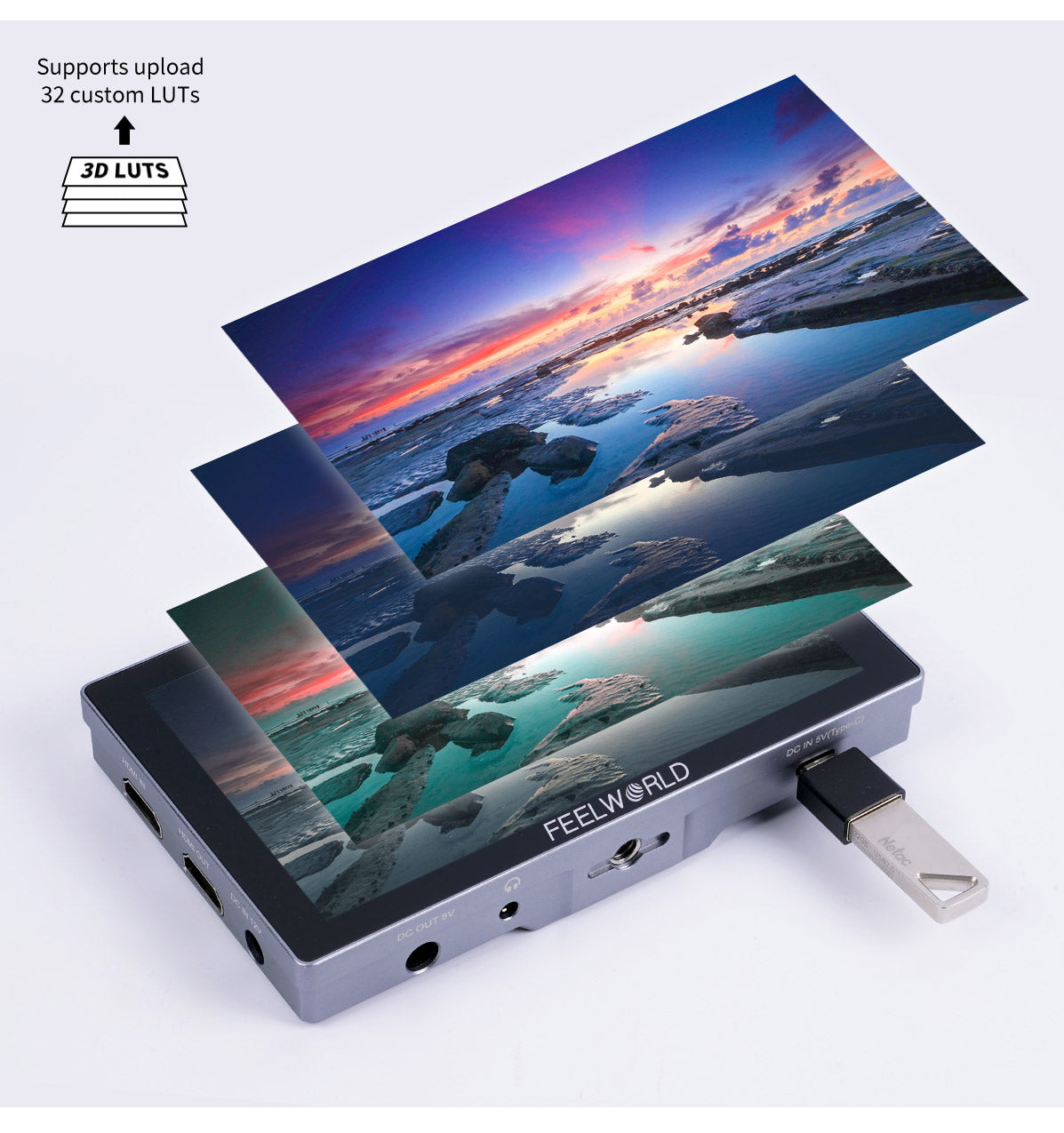

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Supports uploading 32 custom LUTs. 3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via USB flash driver (up to 32). Insert the USB flash driver into the standard Type-C to USB adapter, then connect to the Type-C interface of P6X.

HDR Monitoring

What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly, and it better reflects the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

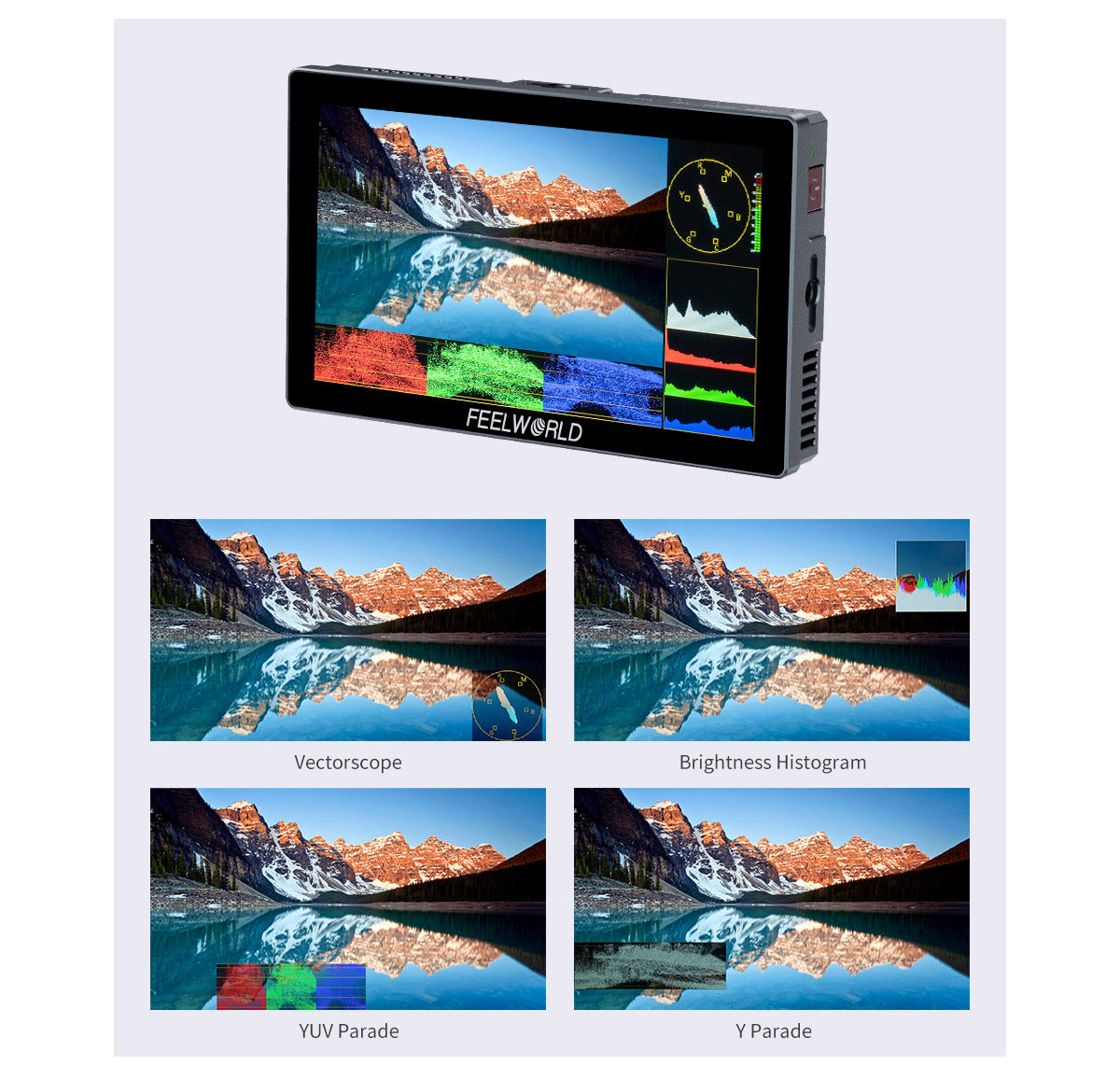

Accurate waveform monitoring

Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. P6X becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

4K HDMI Input and Output, High Speed Transmission

Equipped with 4K HDMI input and output, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

DC 8V OUT, Power Your DSLR or Mirrorless Camera

P6X provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the P6X extends camera run-time, while providing a more usable display

Multiple Power Supply, Long-lasting Power for Shooting

You can connect to the DC power input to get continuous power （suitable for use 1.5A power adapter, DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install an NP-F series battery for mobile applications. Install one F750 battery (4400mAh) lasts for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by a mobile phone charger or a power bank. (At least 5V/2A).
Note: the battery is excluded; please purchase separately.

NP-F Battery Optional Recommendation

The power consumption of P6X is 10W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

11 Languages Supporting

P6X built in up to 11 languages, which means P6X is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor is equipped with 3 standard 1/4” mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation

Portable Sun-hood

The standard portable sun-hood can easily resist the strong light, and is easy to install.

HDMI Cable type reference for matching different camera models

Specifications

Model	P6X
Screen Size	5.5" IPS
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) × 0.069 (V) (mm)
Aspect Ratio	16:9
Brightness	1200cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)
Audio	3.5mm Stereo Headphone

Input

1 X HDMI	HDMI 2.0
1 X DC	DC IN 12V (suitbale for Barrel DC5.5*2.1mm power plug)
1 X USB	5V Type-C (please use 5V/2A or more than 2A Type-C power supply)

Output

1 X HDMI	HDMI 2.0
1 X DC	DC OUT 8V (suitbale for Barrel DC5.5*21mm power plug)

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840x2160p (60/50/30/29.97/25/24/23.98)

4096×2160p (60/50/30/29.97/25/24/23.98)

General

Input Voltage	DC7～24V
Power Consumption	≤11W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	1/4"-20 Thread Socket (right, top, bottom)
Unit Size	138.5x84.5x22(mm)
Unit Weight	249g
Color Box Size	186*214*80(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)
Gross Weight	6.6kg

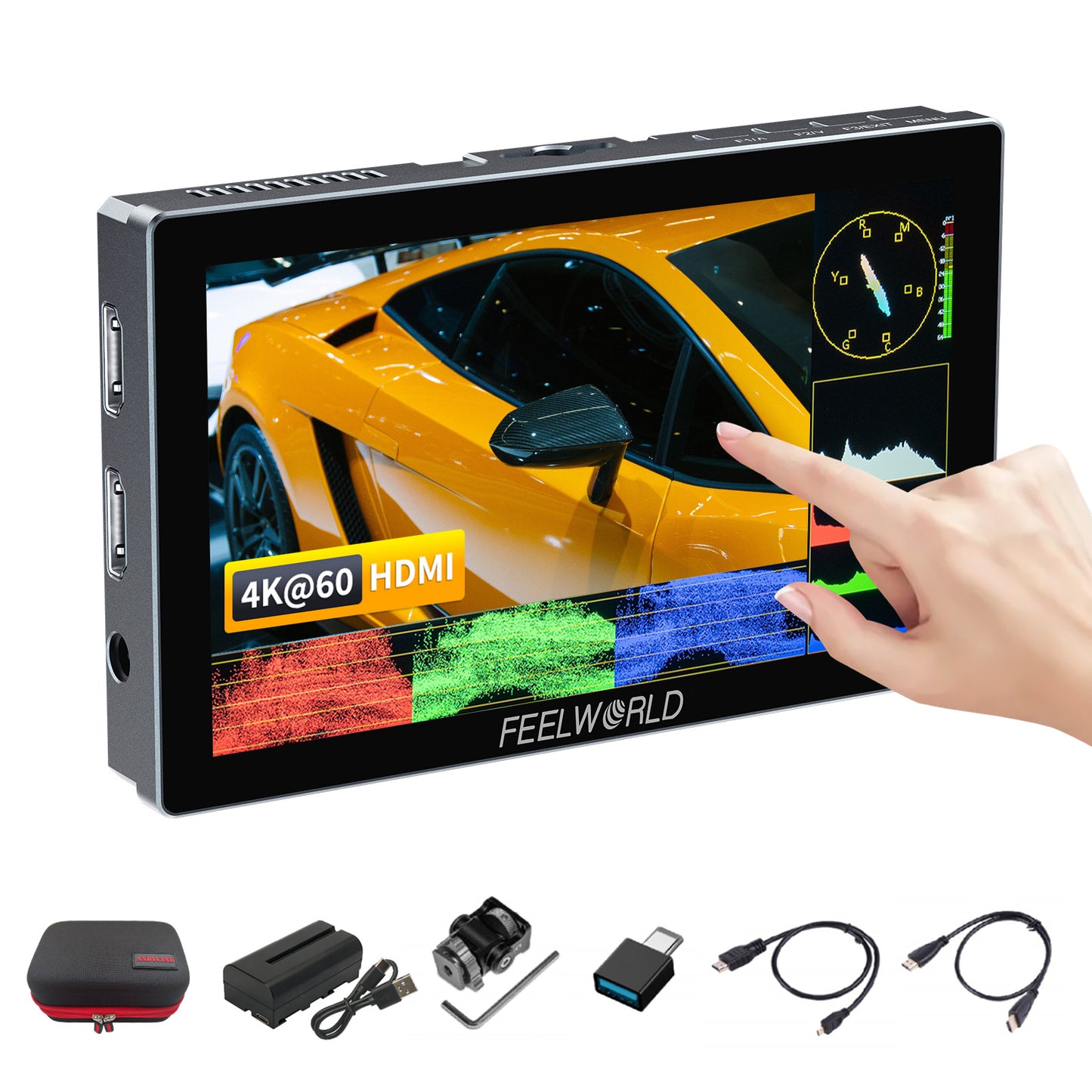

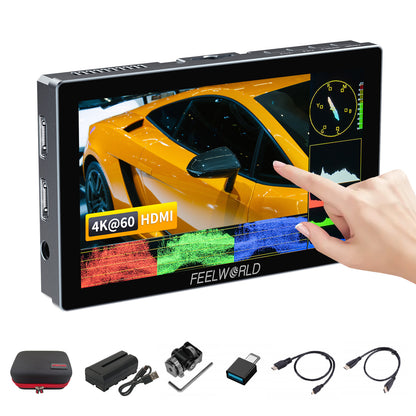

Combo Package

1× Monitor
1× A-A HDMI Cable
1× Micro HDMI Cable
1× Type-C to USB
1× Mini Hot Shoe Mount+ Hex wrech
1× Sunshade
1× F750 Battery
1× Case
1× Manual
