FEELWORLD P6XL 6 Inch Built-in Battery Touchscreen High Bright 1200nit Aluminium Housing DSLR Camera Field Monitor 4K 30Hz

Overview

The FeelWorld P6XL 6" On-Camera Field Monitor is a portable solution for creators seeking professional-grade video monitoring for their DSLRs or mirrorless cameras. Featuring a 6" Full HD HDR touchscreen with 1200-nit brightness, it delivers sharp, vibrant images that are viewable in daylight, making it ideal for outdoor shoots. The innovative touchscreen interface allows for intuitive control, while support for custom 3D-LUTs and HDR capability ensures accurate color reproduction and contrast. The P6XL features a built-in 22.2Wh battery, offering up to two hours of runtime at full brightness, along with easy USB-C charging for extended use.

This aluminum body weighs only 11.7oz, offering a slim and lightweight design that's perfect for handheld shooting or use with stabilizers. Advanced features like focus and exposure assist, anamorphic de-squeeze, and accurate waveform monitoring provide critical tools for professional videography. With a 4K HDMI input, a 3.5mm headphone jack, and an included mini shoe mount adapter, the P6XL offers wide-ranging compatibility and convenience for vloggers, filmmakers, and photographers looking to elevate their shoots.

Key Features

• 6" Full HD HDR Touchscreen
• 1200-Nit Brightness for Exterior Shoots
• 22.2Wh Built-In Battery | USB-C Charging

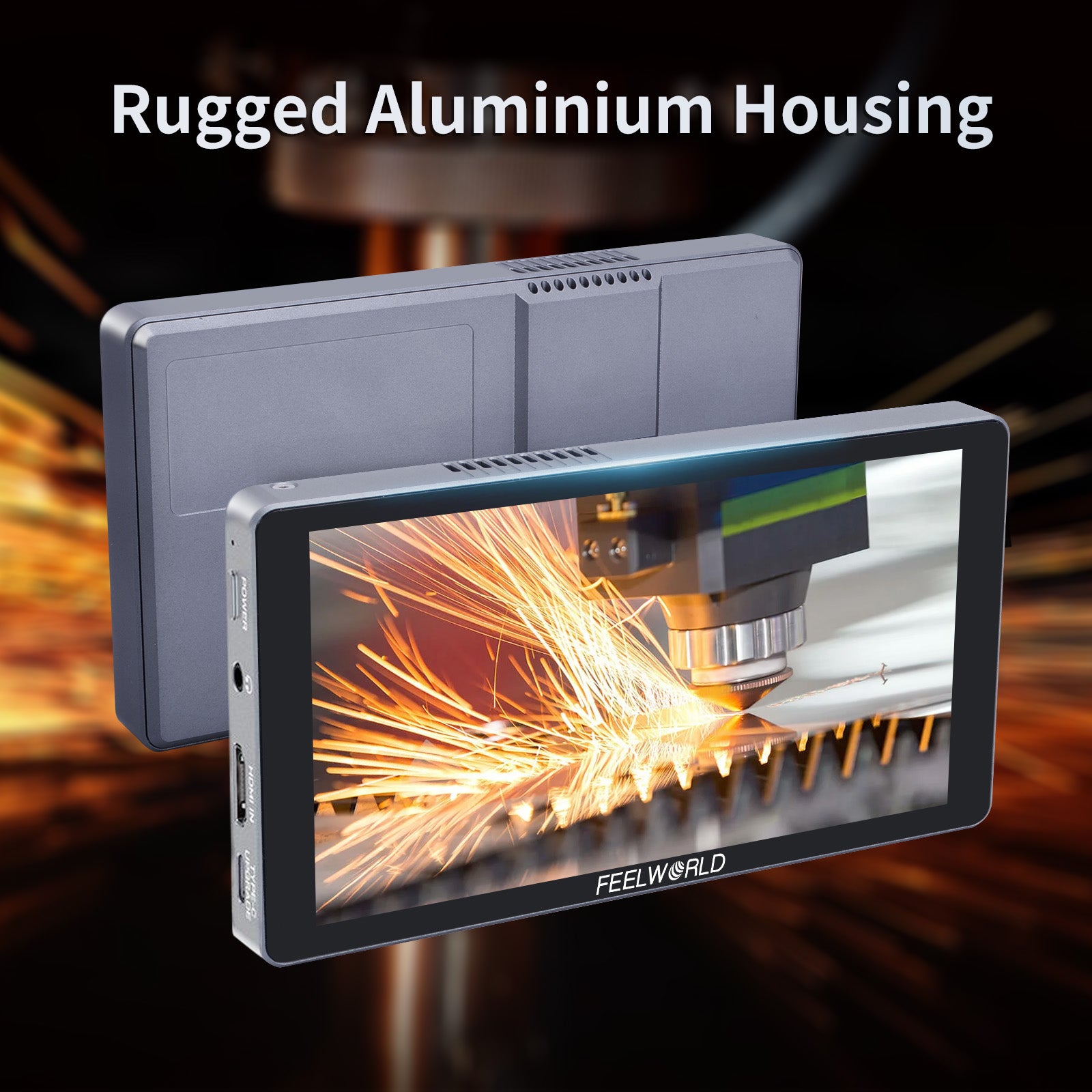

• Rugged Aluminum Alloy Housing
• Load 3D-LUTs to Preview Looks
• Screenshot and Image Overlay Capability
• Focus and Exposure Assist Technology
• Accurate Waveform Monitoring
• De-Squeeze Anamorphic Images
• 4K HDMI Input | 3.5mm Headphone Jack
• Includes Mini Shoe Mount Adapter

Portable. Rechargeable. Bright

FEELWORLD always focuses on products that can less the photograph equipment for the user, and first release built-in battery monitor P6XL. It built-in 22.2Wh/7.4V battery and can be easily charged via the Type-C port, no need to carry additional battery. Equipped with a 6-inch full HD high brightness screen, easy to start creating wherever you go, that is perfect for vloggers, creatives, and photographers.

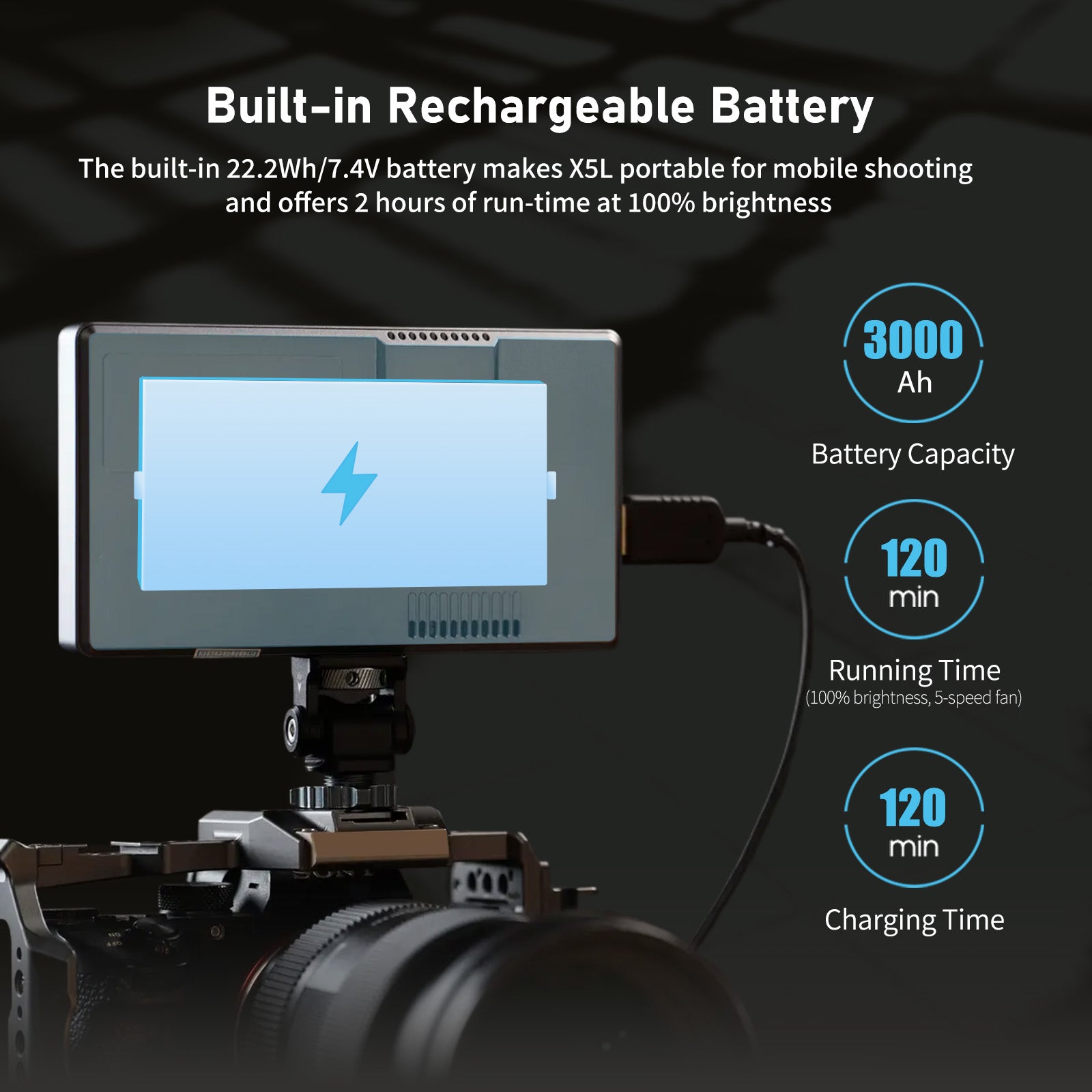

Built-in Rechargeable Battery

The built-in 22.2Wh/7.4 battery makes P6XL portable for mobile shooting and offers 2 hours of run-time at 100% brightness. The monitor features a USB Type-C port that can receive power from a charger through the included charging cable.
Note: The voltage of the charger must be 9V. When charging, the battery level shows 100% which does not mean fully charged, till the indicator light turns green, which means really fully charged.

Ultra Portable

The traditional monitor with an about 200g external F750 battery plus the weight of the monitor totals at least 500g.The P6XL, although built-in battery but is only 332g and the thickness is 17mm, which not only saves the trouble of carrying a pile of batteries but also greatly reduces the weight. Lightweight and slim design allows you to start creation anytime, anywhere.

Convenient to Use With Stabilizer

Mobile shooting inevitably requires to use stabilizer, and the reduced weight makes P6XL the preferred choice for use stabilizer during actual workflow.

6-inch Full HD Screen

Checking and capturing every nuance
With an extremely high-resolution 6-inch IPS panel, it provides excellent details and accurately reflects the original colors. Wide viewing presents a more detailed image.

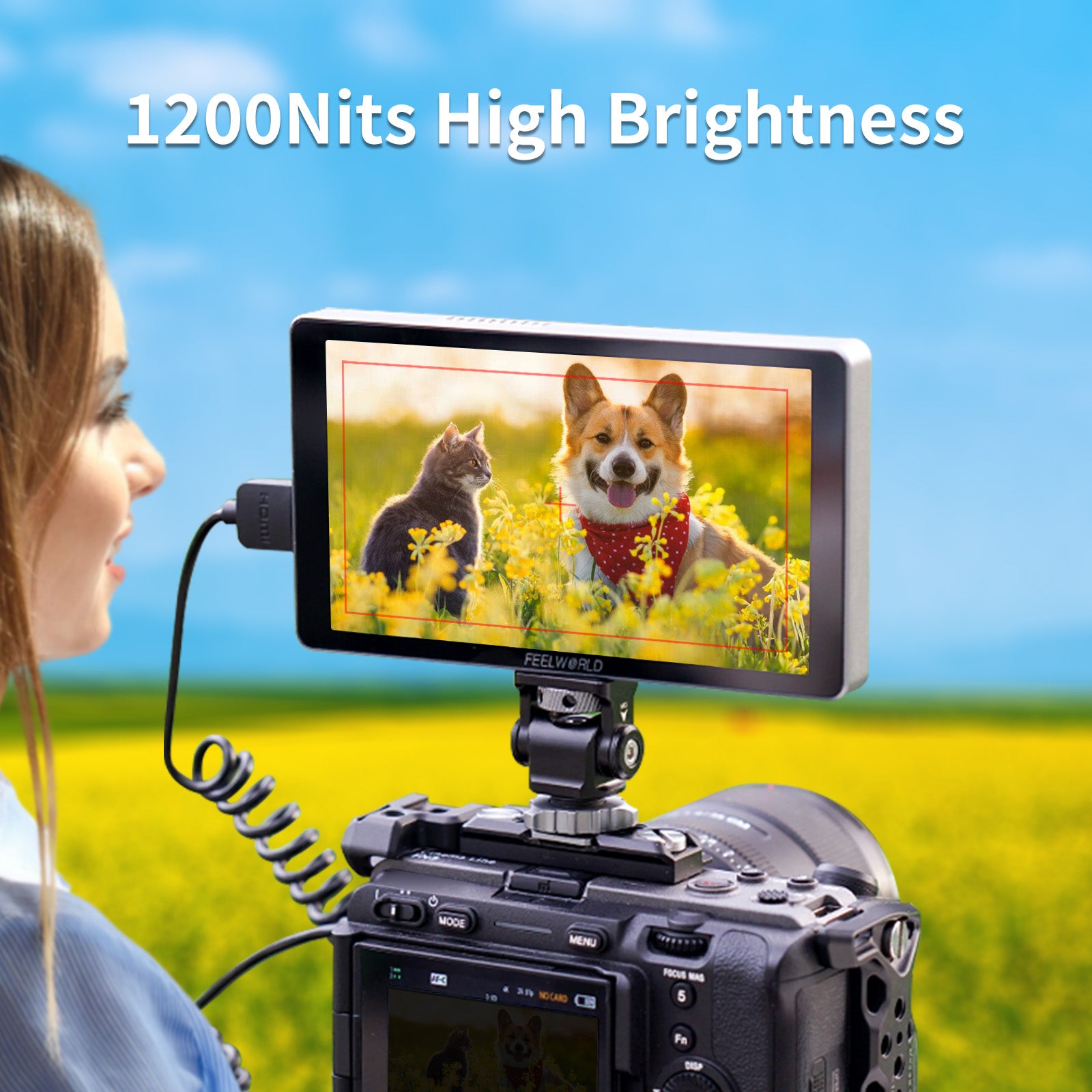

1200Nit, Daylight Viewable

High brightness 1200 nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via the scroll wheel key.

Sharp Screenshot + Image Overlay

P6XL supports screenshots and is stored via a USB flash drive. You can capture any image, then compare it with real-time video by semi-transparent image superposition. It is convenient for photographers to compare the composition and correct the displacement during the shooting. In addition, you can also import a custom image (must be a JPG image).
Note: Please make sure the USB flash driver without any upgrade files before using this function, or plug an empty USB flash driver directly. And don't remove the USB flash driver when using the function

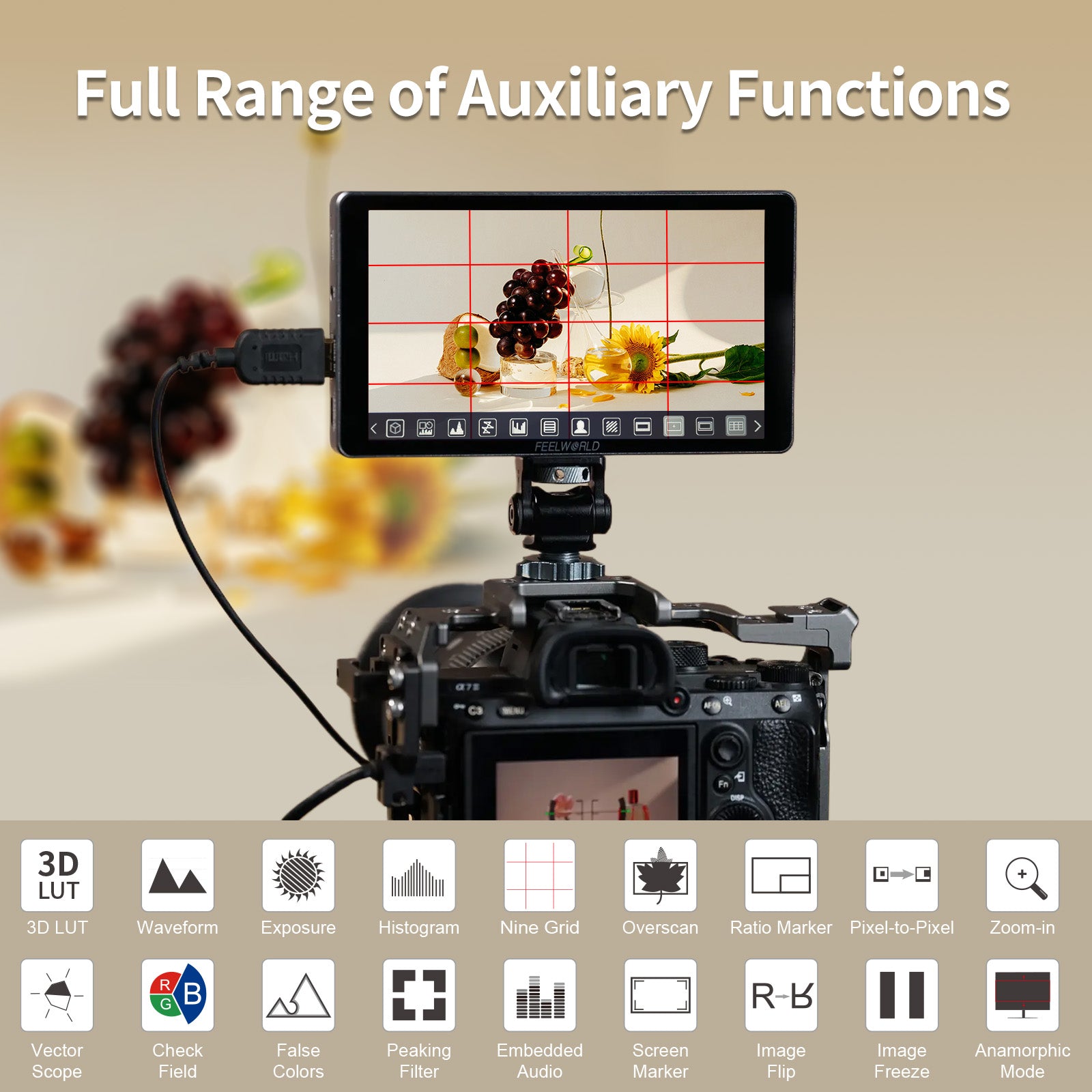

Full Range of Auxiliary Functions

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Support to load 32 custom LUTs

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via USB flash driver (up to 32). Import the LUT files to the USB flash driver and connect to the Type-C port of the monitor via the attached USB-A to USB-C adapter.

HDR Monitoring

What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly, and it is better reflects the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

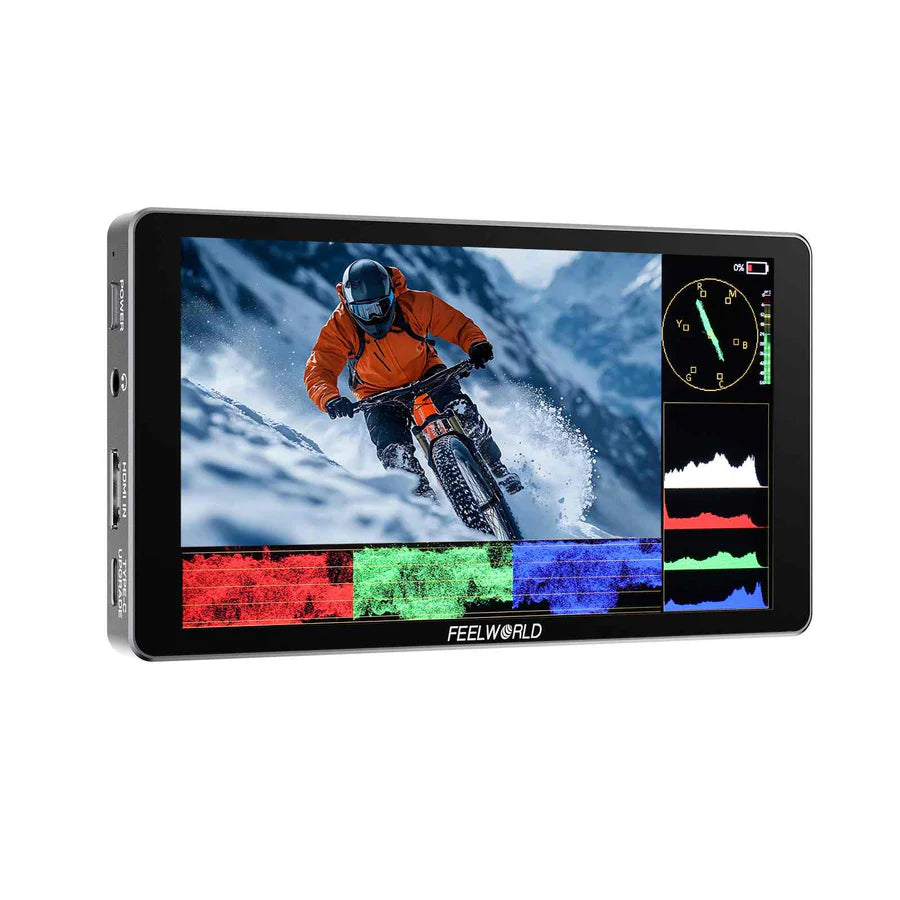

Accurate waveform monitoring

Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the menu. P6XL becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

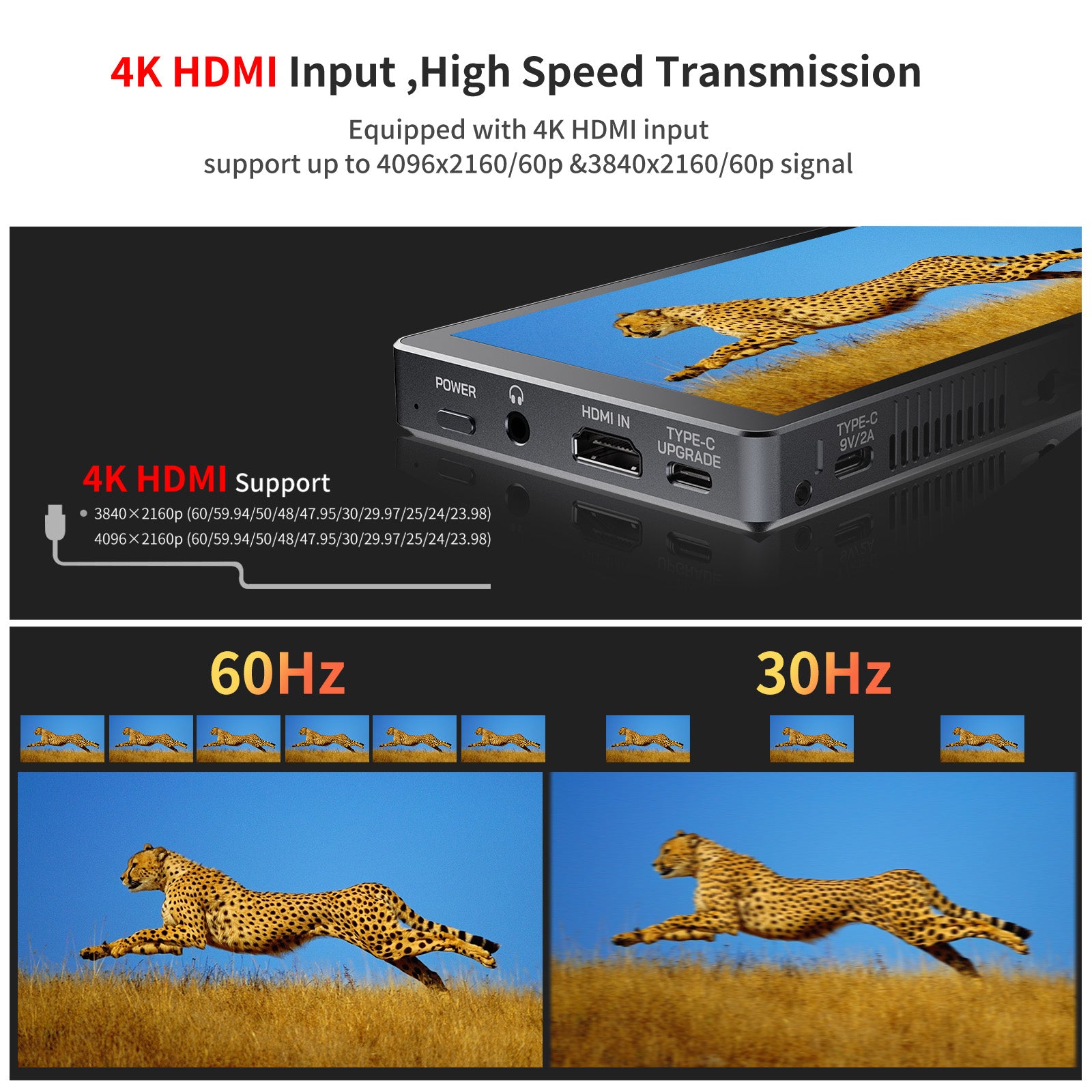

4K HDMI Input, High Speed Transmission

P6XL is equipped with a 4K HDMI input, supports up to 2160p/30p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

11 Languages Supporting

P6XL built in up to 11 languages, that means P6XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

Portable Sun-hood

The standard portable sun-hood can easily resist the strong light, and is easy to install.

Exclusive Charging Expansion Bracket (Optional)

Worry less the battery life

In addition, the bracket also equipped with a 3/8 and multiple 1/4 screw threads to expansion mount video transmission and other devices.

Specifications

Model	P6XL
Screen Size	6" IPS
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) × 0.069 (V) (mm)
Aspect Ratio	16:9
Brightness	1200cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Signal Input

1 X HDMI

HDMI 1.4

Other Interface

1 X USB

USB-C (Firmware update/LUT file import)

Audio

Audio

3.5mm Stereo Headphone

Battery

Battery Capacity	3000mAh/22.2Wh
Voltage	7.4V
Running Time	About 2 hours (at 100% brightness/5-speed fan)
Charing Time	About 2 hours

Power Input

USB	Type-C 9V/2A (compatible with PD2.0/3.0 fast charging protocol; Samsung AFC fast charging protocol; HUAWEI FCP fast charging protocol; QC2.0/3.0 fast charging protocol) Note: the voltage of the charger must be 9V

HDMI Input Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840x2160p (30/29.97/25/24/23.98)

General

Power Consumption	charging + working:≤21W; charging alone : ≤14W; full charged working alone:≤9W
Working Temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Install Way	1/4"-20 Thread Socket (bottom)
Unit Size	154x87x17(mm)
Unit Weight	332g
Color Box Size	186*214*80(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)
Gross Weight	8.42kg

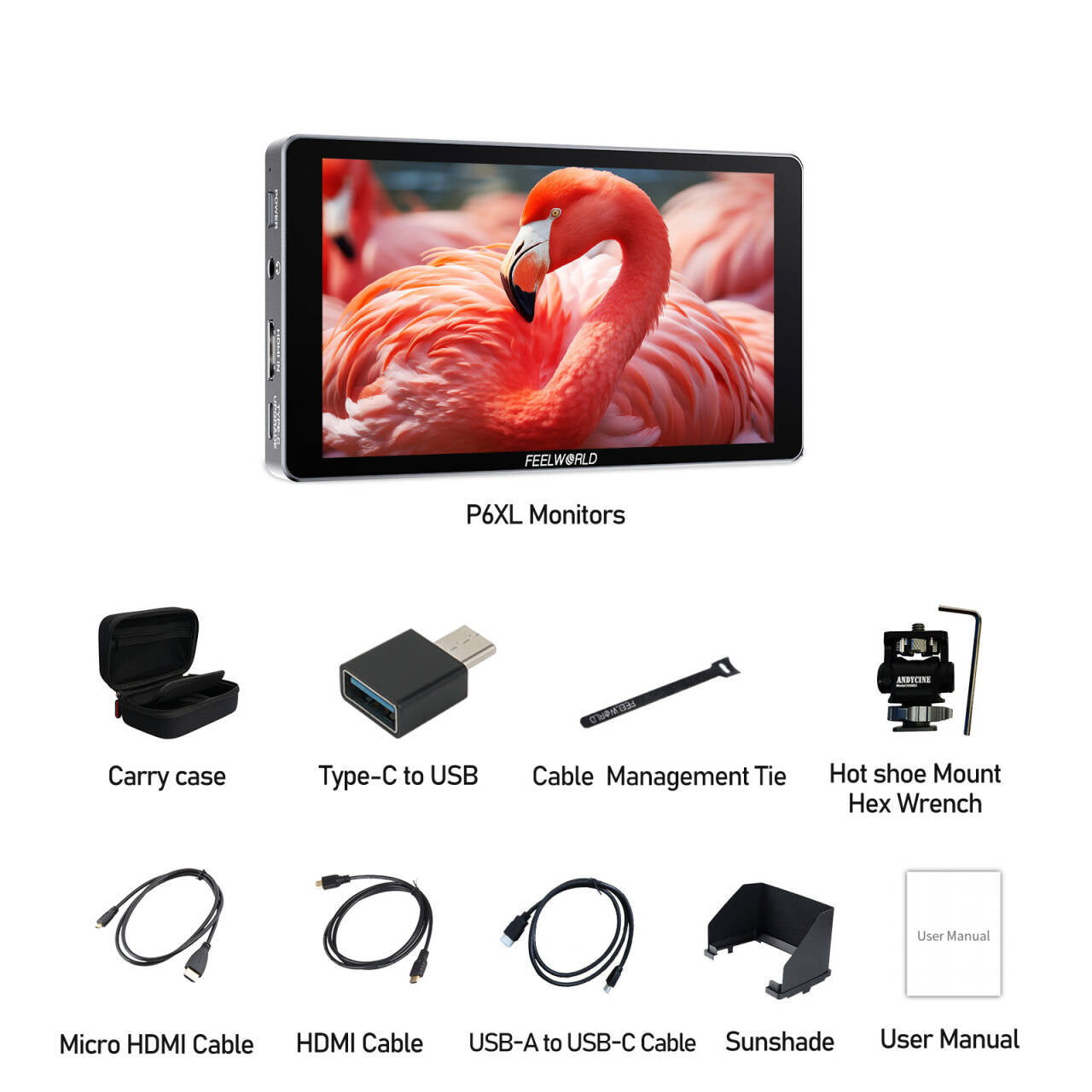

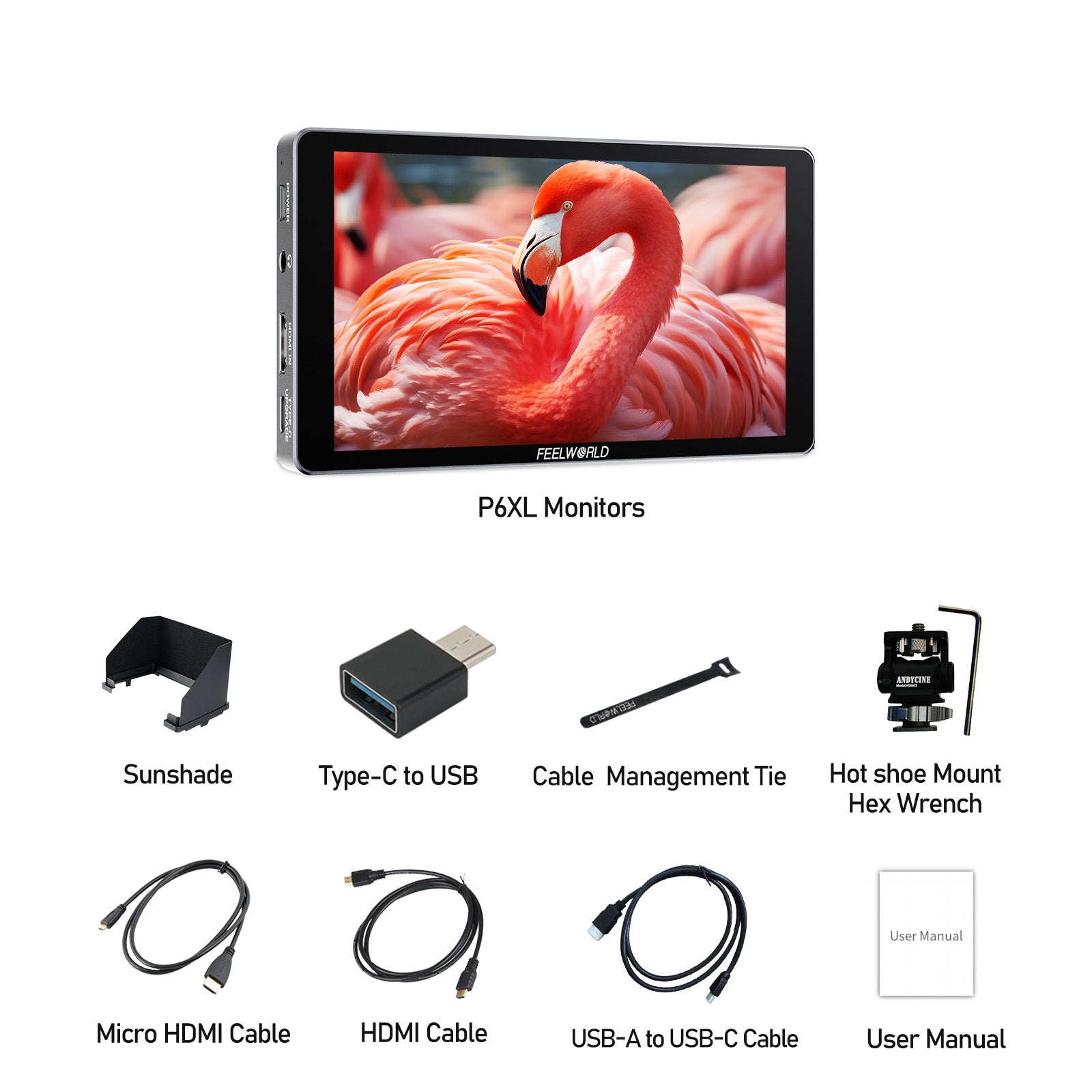

In The Box

Standard Package

1× Monitor
1× Power Adapter
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual

Combo Package

1× Monitor
1× Power Adapter
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
1× Case
