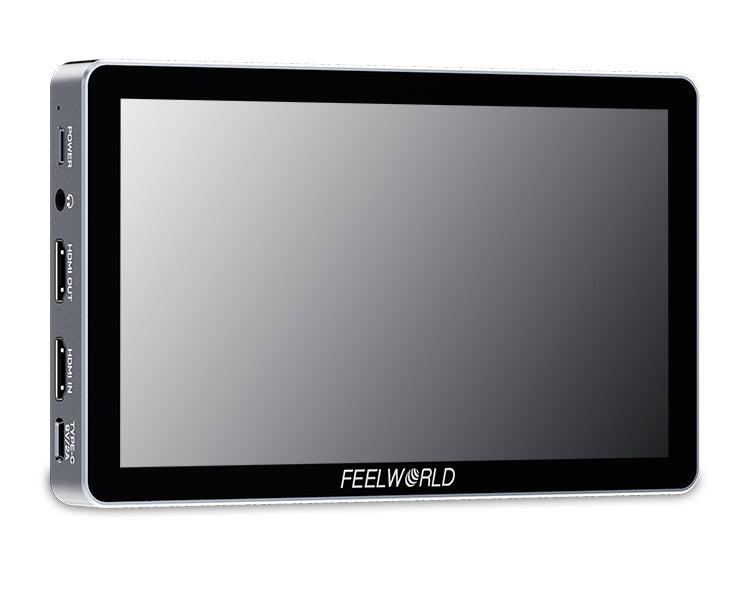

FEELWORLD P7XL 7″ Camera Field Monitor – 1500nit High Brightness, 10-bit, HDMI 2.0, Built-in Battery, Aluminum Body

Overview

Longer Runtime · Richer Colors · Brighter Display

Following the P6XL, FEELWORLD continues to expand its built-in battery monitor lineup with the new 7" P7XL. Featuring a built-in 31.82Wh/7.4V rechargeable battery with Type-C charging, it delivers extended runtime without the need to carry an additional battery.
The 7" Full HD 10-bit high-brightness display delivers richer color gradation and accurate image reproduction, giving you a clear and precise view of every shot. Whether you're shooting video, creating content outdoors, or working on set, the P7XL helps reduce the gear you need to carry, so you can stay focused on your work.

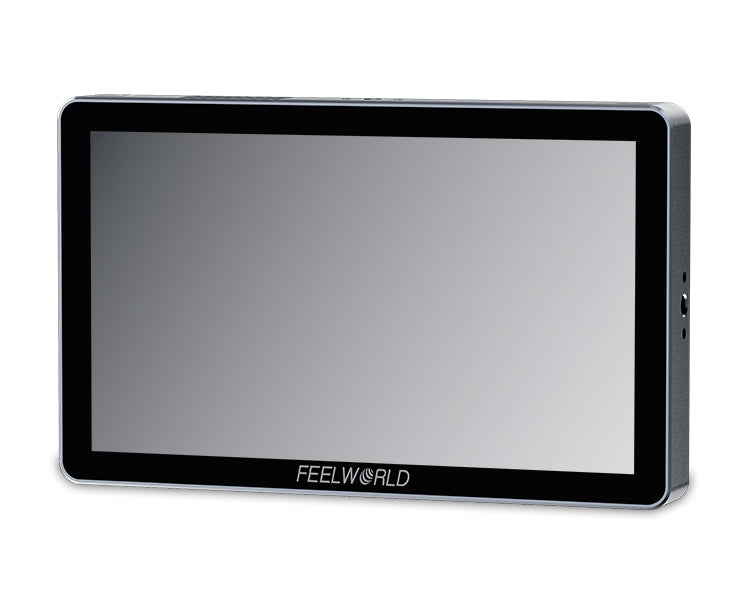

Built-in Rechargeable Battery

The built-in 31.82Wh/7.4V rechargeable battery provides reliable power and you can use the included charger to charg,so you can shoot longer without the need for an additional battery.

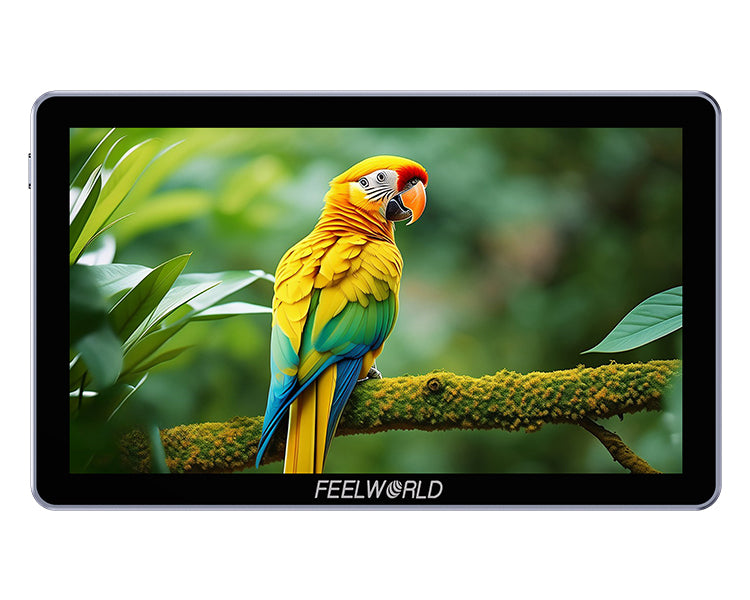

7" Native 10-bit Panel
Richer Color, Smoother Gradients, Accurate Monitoring

Equipped with 7-inch full HD native 10-bit panel, see smoother gradients, richer colors and finer details for more accurate on-set monitoring

Anti-Glare & Anti-Fingerprint Coating

Reduces reflections and fingerprints, ensuring clear visuals inbright environments while keeping the screen clean and pristine. delivering a stable and comfortable monitoring experience.

1500Nits High Brightness，Viewable in Sunlight

1500nits high peak brightness offsets AG coating light loss, nsuring clear visibility even under direct sunlight and harsh outdoor lighting. Perfect for outdoor live streaming and monitoring.

Responsive Touch Control

An innovative LCD touchscreen interface gives you comprehensive, precise control. Simply tap or swipe to access and adjust settings effortlessly.

Professional Monitoring, Powerful Tools

Achieve accurate focus and exposure with comprehensive monitoring tools, from on-set production to post-production.

Onion Function (Freeze Frame)

Insert a USB Drive to capture any frame from the video and overlay, it with adjustable transparency for easy comparison.

Load 3D LUTs, Preview Cinematic Looks

LUT support simplifies on-set color management and streamlines your workflow. It includes 4 built-in LUTs — S-Log2, S-Log3, LogC, and V-Log — and supports uploading 32 custom .cube files for creating and previewing your own cinematic looks.

Dynamic HDR Monitoring
What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

Comprehensive Waveform Monitoring, Precise Signal Control

Supports waveform, vector scope, histogram, and audio level displays for comprehensive monitoring of video and audio signals.

CNC Aluminum Alloy Body

Built with a precision-machined CNC aluminum alloy body, the monitor combines durability, refined craftsmanship, and efficient heat dissipation. A robust design made for demanding shooting environments.

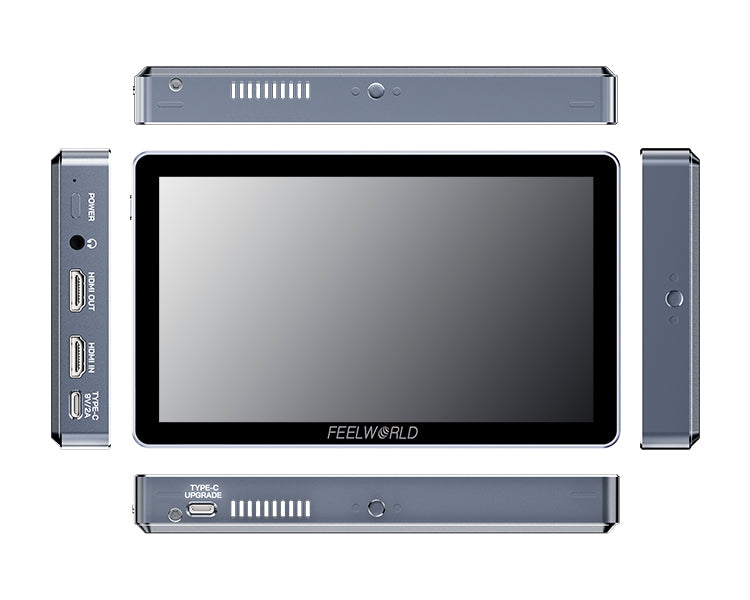

HDMI 2.0 Input & Output, High-Speed Transmission

Support up to 4096x2160/60p &3840x2160/60p signal,compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

Flexible mounting to meet diverse monitoring requirements.

Up to 12 Languages

Built-in up to 12 languages, that means P7XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Upgraded Hot Shoe Mount Adapter
Secure Connection. Quick Adjustment.

Upgraded hot shoe mount adapter with dual positioning points for a more secure connection, a side thumb screw for quick adjustment, and 180° tilt + 360° rotation for flexible viewing angles.

Portable Sun-hood

The standard portable sun-hood can easy to resist the strong light, and easy to install.

P7XL Feature Upgrade Comparison

Specifications

Display Spec.

Model	P7XL
Screen Size	7"IPS
Resolution	1920X1080 pixels
Dot Pitch	0.027(H) x 0.081(V) mm
AG+AF Coating	Haze: 10%±4%; Glossiness: ≥70; Light transmittance: ≥83%
Color Display	1.07B
Color Depth	10-bit
Color Gamut	97% DCI-P3
Aspect Ratio	16:9
Brightness	1500cd/m²
Contrast Ratio	1500:1
Backlight	LED
Response Time	Ton+Toff=25ms
Viewing Angle	88°/88°(L/R) 88°/88°(U/D)

Signal Input

1 X HDMI

HDMI 2.0

Signal Output

1 X HDMI

HDMI2.0

Other Interface

1 X USB

USB-C (Firmware update/LUT file import)

Audio

Audio

3.5mm Stereo Headphone

Battery

Battery Capacity	4300mAh/31.82Wh
Voltage	7.4V
Running Time	About 3h 40min (at 100% brightness); about 4h (at 80% brightness); about 4h 30min (at 60% brightness); about 5h (at 40% brightness)
Charging Time	About 3 hours

Power Input

USB	Type-C 9V/2A

HDMI Input and Output Support Format

480i/576i/480p/576p

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i (60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K 3840×2160p (60/50/30/29.97/25/24/23.98)

4K 4096×2160p(60/50/30/29.97/25/24/23.98)

General

Power Consumption	charging + working:≤20W; charging alone : ≤24W; full charged working alone:≤12W
Working Temperature	-20°C~45°C
Storage Temperature	-30°C~55°C
Install Way	1/4"-20 Thread Socket (right side, top, bottom)
Unit Size	176Lx107Hx20D
Unit Weight	526g
Color Box Size	222L*158W*78H(mm)
Outer Carton Qty	10
Outer Carton Size	535*230*405 (mm)
Gross Weight	10.5kg

In The Box

1×  Monitor
1× Power Adapter
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
