FEELWORLD Q41 Quad 4.5" 2RU Rack Mount Monitor 3G-SDI 4KHDMI AV Input and output

Overview

Key Features

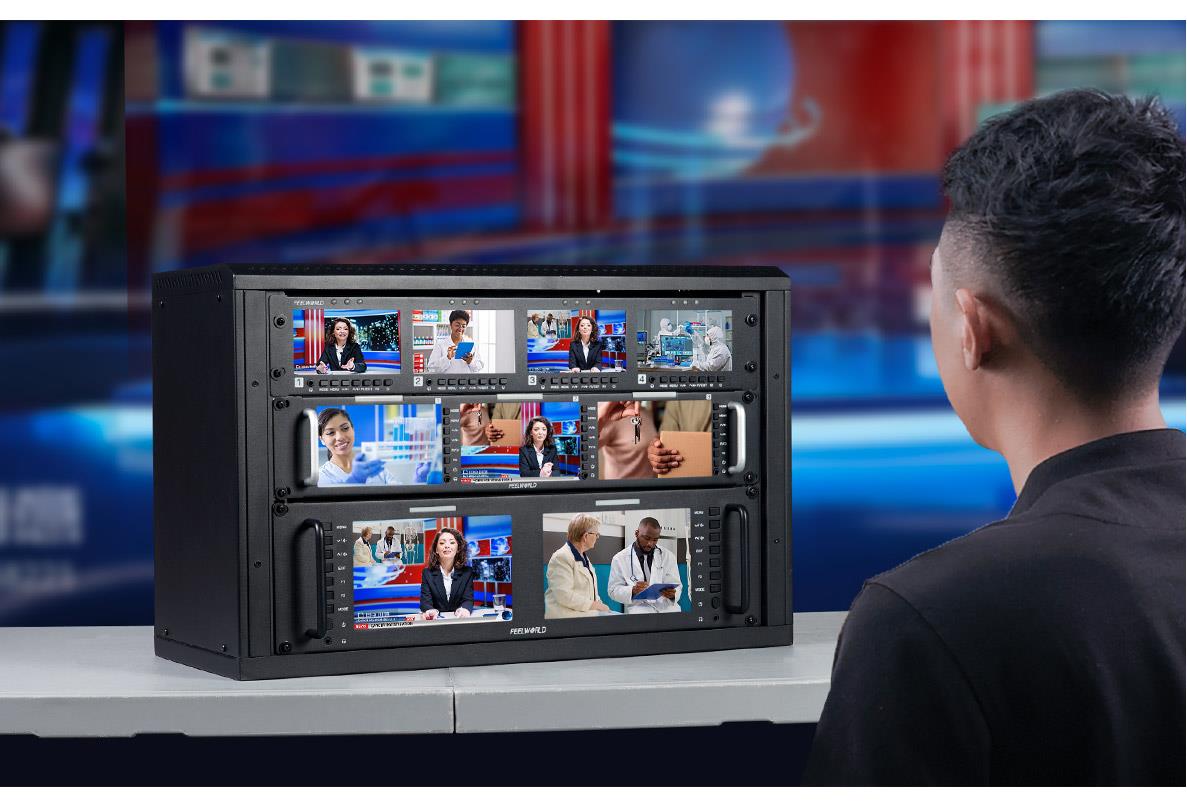

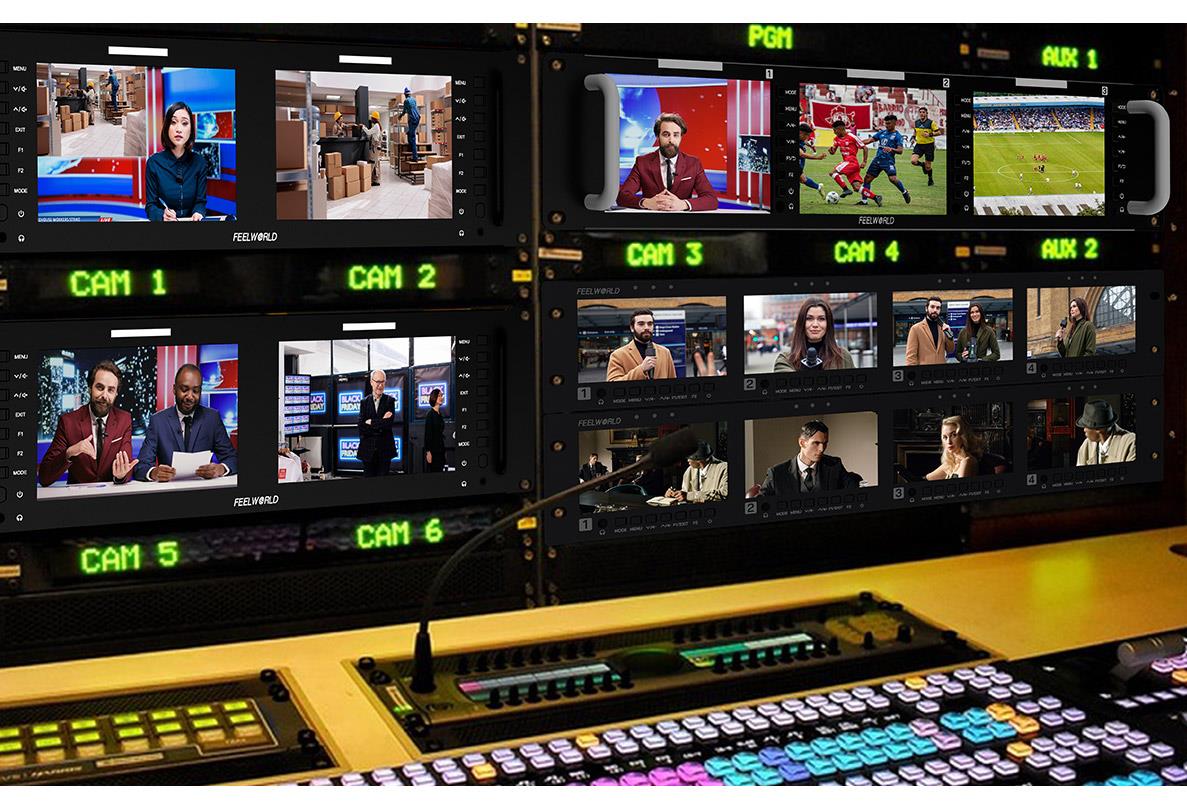

Ideal Monitoring Solution for Broadcast Studio

The broadcast studio needs to use multiple camera inputs simultaneously. FEELWOLRD Q41 has four independently controlled screens that can monitor images from different signals.

Fly Away Kit

For live production of large-scale events, performances, competitions, and other projects, one always needs to consider the portability of equipment. Take your Q41 monitors anywhere in the world by mounting them in portable fly-away kits. The metal housing can effectively dissipate the heat to prevent the portable rack from trapping too much heat.

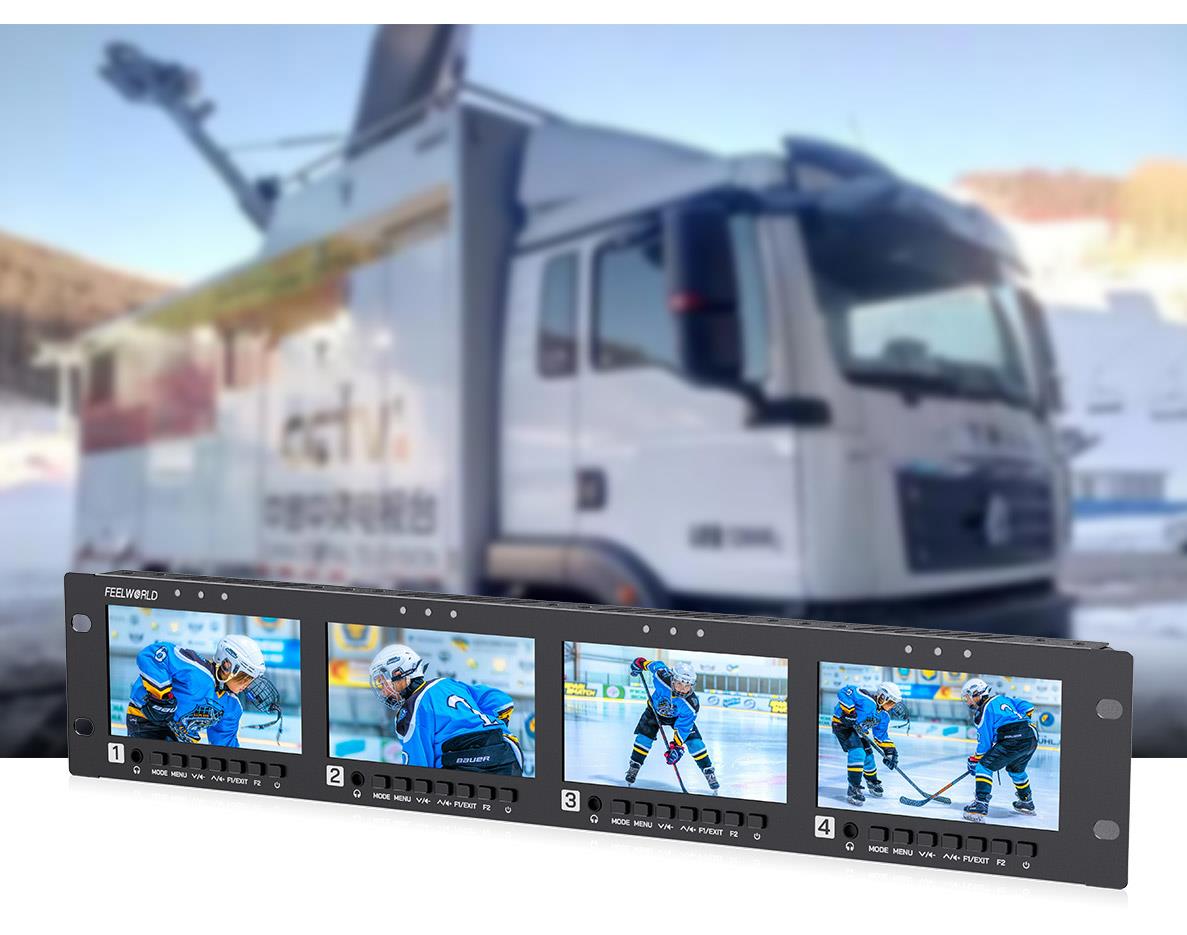

Perfect for Mobile Broadcast Truck

In a mobile broadcast truck, you need to save every inch of space. Q41 with compact design, ideal for installation on the monitor wall of a broadcast truck.

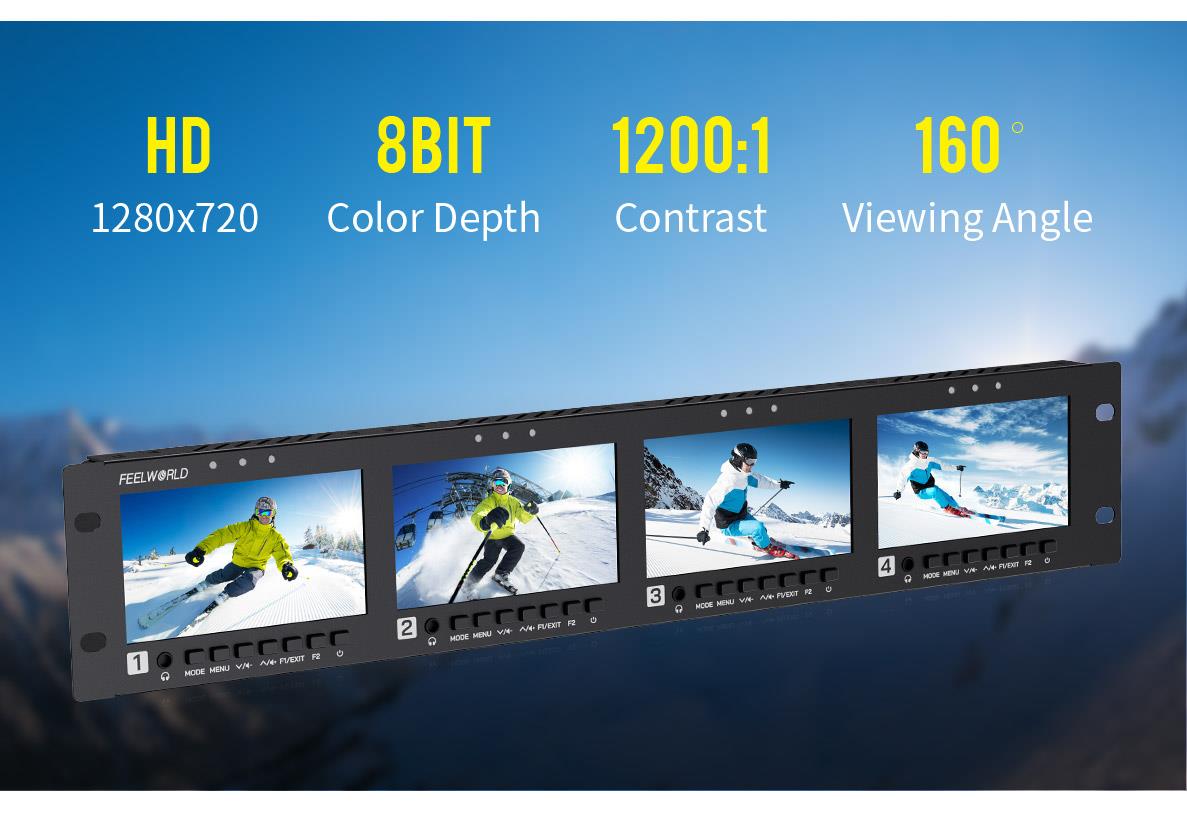

4*4.5-inch HD Screen

Q41 is equipped with 4 independently 4.5-inch high-resolution IPS panels, a wider field of view, and clearly presents a more detailed image. 8-bit color depth with 16.7M colors display.

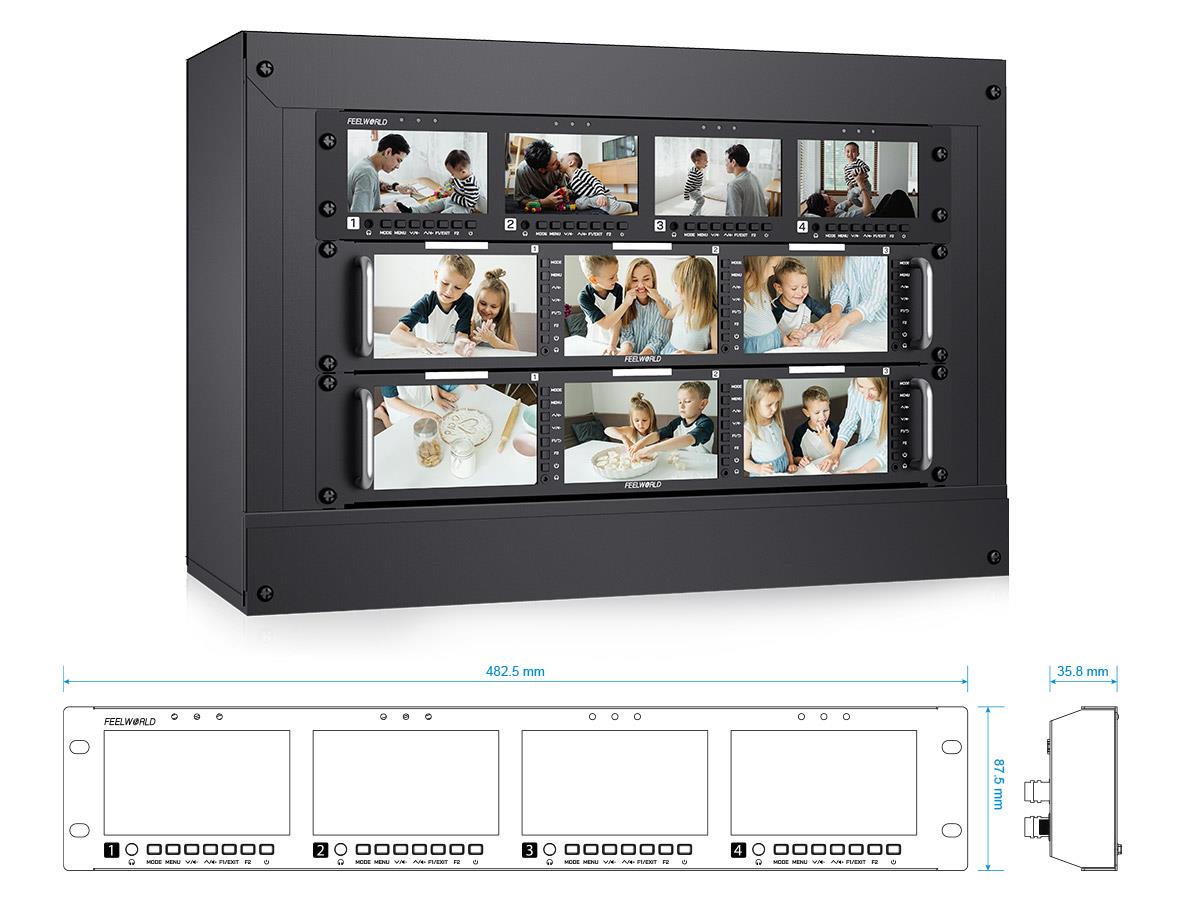

2RU Rackmount Design

Suitable for 19-inch width cabinet installation with 2RU mounting height and slim metal design, occupying only a small part of the volume, ideal for installation in equipment racks and monitor walls.

New MENU Interface, More Intuitive

Q41 adopts a new UI menu, taking the software functions are iconizing them, making it more convenient and quicker to operate the functions.

Full Range of Auxiliary Functions

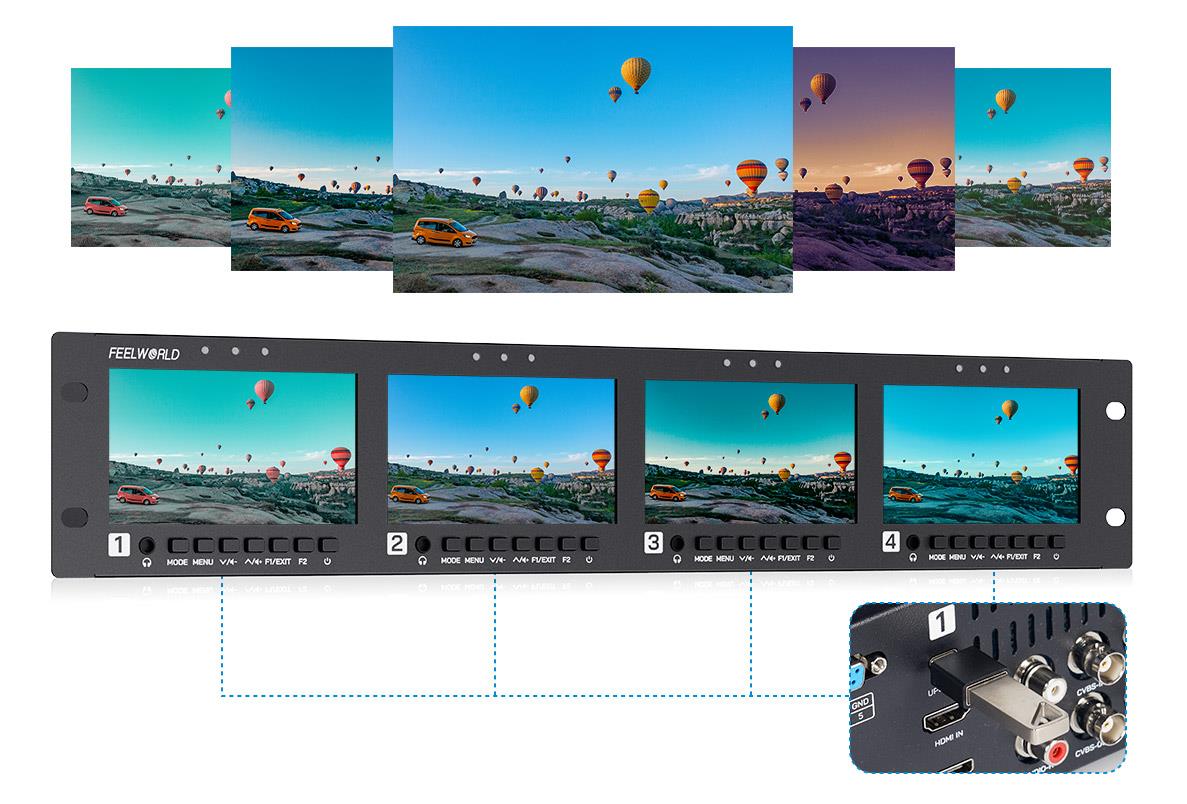

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

Supports loading 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow, and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the USB-A to USB-C adapter and the USB-C interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

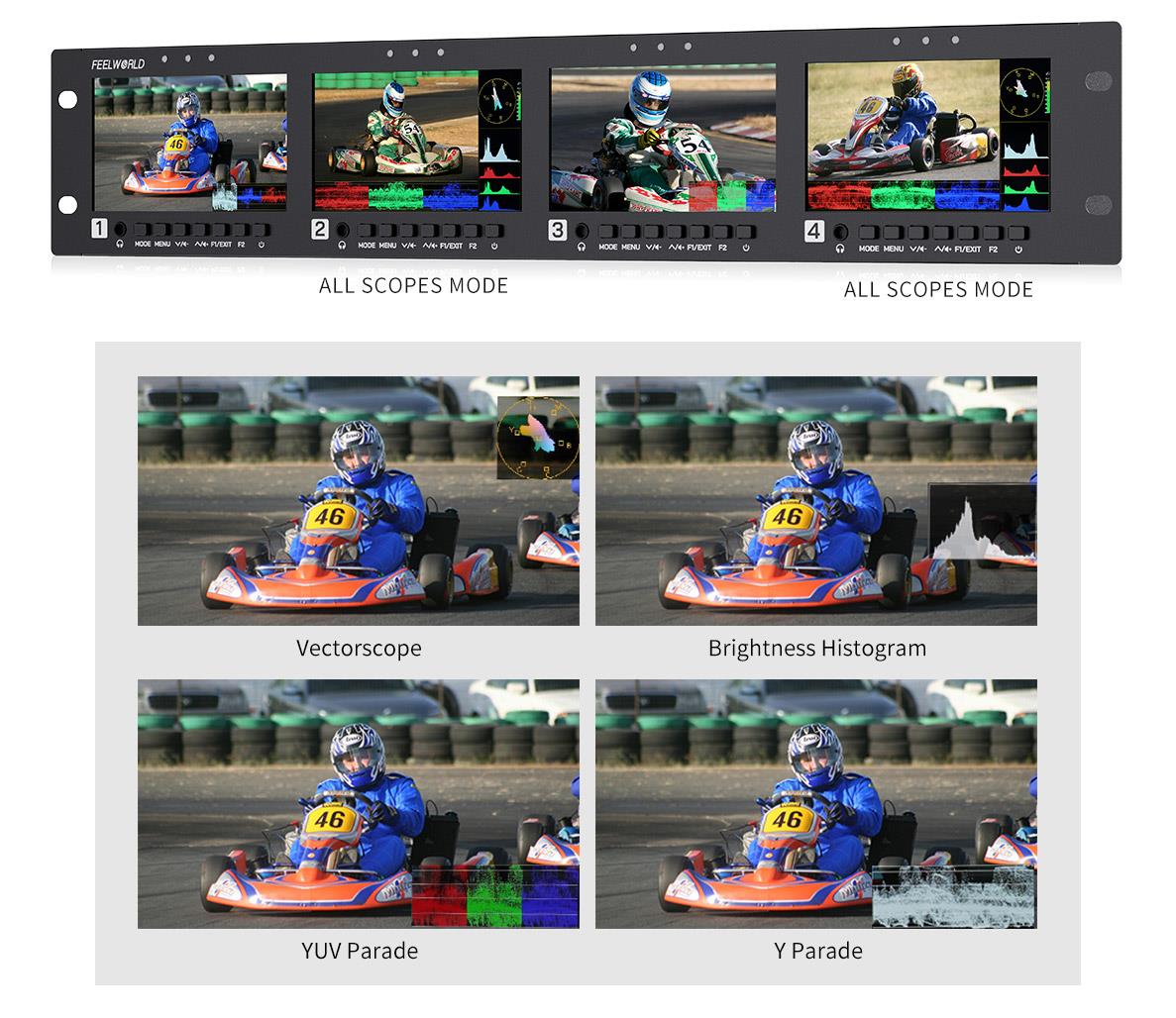

Accurate waveform monitoring

Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. Q41 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

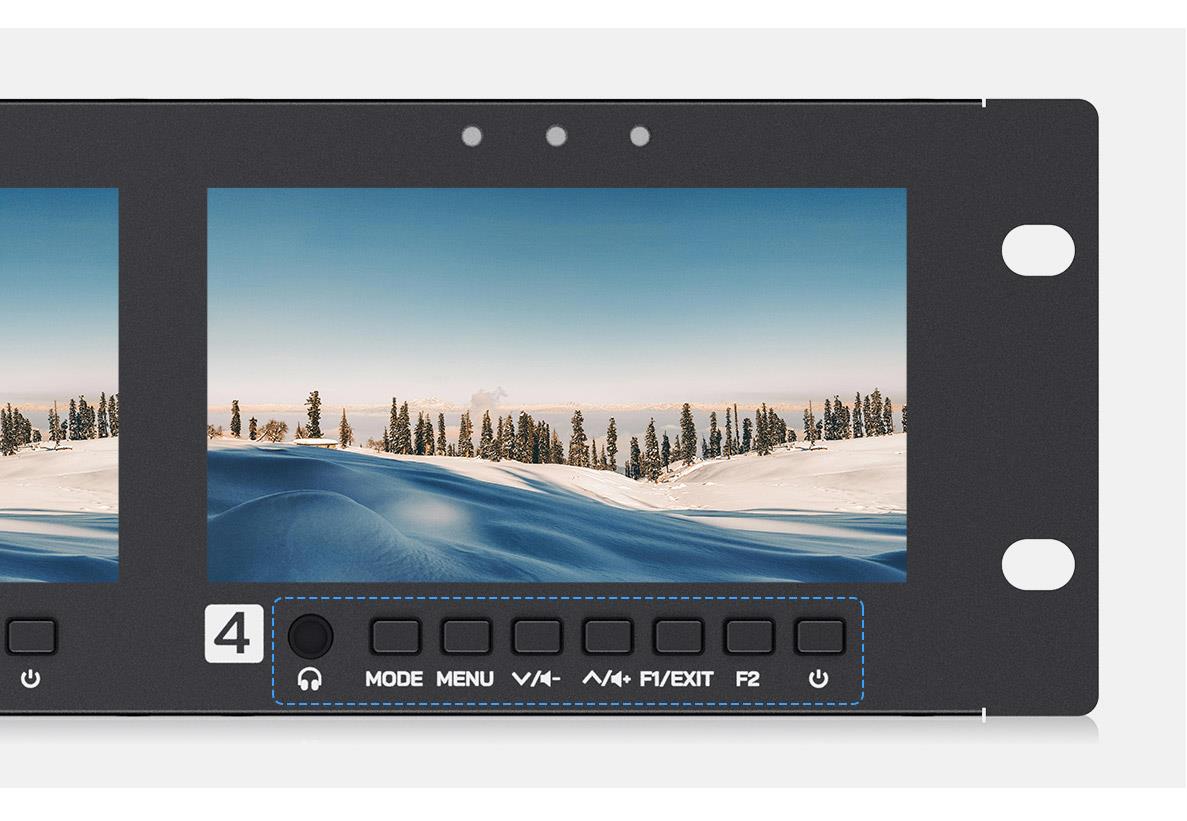

Intuitive Button Operation

Each panel is equipped with intuitive buttons to control the screen independently, and the 2 custom function keys can be set to the common function as a shortcut key. All buttons are clear at a glance and easy to set up.

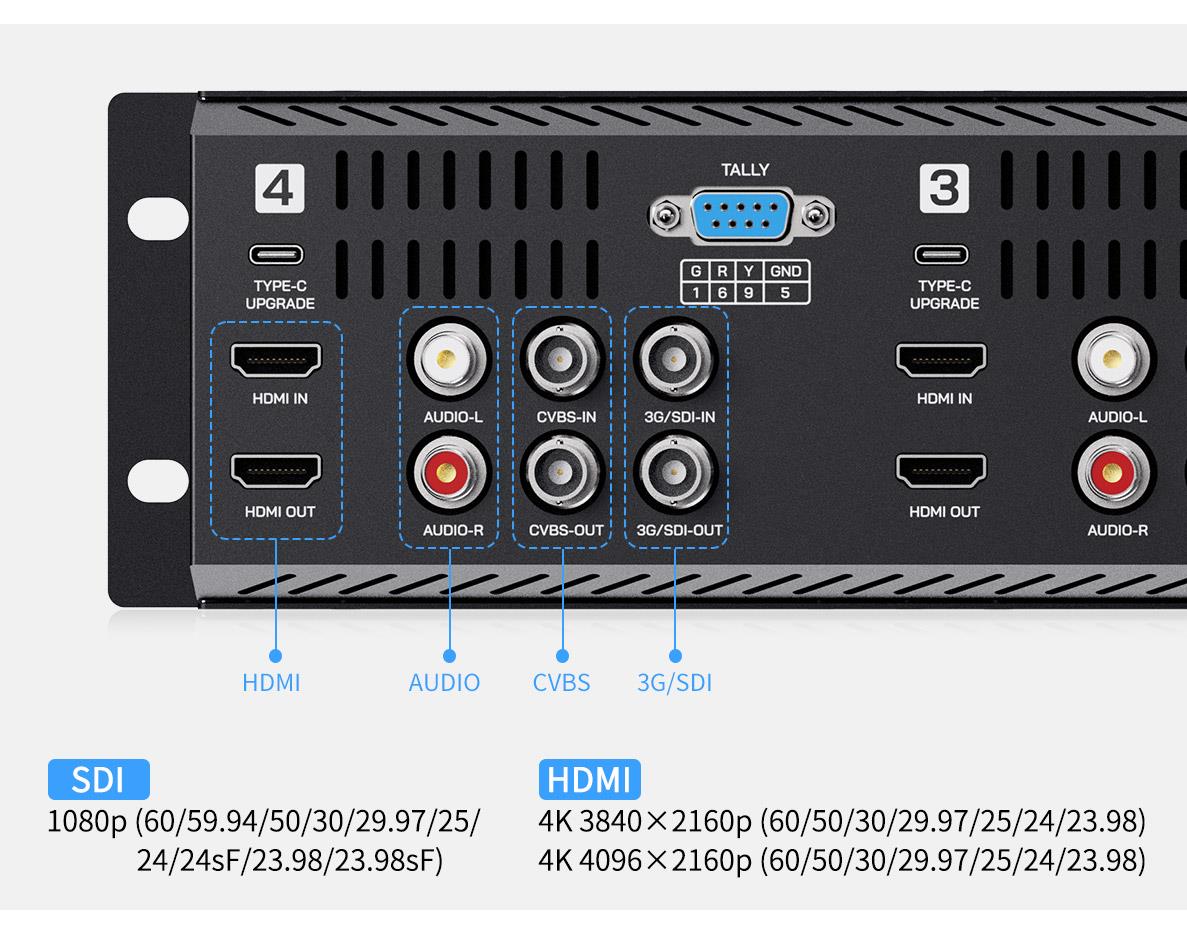

Rich Video Interfaces

Each panel with 3G-SDI, HDMI 2.0 supports up to 4K 60Hz and CVBS video signal inputs and outputs. Plus, it also has L/R audio. Suitable for multiple applications.

3-color TALLY Light, Enhance Team Cooperation

Q41 with the Tally function, perfect for live broadcasts. The front of each screen includes a tally light displayed in red, green, or yellow to signify on air, preview, or recording. This means during live production, you will always know when you are recording or on-air. Each rear panel is equipped with an industry-standard parallel pin Tally signal connector.

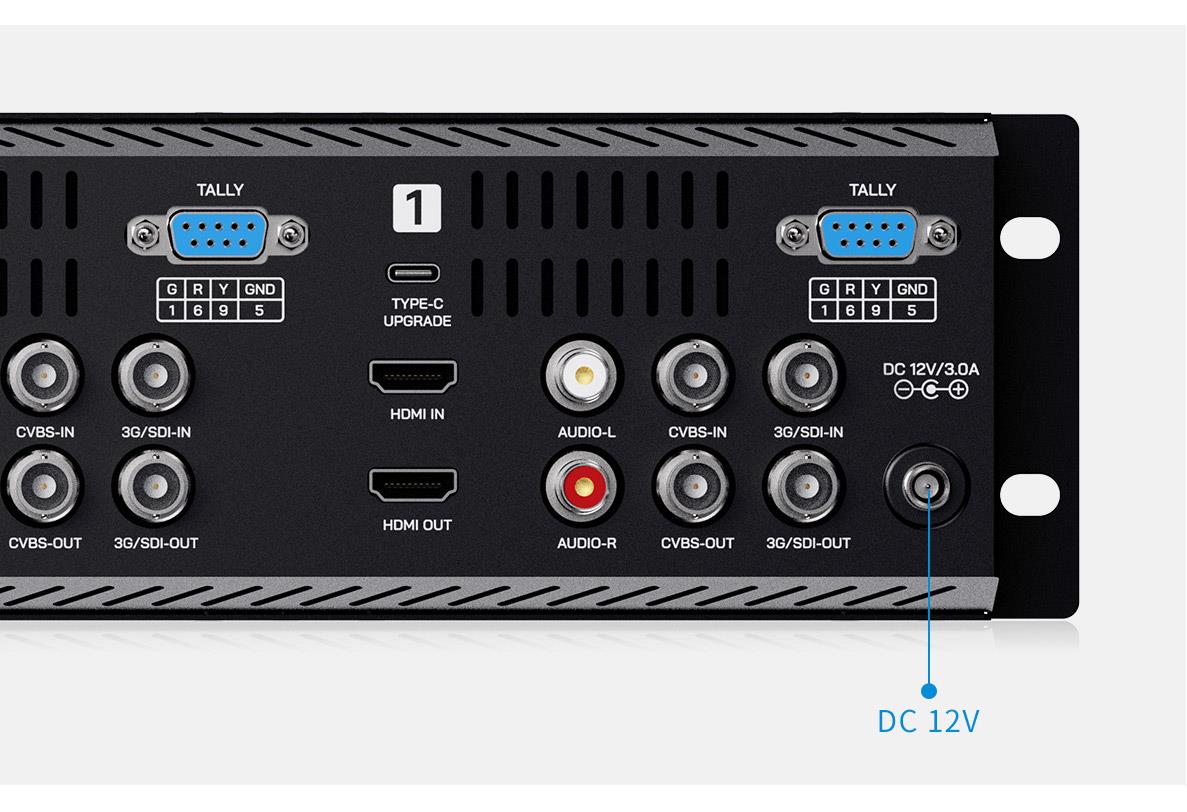

DC Direct Power Supply

The monitor comes with a DC 12V direct plug-in port; you can use the attached 3A power adapter to power it.

11 Languages Supporting

Built-in up to 11 languages, that means T51 PLUS-H is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Specifications

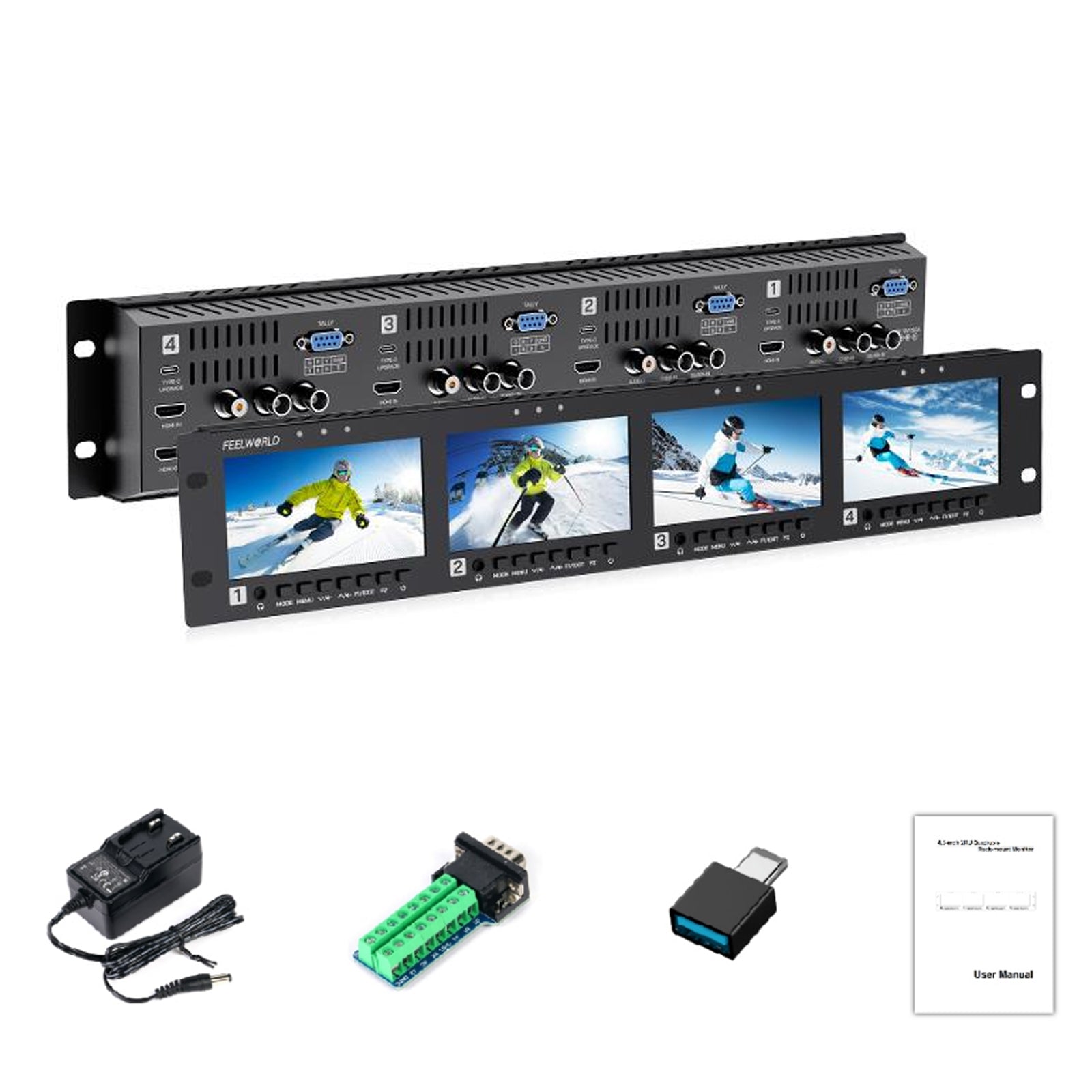

In The Box
