FEELWORLD S10 10-inch 12G SDI HDMI2.0 Camera Field Monitor High Brightness 1200nit Touchscreen

Overview

The S10 10.1" 12G-SDI/HDMI Touchscreen Monitor from FEELWORLD provides both an on-camera and field monitoring solution for your production needs, thanks to its 1920 x 1200 native resolution, 1500:1 contrast ratio, 160° viewing angle, 1200 cd/m² high brightness, and integrated video assist functions. The monitor features one HDMI and one 12G-SDI input, as well as one HDMI, one 12G-SDI, and one 3G-SDI output port. The HDMI and 12G-SDI ports support up to 4K video resolutions, and the 3G-SDI port supports up to 1080p video. Upload up to 32 custom 3D LUTs to customize the look of your footage.

A multitude of video assist functions are embedded in the monitor's UI and easily accessed using the touchscreen and onboard buttons. A 16-channel audio meter level allows you to keep track of your audio sources and avoid clipping. The color-calibrated monitor covers 95% of the DCI-P3 color gamut for improved visual monitoring. An integrated tally light helps your talent visually identify when you are recording. Power the monitor using the DC input port or dual NP-F battery plate. Three 1/4"-20 threads can accommodate the included U-shaped bracket for a standalone solution or integrate additional accessories.

Key Features

• 10.1" 1920 x 1200 Resolution Display
• 1200 cd/m² Brightness, 1500:1 Contrast
• 4K 12G-SDI and HDMI Inputs
• 12G/3G-SDI and HDMI Outputs
• 160° Viewing Angle, DCI-P3 Color Gamut
• Up to 32 Custom 3D LUTs
• 16-Channel Audio Meter Level
• Tally Light, Dual NP-F Battery Plate
• DC Power Input, Three 1/4"-20 Threads
• U-Shaped Mounting Bracket

Perfect 4K Monitoring

S10 is a larger size 12G-SDI monitor that FEELWORLD continues to release. It is an ideal choice for 4K on-site shooting, large-scale performances, live events, TV programs, and more.

12G-SDI High Speed Transmission

Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.

Professional Broadcast Quality

S10 can not only handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI sources, but also simultaneously loop-out high-quality broadcast video images, providing you with the perfect future-proof monitoring solution and bringing the best quality possible and a fluid, smooth viewing experience!

10.1-inch Full HD Screen

Clearly checking and capturing every nuance
With an extremely high resolution 10.1-inch IPS panel, a wider field of view, and clearly present more detailed images. 1.07B color provides a richer range of colors. 160 ° wide viewing angle, supports multiple members to monitor the image from all angles, and facilitates team collaboration for filmmaking.

Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut

Each monitor undergoes color calibration via CALMAN professional software prior to leaving the factory, ensuring color accuracy and good reproduction, and the delta E value is ≤1.5. Plus, S10 also covers 95% DCI-P3 film-grade color gamut, better meeting the visual experience.

1200nits, Visible in Sunlight

High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

Rugged Aluminium Housing

Adopts CNC aluminium housing, durable and portable, suitable for various shooting environments.

Custom Shortcut Keys

On top of S10 comes with three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via the scroll wheel key.

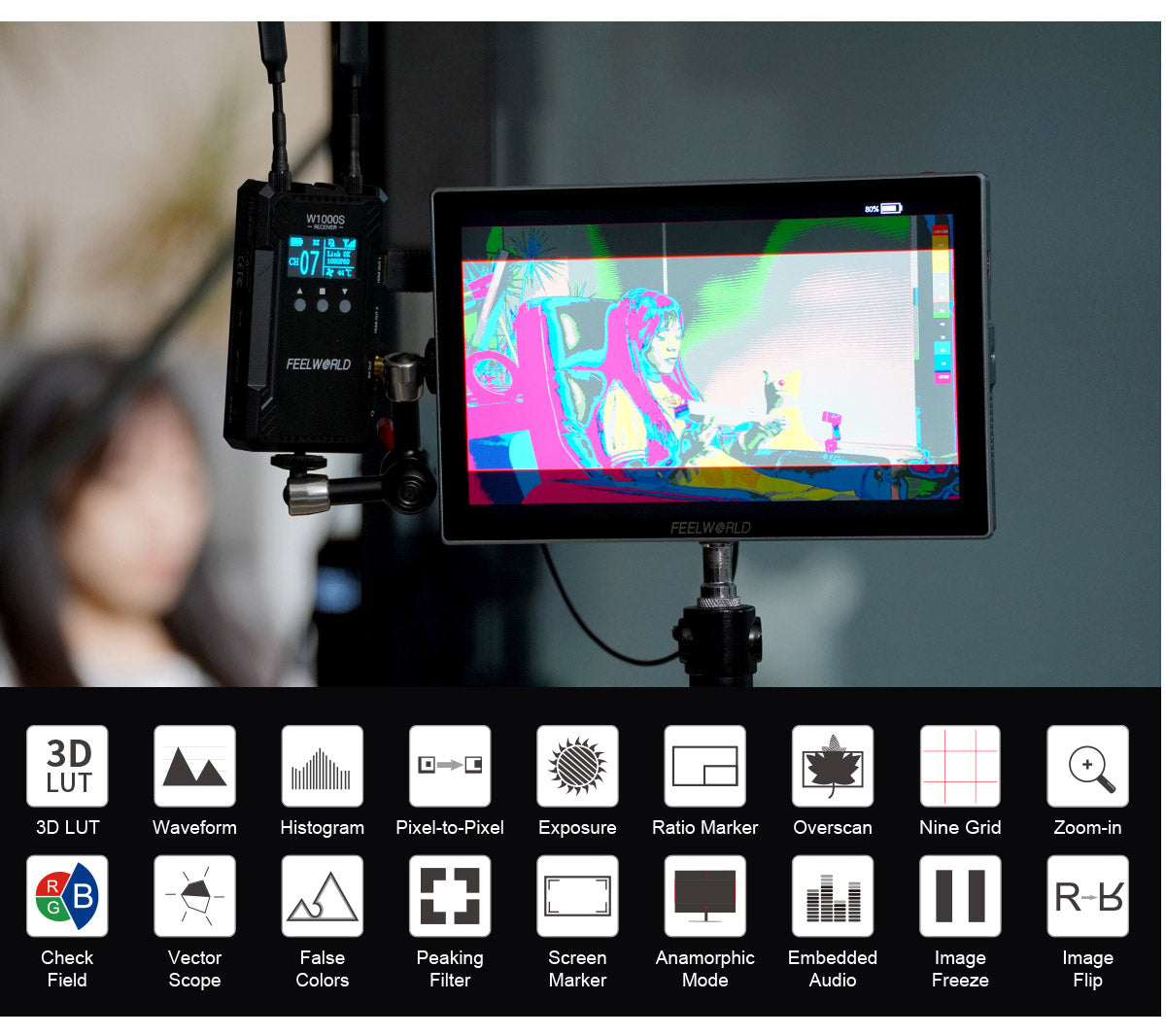

Full Range of Auxiliary Functions

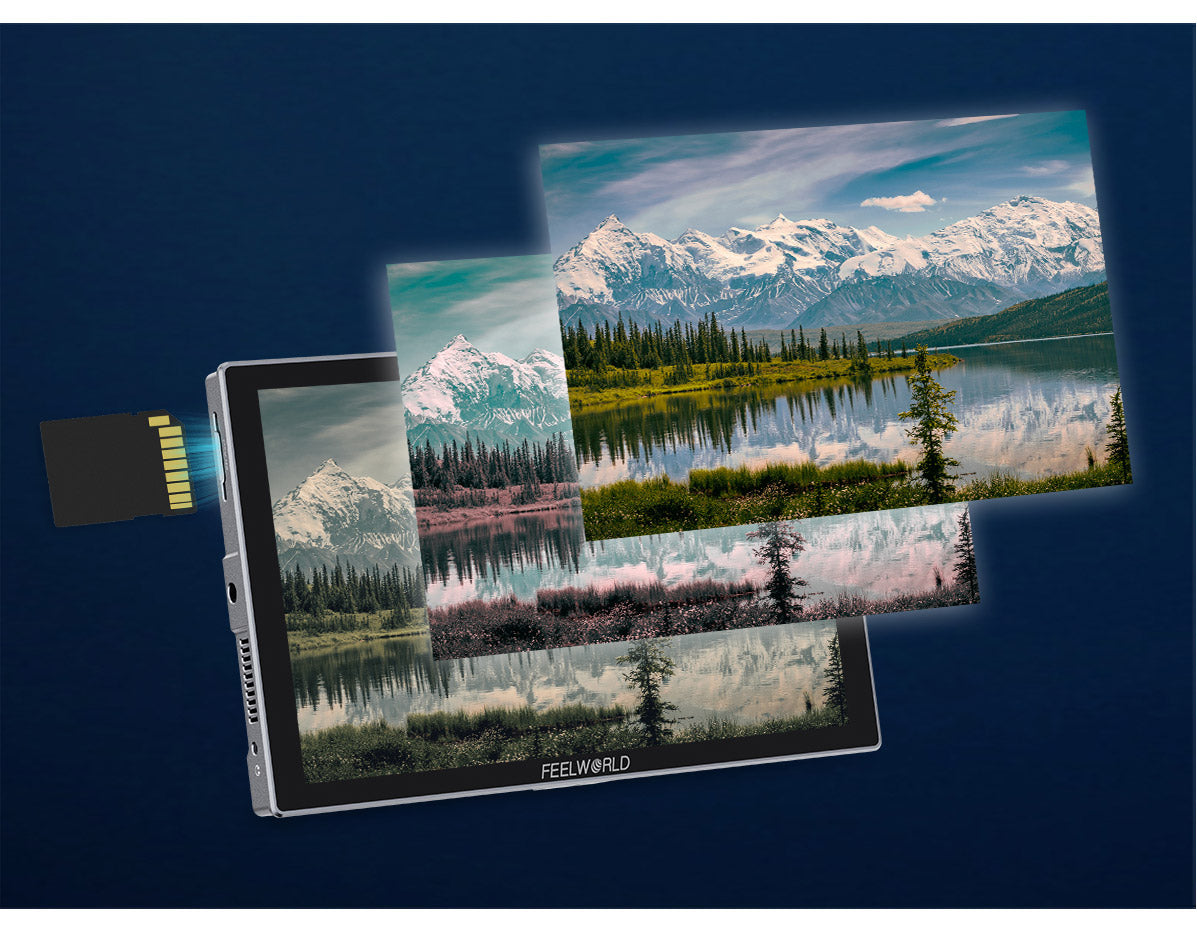

Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Support to load 32 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow, and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. S10 allows you to load internally up to 32 custom LUTs, looks, or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

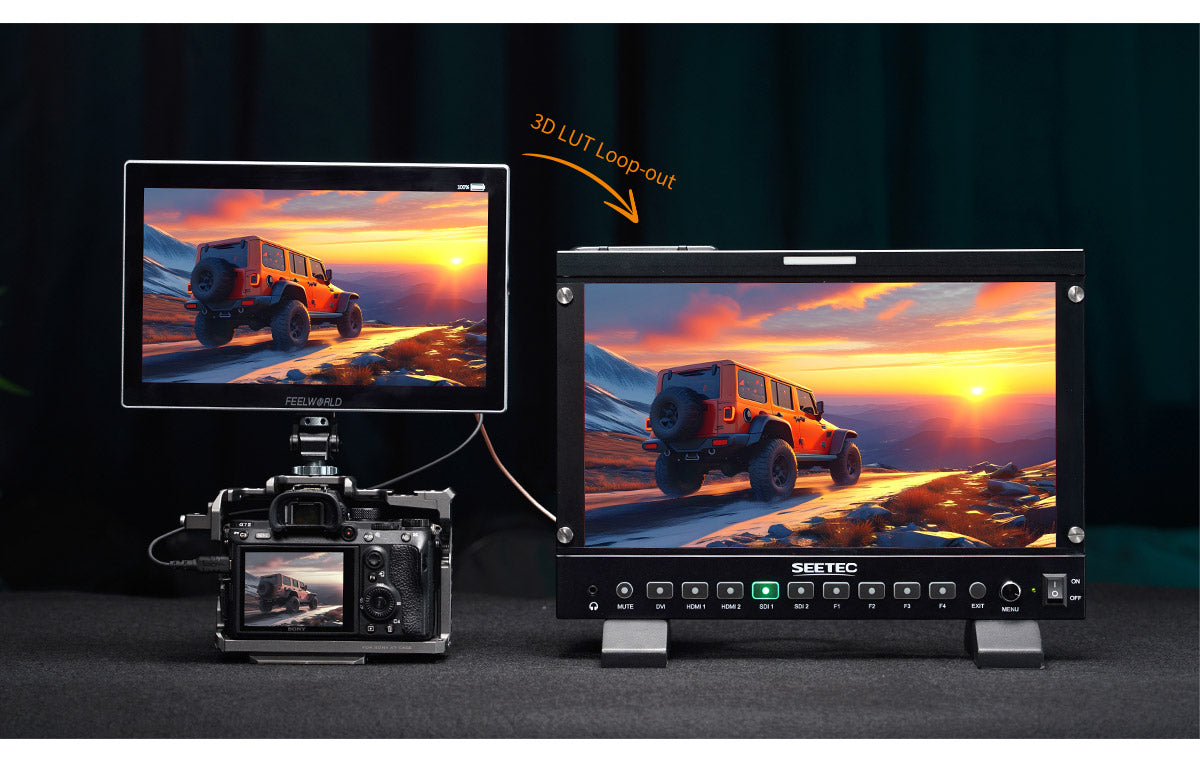

3D LUT Loop-out

HDMI and 3G-SDI can output the video or image with a 3D LUT effect. When you are live streaming, you can connect the S10 output as a live broadcast image to add a cinematic; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
Note: To use HDMI with LUT output, you need to set the HDMI output to "display" (enter main menu--System--Source--Output Source--HDMI OUT--Display)

HDR Monitoring
What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty, it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

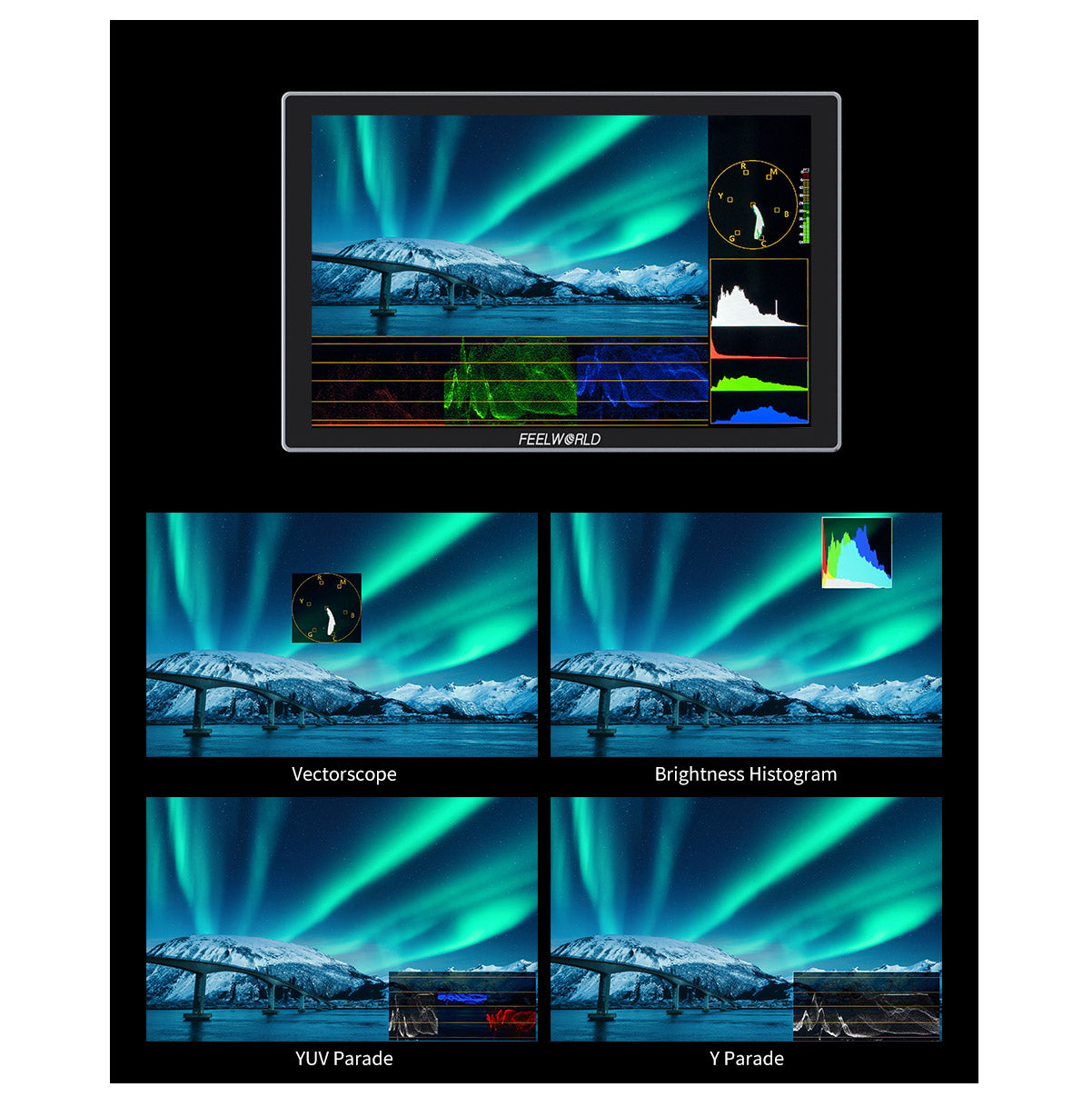

Accurate waveform monitoring
Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. S10 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

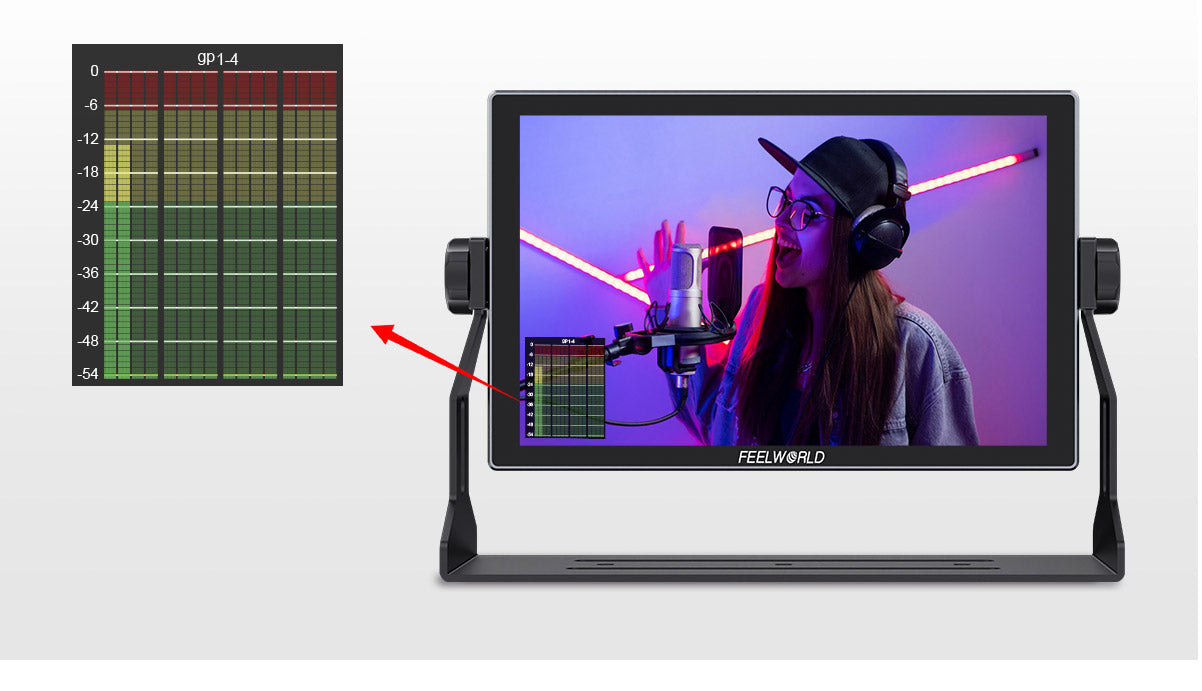

Up to 16-channel Audio Meter Level

S10 can de-embed audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels,8 channels, and 16 channels audio meters display. You can also move it horizontal or vertical position, and don't worry about covering the image.

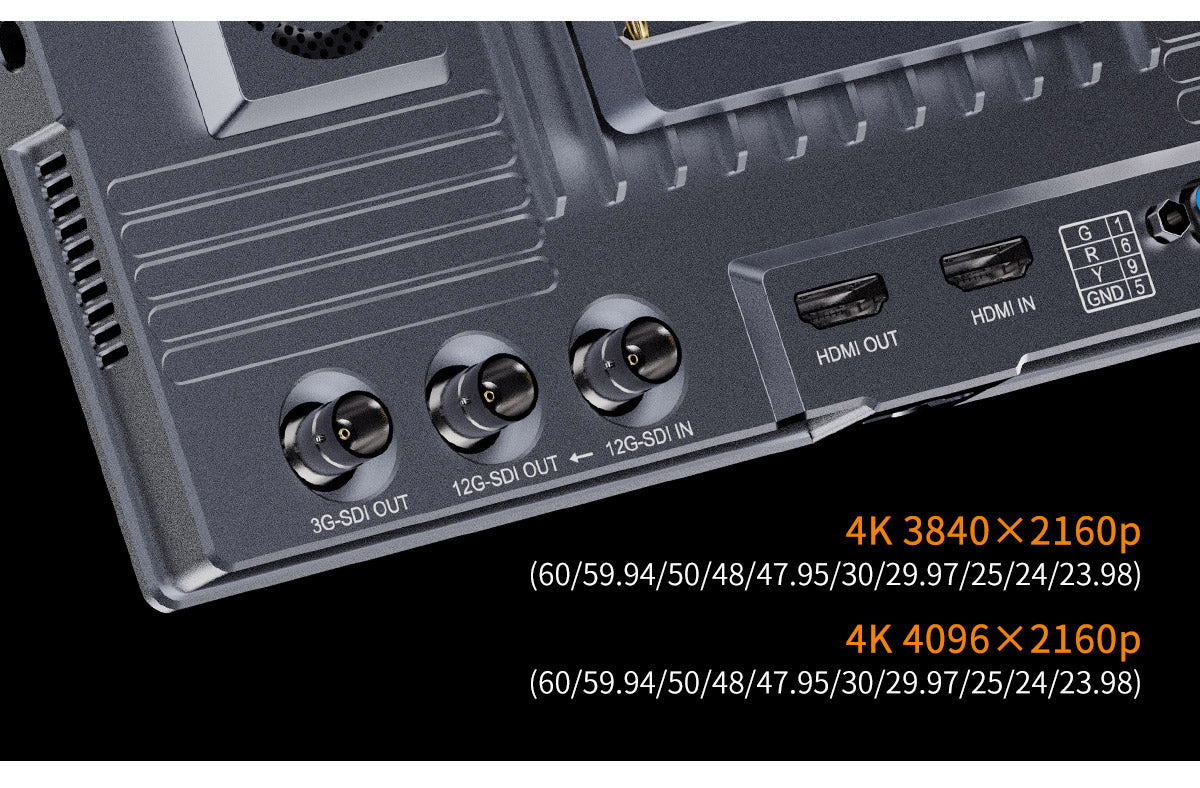

12G-SDI & 4K HDMI Input and Output

Equipped with 12G-SDI and 4K HDMI inputs and outputs, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with professional camcorders and the latest DSLR cameras on the market. In addition, S10 also comes with a 3G-SDI output and provides a 3.5mm headphone jack to monitor audio.

HDMI and SDI Cross Conversion, Easy to Handle Various Applications

S10 built-in signal cross conversion allows you to convert an HDMI signal to SDI signal or an SDI to an HDMI signal. You can easily convert signals and don't needing the additional converters. It can be used for various broadcasting and live production.
Note: To use signal cross conversion, please set HDMI OUT as"Display"(enter main menu--System--Source--Output Source--HDMI OUT--Display)

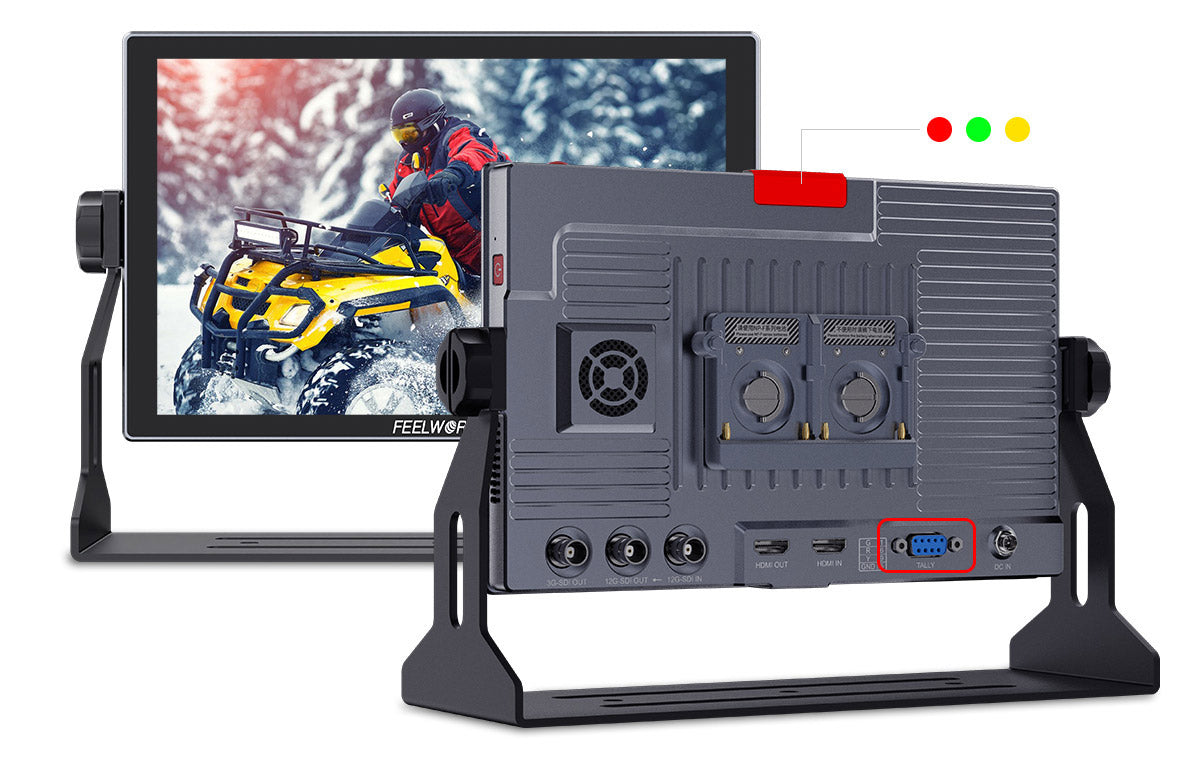

3-color TALLY Light, Enhance Team Cooperation

S10, including a tally light, can display in red, green, or yellow Tally signal. This means during live production, you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry-standard parallel pin connector on the rear panel.

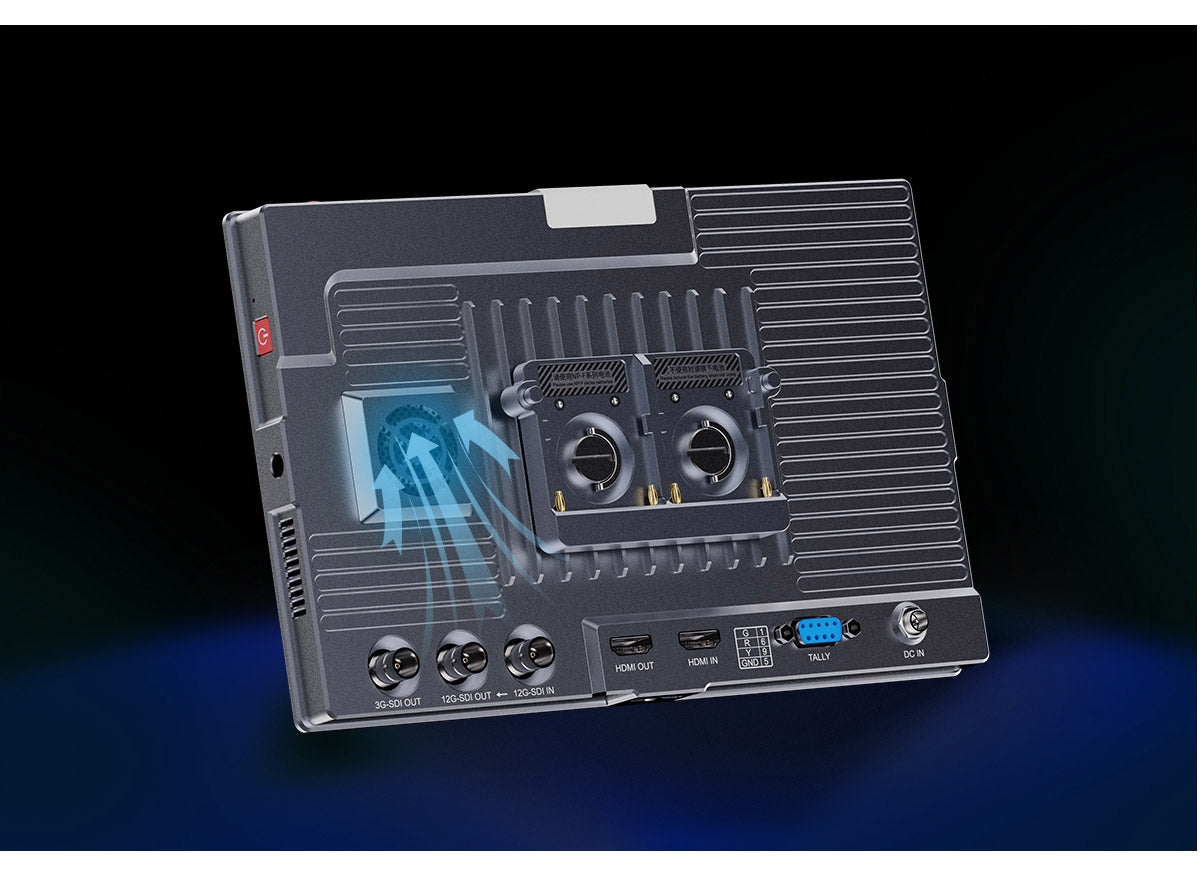

Built-in Cooler

Built-in cooler, don't worry, the monitor works for a long time.

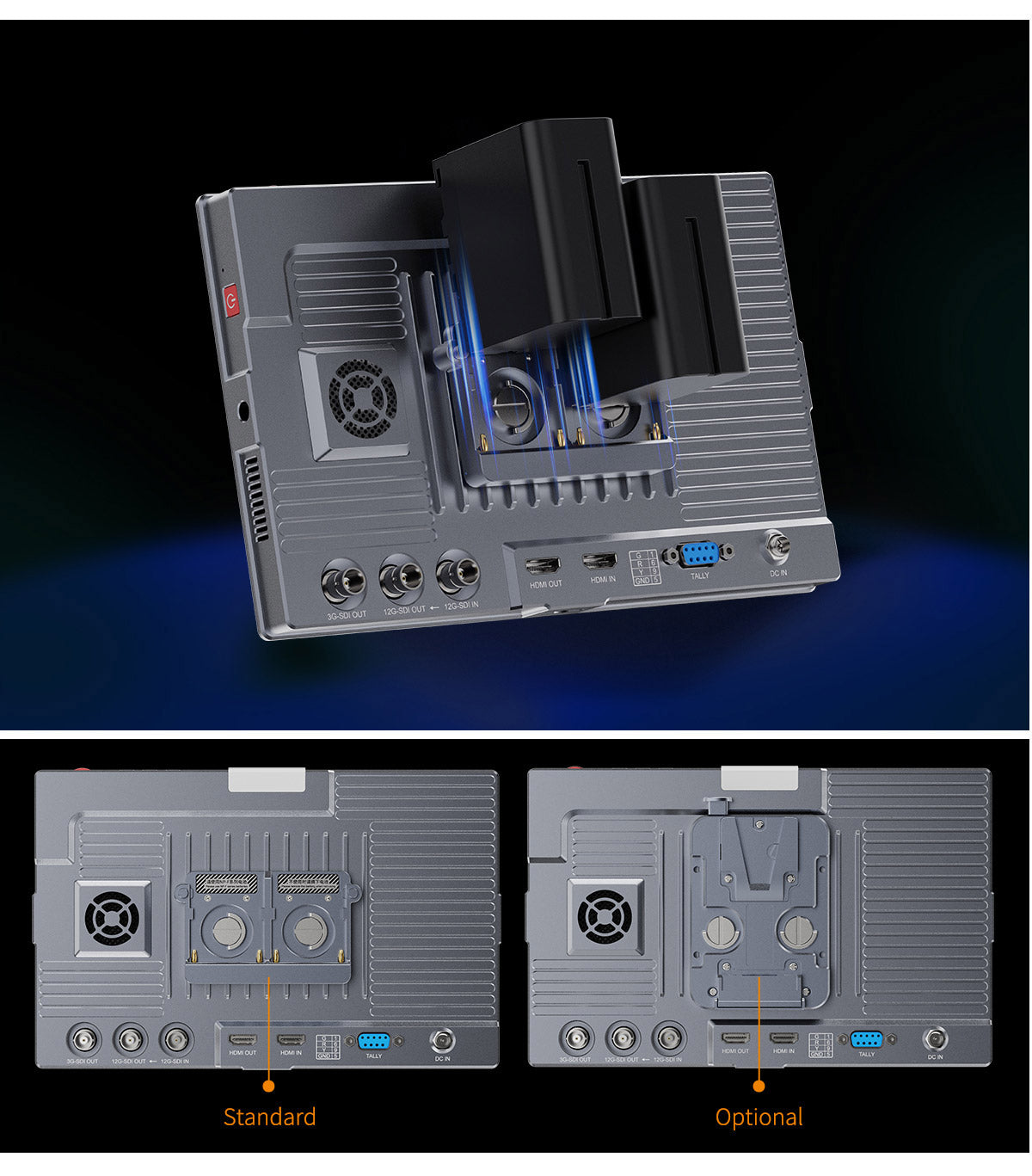

Flexible Power Supply, Long-lasting Power for Shooting

You can connect to DC power input to get continuous power （suitable for a DC 5.5*2.1mm power cable plug,12V/3A adapter) or use the standard F970 dual battery plate to install an NP-F series battery for mobile applications. An F970 battery (6600mAh) lasts for about 2 hours. The upper right corner of the monitor will display battery level after the battery installed two batteries at the same time. When one is running low, you can quickly switch to the other one without worrying about losing power midway. The V-mount battery plate is optional.
Note: the battery is not included; please purchase separately. Higher capacity (working time) will be longer.

NP-F Battery Optional Recommendation

The power consumption of S10 is 25W. We recommend choosing the higher capacity FEELWORLD NP-F970 to power it.

11 Languages Supporting

S10 built-in up to 11 languages, which means S10 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor is equipped with 3 standard 1/4” mounting threads (bottom, right side, left side). You can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for a photographer or a director.

Product Comparison

Click to View S7

Specifications

Input

Output

Audio

12G-SDI Input and Output Support Format

3G-SDI Output Support Format

HDMI Input Support Format

HDMI Output Support Format

General

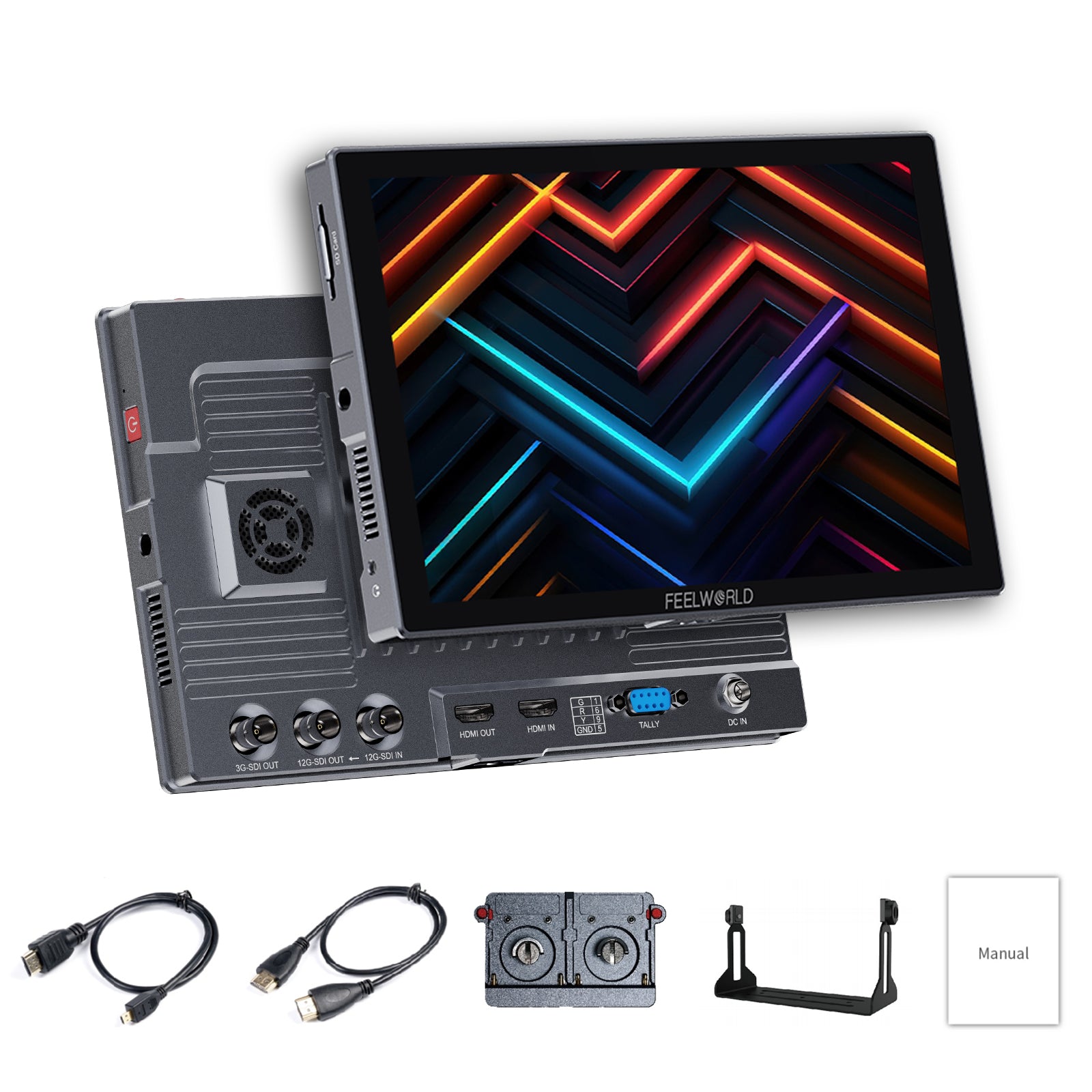

In The Box
