FEELWORLD S55 V3 6 Inch DSLR Camera Field Monitor FHD IPS Support 4K HDMI Input Output Tilt Arm Power Output

Overview

Updated to a larger screen size for both gimbal and handheld use, this lightweight, compact S55 V3 6" 4K HDMI Monitor now features a bright 6" IPS LCD screen, HDMI input and output, multiple display features, and the ability to power select cameras via a DC output to power an accessory or a camera.

Key Features

• Updated 6" 1920 x 1080 IPS LCD

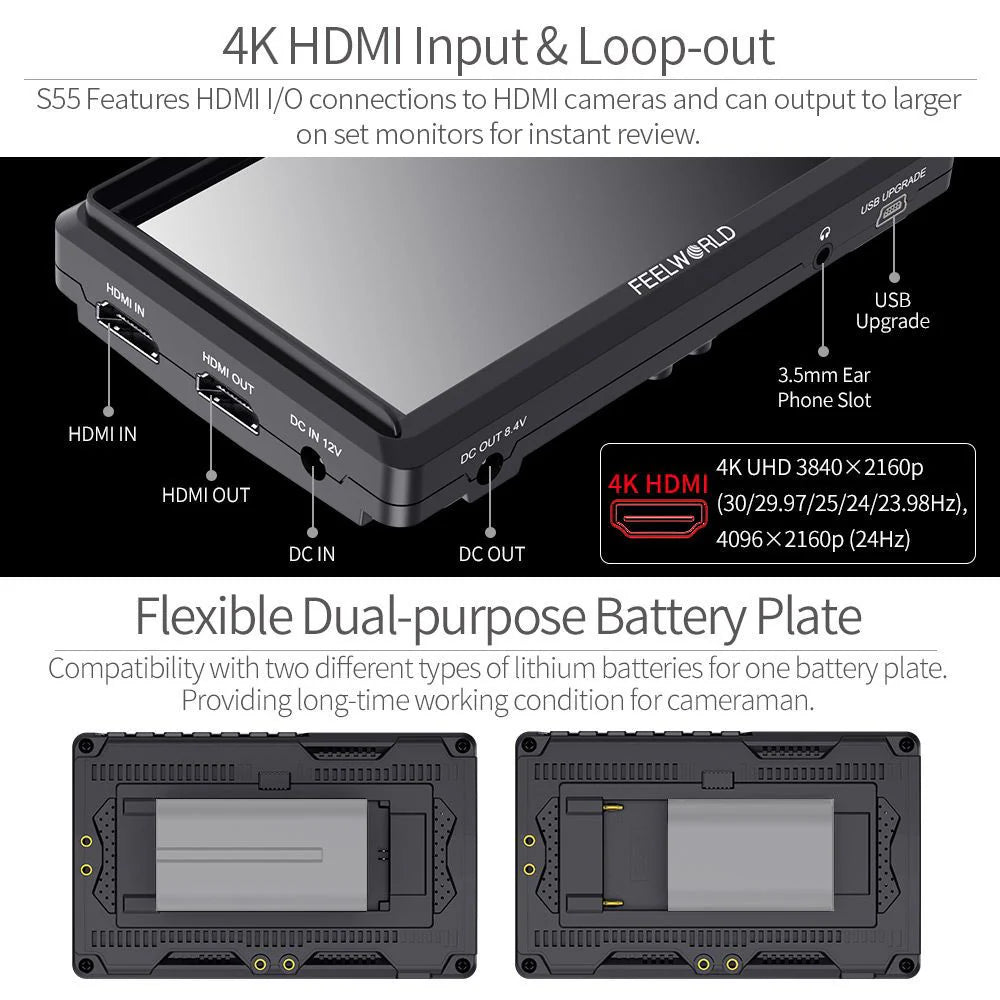

• Up to DCI 4K via HDMI Input & Output
• 450 cd/m² Brightness / 1000:1 Contrast
• Power Accessory/Camera via DC Output
• Sony L-Series/Canon LP-E6 Battery Plate
• 160° Viewing Angle
• 3.5mm Stereo Headphone Jack
• 360° Tilt Arm with Shoe Adapter

Small and Lightweight

190g light-weight design: Makes great convenient for cameramen in outdoor or handheld applications. The S55 on-camera monitor's small size makes it ideal for gimbals and lightweight camera systems, especially those without a built-in display.

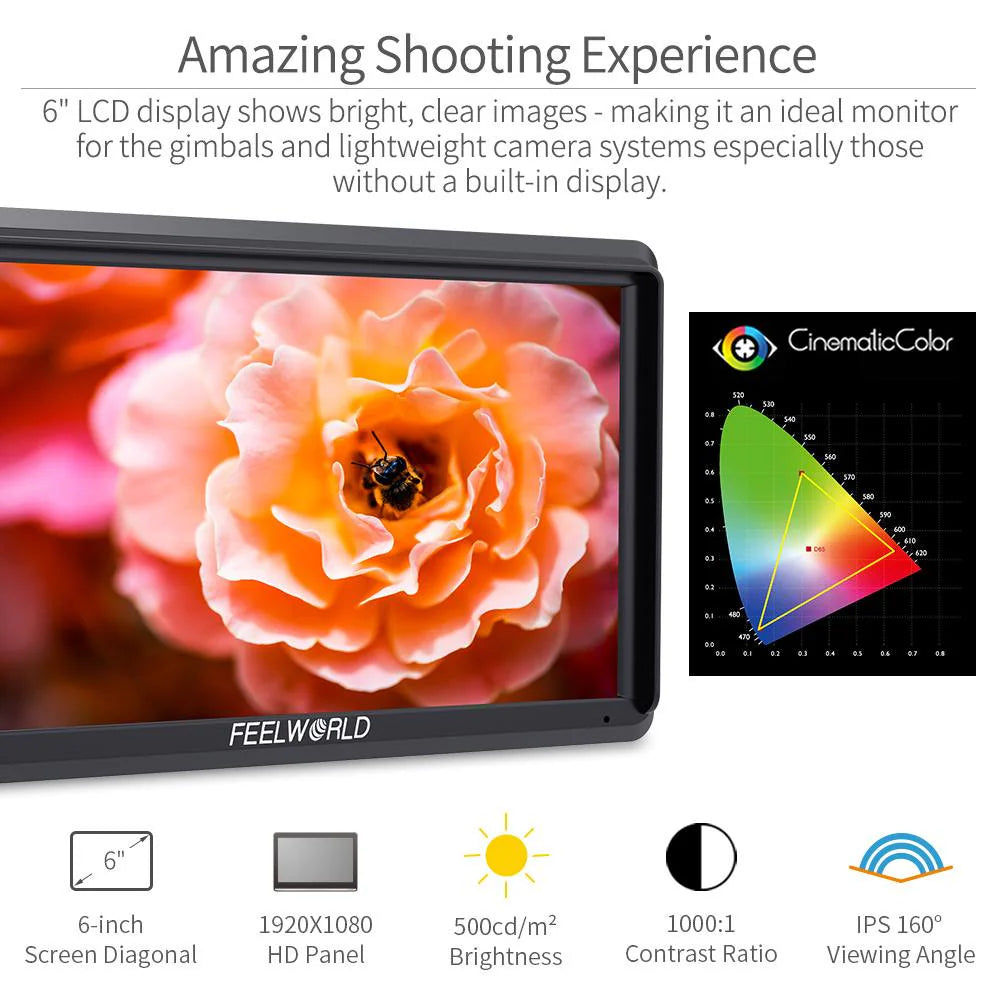

6" Monitor with Widescreen

FEELWORLD S55 is a lightweight 6" monitor at a 16:9 aspect ratio. The high-resolution LCD display shows bright, clear images - making it an ideal monitor for the discerning DSLR user. The S55 features a panel with native 1920x1080 resolution, 450cd/m2 brightness, 1000:1 contrast ratio, which facilitates the onscreen image to be a more vibrant, more accurate rendition of what the camera sensor sees.

Different Angles, The Same Beautiful Picture

IPS monitor gives you a large visual view to enjoy, offers consistent image clarity and colors from a 160-degree viewing angle vertically and horizontally. And the wide viewing angle makes it easy for multiple crew members to watch at the same time.

True Color · Professional Color Calibration

Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, without distorting the color, showing the real image when you shoot video.

Accurate Color Reproduction

FEELWORLD monitor supports ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image is clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

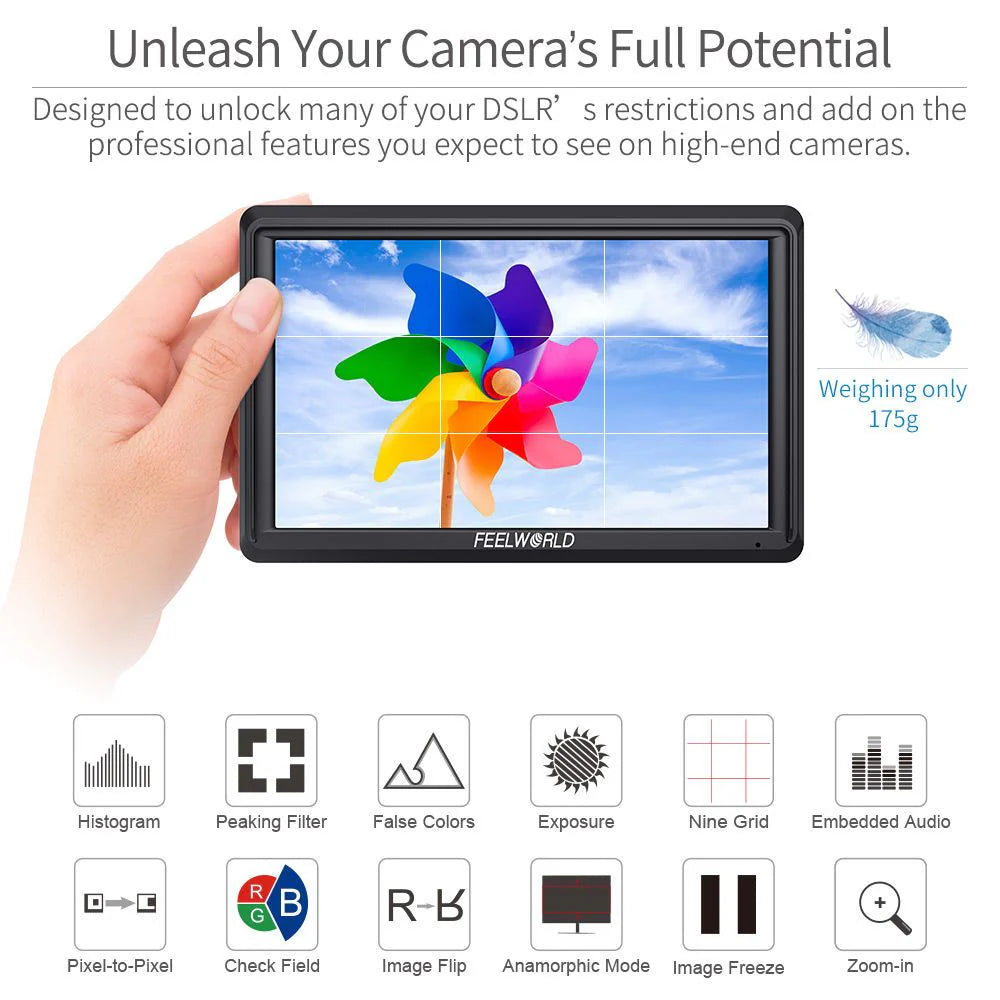

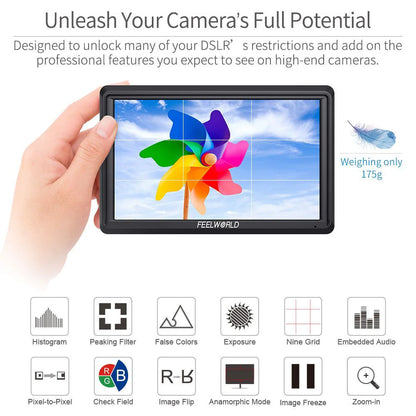

Easy Image Analysis

The S55 is a mini but mighty 6" monitor packed full of features that are the perfect complement to a DSLR rig. To assist you during your productions, the S55 has a lot of standard software features such as false color and histogram to get the perfect exposure, peaking for focus assist, embedded audio, pixel to pixel, frame guides, and much more!

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). FW568 V3 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks, or profiles at any time via the TYPE-C to USB connector. Slot and instantly select between them, maintaining creative intent, always.

Accurate Waveform Monitoring

When you need to analyze image quality more accurately than simply looking at the picture, use S55's built-in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support a single key to open all scope modes. S55 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

Intuitive Controls and Menus

The menu controls are intuitive and easy to use. At the top of the monitor, there are three custom function buttons that you can set as common functions; press “<” directly to decrease the volume; press “>” directly to increase the volume. The monitor will automatically save the parameters you have previously set and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

Connect to Projector

At the concert, live broadcast, or conference, you can connect to the project display real-time images.

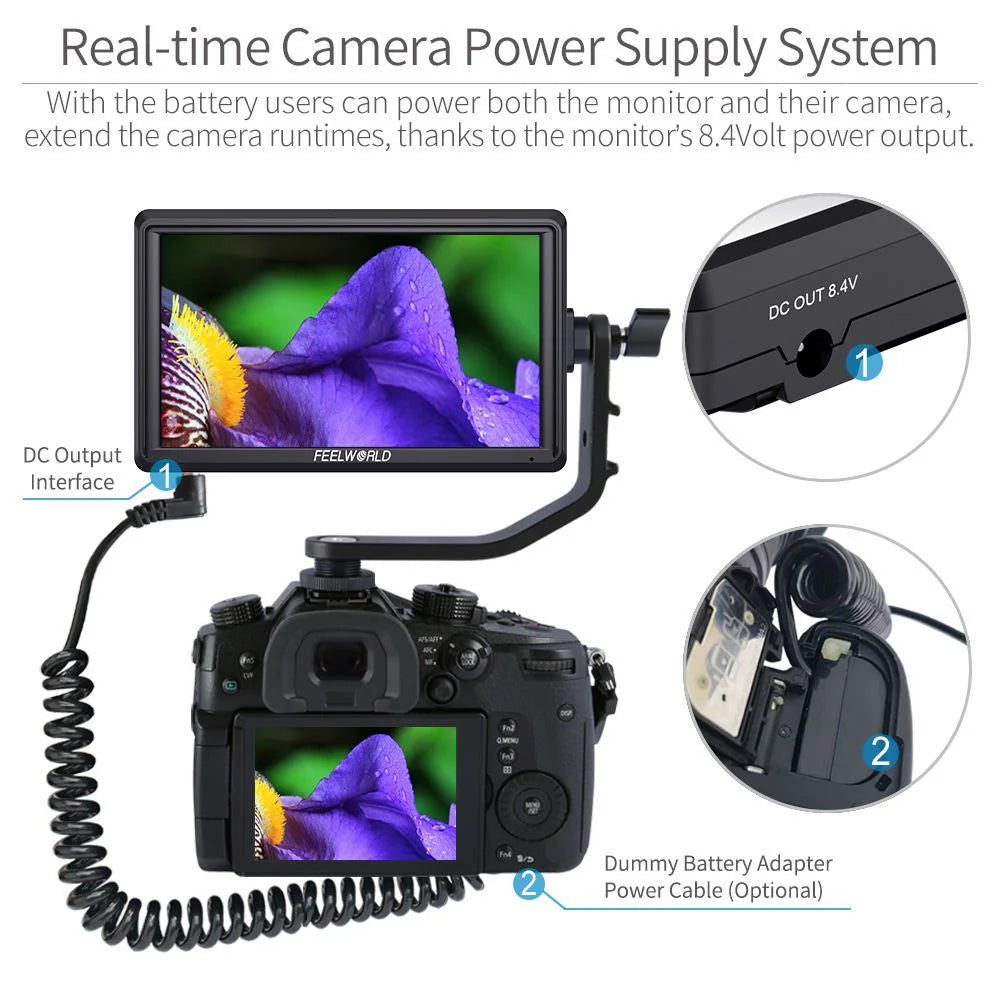

Auxiliary Power

Real-time power charge for cameras
A DC output port enables you to power your camera directly from an NP-F L-series or LP-E6 battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras. In addition, you can monitor audio using the 3.5mm stereo headphone jack.

Multiple Power Supply Modes

In addition to the DC 12V power input (can be used with a 12V/1.5A adapter), S55 also has a compatible F970/LP-E6 dual-purpose battery plate, and supports 5V Type-C input, which can be powered by mobile phone chargers or power banks (at least 5V/2A).

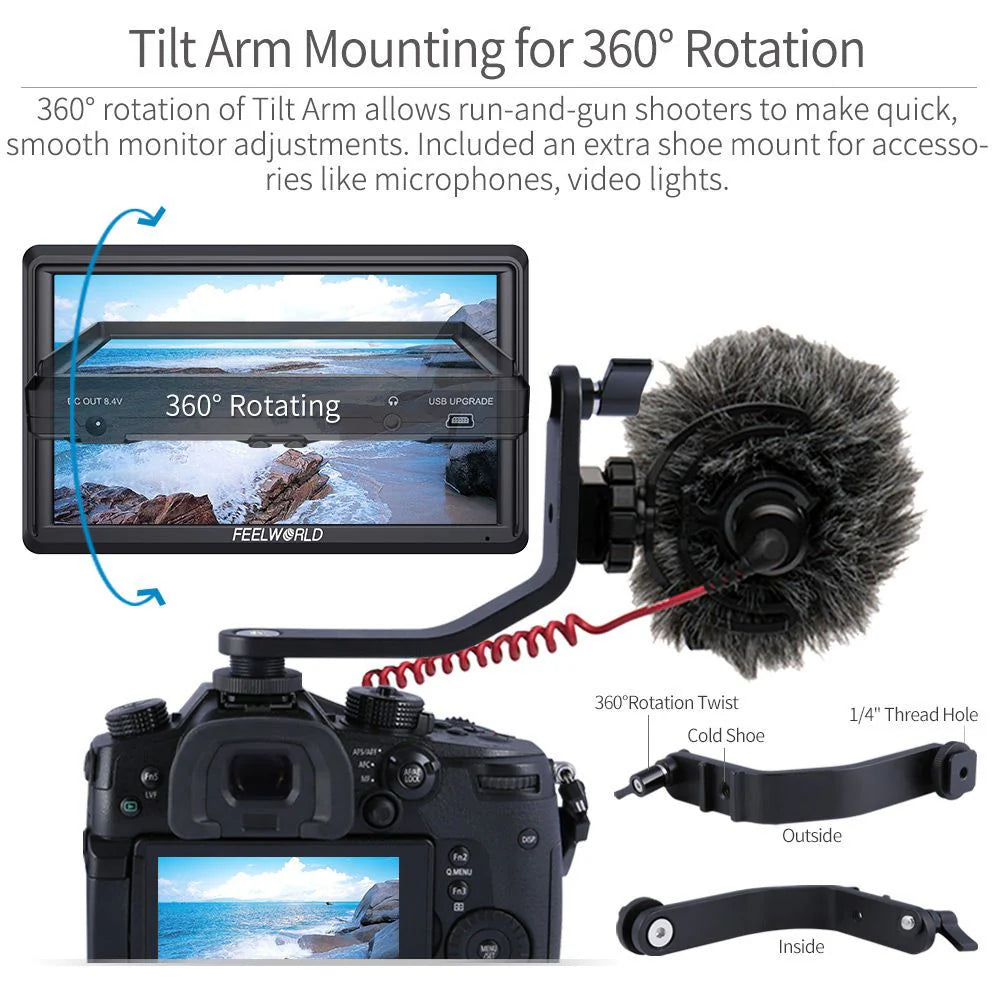

Convenient Mounting - Tilt Arm

Every S55 monitor will ship with a cold shoe-mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the S55 monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

Multiple Installation Ways

To conveniently monitor the various angles of monitoring
FEELWORLD S55 features standard 1/4" mount points (bottom, right) for attaching it to cameras and rigs. The external 1/4 screw design is used to make the monitor lighter and thinner.

The 1/4 screw can be removed from the bottom or right side.

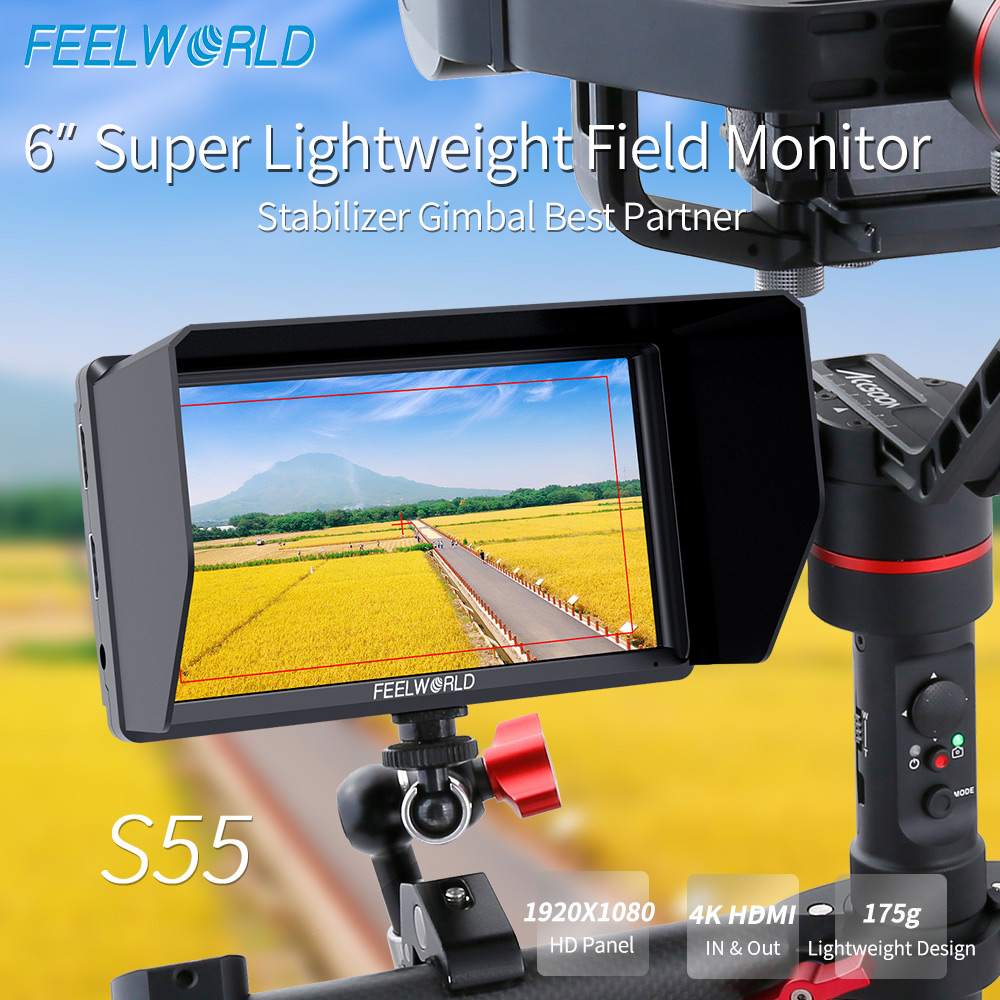

Flexible Install Both on Camera and Gimbal

Not only can you install it on a handheld stabilizer, but you can securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen! S55 is equipped with one 1/4 screw. If you also want to fast install at the gimbal, you can buy one more 1/4 screw.

Specifications

Input

Output

Audio

HDMI Input/ Output Support Format

General

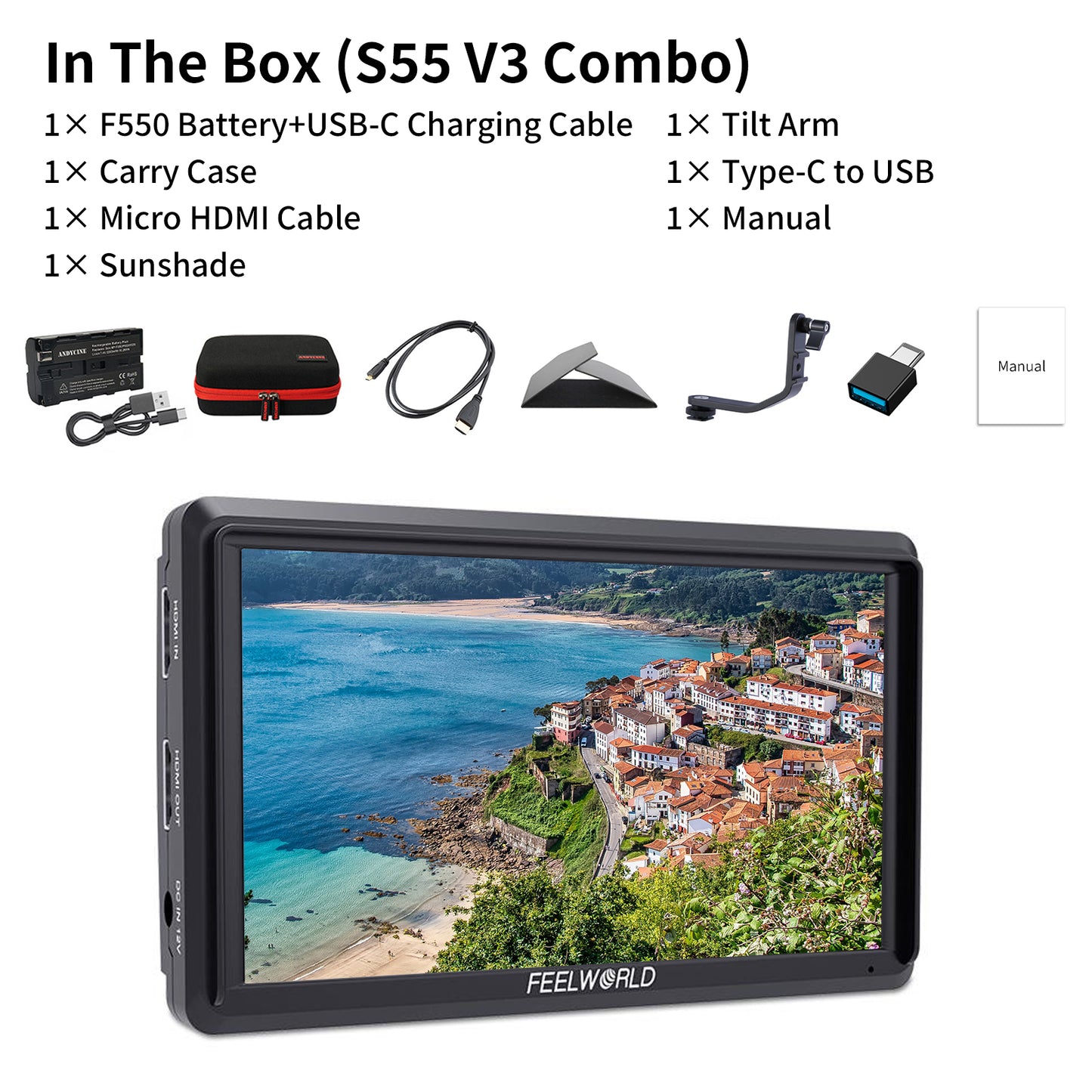

In The Box

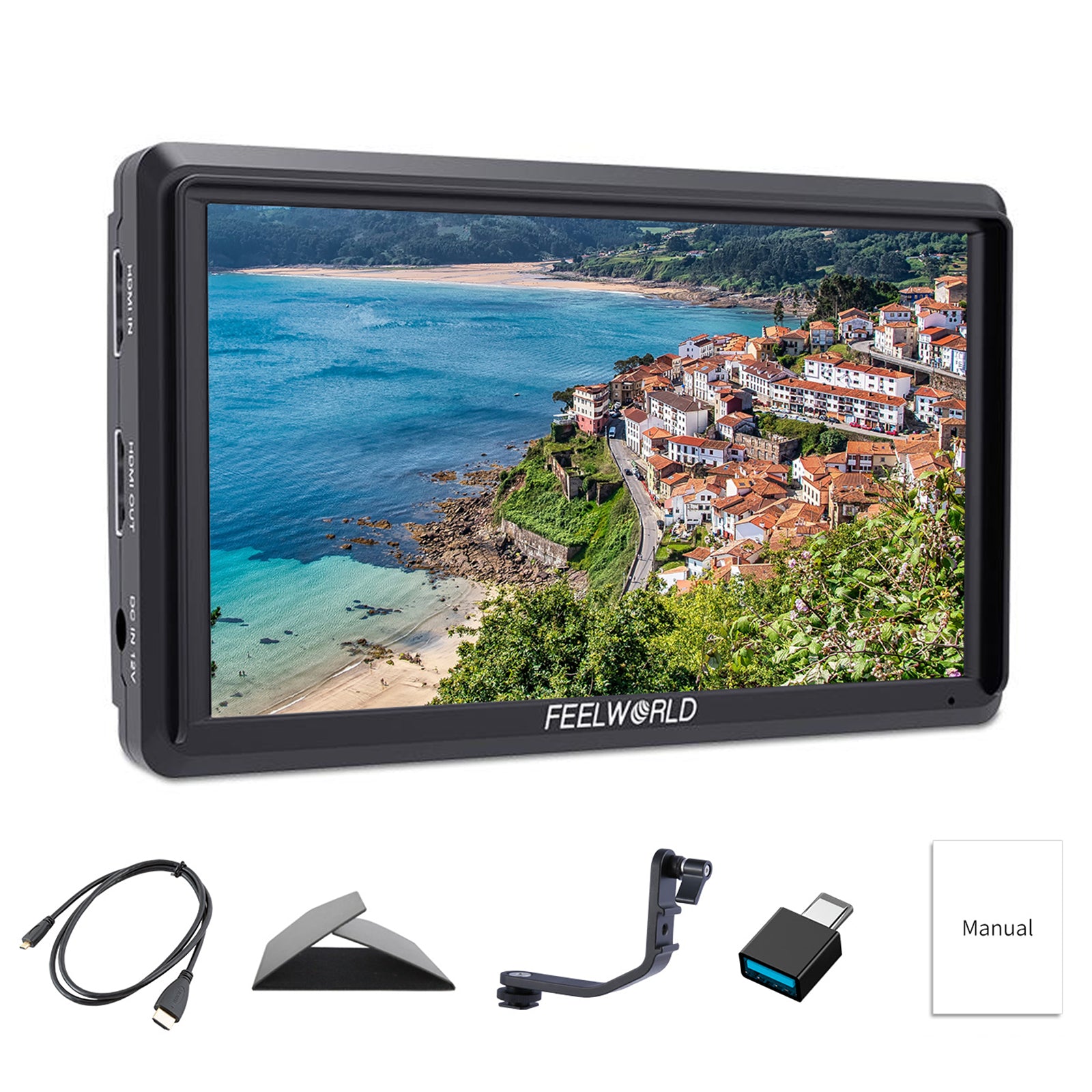

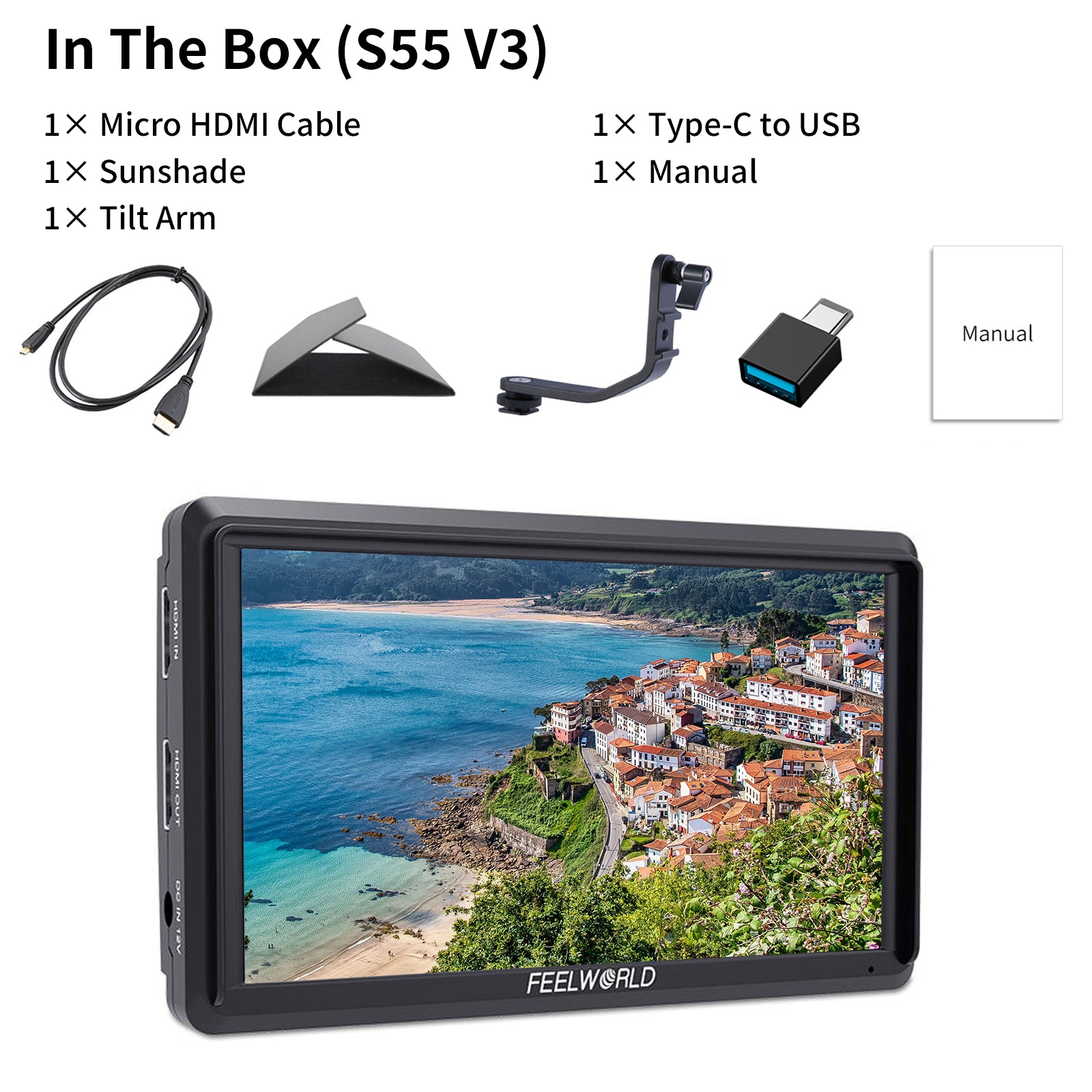

Standard Package

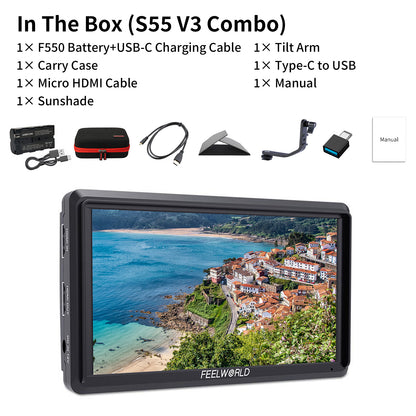

Combo Package
