FEELWORLD S7 7-inch 12G SDI HDMI2.0 Camera Field Monitor High Brightness1600nit Touchscreen

Overview

Monitor your 4K HDR signals with clarity in the field with the FEELWORLD S7 7" 12G-SDI/HDMI 2.0 Camera Field Monitor. This compact, 7" touchscreen field monitor with a durable aluminum chassis features 12G-SDI and HDMI 2.0 inputs and outputs so you can view your 4K footage without the need for down-res. The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and 1600 cd/m² brightness for a crisp viewing experience, even in sunlight.

Other features include HDMI/SDI cross conversion to eliminate the need for external converters, a 16-channel audio meter, 10-bit color depth, HDR HLG support, applying 3D LUTs on loop output, a 3-color tally light, cooling fans, and support for 11 languages. Numerous professional imaging tools are built in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered using a power adapter or the rear dual L-series battery mount.

Key Features

• 7" 1920 x 1200 IPS LCD Monitor
• HDMI 2.0 and 12G-SDI Input/Output
• 1600 cd/m² Brightness, Touchscreen
• Up to DCI 4K I/O, 10-Bit, HDR Support
• Dual L-Series/NP-F Battery Plate
• 1200:1 Contrast Ratio, 3D LUT Support
• 160° Viewing Angle
• HDMI/SDI Cross Conversion Support

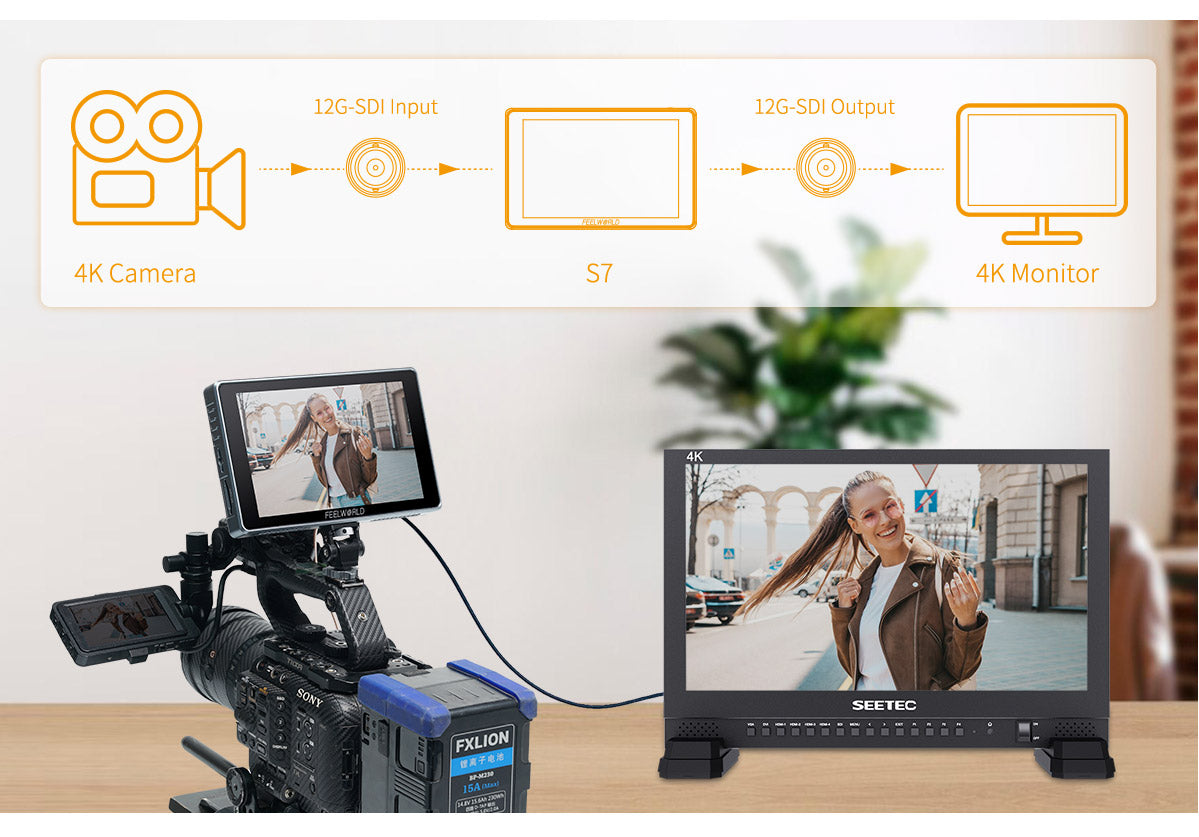

Perfect 4K SDI Monitoring

Many times, 4K camcorders are used for on-site shooting, while the director often uses a 2K monitor for monitoring. Using 4x3G-SDI is not convenient in practical applications and is not accepted. FEELWORLD releases the first 7-inch 12G-SDI field monitor. With it, you can reduce system complexity in a 4K workflow. Instead of 4 x 3G-SDI cables to get a 4K video image, you only need a single 12G-SDI, and get rid of the awkward situation of monitoring 2K while shooting 4K.

12G-SDI High Speed Transmission

Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.

Professional Broadcast Quality

S7 can not only handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI sources, but also simultaneously loop-out high-quality broadcast video images, providing you with the perfect future-proof monitoring solution and bringing the best quality possible and a fluid, smooth viewing experience!

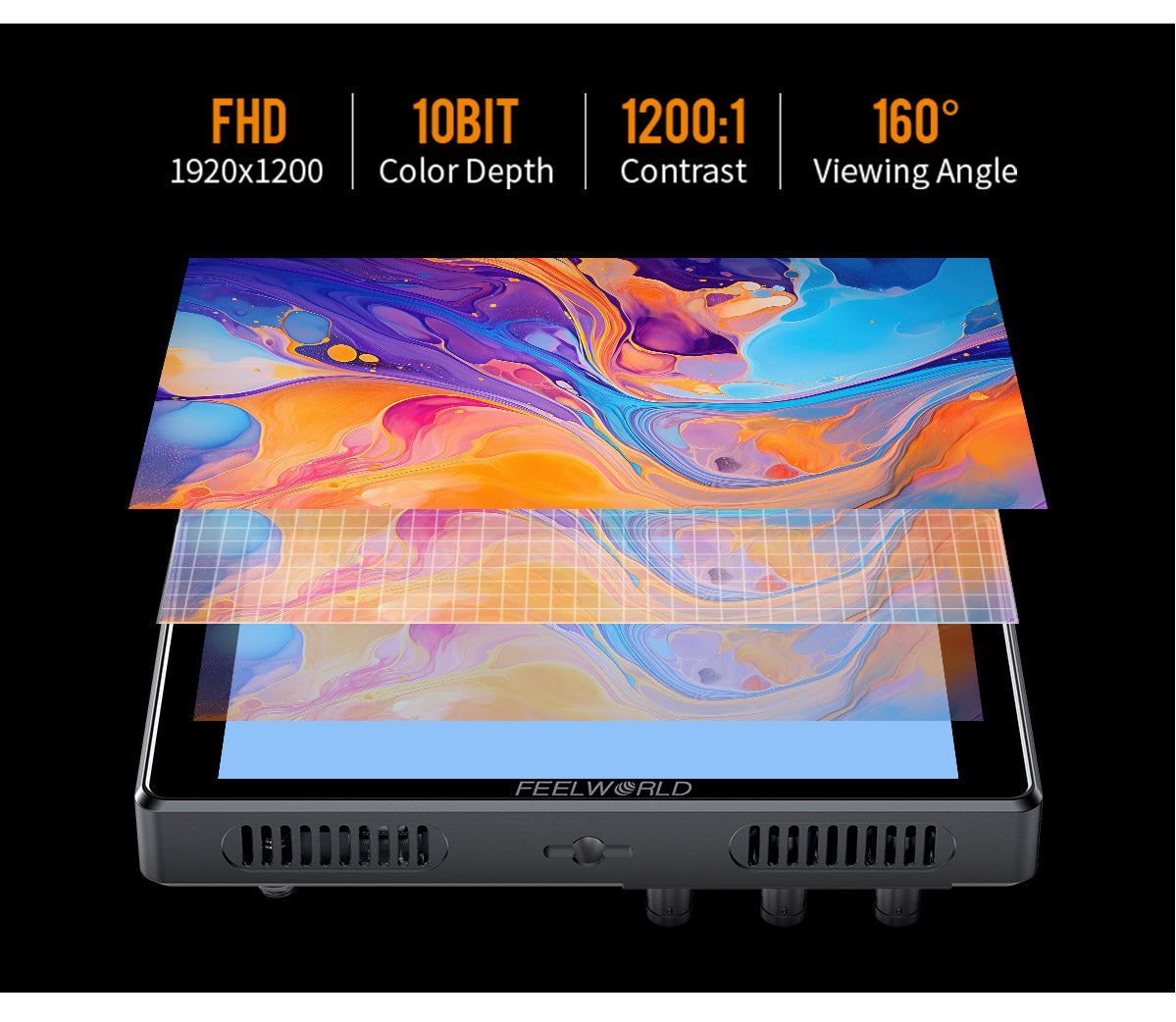

7-inch Full HD Screen
Clearly checking and capturing every nuance

With an extremely high-resolution 7-inch IPS panel, a wider field of view, and a clearly presented, more detailed image. 1.07B color provides a richer range of colors. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking

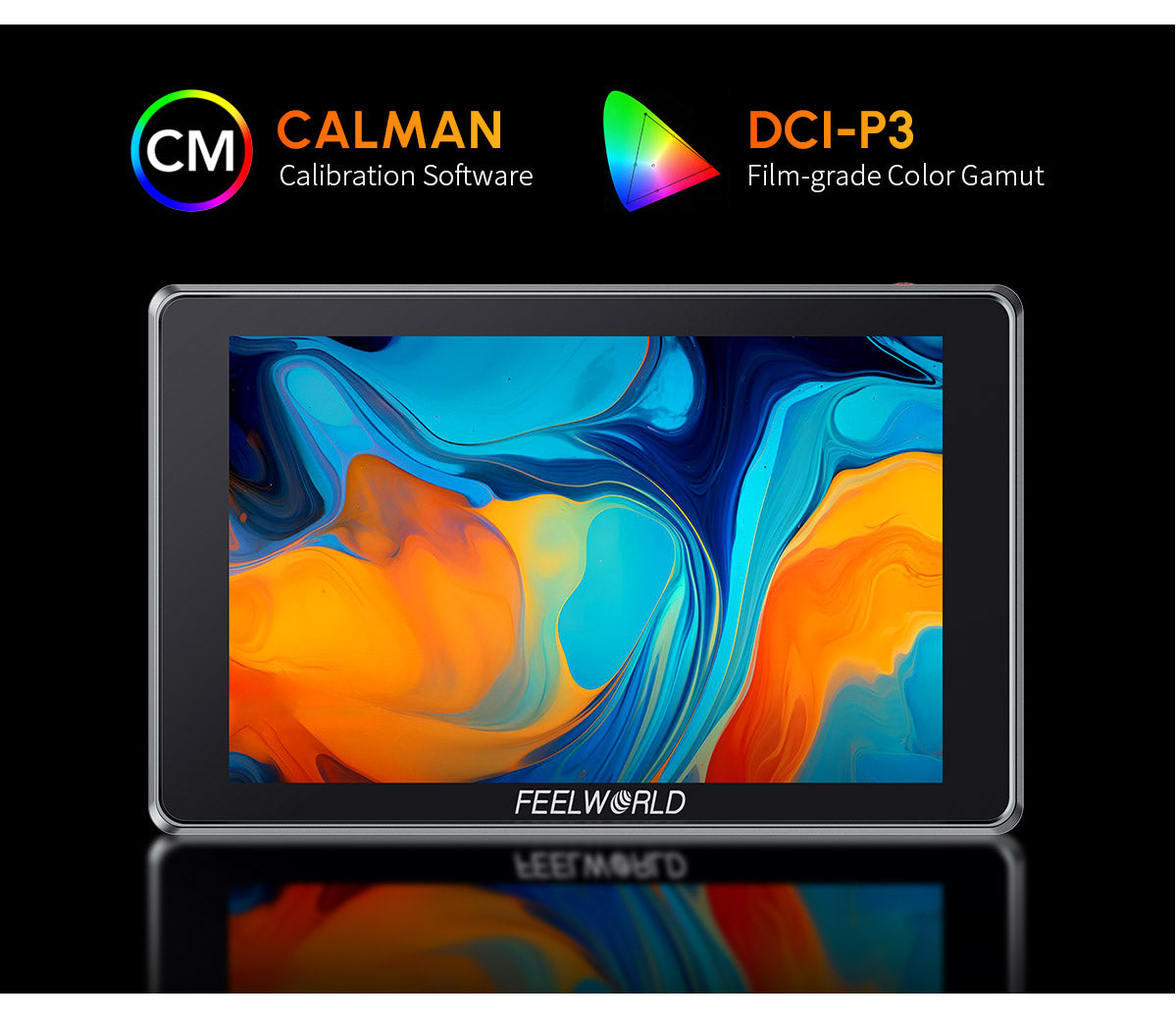

Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut

Each monitor undergoes color calibration via CALMAN professional software before leaving the factory, ensuring color accuracy and good reproduction. Plus, S7 also covers 94.9% DCI-P3 film-grade color gamut, which better meets the visual experience.

1600nits, Visible in Sunlight

High brightness 1600nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

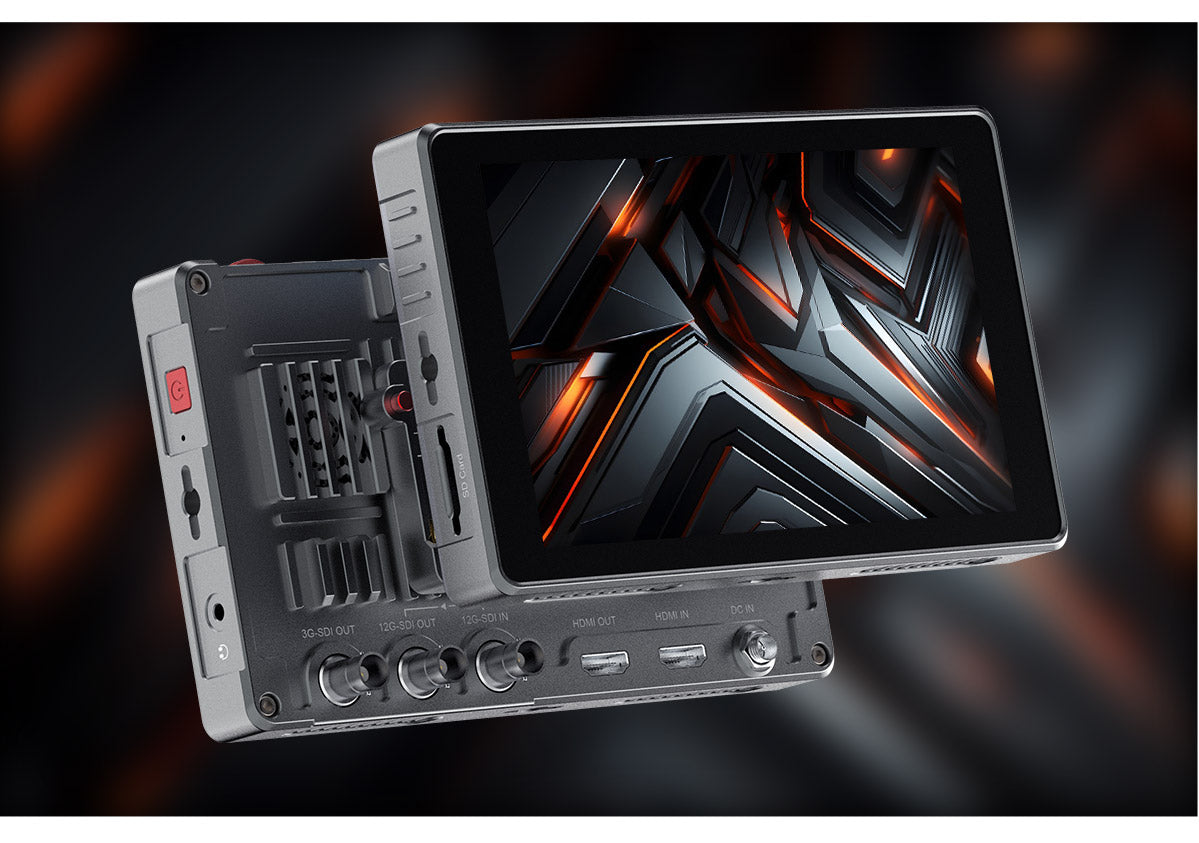

Rugged Aluminium Housing

Adopts CNC aluminium housing, durable and portable, suitable for various shooting environments.

Custom Shortcut Keys

On top of S7 comes with three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

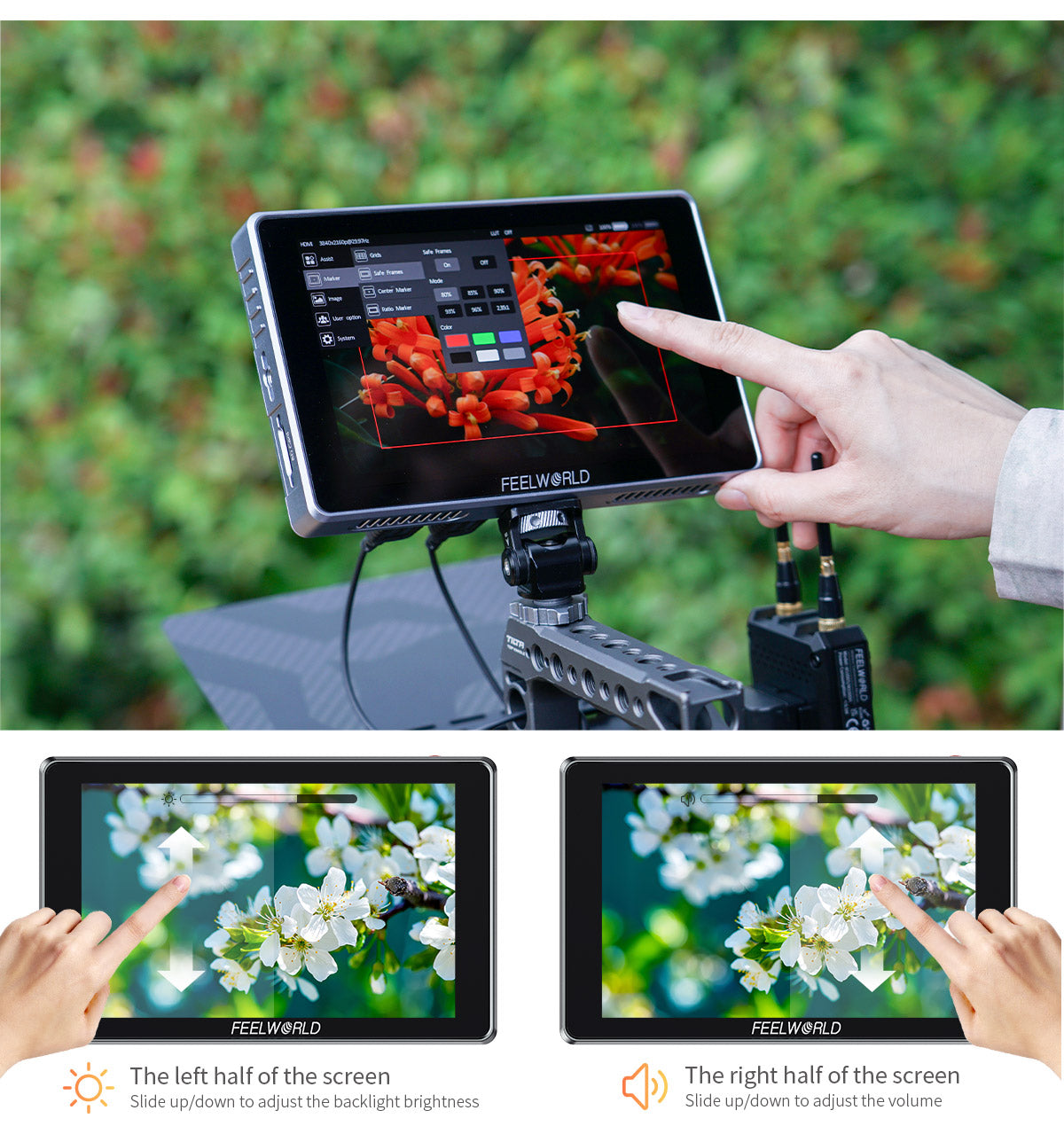

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via the scroll wheel key.

Full Range of Auxiliary Functions

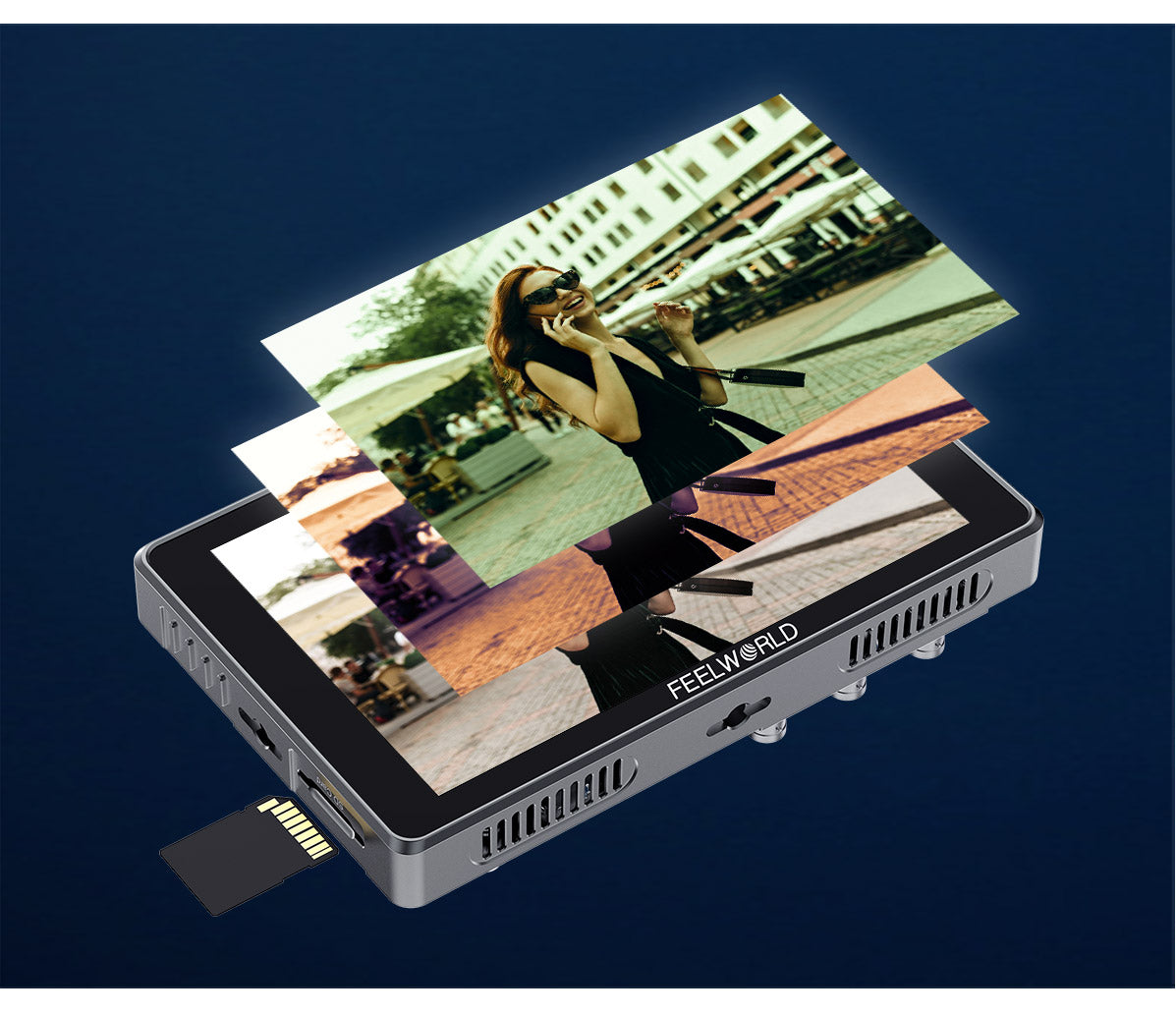

Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Support to load 32 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow, and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. S7 allows you to load internally up to 32 custom LUTs, looks, or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

3D LUT Loop-out

HDMI and 3G-SDI can output the video or image with a 3D LUT effect. When you are live streaming, you can connect the S7 output as a live broadcast image to add a cinematic; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
Note: To use HDMI with LUT output, you need to set the HDMI output to "display" (enter main menu--System--Source--Output Source--HDMI OUT--Display)

HDR Monitoring
What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty, it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

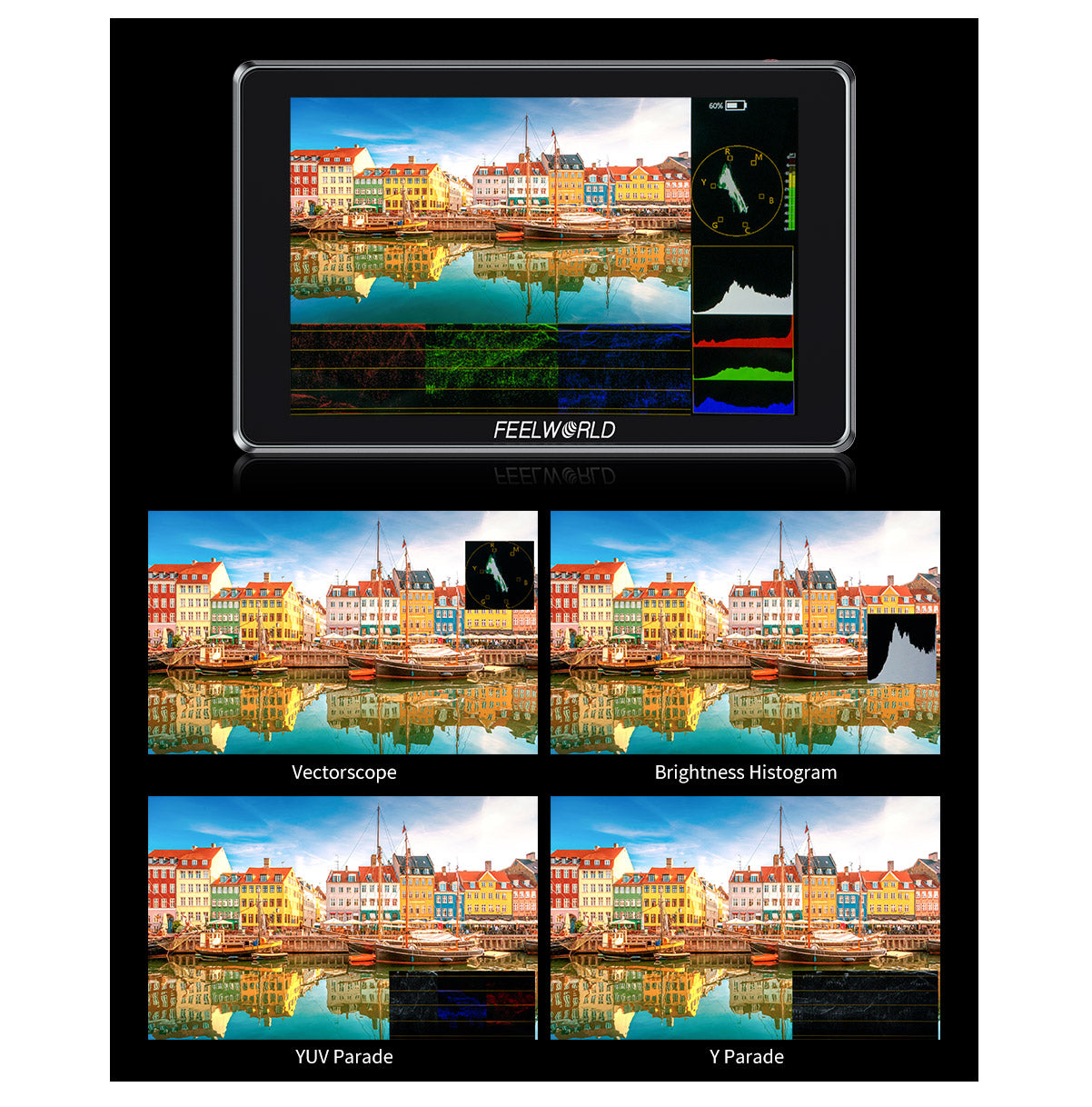

Accurate waveform monitoring
Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. S7 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

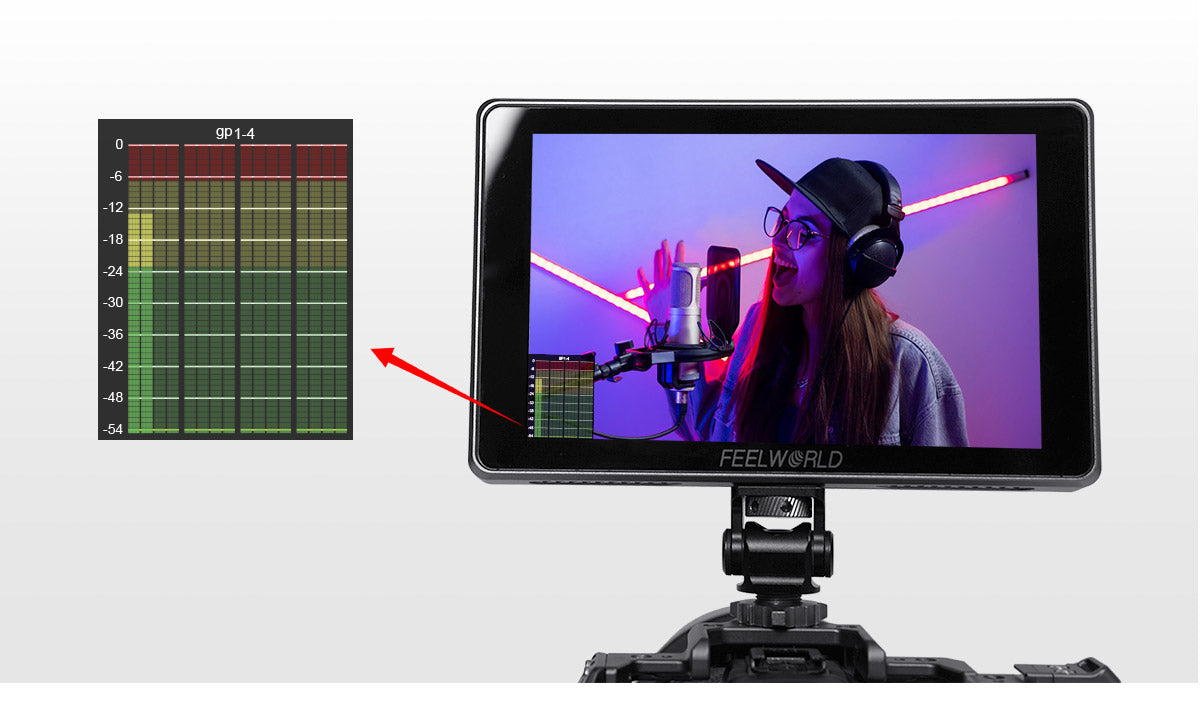

Up to 16-channel Audio Meter Level

S7 can de-embed audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels,8 channels, and 16 channels audio meters display. You can also move it horizontal or vertical position, and don't worry about covering the image.

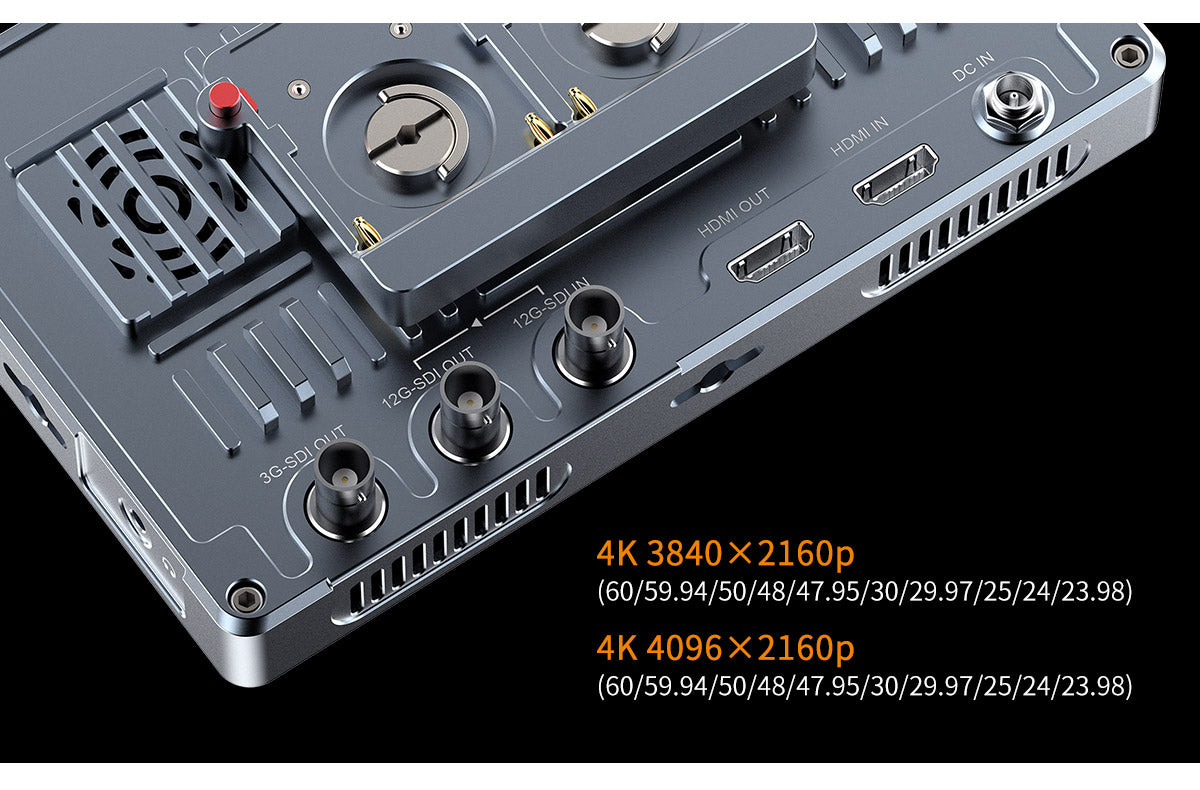

12G-SDI & 4K HDMI Input and Output

Equipped with 12G-SDI and 4K HDMI inputs and outputs, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with professional camcorders and the latest DSLR cameras on the market. In addition, S7 also comes with a 3G-SDI output and provides a 3.5mm headphone jack to monitor audio.

HDMI and SDI Cross Conversion, Easy to Handle Various Applications

S7 built-in signal cross conversion allows you to convert an HDMI signal to an SDI signal or an SDI signal to an HDMI signal. You can easily convert signals and needn't the additional converters. It can be used for various broadcasting and live production.
Note: To use signal cross conversion, please set HDMI OUT as"Display"(enter main menu--System--Source--Output Source--HDMI OUT--Display)

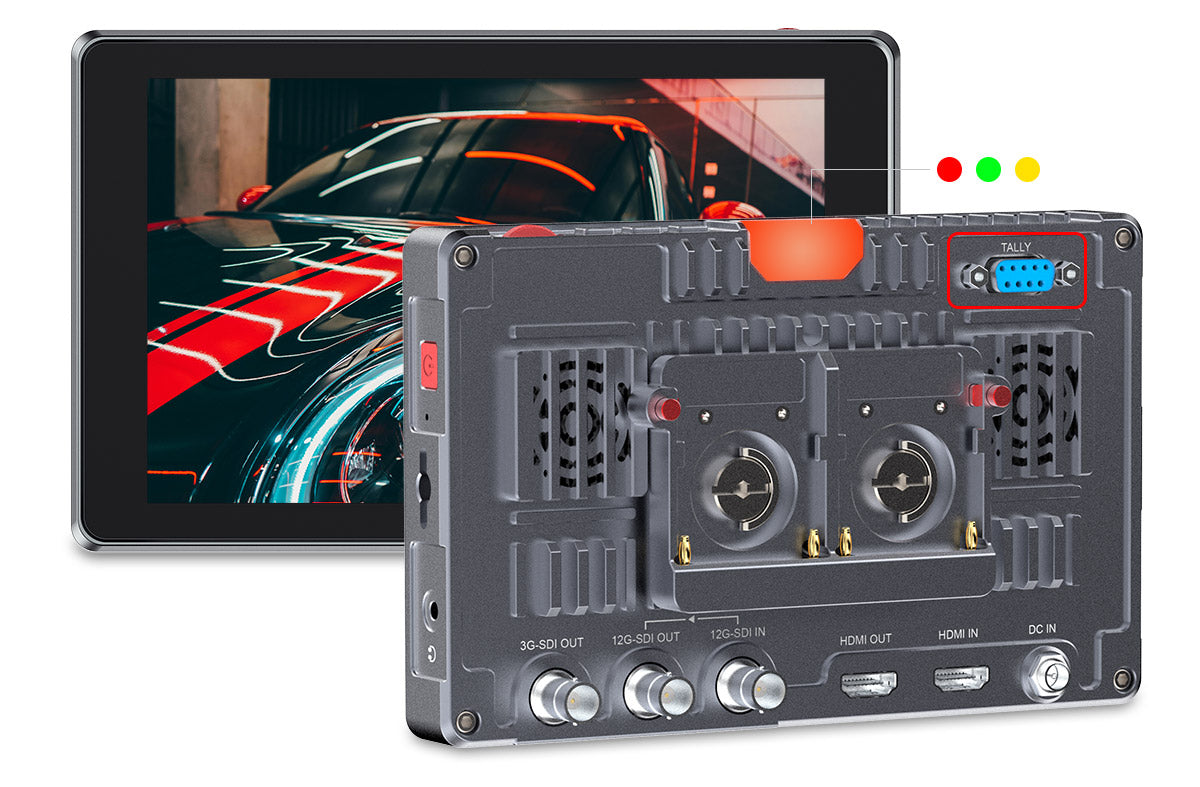

3-color TALLY Light, Enhance Team Cooperation

S7, including a tally light, can display in red, green, or yellow Tally signal. This means during live production, you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry-standard parallel pin connector on the rear panel.

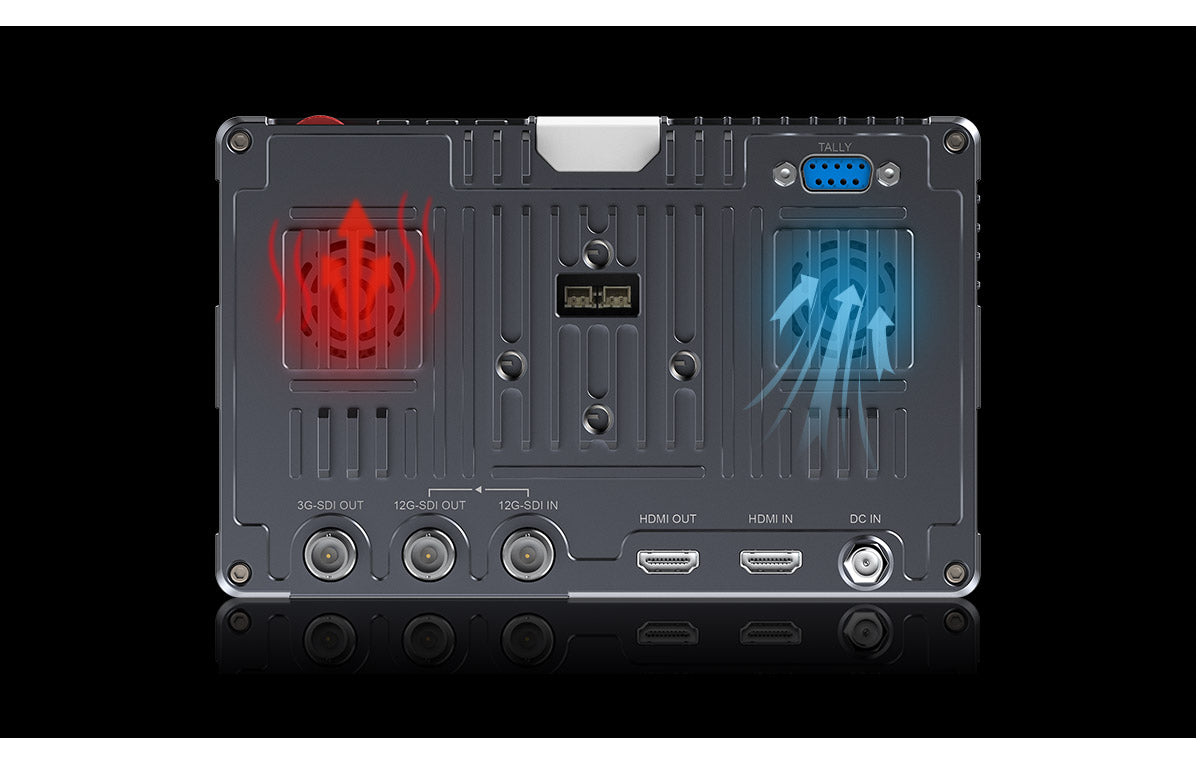

Built-in Cooler

Built-in cooler, don't worry, the monitor works for a long time.

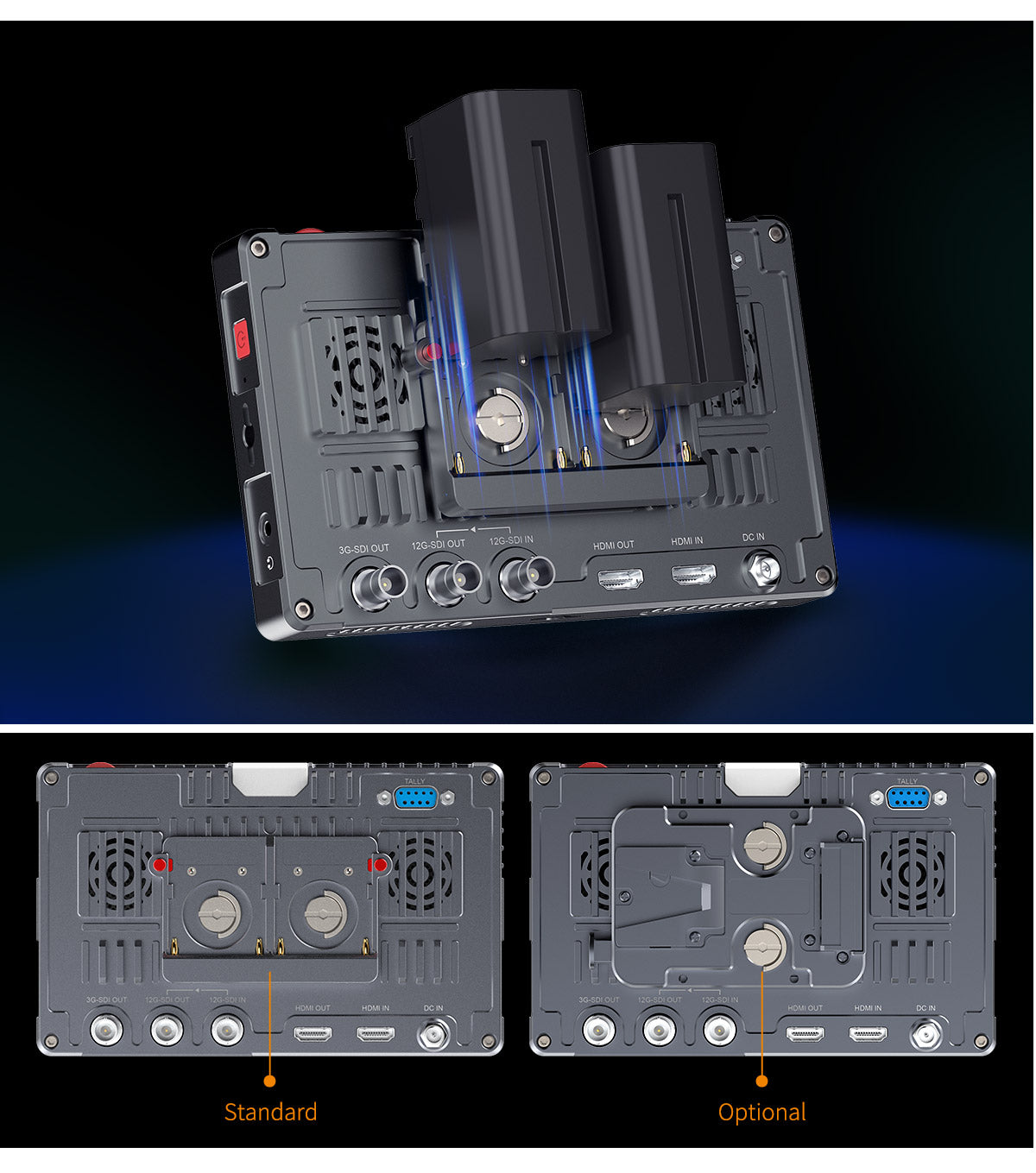

Flexible Power Supply, Long-lasting Power for Shooting

You can connect to the DC power input to get continuous power or use the standard F970 dual battery plate to install an NP-F series battery for mobile applications. An F970 battery (6600mAh) lasts for about 3 hours. The upper right corner of the monitor will display the battery level after the battery is installed. Two batteries are installed at the same time. When one is running low, you can quickly switch to the other one without worrying about losing power midway. The V-mount battery plate is optional.
Note: the battery is not included; please purchase it separately. Higher capacity (working time) will be longer

11 Languages Supporting

S7 built-in up to 11 languages, which means S7 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor is equipped with 3 standard 1/4” mounting threads (bottom, right side, left side). You can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographers or directors.

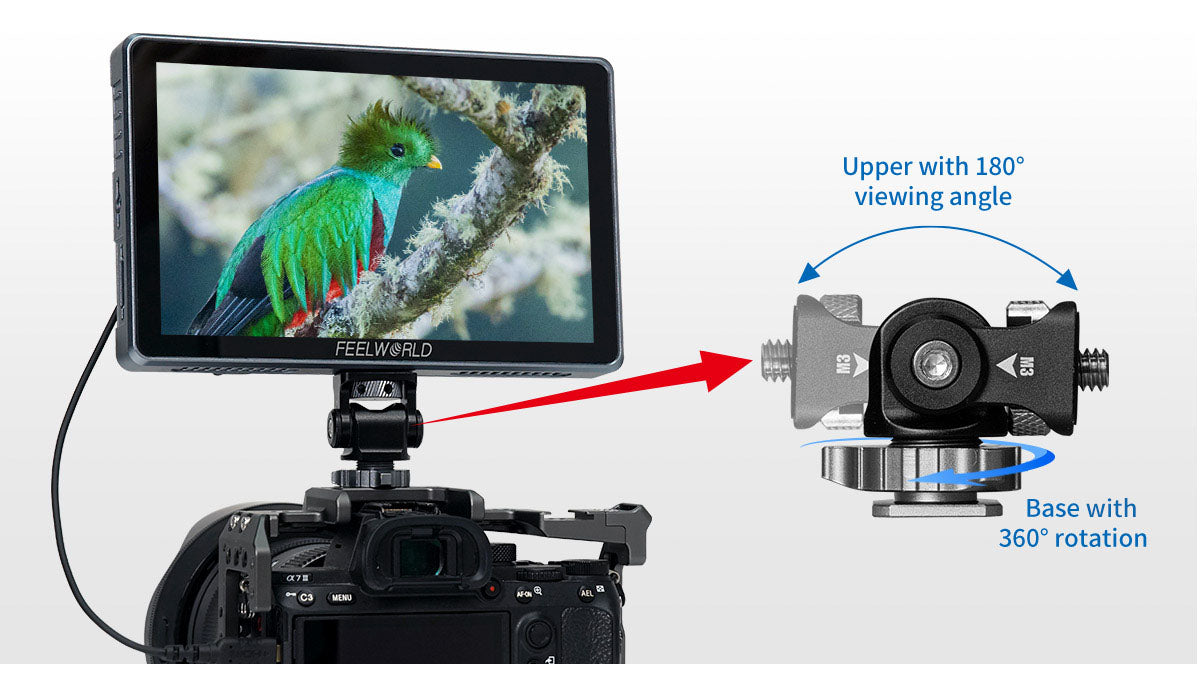

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with a 180° viewing angle and base with 360° rotation.

Product Comparison

Click to View S10

Specifications

Input

Output

Audio

12G-SDI Input and Output Support Format

3G-SDI Output Support Format

HDMI Input Support Format

HDMI Output Support Format

General

In The Box
