FEELWORLD SC6 6-inch 1500NIT High Brightness Aluminium Field Camera Video Monitor 3G SDI 4K HDMI 60Hz

Overview

Key Features

Bright & Clear | Rugged & Durable | Smooth Transmission

The FEELWORLD SC6 features a 6-inch full HD IPS panel, delivers exceptionally detailed and true-to-life image; 1500nits high brightness, daylight viewable; full aluminium alloy body, rugged and durable, coupled with multiple heat dissipation pathways, enhance the reliability of monitoring; the sensitive touch control and innovative knob button operation for optional, 4K 60Hz HDMI & 3G SDI transmission, flexible operation and seamless signal handling; built-in3D LUT, HDR, waveform and other professional functions, empower your creativity.

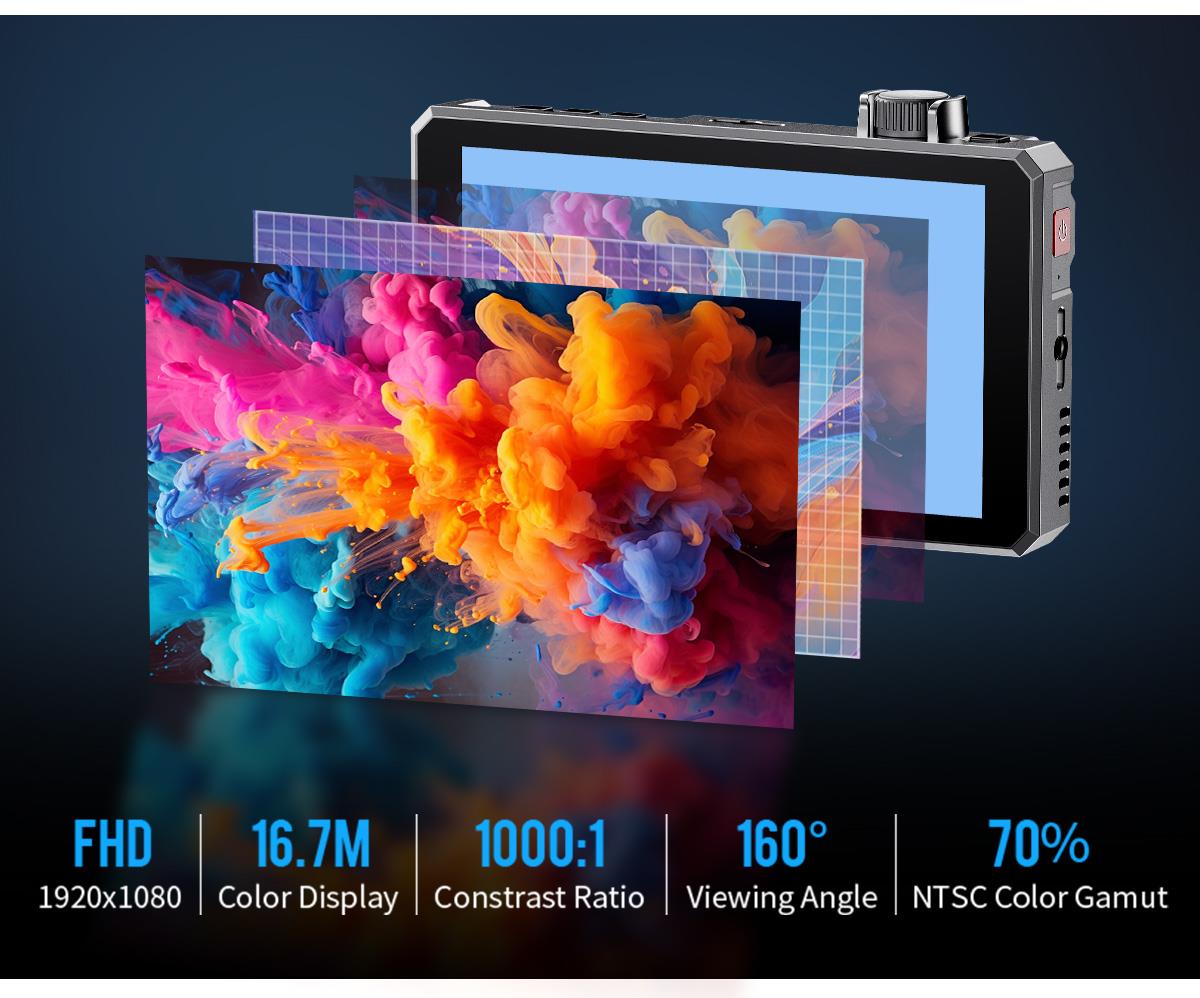

Vibrant Colors & Superior Performance

Featuring a 6-inch IPS LCD panel for exceptional color performance and a 160°viewing angle, delivering a superior visual experience.

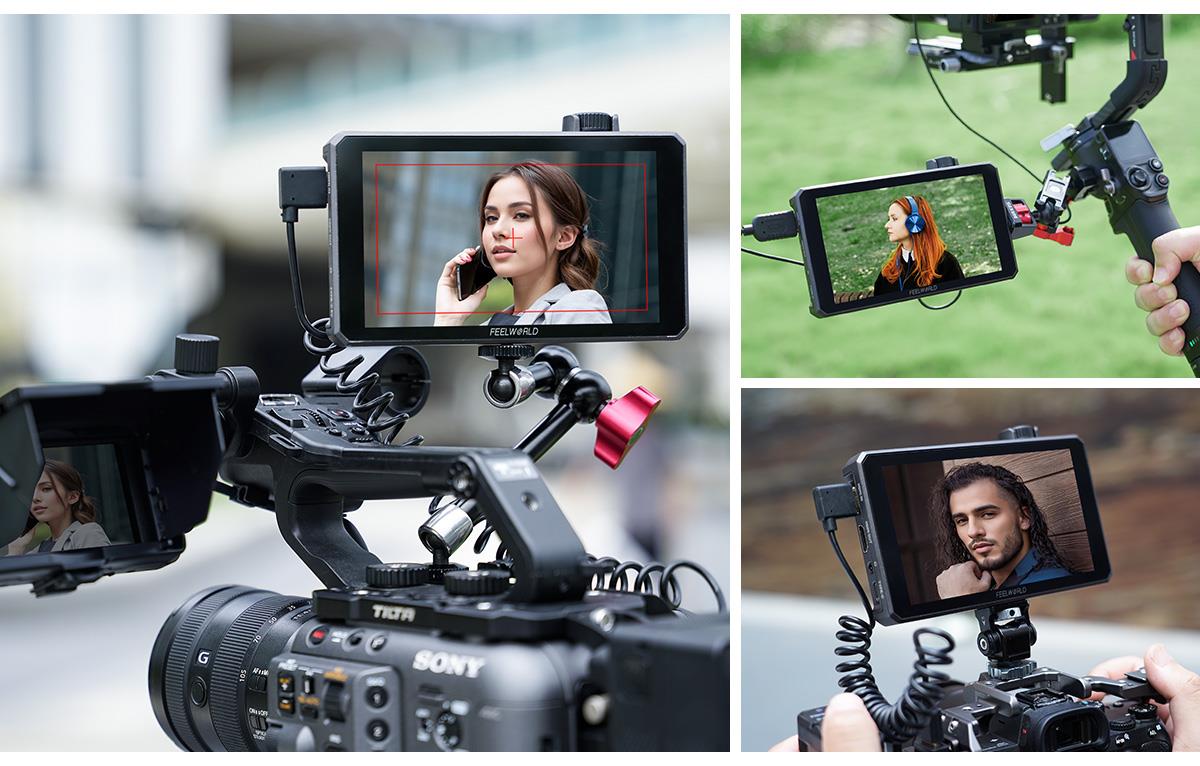

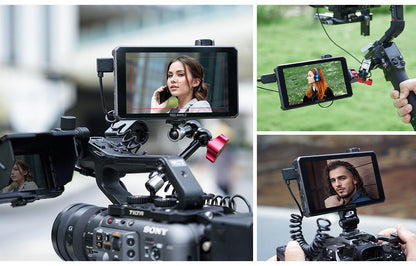

1500Nits High Brightness, Visible In Sunlight

High brightness 1500nit is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need.

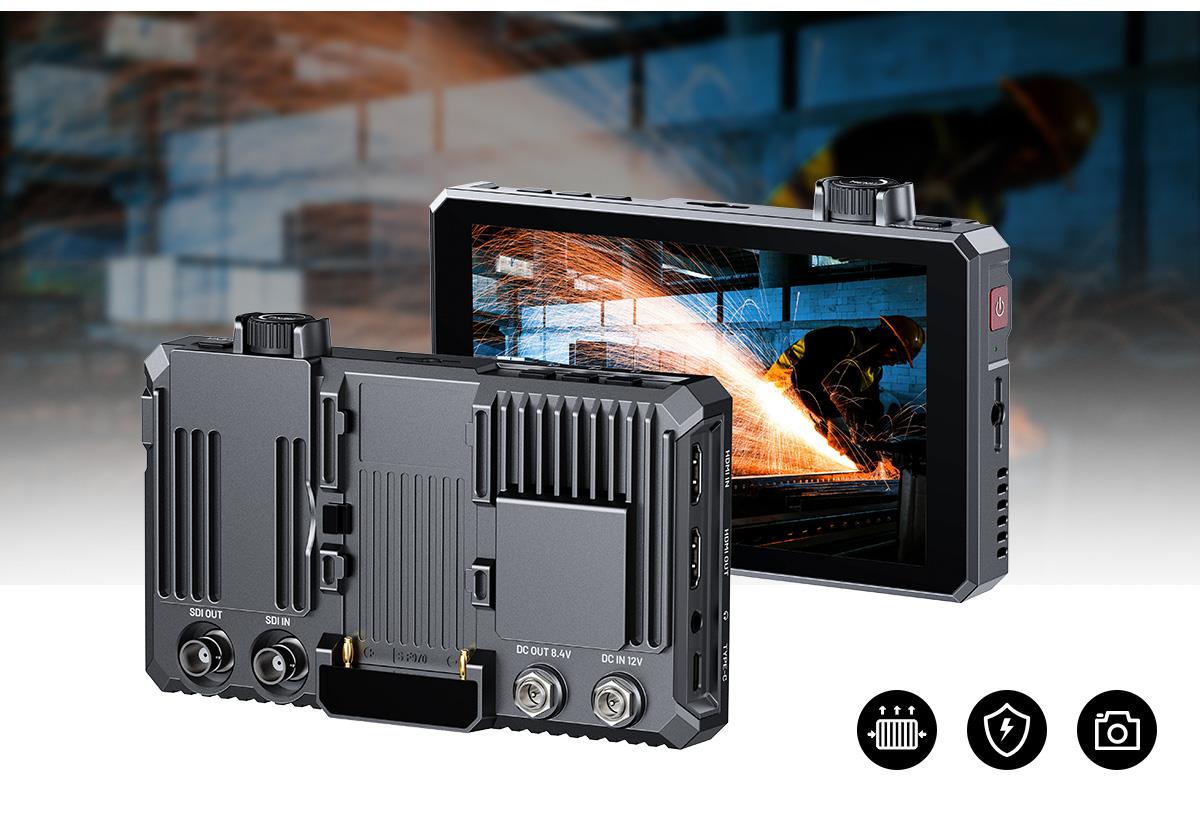

Rugged Aluminium Alloy Body

Adopts a rugged and highly thermally conductive aluminium alloy body, coupled with multiple heat dissipation pathways, significantly improving heat dissipation efficiency, suitable for various shooting environments.

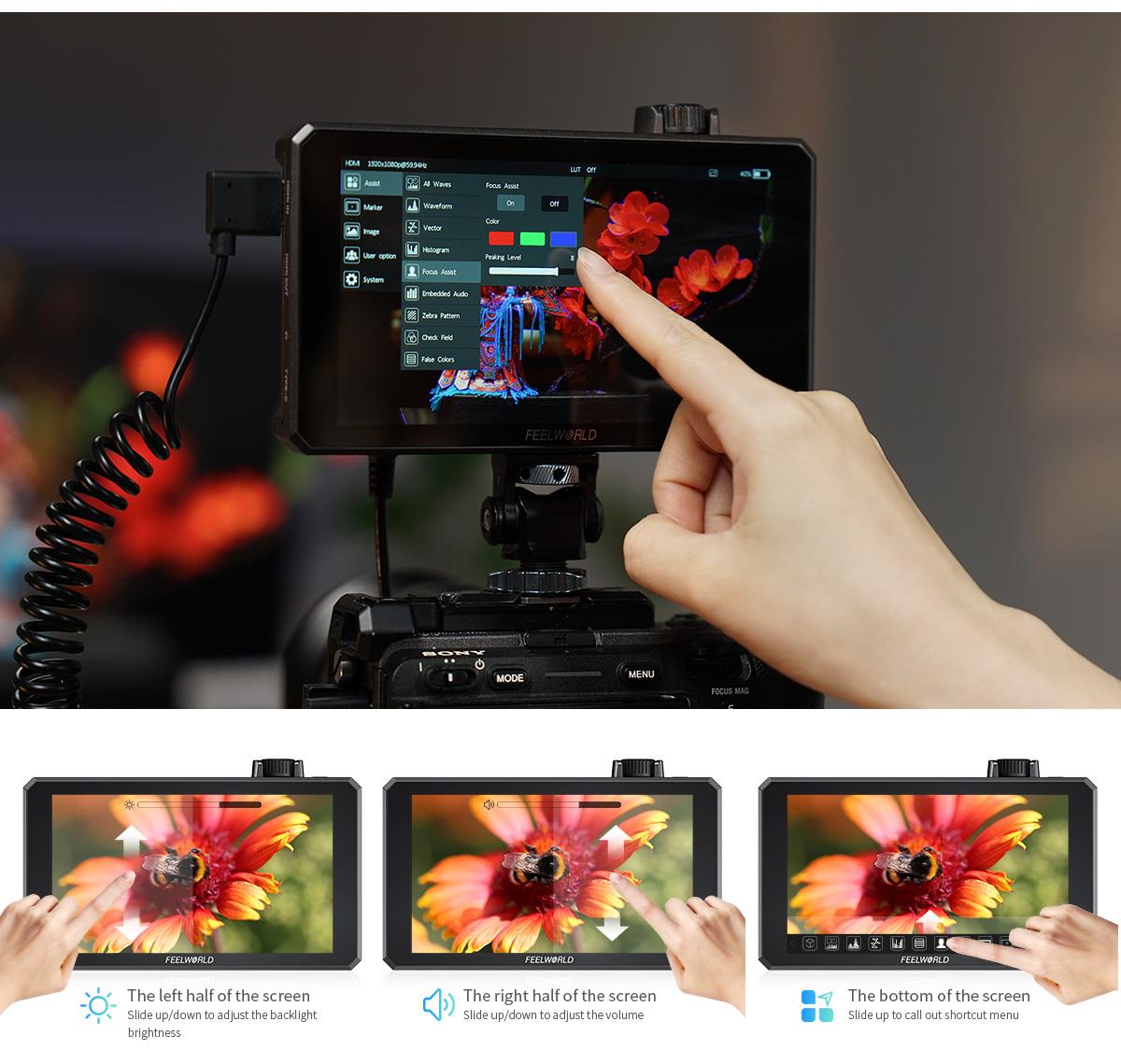

Intelligent Full Touch Control

The innovative touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Knob Key Control

SC6 also supports physical button control. Rotate/Press the knob for quick selection and function settings. All operations can be completed with a single hand.

Quick Access with Custom Buttons

SC6 provides three customizable shortcut keys that allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.

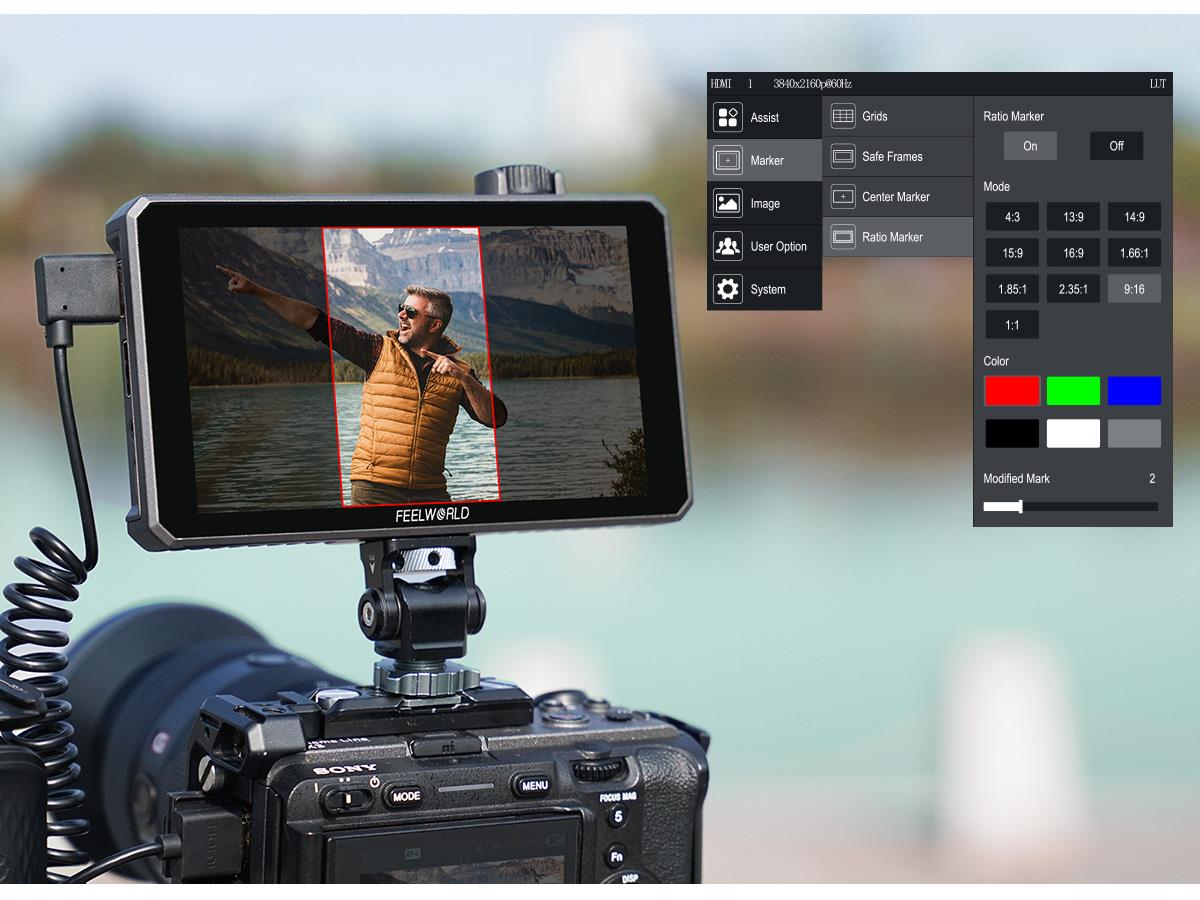

9:16 Vertical Screen Marker

SC6 has many kinds of ratio markers, especially the vertical screen marker 9:16. Perfect for vertical screen platforms such as TikTok, Instagram.

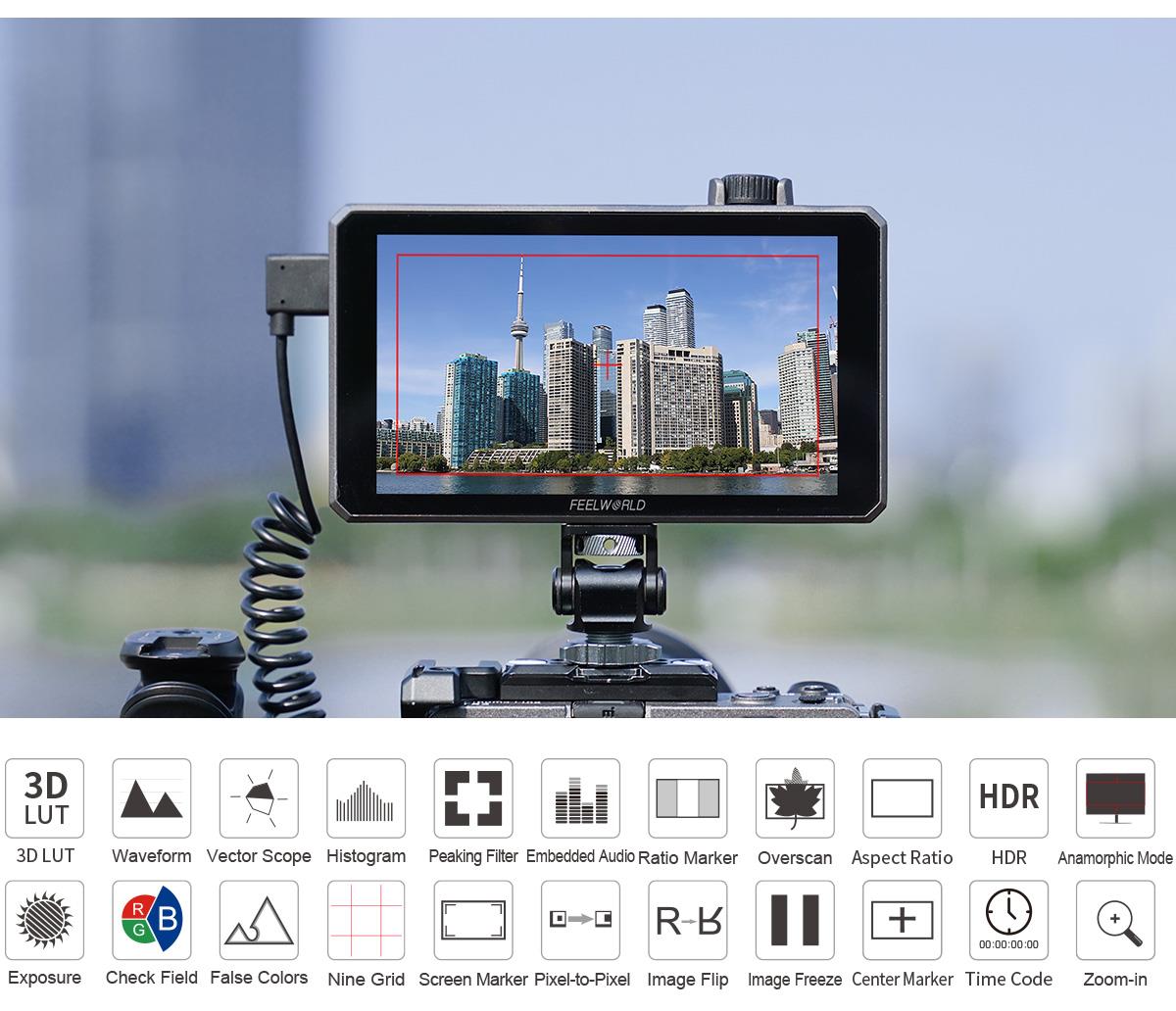

Rich Auxiliary Functions

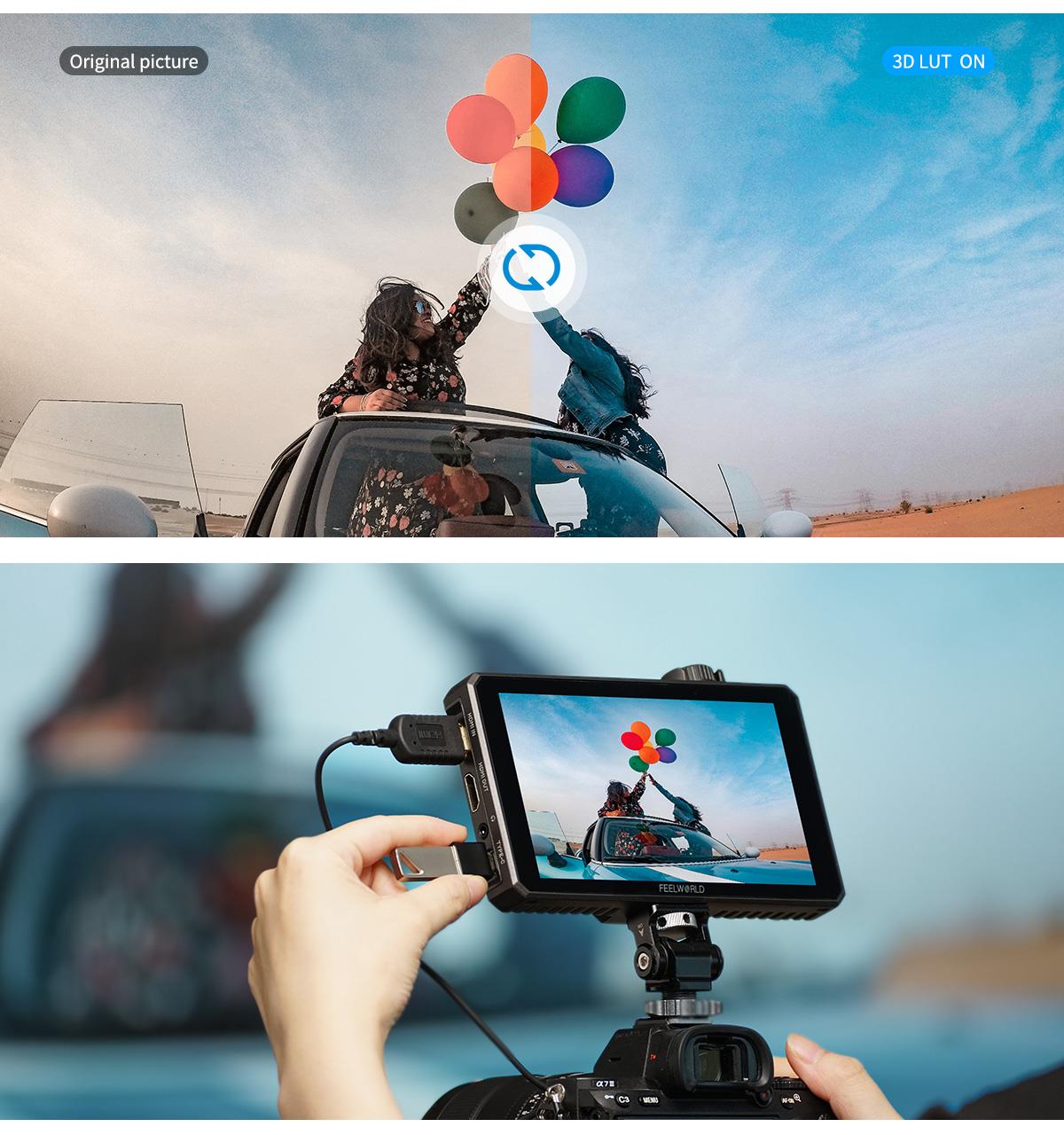

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via USB flash drive (up to 32). Insert the USB flash drive into the standard accessory USB to Type-C adapter, then connect to the Type-C interface of SC6.

HDR Monitoring

What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty, it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

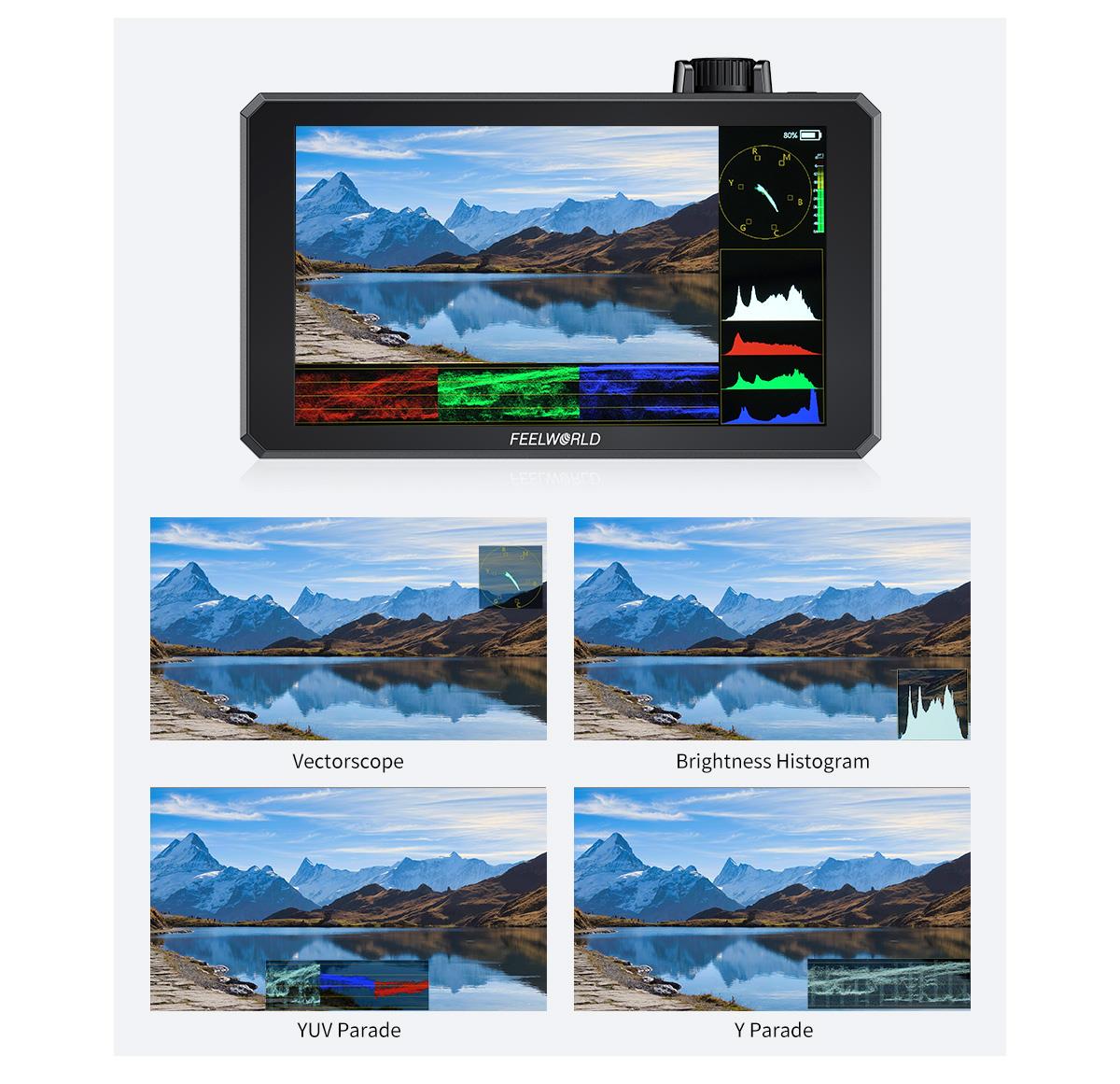

Accurate waveform monitoring

Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. SC6 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

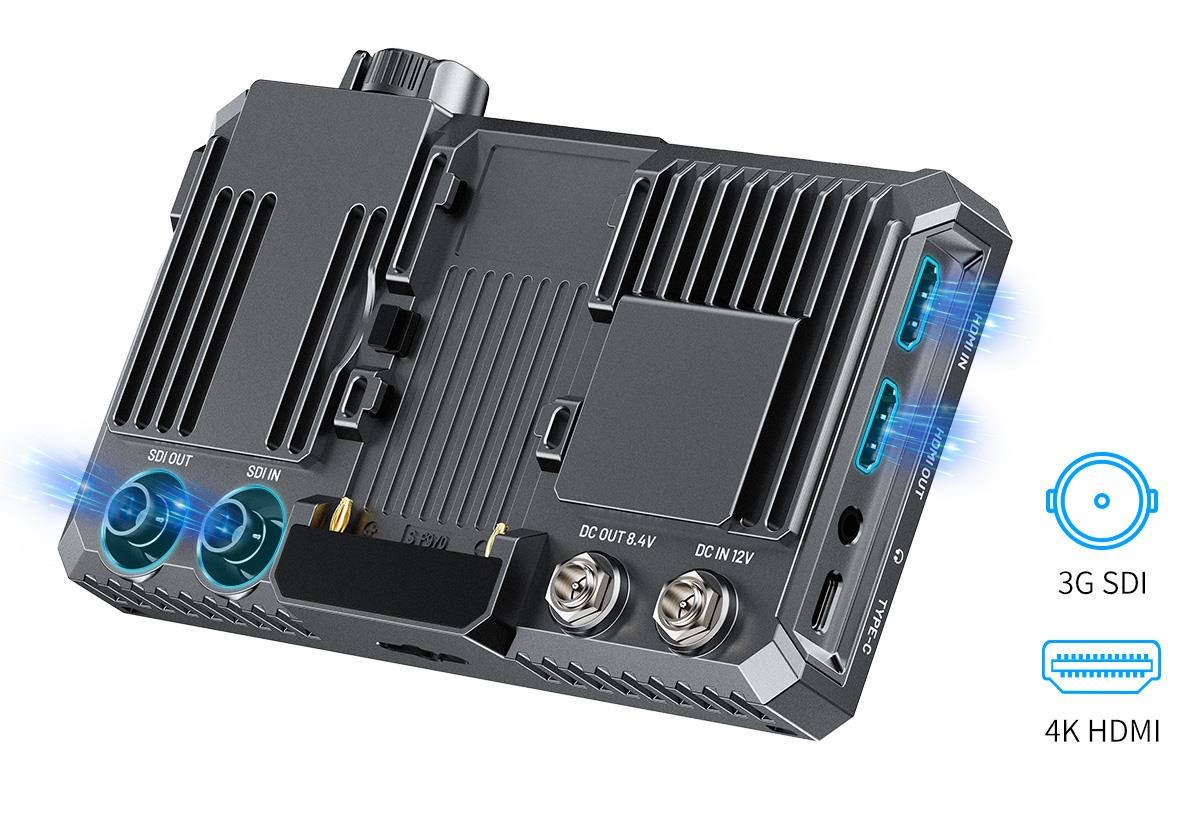

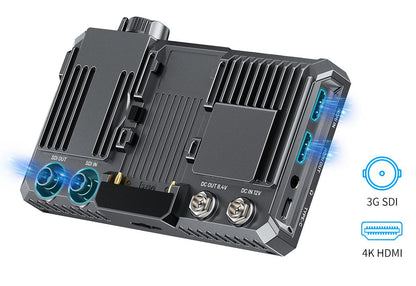

3G SDI & 4K HDMI Inputs and Outputs

Equipped with 3G SDI professional ports and 4K 60Hz signal input and output for high-speed transmission.Compatible with camcorders and the latest DSLR cameras on the market. And also provides a 3.5mm headphone jack to monitor audio.

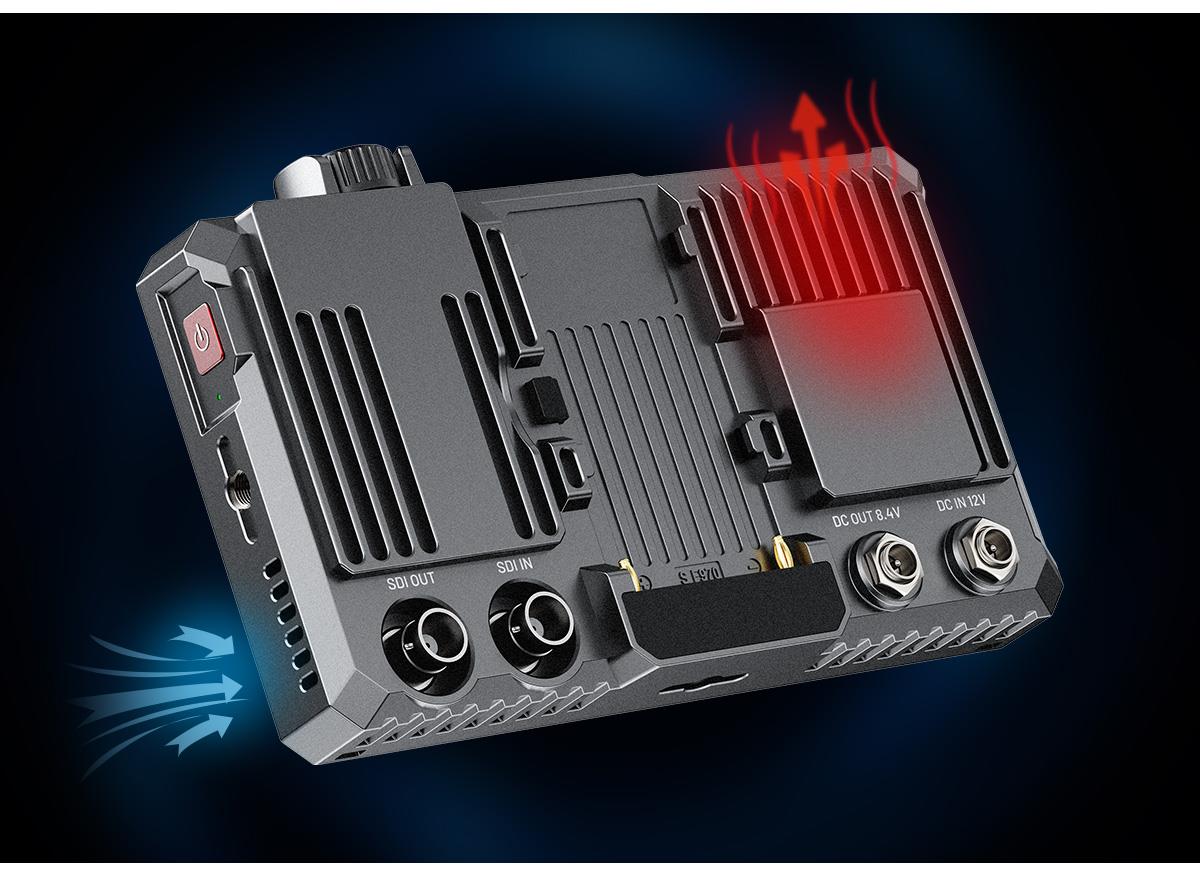

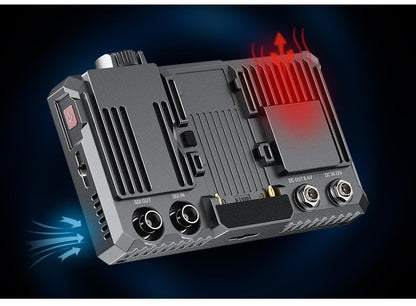

Efficient Cooling System

Built-in a cooling fan, you can adjust the fan speed from 1~5 based on the body temperature, default to 3, ensuring effective heat dissipation. In addition, you can turn off the fan when you need a no noise environment.

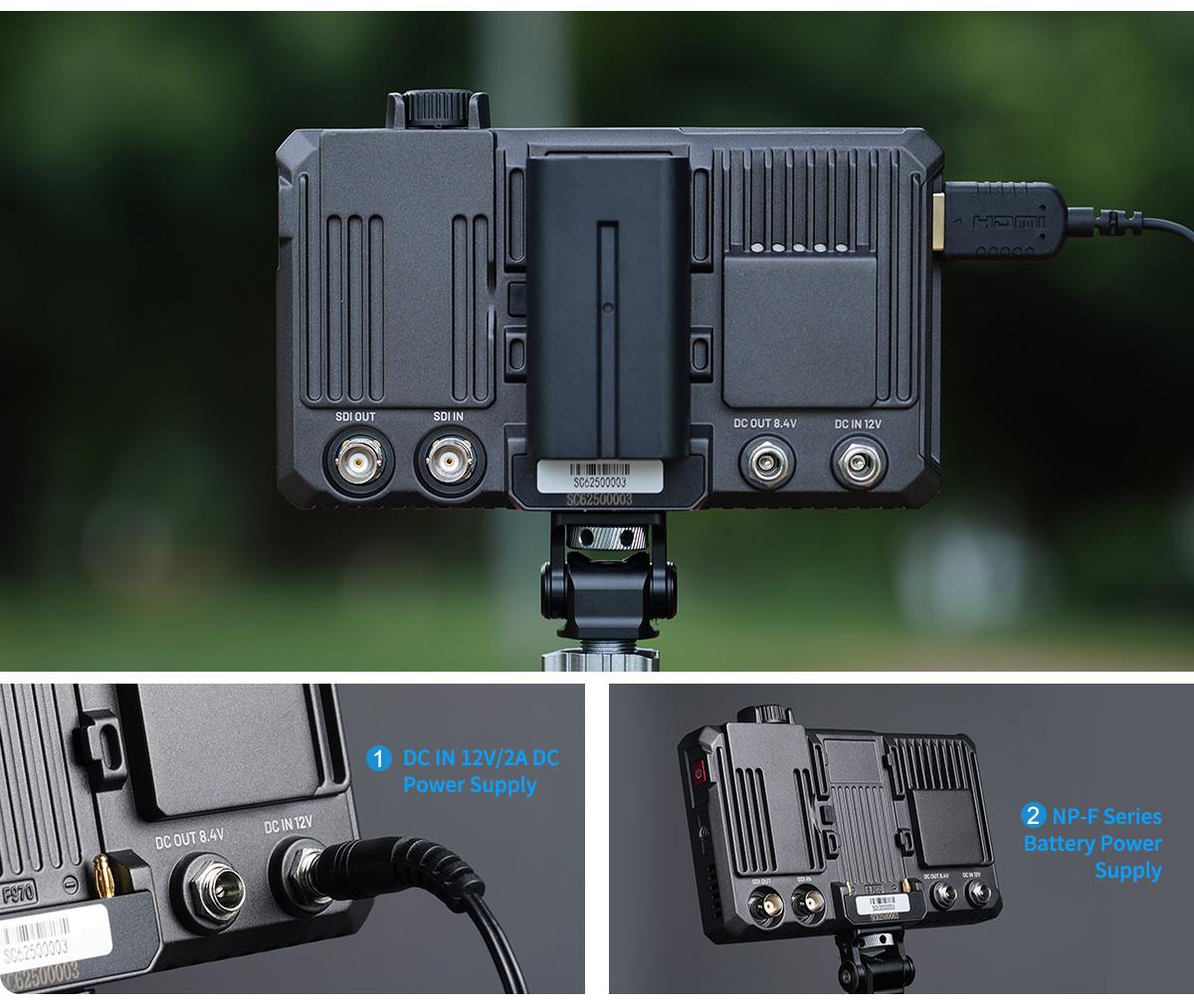

Flexible Power Supply Options

You can connect to DC power input to get continuous power （suitable for use 2A power adapter, DC 5.5*2.1mm power plug) or install an NP-F series battery in the NP-F battery slot for mobile application. Install one F970 battery (6600mAh) lasts for about 3 hours.
Note: 1. The battery is excluded; please purchase separately.
2.When using DC OUT 8.4V to power other device simultaneously, need to use 12V/4A power adapter at least.

NP-F Battery Optional Recommendation

The power consumption of SC6 PRO is 18W, suggesting choosing the higher capacity FEELWORLD NP-F970 battery to power it.

12 Languages Supporting

SC6 built-in up to 12 languages, which means SC6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

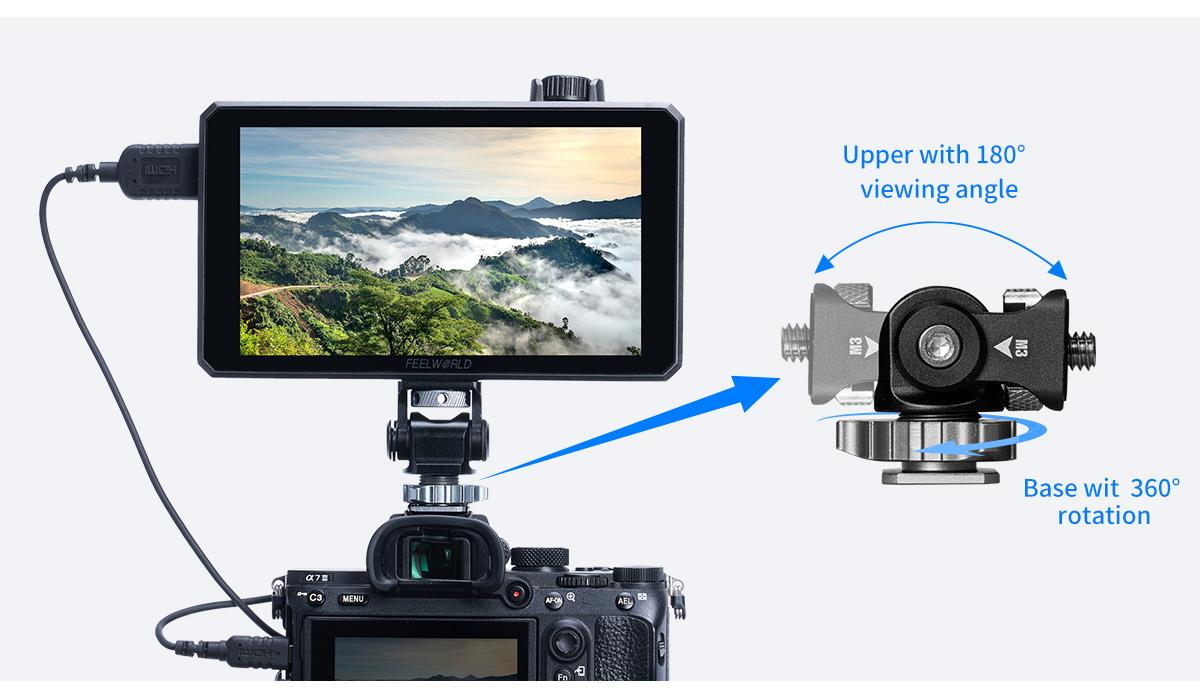

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

Removable Sun-hood

The standard removable sun hood can easily resist strong light and is easy to install.

HDMI Cable type reference for matching different camera modelsSpecifications

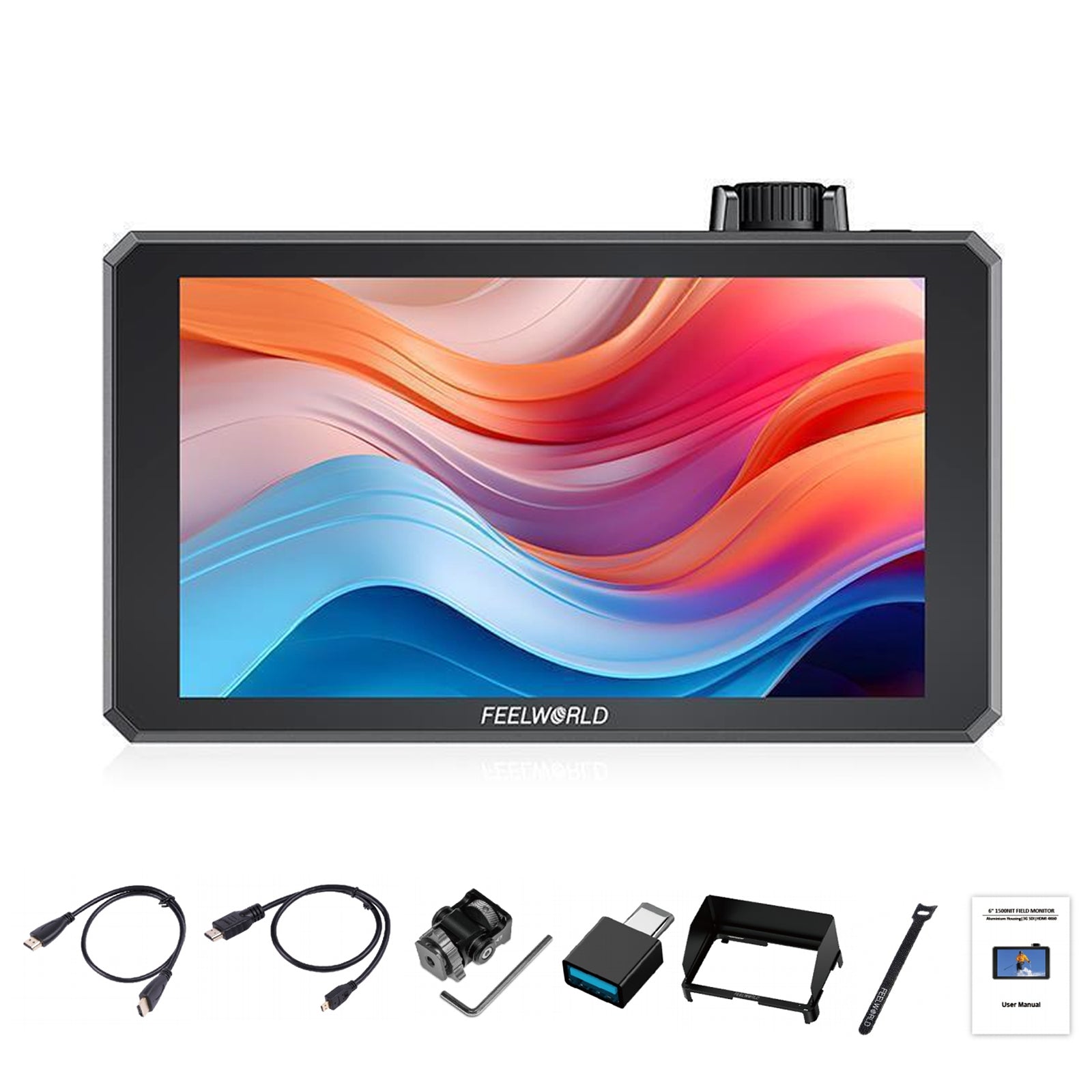

In The Box
