FEELWORLD & SEETEC

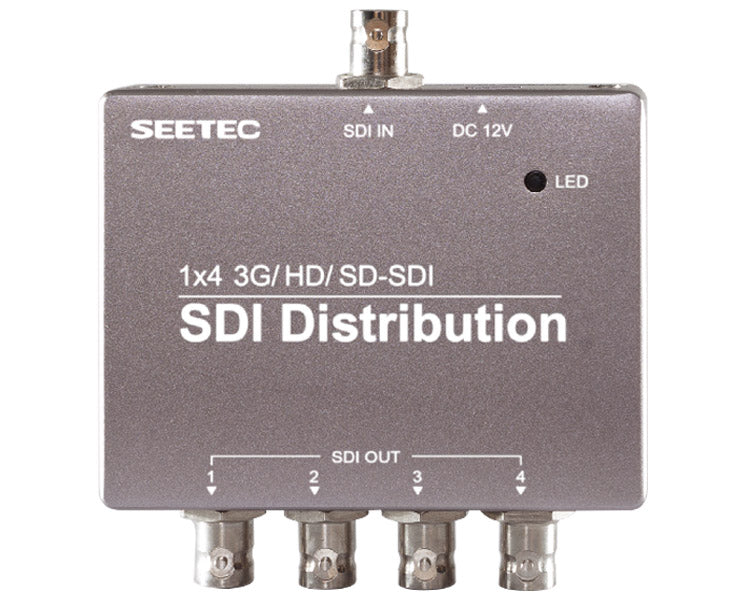

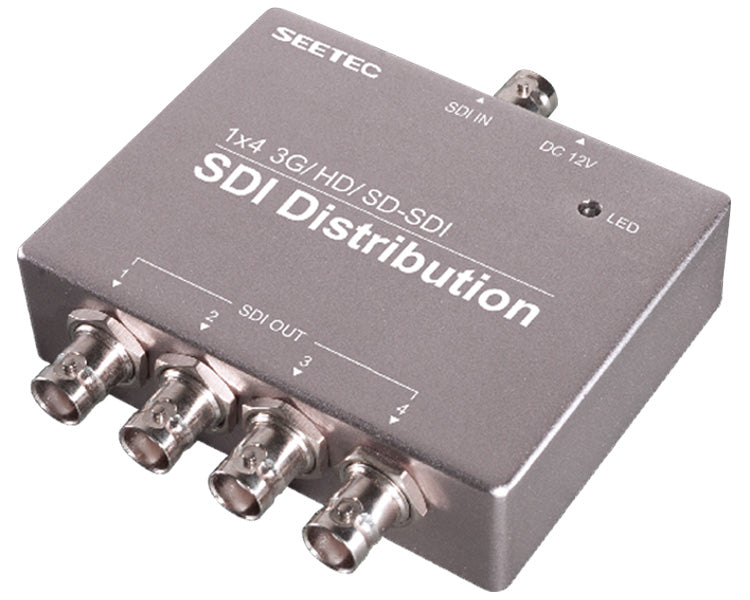

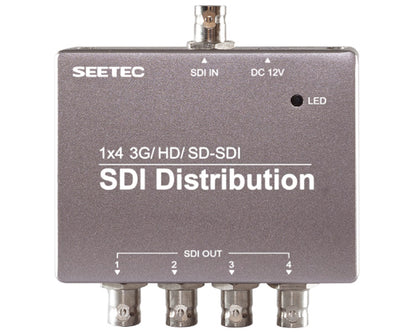

FeelWorld SEETEC 3G/ HD/ SD-SDI Distribution 1X4 SDI-124
FeelWorld SEETEC 3G/ HD/ SD-SDI Distribution 1X4 SDI-124
100 in stock
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Overview
SDI Distribution 1 To 4
Support 1080p High Definition
Easy Control No Need Set Up
SDI Distribution 1 To 4
Input: 1 x SDI
Output: 4 X SDI
Use Anywhere
Pocket Size Broadcast Quality SDI Distribution!
SEETEC mini SDI Distribution is so small you can use them anywhere! Whether you’re carrying one in your laptop bag or in your outside broadcast van and road cases, they're professional, broadcast quality SDI Distribution that can be easily hidden so the audience never sees them. They're perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!
Enjoy Perfect Visual Experience
High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.
Full Size Connections
Works with the cables you already have!
Even though they're incredibly small, SEETEC SDI distribution feature full size 3G-SDI connections! The SDI connections are multi-rate, making them compatible with SD-SDI, HD-SDI and 3G-SDI equipment. SDI-124 SDI distribution also includes an SDI input loop through connection and four 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more!
Simple, Compact and Rugged
Built for any environment!
SEETEC SDI distribution are designed to be used anywhere, machined out of a solid block of aircraft grade aluminum! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
Application
Specifications
Model
| SDI-124 (SDI Distribution 1 x 4) |
Input
| 1 X BNC | 3G/HD/SD-SDI |
Output
| 4 X BNC | 3G/HD/SD-SDI |
SDI Support Format
| 1080P(60/59.94/50/30/29.97/25/24) |
| 1080I(60/59.94/50) |
| 1080PsF24 |
| 720P(60/59.94/50/30/25/24) |
| 576I(50), 480I(60) |
SDI Standard
| Complies with SMPTE 259M (SD-SDI), SMPTE 292M (HD-SDI), SMPTE 424M (3G-SDI) |
General
| Power Consumption | ≤1.5W |
| Input Voltage | DC 5～12V |
| Connector | DC 12V |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -10°C~60°C |
| Unit Size (mm) | 90L×70.82H×25D (mm) |
| Unit Weight | 260g |
In The Box
Standard Accessories:
1× Product
1× Operation Manual
