FEELWORLD SH7 7 Inch Ultra Bright 2200nit On-camera Monitor SDI HDMI Cross Conversion Time Code

Overview

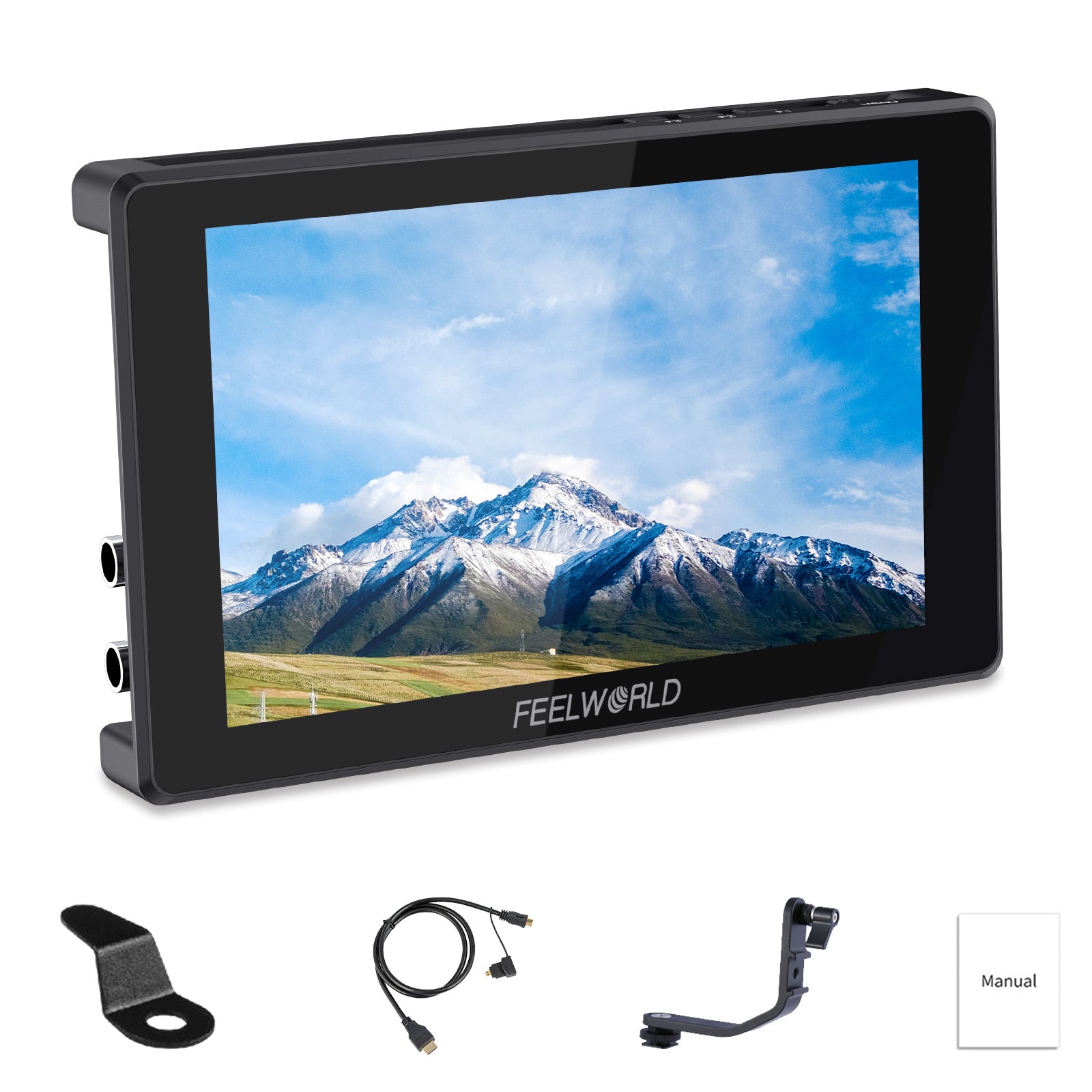

Add a versatile and ultrabright monitor to your studio or on-location production kit with the SH7 7" On-Camera Monitor. The daylight-viewable 1920 x 1200 Full HD IPS screen features a peak brightness of 2200 cd/m² and touchscreen menu operation. Easily convert an HDMI signal to SDI and vice versa via the HDMI and SDI inputs and outputs, and add a LUT to your image for real-time monitoring on the go. The monitor may be powered using an optional power supply with a barrel connector or with separately available L-series batteries for enhanced mobility.

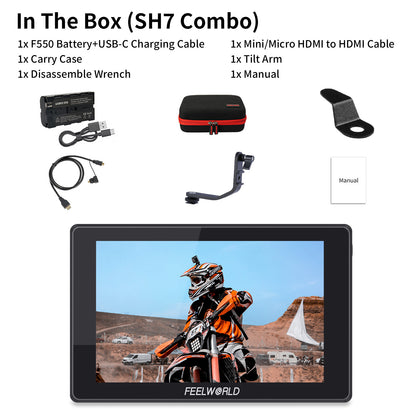

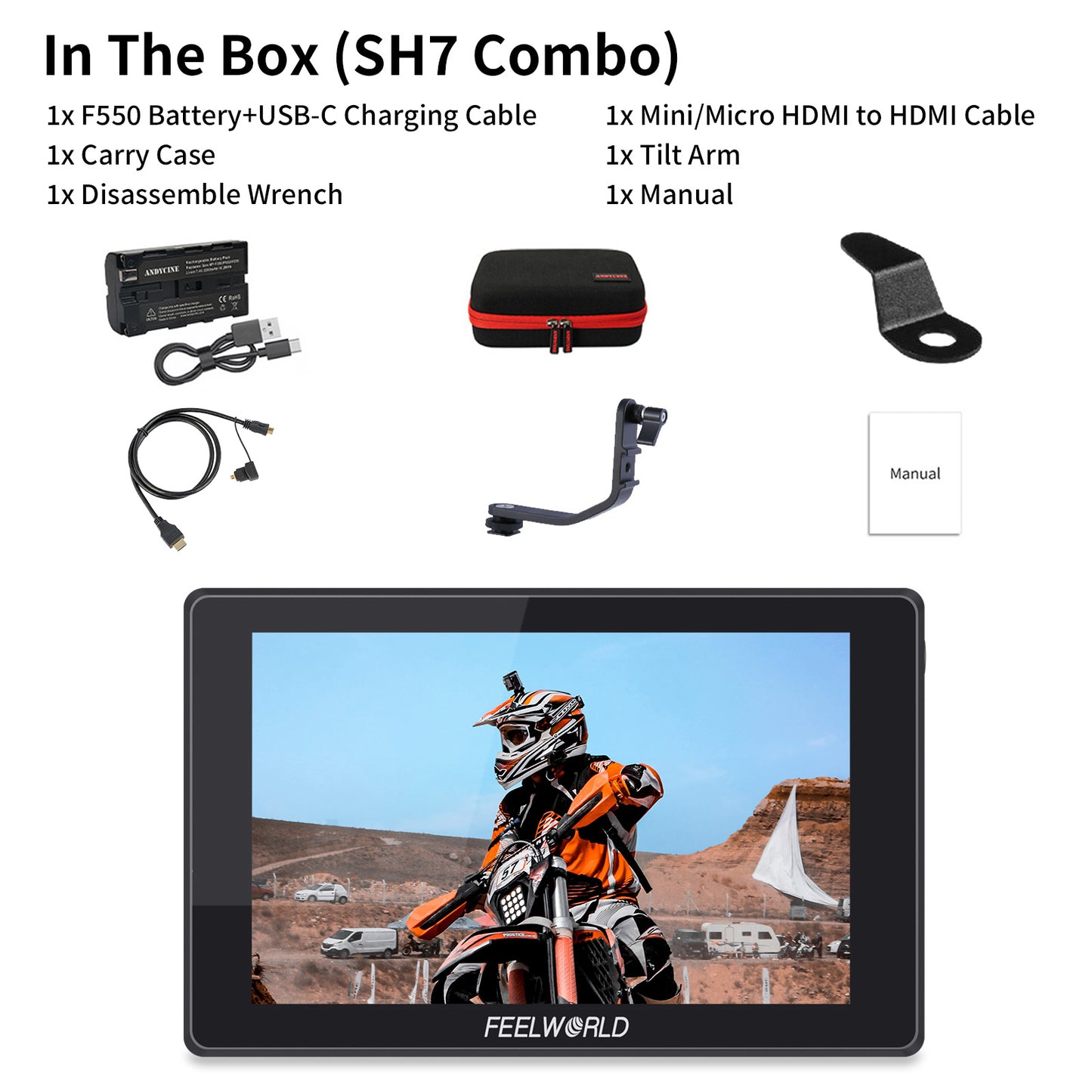

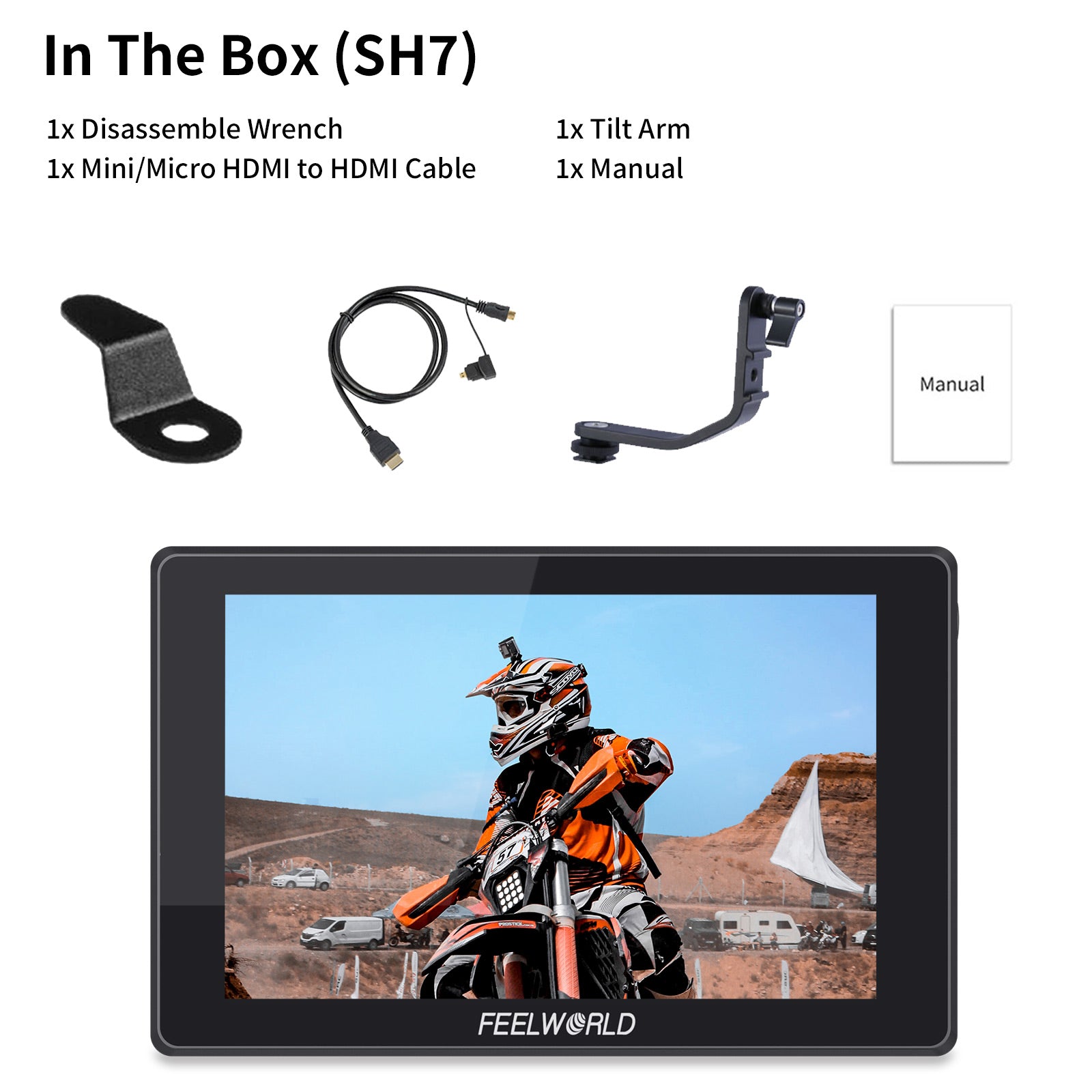

Ideal for directors, focus pullers, and video switching operators, the SH7 is packed with useful on-set functions such as waveform, vectorscope, audio meter monitoring, horizontal and vertical image flip, center and safety markers, and full support for HDR monitoring and 3D LUTs. The unit comes with a Mini/Micro-HDMI to HDMI cable, a tilt arm, and a handy wrench.

Key Features

• 7" 1920 x 1200 Full HD IPS Screen
• Touchscreen Menu Operation
• 2200 cd/m² Brightness, Daylight Viewable
• SDI & HDMI Cross Conversion
• HDR Monitoring & 3D LUT Support
• Waveform & Vectorscope Functions
• Audio Meter Monitoring
• Horizontal & Vertical Image Flip
• Center & Safety Markers
• Tilt Arm Included
• Time Code

SDI Timecode Supporting

SH7 supports time code display under the SDI signal, which is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.

HDMI and SDI Cross Conversion, Easy to Handle Various Applications

SH7 built-in signal cross conversion allows you to convert an HDMI signal to an SDI signal or an SDI signal to an HDMI signal. You can easily convert signals and don't need the additional converters. It can be used for various broadcasting and live production.

Bright. Professional. Beautiful

Do you want to create freely in the brightest environment and share your creation on-set? FEELWORLD SH7 with peak brightness of 2200nit, which can be used in the brightest of environments, and features a series of powerful functions. You can easily convert SDI signal input to HDMI output, or you can convert HDMI input to SDI output; you can also output the HD video or image with LUT effect to the director for real-time monitoring in the field; by using the F970 external kit on the rear of the monitor, wireless transmission and other devices can be installed to reduce on-site wiring worries. An ideal director’s monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to the camera.

7-inch Full HD Screen
Viewing clearly and capturing every detail with confidence

With an extremely high resolution 7-inch IPS panel, 16.7M(8-bit) colors, it provides excellent details and rich color.

Multiple Color Gamut: Meet the Different Needs of Photographers

The monitor supports REC709, DCIP3, BT2020 multiple color gamut, presenting rich color, and meets the different needs of photographers for color gamut.

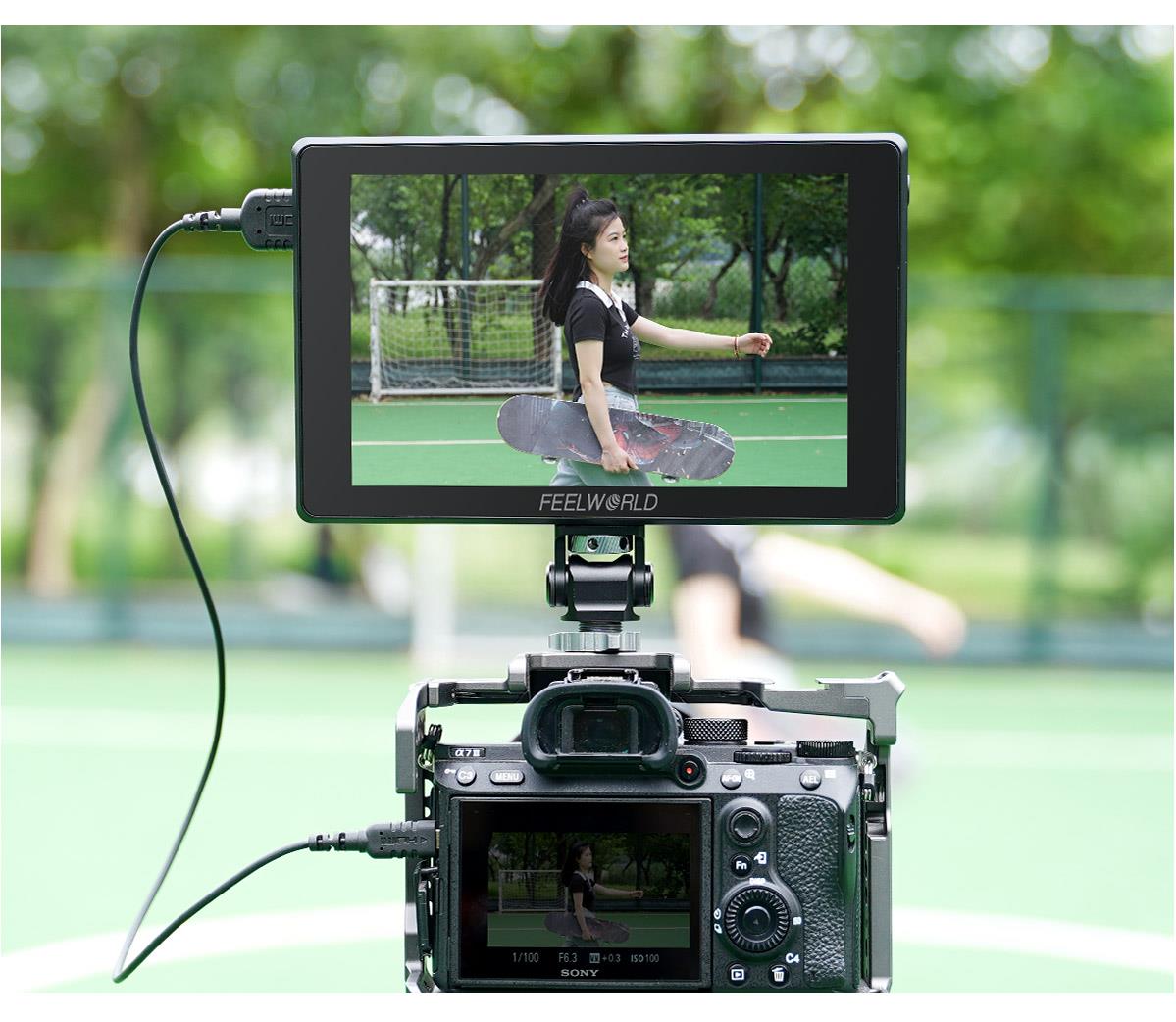

Ultra Bright 2200nits, Daylight Viewable
Ideal for outdoor shooting

The ultra-high brightness makes shooting outdoors in bright sunlight a breeze.

Light Sensor for Auto Dimming

Built with an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.

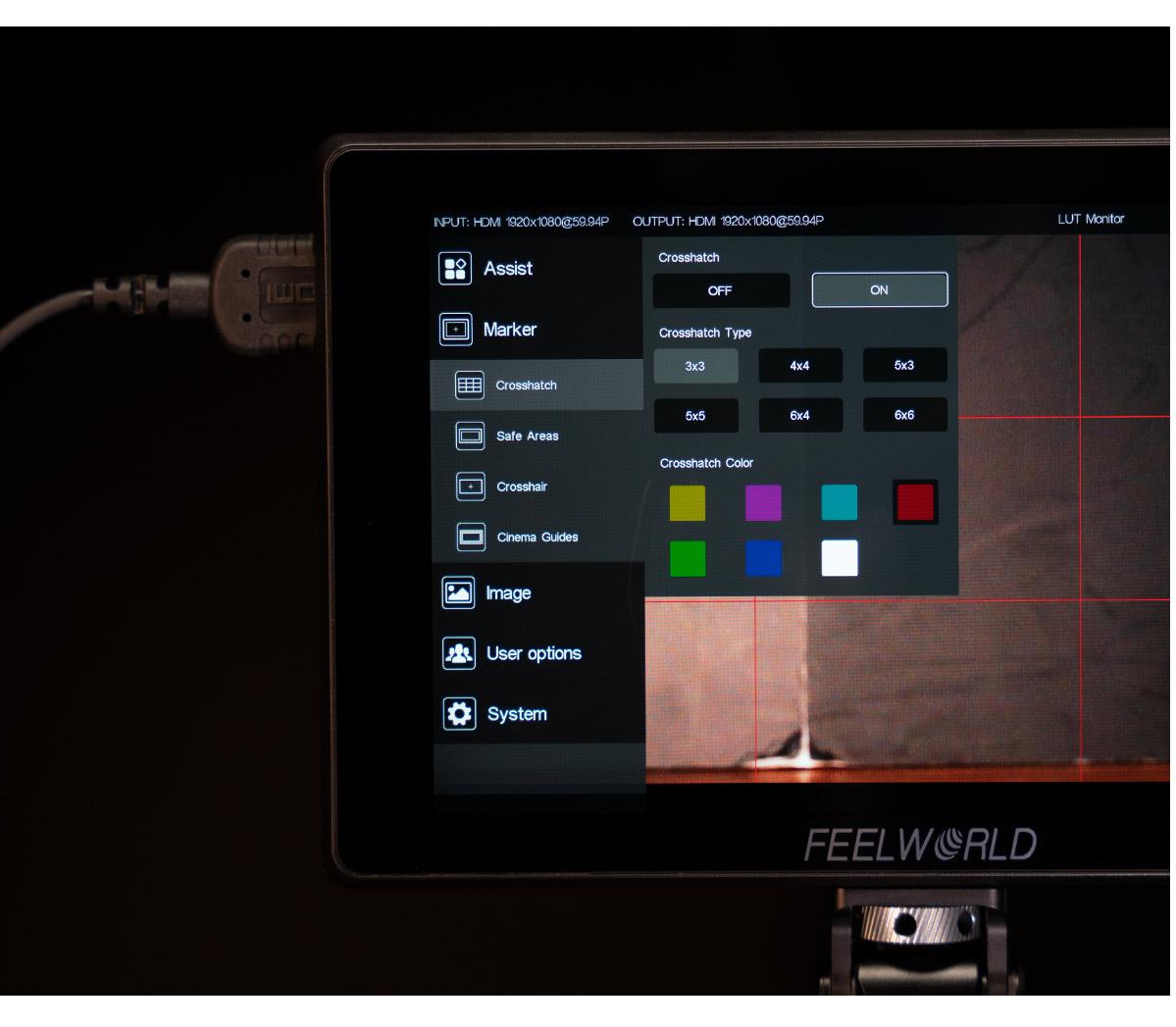

New UI Menu, More Intuitive and Intelligent

Adopts new UI menu, takes the software functions are iconizes them, making it is more convenient and quicker to operate the functions.

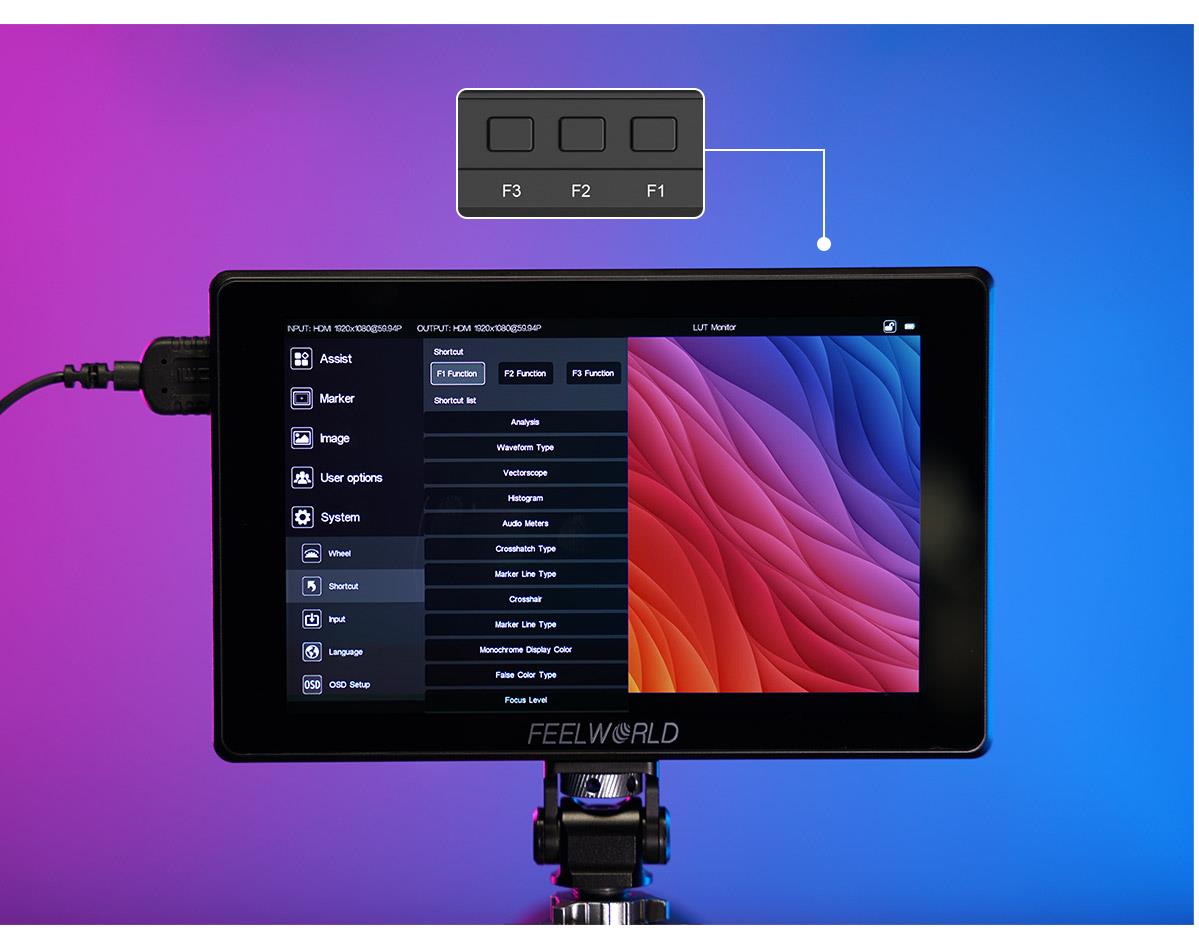

Custom Shortcut Keys

On top of SH7 comes with three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via the scroll wheel key.

Professional Auxiliary Tools Help You Focus and Exposure Accurately

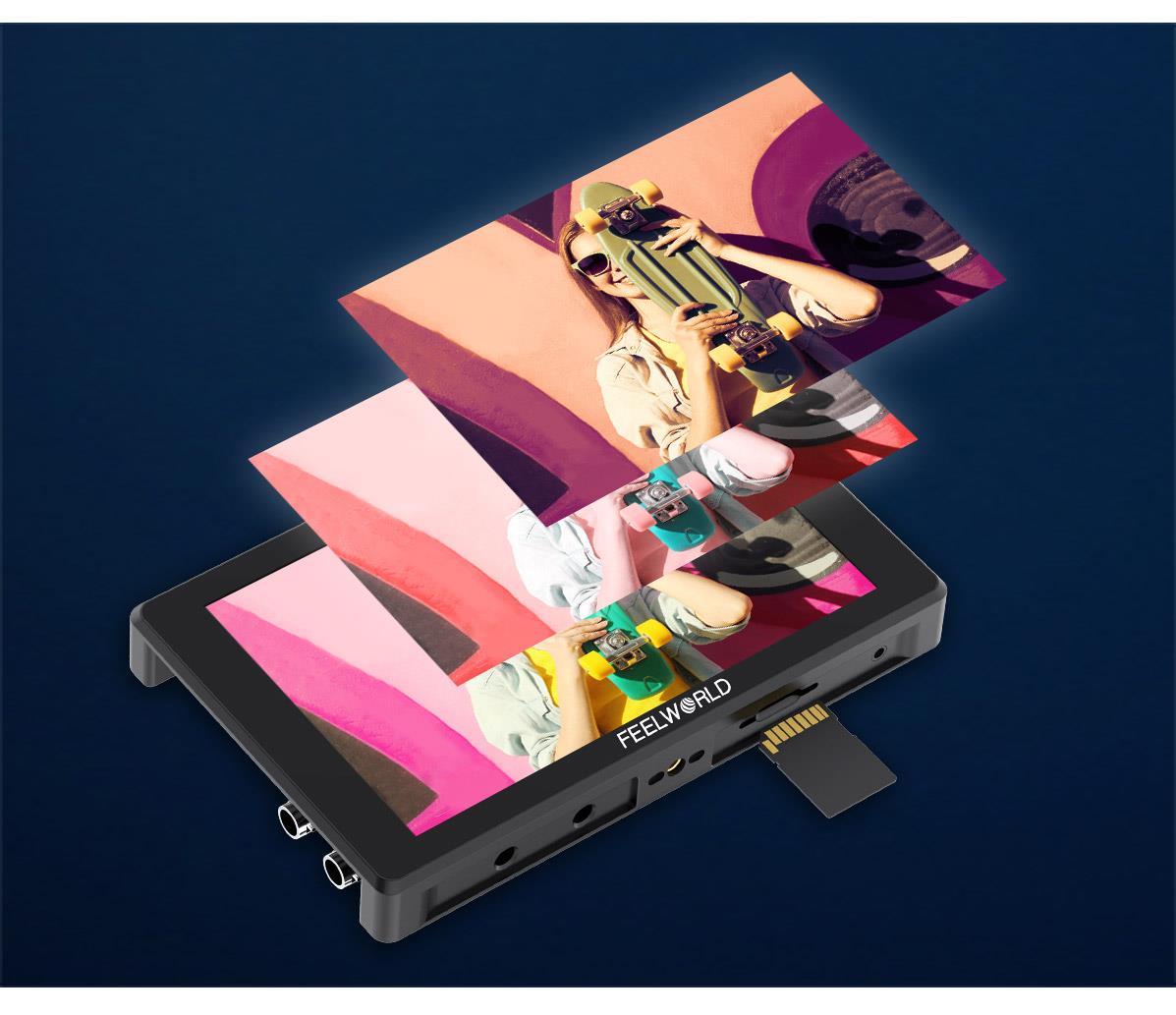

Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Support to load 50 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow, and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. SH7 allows you to load internally up to 50 custom LUTs, looks, or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

3D LUT Loop-out

HDMI/SDI can output the video or image with a 3D LUT effect. When you are live streaming, you can connect the SH7 output as a live broadcast image to add a cinematic; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.

HDR Monitoring

What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most, while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the cameras Sony, Canon, Panasonic, Fujifilm, Bolex, RED, and ARRI.

Accurate waveform monitoring
Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. SH7 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

SDI and HDMI Input and Output
Compatible with movie cameras, DSLR cameras

SDI is perfect for the movie cameras, and HDMI is easy to connect with a DSLR or mirrorless camera. Connect to an external display via the output port, allowing the director and photographer to monitor synchronously. And provides a 3.5mm headphone jack to monitor audio.
Note: The HDMI output resolution of the camera needs to support 1920x1080 or Auto mode.

Built-in Cooler

Built-in cooler, don't worry, the monitor works for a long time.

Innovative External Install and Power Design
Simplify your photography equipment

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter, and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need for power for external wireless transmission, LED light, and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.

DC Power Input and Output

The SH7 is not only equipped with DC IN 12V (suitable for use 12/1.5A adapter), but also provides auxiliary power out (DC OUT 8V), allowing shooters to power their cameras. With a battery adapter cable (Optional), the SH7 extends camera run-time while providing a more usable display.

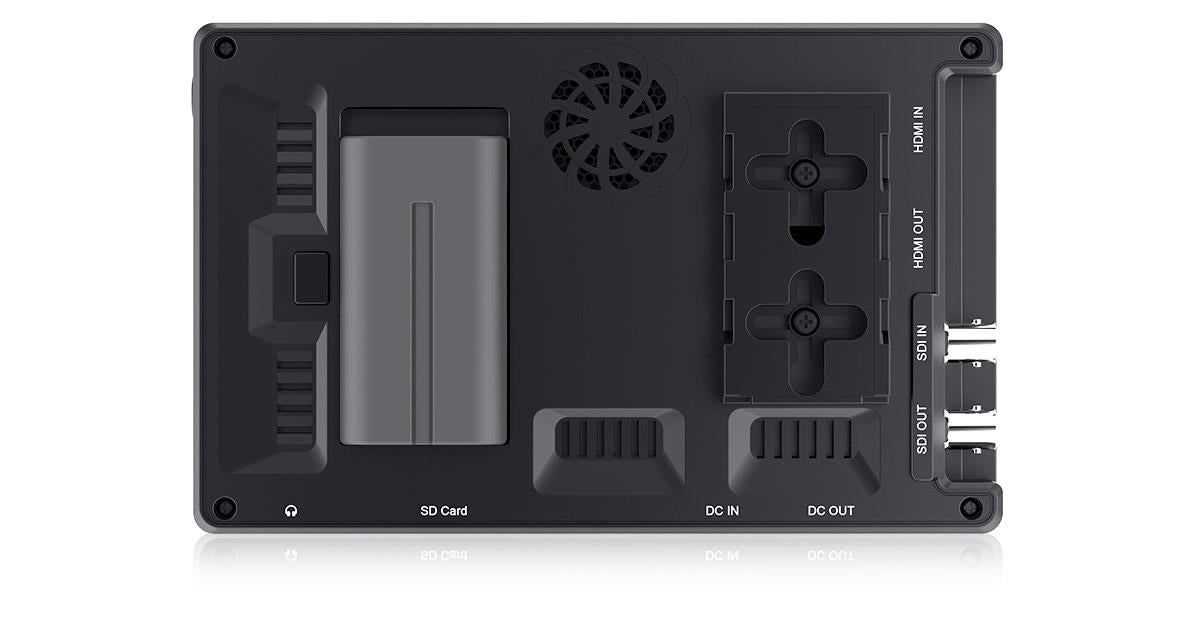

NP-F Battery Plate, Long-lasting Power for Outdoor Shooting

Long-lasting power for outdoor shooting
The rear of the monitor of SH7 has a battery plate, which can install a standard NP-F battery, not need power for your bright screen when shooting. Install one F970 battery (6600mAh) lasts for about 3 hours.
● Compatible Sony NP-F Battery: F970, F960, F950, F930, F770, F750, F730, F570, F550, F530 series (Note: the battery is not included, please purchase separately. Higher capability (working time) will be longer)

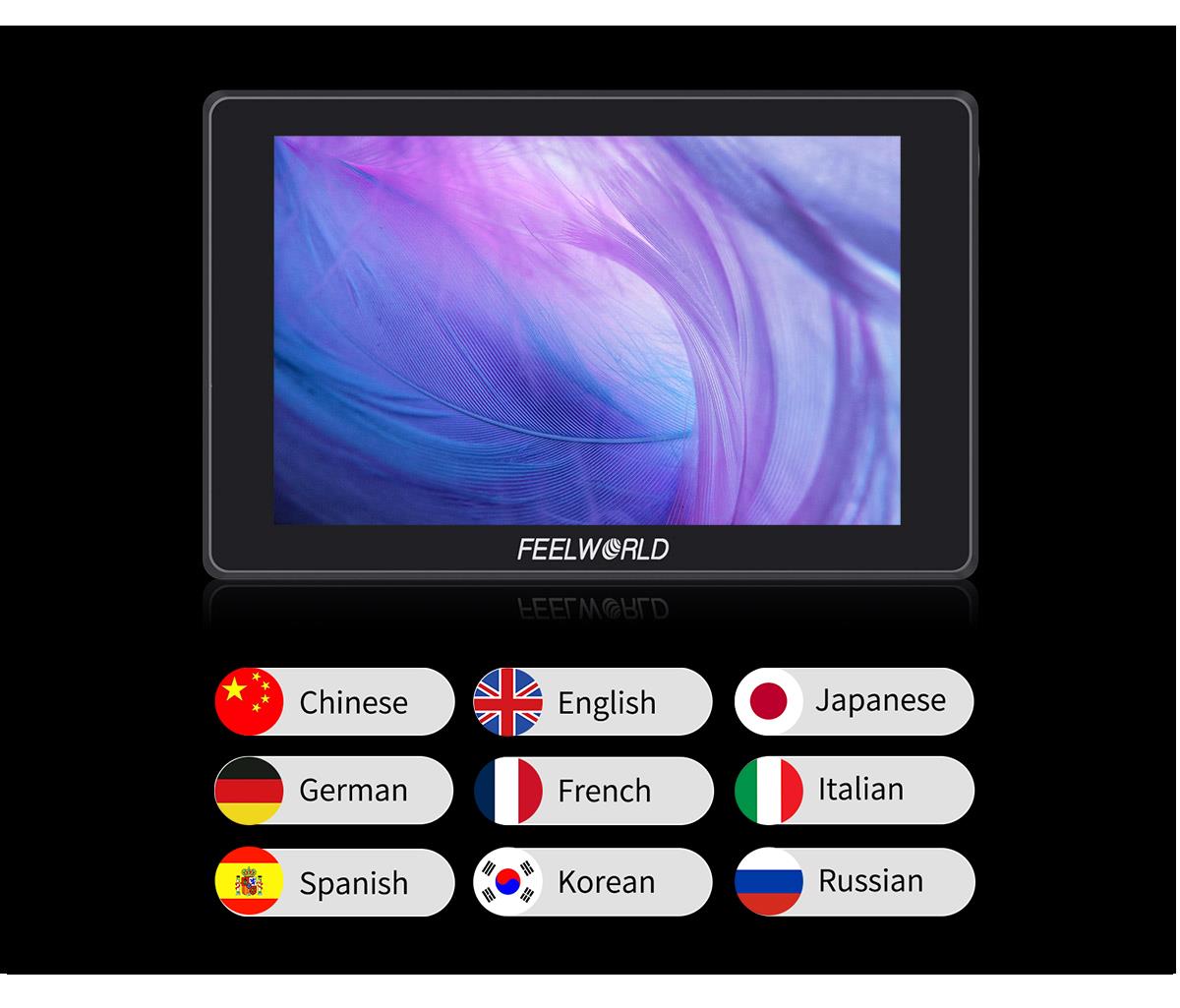

Multi-Language Supporting

SH7 is built in up to 9 languages, meeting the different needs.

Multiple Mounting Points, Meet Different Needs of Monitoring

The monitor is equipped with 2 standard 1/4” mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for a photographer or a director.

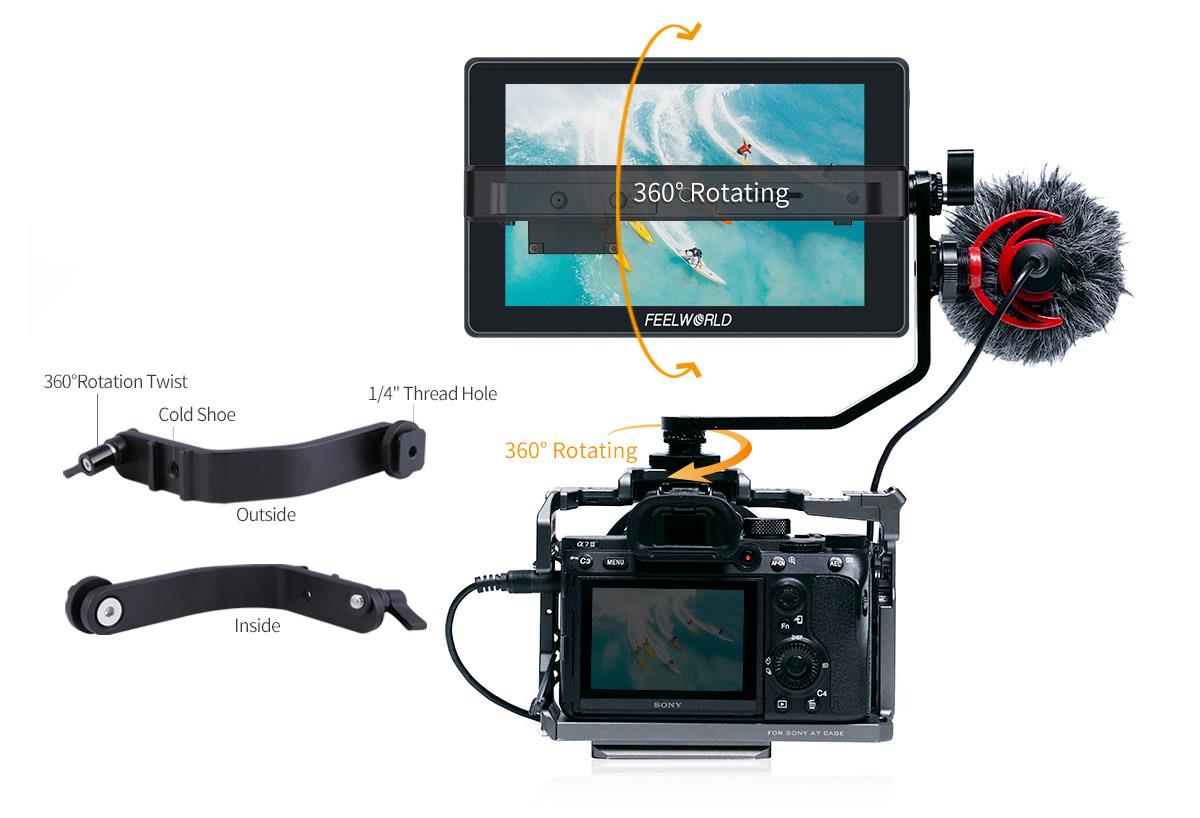

Convenient Mounting - Tilt Arm

• There are two small dots on the tilt arm, which are aligned with the monitor for installation. The connection is more stable; just grab the monitor to rotate without loosening the screws.
