FEELWORLD T6 6-Inch Camera Field Video Monitor Aluminium Housing 4K HDMI USB-C Power Input

$109.99 USD

Sale Sold out

100 in stock

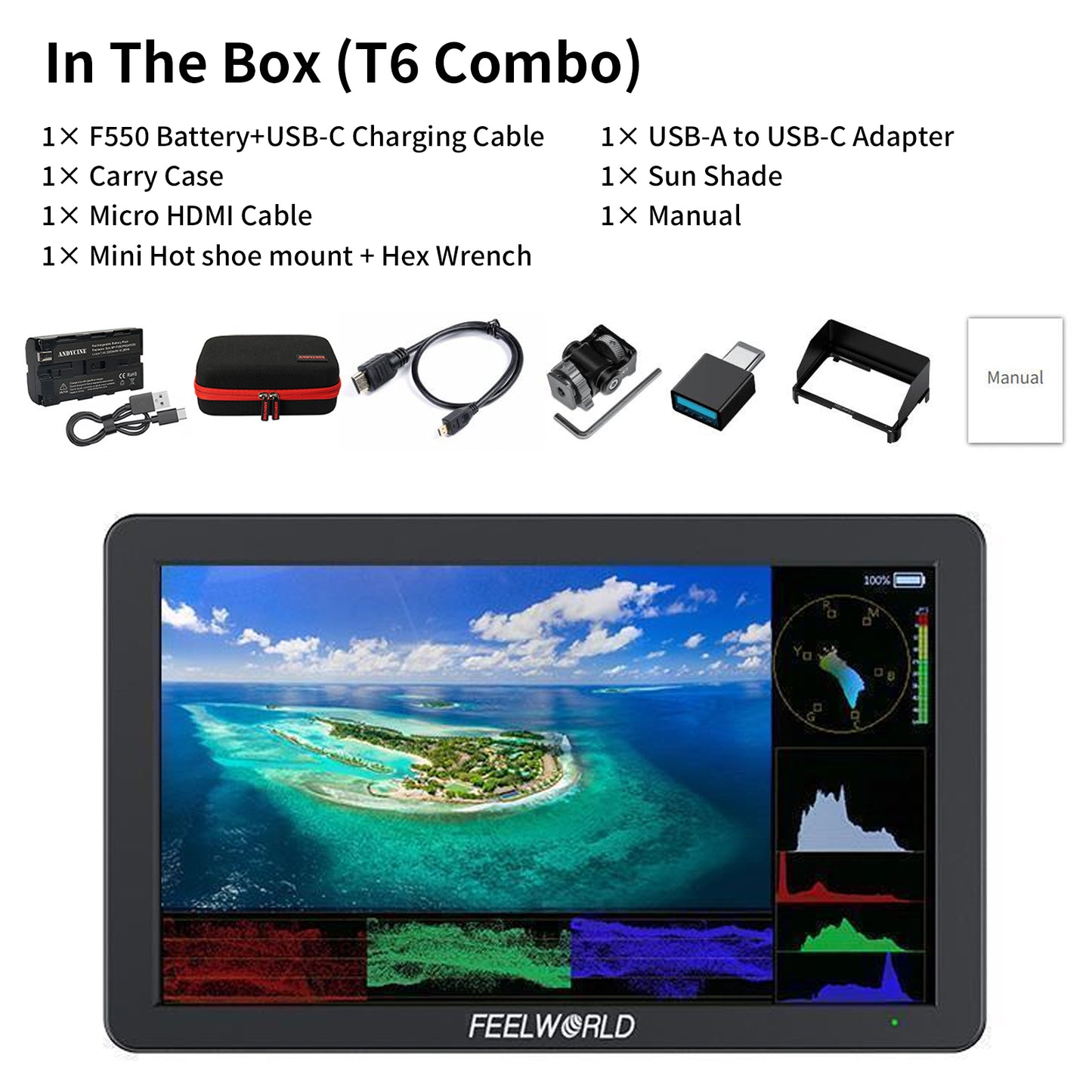

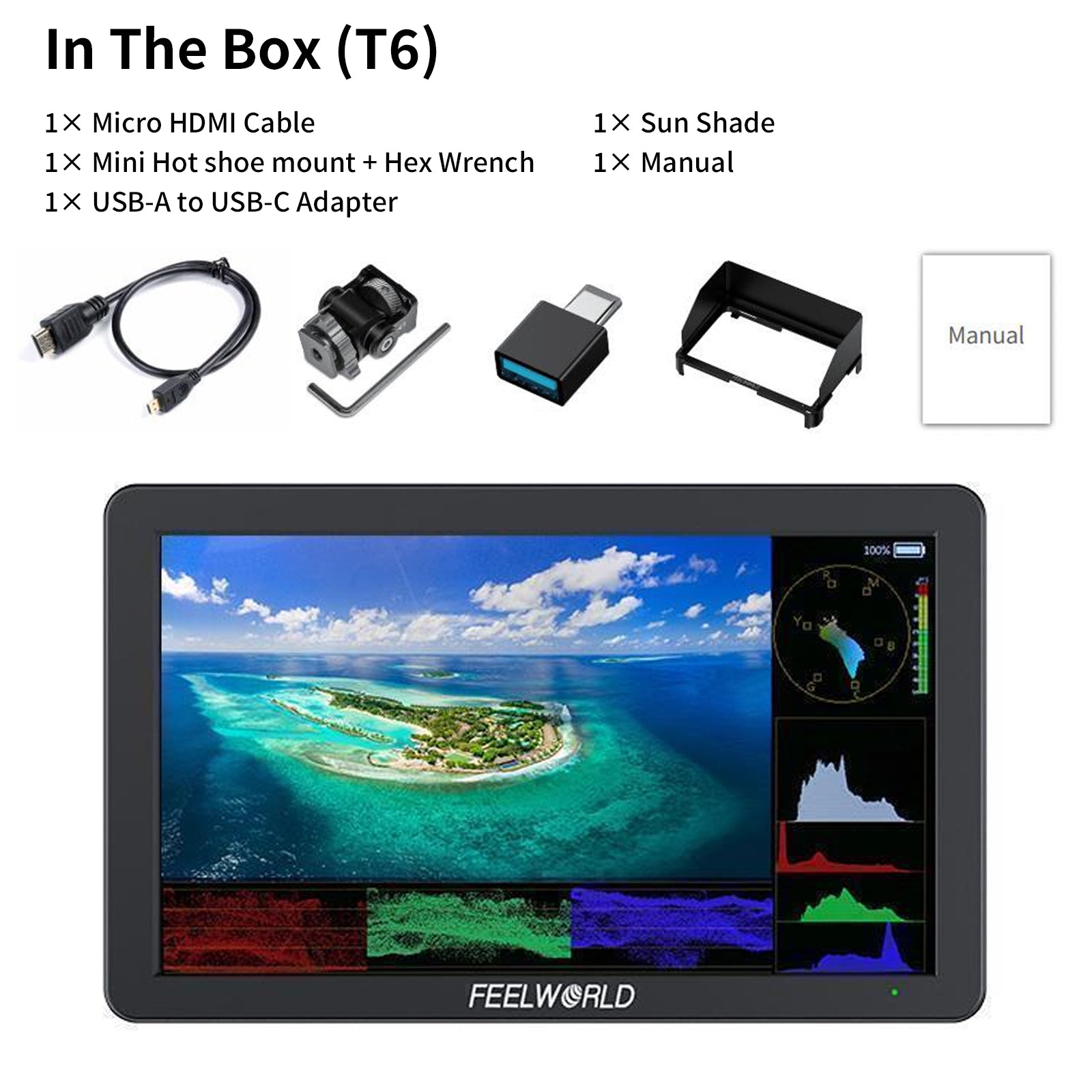

Options Standard Package Combo Package(With F550 battery and bag)

Shipping

US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery

VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.

Warranty

1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.

More detail: Shipping Policy | Warranty Policy

Overview

The T6 On-Camera 4K HDMI Monitor features a 1920 x 1080 resolution display with a maximum brightness of 450 cd/m². It supports HDMI input signals with resolutions up to DCI/UHD 4K60 and provides an HDMI output for connecting to wireless transmitters, larger on-set monitors, and other devices.

Key Features

Touchscreen 1920 x 1080 Display
Up to DCI 4K HDMI Input & Output
Custom 3D LUT Import via USB-C Port
450 cd/m² Brightness
Barrel, USB-C, L-Series/NP-F Power Input
8 VDC 2.1mm Barrel Power Output
Waveform, Vectorscope, Histogram & More
12-Language Support
Durable Aluminum Housing
Includes Tilting 1/4"-20 to Shoe Adapter

Aluminium Housing| Slim Lightweight | Powerful Functions

T6 is a 6-inch aluminum HDMI camera monitor with a slim and rugged design—ideal for on-the-go shooting. Up to 4K 60Hz transmission rate and the advanced camera monitoring tools for video & photography enhance your workflow, making it perfect for vloggers, photographers, and content creators.

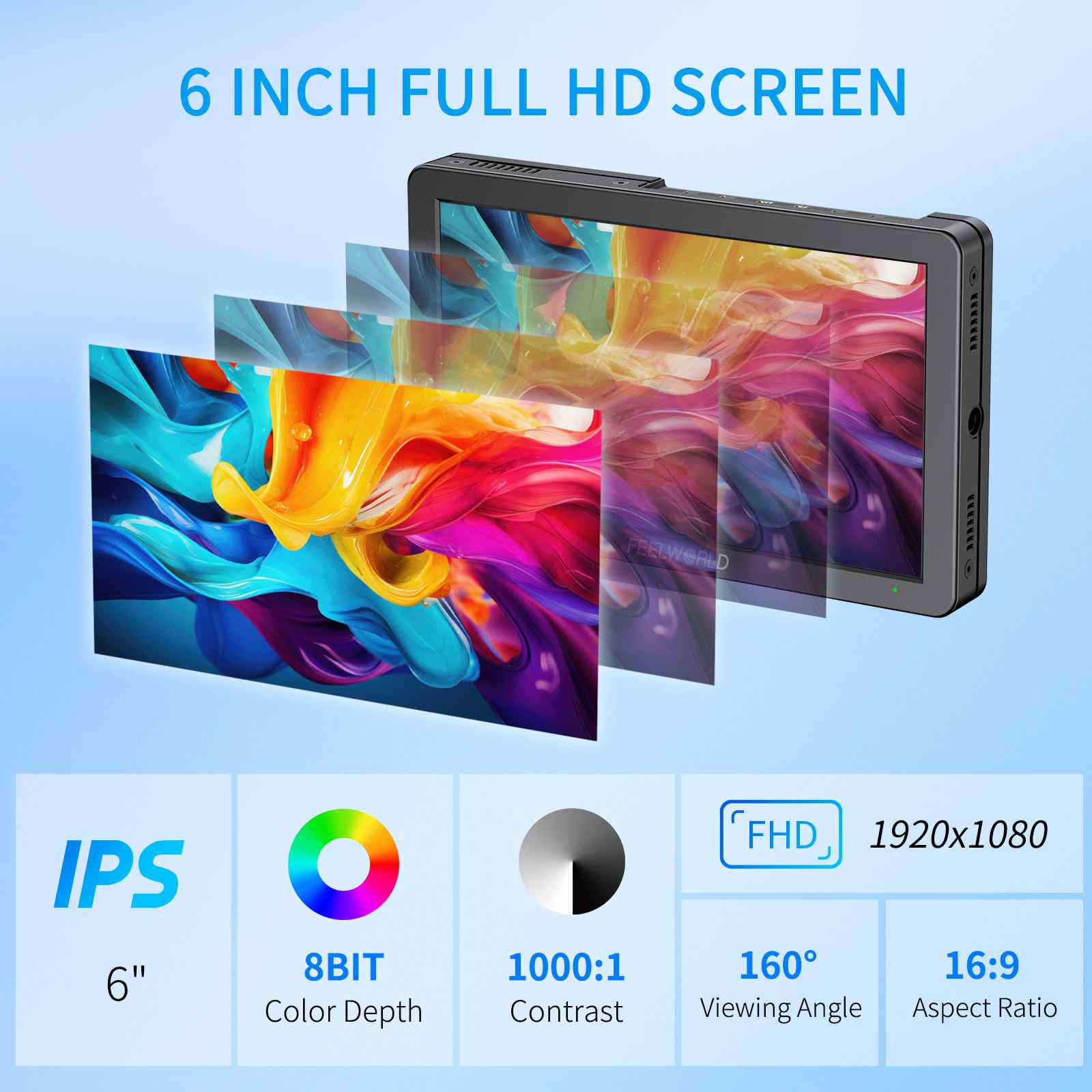

6-inch Full HD IPS Screen

True-to-life colors and crystal-clear details
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

Rugged and Durable Aluminium Housing

T6 features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.

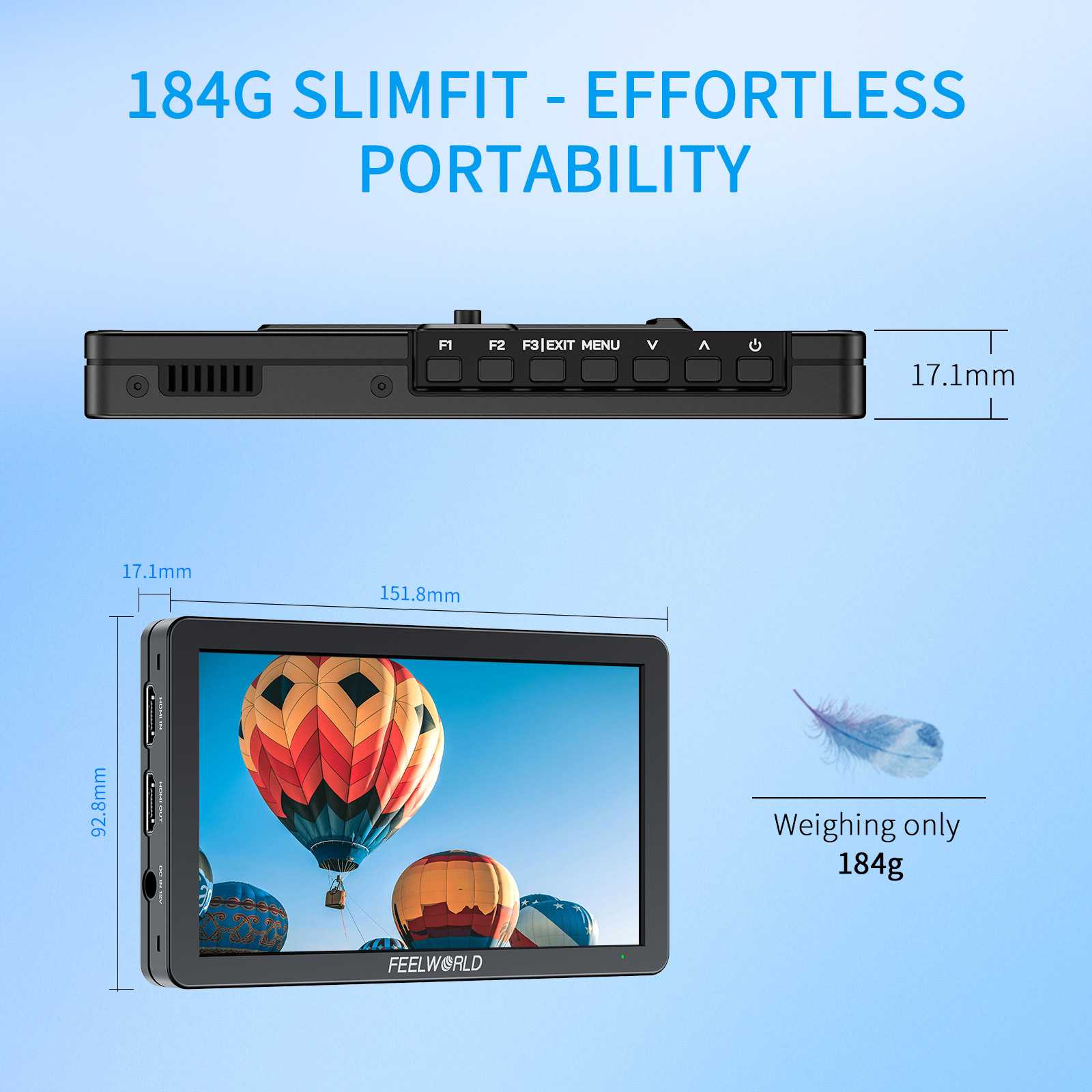

Compact and Lightweight Design

Compact and easy to carry, the T6 is your perfect travel companion for mobile shooting.

Quick Access with Custom Buttons

T6 provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.

9:16 Vertical Screen Marker

T6 has many kinds of ratio markers, especially the vertical screen marker 9:16. Perfect for vertical screen platforms such as TikTok, Instagram.

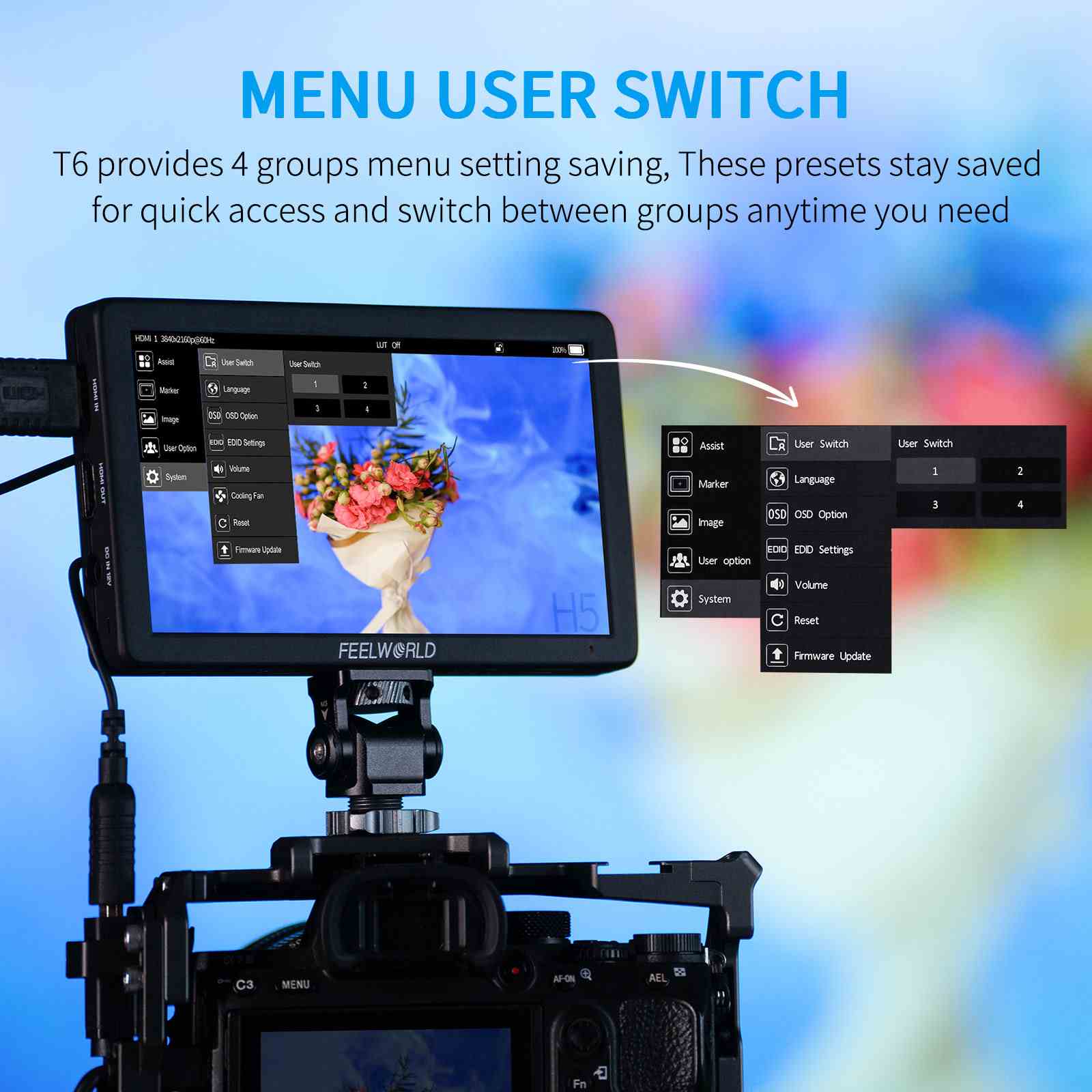

4 Menu User for Quick Switch

The monitor provides 4 4-group menu setting saving. You can select 1~4 groups after setting the menu; it will save automatically, can be easily recalled, or switched based on different shooting needs.

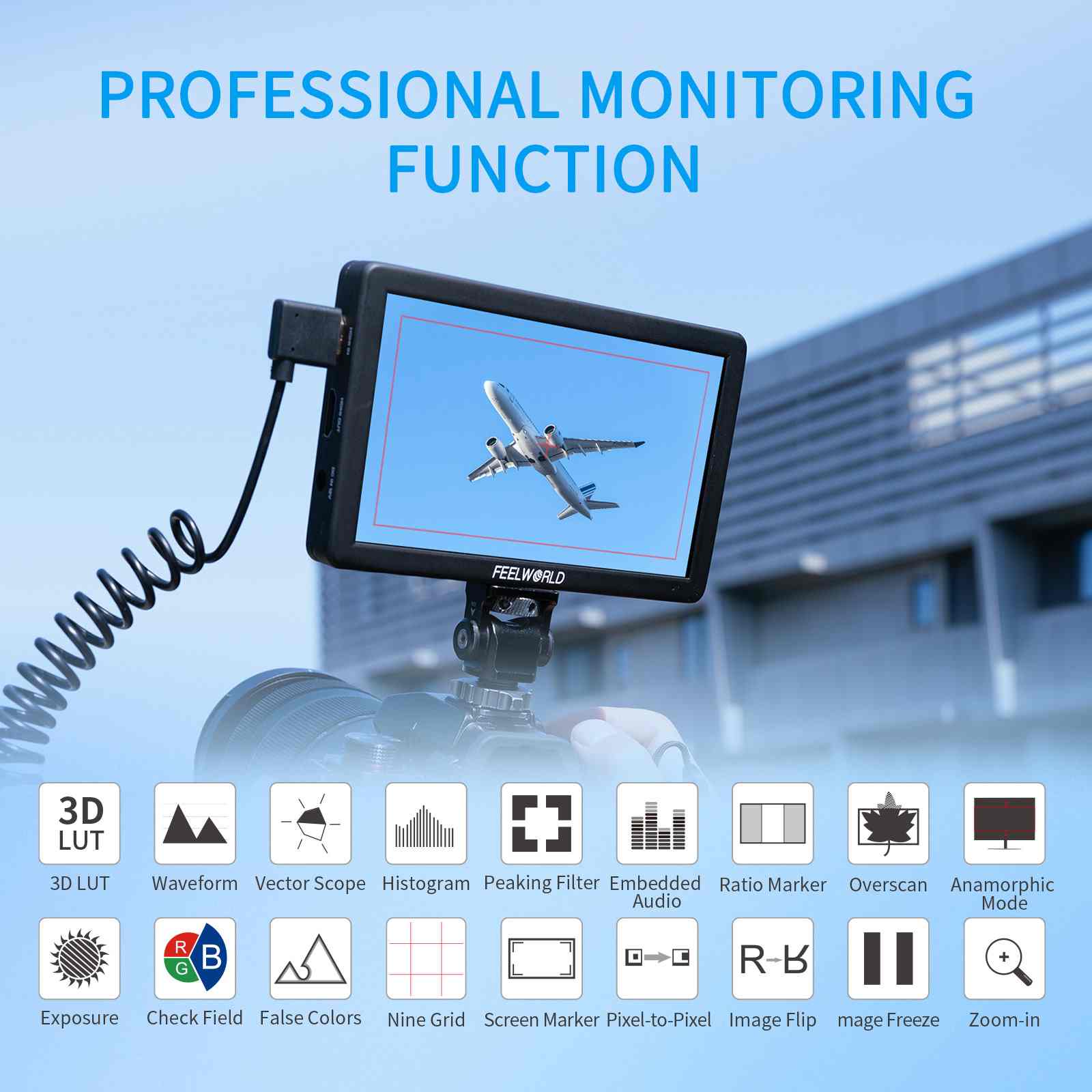

Full Range of Auxiliary Functions

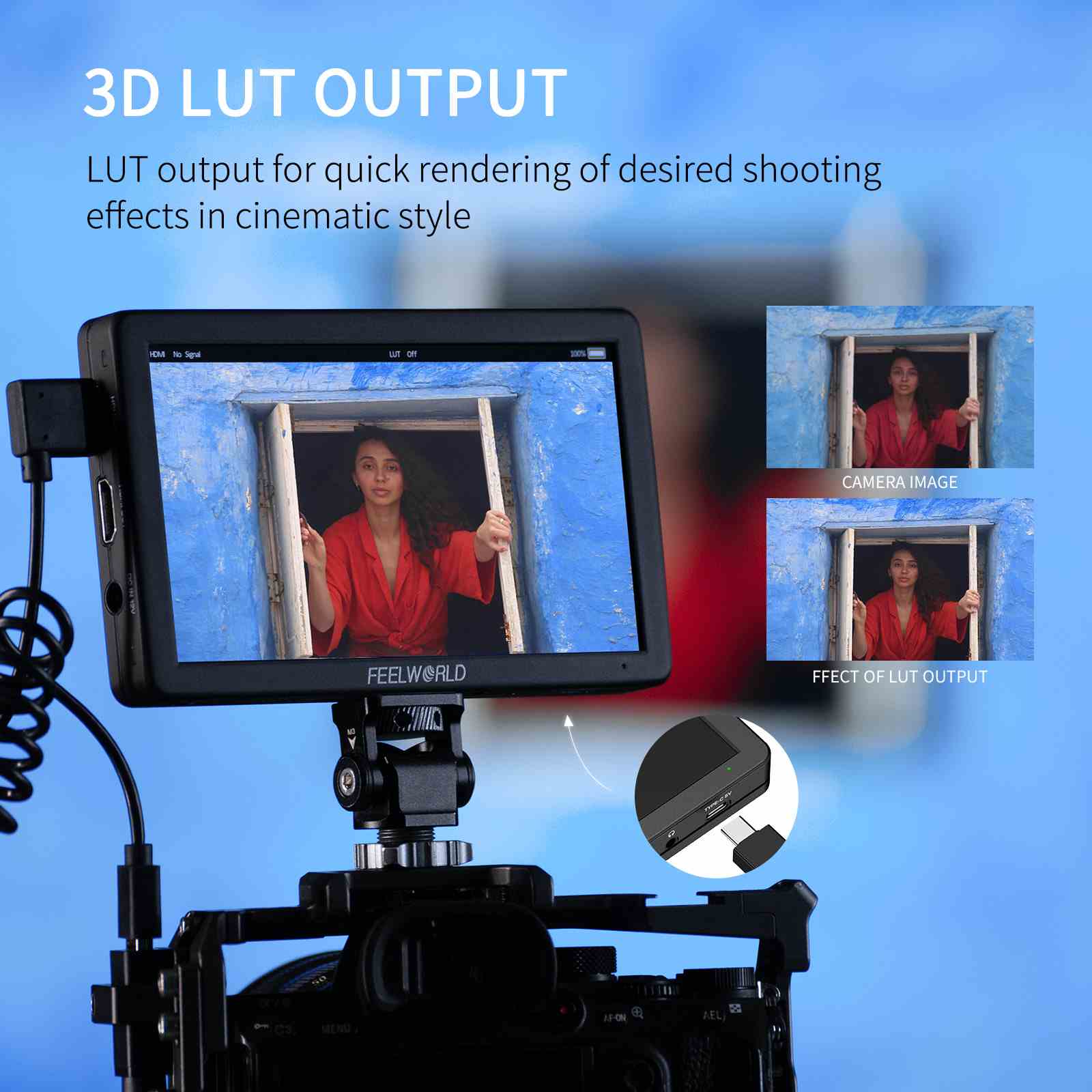

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you also can load the custom .cube file via USB flash drive (up to 32). Insert the USB flash drive into the standard accessory Type-C to USB adapter, then connect with the Type-C interface of T6.

HDR Monitoring

What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty, it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

Accurate waveform monitoring

Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support a single key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. T6 becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

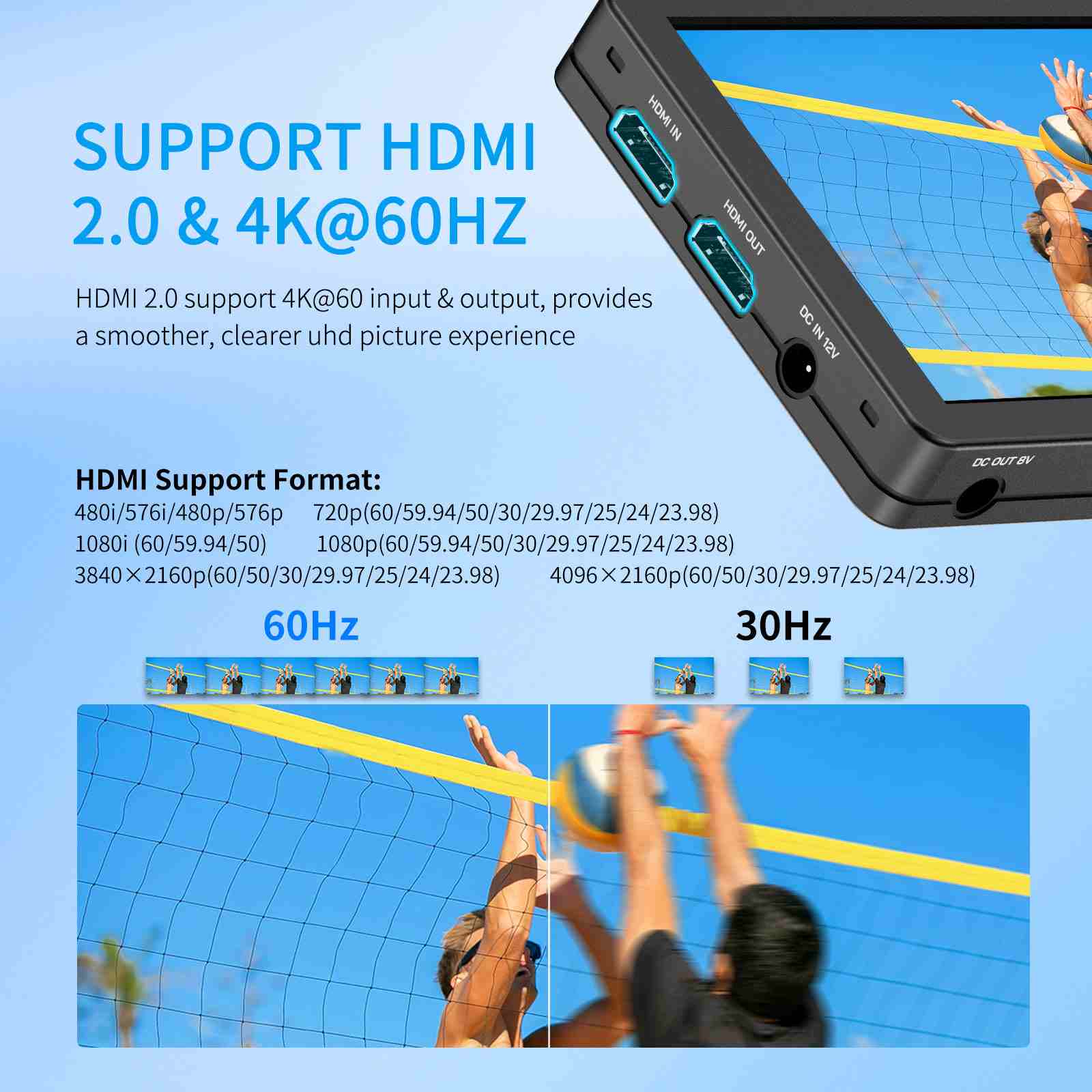

4K HDMI Input and Output, High Speed Transmission

Equipped with 4K HDMI input and output, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorders and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

DC 8V OUT, Power Your Camera On the Go

T6 provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the T6 extends camera run-time, while providing a more usable display.

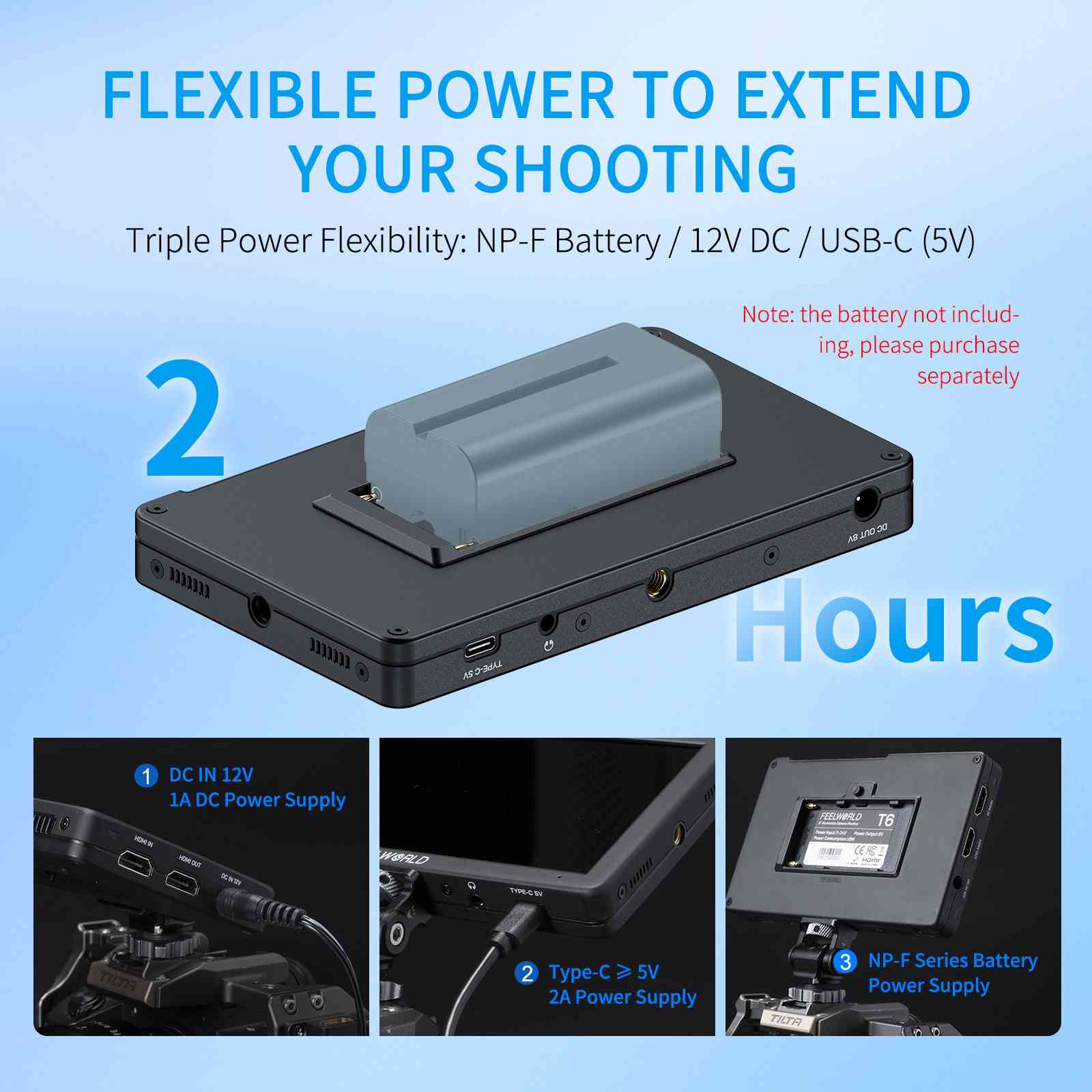

Multiple Power Supply, Long-lasting Power for Shooting

You can connect to DC power input to get continuous power （suitable for use 1A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F750 battery (4400mah) last for about 3.5 hours. The monitor also provides a 5V Type-C input, which can be powered by 5V/2A or more than 2A mobile phone charger or power bank.
Note: 1. the battery excluding, please purchase separately. 2. When using DC OUT 8V to power other device simultaneously, need to use 12V/2.5A power adapter at least.

NP-F Battery Optional Recommendation

The power consumption of T6 is 9W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

12 Languages Supporting

T6 is built up to 12 languages, which means T6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Need of Monitoring

The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

Removable Sun-hood

The standard removable sun hood can easily resist strong light and is easy to install.

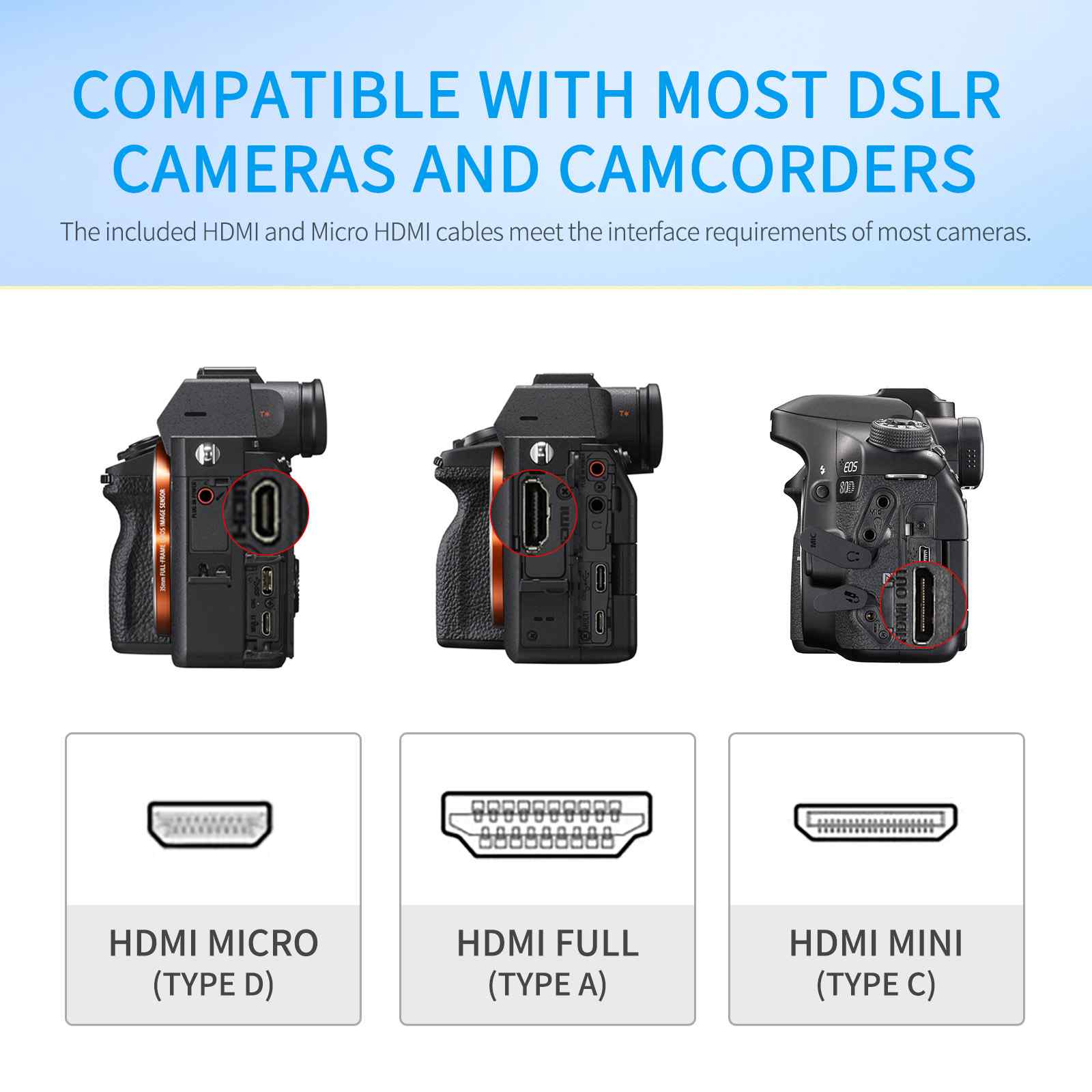

HDMI Cable type reference for matching different camera models

Specifications

Model	T6
Screen Size	6"IPS
Resolution	1920X1080 pixels
Pixel Pitch	0.069 (H) × 0.069 (V) (mm)
Color Depth	8bit
Aspect Ratio	16:9
Brightness	450cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Signal Input

1 X HDMI

HDMI 2.0

Signal Output

1 X HDMI

HDMI2.0

Audio

3.5mm Stereo Headphone

HDMI Input and Output Support Format

480i/576i/480p/576p

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i (60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K 3840×2160p (60/50/30/29.97/25/24/23.98)

4K 4096×2160p(60/50/30/29.97/25/24/23.98)

General

Power Input	DC IN 12V, Barrel (5.5mm outer, 2.1mm inner);Type-C 5V(please use 5V/2A or more than 2A Type-C power supply)
Power Output	DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner）,can be power for DSLR or mirrorless camera
Power Consumption	≤9W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	1/4"-20 Thread Point (right side, bottom)
Unit Size	151.892.817.1 (mm)
Unit Weight	184g
Color Box Size	186L124W80H(mm)
Outer Carton Qty	10
Outer Carton Size	465200326 (mm)
Gross Weight	kg
