FEELWORLD T7 PRO/T7S PRO 7-inch 2000NIT Ultra High Brightness Field Camera Monitor Aluminium Housing 3G SDI 4K HDMI 60Hz

Overview

Monitor your 4K video signals with clarity in the field with the FEELWORLD T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs. This compact, 7" touchscreen field monitor with a durable aluminum chassis features HDMI input and output that supports up to UHD/DCI 4K60 and 3G-SDI input and output up to 1080p60.

The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and high 2000 cd/m² brightness for a crisp viewing experience, even in sunlight. You can apply internal 3D LUTs or import up to 32 custom 3D LUTs. Numerous professional imaging tools are built in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered via a separately available power adapter or the rear L-series battery mount.

Key Features

• 7" 1920 x 1200 IPS LCD Monitor
• Up to UHD/DCI 4K60 HDMI Input/Output

• 2000 cd/m² Brightness
• L-Series/NP-F Battery Plate
• 1200:1 Contrast Ratio, 3D LUT Support
• 160° Viewing Angle
• Aluminium Housing
• Up to 1080p60 3G-SDI Input/Output (T7S PRO)

Bright. Durable. Professional

FEELWORLD T7 PRO / T7S PRO are full HD field monitors with 2000 nits ultra-high brightness, featuring an aluminum housing for heat dissipation and stable operation in high brightness mode. Equipped with professional 3G-SDI and 4K HDMI high-speed transmission interfaces directly connected to professional devices, built-in waveform, focus assist, HDR, and 3D-LUT allow you to quickly make videos. It is perfect for filmmaking, video creation, and live production.

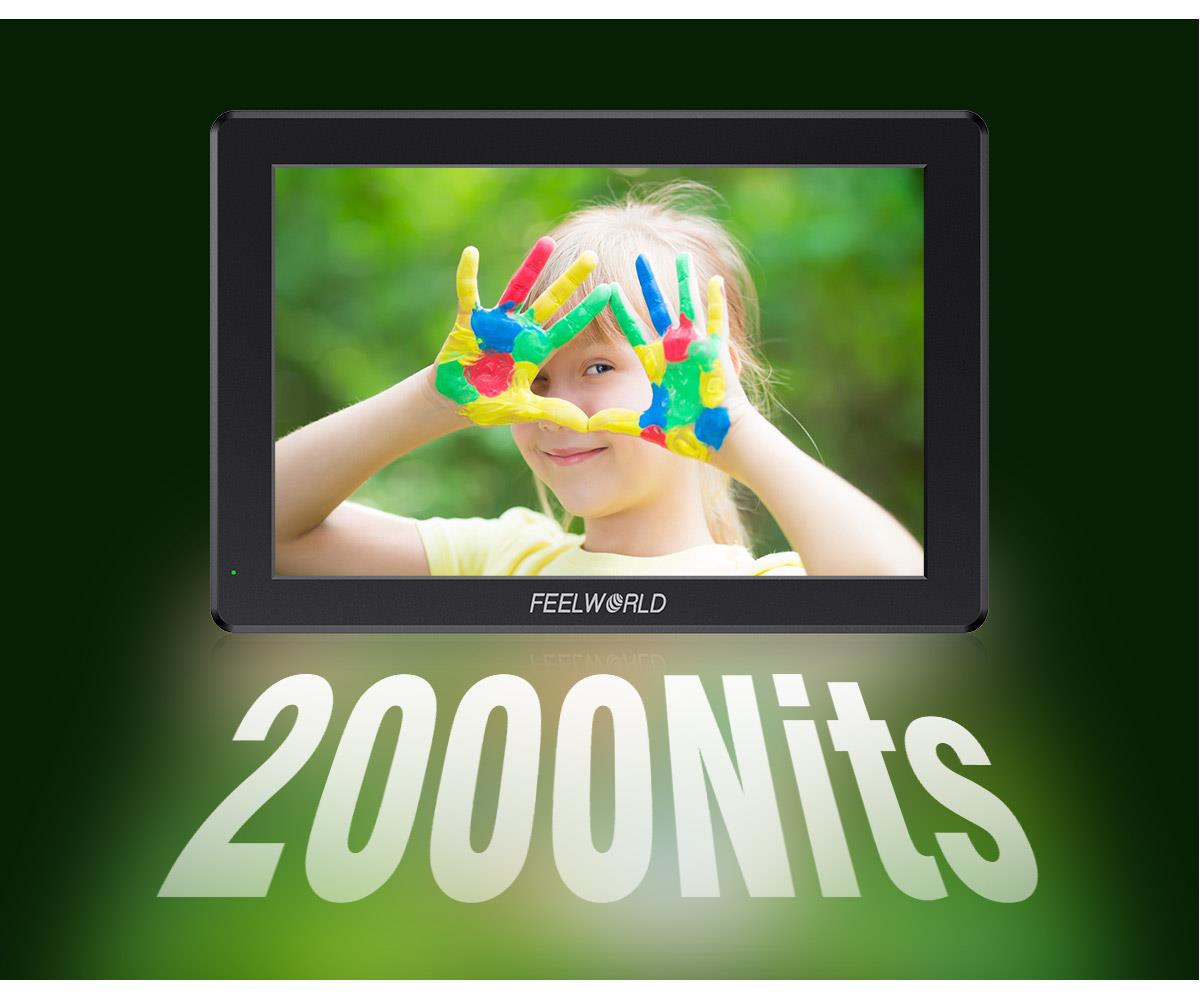

2000Nits Ultra-Brightness, Daylight Viewable

The peak brightness of T7 PRO / T7S PRO is 2000nits, which lets you see your images clearly, even in bright daylight.

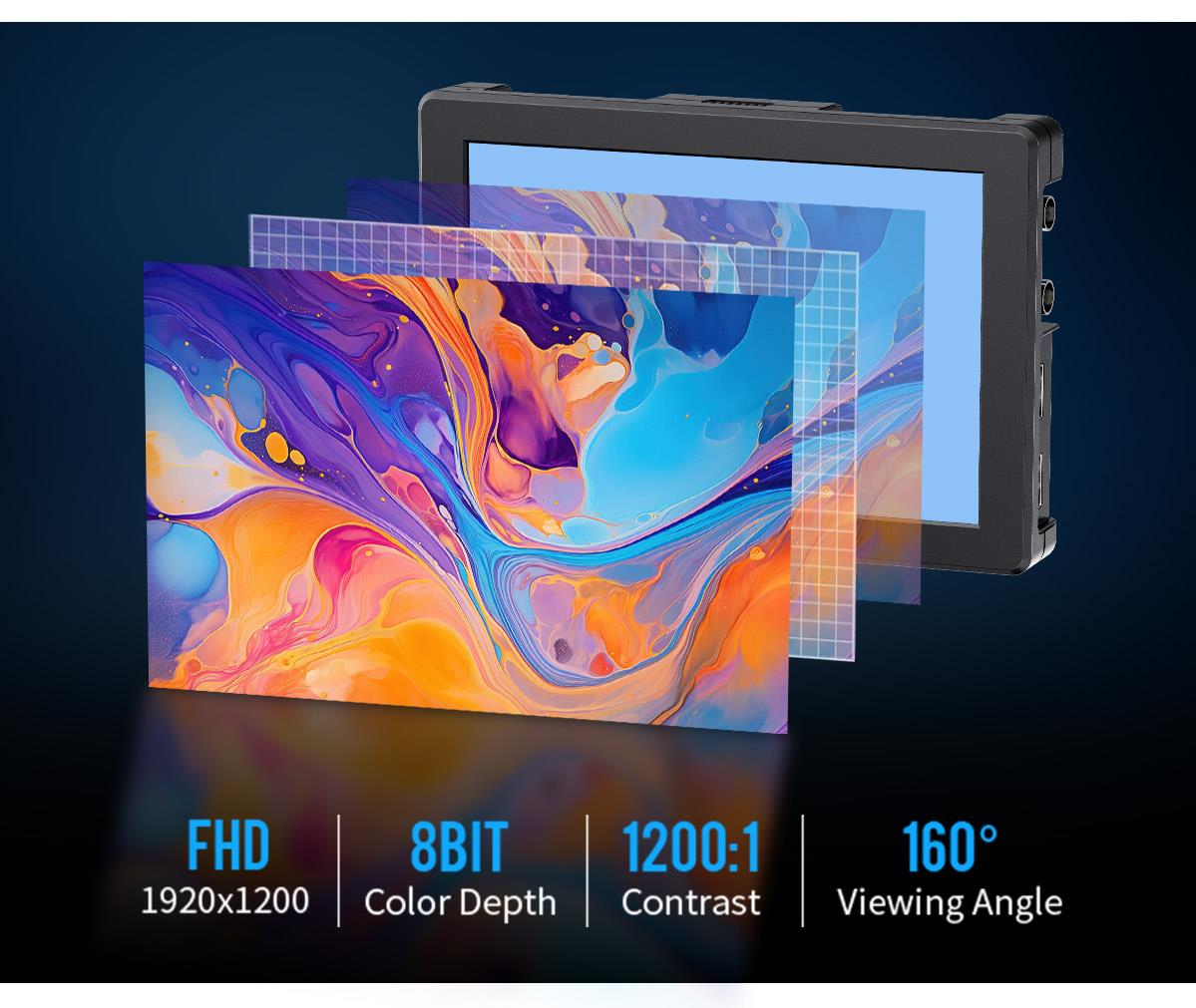

7-inch Full HD Screen

True-to-life colors and crystal-clear details
With an extremely high-resolution 7-inch IPS panel, it provides excellent details, accurately reflects the original colors. Wide viewing clearly presents a more detailed image.

Rugged and Durable Aluminium Housing

T7S PRO and T7 PRO feature a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.

T7S PROT7 PRO

Quick Access with Custom Buttons

T7S PRO and T7 PRO provide multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.

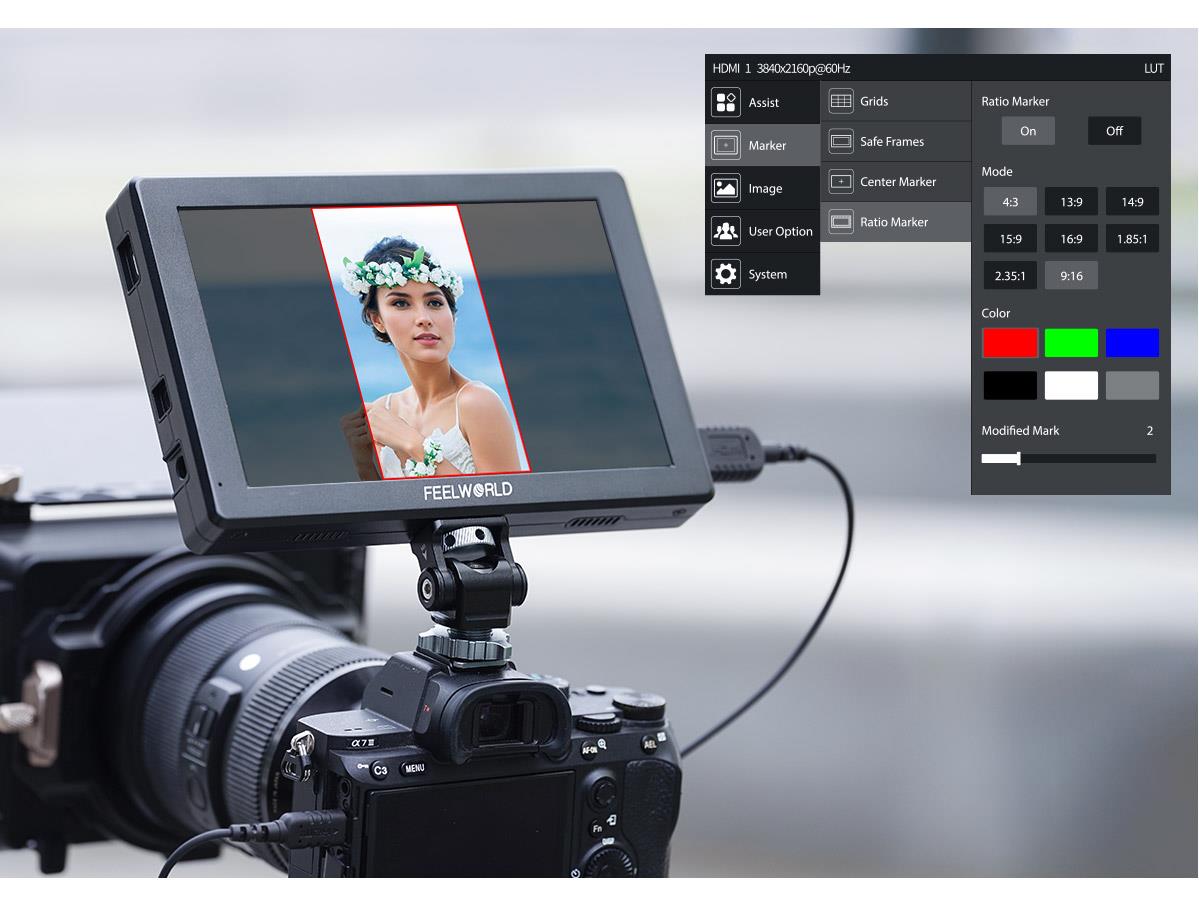

9:16 Vertical Screen Marker

T7S PRO has many kinds of ratio markers, especially the vertical screen marker 9:16. Perfect for vertical screen platforms such as TikTok, Instagram.

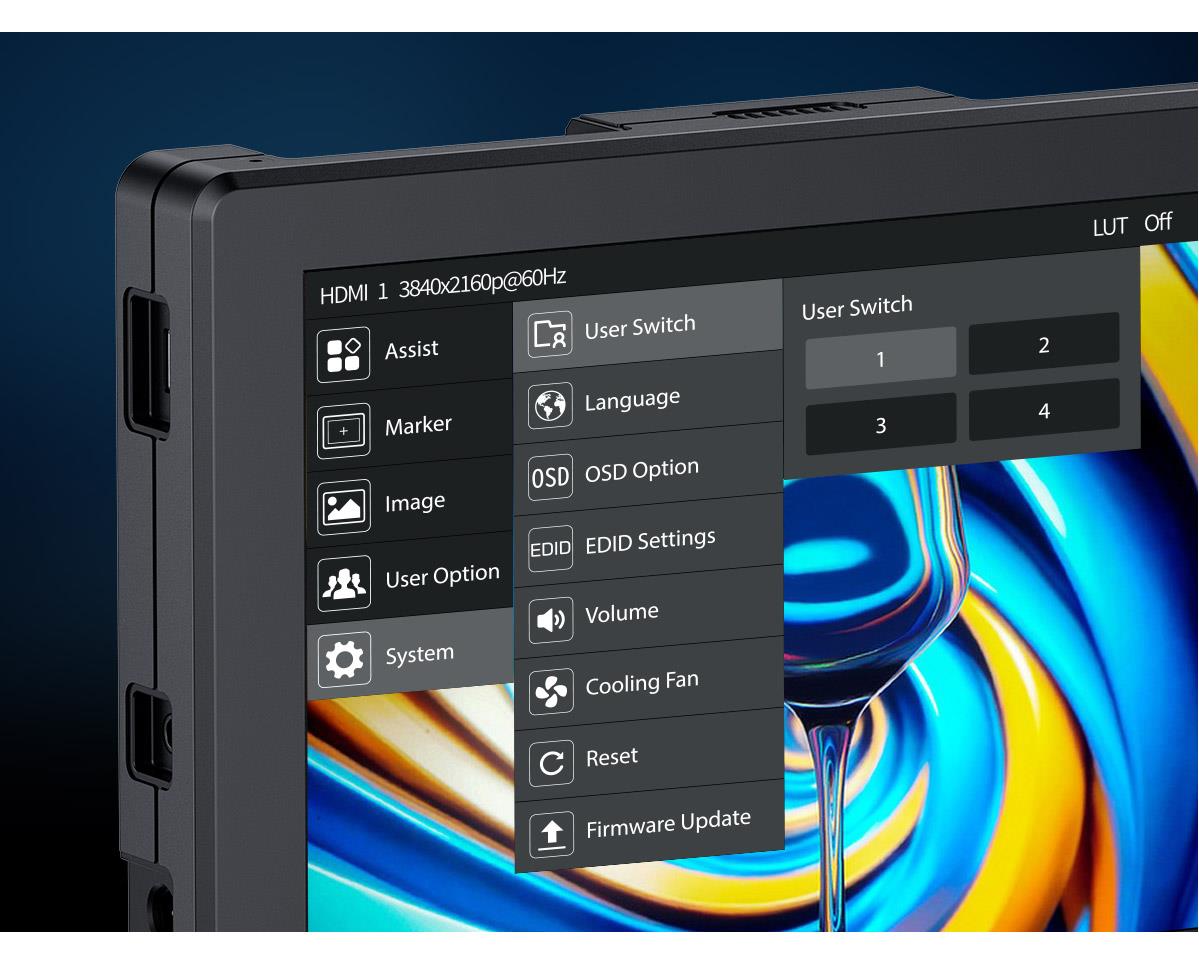

4 Menu User for Quick Switch

The monitor provides a 4-group menu setting for saving. You can select 1~4 groups after setting the menu; it will save automatically, can be easily recalled, or switched based on different shooting needs.

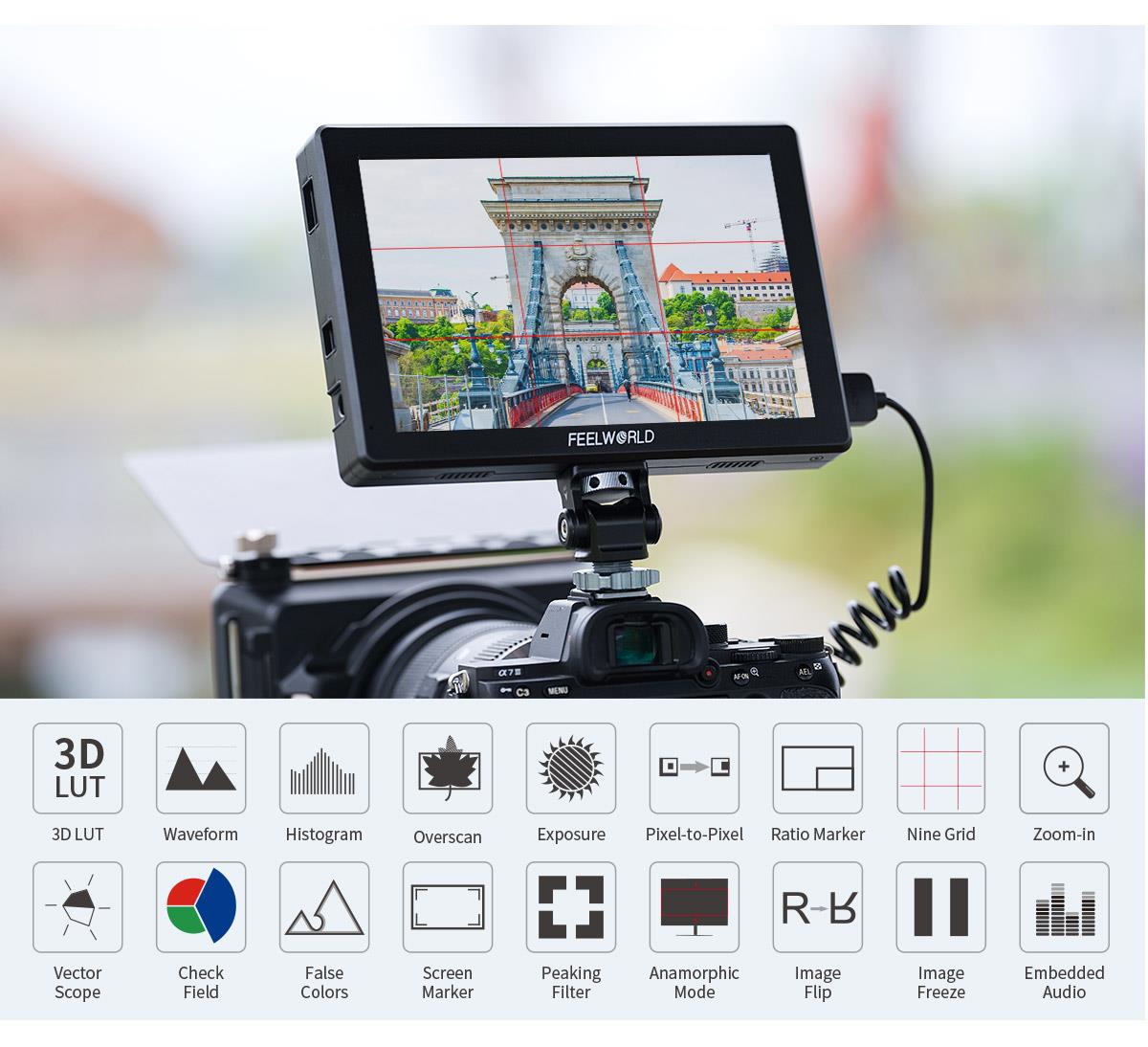

Full Range of Auxiliary Functions

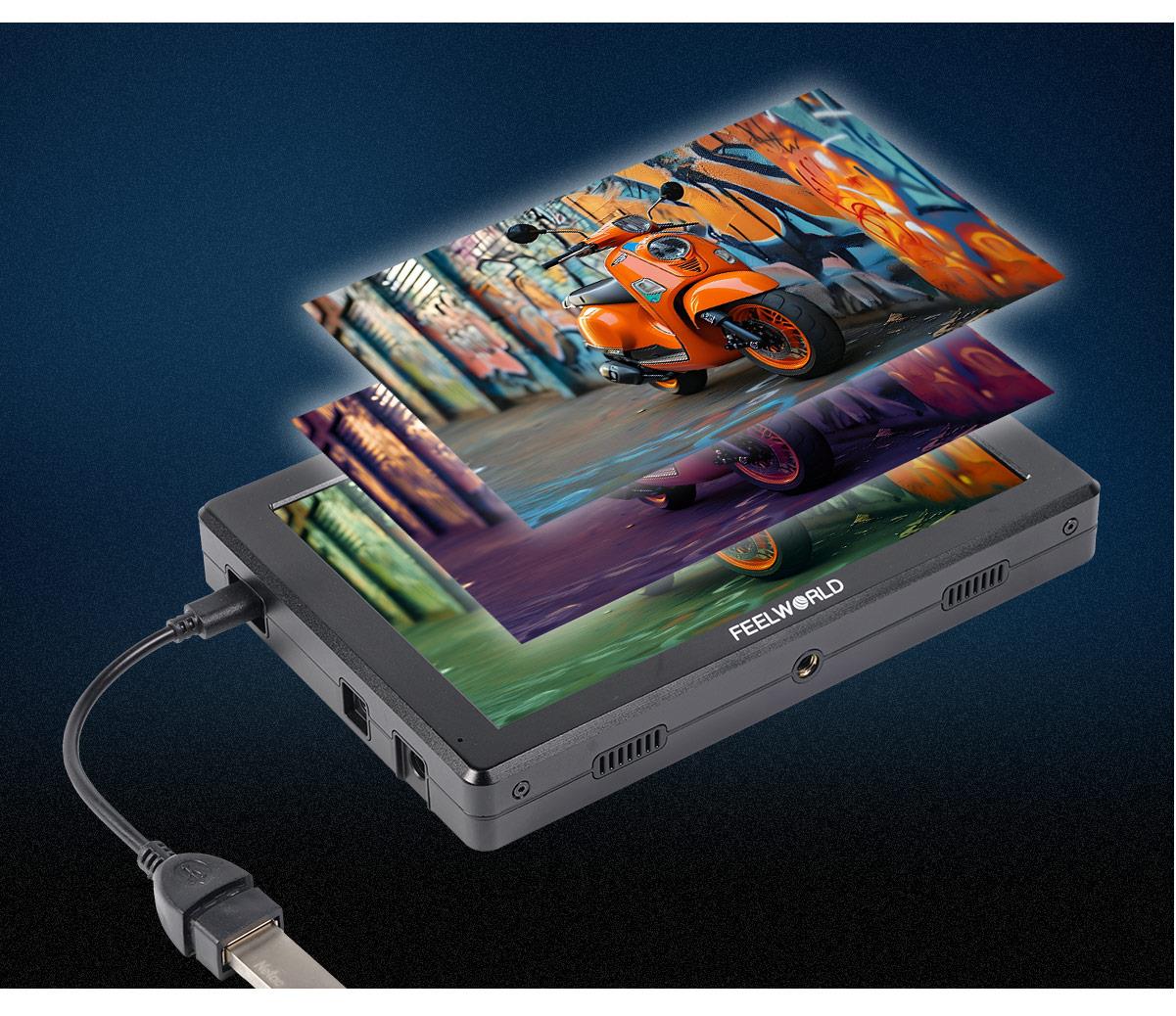

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via USB flash driver (up to 32). Insert the USB flash driver into the standard accessory USB to Mini USB cable, then connect to the mini USB interface of T7S PRO.

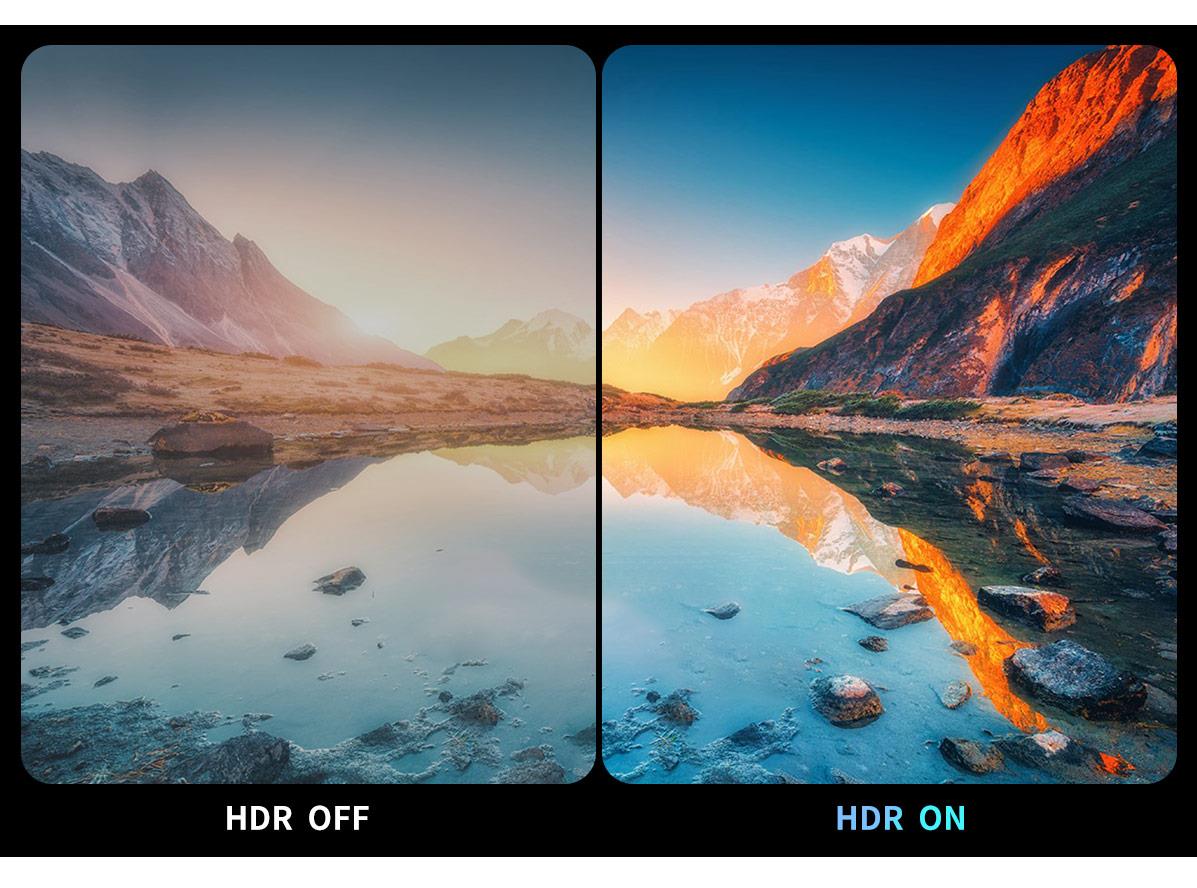

HDR Monitoring

What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty, it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

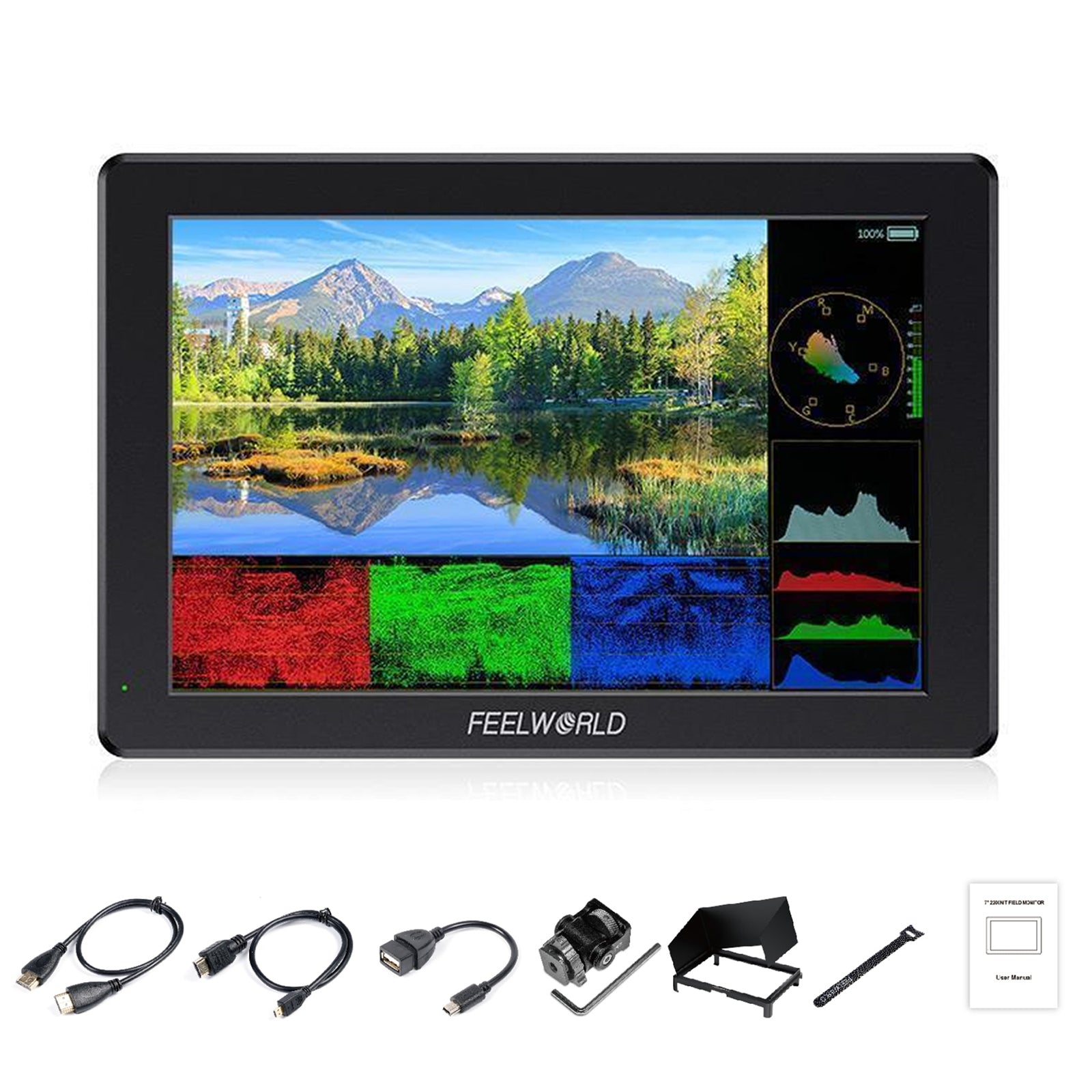

Accurate waveform monitoring

Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. T7S PRO becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

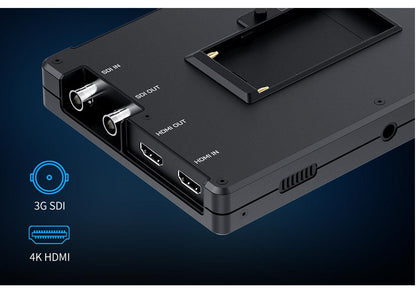

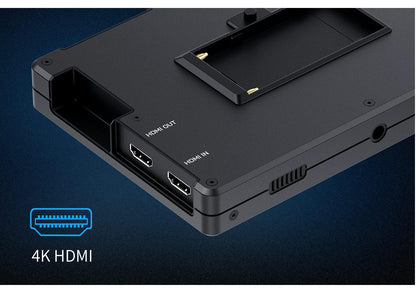

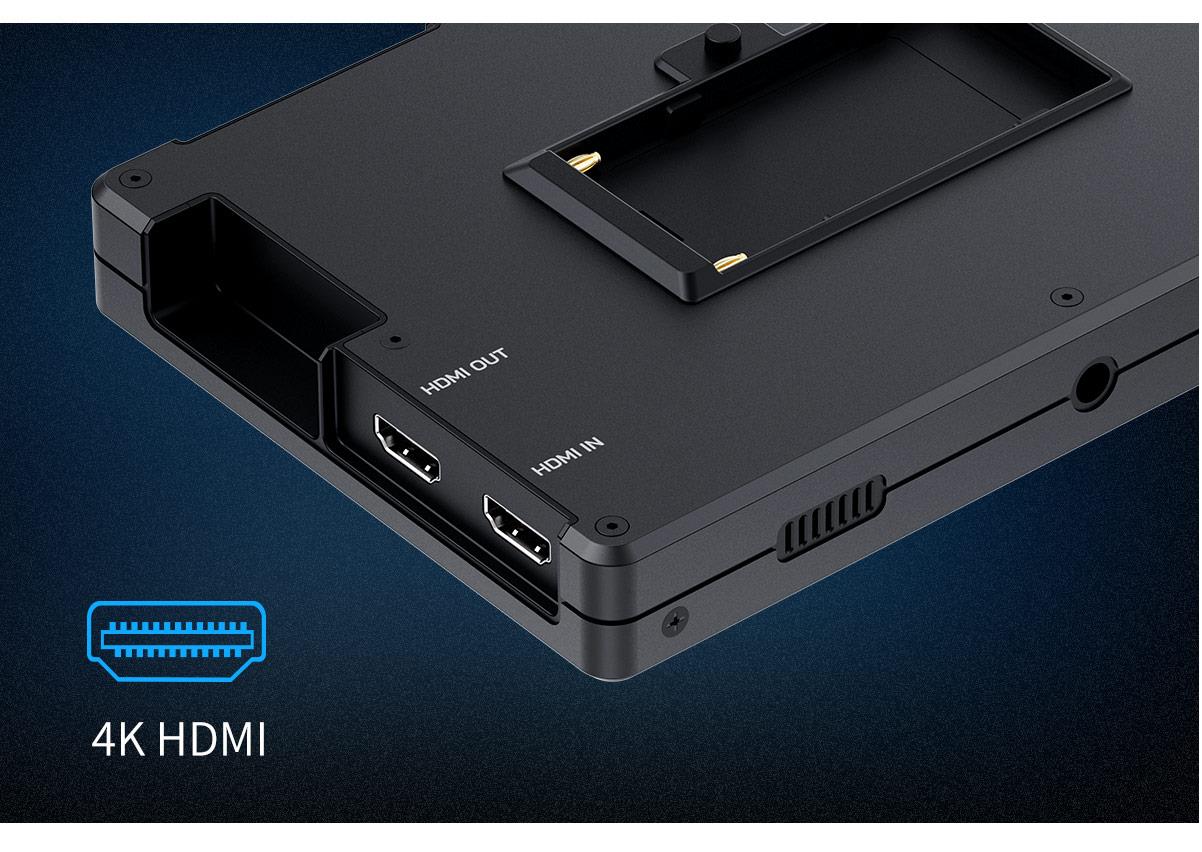

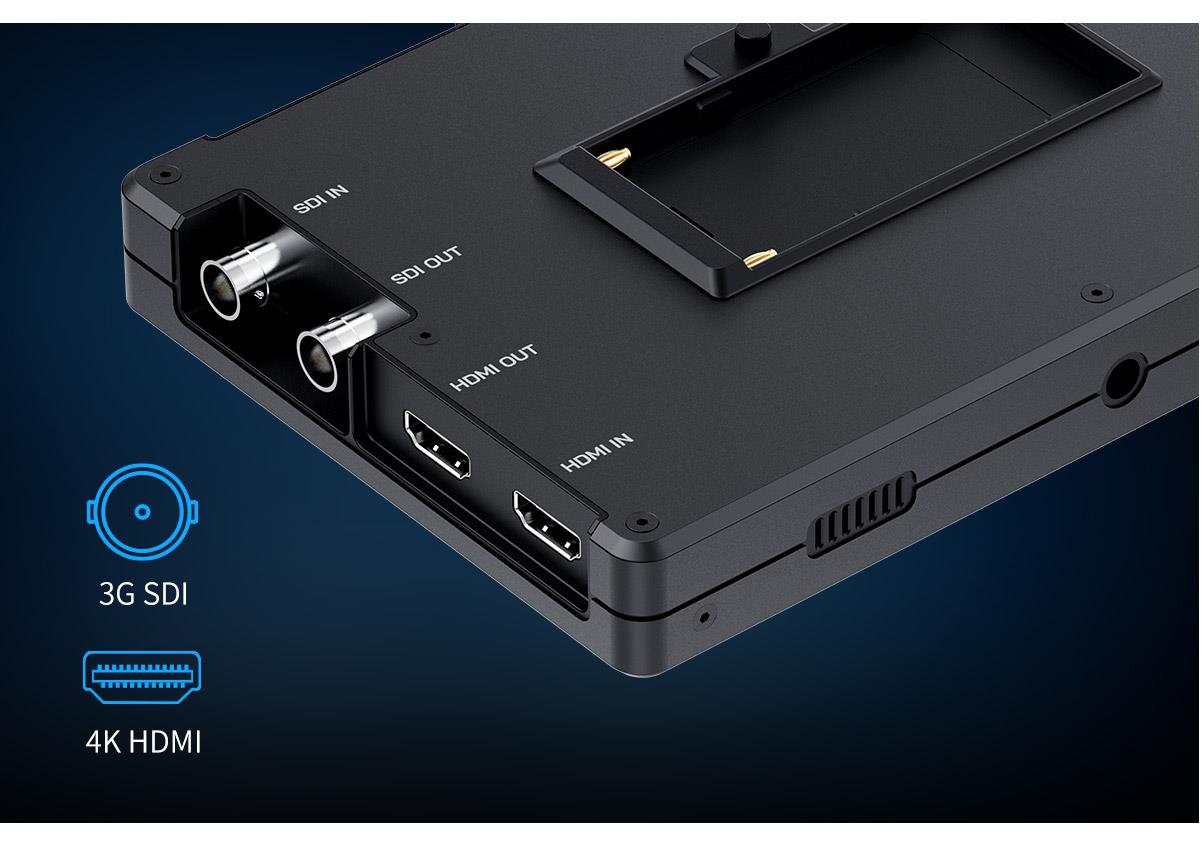

T7S PRO: 3G SDI&4K HDMI Input and Output, High Speed Transmission

Equipped with 3G-SDI, 4K HDMI inputs and outputs, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorders and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

Flexible Power Supply Option

You can connect to DC power input to get continuous power (suitable for use 2A power adapter, DC 5.5*2.1mm power plug) or install an NP-F series battery in the NP-F battery slot for mobile application. Install one F970 battery (6600mAh) lasts for about 2.7hours.
Note: the battery is excluded; please purchase it separately.(T7 PRO)(T7S PRO)

NP-F Battery Optional Recommendation

The power consumption of T7 PRO is 18W, suggesting choosing the higher capacity FEELWORLD NP-F970 battery to power it.

12 Languages Supporting

T7 PRO built-in up to 12 languages, which means T7 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

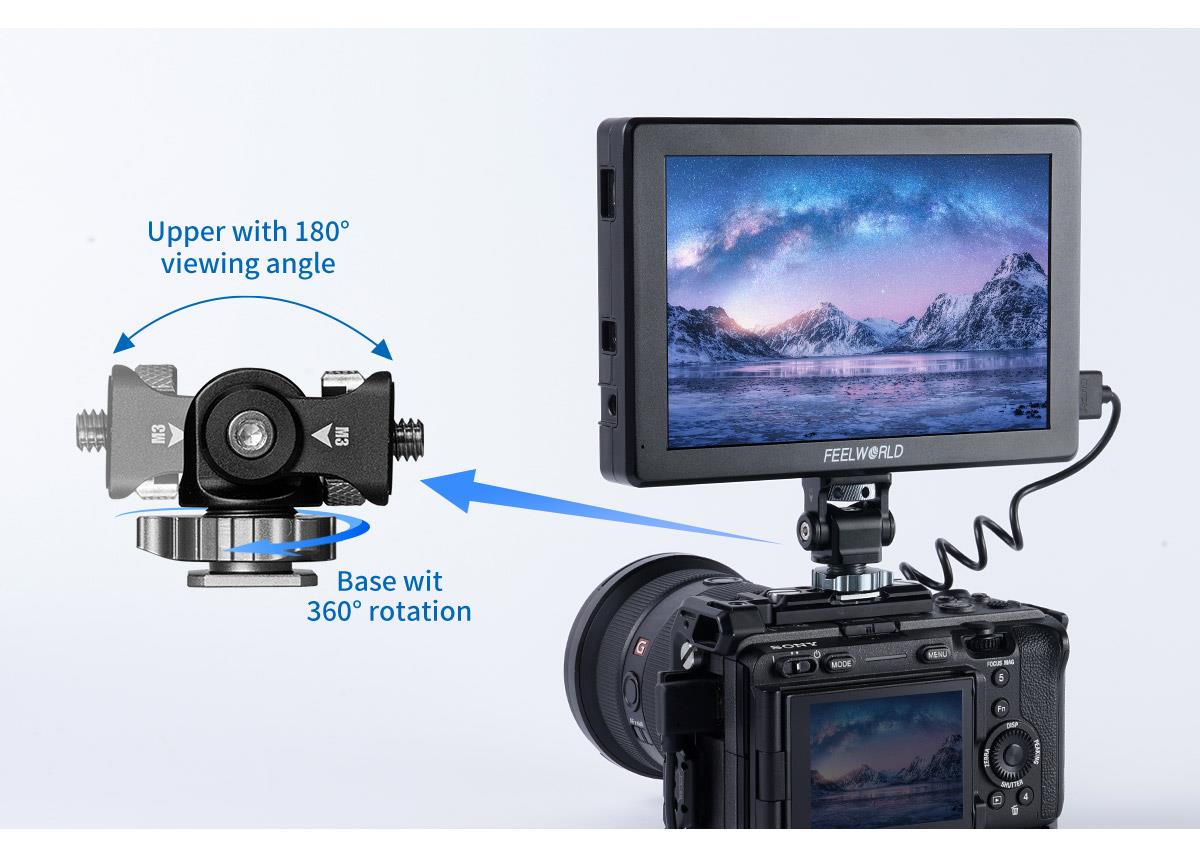

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with a 180° viewing angle and base with a 360° rotation.

Removable Sun-hood

In order to meet the needs of different photographers, T7 PRO and T7S PRO are still portable with sun-hood, and easy to install.

HDMI Cable type reference for matching different camera models

Specifications

Input

Output

Audio

T7S PRO: 3G-SDI Input and Output Support Format

HDMI Input and Output Support Format

General

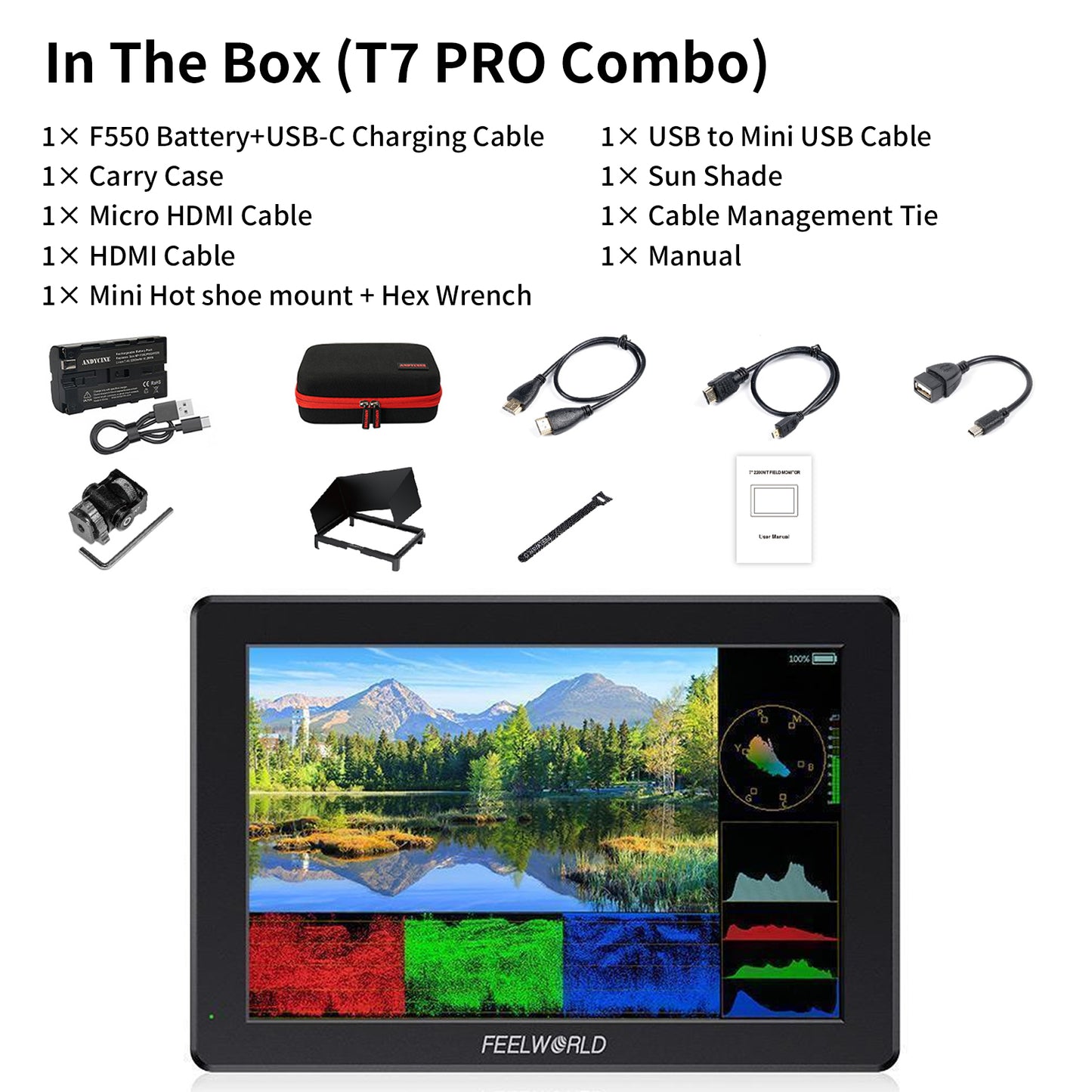

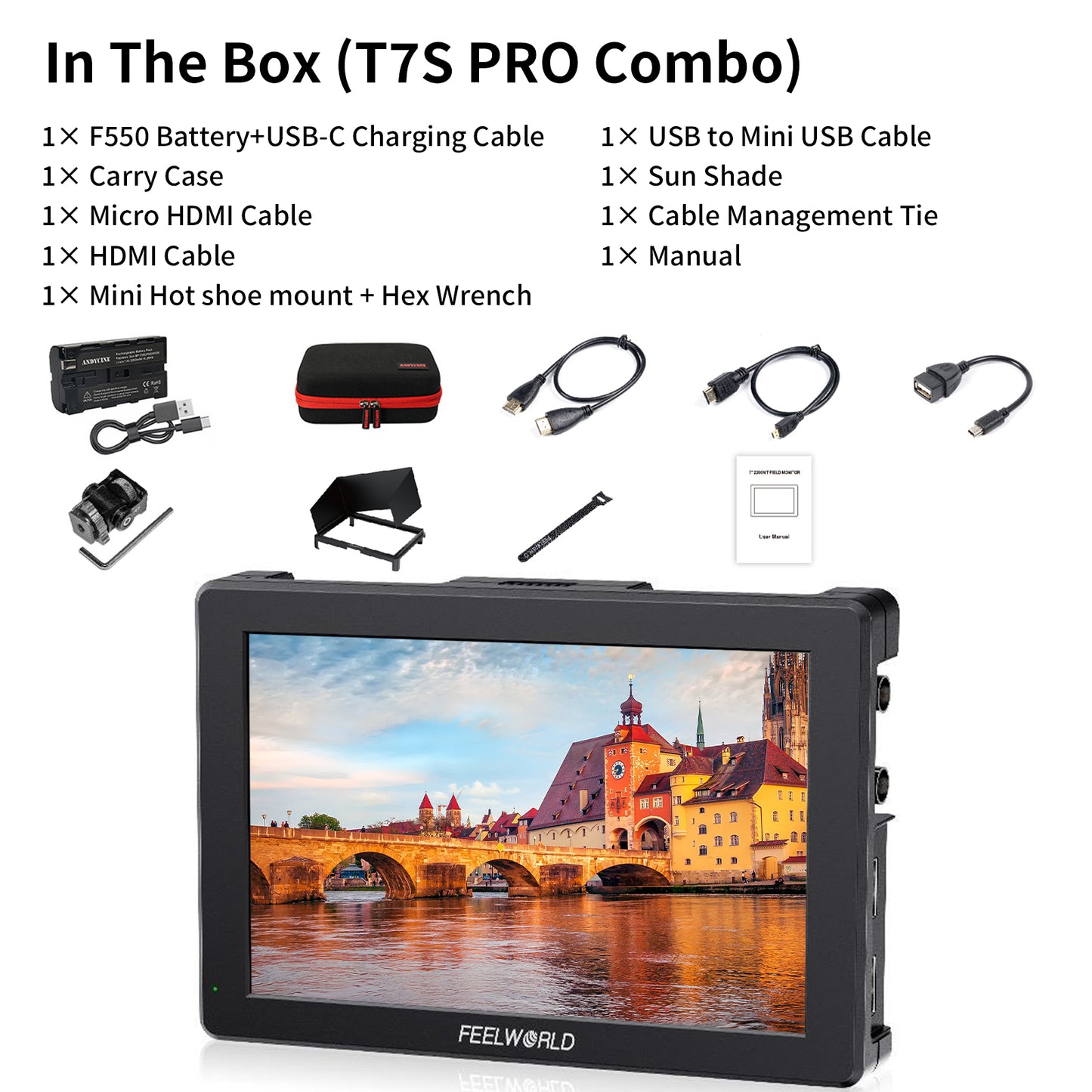

In The Box

Standard Package

Combo Package
