FEELWORLD WTRS Wireless Video Transmitter & Receiver SDI 4K HDMI Recording Playback

Key Features

• HDMI + SDI signal interfaces, meet your different needs
• Real-time recording and playback
• More than 1000ft transmission range with 0.08S ultra-low latency
• Up to 4K 30Hz, present image with superior clarity, detail and realism
• Wireless full-duplex talkback, real-time intercom between the director and the photographer
• UVC streaming, simplify live streaming

• Under Grouping mode, TX and RX can be paired easily and quickly
• The transmitter can be switched as a receiver at will

• One TX to 4 RX, monitoring for everyone on set

• Real-time APP monitoring and recording for Android/iOS system

• 13 frequency channels, AUTO channel scan

Overview

Enjoying Real-Time, Stable, Flexible Video Monitoring and Recording Anywhere

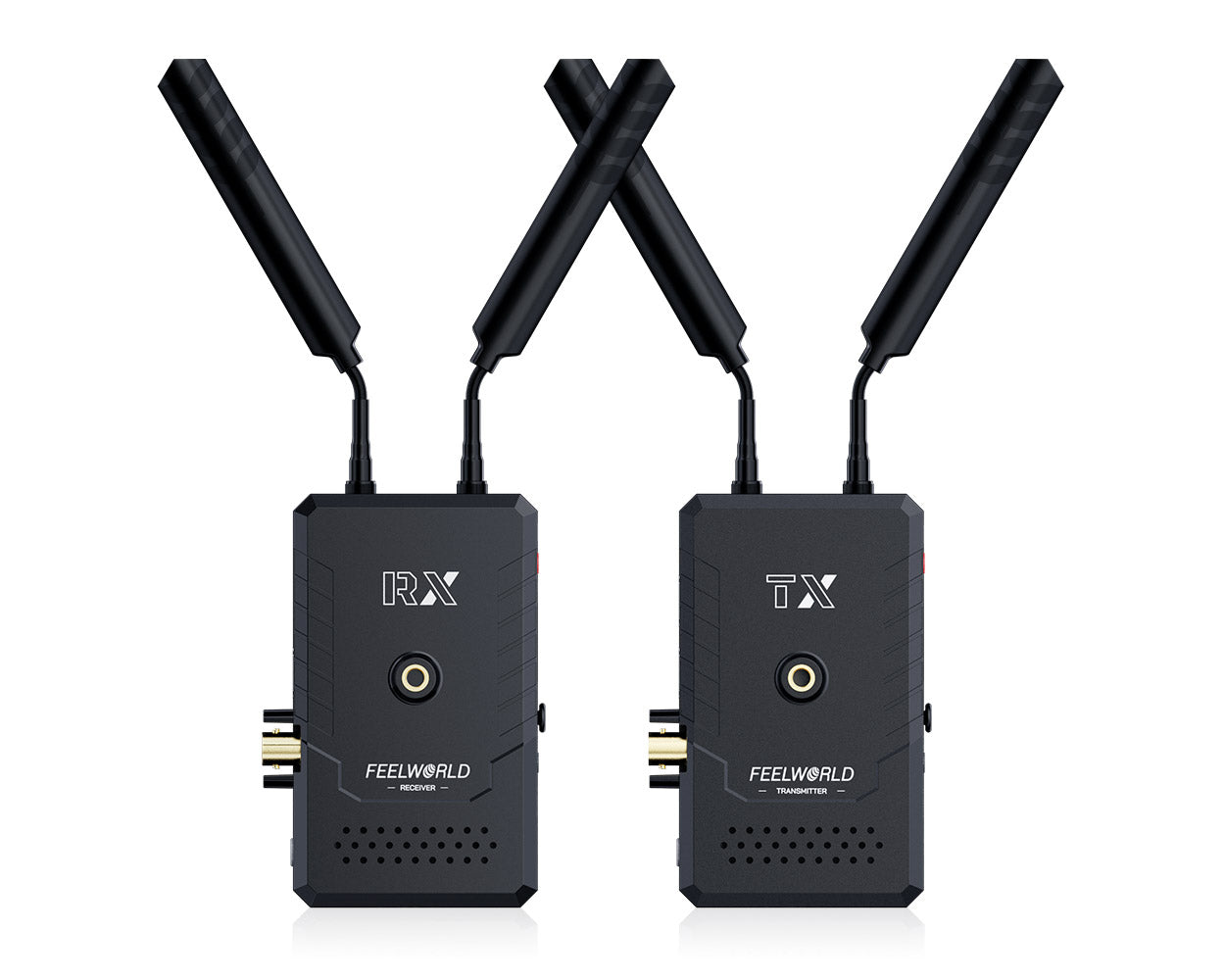

The FEELWORLD WTRS TX/RX is a real-time wireless video transmission system featuring 5GHz wireless technology and support for ultra-high-definition 4K30p video. It integrates full-duplex intercom, recording & playback, and UVC streaming into one professional solution.
Equipped with both SDI and HDMI input and output ports, it supports on-site recording and instant playback for efficient workflow control. The UVC streaming function allows direct connection to a computer via live software without an extra capture card.
Designed with professional filmmaking features, the WTRS empowers filmmakers, crew members, and content creators around the world with reliable, high-performance wireless video transmission.

One Key Record, Instant Footage

Both TX and RX support recording function. Simply insert a TF card and press the REC button to start recording.The monitoring end records high-definition footage synchronously, eliminating the need to remove the camera card for file transfer.Directors and clients can obtain finished footage immediately for on-site review and fast content output, greatly improving efficiency for short videos, commercial shooting and live streaming clipping. In addition, dual recording with the camera provides double security for your footage.

Instant Playback, Flawless Shooting

The RX supports quick playback of recorded content, allowing on-site checking of focus, composition, and image details. No need to go back and forth to the camera, reducing re-shoot and capturing satisfying results in one take.

4K Crisp and Sharp Video Transmission

With 4K/30fps transmission capability, WTRS presents image with superior clarity, detail and realism, making it competent for filmmaking or other professional applications.

1000FT LOS Range and 0.08S Low Latency

More than 1000ft (300m) hassle-free and reliable range for wireless video and audio transmission; 0.08S low latency achieves real-time monitoring.

Preset Grouping and Pairing, Easy Setup

Time is important for busy crew members,WTRS supports preset grouping and pairing,don't need to repetitively and manually set up the transmitter and receivers.
Note: In grouping mode,the grouping name and channel of TX and RX need to be consistent for automatically linking.

Full Duplex Intercom

Meet the real-time intercom between the director and the photographer
The WTRS features intercom function, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.

UVC Streaming, Simplify Live Streaming

The receiver (RX) is equipped with a UVC output interface. No driver or video capture card is required. Simply connect it directly to a computer via a Type-C cable to transmit video signals, and easily complete streaming and live streaming on live software such as OBS. Plug-and-play, efficient and stable.

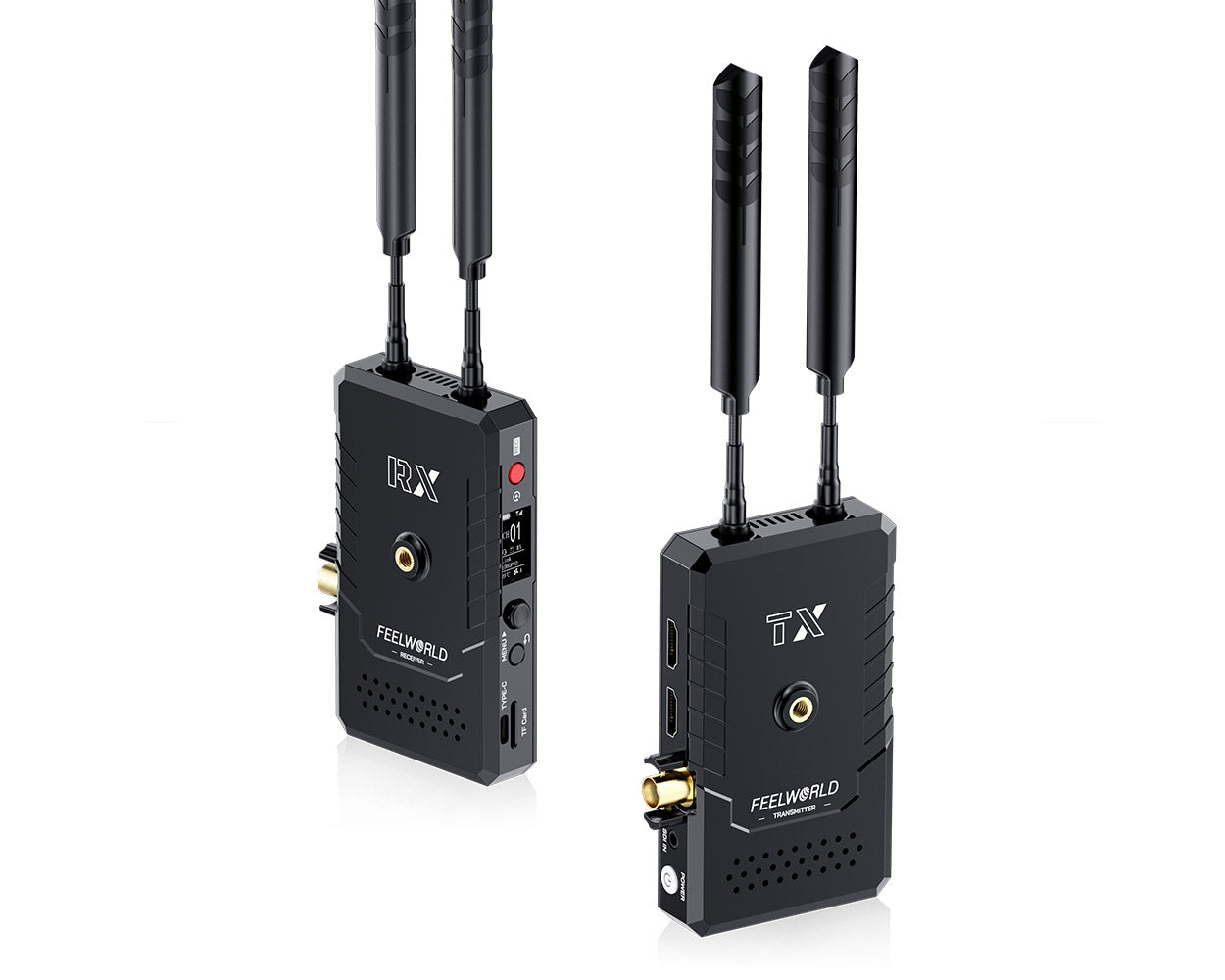

OLED Viewable Design

Both TX and RX offers a OLED display. With it, you can monitor the status and setting information, including battery level,current group, transmission resolution, frame rate, current channel and more. Improve the user's experience.

One Transmitter 4 Receivers, Meet More Monitoring Needs

WTRS supports WPS pairing manually,one transmitter allows to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Smart Channel Scan

The receiver comes with smart channel scan function, this helps determine which ones are occupied and select-able.

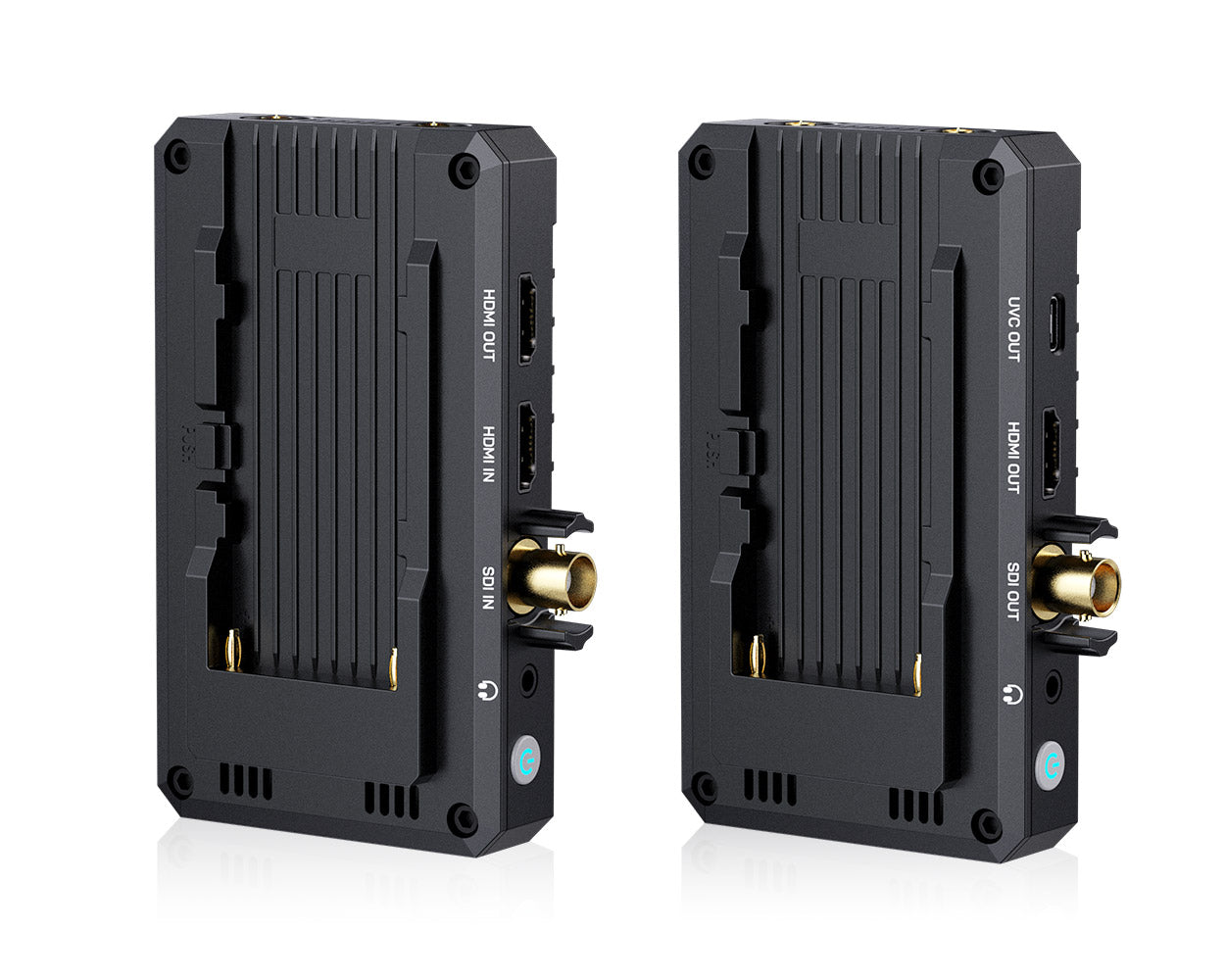

SDI + HDMI Inputs and Outputs, Seamless Connectivity

The transmitter features SDI input HDMI input and output,the receiver provides SDI and HDMI output, meet various shooting needs.

Smart APP Monitoring and Recording

The APP “Feelworld Wireless 2” offers a huge range of monitoring functions that can enhance your shooting workflow.
Note: You can get the monitoring function from the Android APP at present, record and other functions such as waveform, histogram, etc. are developing

Flexible Power Options

Both TX and RX is equipped with USB-C power input and NP-F battery slot.You can use 5V/3A USB-C power source or NP-F batteries to power.

Flexible Fan Control

WTRS offers fan cooling system,you can choose different fan mode in various scenarios.It is default to turn on and automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation. You can also adjust the fan speed manually or turn off the fan when you need a no noise environment.

Mounting on Anywhere

The transmitter and receiver are each equipped with 1/4" screw holes on the front and bottom, supporting both horizontal and vertical mounting. With a compact and lightweight body, they can be installed on camera arms,cold shoes and any other places.

Specifications

Transmitter

Receiver

Packaging Information

In The Box

1× Transmitter
1× Receiver
5× Antenna
1× Cold Shoe
1× USB-A to USB-C Adapter
1× User Manaul
