FEELWORLD 4K10X 4K PTZ Camera 10X Optical Zoom AI Tracking HDMI USB IP Remote Control
FEELWORLD 4K10X 4K PTZ Camera 10X Optical Zoom AI Tracking HDMI USB IP Remote Control
Regular price
$369.99 USD
Regular price
Sale price
$369.99 USD
200 in stock
Quantity
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Overview
Key Features
- 1/2.8" CMOS Sensor
- HDMI, USB 3.0, and LAN Outputs
- Supports Multiple Streaming Protocols
- 10x Optical Zoom, 80.5° FOV
- ±125° Pan, ±30° Tilt
- AI Tracking with Human Detection
- PoE Support, 3.5mm Audio Line In
- RS-232 and IR Remote Control

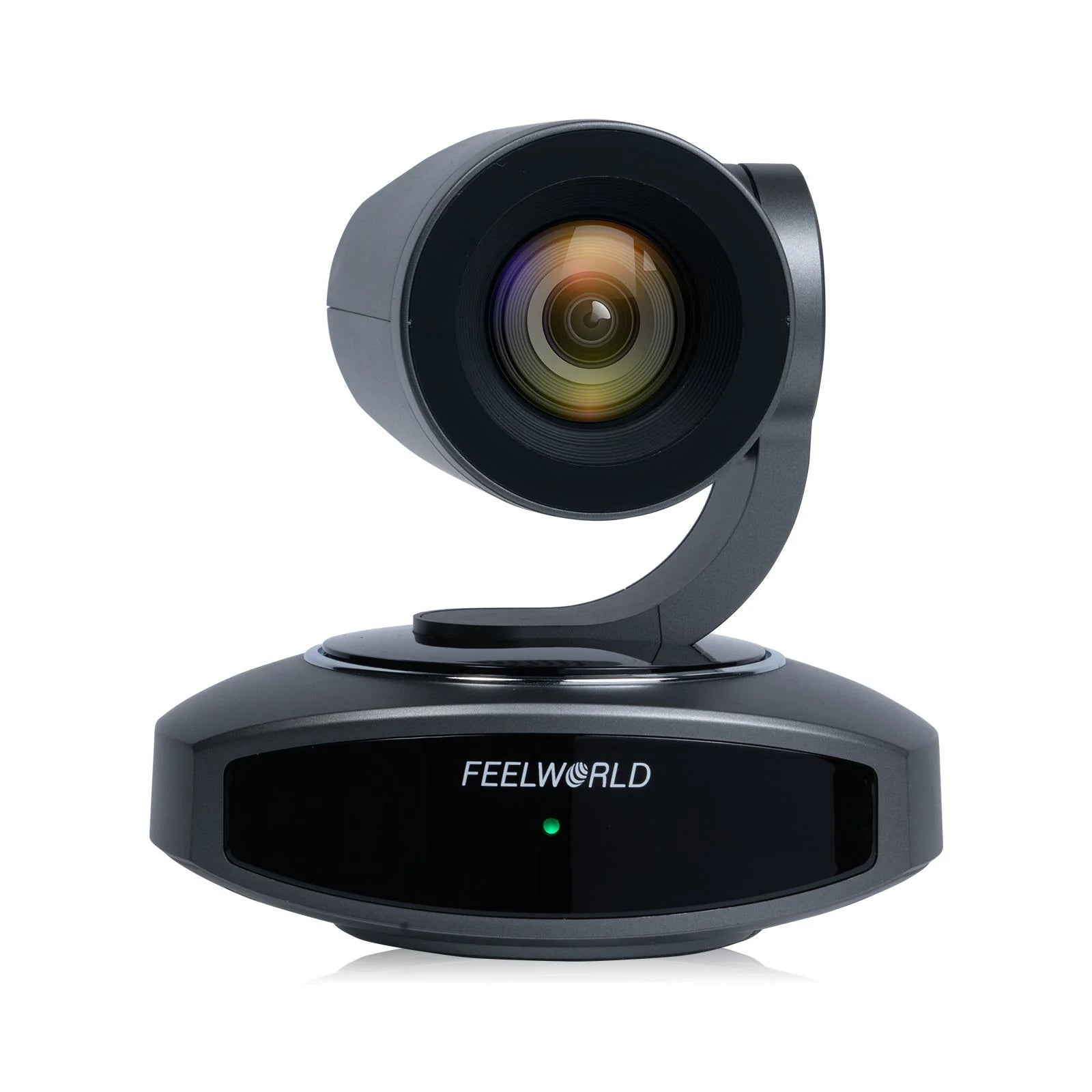

4K UHD PTZ Camera
The FEELWORLD 4K10X 4K UHD PTZ camera boasts a cutting-edge, high-performance CMOS sensor, delivering stunningly sharp video, vibrant colors, and exceptional optical precision at resolutions up to 4K. Its wide-angle lens captures a broad field of view, ensuring smooth, seamless visuals and superior image quality for meetings, presentations, live streaming and all your visual communication needs.
The FEELWORLD 4K10X 4K UHD PTZ camera boasts a cutting-edge, high-performance CMOS sensor, delivering stunningly sharp video, vibrant colors, and exceptional optical precision at resolutions up to 4K. Its wide-angle lens captures a broad field of view, ensuring smooth, seamless visuals and superior image quality for meetings, presentations, live streaming and all your visual communication needs.

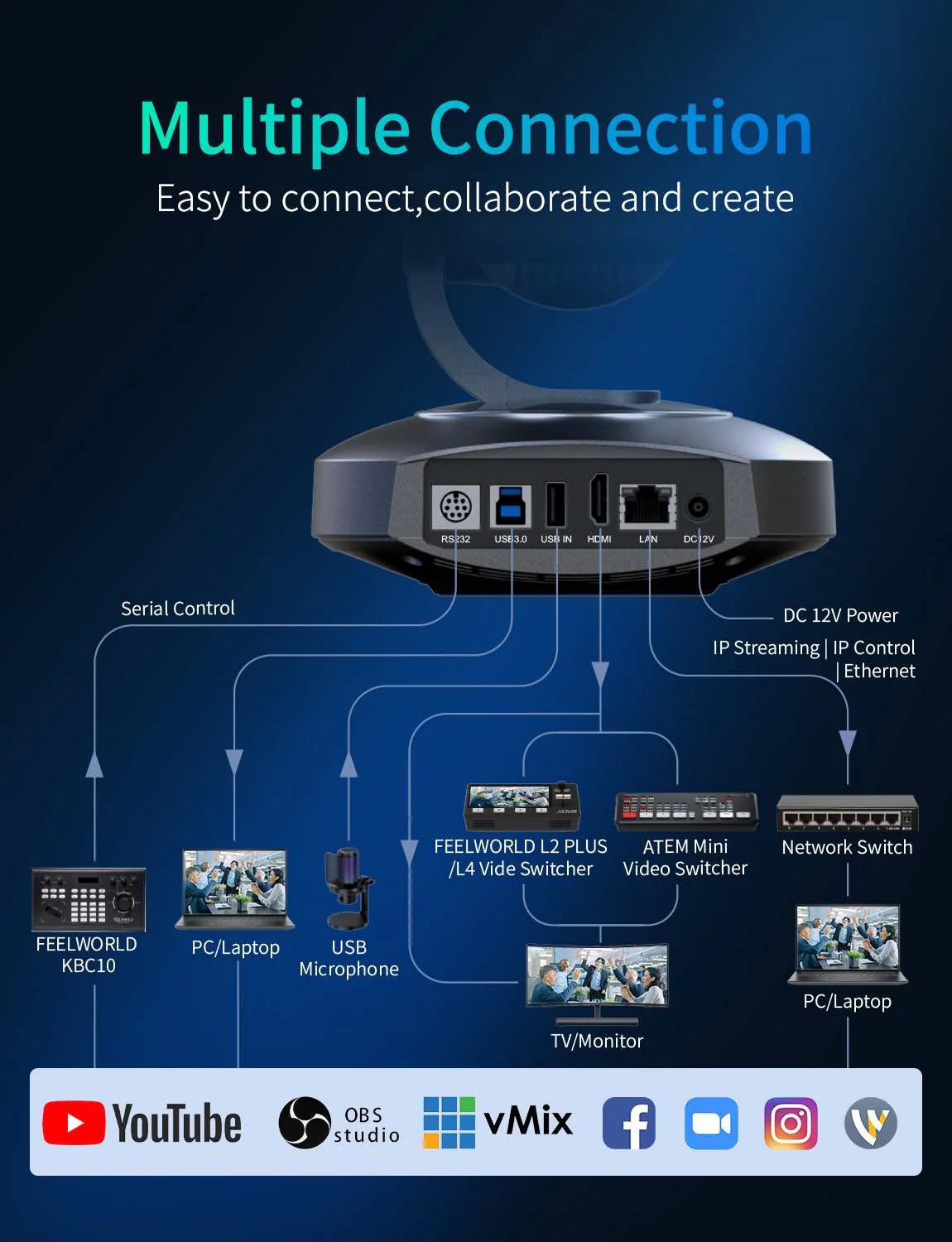

Superior Compatibility
HDMI+USB+LAN Video Outputs Simultaneously
4K10X is equipped with HDMI, LAN, and USB3.0 outputs, which can output video simultaneously. LAN supports POE-powered and IP control. The control interface RS232 connects with the PTZ controller to control the PTZ camera, and USB2.0 can be connected USB microphone or a USB flash drive.

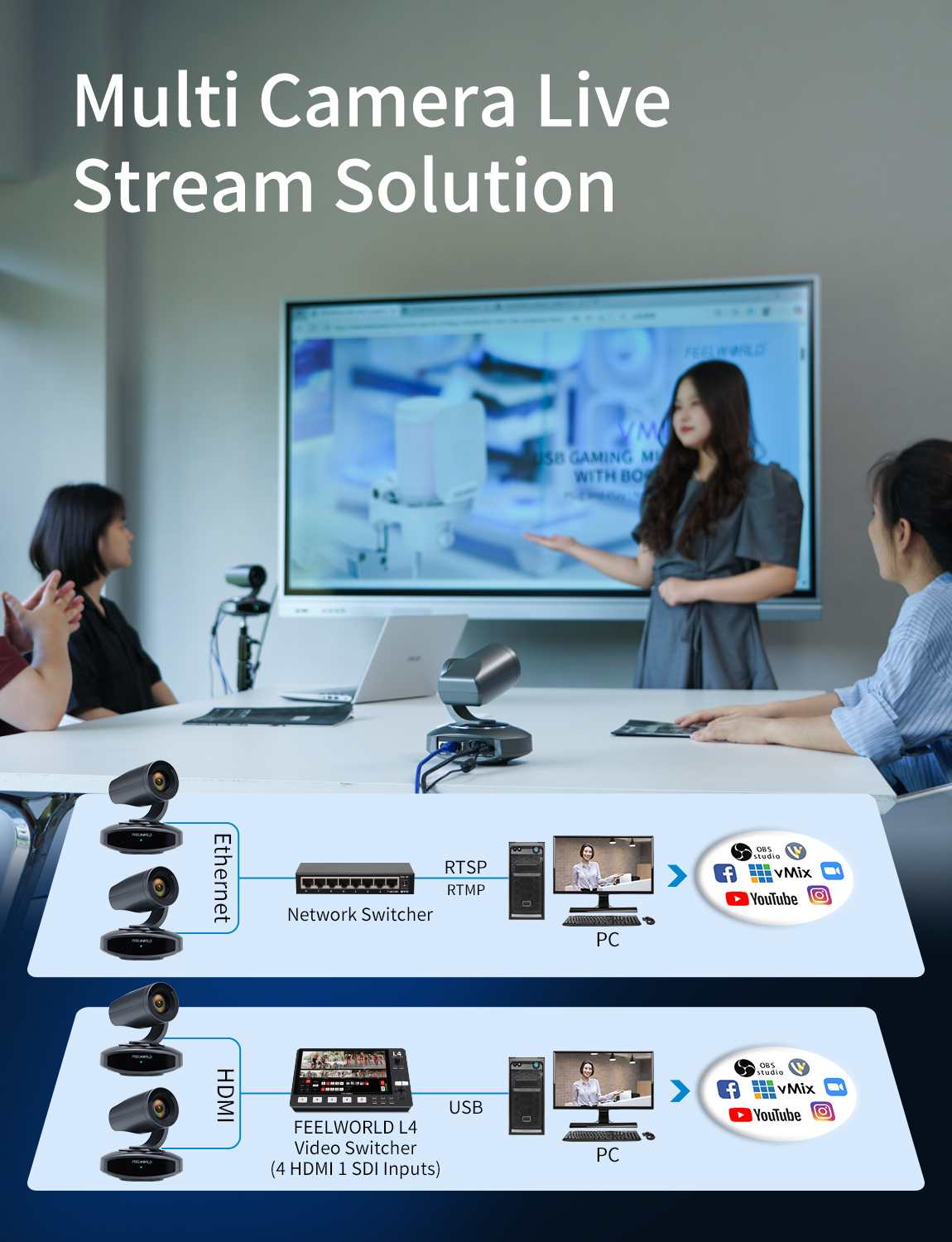

Multi-cam Live Streaming Solution
1. You can use two or three 4K10X for medium live streaming, and use three or four 4K10X for large live streaming. Use with FEELWORLD L2 PLUS/L4 video switcher, can be monitored in real-time and connect PC to play PPT.
2. PTZ control: In the same LAN, you can easily control 4K10X via L2 PLUS/L4 or KBC20 controller.
3. Stream to Platform: Through USB/Ethernet, you can stream to your favorite platforms.
1. You can use two or three 4K10X for medium live streaming, and use three or four 4K10X for large live streaming. Use with FEELWORLD L2 PLUS/L4 video switcher, can be monitored in real-time and connect PC to play PPT.
2. PTZ control: In the same LAN, you can easily control 4K10X via L2 PLUS/L4 or KBC20 controller.
3. Stream to Platform: Through USB/Ethernet, you can stream to your favorite platforms.
Ultra HD Vision Experience
Adopts 1/2.8 inch 8.29 megapixel high quality CMOS sensor, which features up to a 3840 x 2160 UHD resolution at 30 frames per second under HDMI, USB-C main stream MJPG/H264 and network stream, experience the next level of clarity.
Adopts 1/2.8 inch 8.29 megapixel high quality CMOS sensor, which features up to a 3840 x 2160 UHD resolution at 30 frames per second under HDMI, USB-C main stream MJPG/H264 and network stream, experience the next level of clarity.
10X Optical Zoom
10X optical zoom gets you closer without compromising color, detail, or tone.
10X optical zoom gets you closer without compromising color, detail, or tone.
Accurate and Sensitive Auto Focus
In auto focus mode, 4K10X allows you to always focus on the correct part and accurately capture your facial expressions.
In auto focus mode, 4K10X allows you to always focus on the correct part and accurately capture your facial expressions.
Silent and Smooth PTZ Movement
4K10X can be controlled remotely to rotate 250° (±125°) horizontally and 60°(±30°) vertically in an accurate, smooth and silent way. 67.5° wide-angle with a wide field of view.
4K10X can be controlled remotely to rotate 250° (±125°) horizontally and 60°(±30°) vertically in an accurate, smooth and silent way. 67.5° wide-angle with a wide field of view.
AI Human Auto Tracking
With real-time tracking and zone tracking. The camera can automatically track you in real time so that you stay in the center. Made for Church Services, house of Worship, Teaching and Education, Broadcast, High-Tech Conference, Summit Forum, Events.
AI tracking shortcut key on the remote controller
【F1】：Turn off AI Human Detection
【F2】：Turn on AI Human Detection
【F3】：Toggle between real-time tracking mode and zone tracking mode
【F4】：Chang tracking target to real-time tracking mode
With real-time tracking and zone tracking. The camera can automatically track you in real time so that you stay in the center. Made for Church Services, house of Worship, Teaching and Education, Broadcast, High-Tech Conference, Summit Forum, Events.
AI tracking shortcut key on the remote controller
【F1】：Turn off AI Human Detection
【F2】：Turn on AI Human Detection
【F3】：Toggle between real-time tracking mode and zone tracking mode
【F4】：Chang tracking target to real-time tracking mode
Unlock More AI Settings
Access the Web UI to experience more advanced person/zone tracking settings.
Power over Ethernet
Just with a single Ethernet cable, you can power for device and control, simplifying the setup.
Note:
1. You must use a CAT6 or higher Ethernet Cable to ensure normal operation.
2. Make sure your Router or Network Switch supports PoE to power the camera through the Ethernet cable. (The switch at least complies with the IEEE802.3af/at standard, the output voltage is 48V or above.)
Just with a single Ethernet cable, you can power for device and control, simplifying the setup.
Note:
1. You must use a CAT6 or higher Ethernet Cable to ensure normal operation.
2. Make sure your Router or Network Switch supports PoE to power the camera through the Ethernet cable. (The switch at least complies with the IEEE802.3af/at standard, the output voltage is 48V or above.)
Easy 10 Preset Setting
10 Preset positions by IR remote controller, you can save pan, tilt, and zoom settings, and smoothly transition between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.
10 Preset positions by IR remote controller, you can save pan, tilt, and zoom settings, and smoothly transition between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.

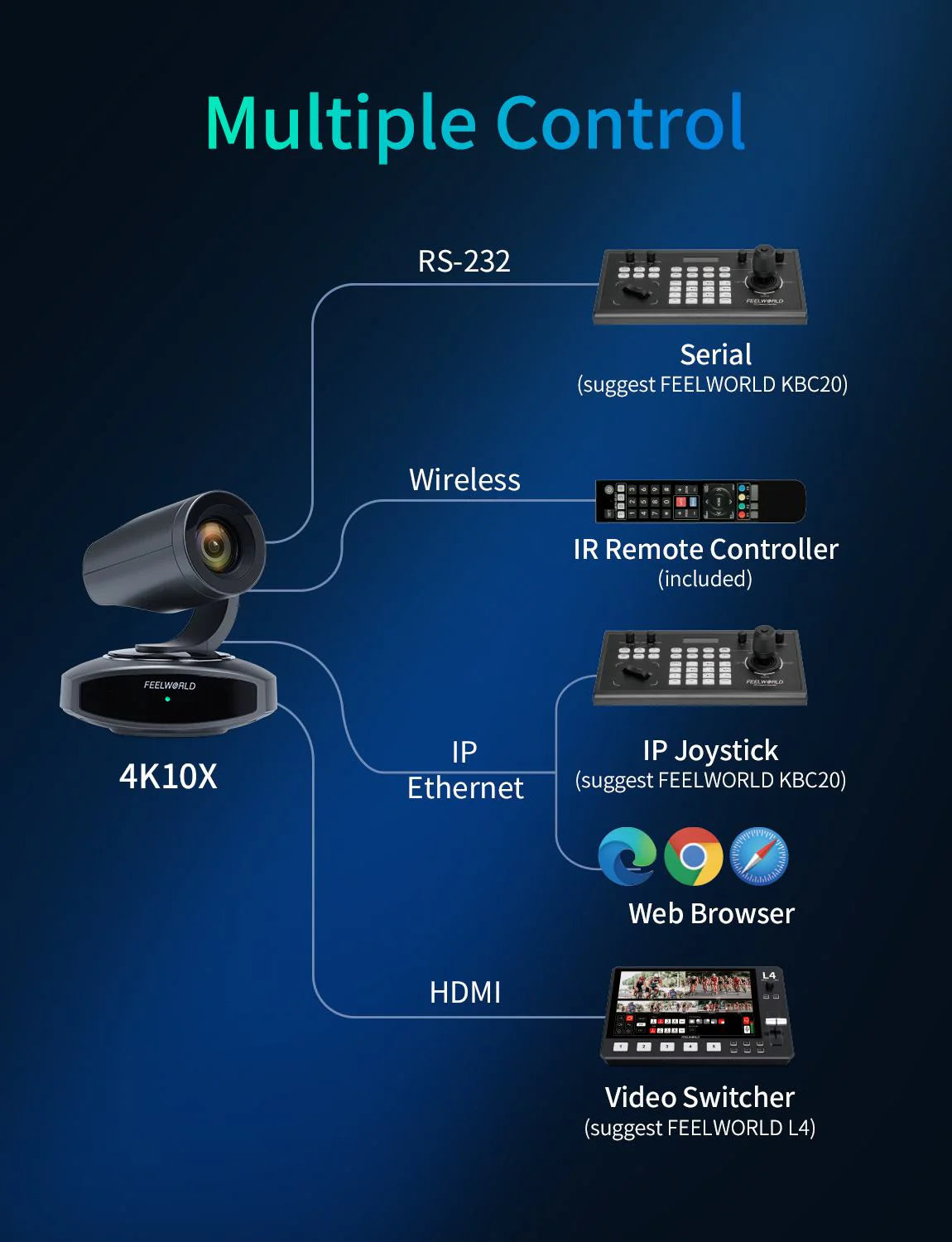

Versatile Ways to Control Your Camera
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also get more control via connect interface.
Note: The distance of the IR remote control is about 10M, the higher of battery level, the better the effect.
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also get more control via connect interface.
Note: The distance of the IR remote control is about 10M, the higher of battery level, the better the effect.

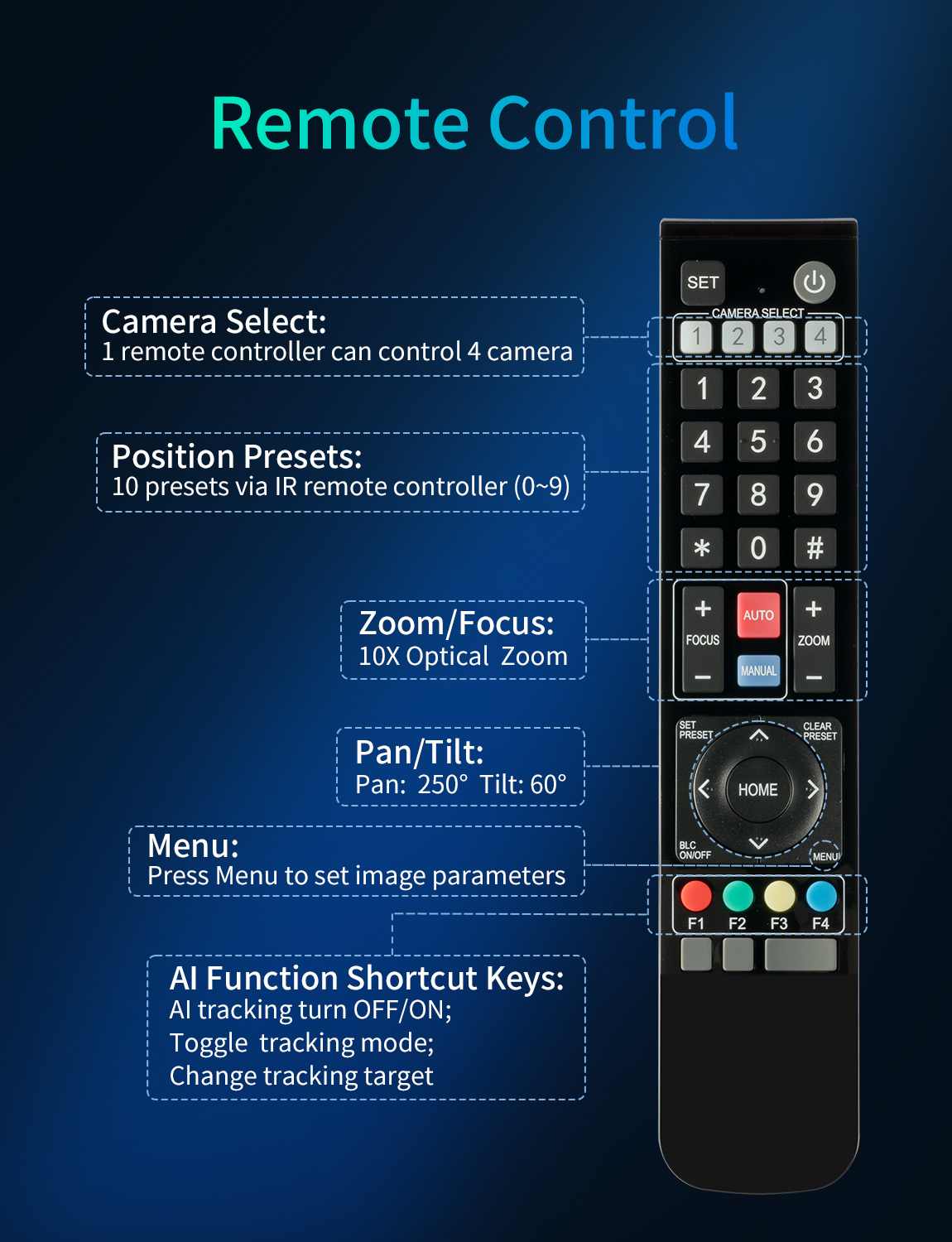

Remote Controller Instruction

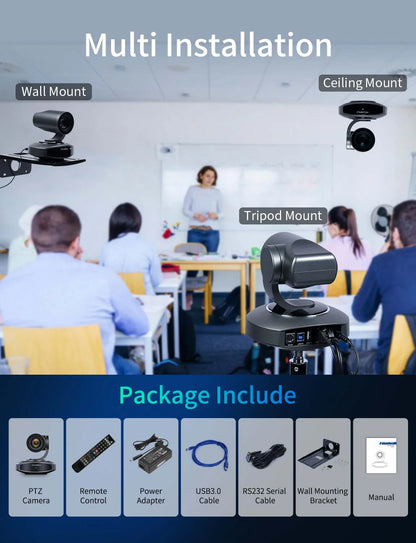

Various Installation Methods
The camera can be installed on the wall, a tripod or the ceiling, you can also put it on the desk directly. Applicable to different usage scenarios.
Remark: The bracket of the wall and ceiling can be selected, defaulting to the wall bracket.

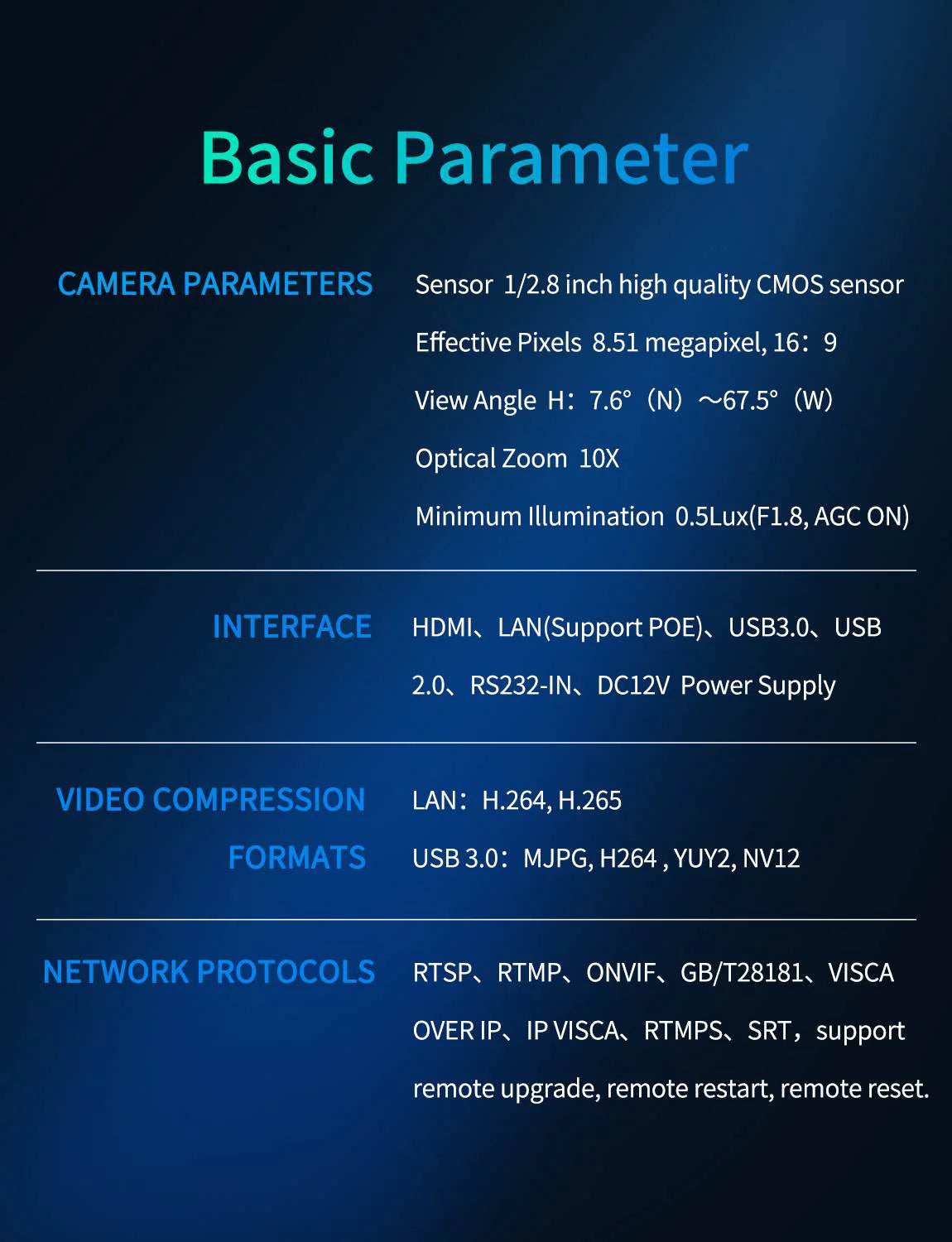

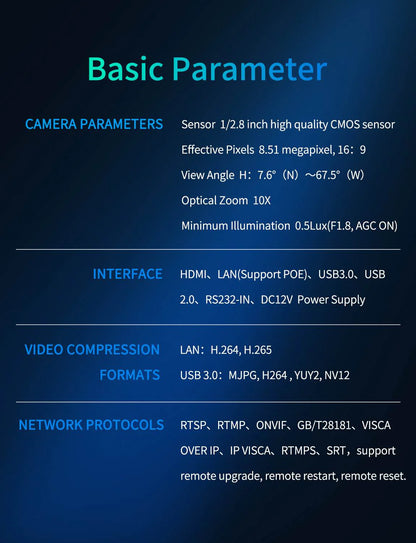

Specifications
Camera Parameters
| Model | 4K10X |
| Sensor | 1/2.8 inch high-quality CMOS sensor |
| Effective Pixels | 8.29 megapixel, 16：9 |
| View Angle | H：7.6°（N）～67.5°（W） |
| Iris | F1.76 ～ F3.0±5% |
| Digital Zoom | 16X |
| Optical Zoom | 10X |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| DNR | 2D & 3D |
| White Balance | Auto/Manual/One-push/Specified Color Temperature |
| Focus | Auto/Manual/One-push |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Iris Mode | F1.8 ～ F11, CLOSE |
| Shutter Speed | 1/25～1/20000 |
| BLC | On/Off |
| Dynamic Range | Off, 1 ～ 8 |
| Video Adjustment | Brightness, Contrast, Saturation, W&B Mode, Horizontal flip, vertical flip, Digital Zoom, Minimum Illumination |
| SNR | >50dB |
Input/output Interface
| Interface | HDMI, LAN(POE), USB3.0, USB2.0, RS232-IN, DC12V Power Supply |
| Video Output | HDMI, USB3.0, LAN(support PoE) |
| Video Compression Format | LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 |
| Audio Compression Format | AAC |
| LAN Interface | 100M Ethernet port, support POE power supply, support audio and video output |
| Control Interface | RS232-IN |
| Serial Port Communication Protocols | VISCA/Pelco-D/Pelco-P; Baud Rate 115200/38400/9600/4800/2400 |
| USB Communication Protocols | UVC（Video Communication Protocol）, UAC（Audio Communication Protocol） |
| Network Protocol | RTSP、RTMP、ONVIF、GB/T28181、VISCA OVER IP、IP VISCA、RTMPS、SRT support remote upgrade, remote restart, remote reset |
| Power Supply | HEC3800 Power Socket(DC12V) |
PTZ Parameters
| Pan Rotation | -125°～+125° |
| Tilt Rotation | -30°～+30° |
| Pan Control Speed | 0.1 ～65°/sec |
| Tilt Control Speed | 0.1～35°/sec |
| Preset Speed | Pan: 65°/sec, Tilt: 35°/sec |
| Preset Number | 255 presets(10 via remote control) |
Video Signal
| HDMI | 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50 |
| LAN Main Stream | 1920×1080/1280×720/640×480@30/25/20/15/10/5 fps; |
| LAN Sub-Stream | 1280×720/640×360/640×480/320×240/320×180@30/25/20/15/10/5fps |
| USB Main Stream | YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps; |
| USB Main Stream | MJPG/H264:3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
| USB Sub-stream | YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@25/20/15/10/5fps |
| USB Sub-stream | MJPG/H264: 3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Other Parameters
| Input Voltage | 12V |
| Input Current | <1.2A |
| Power Consumption | ≤13.3W |
| Stored Temperature | -10℃～+70℃ |
| Storage Humidity | 20%～95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension (W*H*D) | 152X155X126mm |
| Unit Weight | 0.9kg |
| Outer Carton QTY | 4pcs |
| Outer Carton Size | 515x280x490mm |
| Gross Weight | 11kg |
