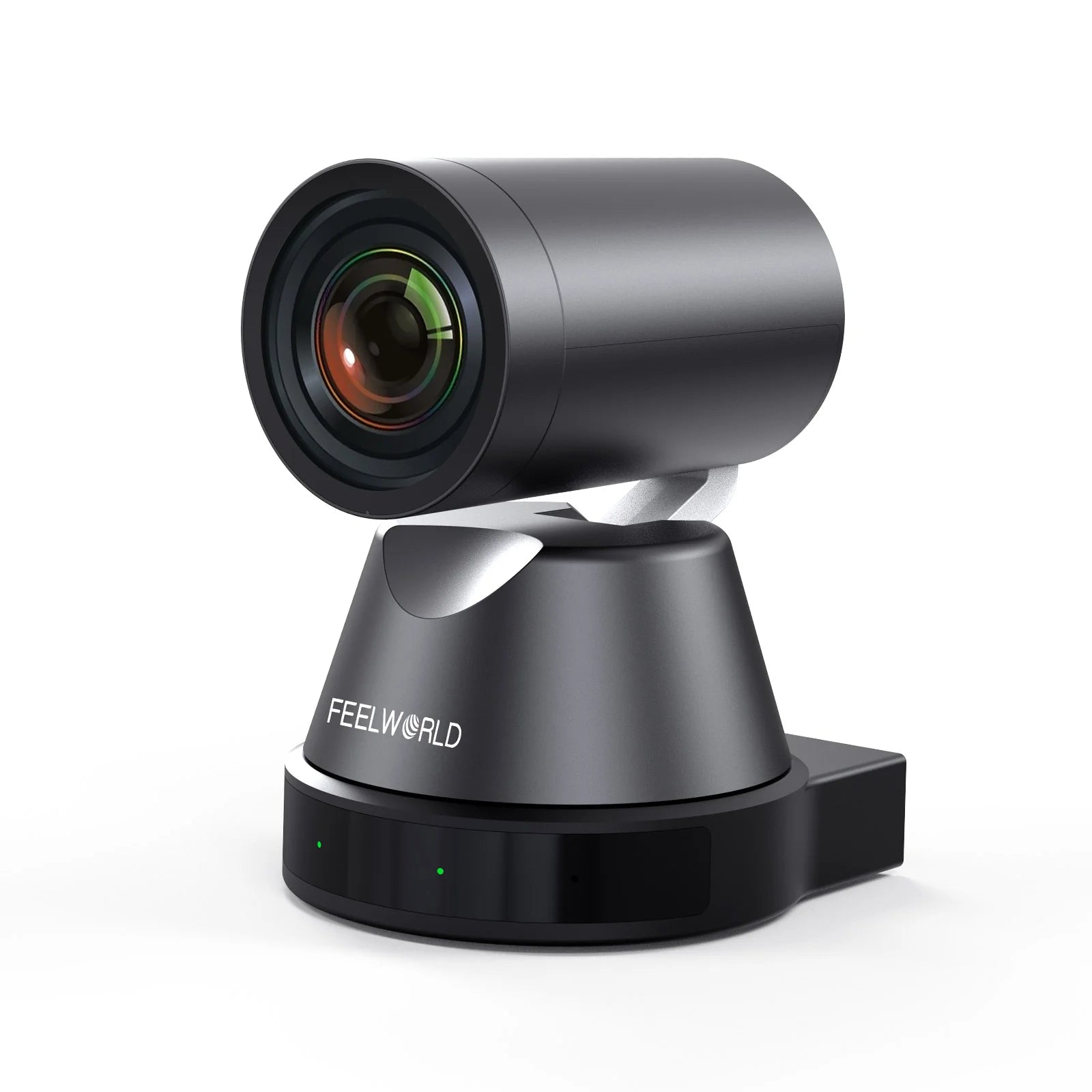

FEELWORLD 4K12X 4K PTZ Camera 12X Optical Zoom AI Tracking HDMI USB IP Remote Control
FEELWORLD 4K12X 4K PTZ Camera 12X Optical Zoom AI Tracking HDMI USB IP Remote Control
200 in stock
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Click to View More PTZ Cameras:
Overview
Key Features
- 1/2.8" CMOS Sensor
- HDMI, USB-C, and RJ45 LAN Outputs
- Supports Multiple Streaming Protocols
- 12x Optical Zoom, 80.5° FOV
- AI Tracking with Human Detection
- 340° Pan, 90° Tilt
- PoE Support, 3.5mm Audio Line In
- RS-232 and IR Remote Control
FEELWORLD 4K12X meets all your needs for church live streaming, video conference, online education, live concert, online direct sales, remote telemedicine, etc.

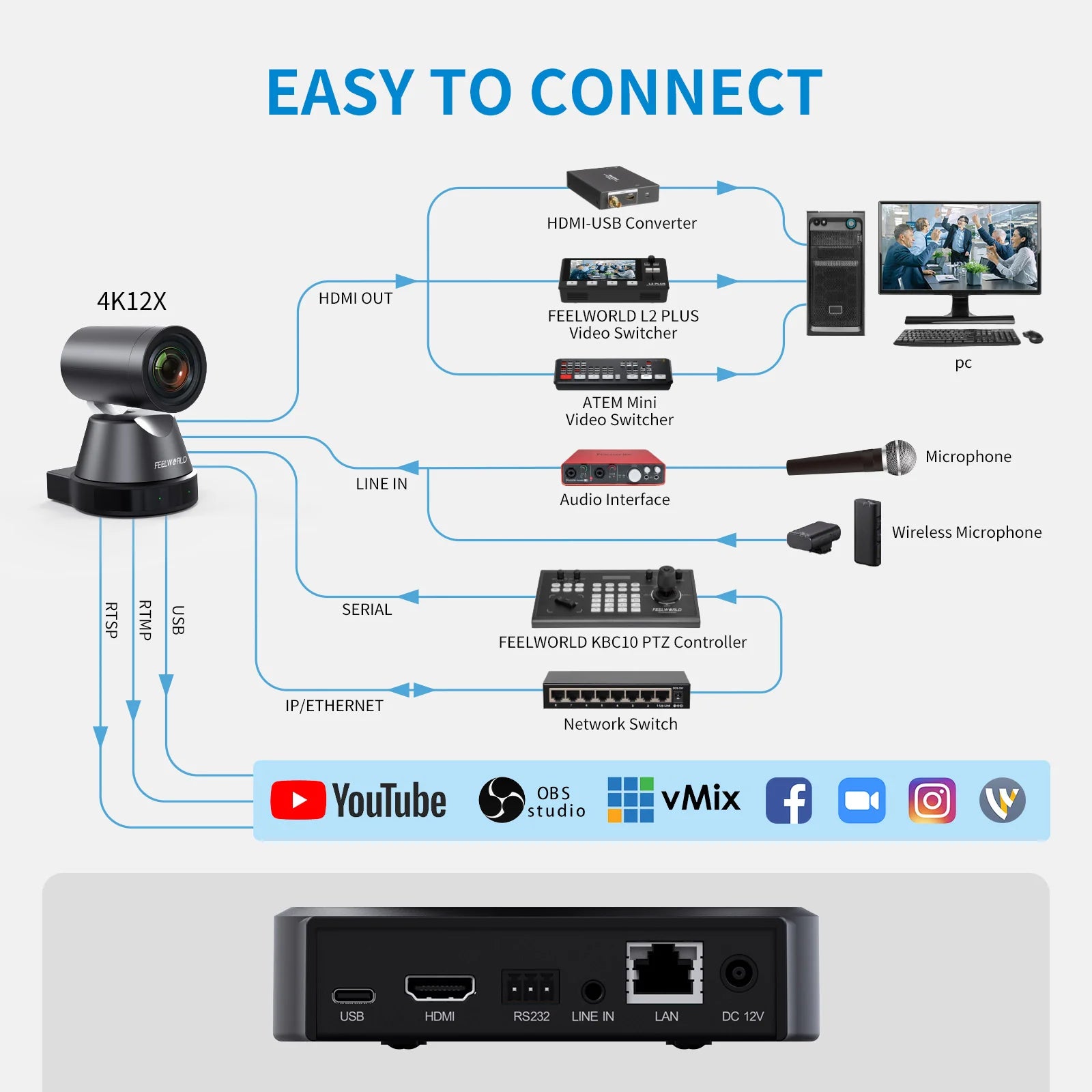

4K12X is equipped with rich interfaces, and supports multiple network protocols. Easy to connect, you can stream to your favorite platforms smoothly.

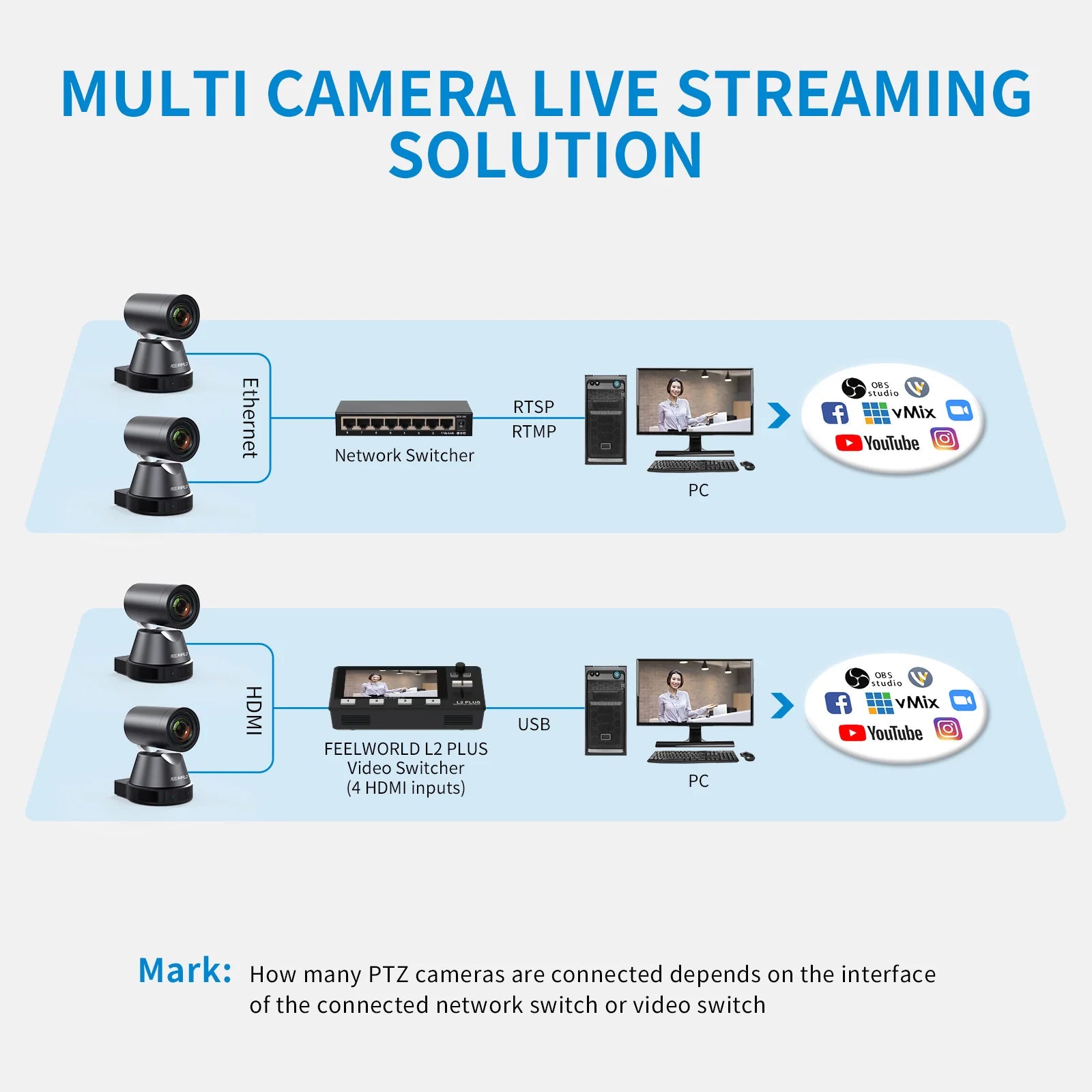

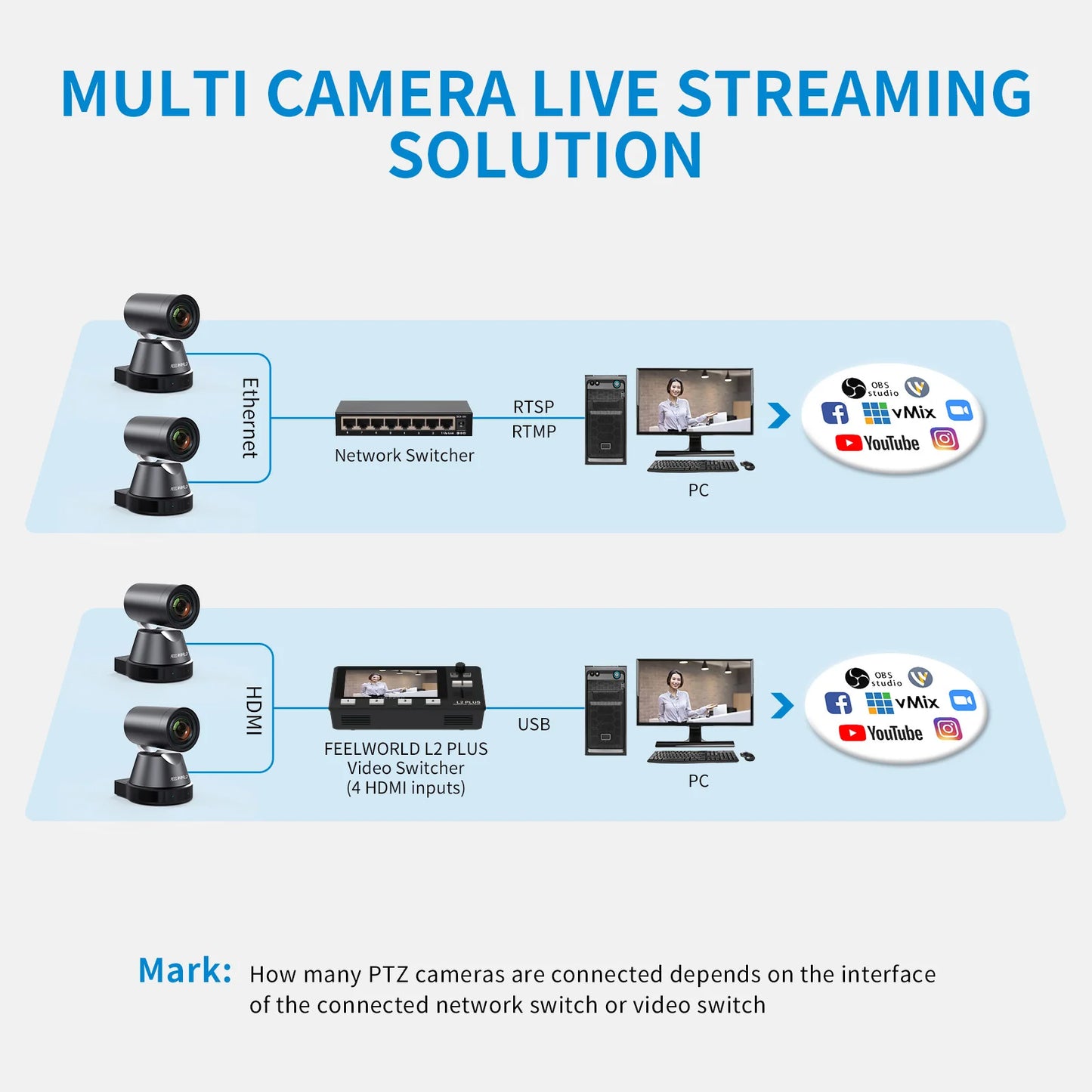

For medium or large live streaming always need multi cameras shooting to get different views. You can easy to connect multi PTZ cameras via network switch or video switcher.
1. Multi-cam: You can use two 4K12X for medium live streaming, and three 4K12X for large live streaming. Use with FEELWORLD L2 PLUS video switcher, can be monitored in real-time, and connect PC to play PPT.
2. PTZ control: In the same LAN, you can easily control 4K12X via L2 PLUS or KBC10 controller.
3. Stream to Platform: Through USB/Ethernet, you can stream to your favorite platforms.
Adopts 8.51 megapixel SONY sensor, supports up to 4Kp30fps under video signal of HDMI, USB-C main stream MJPG/H264 and network stream. Provides super sharp, crystal clear videos.
AI Human Auto Tracking
With real-time tracking and zone tracking. The camera can automatically track you in real time so that you stay in the center. Made for Church Services, house of Worship, Teaching and Education, Broadcast, High-Tech Conference, Summit Forum, Events.

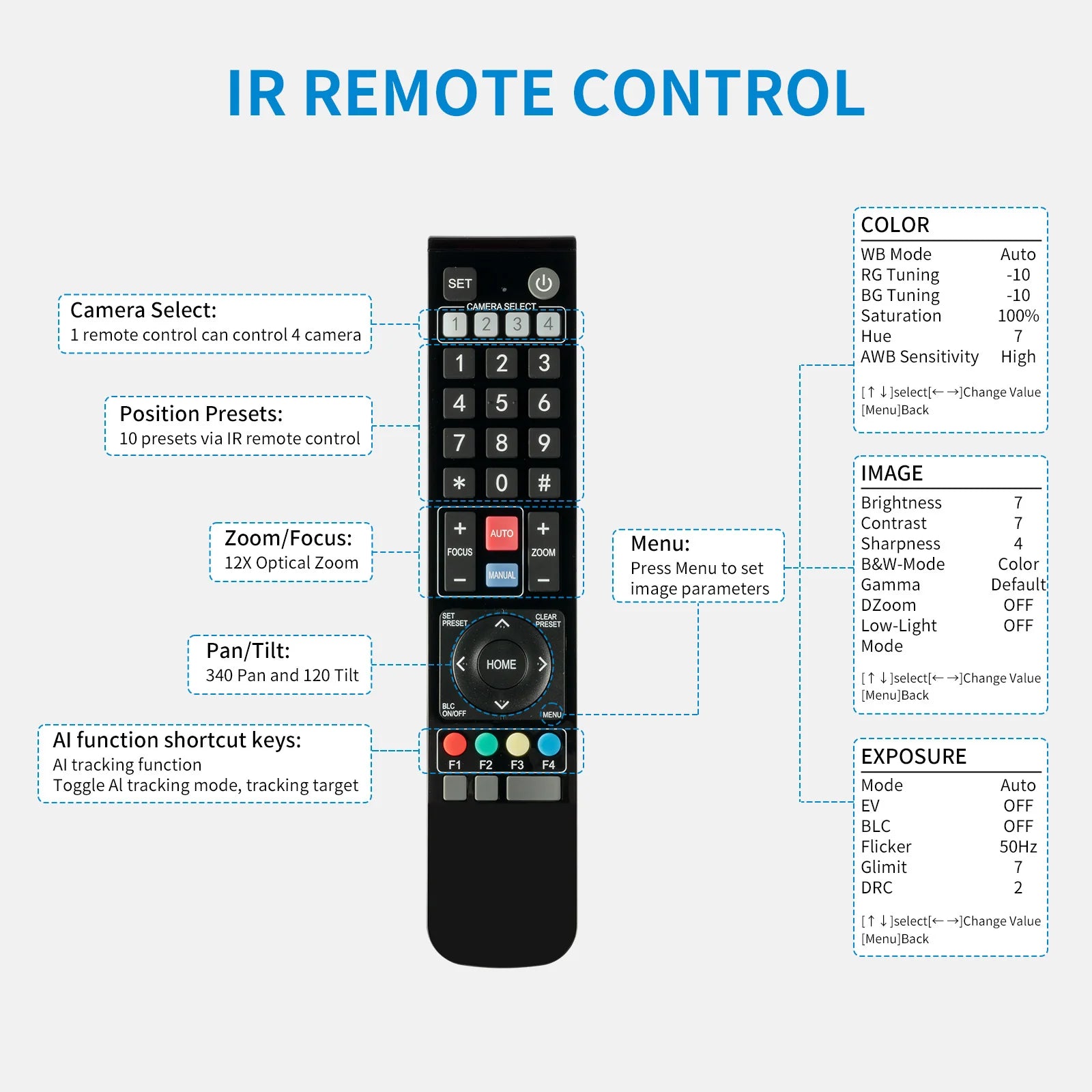

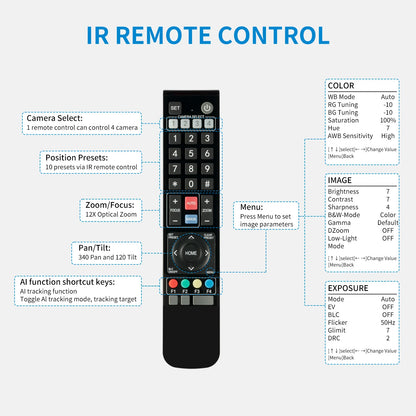

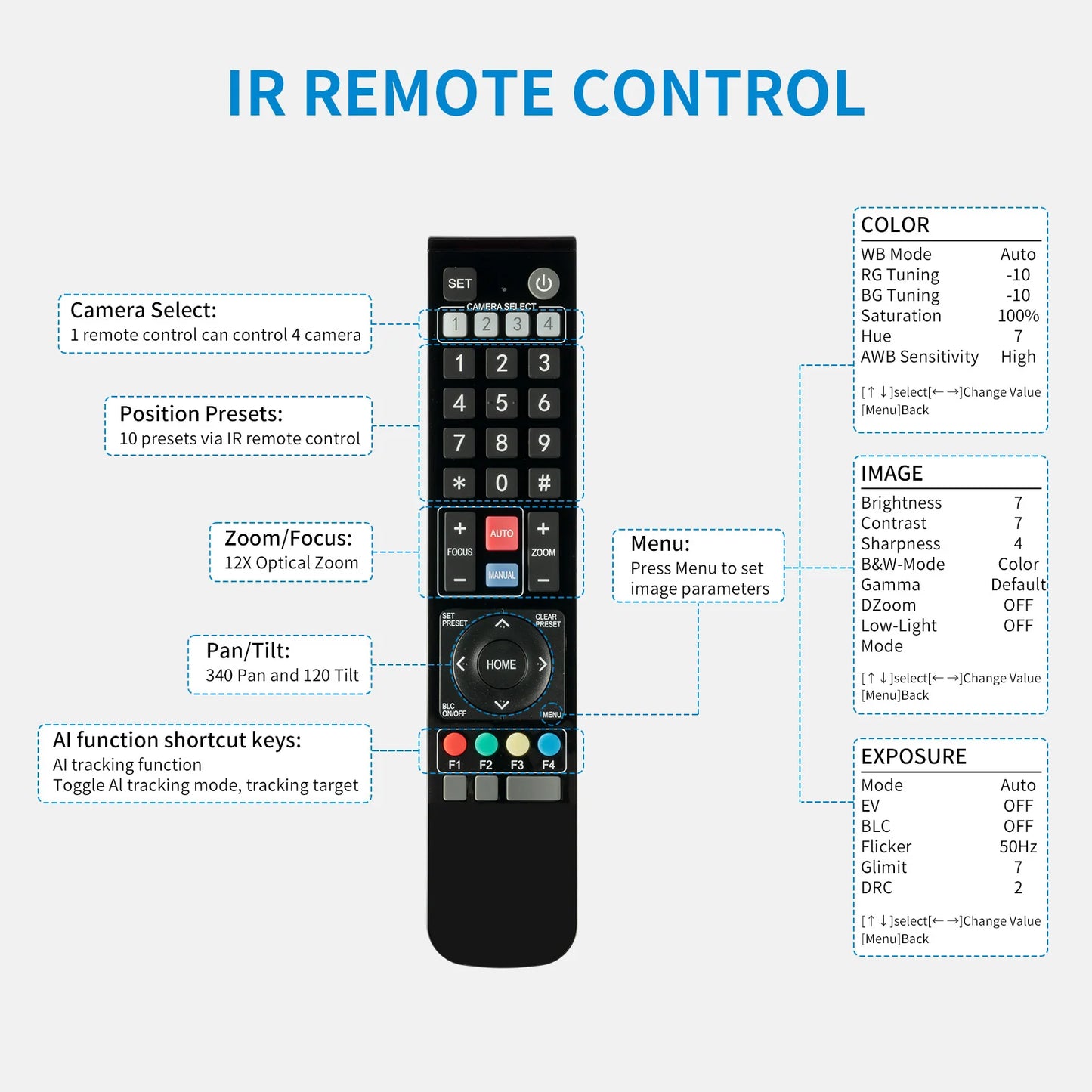

AI tracking shortcut key on the remote controller
【F1】：Turn off AI Human Detection
【F2】：Turn on AI Human Detection
【F3】：Toggle between real-time tracking mode and zone tracking mode
【F4】：Chang tracking target on real-time tracking mode
The camera with a 12x optical zoom lens and an 80.5° wide-angle lens easily shoots all the scenes in the field.
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 60° vertically (-30°～+30°).
Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
10 preset positions by IR remote controller, that can save pan, tilt, and zoom settings, and smoothly transition between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.
4K12X supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6A cable to power your 4K12X.
PoE switcher and network cable requirement
PoE Switcher: PoE devices must comply with the IEEE802.3af/at standard. The PoE output voltage range is 44-57V, and the output voltage of the PoE switcher is suggested to be above 48V.
Network cable: suggest using CAT5A, better to use CAT6A cable.
Support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames/second compression; and support AAC, audio compression.

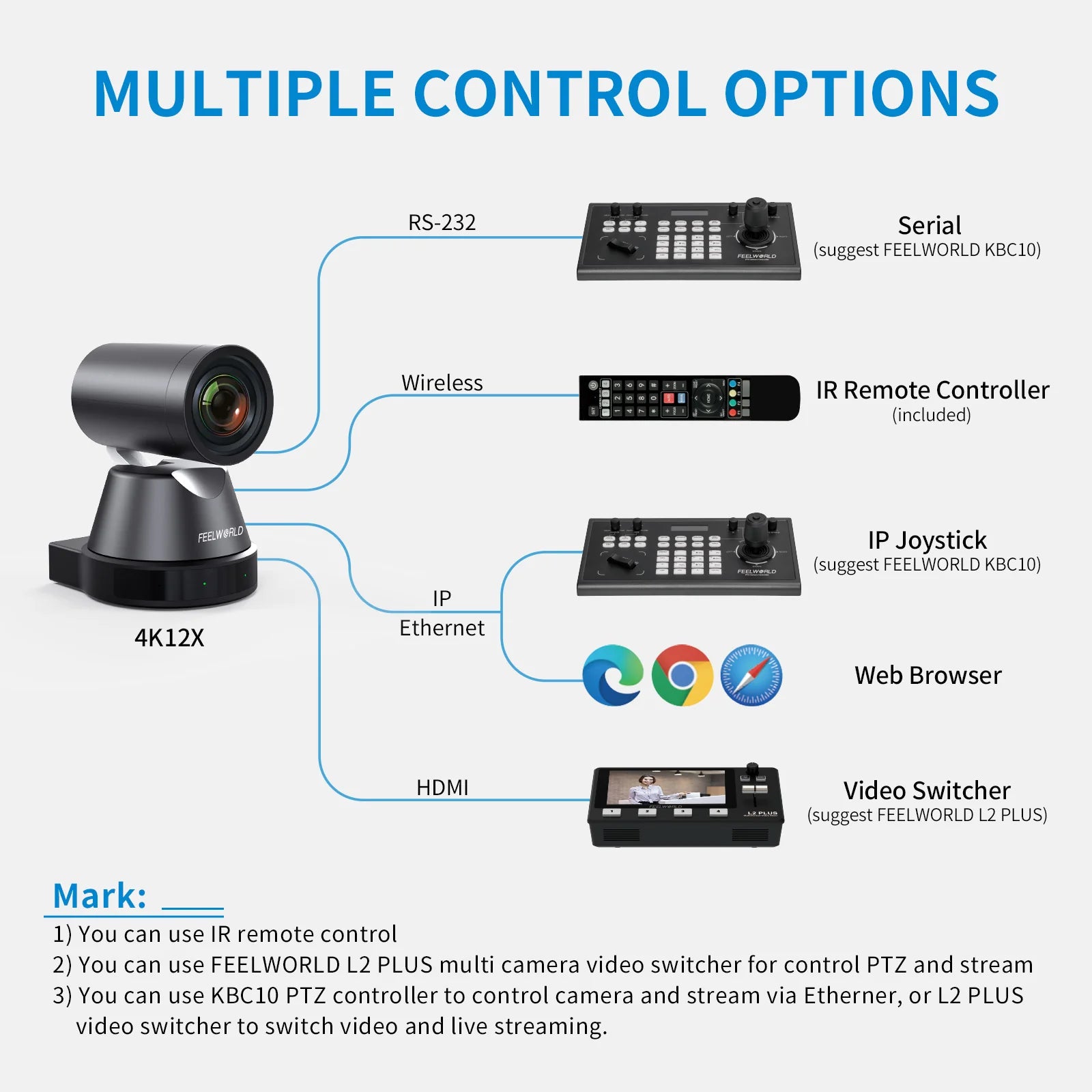

You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also get more control via the connect interface.
Note: The distance of the IR remote control is about 10M, the higher of battery level, the better the effect.

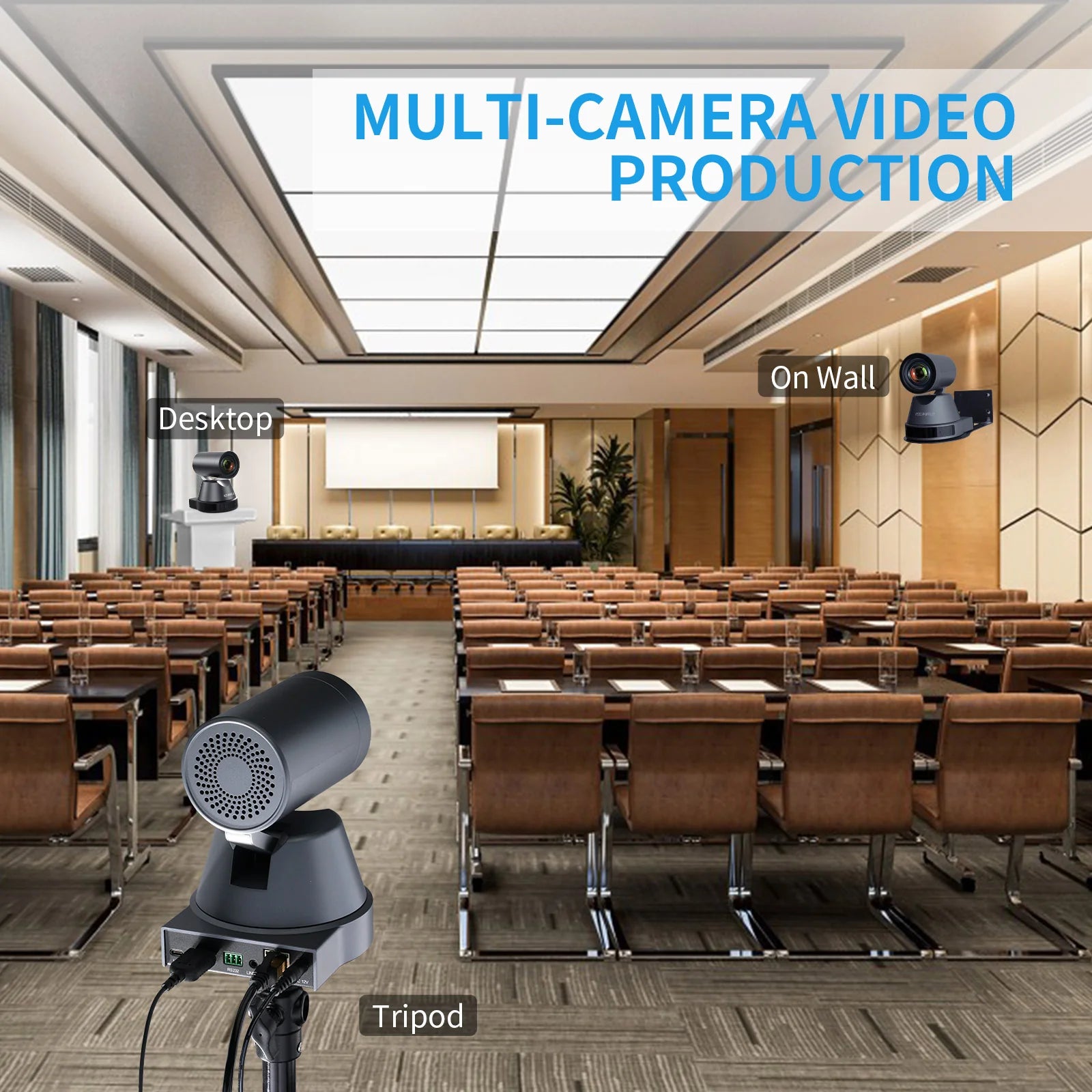

The camera can be installed on a wall/a tripod/desktop to capture close-up shots for your every Live Video Production.
4K12X with a wall mount bracket, you can mount the camera on the wall to get a different shooting camera position.
Features:
* 8.51M megapixel high-quality SONY CMOS sensor
* Up to 4K@30fps, presenting ultra-clear and vivid images
* 12X optical zoom lens and 80.5° wide angle lens
* Simultaneous HDMI, USB3.0, IP Streaming video out, easily for professional video production
* PoE(Power over Ethernet) supported
* Auto focus, smart frame capture everyone
* Supports H.265/H.264 encoding, which makes motion video fluent and clear even with less than ideal bandwidth conditions.
* Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
* High speed and silent pan/tilt, capture all the actions
* Multiple control protocols and network protocols
* Support real-time AI tracking and zone tracking
* Ideal for online education, live streaming, video conferencing, Telemedicine, etc.
Specifications
Camera Parameters
| Model | 4K12X |
| Sensor | 1/2.8 inch high-quality CMOS sensor |
| Effective Pixels | 8.51 megapixel, 16：9 |
| View Angle | H：7.6°（N）～80.5°（W） |
| Iris | F1.8 ～ F3.6 |
| Digital Zoom | 15X |
| Optical Zoom | 12X |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| DNR | 2D & 3D |
| White Balance | Auto/Manual/One-push/Specified Color Temperature |
| Focus | Auto/Manual/One-push |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Iris Mode | F1.8 ～ F11, CLOSE |
| Shutter Speed | 1/25～1/20000 |
| BLC | On/Off |
| Dynamic Range | Off, 1 ～ 8 |
| Video Adjustment | Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve |
| SNR | >50dB |
Input/output Interface
| Interface | HDMI, LAN(POE), USB3.0, A-IN, RS232-IN, DC12V Power Supply |
| Video Output | HDMI, USB3.0, LAN(support PoE) |
| Video Compression Format | LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 |
| Audio Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC |
| LAN Interface | 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output |
| Control Interface | RS232-IN |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| Serial Port Communication Protocols | VISCA/Pelco-D/Pelco-P |
| USB Communication Protocols | UVC（Video Communication Protocol）, UAC（Audio Communication Protocol） |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset |
| Power Supply | HEC3800 Power Socket(DC12V) |
PTZ Parameters
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+30° |
| Pan Control Speed | 0.1 ～45°/sec |
| Tilt Control Speed | 0.1～30°/sec |
| Preset Speed | Pan: 45°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets(10 via remote control) |
Video Signal
| HDMI | 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50 |
| USB Main Stream | YUY2/NV12:1920×1080@10/5fps;1280×720@25/20/15/10/5fps;1024×576/800×600/800×448/640×360/ 480×270/320×180@30/25/20/15/10/5fps; |
| USB Main Stream | MJPG/H264:3840x2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
| USB Sub-stream | YUY2/NV12:1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps |
| USB Sub-stream | MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Other Parameters
| Input Voltage | 12V/1A |
| Input Current | <1A |
| Power Consumption | ≤12W |
| Stored Temperature | -10℃～+70℃ |
| Storage Humidity | 20%～95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension (W*H*D) | 130.46x118.44x165.34mm |
| Unit Weight | 1.025kg |
| Outer Carton QTY | 4pcs |
| Outer Carton Size | 520x365x390mm |
| Gross Weight | 11.944kgs |

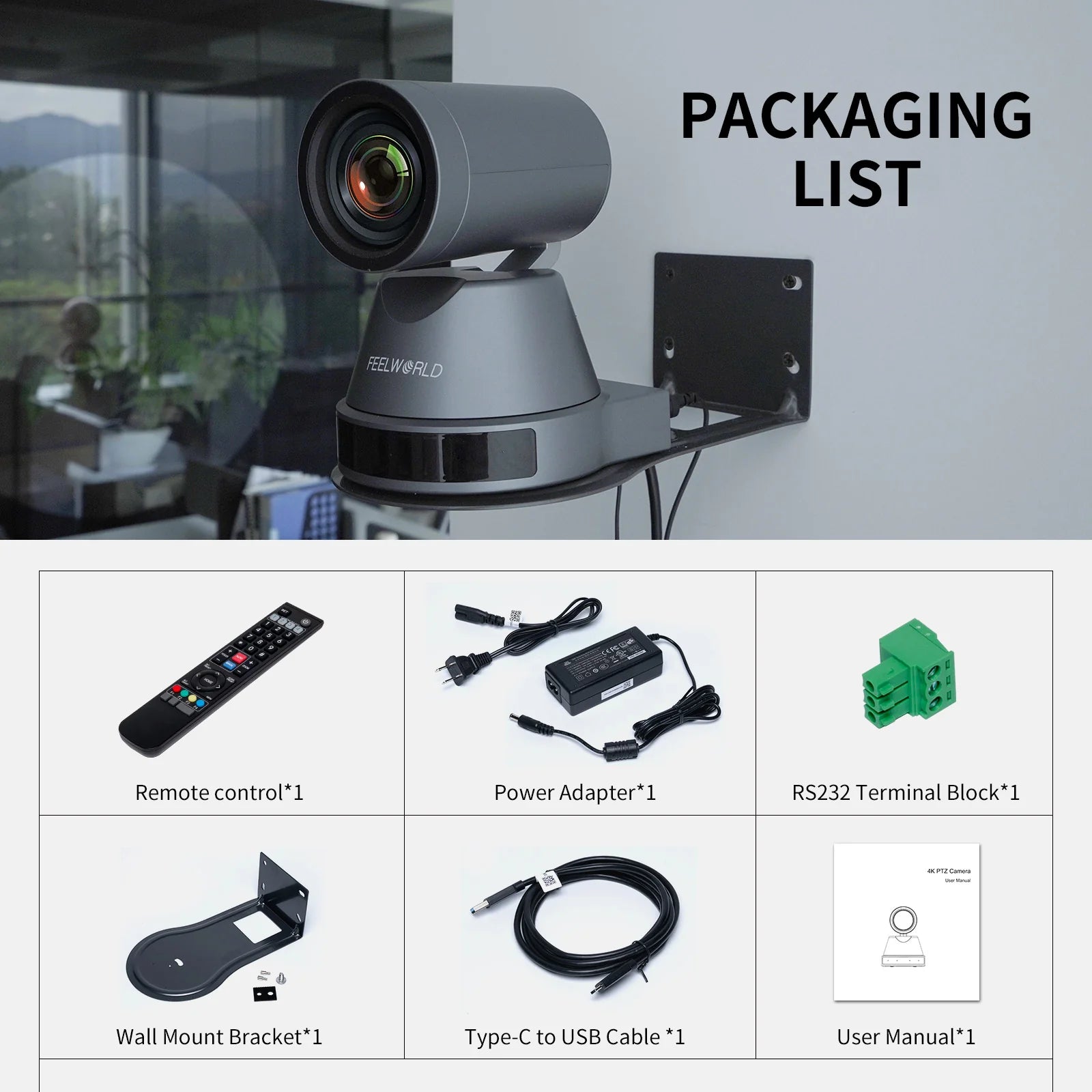

In The Box
