FEELWORLD POE20X Simultaneous USB/3G-SDI/HDMI/IP Live Streaming PTZ Camera with 20X Optical Zoom 1080P@60fps PoE Supported
FEELWORLD POE20X Simultaneous USB/3G-SDI/HDMI/IP Live Streaming PTZ Camera with 20X Optical Zoom 1080P@60fps PoE Supported
Regular price
$599.99 USD
Regular price
Sale price
$599.99 USD
200 in stock
Quantity
Couldn't load pickup availability
Shipping
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Overview
Simultaneously stream your content to several platforms using the SDI/HDMI PoE PTZ Camera with 20x Optical Zoom. Ideal for video conferencing, education, live events, and houses of worship, this camera features a 1/2.9" CMOS sensor, both HDMI and 3G-SDI outputs, and audio input. PoE (Power-over-Ethernet) is supported over a single cable along with video and control, saving both the cost and time of using multiple cables.
This camera uses bandwidth-saving H.264 and H.265 codecs and offers low-light correction and autofocus functions. You can save 10 presets using the included remote control or up to 255 presets via the WEBSERVER software.
This camera uses bandwidth-saving H.264 and H.265 codecs and offers low-light correction and autofocus functions. You can save 10 presets using the included remote control or up to 255 presets via the WEBSERVER software.
Key Features
- 1/2.9" 2.07MP CMOS Sensor
- Simultaneous 3G-SDI, HDMI & LAN Out
- Supports up to 1080p60 Video
- 20x Optical Zoom, 3.3 to 54.7° FOV
- ±170° Pan, -30 to 90° Tilt Range
- PoE Support
- Embedded Audio & 3.5mm Stereo Analog In
- MJPEG/H.264/H.265/NDI/NDI|HX Streaming
POE Professional Video Camera
The budget PTZ camera for live streaming
Are you worried about cumbersome network wiring? Are you still spending a high cost to purchase equipment for the power supply? FEELWORLD POE20X helps you solve all your worries. It is a full HD PTZ camera with 20x optical zoom, simultaneous 3G-SDI, HDMI, and LAN video output interfaces. Support PoE, which allows you to easily transmit all the information and power to the device using only one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting, and churches.
The budget PTZ camera for live streaming
Are you worried about cumbersome network wiring? Are you still spending a high cost to purchase equipment for the power supply? FEELWORLD POE20X helps you solve all your worries. It is a full HD PTZ camera with 20x optical zoom, simultaneous 3G-SDI, HDMI, and LAN video output interfaces. Support PoE, which allows you to easily transmit all the information and power to the device using only one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting, and churches.

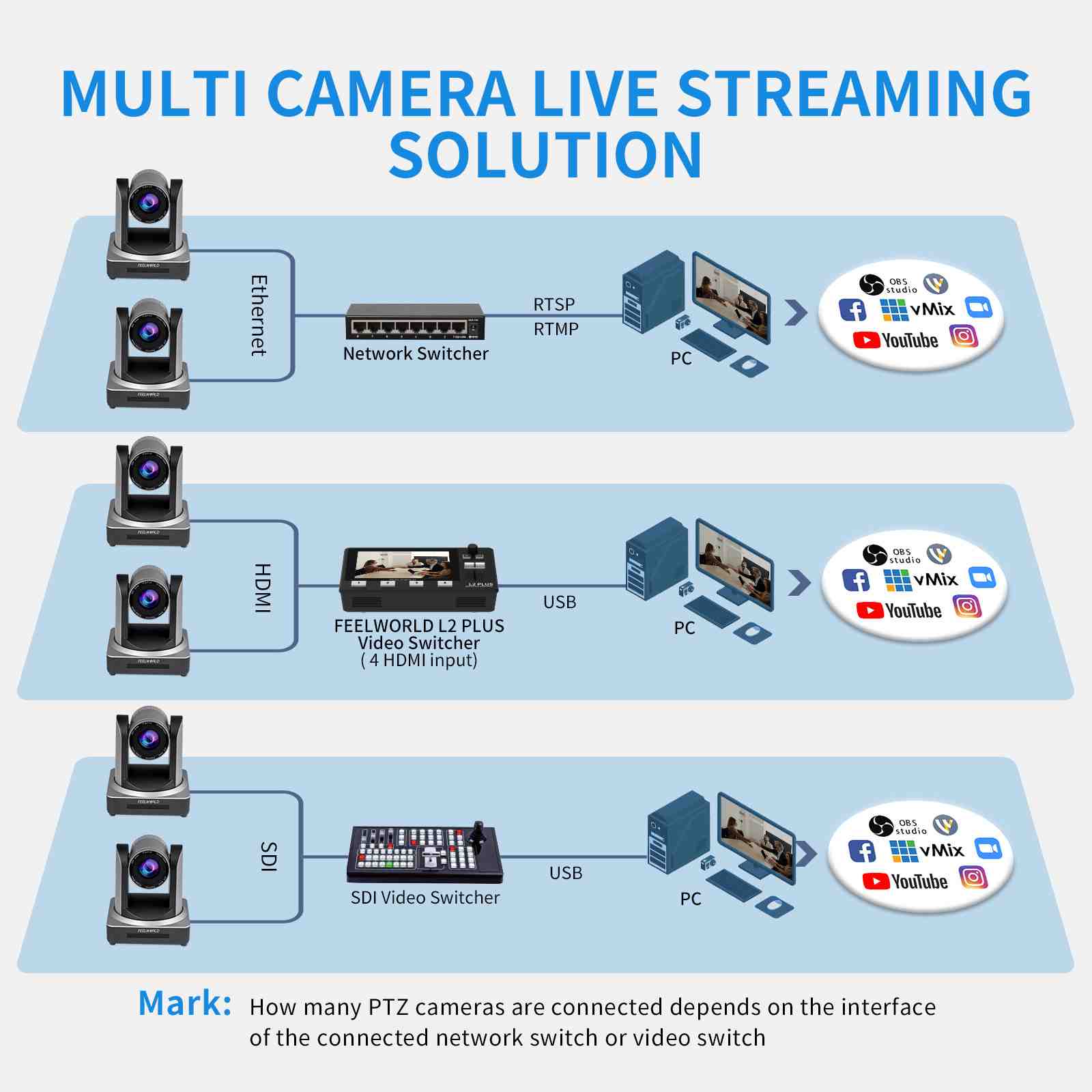

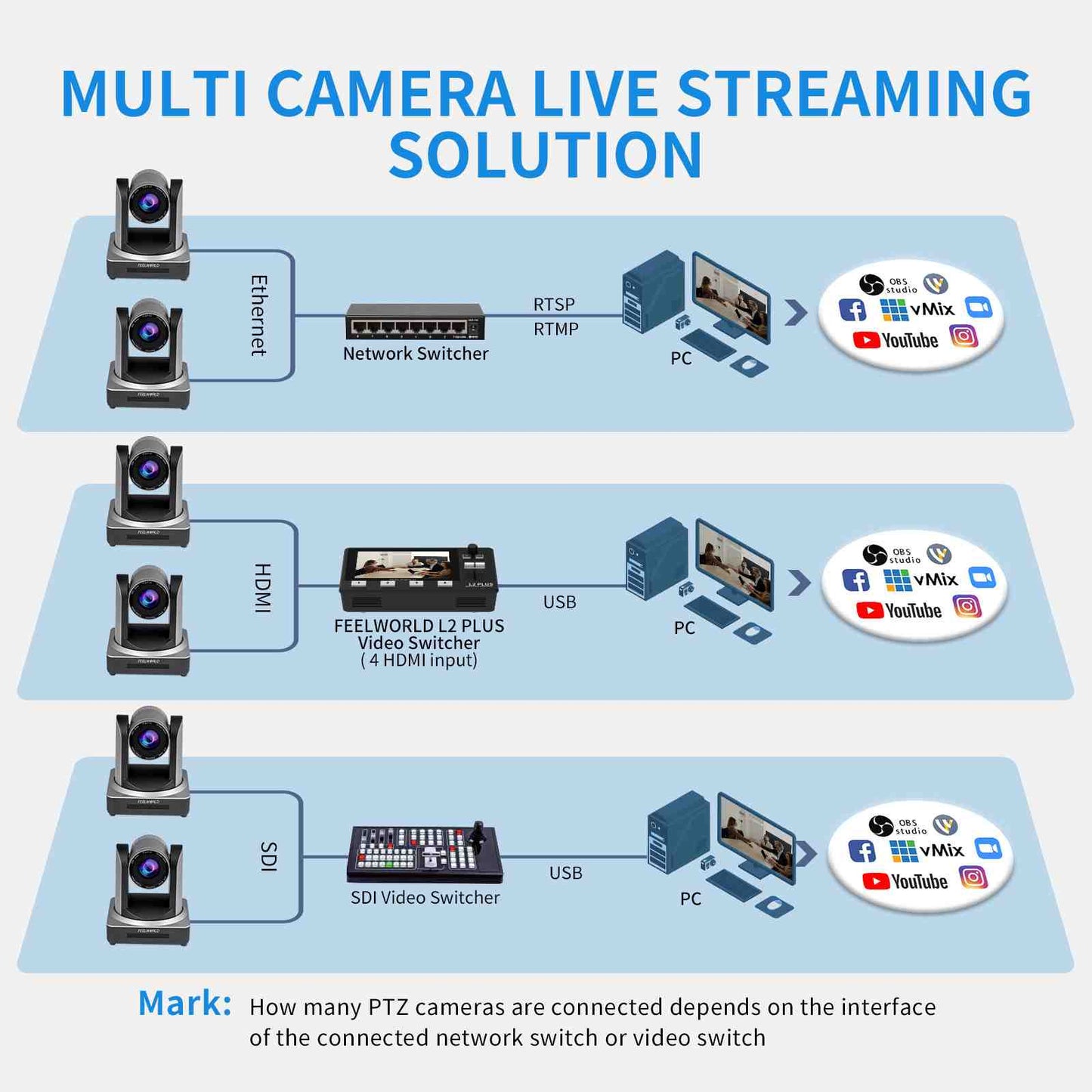

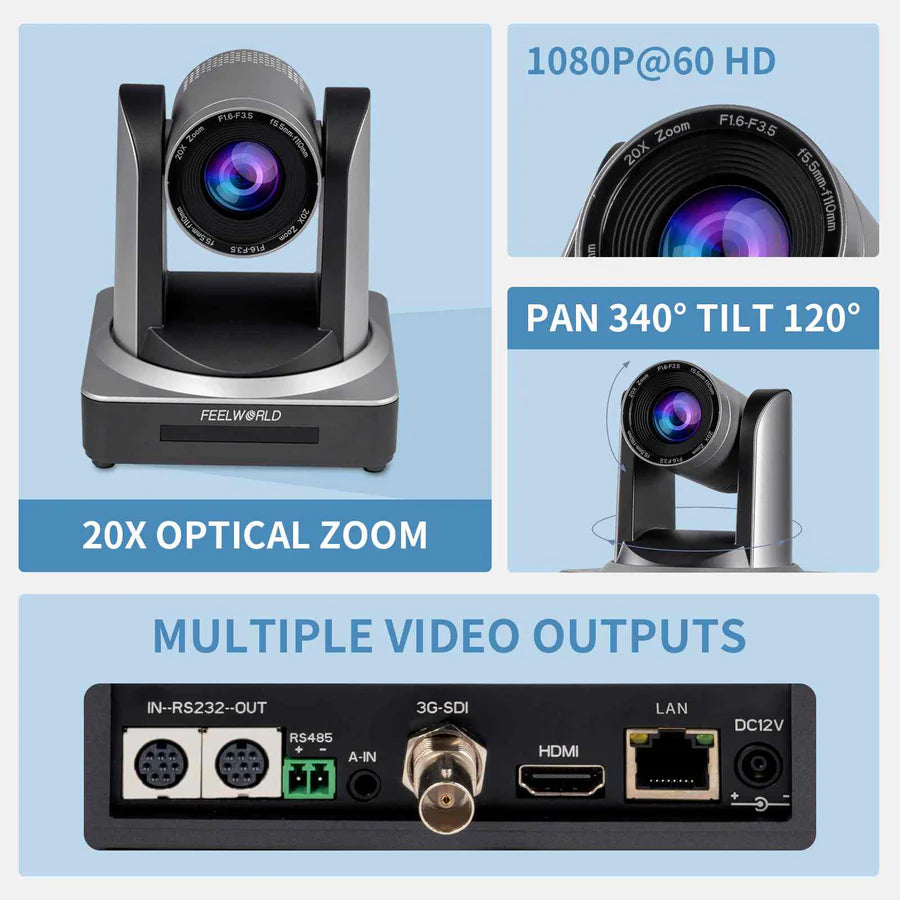

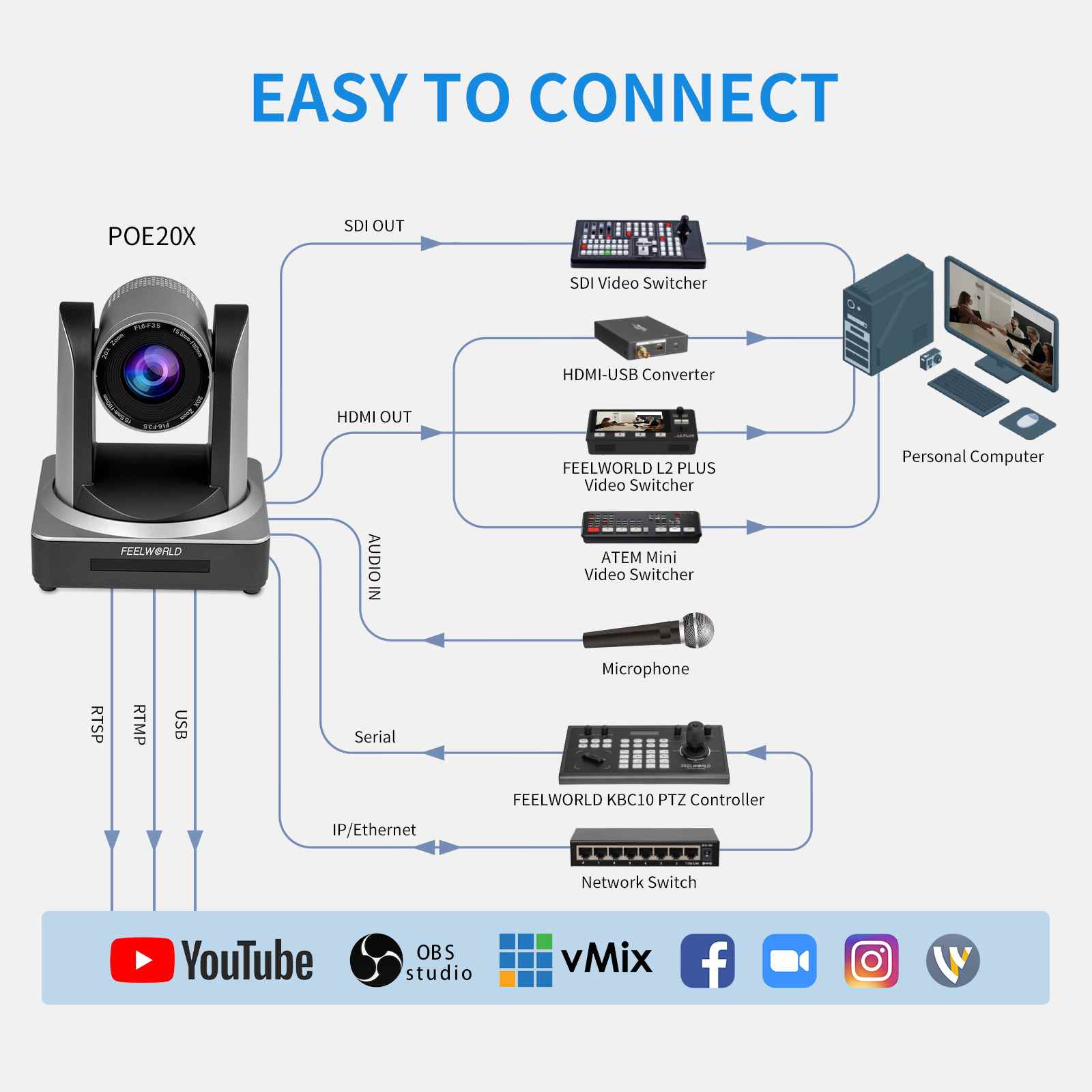

Multiple Video Output
Stream to Your Favorite Platforms
Simultaneous HDMI, 3G-SDI, and IP streaming video output and multiple network protocols allow POEX20 to easily live streaming to your favorite platforms, such as YouTube, Facebook, Twitch, etc.
Note: The 3G‐SDI is available for 100m transmission at 1080p60 format.
Stream to Your Favorite Platforms
Simultaneous HDMI, 3G-SDI, and IP streaming video output and multiple network protocols allow POEX20 to easily live streaming to your favorite platforms, such as YouTube, Facebook, Twitch, etc.
Note: The 3G‐SDI is available for 100m transmission at 1080p60 format.
PoE Support
No more pesky wires
The PTZ camera supports PoE (Power over Ethernet), and just one cable can be used for power, video/audio streaming, and control.
No more pesky wires
The PTZ camera supports PoE (Power over Ethernet), and just one cable can be used for power, video/audio streaming, and control.
1080P@60 HD Image Quality + 20X Optical Zoom
Realize a Life-like Video Experience
The high resolution 1080P@60fps, outstanding color reproduction, and 20X zoom deliver premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away.
Realize a Life-like Video Experience
The high resolution 1080P@60fps, outstanding color reproduction, and 20X zoom deliver premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away.
Low Light Correction
The low-light performance technology can automatically adjust the brightness level. Every moment can be seen clearly, even in dark or backlit conditions. Outstanding performance and video quality make live recording extremely convenient.
The low-light performance technology can automatically adjust the brightness level. Every moment can be seen clearly, even in dark or backlit conditions. Outstanding performance and video quality make live recording extremely convenient.
H.264&H.265 Encoding, More Smooth and Clear Video motion
IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.
IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.
Auto Focus, Smart Frame Capture Everyone
Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking.
Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking.
Accurate, Smooth, and Silent PTZ Movement
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).
Low Noise and High SNR
A super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
A super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Up to 255 Preset Positions
The secret to more productive meetings
10 preset positions by IR remote controller, that can save pan, tilt, and zoom settings, and smoothly transition between them at the touch of a button. Up to 255 preset positions via WEBSEVER.
The secret to more productive meetings
10 preset positions by IR remote controller, that can save pan, tilt, and zoom settings, and smoothly transition between them at the touch of a button. Up to 255 preset positions via WEBSEVER.

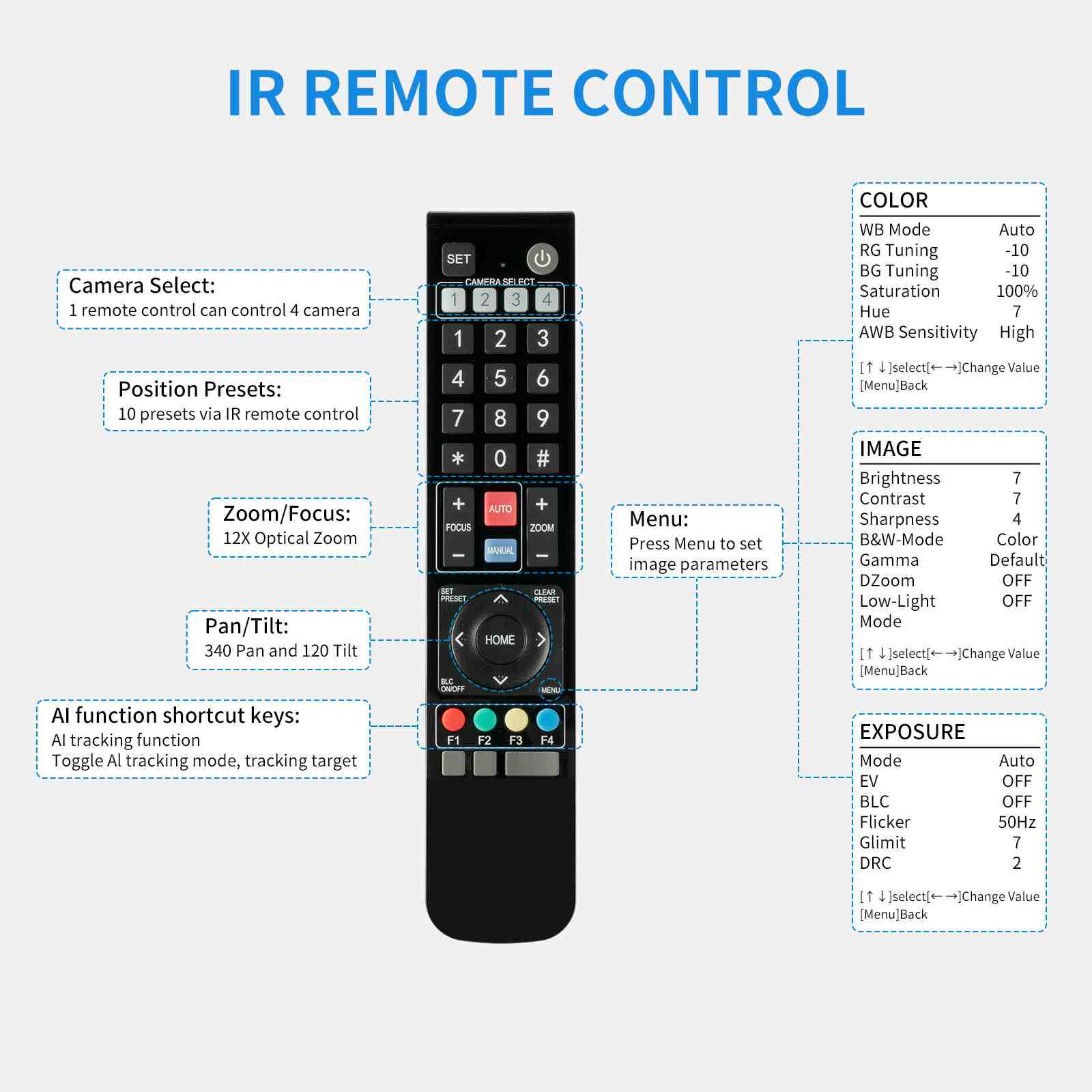

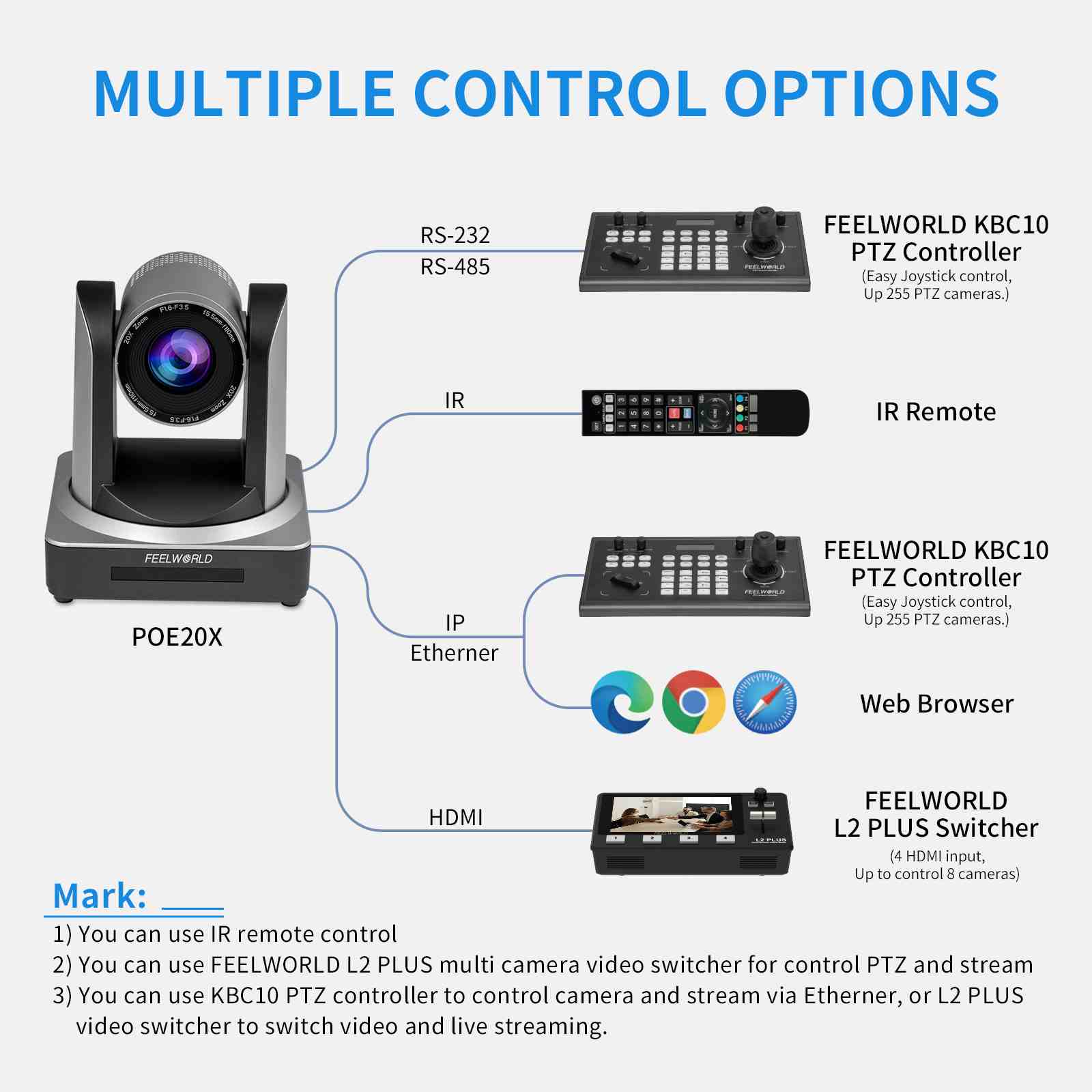

Multiple Ways to Control Your Camera
Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.
Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.

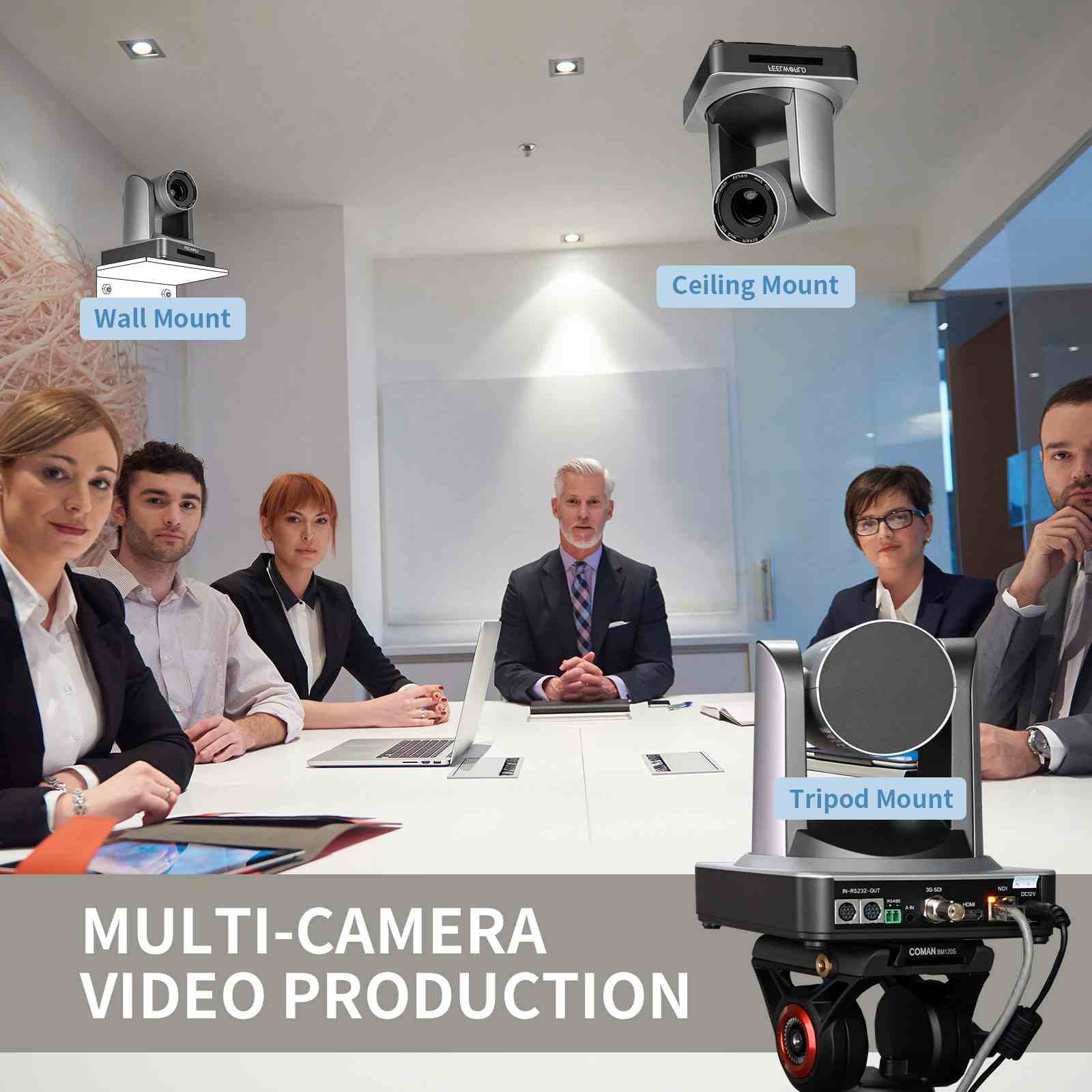

Multiple Mounting Options
POE20X can be installed on any wall/ceiling/tripod to capture close-up shots for your every Live Video Production.
Note: Bracket not included
POE20X can be installed on any wall/ceiling/tripod to capture close-up shots for your every Live Video Production.
Note: Bracket not included
Multiple Application
POE20X is widely used for church streaming, video conference, sports events, online education, ect.
Specifications
Camera Parameters
| Model | POE20X |
| Sensor | 1/2.8 inch high-quality CMOS sensor |
| Effective Pixels | 2.07 megapixel, 16：9 |
| View Angle | 3.45°～ 60.04° |
| Focus Length | f＝5.05～91.49mm |
| AV | F1.8 ～ F2.9 |
| Optical Zoom | 20X |
| Minimum Illumination | 0.5 lux （F1.8, AGC ON） |
| DNR | 2D & 3D |
| White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto / Manual/ One Push Focus |
| Exposure | Auto / Manual |
| BLC | On/Off |
| WDR | OFF/Dynamic level adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
Input/output Interface
| Video Interface | USB, HDMI, 3G-SDI, LAN(support PoE) |
| Image Code Stream | Double stream outputs simultaneously |
| Video Compression Format | H.264, H.265 |
| Audio Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC、MP3、G.711A |
| Control Interface | RS232 (IN/OUT), RS485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| HD IP Interface | 100M IP port（10/100BASE-TX) |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VSICA |
| Power Interface | HEC3800 outlet (DC12V) |
PTZ Parameters
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+90° |
| Pan Control Speed | 0.1 ～60°/sec |
| Tilt Control Speed | 0.1～30°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets via remote control) |
Video Format
| HDMI/SDI Video Out | 1080P60/50/30/25/59.94/29.97；1080i60/50/59.94；720P60/50/59.94 |
| USB 2.0 Video Output | 320x240|352x288|640x360|640x480|704x576|704x480|720x576|800x448|800x600|960x540|1024x576|1024x768|1280x720|1920x1080P30/25/20/15/10/5 |
Other Parameters
| Input Voltage | 12V/1.5A |
| Power Consumption | Maximum: 12W |
| Stored Temperature | -40℃～+70℃ |
| Storage Humidity | 20%～90% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension (W*H*D) | 150mm×150mm×167.5mm |
| Unit Weight | 1.4kg |
| Outer Carton QTY | 4pcs |
| Outer Carton Size | 52*29*50cm |
| Gross Weight | 9.85kgs |

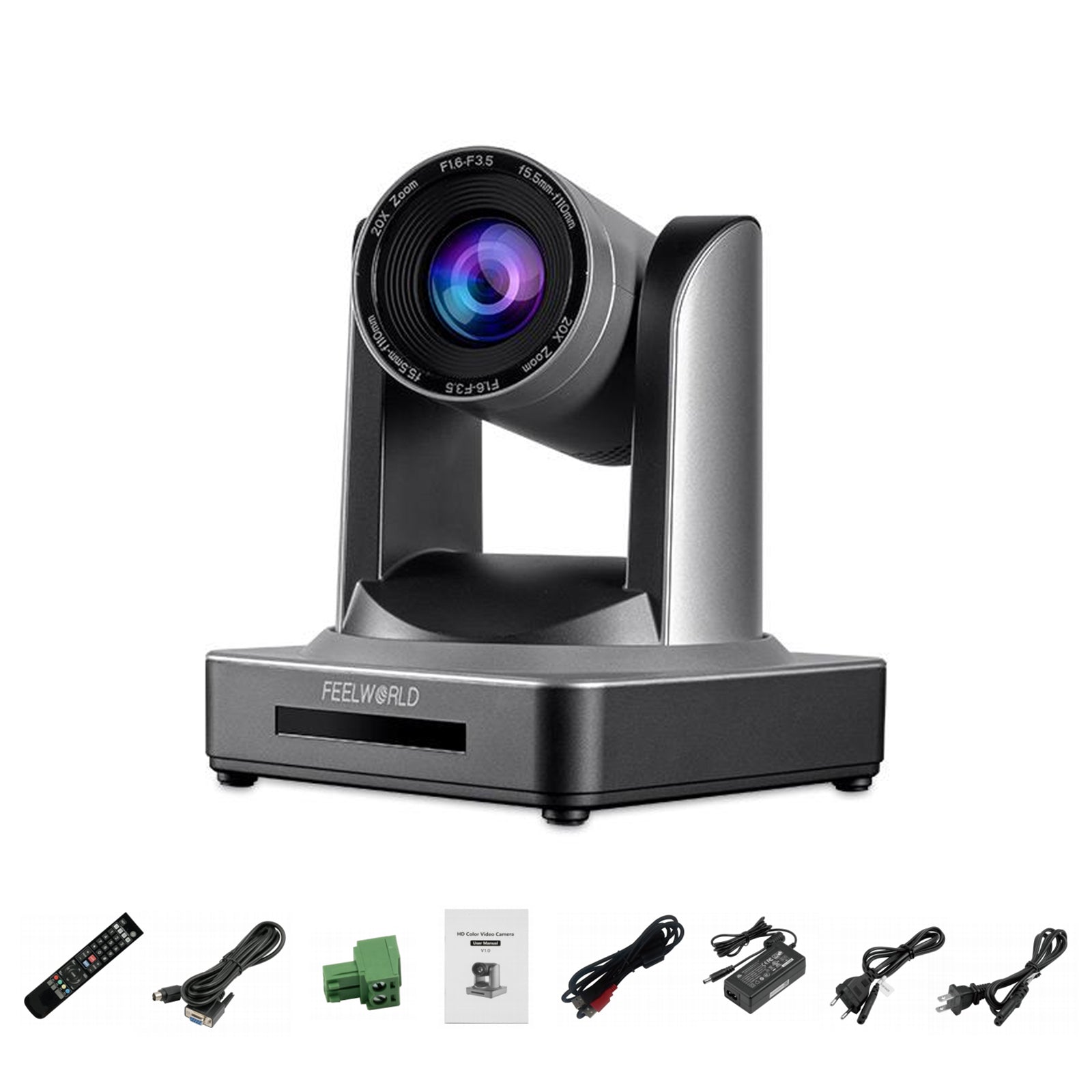

In The Box
